Hardware description

Description

The 1643 AM and 1643 AMS units are compact and cost-effective STM-1 and STM-4 (AM only) multiplexer designed to be installed at the customer’s premises for fiber-to-the business applications or in street cabinets for fiber-to-the curb applications. The space-efficient design allows wall, rack or desk mounting within controlled or uncontrolled environment locations according to ETSI 300 019-1-3 Class 3.2.

The 1643 AM and 1643 AMS units can also act as an SHDSL Line Termination Unit (LTU) when equipped with the SHDSL option card. Several third party Network Termination Units (NTUs) can be connected to the LTU.

Powering

The 1643 AM and 1643 AMS units can be ordered either as DC or as AC powered versions. The power ranges are given in chapter 3.

Both units can also be AC powered by using a DC powered unit in conjunction with an optional AC/DC converter (see figure below).

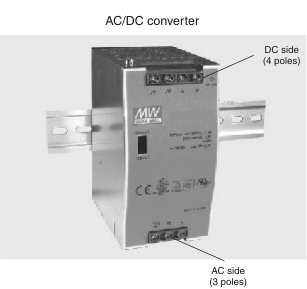

Figure 2-1: AC/DC converter

Table 2-1: Technical specifications (AC/DC converter)

Item	DR-120-48 converter	DR-75-48 converter
AC input	88 ... 132 VAC or 176 ... 264 VAC (selectable by switch)	85 ... 264 VAC
DC output	48V, 0 ... 2.5A	48V, 0 ... 1.6A
Temperature range	–10°C ... +60°C	–10°C ... +60°C
Dimensions (HxWxD)	125.2 mm x 65.5 mm x 100 mm	125.2 mm x 55.5 mm x 100 mm

Remote Power Supply

The1643 AM and 1643 AMS units, as SHDSL LTUs, are connected to third-party NTUs and SHDSL Regenerator Units (SRUs). To enable the remote powering of an SRU, an external power box called the Fernspeisemodul (FSP) box or the External SHDSL Power Supply (ESPS) box is delivered alongwith the unit.

This external power supply box is managed through the MDI/MDO interfaces located on the NE. The power box is monitored by manually setting the DIP switch on the box to “Managed” and setting the NE to the managed mode. There are also individual DIP switches to monitor each port on the box. The management system displays the status, “FSP on/off”, of the DIP switches per port.

The MDI/MDO interfaces on the power box can be used by the1643 AM and 1643 AMS units as the MDI/MDO interfaces for external signalling.

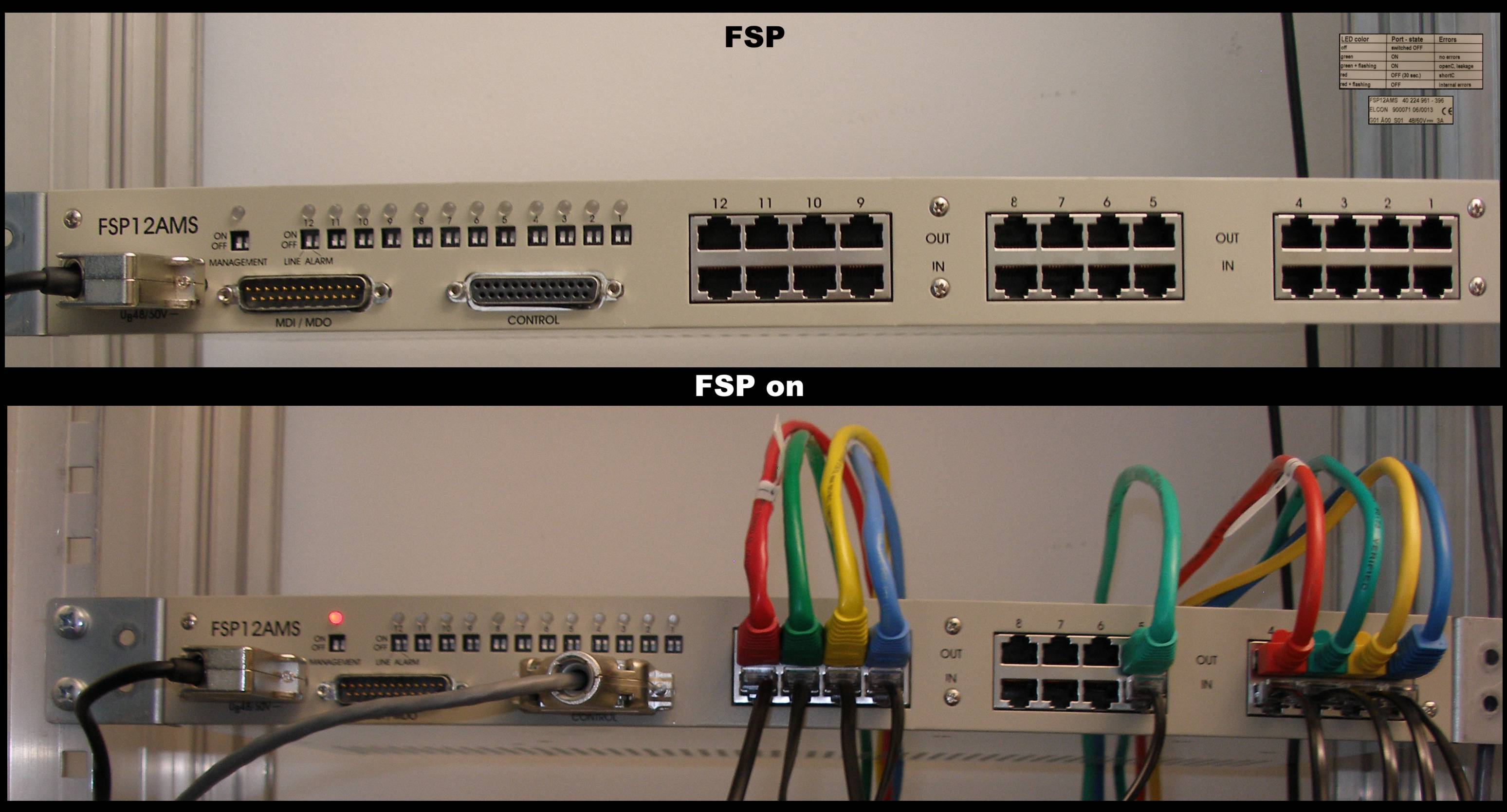

Figure 2-2: Remote Power Supply box

Table 2-2: Technical specifications (FSP12AMS)

Item	FSP12AMS
Operating voltage range	40.5 ... 75.0 VDC
Operating temperature range	-5°C ... +45°C
Relative humidity	10 ... 93 % (non condensing)
Power consumption	< 125 W
Weight	3.4 kg
Dimensions (HxWxD)	45 mm x 445 mm x 235 mm

1643 AM main board assembly

The 1643 AM AM main board assembly contains the following:

One or two STM-1 or two STM-4 optical line interface pairs (transmit/receive). The optical interfaces are of type SC connectors. The optical adaptors, FC and ST, are also supplied with the equipment.
The optical interfaces with a choice between STM-1 short haul (two variants available) or long haul or STM-4 short haul or long haul.
Sixteen 2048 kbit/s electrical tributary interfaces (E1) with RJ45 connectors, suitable for symmetrical twisted pair cables with an impedance of 120 Ω or for coaxial cables with an impedance of 75 Ω.
An F-interface for the ITM-CIT with an RJ45 connector.
A Q-LAN interface for the OMS with an RJ45 connector.
A timing output for 2 MHz synchronization with an RJ45 connector, suitable for symmetrical twisted pair cables with an impedance of 120 Ω or for coaxial cables with an impedance of 75 Ω.
DC dual power or AC single power connector
Four Miscellaneous Discrete Input (MDI) ports
Four Miscellaneous Discrete Output (MDO) ports
Two LEDs (red and green) to indicate the status of the unit.

1643 AMS main board assembly

The 1643 AMS AMS main board assembly contains the following:

None, one or two STM-1 optical/electrical line interface pairs (transmit/receive). More information is given in section Pluggable SFPs.
1643 AMS E1 version (CC109445643, CC109528018, CC109819201, CC109819193):

Sixteen 2048 kbit/s electrical tributary interfaces (E1) with RJ45 connectors, suitable for symmetrical twisted pair cables with an impedance of 120 Ω or for coaxial cables with an impedance of 75 Ω.
1643 AMS DS1 version (CC109445650):

Sixteen 1544 kbit/s electrical tributary interfaces (DS1) with RJ45 connectors, suitable for symmetrical twisted pair cables with an impedance of 100 Ω.
An F-interface for the ITM-CIT with an RJ45 connector.
A Q-LAN interface for the OMS with an RJ45 connector.
A timing output for 2 MHz synchronization with an RJ45 connector, suitable for symmetrical twisted pair cables with an impedance of 120 Ω or for coaxial cables with an impedance of 75 Ω.
DC dual power or AC single power connector
Four Miscellaneous Discrete Input (MDI) ports
Four Miscellaneous Discrete Output (MDO) ports
Two 64 kbit/s engineering orderwire
Two LEDs (red and green) to indicate the status of the unit.

NOTE: It is not mandatory to have an LBO (Lightguide Build-Out) between the optical interfaces of the former 1643 AM unit and the connected optical cable. However, in the case of measurements with optical loops and/or connecting power meters an LBO (15 dB) can be required. An LBO can also be necessary to ensure the correct input power (see chapter 8, section Connecting the fiber cables).

Pluggable SFPs

The optical/electrical line interfaces of the1643 AMS unit can be equipped with various SFPs (Small Form-Factor Pluggable). Note that the GE SFPs are only applicable to the X5IP option card.

The following SFPs are available:

STM-1, S1.1 (CC109469809), short haul, 1300 nm, 15 km
STM-1, L1.1 (CC109469825), long haul, 1300 nm, 40 km
STM-1, L1.2 (CC109469817), long haul, 1500 nm, 80 km
STM-1, 155E (CC109543561), electrical
STM-1/STM-4, SWF 1-1, (CC109559500), 1480/1500 nm, single fiber bidirectional
STM-1/STM-4, SWF 1-2, (CC109559492), 1490/1310 nm, single fiber bidirectional.
GE SX (CC109526483), 850 nm, multi-mode 550 m (X5IP option card only)
GE LX (CC109526491), 1310 nm, single-mode 5–10 km (X5IP option card only)
GE ZX (CC109534347), 1550 nm, single-mode 80 km (X5IP option card only).

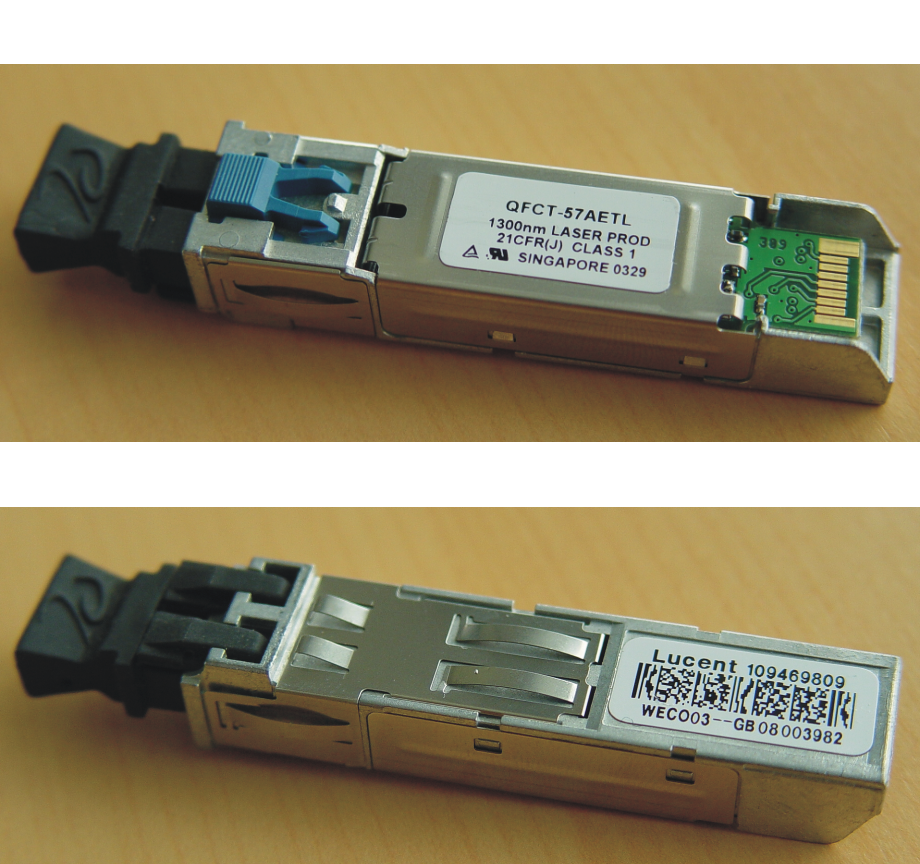

Figure 2-3: Optical SFP module

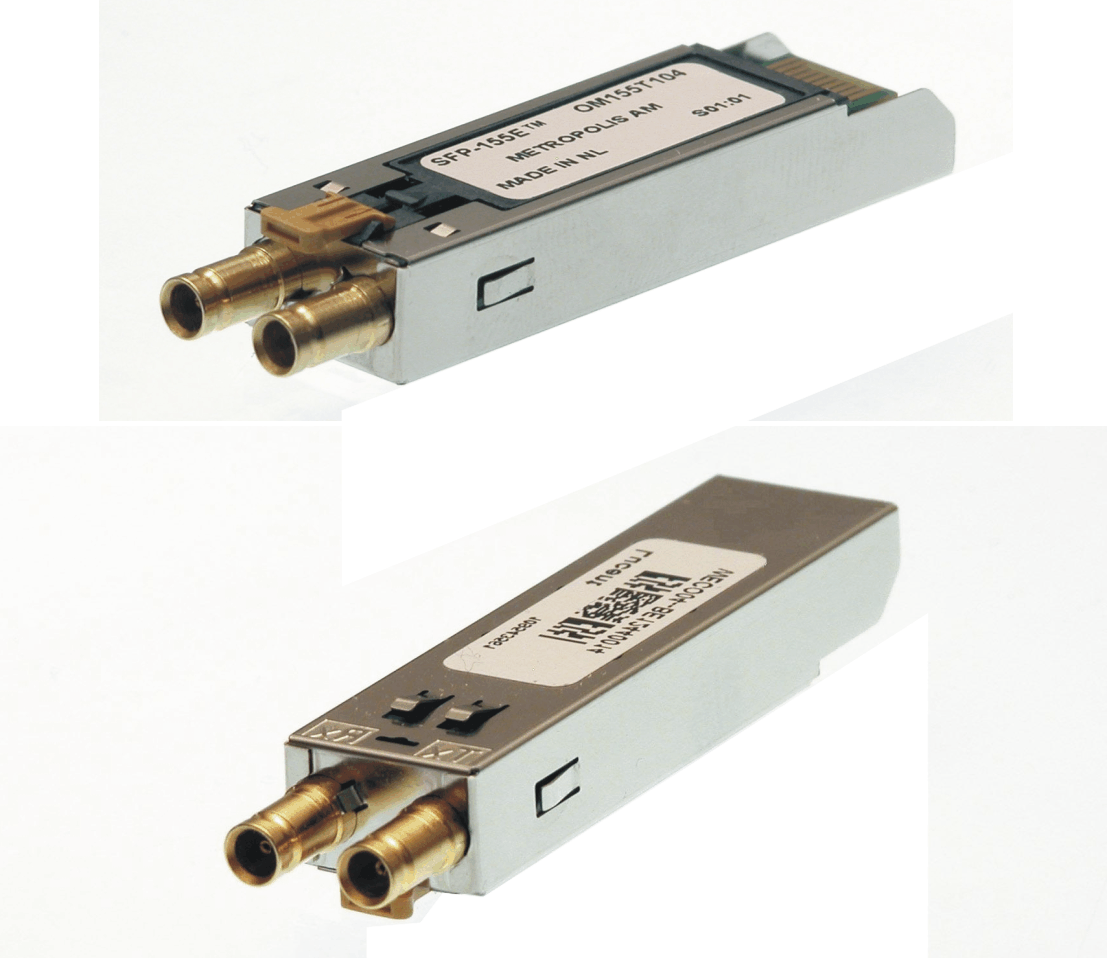

Figure 2-4: SFP155E module

NOTES:

Please note that Alcatel-Lucent warranty is contingent upon the use of Alcatel-Lucent specified SFPs for the 1643 AMS. Use of other SFPs is not approved by Alcatel-Lucent and is fully at the customer's own risk. Any warranty obligation of Alcatel-Lucent is extinguished when non-Alcatel-Lucent specified SFPs are used.
It is not mandatory to have an LBO (Lightguide Build-Out) between the SFP and the connected optical cable. However, in the case of measurements with optical loops and/or connecting power meters an LBO (15 dB) can be required. An LBO can also be necessary to ensure the correct input power (see chapter 8, section Connecting the fiber cables).
If no SFPs are used, the optical/electrical line interfaces must be equipped with “Dust Plugs” (LPN: 700159437) to prevent dust and EMC emission. The dust plugs are part of the1643 AMS delivery.

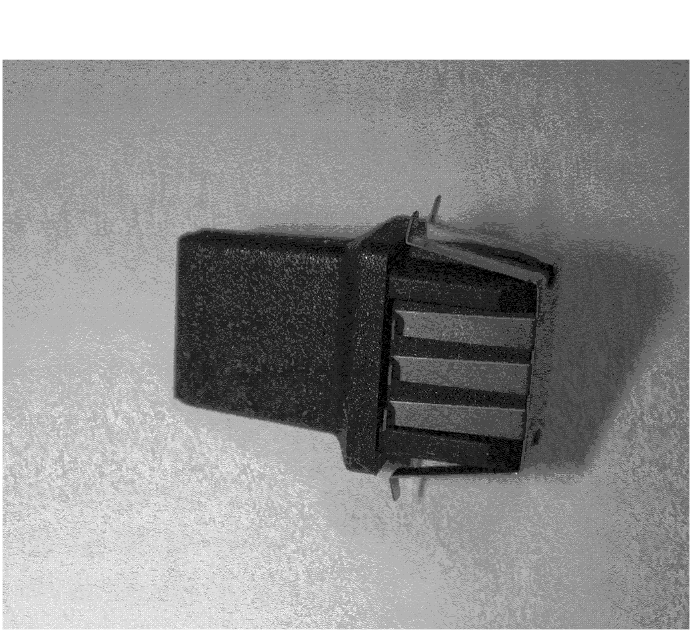

Figure 2-5: Dust plug

Upgrade with option cards

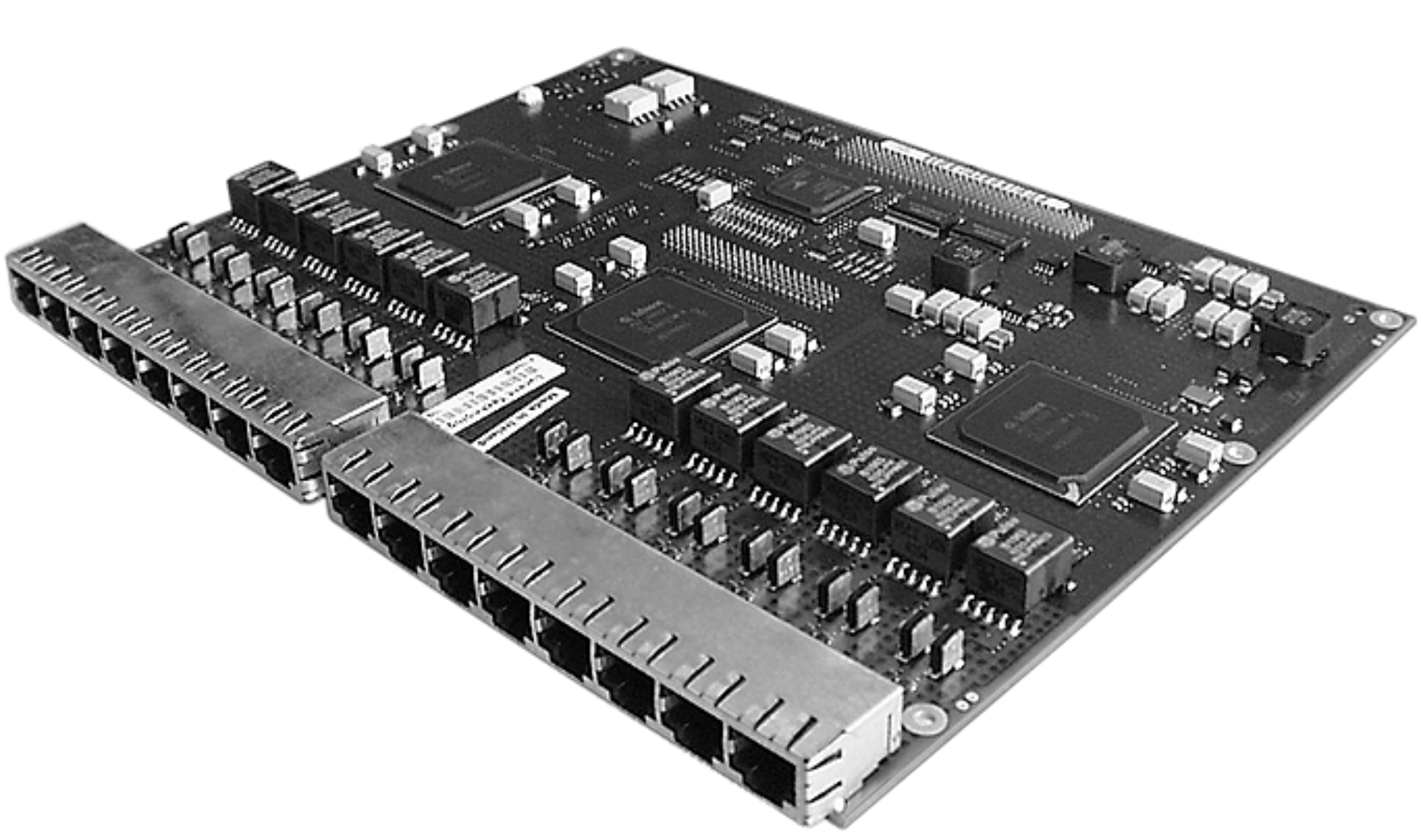

The main board can be upgraded with option cards. The table below lists all available option cards.

Table 2-3: Available option cards

Option card	Function	Comcode
X16E1-V3	Provides sixteen 2048 kbit/s signals (dual impedance, 75/120 Ω) AM: For a total combination of thirty-two E1s AMS: For a total combination of sixteen DS1s and sixteen E1s (AMS DS1 mainboard) or thirty-two E1s (AMS E1 mainboard)	109011528
X16DS1	Provides sixteen 1544 kbit/s signals AM: For a total combination of sixteen E1s and sixteen DS1s AMS: For a total combination of sixteen E1s and sixteen DS1s (AMS E1 mainboard) or thirty-two DS1s (AMS DS1 mainboard)	108756081
X12SHDSL-V2	Provides twelve SHDSL interfaces with R6.1 features For obtaining an LTU NOTE: It cannot be used for a AC powered AM unit.	109579912
X12SHDSL-V3	Provides twelve SHDSL interfaces NOTE: It can only be used for AMS unit.	109782565
X2E3-V2	Provides two 34368 kbit/s signals AM: For a combination of sixteen E1s and two E3s AMS: For a combination of sixteen E1s and two E3s (AMS E1 mainboard) or sixteen DS1s and two E3s (AMS DS1 mainboard)	108756107
X2DS3-V2	Provides two 44736 kbit/s signals AM: For a combination of sixteen E1s and two DS3s AMS: For a combination of sixteen E1s and two DS3s (AMS E1 mainboard) or sixteen DS1s and two DS3s (AMS DS1 mainboard)	108756099
X4IP-V2	Provides four Ethernet 10/100 Base-T channels AM: For a combination of sixteen E1s and four 10/100 Base-T channels. AMS: For a combination of sixteen E1s and four 10/100 Base-T channels (AMS E1 mainboard) or sixteen DS1s and four 10/100 Base-T channels (AMS DS1 mainboard). The TransLAN^TM (X4IP) option card supports flexible bandwith assignment per LAN port (10 Mbit/s or 100 Mbit/s). It also can be used as an integrated layer 2 switch for point to multi-point LAN bridging applications.	108865064
X5IP	Provides one 10/100/1000 Base-T channel, three Ethernet 10/100 Base-T channels and one Gigabit Ethernet optical SFP-based channel AM: For a combination of sixteen E1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel. AMS: For a combination of sixteen E1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel (AMS E1 mainboard) or sixteen DS1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel (AMS DS1 mainboard). The TransLAN^TM (X5IP) option card supports flexible bandwith assignment per LAN port (3 x 10/100 Mbit/s, 1 x 10/100/100 Mbit/s, and 1 x GbE SFP). It also can be used as an integrated layer 2 switch for point to multi-point LAN bridging applications.	280028093
X5IP-V2	Provides one 10/100/1000 Base-T channel, three Ethernet 10/100 Base-T channels and one Gigabit Ethernet optical SFP-based channel. AM: For a combination of sixteen E1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel AMS: For a combination of sixteen E1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel (AMS E1 mainboard) or sixteen DS1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel (AMS DS1 mainboard) The TransLAN^TM (X5IP) option card supports flexible band with assignment per LAN port (3 x 10/100 Mbit/s, 1 x 10/100/100 Mbit/s, and 1 x GbE SFP). It also can be used as an integrated layer 2 switch for point to multi-point LAN bridging applications.	109667931
X5IP-V3	Provides one 10/100/1000 Base-T channel, three Ethernet 10/100 Base-T channels and one Gigabit Ethernet optical SFP-based channel AMS: For a combination of sixteen E1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel (AMS E1 mainboard) or sixteen DS1s, three 10/100 Base-T channels, one 10/100/1000 Base-T channel, and one 10/100/1000 optical SFP-based channel (AMS DS1 mainboard). The TransLAN^TM (X5IP) option card supports flexible bandwith assignment per LAN port (3 x 10/100 Mbit/s, 1 x 10/100/100 Mbit/s, and 1 x GbE SFP). It also can be used as an integrated layer 2 switch for point to multi-point LAN bridging applications.	109819185 (ROHS6)
X8PL	Provides eight Ethernet interfaces in Private Line mode AM: For a combination of sixteen E1s and eight Ethernet channels in Private Line mode. AMS: For a combination of sixteen E1s and eight Ethernet channels in Private Line mode (AMS E1 mainboard) or sixteen DS1s and eight Ethernet channels in Private Line mode (AMS DS1 mainboard). The X8PL option card supports a flexible allocation of SDH bandwidth to LAN ports.	109480707
X2S11TRIB (only for 1643 AM with STM-4 interfaces)	Provides two STM-1 tributary interface pairs (optical) For a combination of sixteen E1s and two optical STM-1s	109018044

Notes:

1643 AMS ROHS6 main boards (109819201, 109819193) only can work with SHDSL option cards (109782565, 109579912) and X5IP option cards (109819185, 109667931,109599845).
ROHS6 X5IP-V3 option card only can work with 1643 AMS ROHS6 main boards (109819201, 109819193) and 1643 AMS ROHS5 main boards (109445643, 109528018).
The ROHS6 card is provisioned as ROHS5 card because of software compatibility. It can be identified by new comcode from the remote inventory.
