Power interfaces (AMS unit)

Before you begin

Before connecting any power cables be sure that all circuit breakers which are located in the external Battery Distribution and Fuse Bay (BDFB) and/or on a Power Distribution Panel (PDP) are in the OFF position.

Important! The power cables should be connected later (see section Switching on and testing supply voltage).

DC connector data

The DC connector is a 6-pin terminal block connector with screw down contacts.

Figure 4-4: DC connector (AMS unit)

Table 4-2: Pin assignment (power cables, AMS unit)

Point on Connector	Signal Name	Color
1	–24/–48/–60 VDC, feed A	blue
2	DC RTN (return), feed A	red
3	–24/–48/–60 VDC, feed B	blue
4	DC RTN (return), feed B	red
5	DC common return for feed A+B	red
6	GND (common ground)	yellow/green

AC connector data

The AC connector is a 3-pin IEC 60320 universal connector (input power range: 90 to 264 VAC).

Cable data

Preferably stranded 1.3 mm² wires with proper insulation should be used.

Cable connection

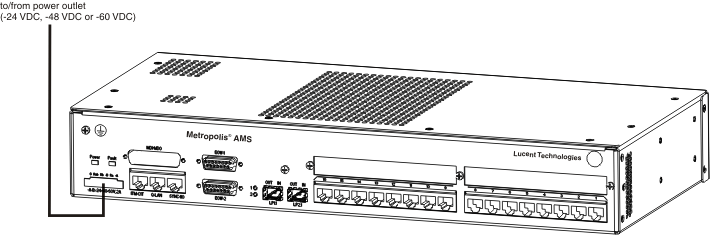

The power cables must be connected as shown in the figures below.

NOTE: If an AC/DC converter is used, the DC side needs to be connected to the 1643 AMS and the AC side needs to be connected to a power outlet.
