Cabling with AC/DC converter
Cabling
If an AC/DC converter is used, the DC side needs to be connected to the 1643 AM or 1643 AMS and the AC side needs to be connected to a power outlet.

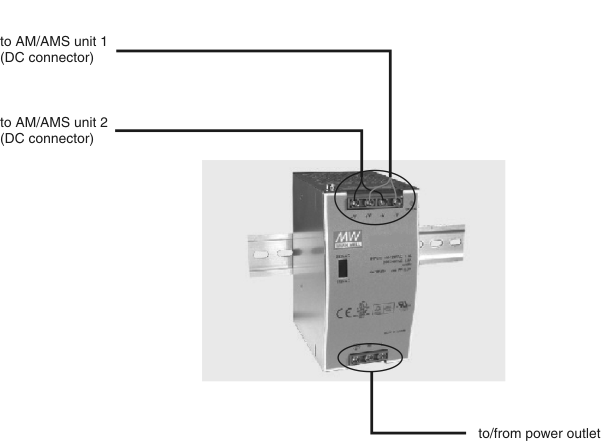

Figure 4-7: Cabling with AC/DC converter
DIN rail
One or two AC/DC converter(s) can be mounted to a DIN rail as shown in the figures below. If required, circuit breakers could also be installed. It is recommended to mount the DIN rail to the highest possible rack location (depends on the system configuration).

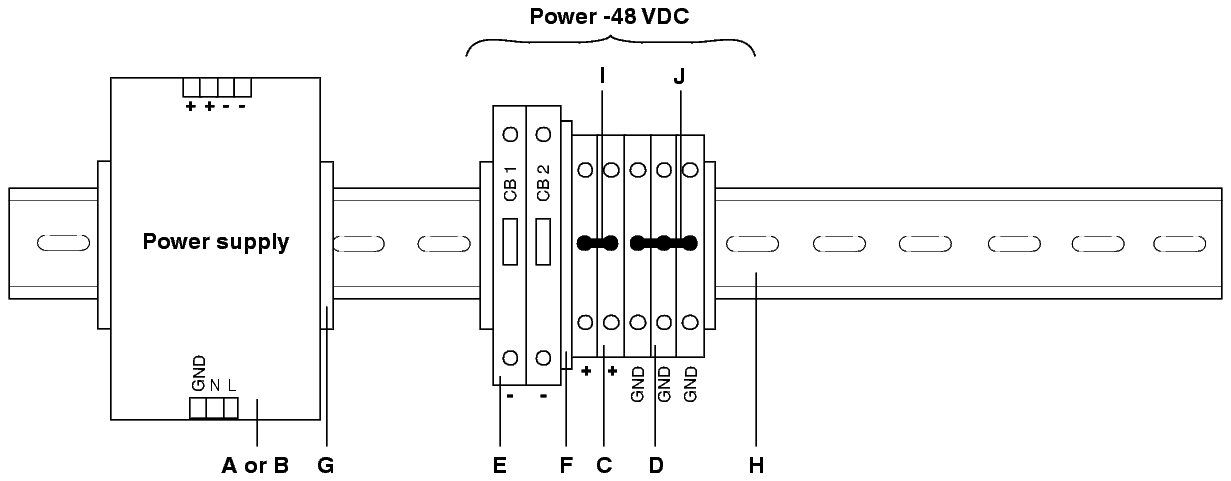

Figure 4-8: DIN rail with one power supply

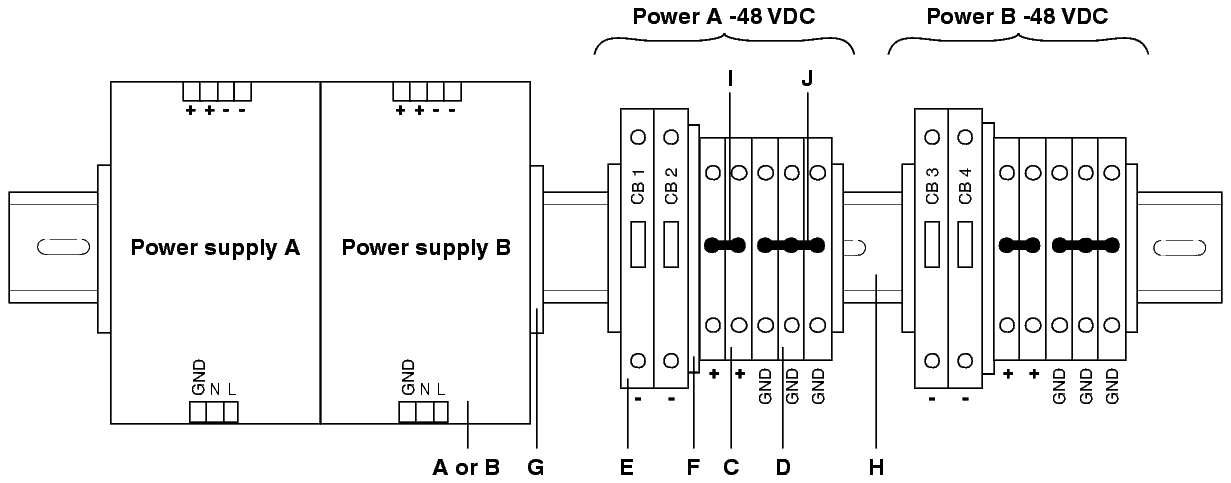

Figure 4-9: DIN rail with two power supplies

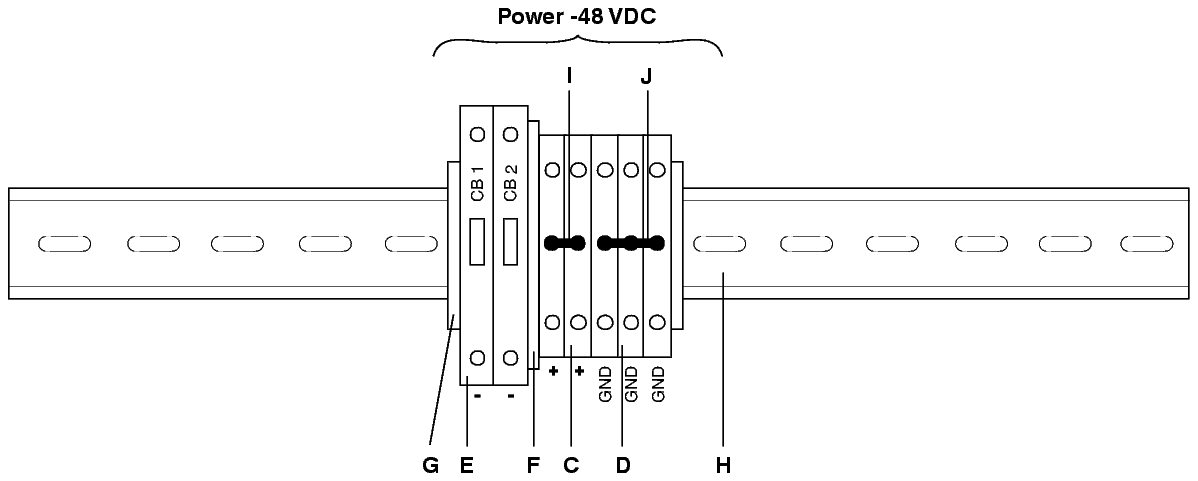

Figure 4-10: DIN rail without power supply (direct feed)
Table 4-3: Parts (DIN rail)
|
Item |
Description |
Type |
Order code |
Vendor |
|---|---|---|---|---|
|
A |
Power supply unit MW DR-75-48 |
DR-75-48 |
10533 |
Mean well |
|
B |
Power supply unit MW DR-120-48 |
DR-120-48 |
10543 |
Mean well |
|
C |
Feed through terminals |
SAK 2.5 |
0380460000 |
Weidmüller |
|
D |
PE terminals |
EK2.5/35 |
0661060000 |
Weidmüller |
|
E1 |
Circuit breakers, MCB 60V DC, 1P, 1A |
S201 DC-K1 |
2CDS271217R0217 |
ABB |
|
E2 |
Circuit breakers, MCB 60V DC, 1P, 2A |
S201 DC-K2 |
2CDS271217R0277 |
ABB |
|
E3 |
Circuit breakers, MCB 60V DC, 1P, 3A |
S201 DC-K3 |
2CDS271217R0317 |
ABB |
|
F |
Partition |
TW SAK2.5 |
0302860000 |
Weidmüller |
|
G |
End holders |
EW35 |
0383560000 |
Weidmüller |
|
H |
Mounting rail with slotted hole TS 35 x 15 |
|||
|
I |
Cross-connection, screwable 2-pole |
Q 2 SAK2.5 |
0337000000 |
Weidmüller |
|
J |
Cross-connection, screwable 3-pole |
Q 3 SAK2.5 |
0337100000 |
Weidmüller |
|
K |
Cross-connection, screwable 4-pole |
Q 4 SAK2.5 |
0337200000 |
Weidmüller |
