Coax connector (1.6/5.6)

- Description

There are the following type of connectors:

  • IMS — type 3320.52.1420.0D5 (45°)

  • IMS — type 2630.52.1310.0D5 (Straight)

IMS

Important! Use of the correct tools to ensure a proper connection.

For assembling a coax 1.6/5.6 connector proceed as follows:


1

Strip the cable according to the dimensions indicated in the next figure and tin the center conductor.

Important! The stripping lengths depend on the used connector type.

2

Pull the crimp outer ferrule over the stripped cable.

3

Pull back the cable braid.

4

Push the center conductor and the dielectric into the connector housing until the dielectric stops.

5

Solder the inner conductor to the center contact of the connector housing.

6

After soldering press the cover into the connector body.

7

First roll the cable braid over the termination part (inner ferrule) of the connector and pull the crimp outer ferrule over that braid.

8

Crimp the outer ferrule with a hexagon die 4.6 — AGK 3068 by using the Crimp Tool — AGK 2365.

End of steps

Result

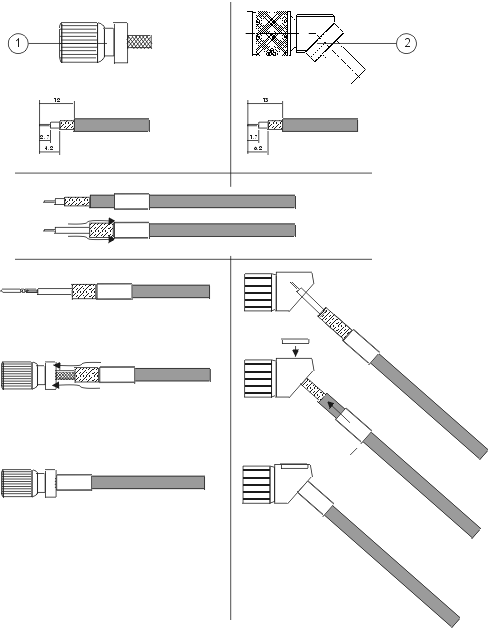

Figure C-3: IMS assembly procedure
IMS assembly procedure IMS assembly procedure
Legend:

1

Coax 1.6/5.6 connector (straight) — CC408663482

2

Coax 1.6/5.6 connector (45°)

Crimp tool

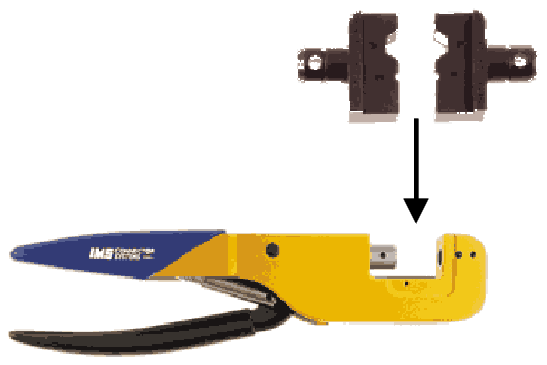

Figure C-4: Crimp tool and die
Crimp tool and die
Legend:

1

Crimp tool — AGK 2365

2

Hexagon die 4.6 — AGK 3068, or square 1.2
