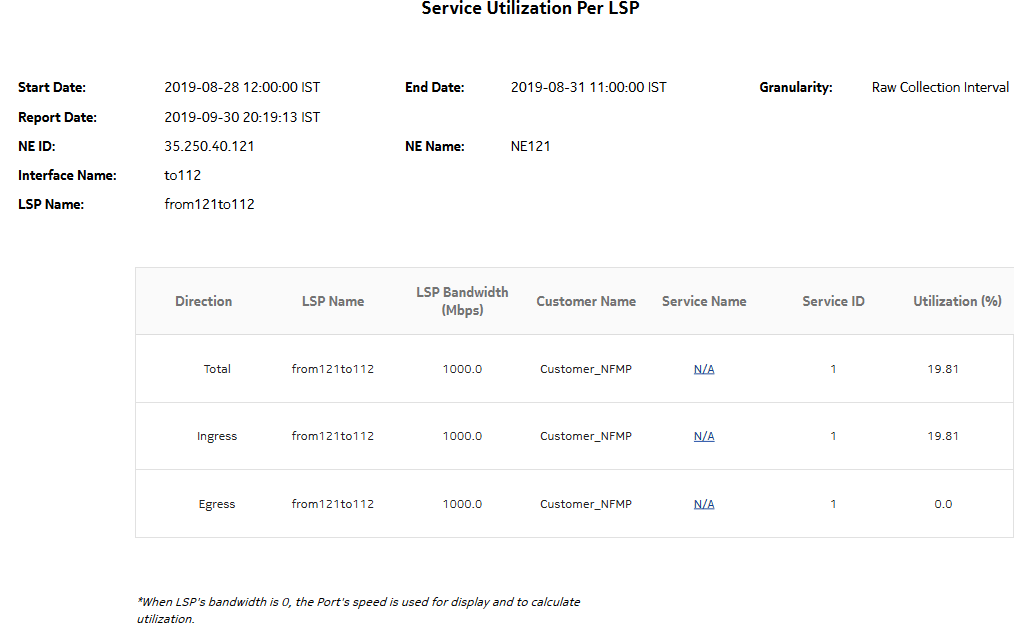

Service Utilization per LSP report
Service Utilization per LSP report overview
The Service Utilization per LSP report shows a list of the top LSPs for a selected MPLS interface. The report provides a table with a list of services contained within the LSP, and displays the service’s percentage utilization of the LSP’s bandwidth sorted in decreasing order. The report can be run on its own or as a drill-down from an Interface Utilization Details report. For each service in the table, you can drill down to the existing Service Utilization report to see a breakdown of traffic on a per queue basis for each SAP in the service.
Use cases
Capacity planning—Use the report to examine interface utilization patterns for planning future capacity requirements.
Limitations
Report limitations include:
-
When the report is exported to the RTF file type, some table columns may not display.
-
When the report is exported to the ODS or ODT file type, some data may not display.
-
When the report is exported to the PPT or CSV file type, some data may not display or the table may not align properly.
Prerequisites
The following table describes the aggregation rules that must be enabled and the accounting policies that must be configured for the NEs on which statistics are to be collected; see the NSP NFM-P Statistics Management Guide for information about configuring an accounting policy. To view the report for granularities other than raw data, the aggregation rules must be enabled; see How do I configure analytics aggregation?.
Table 14-13: Service Utilization per LSP report prerequisites
|
Aggregator name |
Monitored object class |
Statistics class |
Statistics collection |
Details |
Counters |
NE types |
|---|---|---|---|---|---|---|
|
Combined SDP Ingress PacketOctets stats aggregator |
svt.PWPortBinding svt.SdpBinding |
service.CombinedSdpIngressPacketOctets |
Accounting, file, and log policies |
combinedSvcSdpInEg |
totalOctetsForwarded |
210 WBX 7210 SAS Dxp 7210 SAS-K 7210 SAS-M 7210 SAS-Mxp 7210 SAS-R 7210 SAS-S/Sx 7210 SAS-T 7210 SAS-X 7250 IXR 7450 ESS 7705 SAR Hm 7710 SR 7750 SR 7850 VSA-8 7850 VSG 7950 XRS VSC Note: The 7705 SAR-H is not supported. |
|
Combined SDP Egress PacketOctets stats aggregator |
svt.PWPortBinding svt.SdpBinding |
service.CombinedSdpEgressPacketOctets |
Accounting, file, and log policies |
combinedSvcSdpInEg |
totalOctetsForwarded |
Report characteristics
The following table lists the principal report characteristics.
Table 14-14: Service Utilization per LSP report characteristics
|
Characteristic |
Value | |||||
|---|---|---|---|---|---|---|
|
Data type |
Statistics | |||||
|
Source database |
Auxiliary database | |||||
|
LSP types supported |
Dynamic, P2MP Dynamic, SR TE, Static LSP | |||||
|
Report inputs |
Prompt |
Notes | ||||
|
End date |
Calendar date or relative date (for example, two days ago) and time | |||||
|
Report range |
Length of time to be reported, in minutes (minutes, min), hours (hours, h), days (days, d), or months (months, m) | |||||
|
Granularity |
Aggregation types: | |||||
|
NE type |
Search using partial names or wildcard (%). Select individual items or click Select All. | |||||
|
Name or name pattern for NE | ||||||
|
NE | ||||||
|
Name or name pattern for interface | ||||||
|
Interface | ||||||
|
Name or name pattern for LSP | ||||||
|
LSP | ||||||
|
Logo Resource ID |
The logo to add to the report. Enter the Resource ID of the logo image in the Images folder. The default is the Nokia logo. To create the report without a logo, leave the Logo Resource ID field blank. | |||||
|
Logo Position |
Choose Left, Middle, or Right. The logo appears on the left on the first page of the report if you choose Left or Middle. | |||||
|
Show report output on one page |
Select the check box to enable pagination. Note: Using the Show report output on one page option when creating reports as drill-downs may impact report rendering time. Nokia recommends disabling the Show report output on one page option when creating reports. | |||||
|
Drill-down support |
Yes—Click on a Name to launch a Service Utilization Details report. | |||||
