OAM-PM Bin Groups report

OAM-PM Bin Groups report overview

The OAM-PM Bin Groups report shows a distribution count of the PM bin groups in use and includes OAM data for NEs managed using model-driven mediation. To use the report, a bin group policy must be distributed, PM sessions must be configured for each bin group, and PM sessions must be active and enabled.

Use cases

SLA reporting—Identify potential impact to service level agreements.

QoS analysis—Identify potential performance impact for a selected bin group.

Prerequisites

The following tasks need to be performed for each NE for the report to be created:

  • a DMM session must be defined with accounting enabled

  • a TWAMP-Light session must be defined with accounting enabled

  • You must enable aggregation using NSP. For more information, see the Telemetry information on the Network Developer Portal and the NSP Data Collection and Analysis Guide.

Report inputs

The following table shows the report inputs.

Table 18-1: OAM-PM Bin Groups report inputs

Prompt

Notes

Logo resource ID

The logo to add to the report. Enter the Resource ID of the logo image in the Images folder.

The default is the Nokia logo. To create the report without a logo, leave the Logo Resource ID field blank.

Logo position

Choose Left, Middle, or Right. The logo appears on the left on the first page of the report if you choose Left or Middle.

Report characteristics

The following table lists the principal report characteristics.

Table 18-2: OAM-PM Bin Groups report characteristics

Characteristic

Value

Data type

OAM testing

Source database

Auxiliary database

NE types supported

7210 SAS-M 24F, 7210 SAS-M 24F 2XFP, 7210 SAS-M 24F 2XFP ETR, 7210 SAS-Mxp, 7210 SAS-T 12F 10T 4XFP, 7210 SAS-T 12F 10T 4XFP ETR, 7210 SAS-X 24F 2XFP, 7210 SAS-K, 7210 SAS-R6, 7210 SAS-R12, 7210 SAS-S/SX 1/10GE VC

all 7450 ESS variants

all 7750 SR variants (supports Classic and MDM modes)

all 7950 XRS variants

all Wavence variants

Aggregation types

—

Drill-down support

Yes:

  1. Click on a bin group to show an OAM-PM Sessions report, showing the distribution of sessions using the bin group.

  2. From an OAM-PM Sessions report, click on a session to show an OAM-PM Sessions By Site report: an aggregate view of the active sessions on the site using the selected bin group.

    You can modify report inputs, for example, show sessions with no data.

  3. From an OAM-PM Sessions By Site report, click on a delay result to show an OAM-PM Latency report.

  4. From an OAM-PM Sessions By Site report, click on a jitter or loss result to show an OAM-PM Loss report.

Example

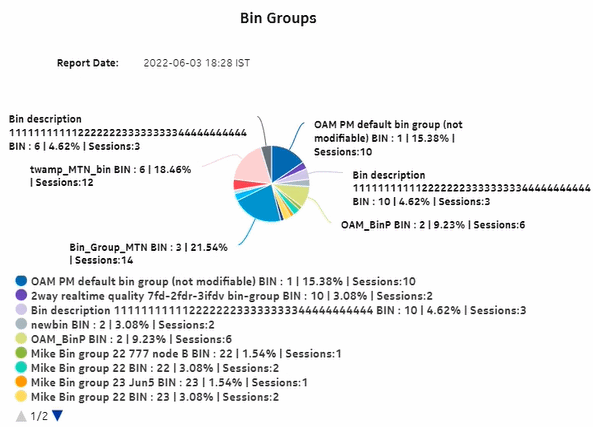

The following figure shows a report example.

Figure 18-1: OAM-PM Bin Groups report
OAM-PM Bin Groups report
