Radio Link Inventory report

Radio Link Inventory report overview

The Radio Link Inventory report shows the radio links on the selected NEs, along with the frequency, capacity and utilization of radio and MWA links and the frequency and temperature of MWA links. The report displays both main and spare channels; spare channels are marked with the SPARE label in the Slot/Port column. Wavence and SAR nodes must be discovered using NSP Classic management; MWA links are supported on SAR nodes, and radio links on Wavence nodes.

Note: When you enter a search term that returns zero links, you can still load a report for the links in the network. Port and LAG member details are displayed for mnemonics with UBT and MPT radio ports. For LAGs, mnemonics are displayed as NA, as there are no mnemonics.

Prerequisites

Collection of Ethernet Aggr Tx statistics must be enabled to collect Tx utilization. The Current Utilization (%) column displays a red 0.0 value if no statistics have been collected for the port, LAG, or LAG members.

Limitations

Report limitations include:

Report characteristics

The following table lists the principal report characteristics.

Table 15-3: Radio Link Inventory report characteristics

Characteristic

Value

Data type

Radio

Source database

NSP database

NE types supported

Wavence MSS-1, Wavence MSS-4, Wavence MSS-8, Wavence MSS-O, Wavence MSS-E, Wavence MSS-HE, Wavence MSS-XE, Wavence MSS-1c, Wavence SA, 9500 MPR-A Chassis 1, 9500 MPR-A Chassis 4, 9500 MPR-A Chassis 8, 9500 MPR-E Chassis 1, 9500 MPR-E Chassis 4, 9500 MPR-E Chassis 8, 9500 MSS-1c, 9500 MSS-O ANSI, 9500 MSS-O ETSI, 9500 SA, 7705 SAR with PMC

Note: The 7705 SAR-H is not supported.

Support is limited to NEs found in the network.

Report inputs

Prompt

Notes

Name or Name Pattern for the Radio Link

Search using partial names or wildcard (%).

Radio link

Select up to 1000 radio links to display in the report. If you do not select any links, then the report displays network-wide radio links.

Distance unit

Choose whether to display distances in kilometres or miles for Wavence nodes.

Filter

Displays information about the parameters, which can be filtered based on the following attributes:

This includes

  • Tx Frequency (Ghz)

  • Rx Frequency (Ghz)

  • Max Capacity (Mbps)

  • Min Capacity (Mbps)

  • Current Capacity (Mbps)

  • Current Utilization (%)

To generate a Radio link inventory report on a MWA link, Filter and distance unit must be none and value must be empty.

Value

Specify the value using required expressions (>100k or <100M) based on the attributes selected in the Filter parameter.

To generate a Radio link inventory report on a MWA link, Filter and distance unit must be none and value must be empty.

Logo Resource ID

The logo to add to the report. Enter the Resource ID of the logo image in the Images folder. The default is the Nokia logo. To create the report without a logo, leave the Logo Resource ID field blank.

Logo Position

Choose Left, Middle, or Right. The logo appears on the left on the first page of the report if you choose Left or Middle.

Show report output on one page

Select the check box to enable pagination.

Note: Using the Show report output on one page option when creating reports as drill-downs may impact report rendering time. Nokia recommends disabling the Show report output on one page option when creating reports.

Drill-down support

No

Example

The following figure shows a report example.

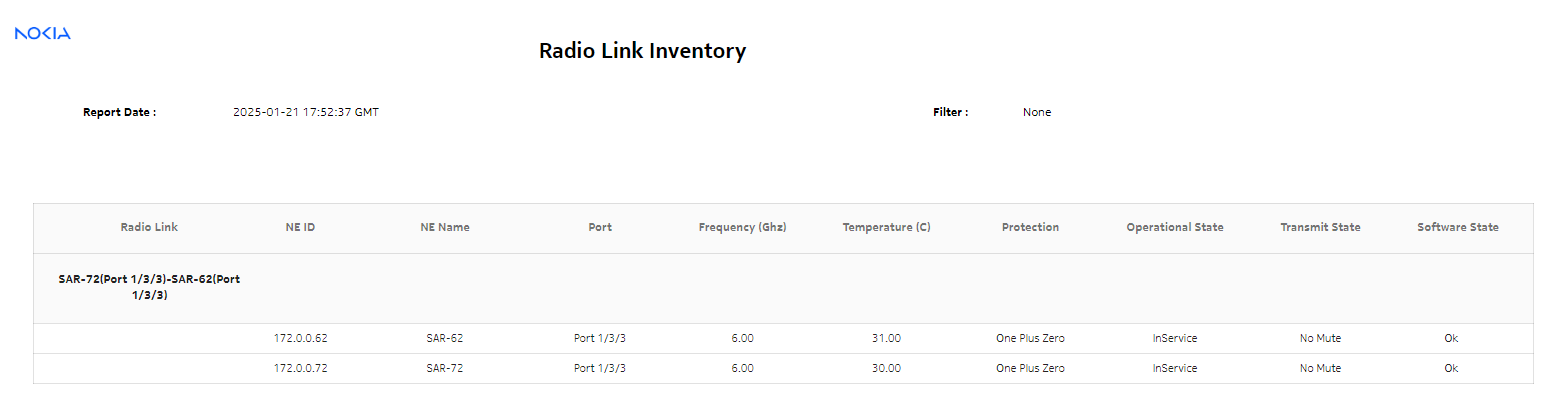

Figure 15-3: Radio Link Inventory report
