The Service Troubleshooting map displays a service object in a graphical context, in relation to associated objects. The map can be useful in identifying a service segment that is experiencing problems. The map lets you trace services in the network through various layers, such as service tunnels, MPLS, and IGP.

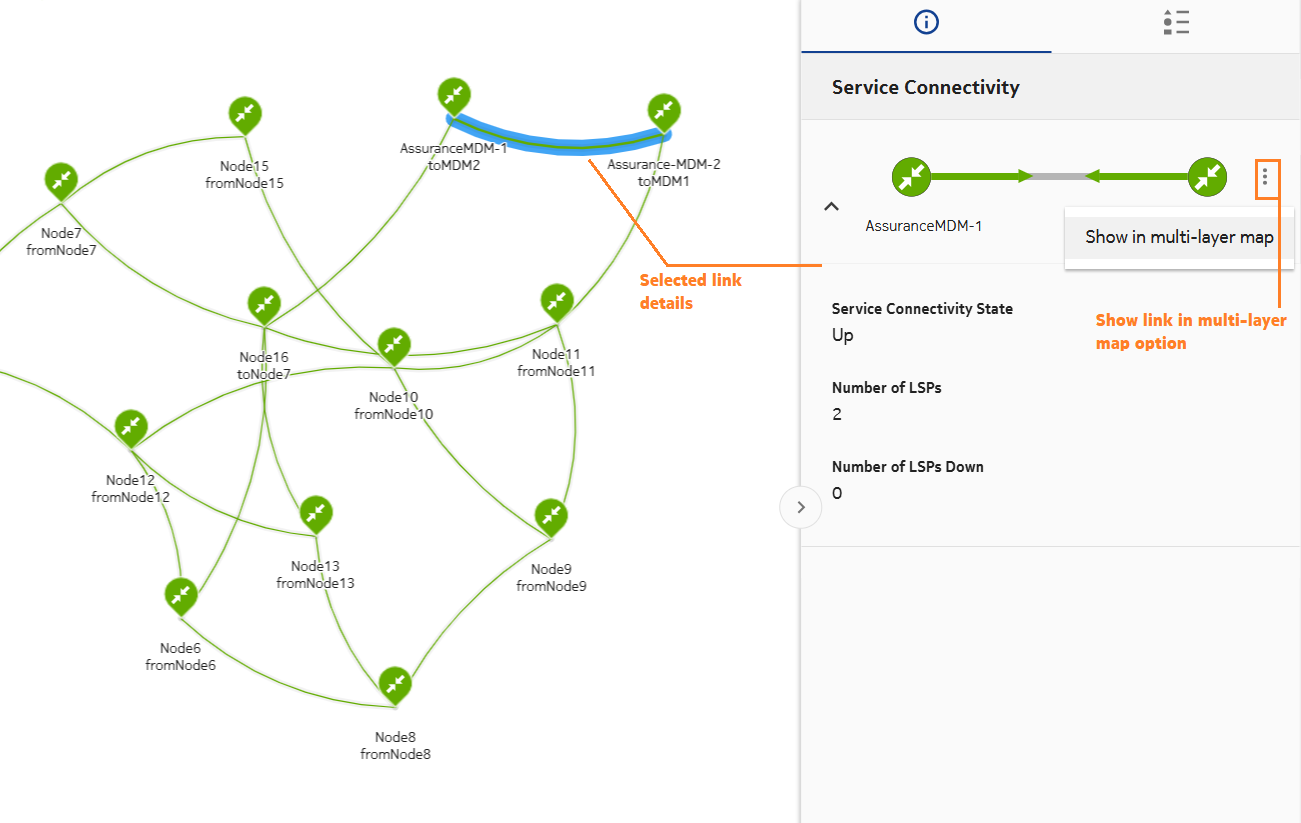

Figure 2-2: Service troubleshooting map

Use the following Service Troubleshooting Map features to troubleshoot service objects:

• View map object details; see How do I view information about an object in the Service Troubleshooting map?.

• View the map in separate network layers; see What is the multi-layer map?
