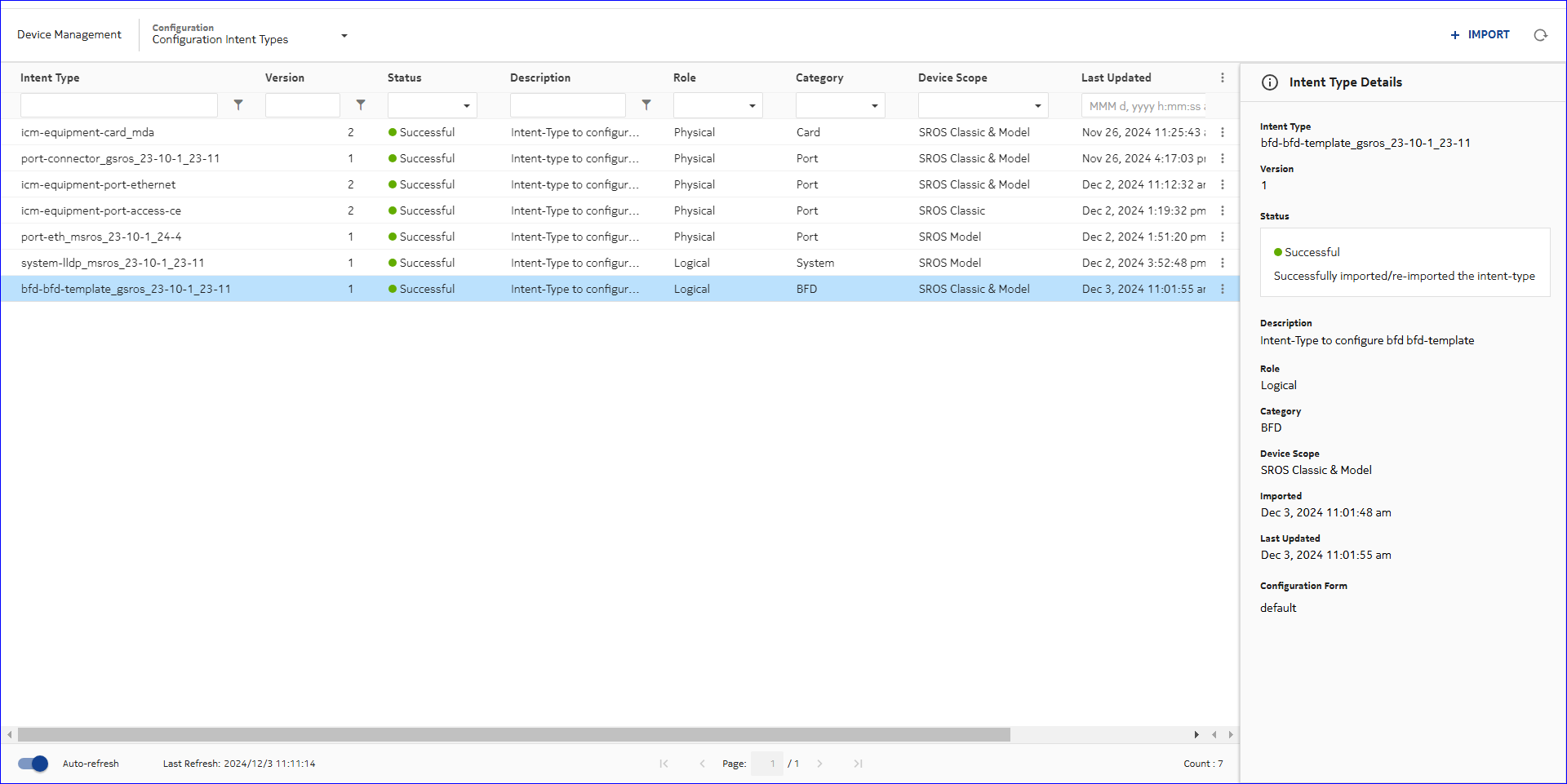

Import intent type bfd-bfd-template_gsros_23-10-1_23-11 into Device Management, Configuration Intent Types.

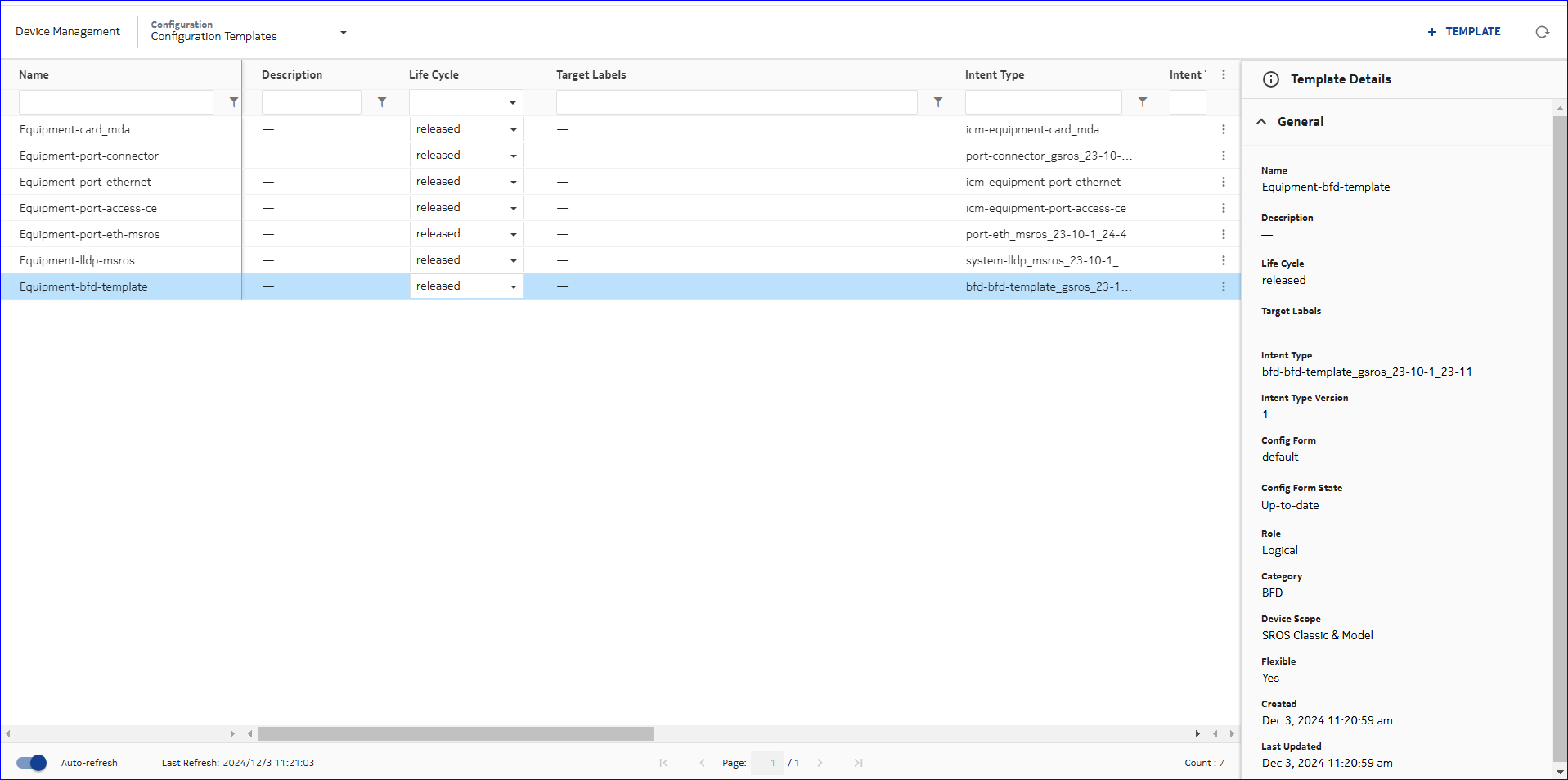

Create a configuration template in Device Management, Configuration Templates and set to released state.

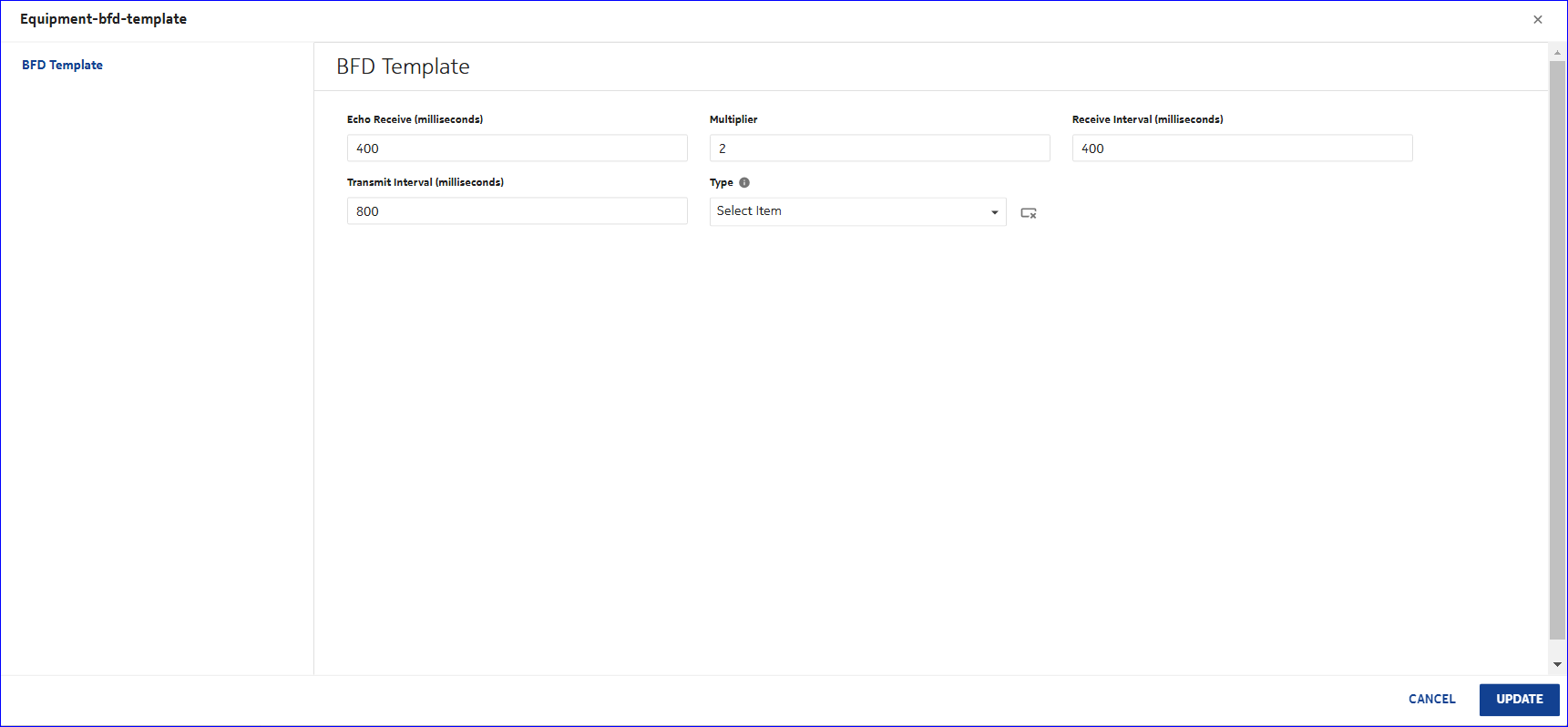

For example, the configuration template created below is named as Equipment-bfd-template.

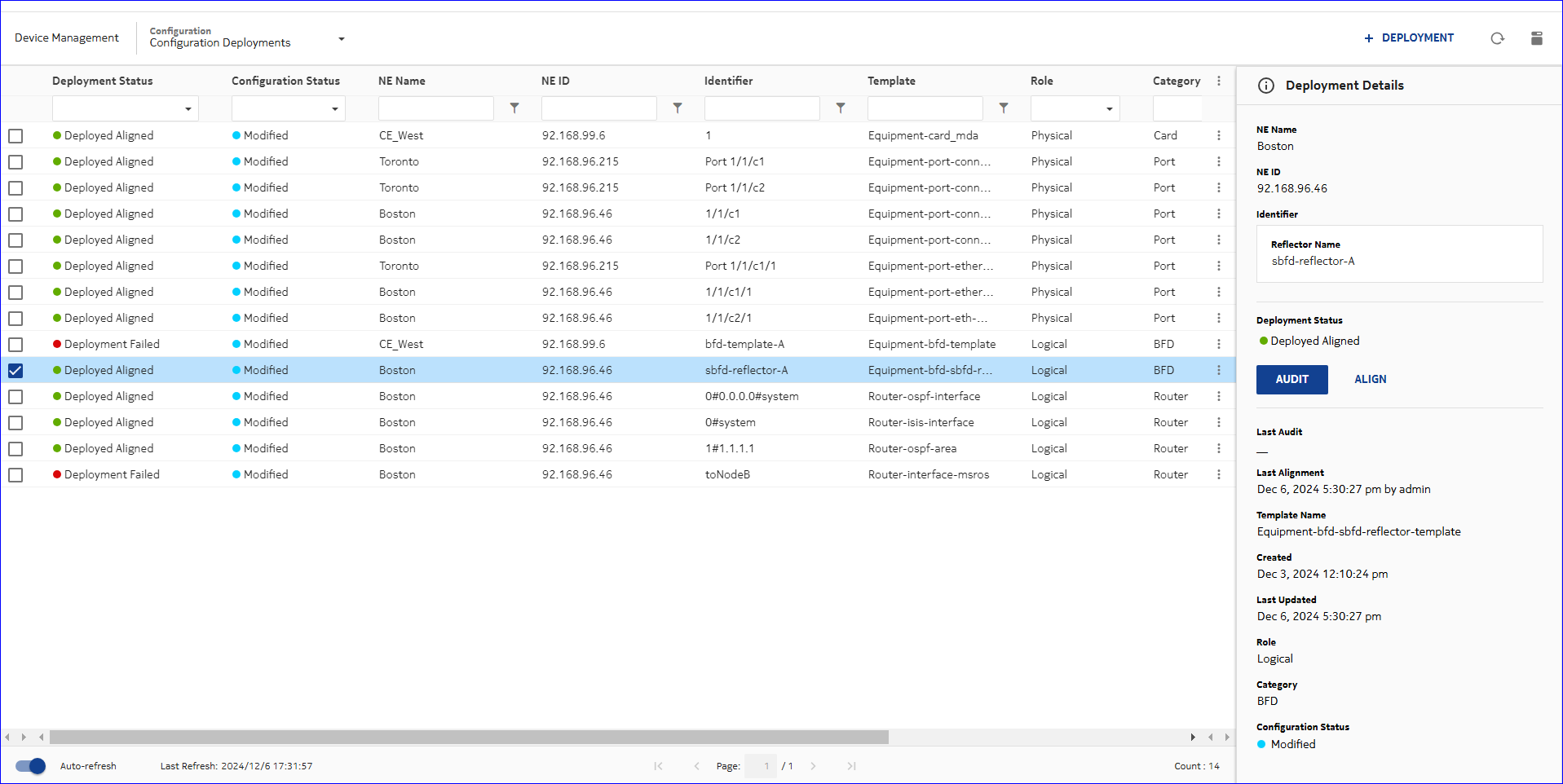

Create configuration deployments using the above configuration template.

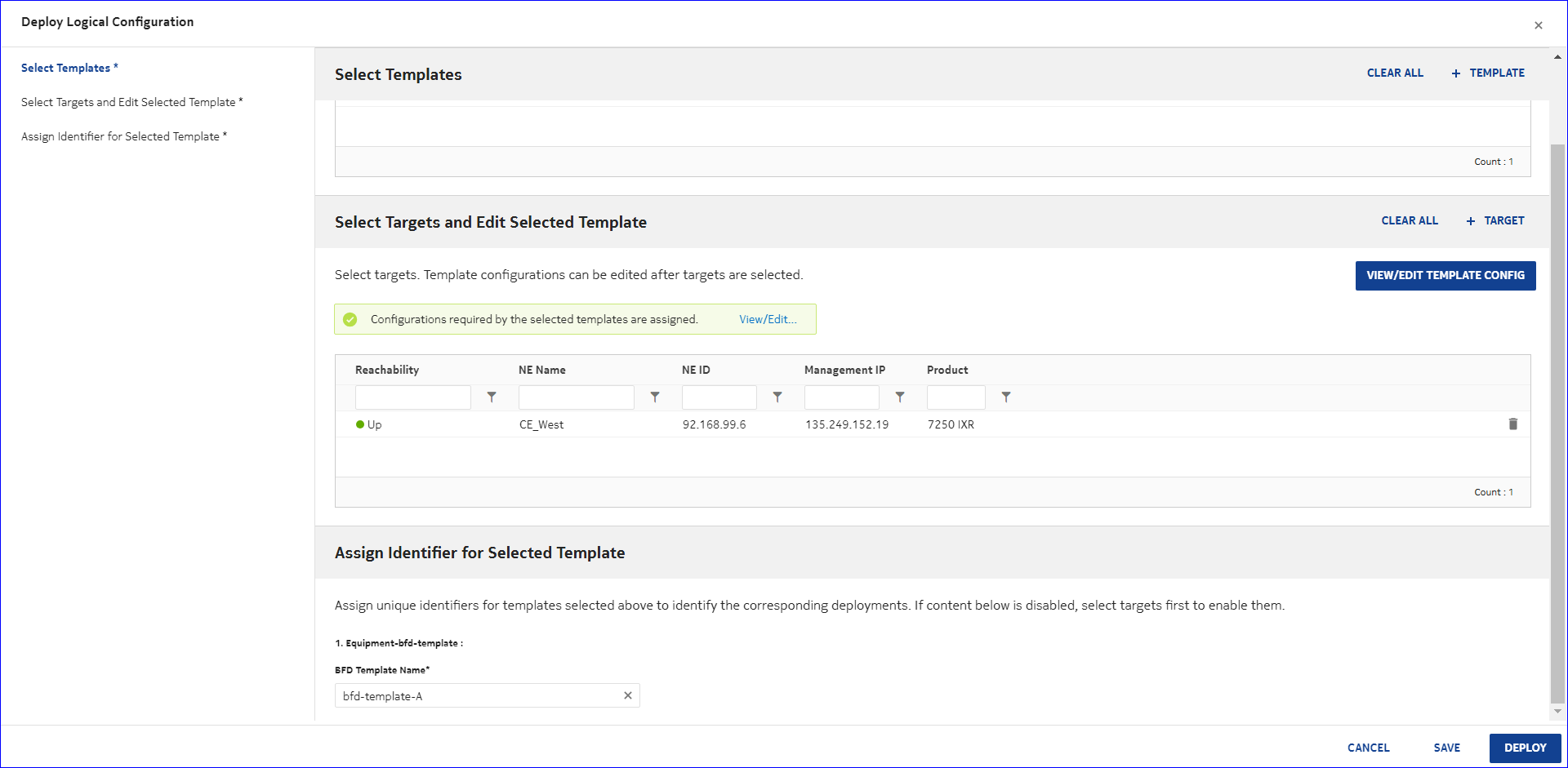

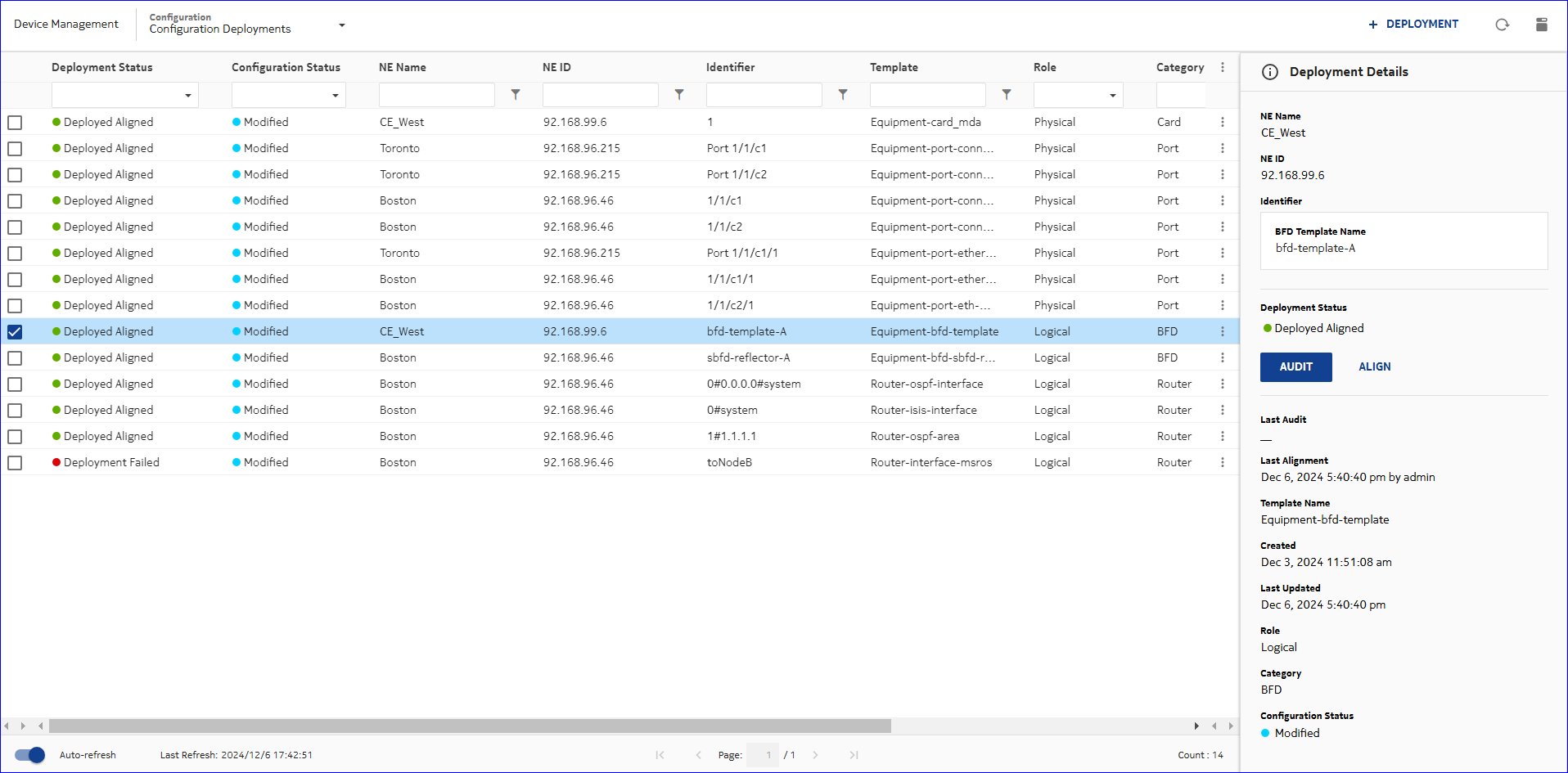

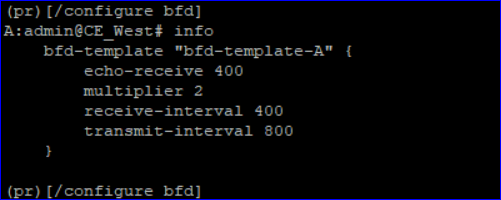

Example 1: On 7250 IXR-6 node in MD mode

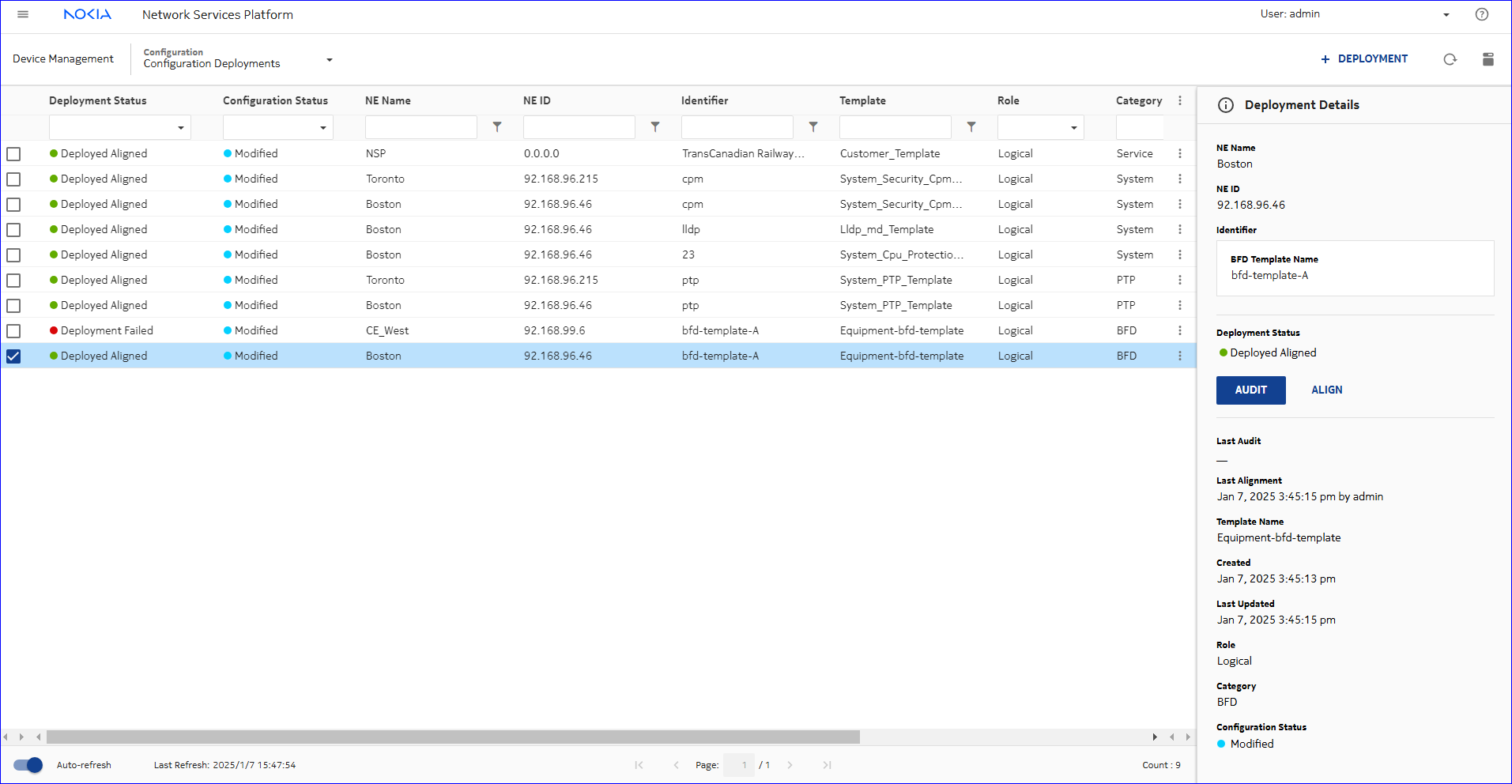

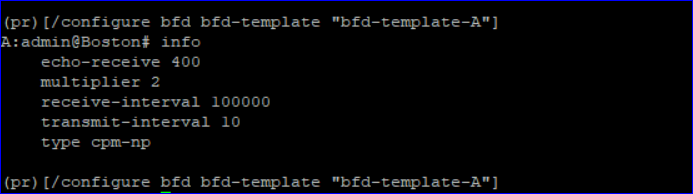

Example 2: On 7750 SR-14s node in MD mode
End of steps

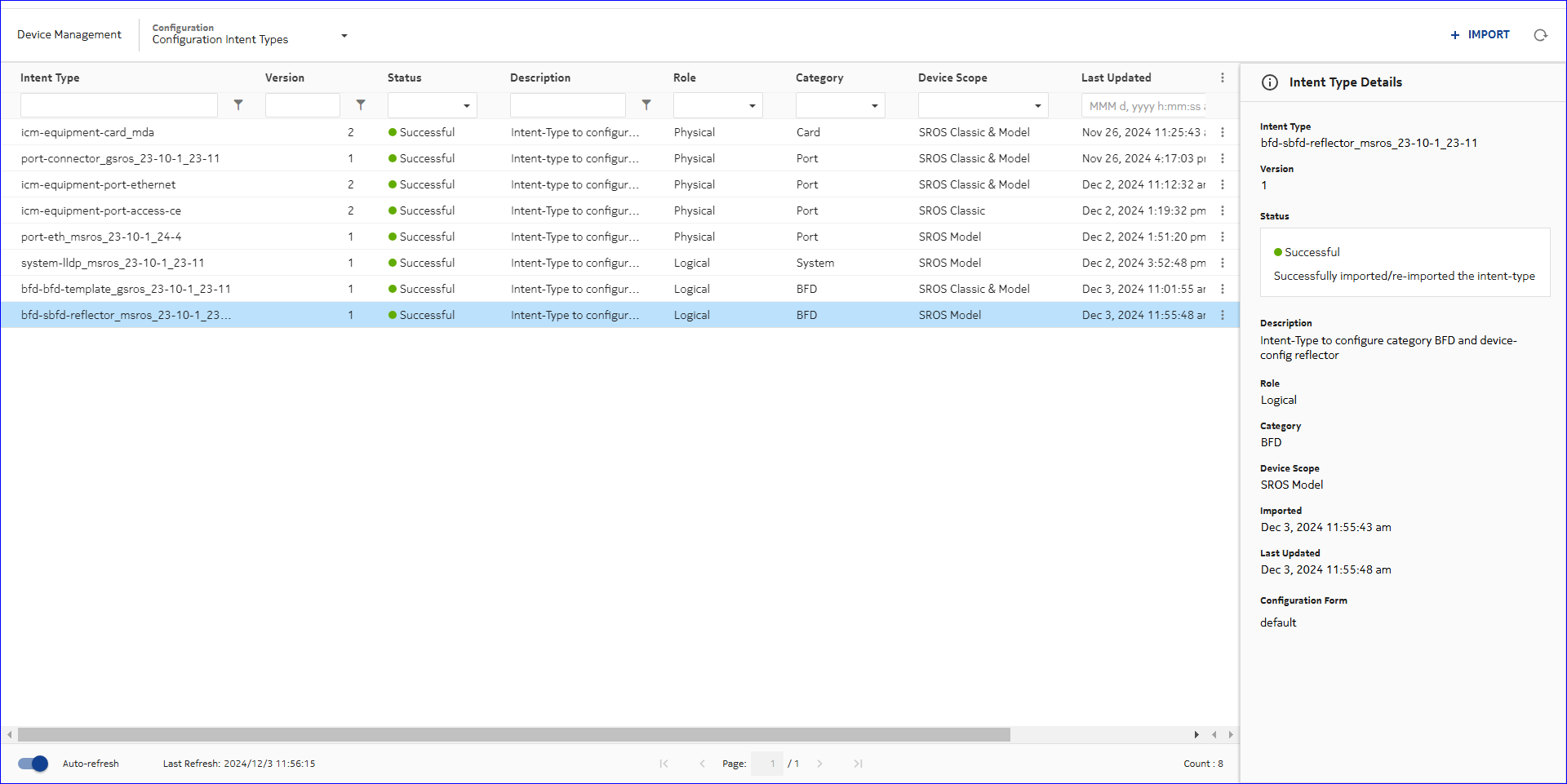

Import intent type bfd-sbfd-reflector_msros_23-10-1_23-11 into Device Management, Configuration Intent Types.

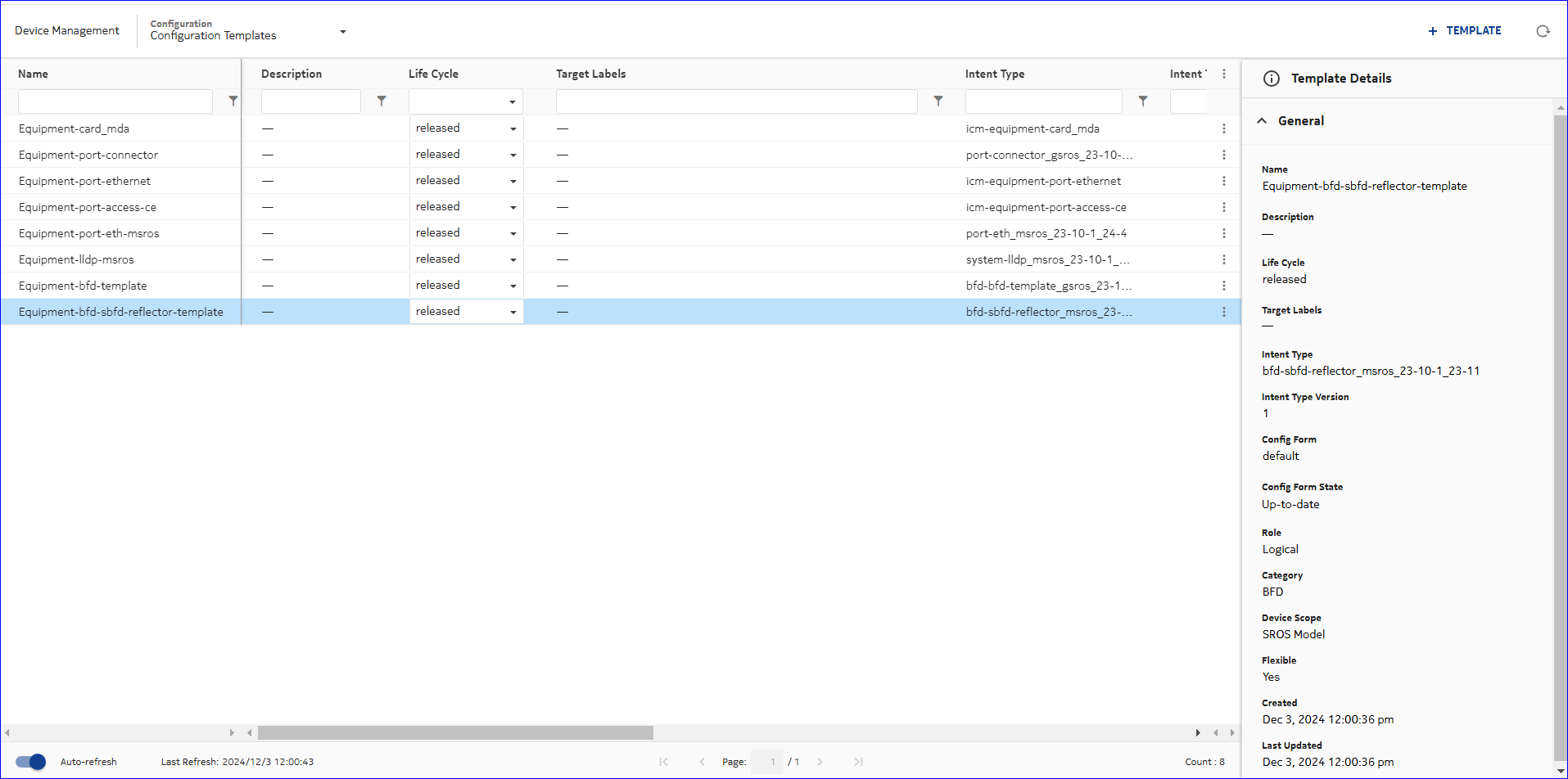

For example, the configuration template created below is named as Equipment-bfd-sbfd-reflector-template.

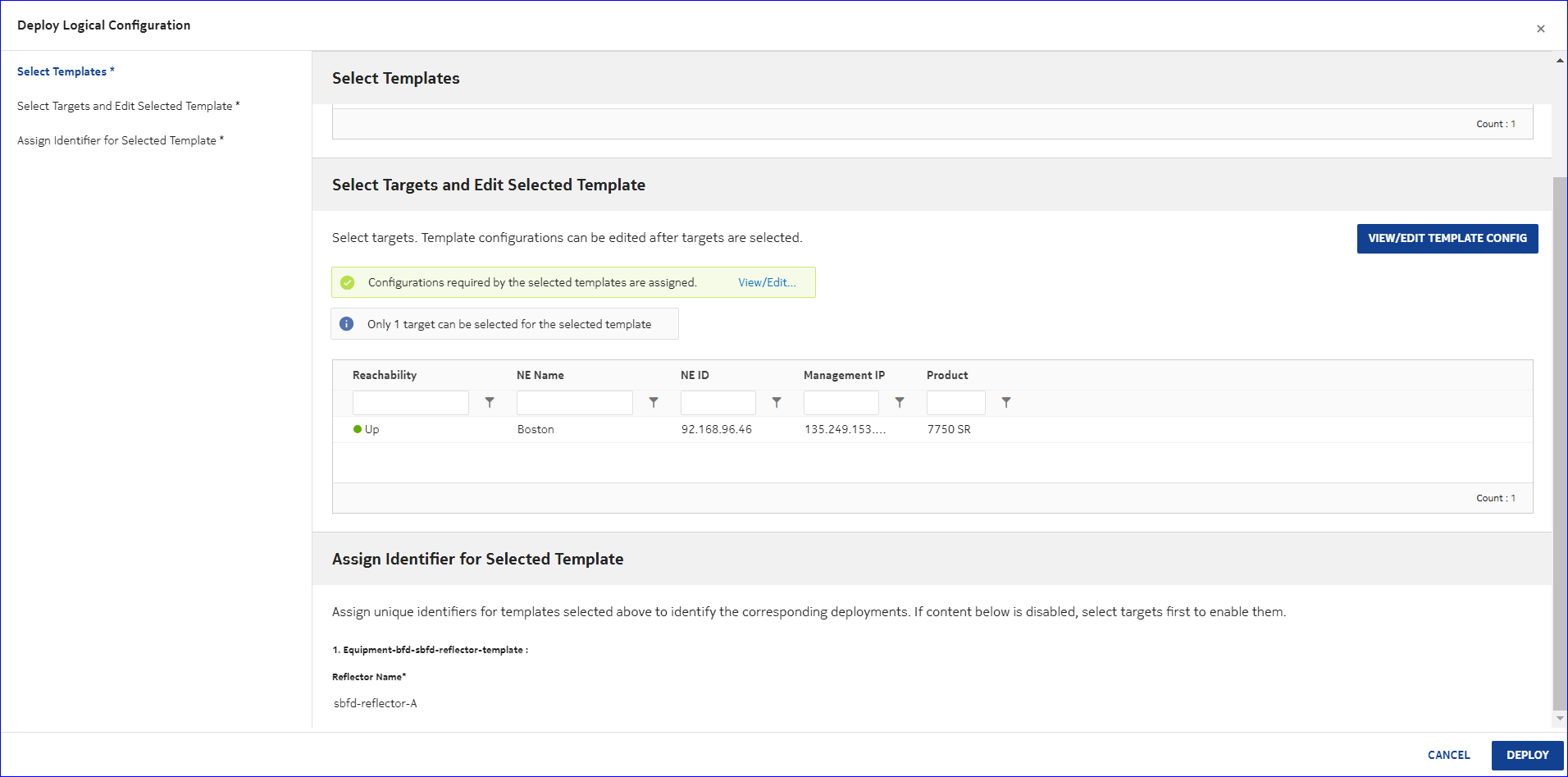

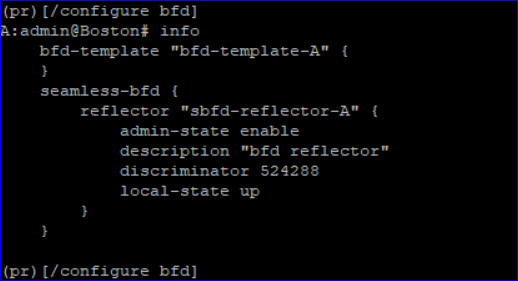

The following example uses 7750 SR-14s in MD mode.
