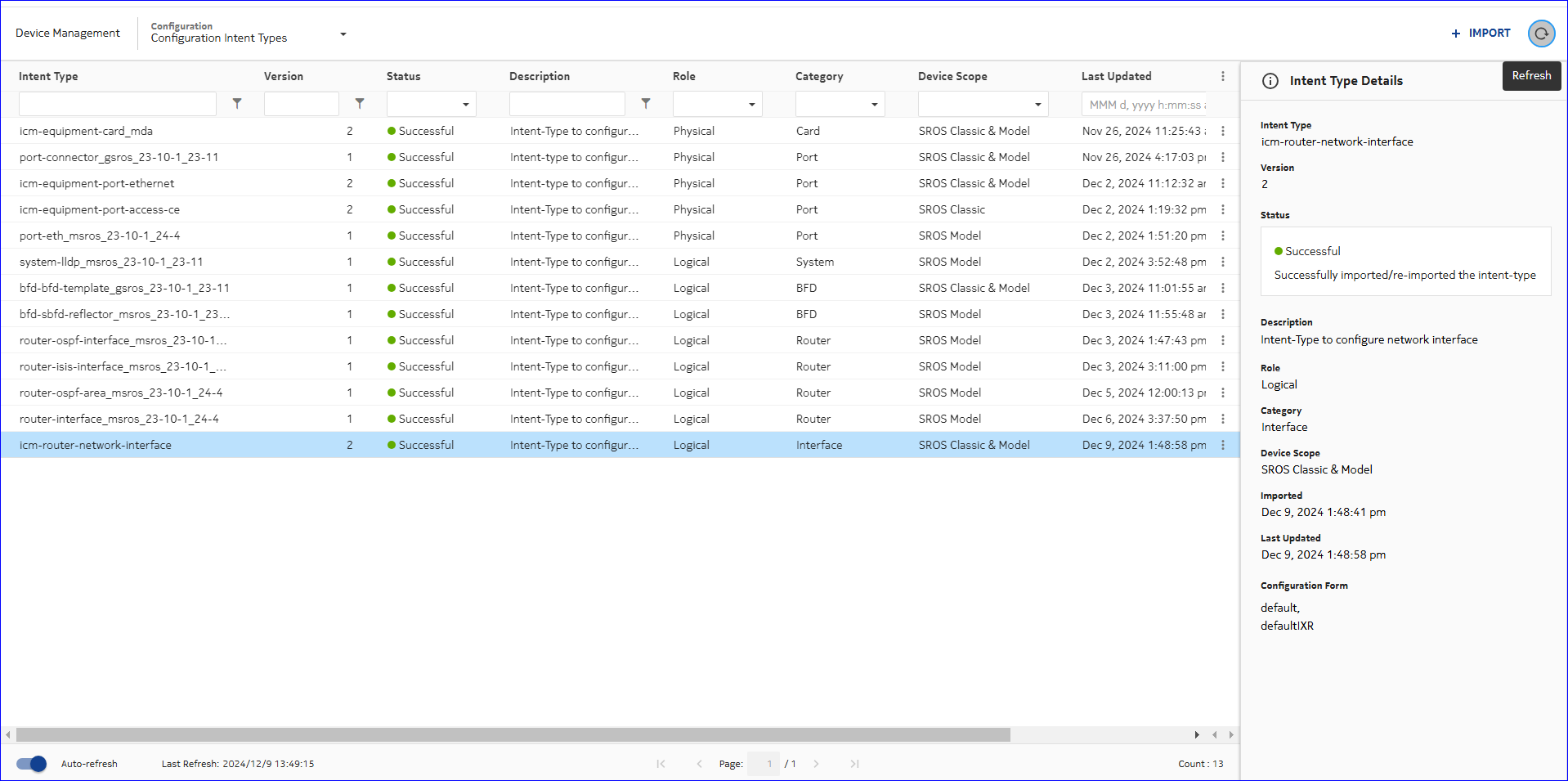

Import the intent type icm-router-network-interface into Device Management, Configuration Intent Types.

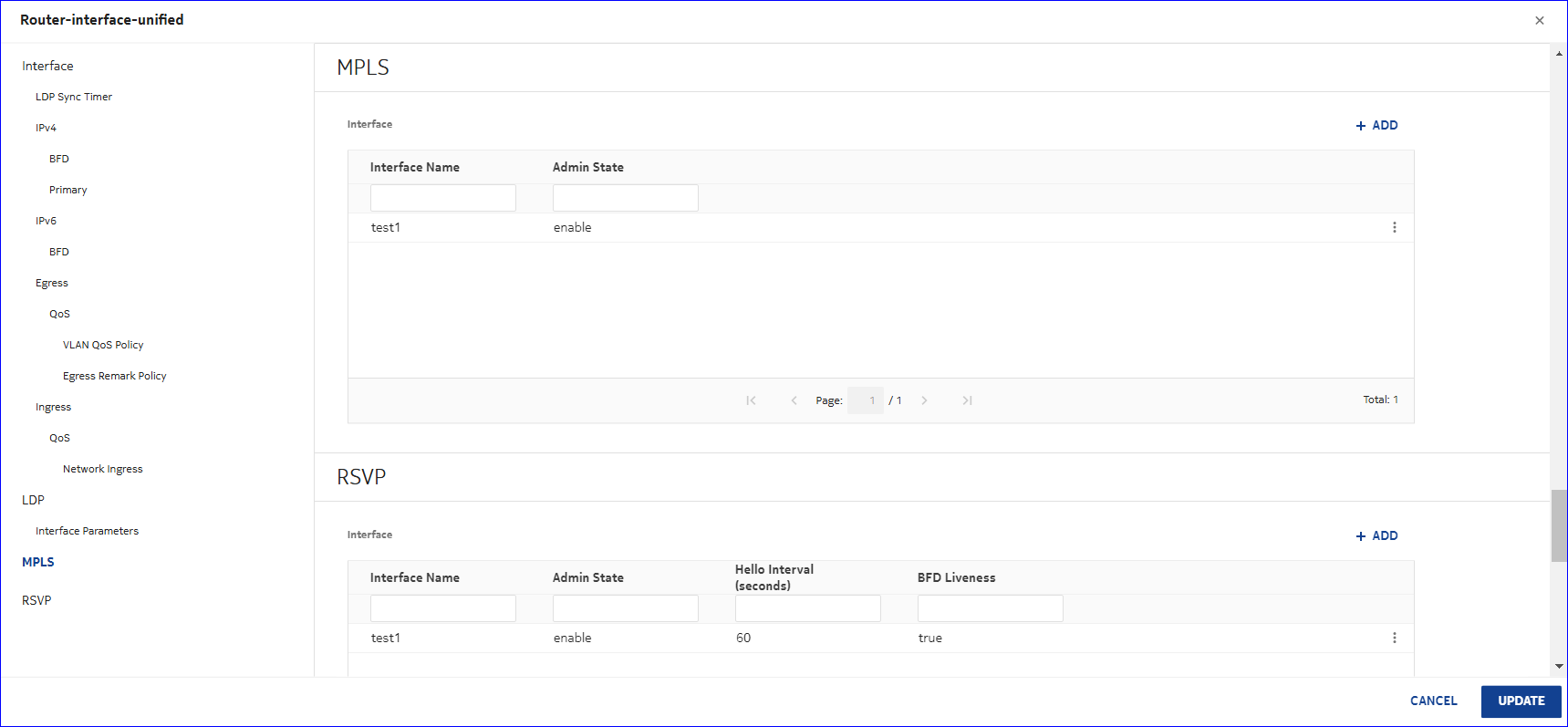

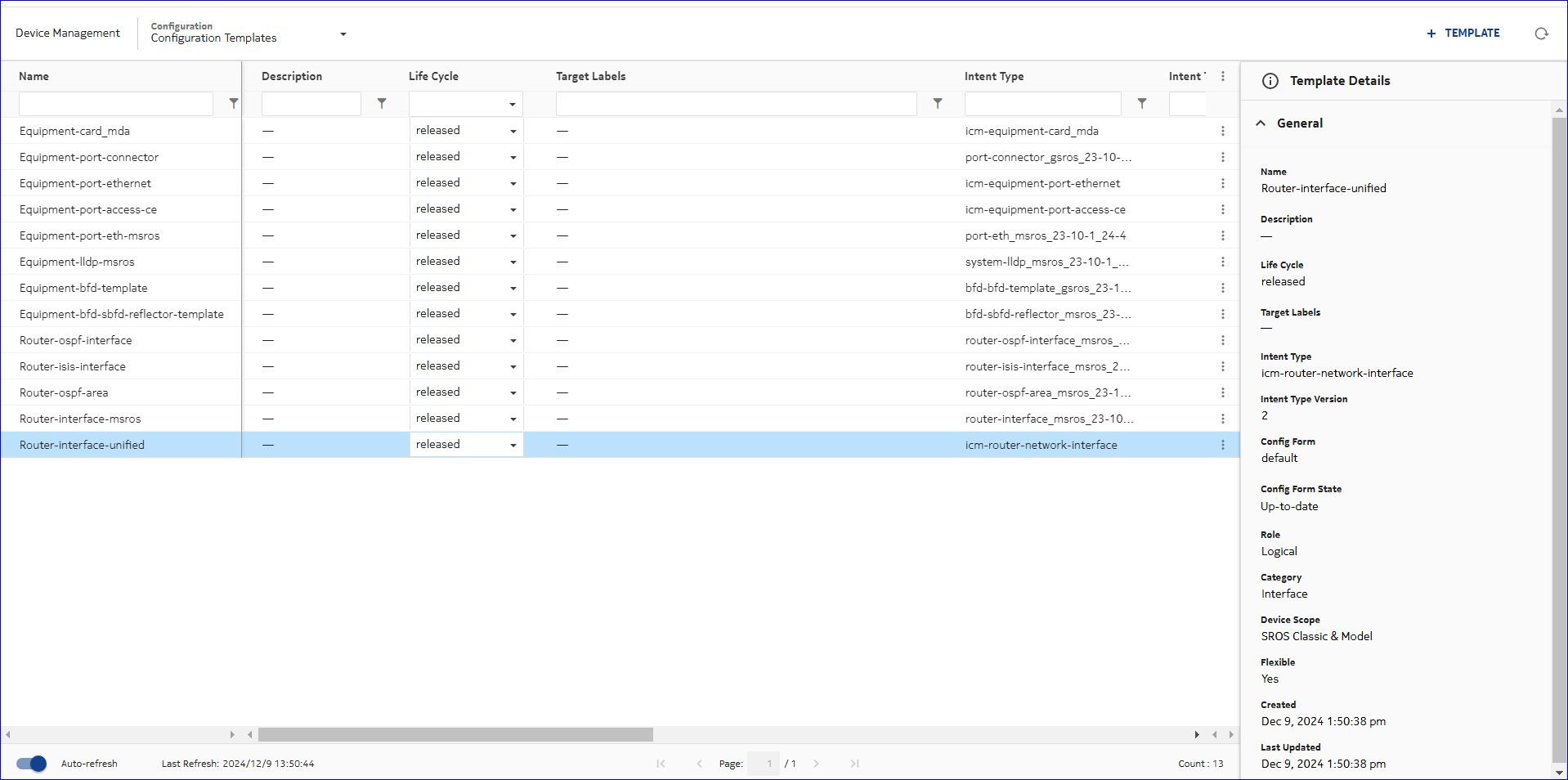

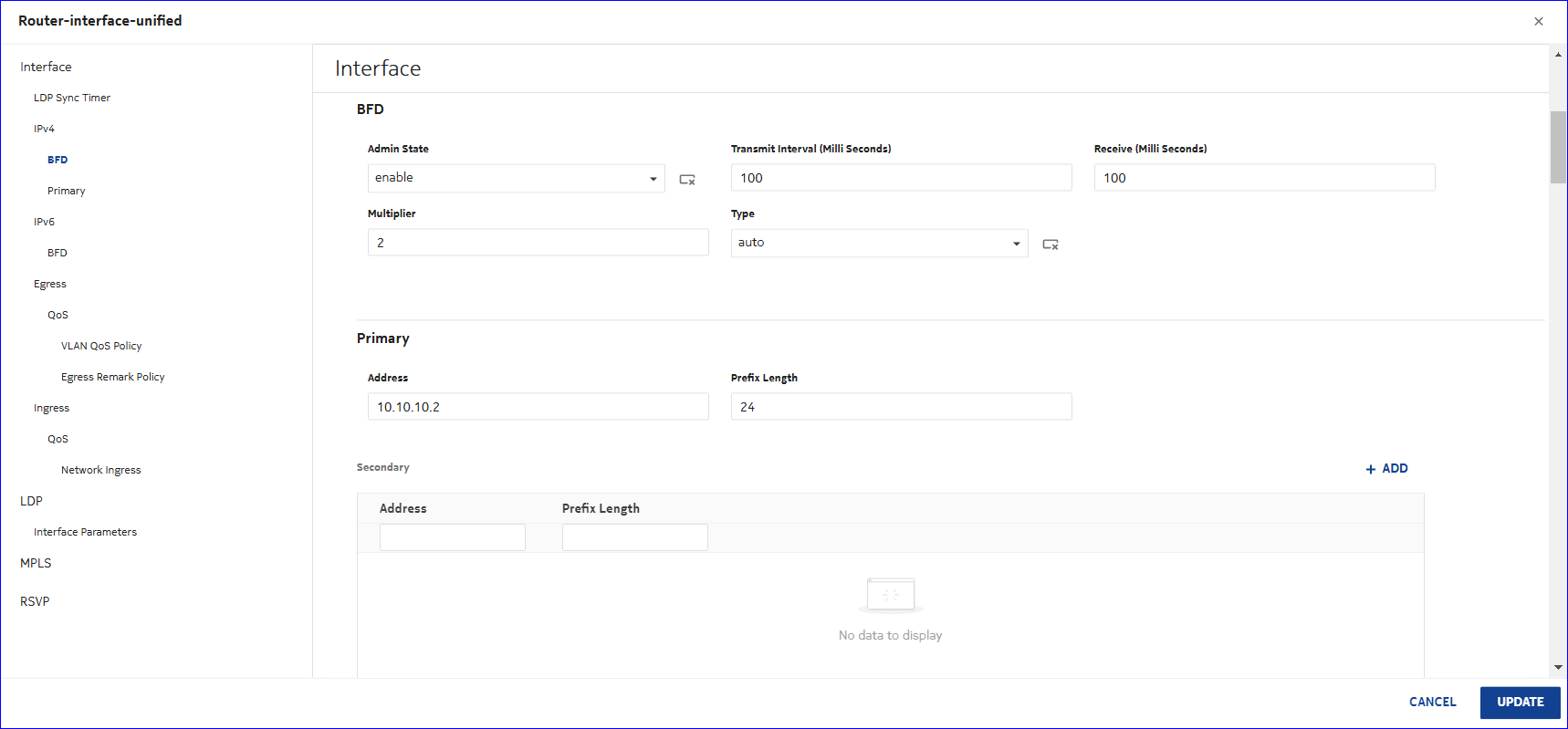

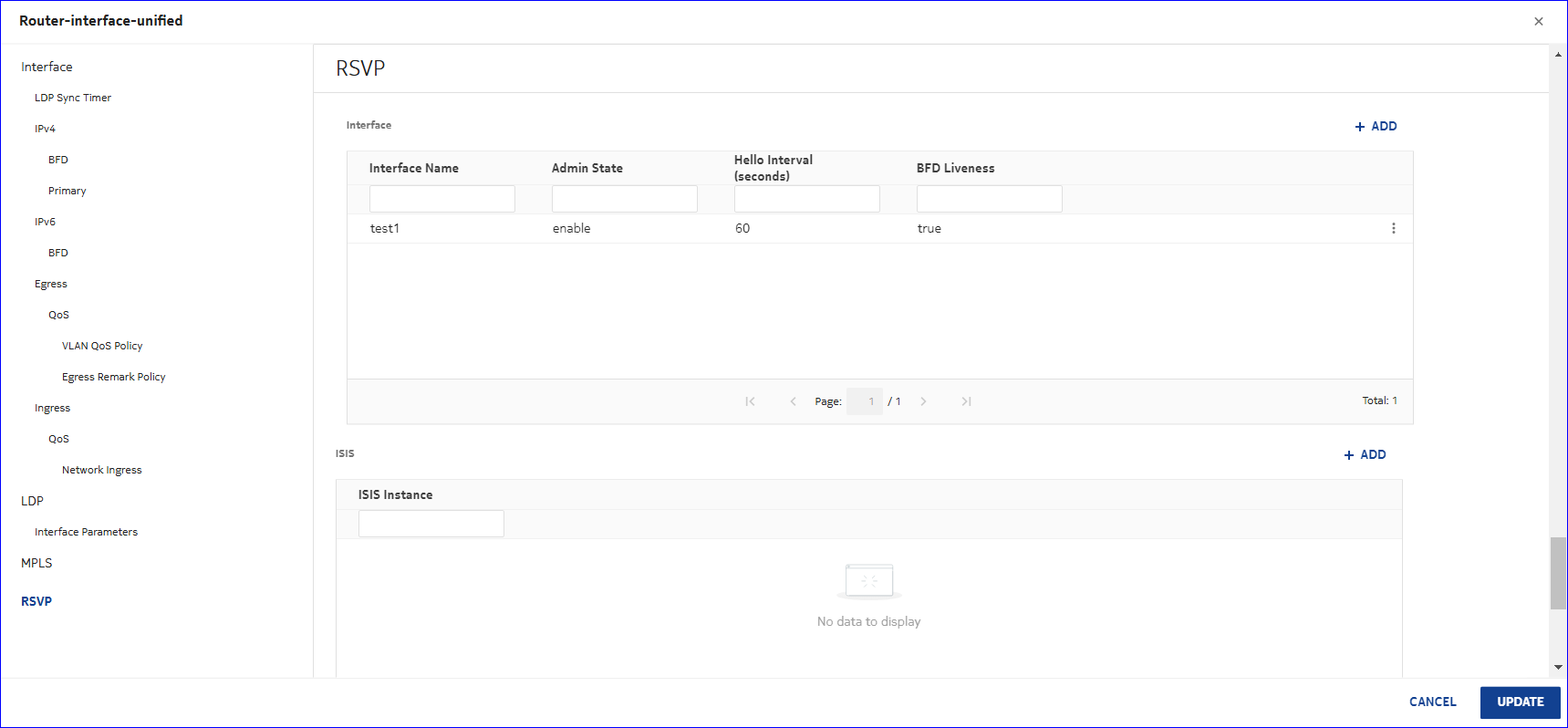

Create a configuration template in Device Management, Configuration Templates and set to released state.

For example, the configuration template created below is named as Router-interface-unified.

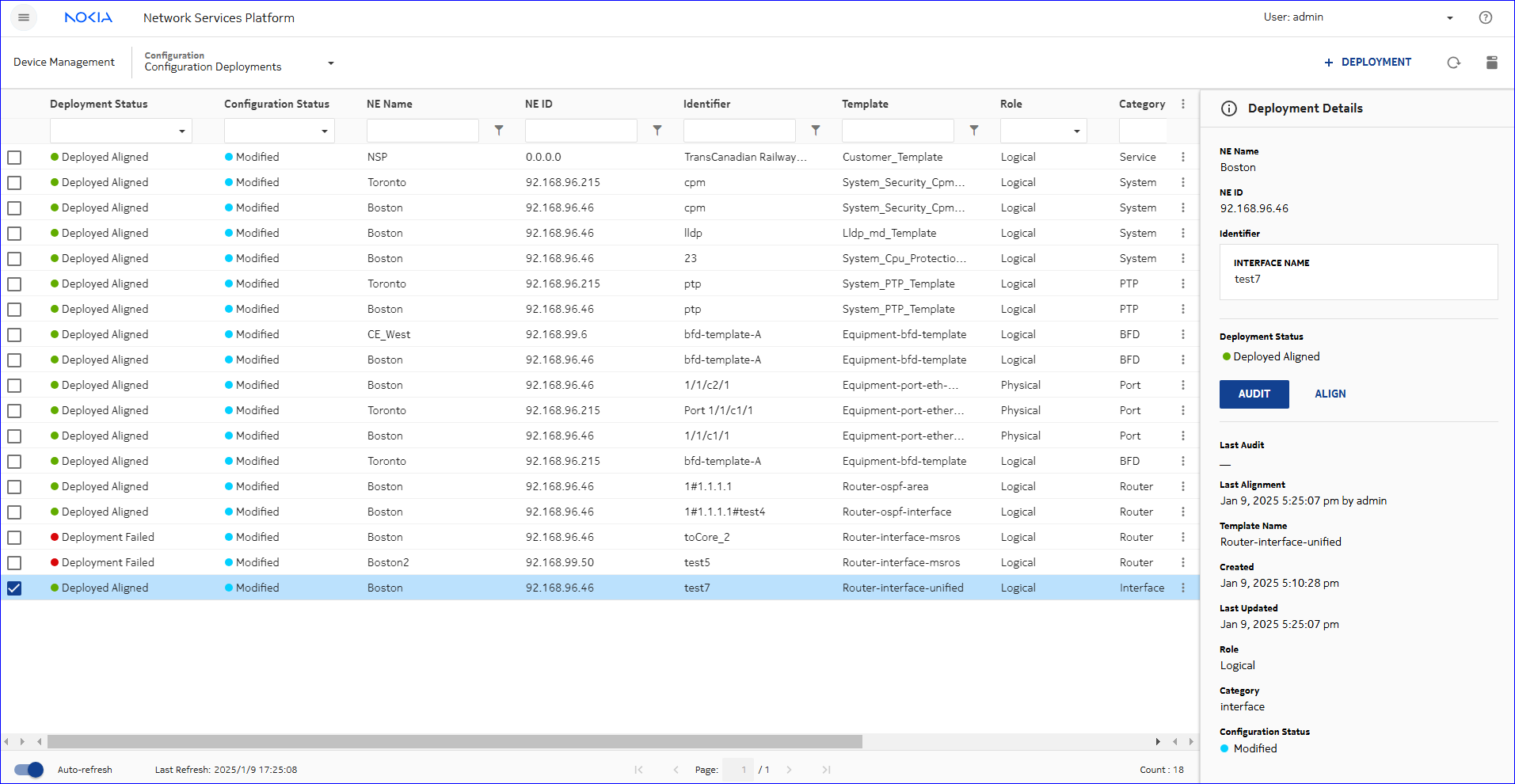

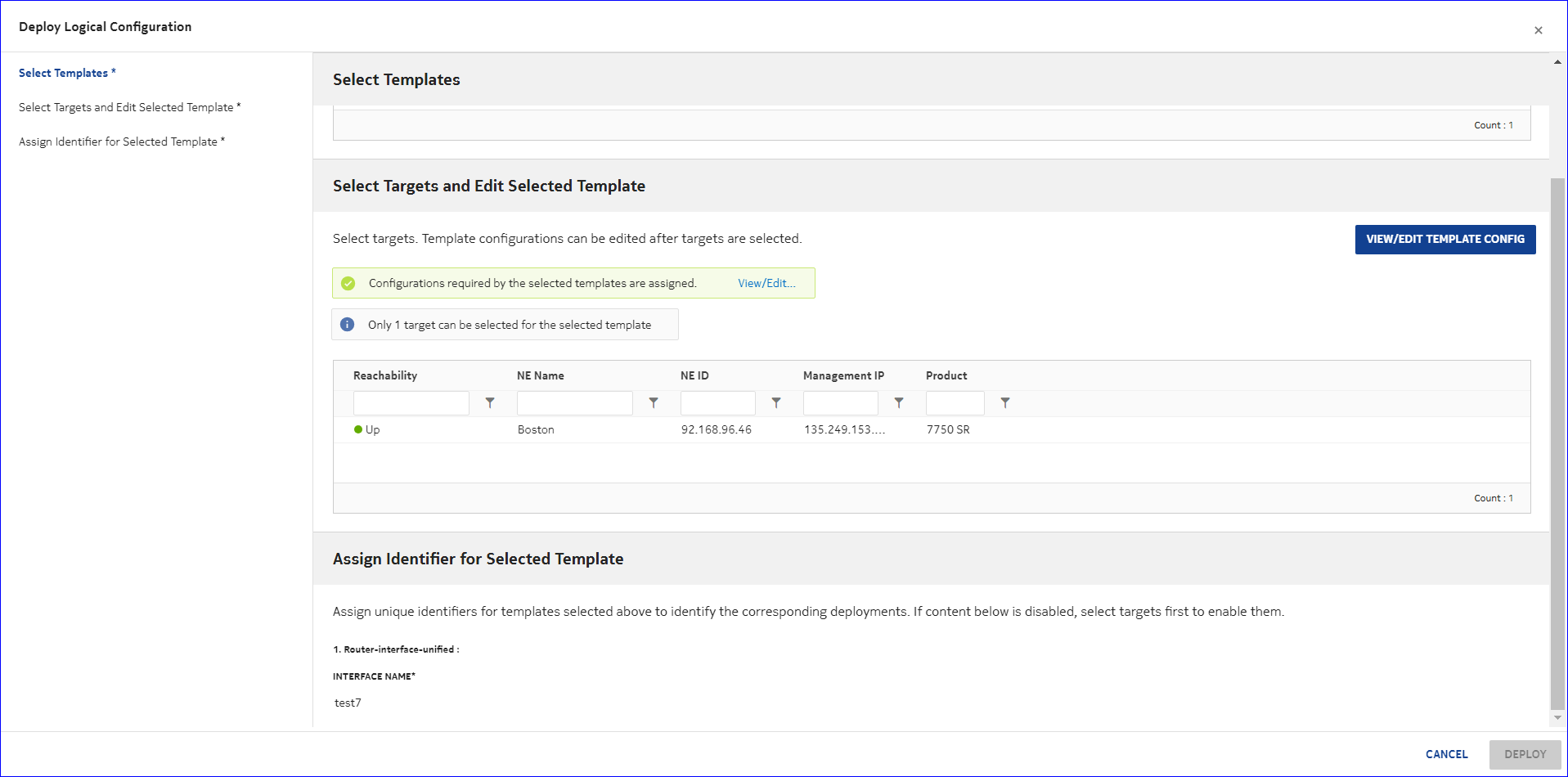

Create configuration deployments using the above configuration template.

Example 1: 7750 SR-14s MD

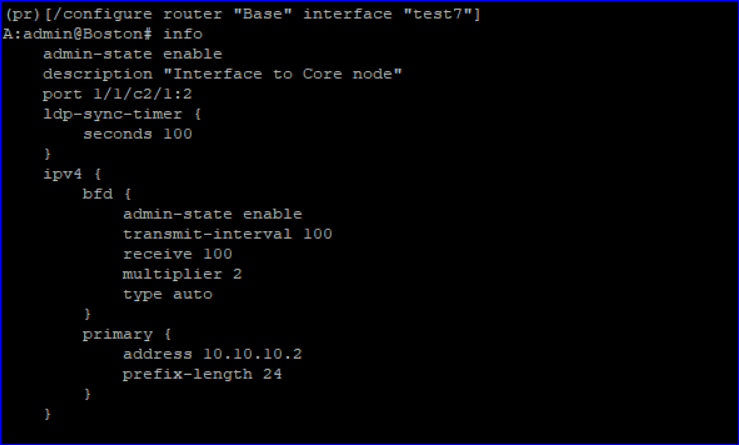

Figure 7-27: NE CLI after deployment

Example 2: 7750 SR-14s Classic

Note: The deployment works without the primary IPv4 address, MPLS, and RSVP configurations on the 7750 SR-14s classic NE, and the interface is created on the classic NE.

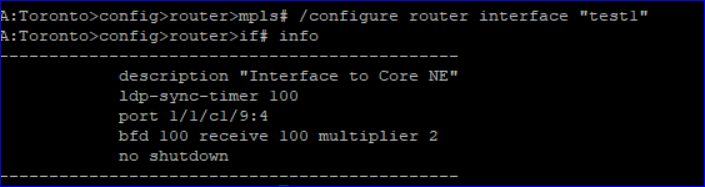

Figure 7-28: NE CLI after deployment

End of steps
