Reports are not published as out of the box with NSP, but LSO framework does support a way to generate and publish reports as part of the upgrade operation. The content of the report can be customized to include running config/show commands.

Note: There is a limitation on the size of the generated file: 15Mb.

This needs to be requested and customized per customer need. Please contact the Nokia support team for more information.

For this use case, the Pre-check and Reboot workflows are customized to enable report generation and collect the following show commands pre and post-upgrade:

cmds:
          - show card
          - show system grpc connection
          - show system netconf connection
          - show router interface
          - show system lldp neighbor
          - show version

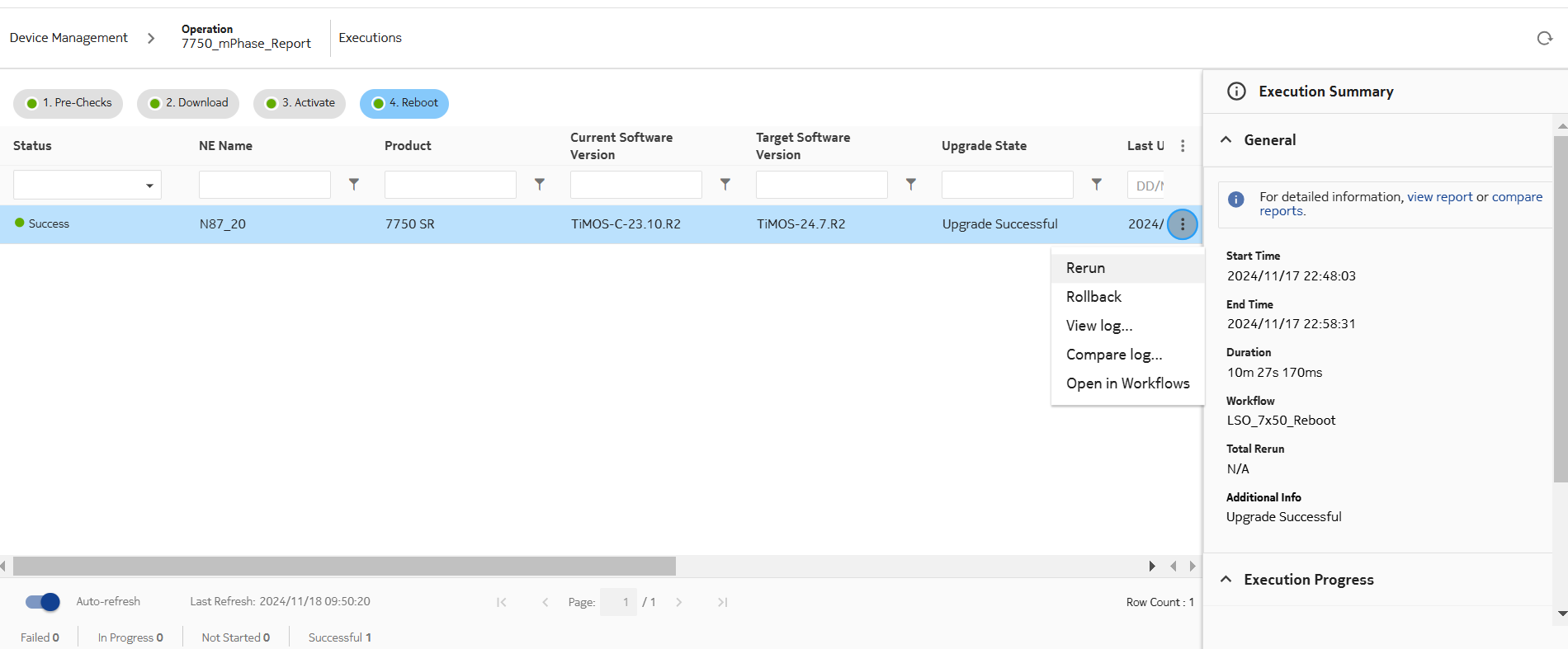

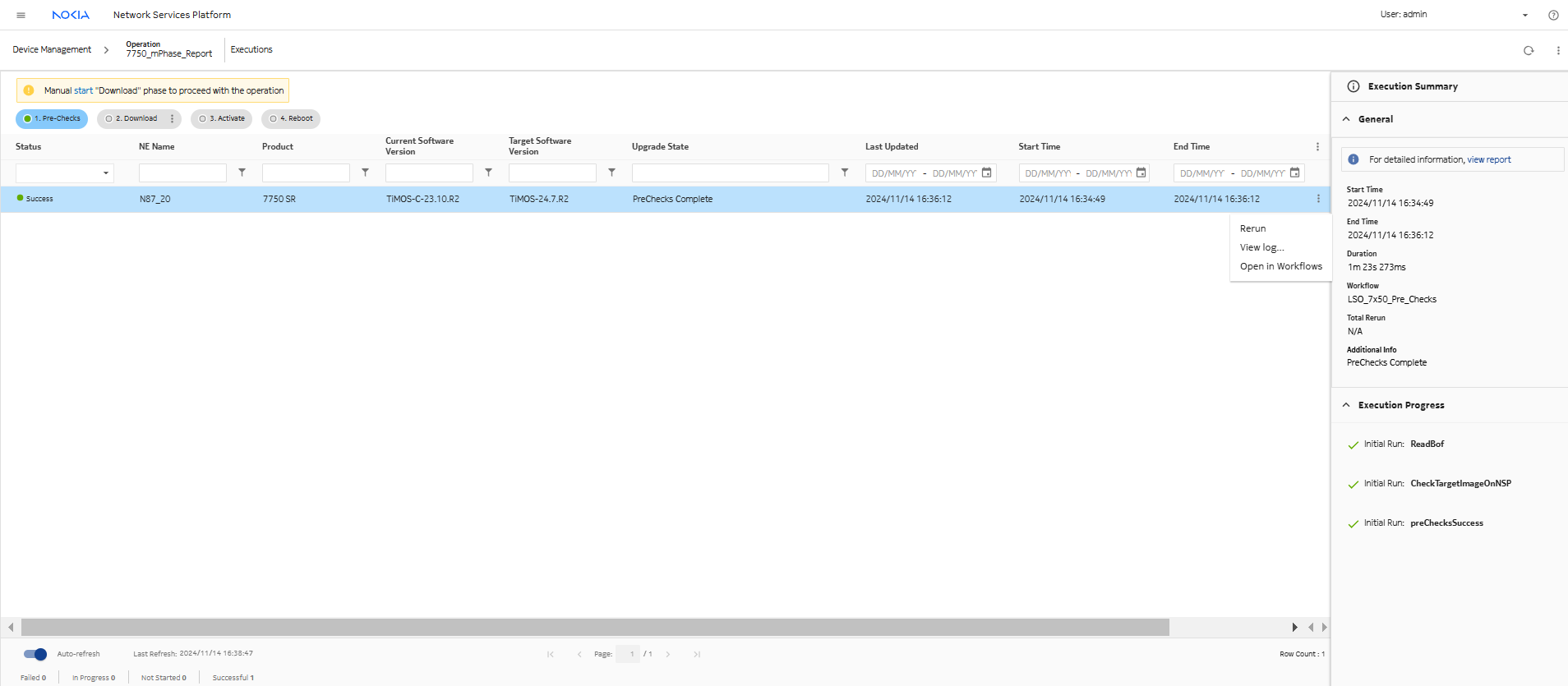

After enabling reporting for Pre-check and Reboot phases, users will see the new option “For detailed information, view report” in the info panel for these phases when they select "View log". Users can pick any supported file format in the workflow: csv, yaml, json, txt.

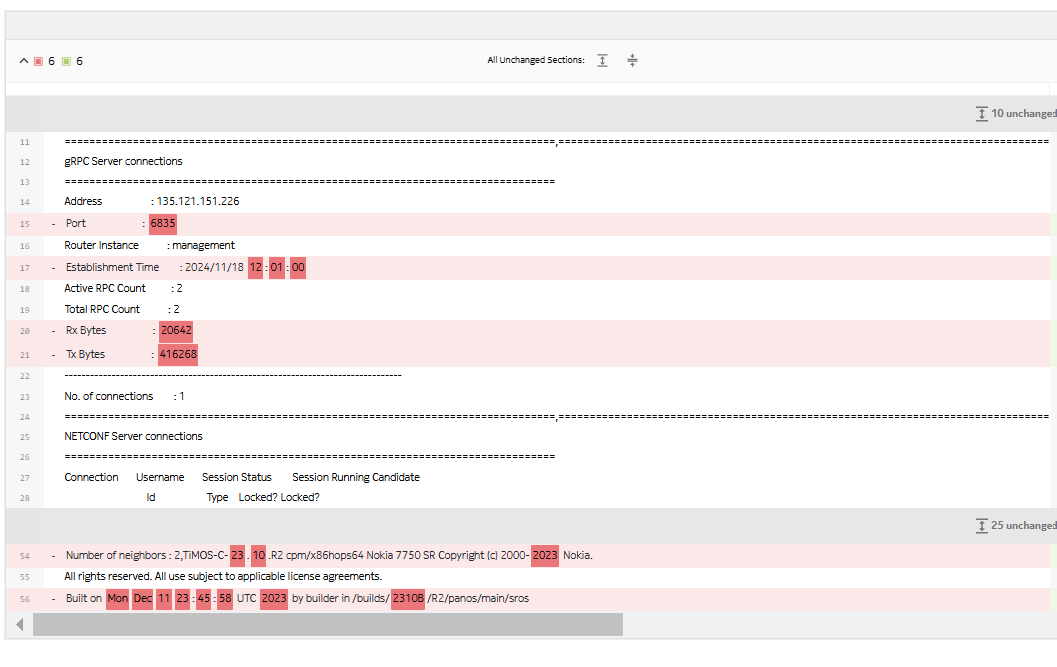

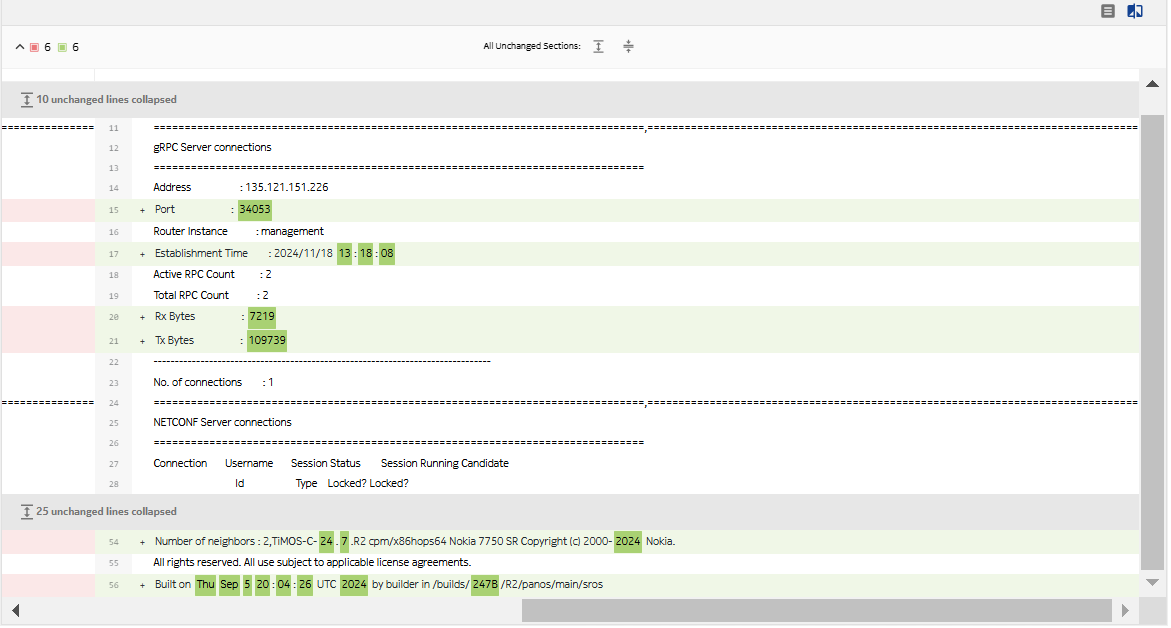

Compare the reports:
