MPLS/RSVP Interfaces

To configure MPLS interface on MD NEs using router-mpls-interface-msros

1

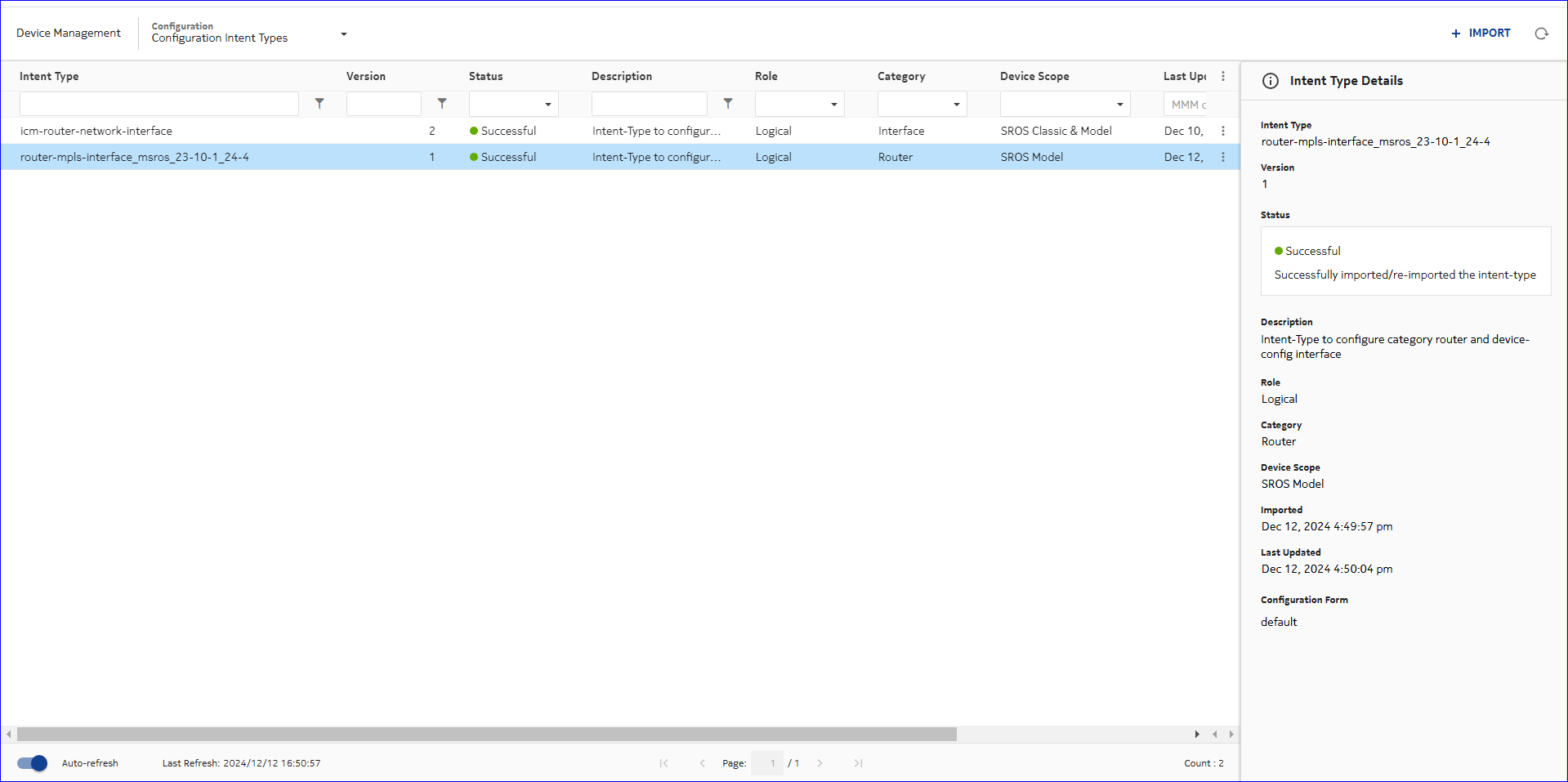

Import the intent type router-mpls-interface_msros_23-10-1_24-4 into Device Management, Configuration Intent Types.

2

Create a configuration template in Device Management, Configuration Templates and set to released state.

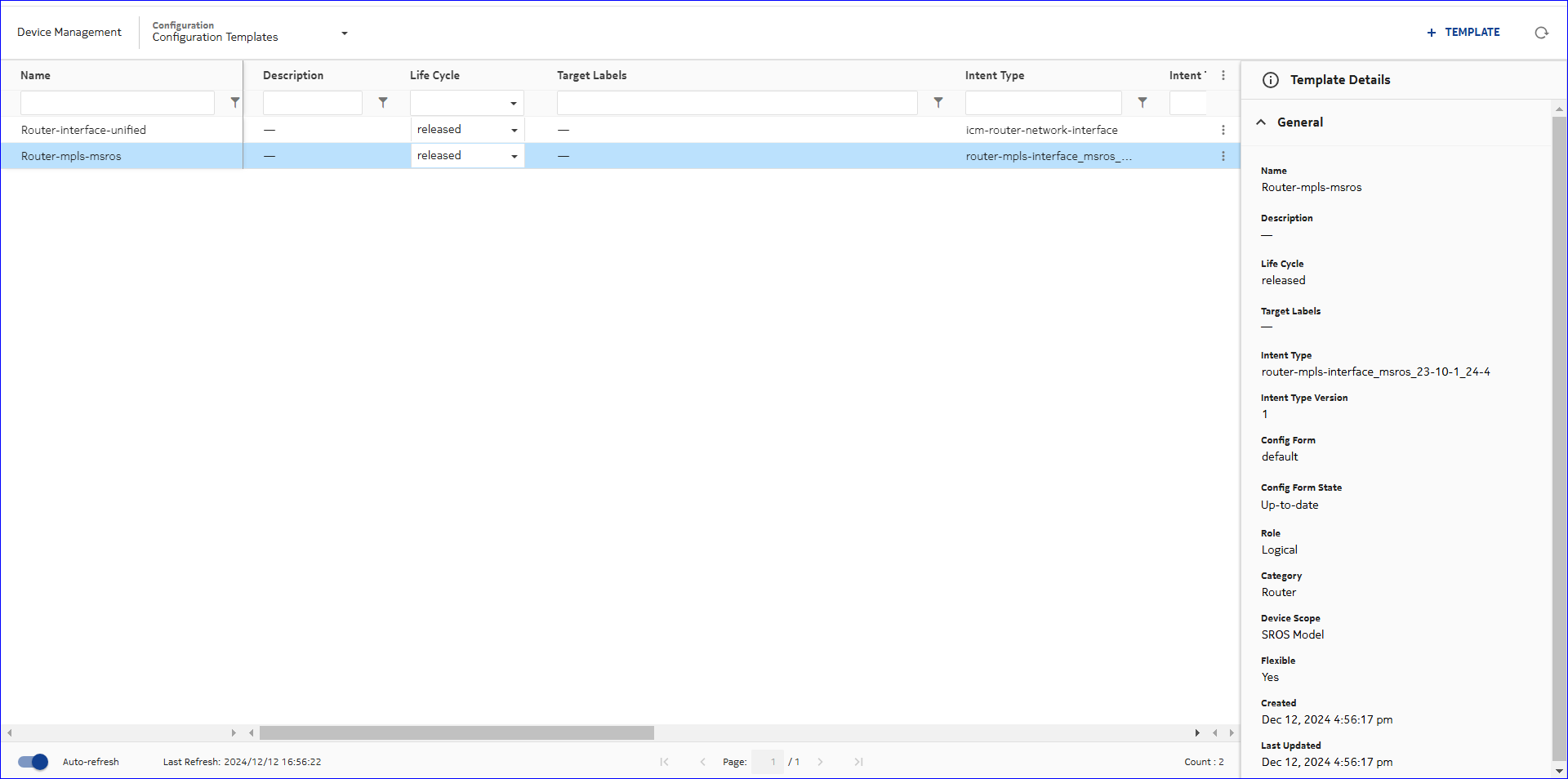

For example, the configuration template created below is named as Router-mpls-msros.

3

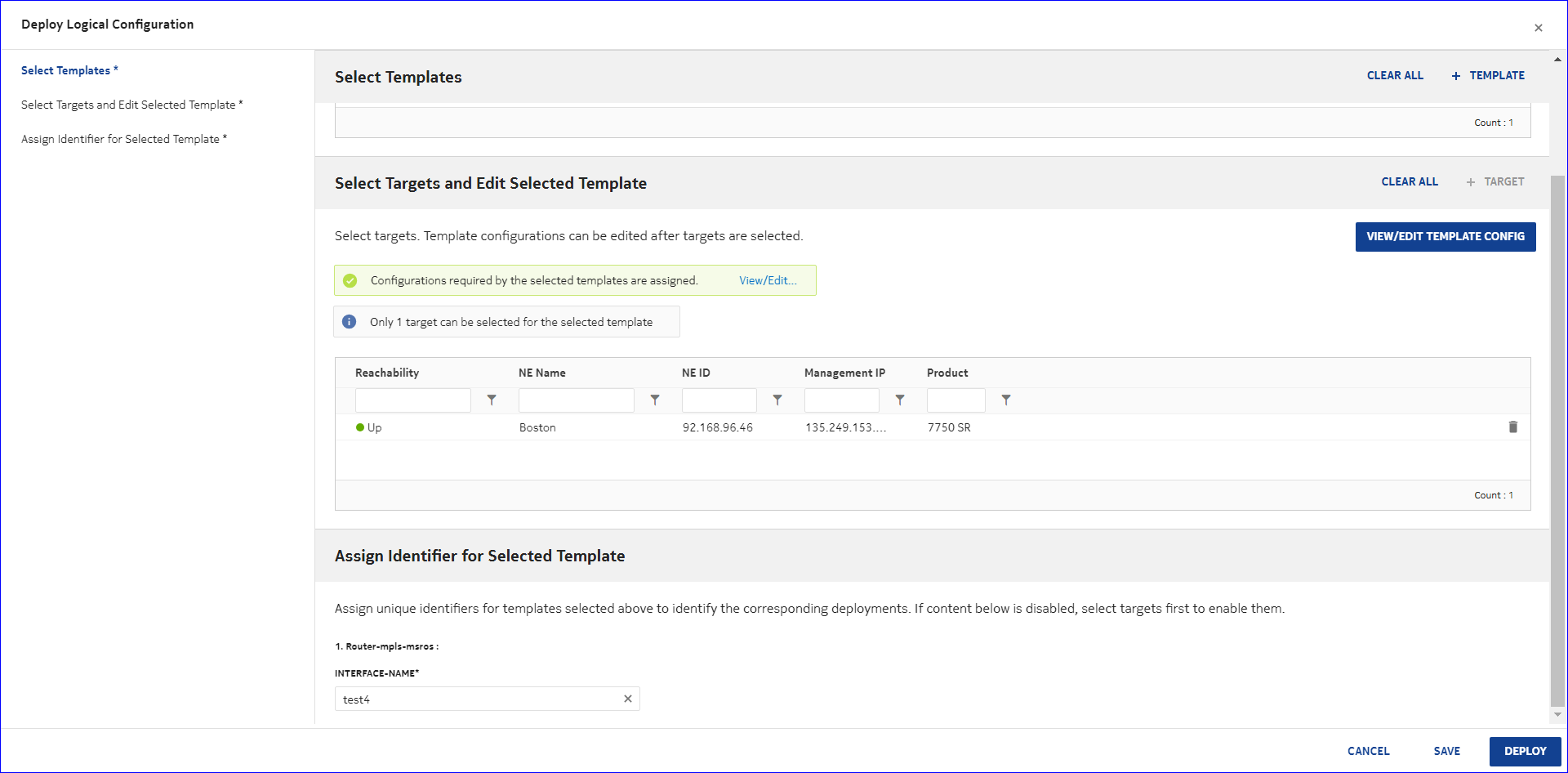

Create configuration deployments using the above configuration template.

The following example uses 7750 MD.

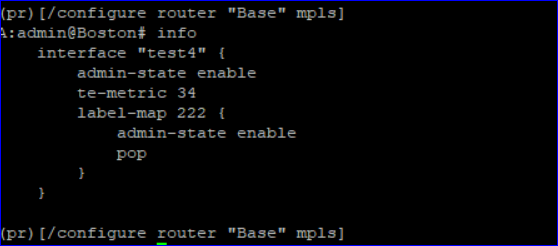

Figure 7-23: NE CLI after deployment
NE CLI after deployment

End of steps

To configure MPLS interface on Classic NEs using router-mpls-interface-csros

router-mpls-interface_csros_23-10-1_24-4 intent can be used for MPLS interface configuration on classic NEs.


1

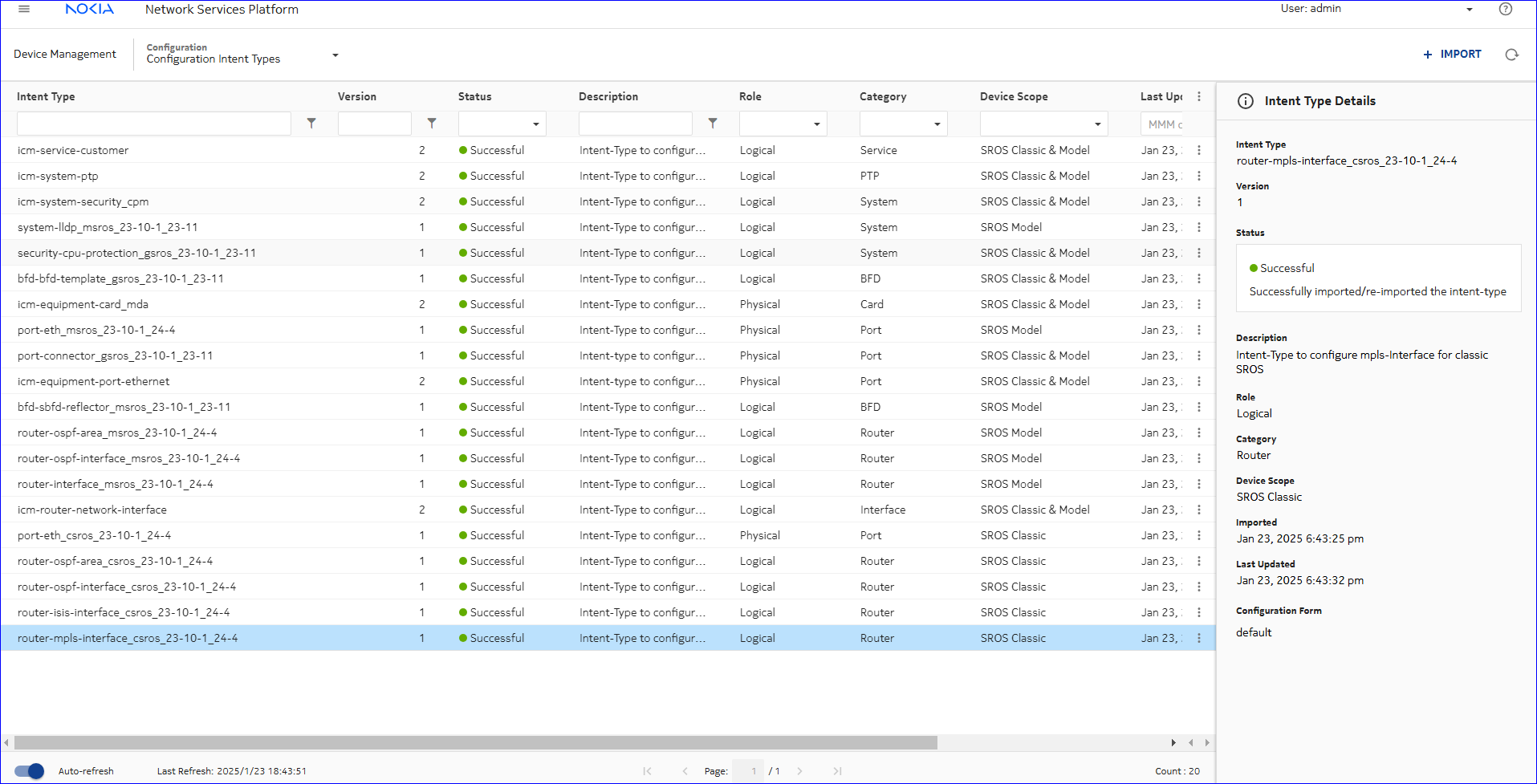

Import the intent type router-mpls-interface_csros_23-10-1_24-4 into Device Management, Configuration Intent Types.

2

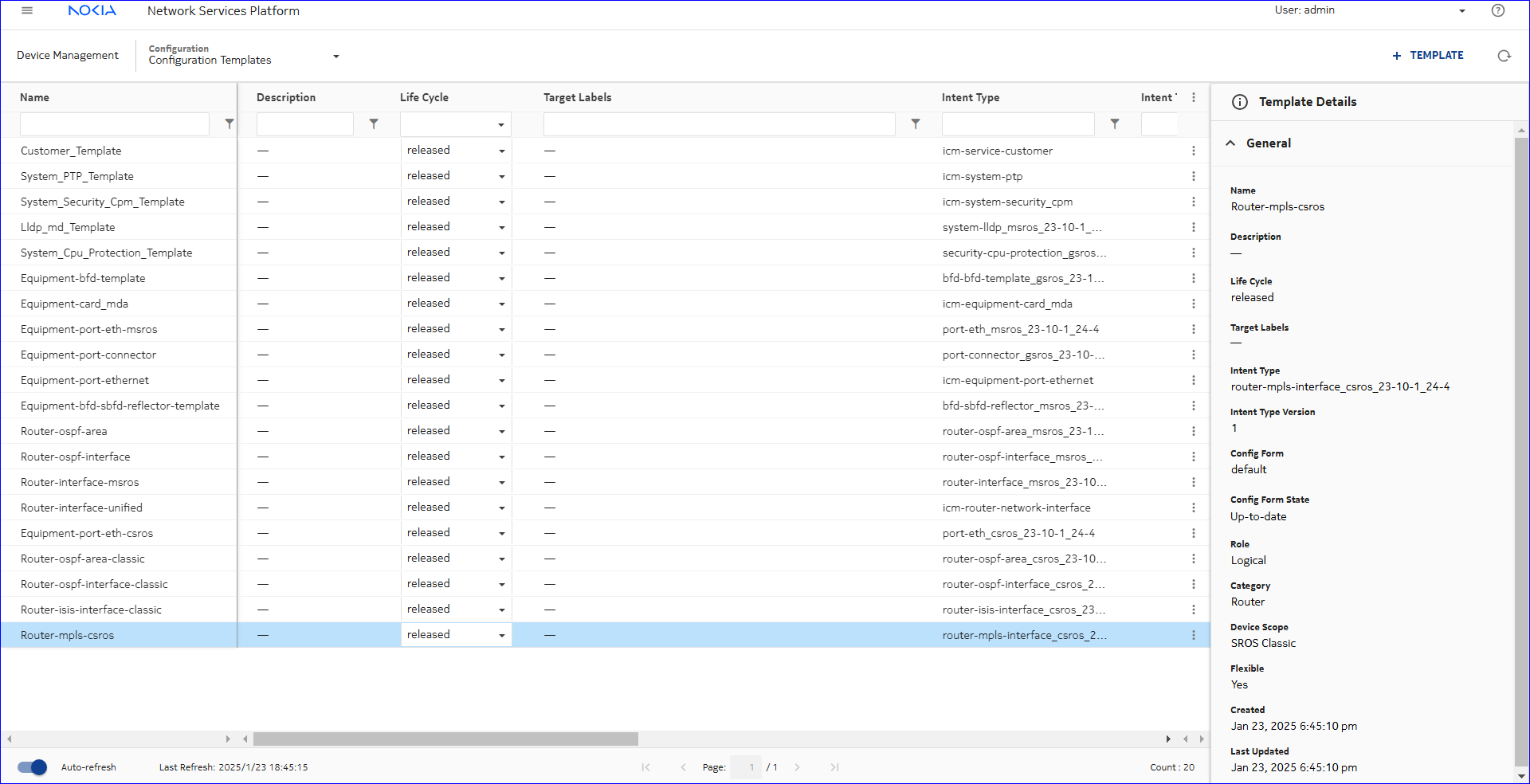

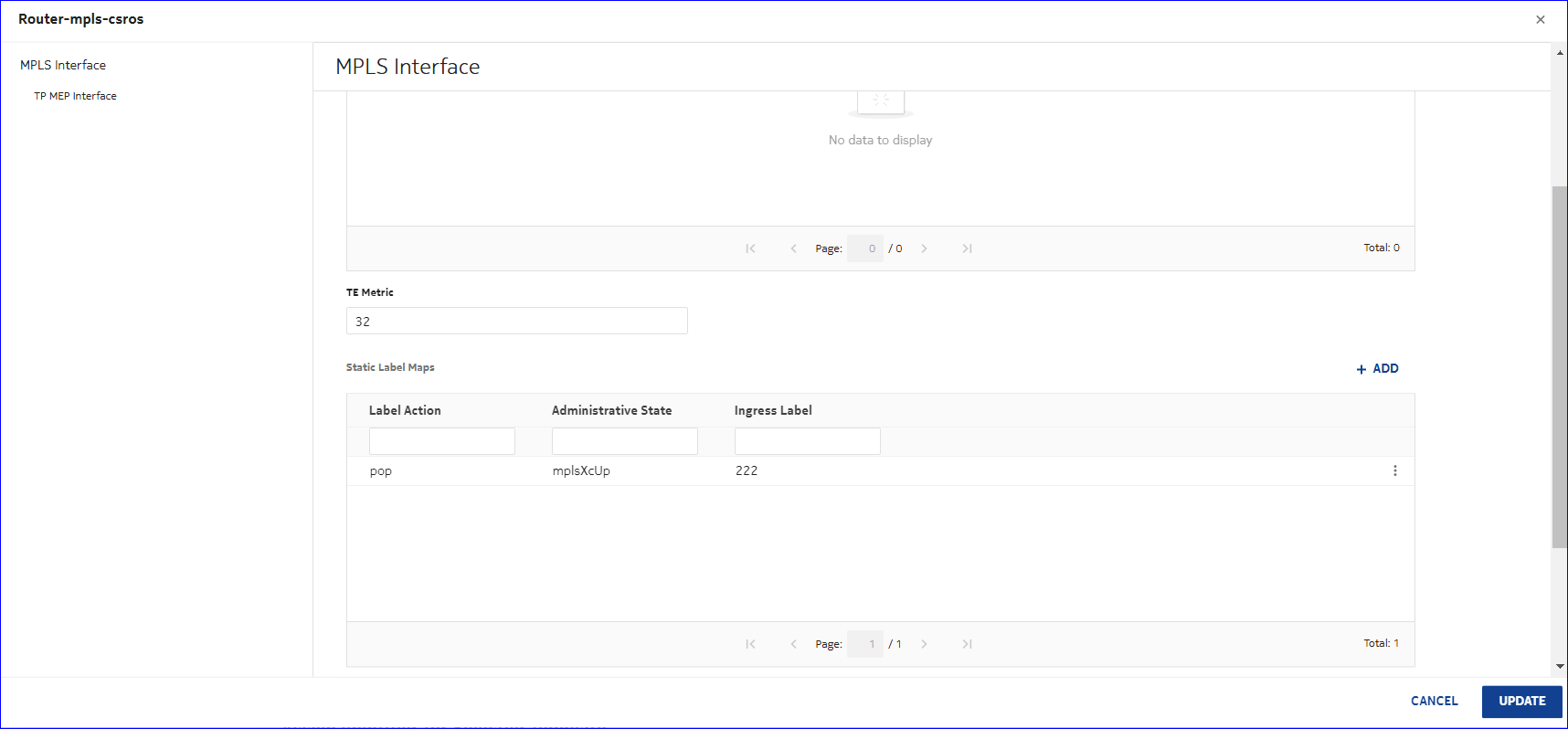

Create a configuration template in Device Management, Configuration Templates and set to released state.

For example, the configuration template created below is named as Router-mpls-csros.

3

Create configuration deployments using the above configuration template.

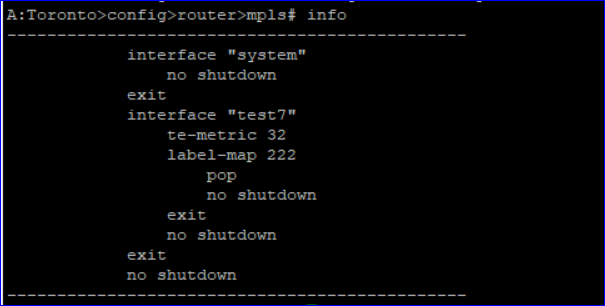

Figure 7-24: NE CLI after deployment
NE CLI after deployment

End of steps

To configure RSVP interface on MD NEs using router-rsvp-interface_msros_23-10-1_24-4

1

Prerequisites:

  • diffserv-te must be enabled:

    (pr)[/configure router "Base" rsvp diffserv-te]

    A:admin@Boston# info

    admission-control-model rdm

2

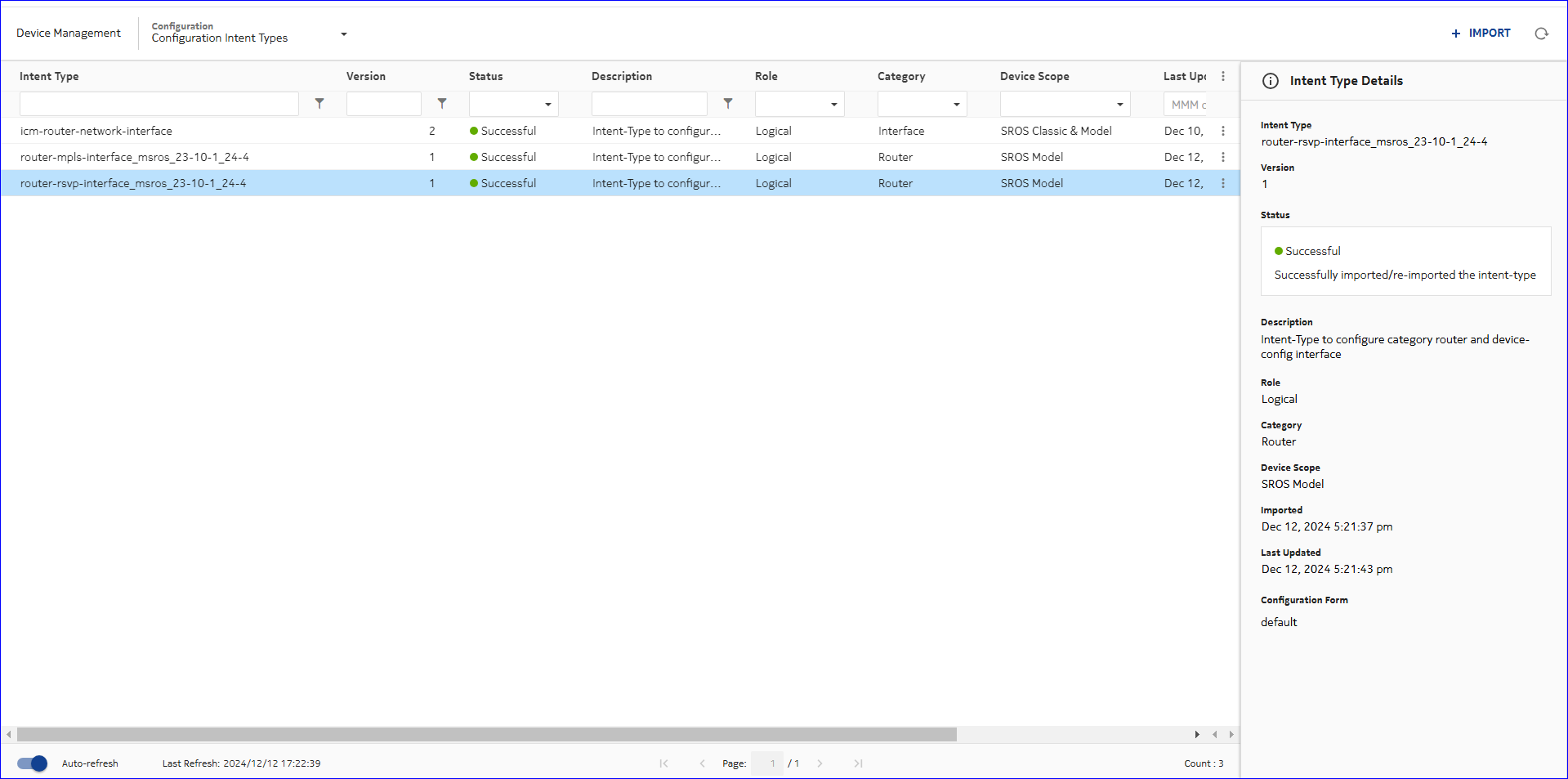

Import the intent type router-rsvp-interface_msros_23-10-1_24-4 into Device Management, Configuration Intent Types.

3

Create a configuration template in Device Management, Configuration Templates and set to released state.

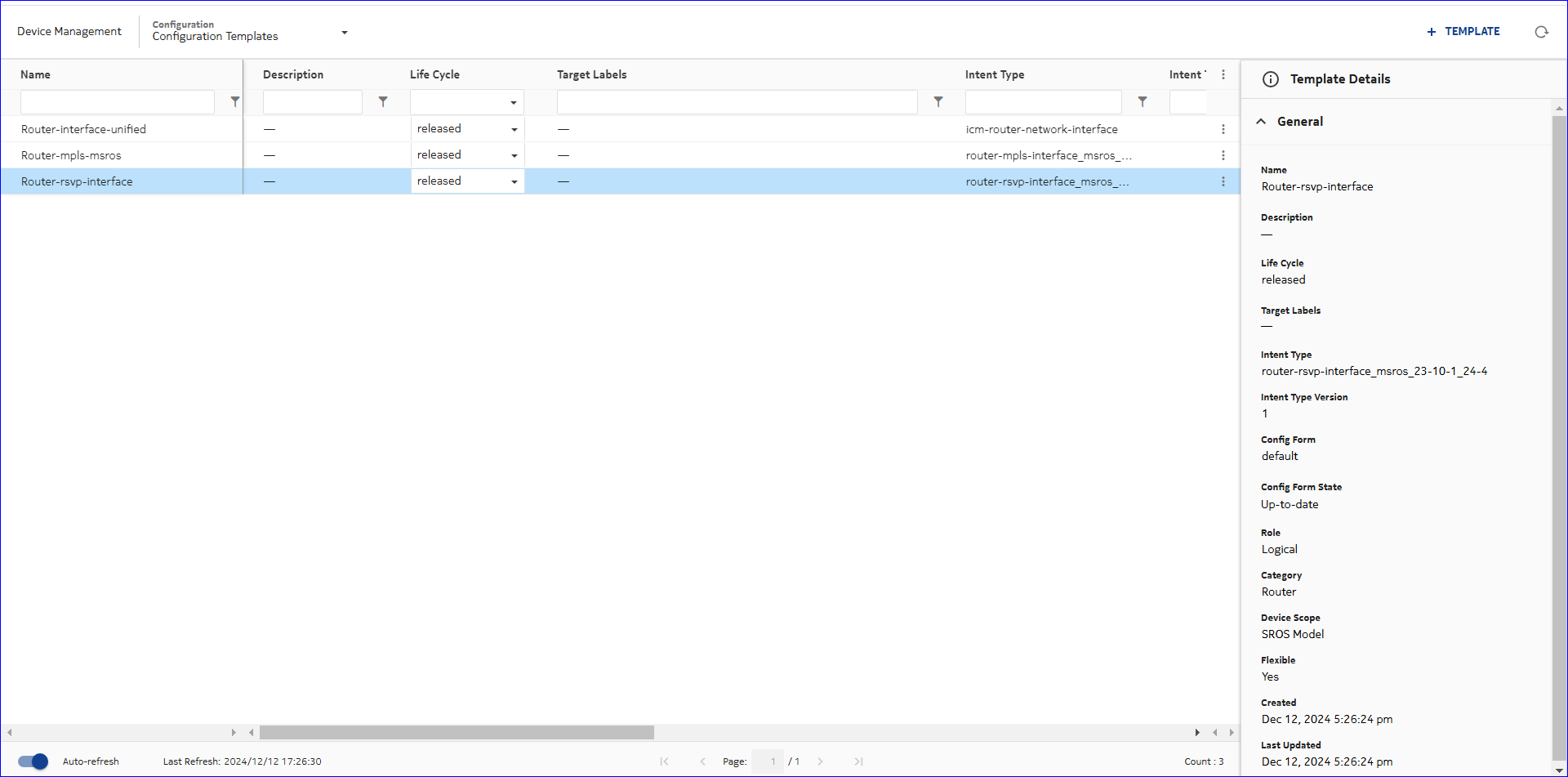

For example, the configuration template created below is named as Router-rsvp-interface.

4

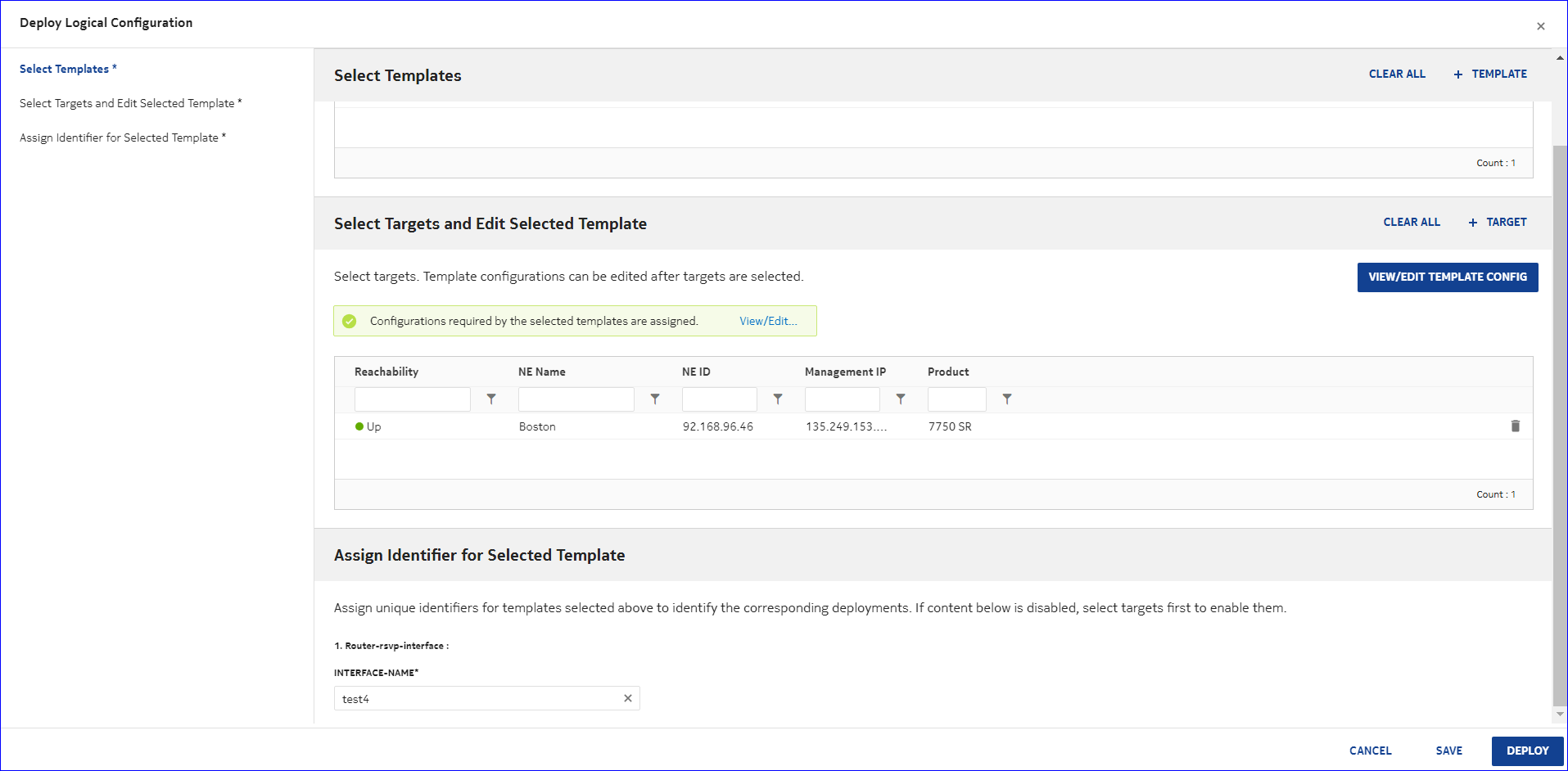

Create configuration deployments using the above configuration template.

The following example uses 7750 MD.

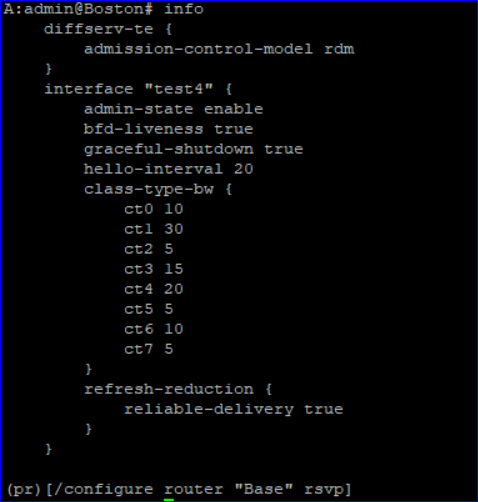

Figure 7-25: NE CLI after deployment
NE CLI after deployment

End of steps

To configure RSVP interface on Classic NEs using router-rsvp-interface_msros_23-10-1_24-4

router-rsvp-interface_csros_23-10-1_24-4 intent can used for the configuration of RSVP on classic NEs.


1

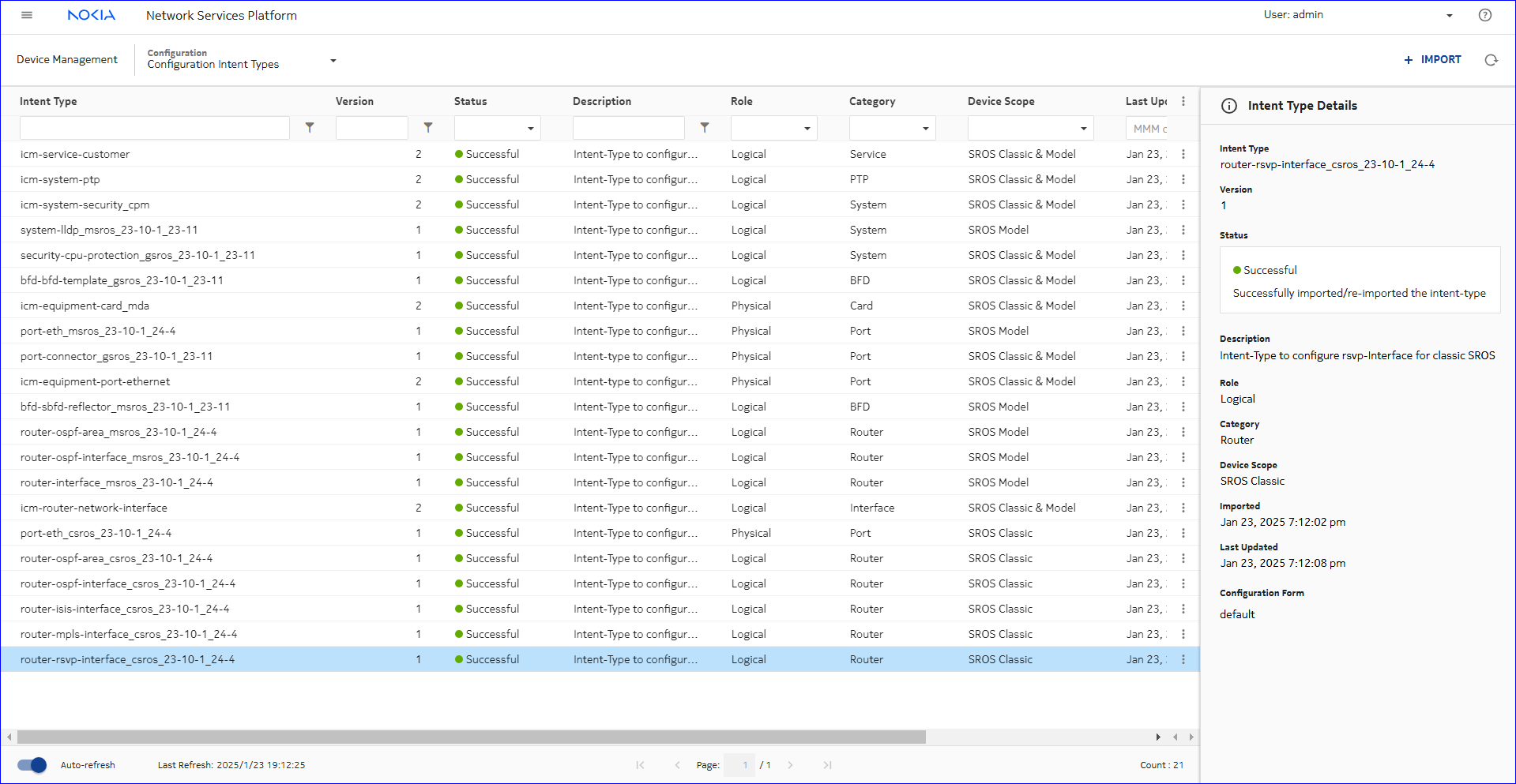

Import the intent type router-rsvp-interface_csros_23-10-1_24-4 into Device Management, Configuration Intent Types.

2

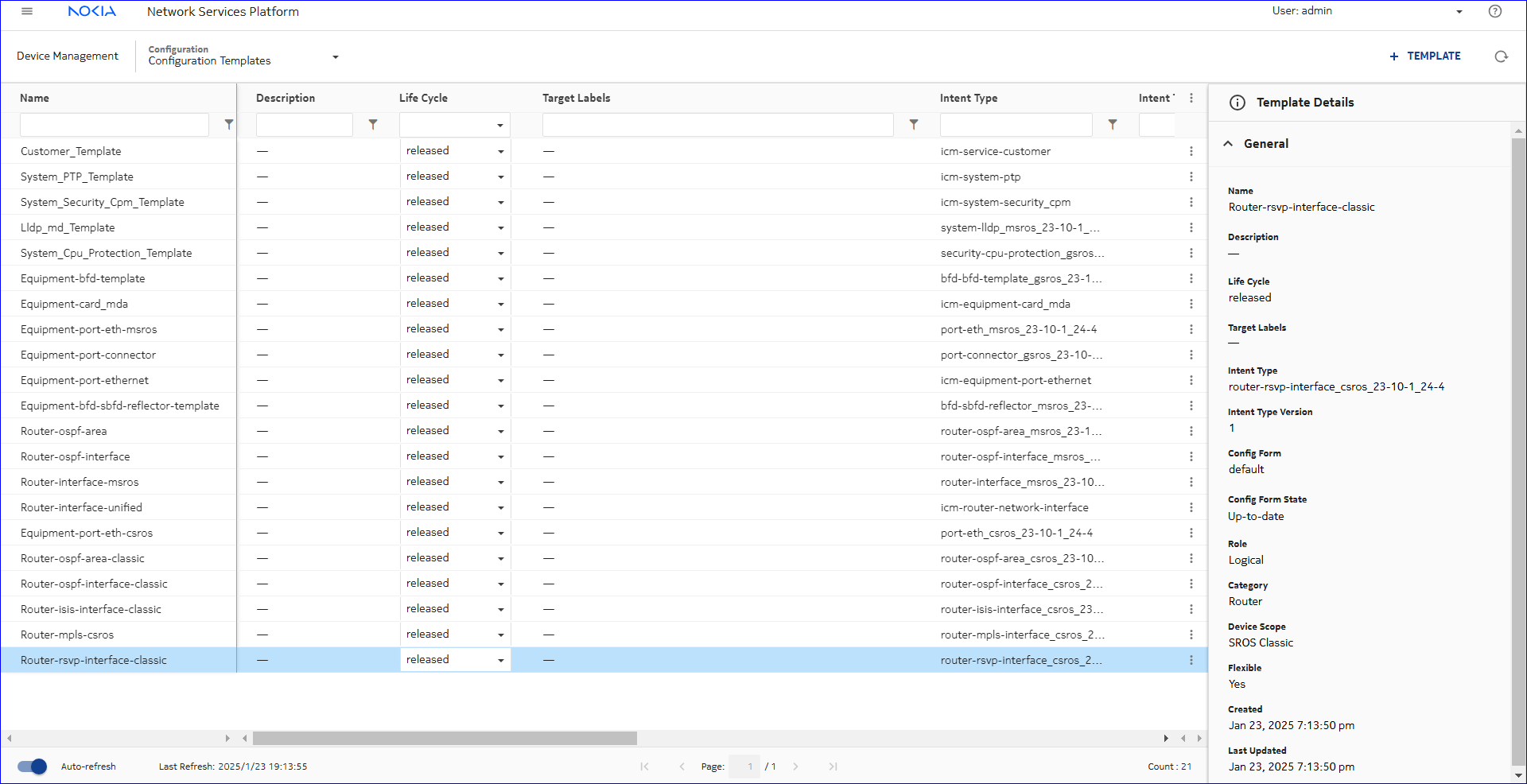

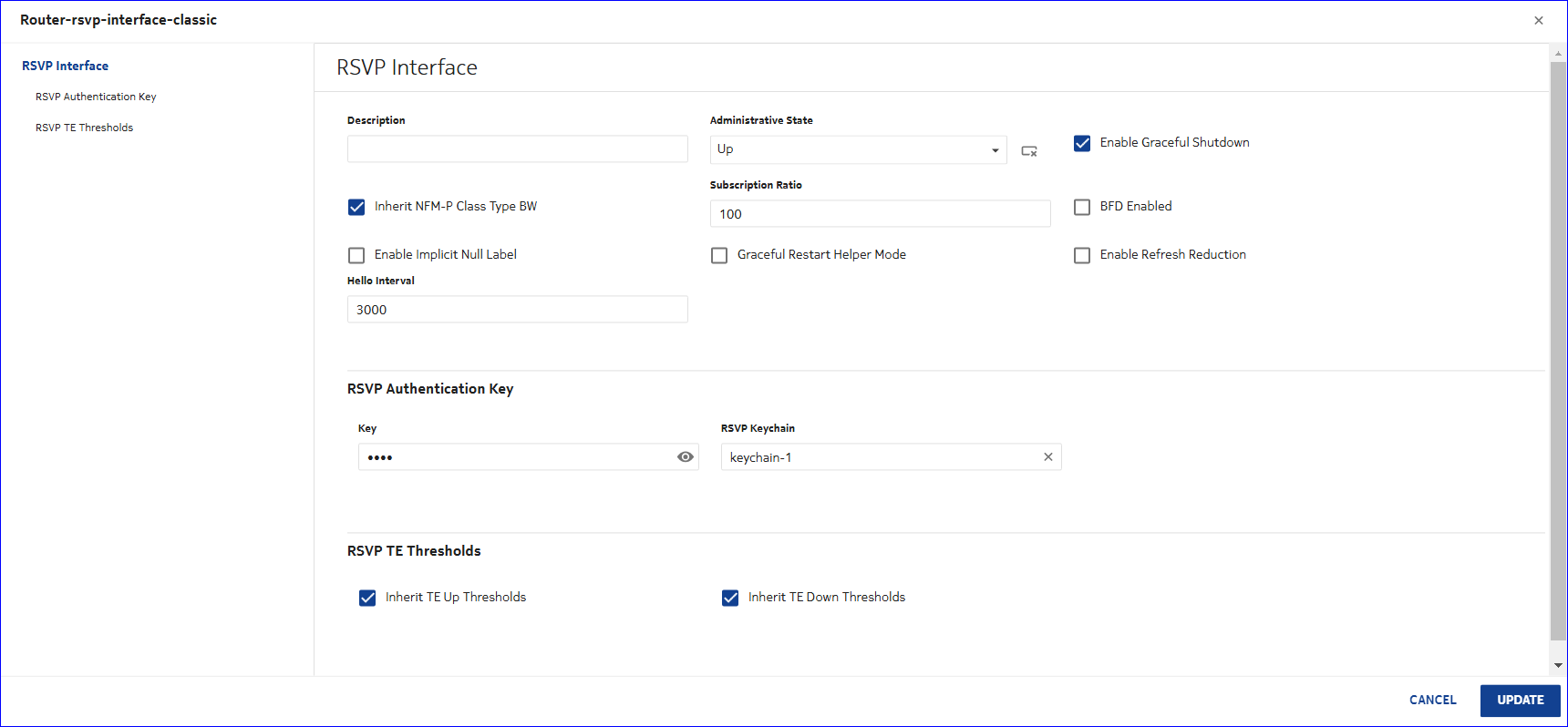

Create a configuration template in Device Management, Configuration Templates and set to released state.

For example, the configuration template created below is named as Router-rsvp-interface-classic.

3

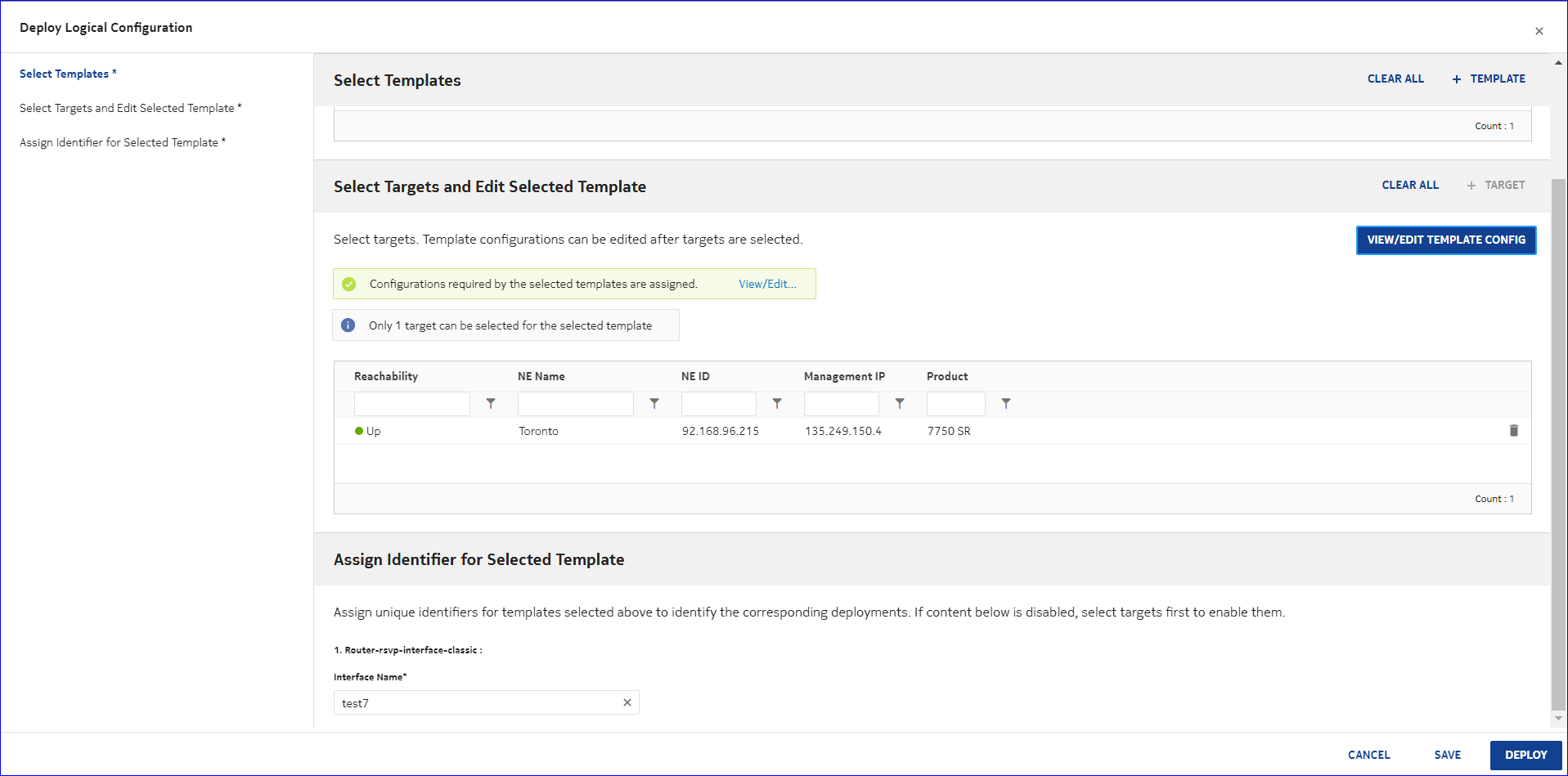

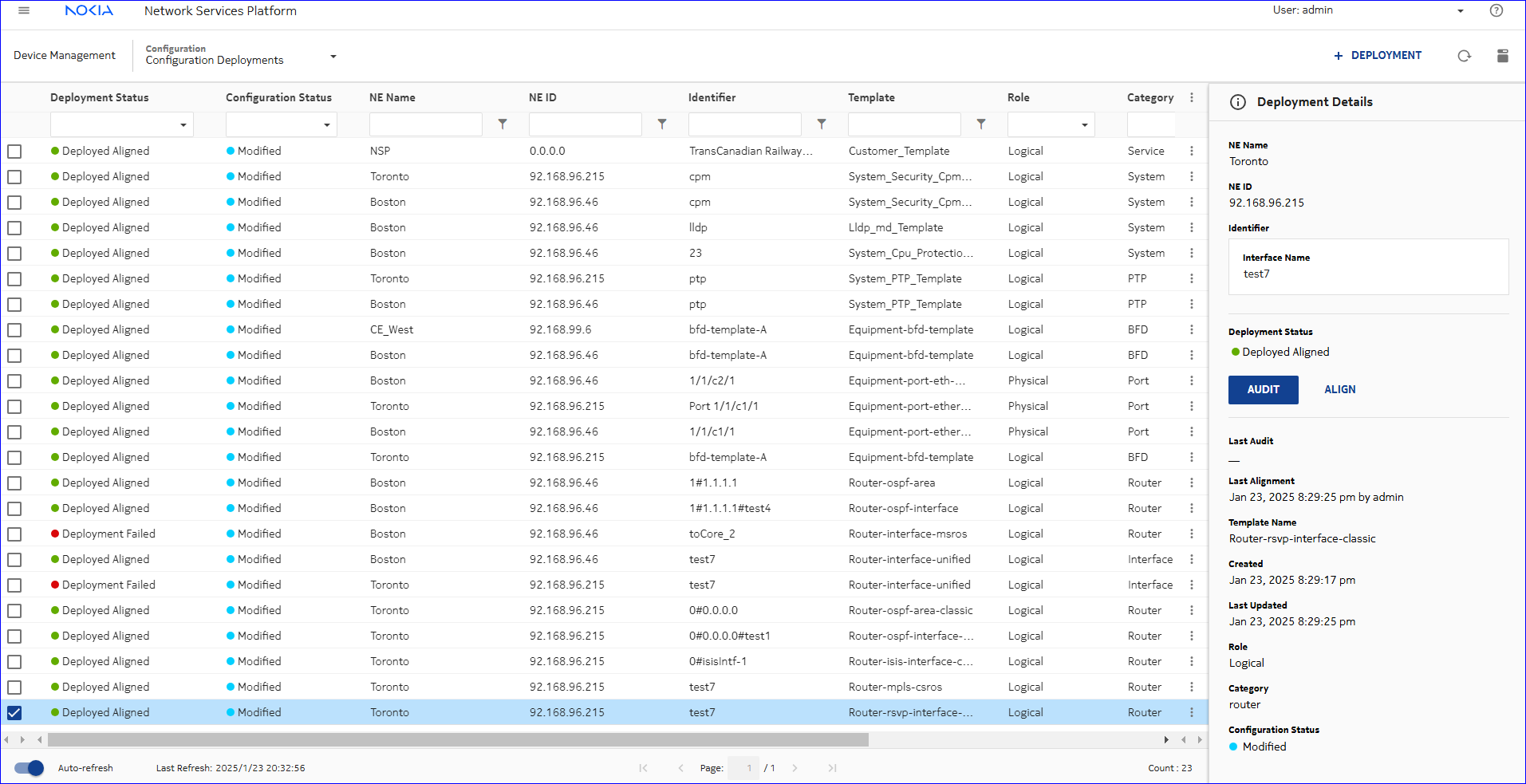

Create configuration deployments using the above configuration template.

The following example uses 7750 MD.

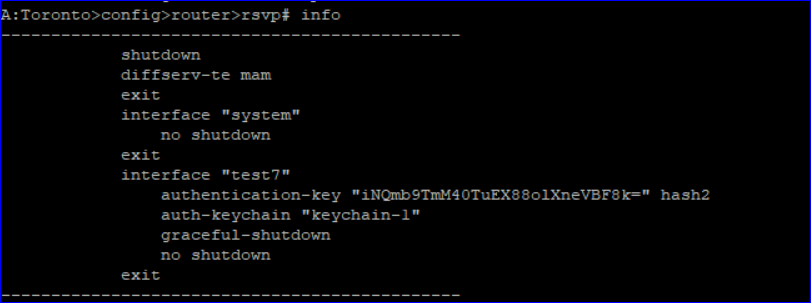

Figure 7-26: NE CLI after deployment

End of steps
