Other configurations

To configure using icm-system-security-cpm intent type

1

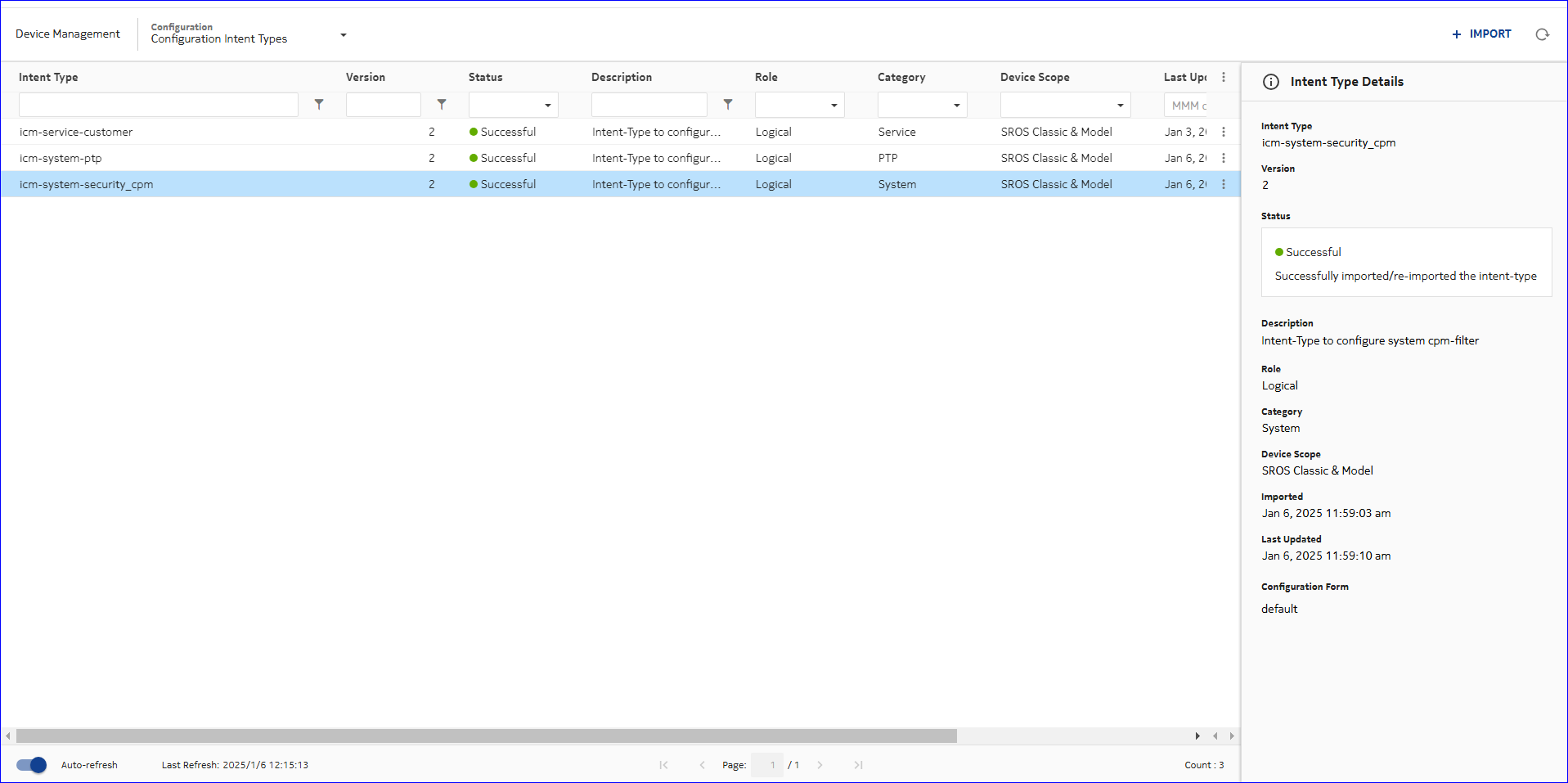

Import the intent type icm-system-security-cpm into Device Management, Configuration Intent Types.

2

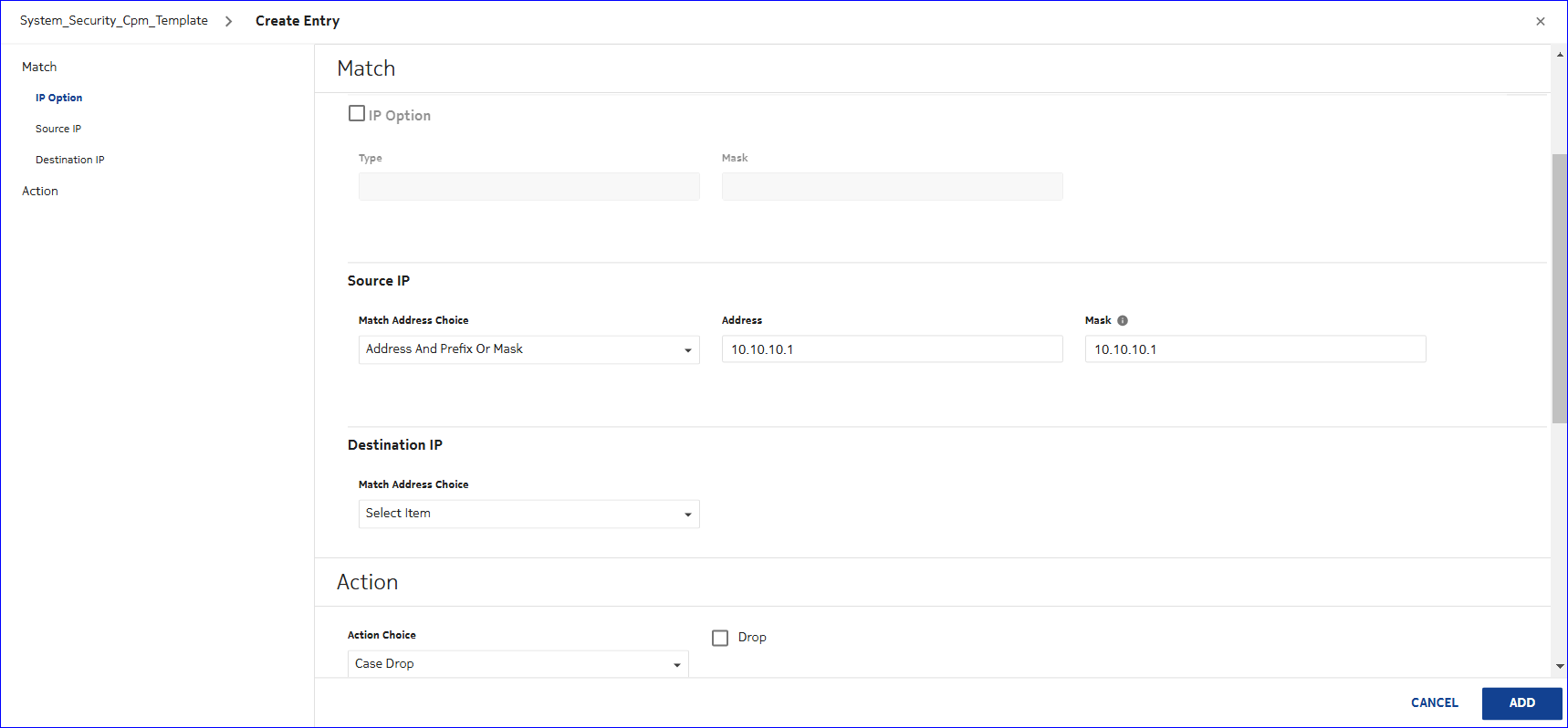

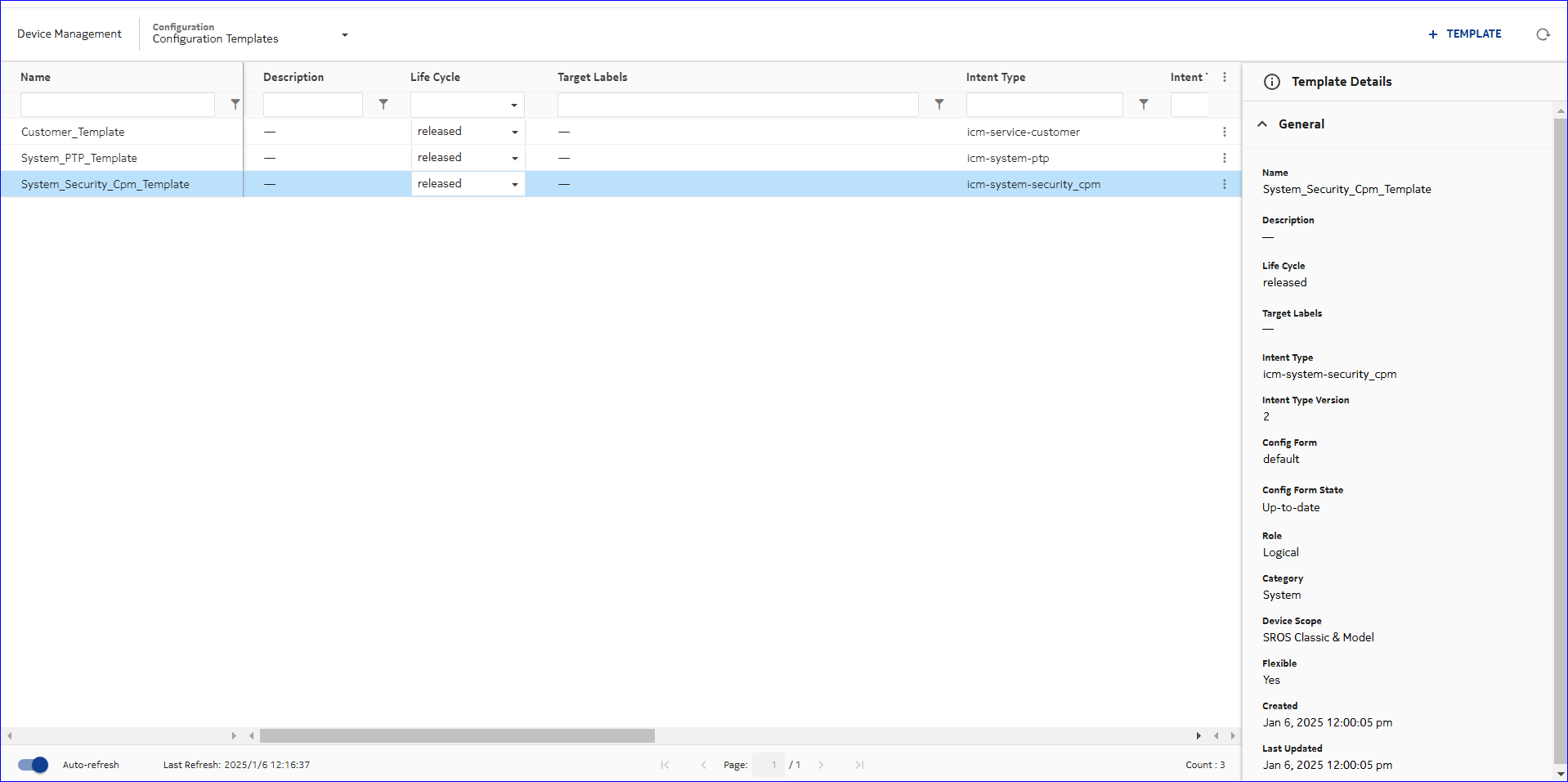

Create a configuration template in Device Management, Configuration Templates and set to released state.

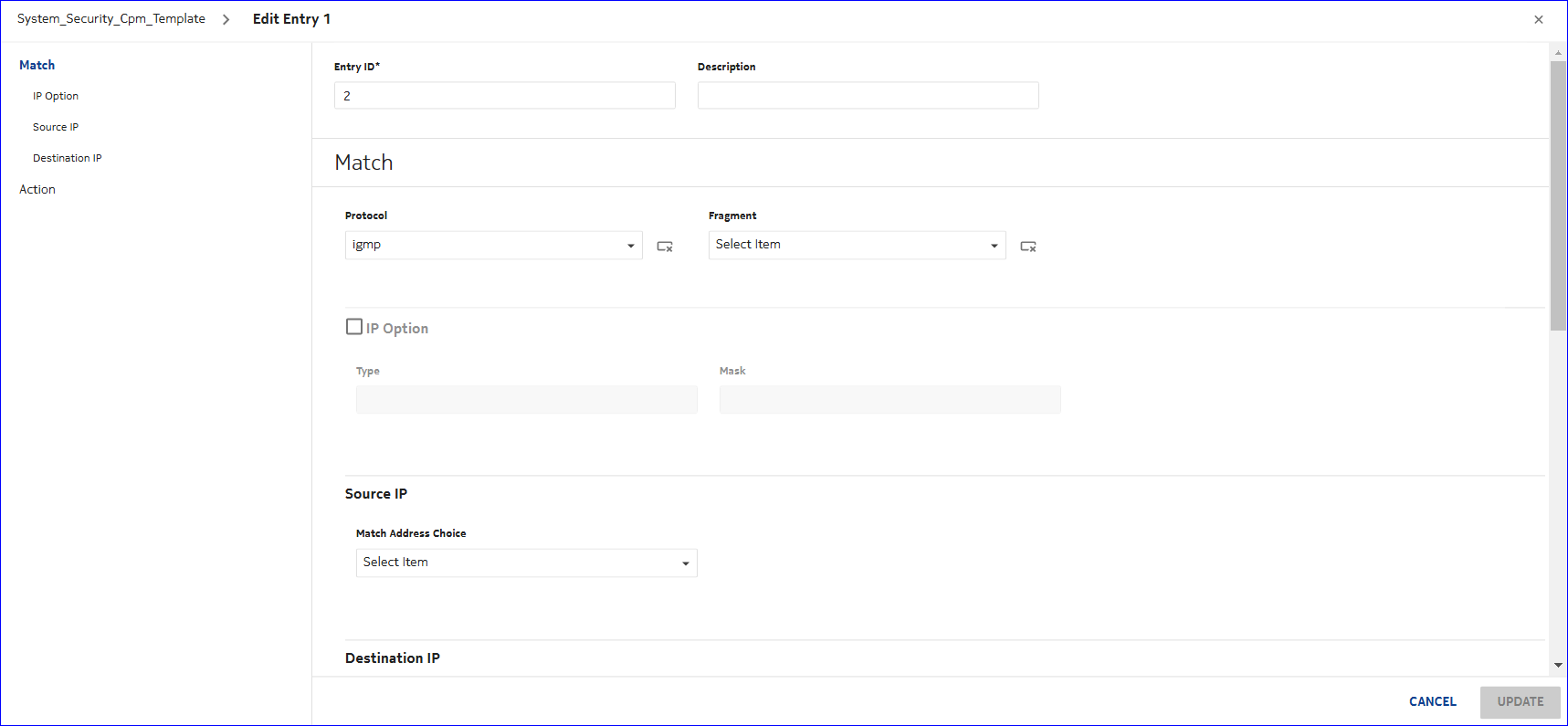

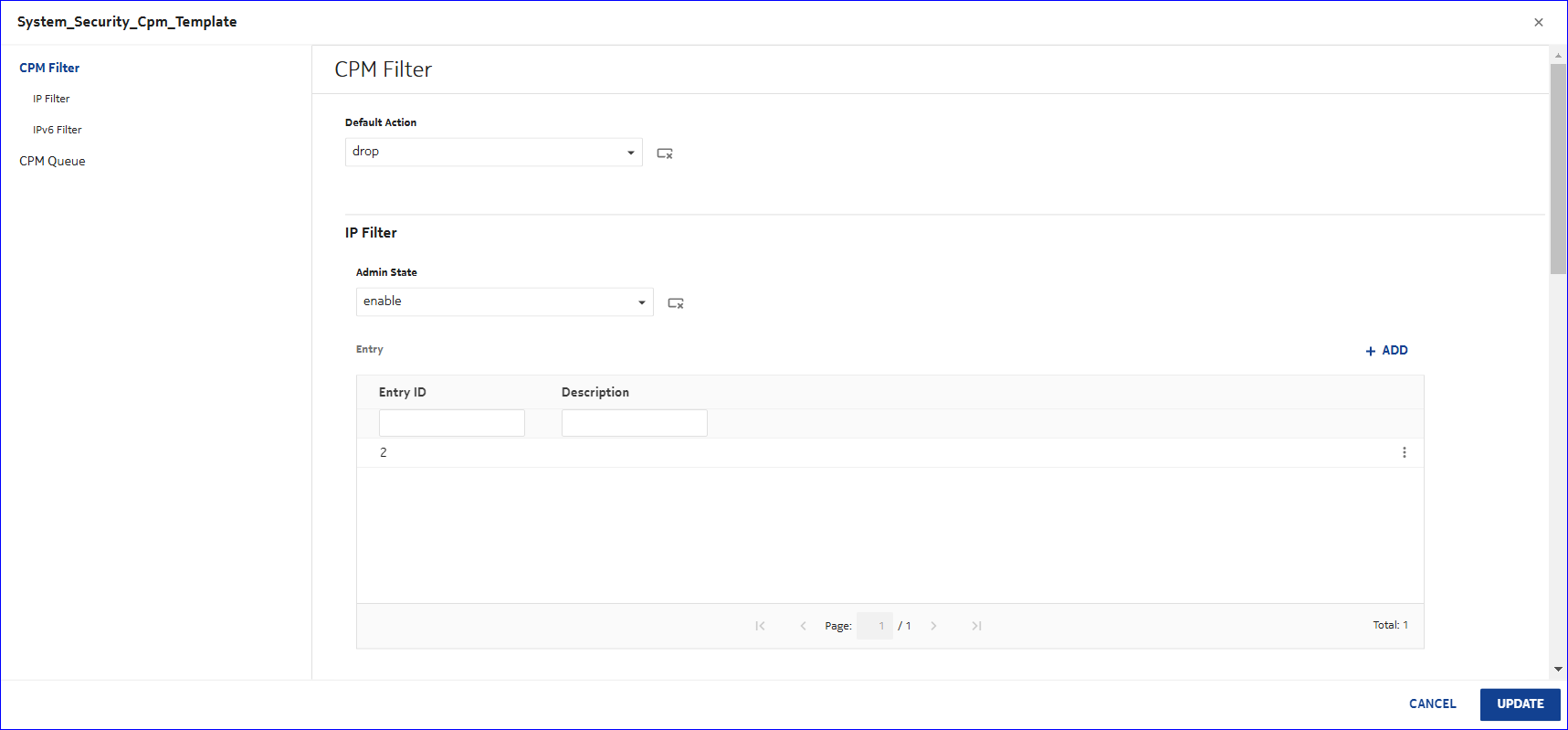

For example, the configuration template created below is named as System_Security_Cpm_Template.

3

Create configuration deployments using the above configuration template.

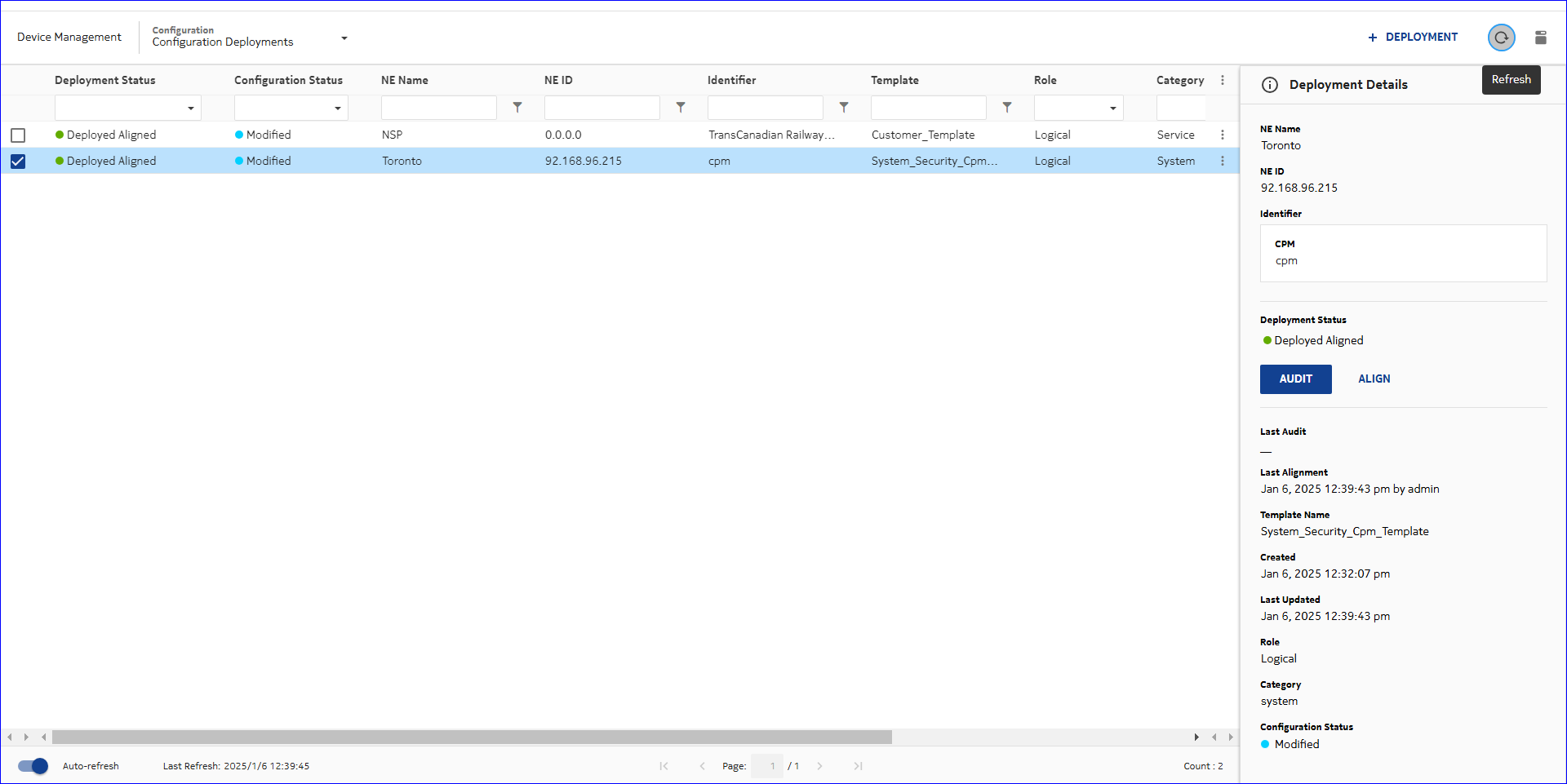

Successful deployment:

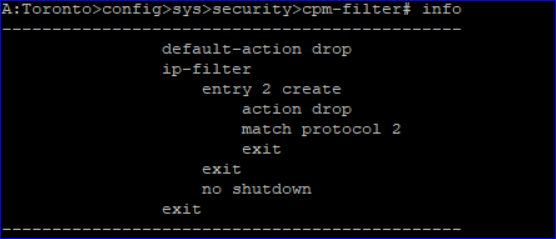

Figure 7-35: On Classic NE:
On Classic NE:

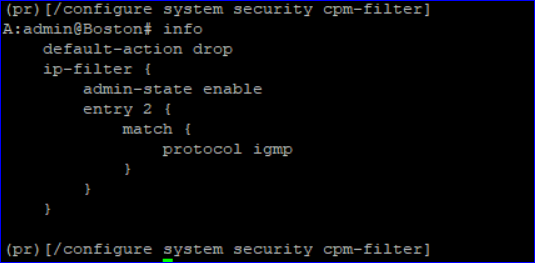

Figure 7-36: On MD NE:
On MD NE:

End of steps

To configure using system-lldp-msros intent type

1

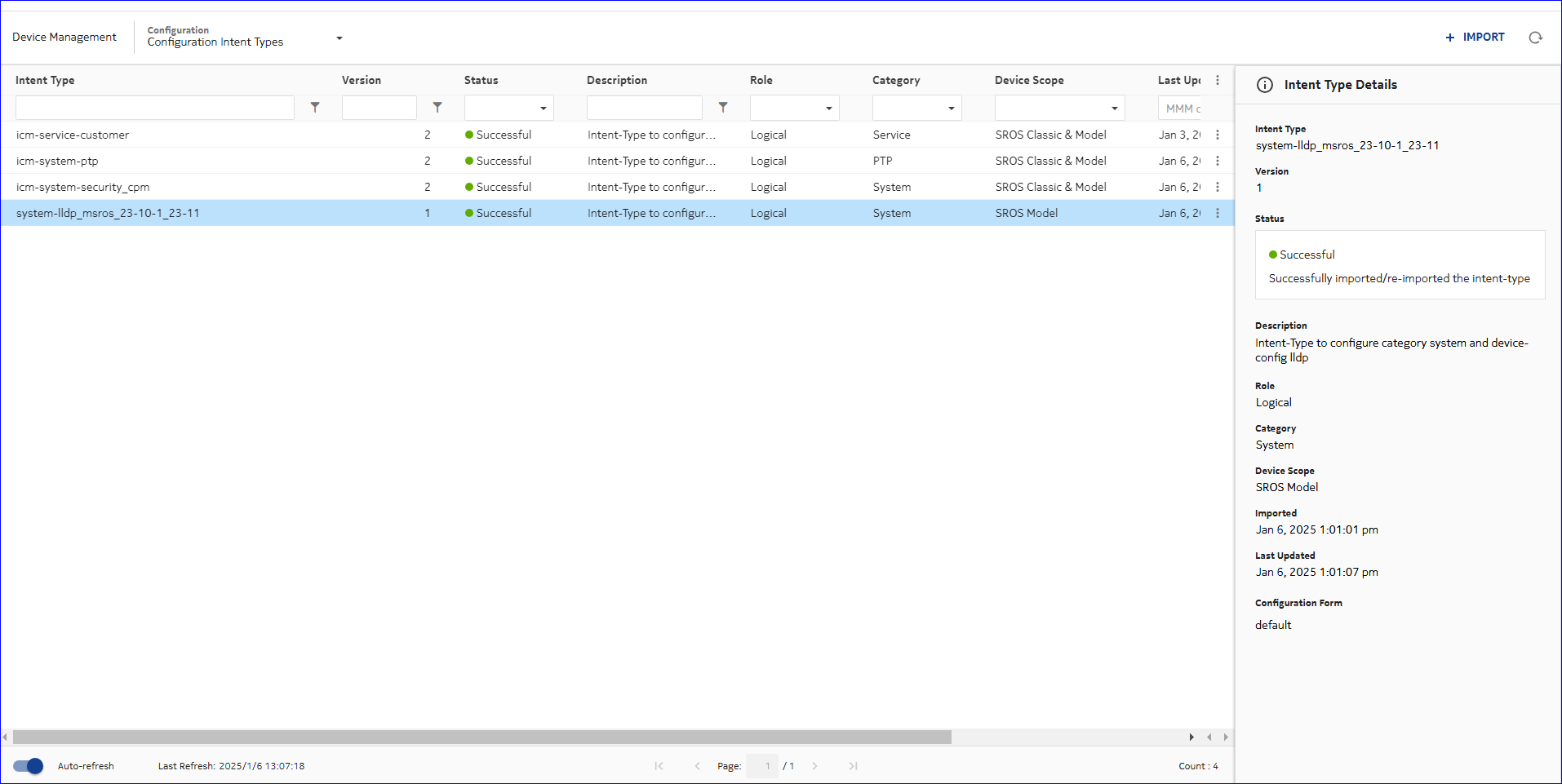

Import the intent type system-lldp-msros into Device Management, Configuration Intent Types.

2

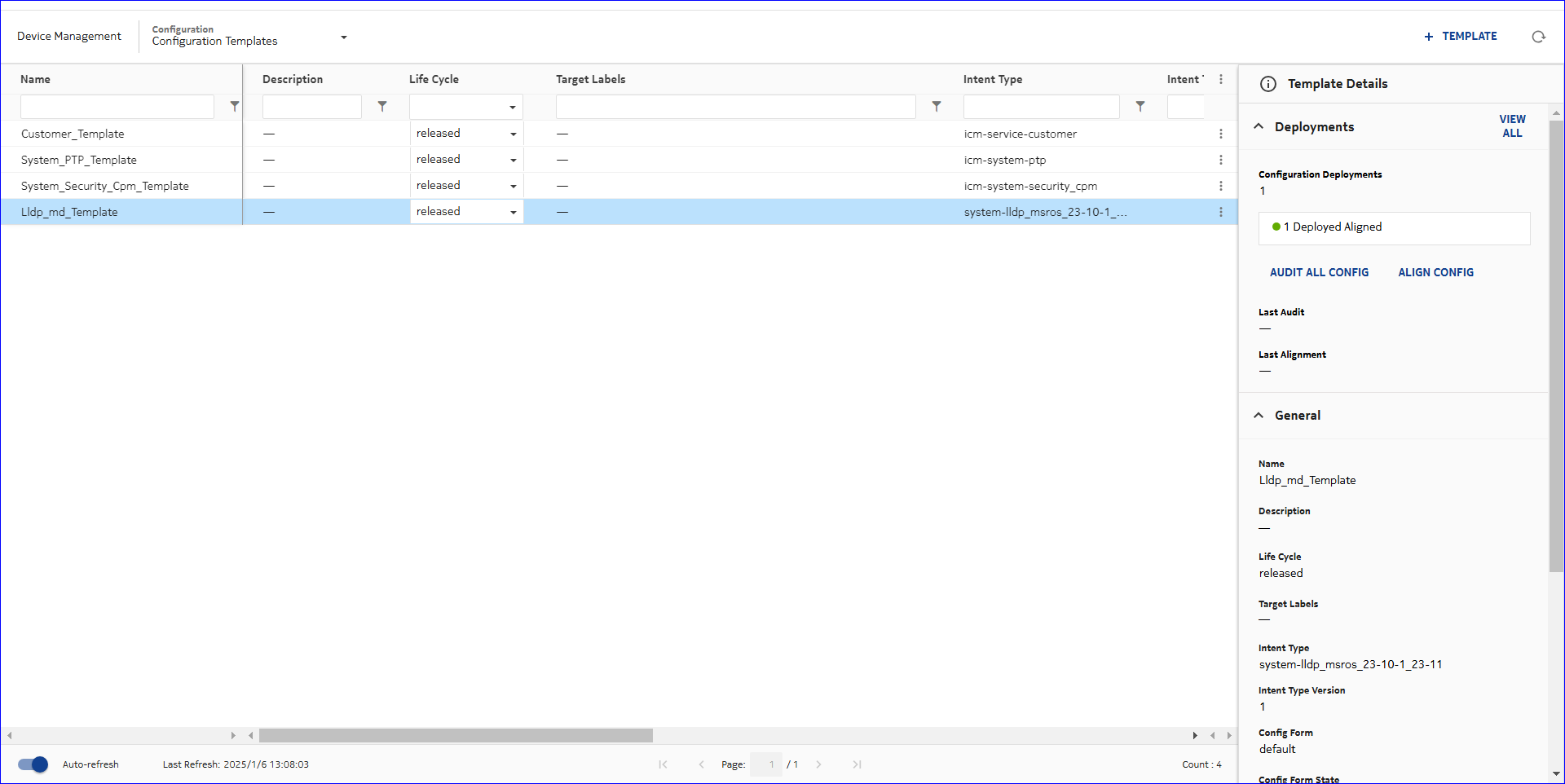

Create a configuration template in Device Management, Configuration Templates and set to released state.

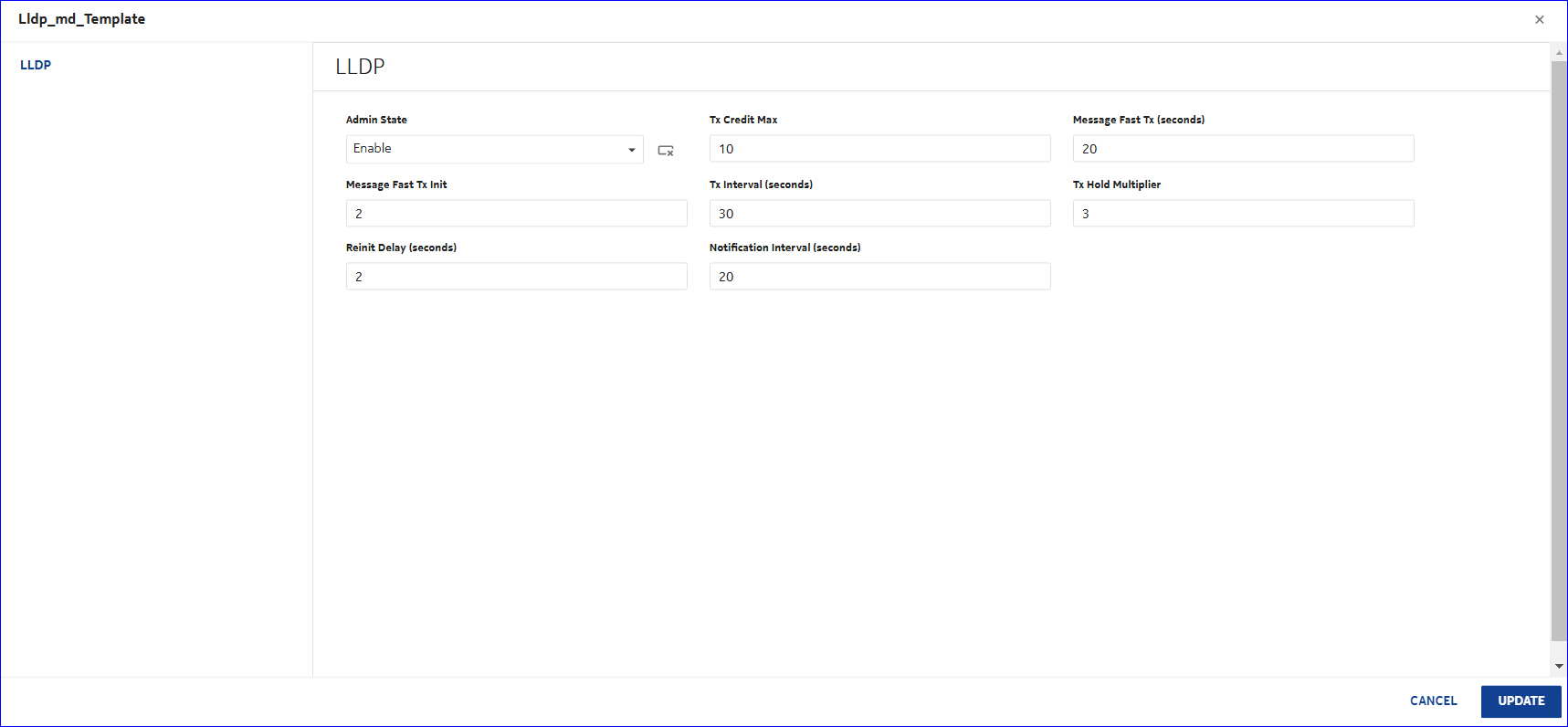

For example, the configuration template created below is named as Lldp_md_Template.

3

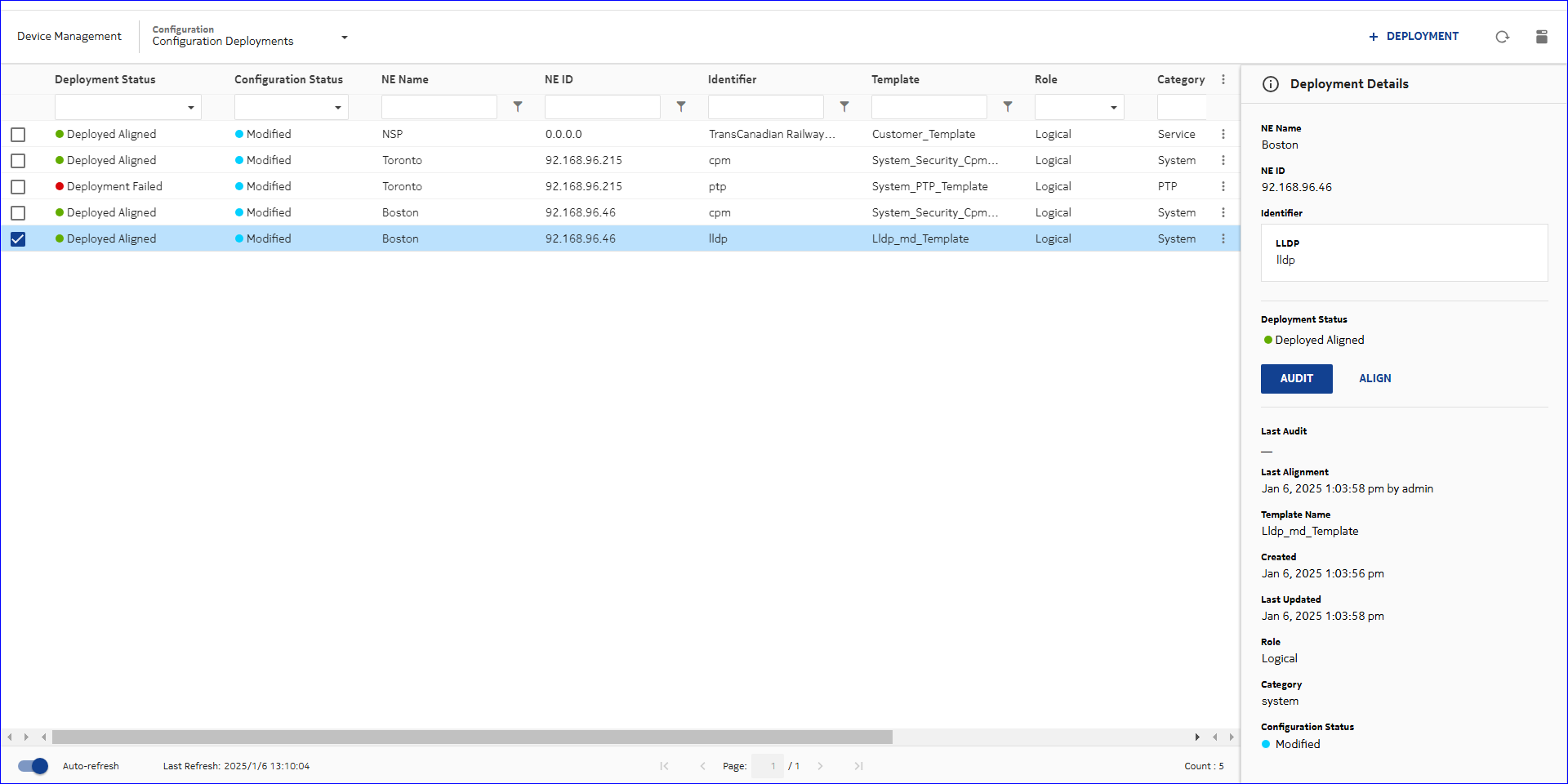

Create configuration deployments using the above configuration template.

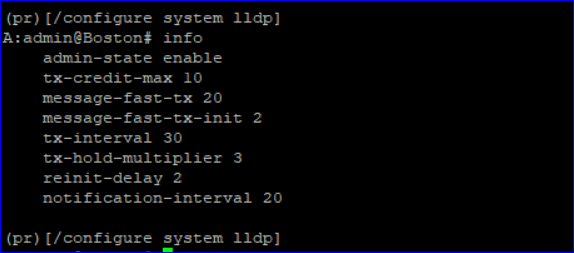

Figure 7-37: NE CLI after deployment:
NE CLI after deployment:

End of steps

To configure using security-cpu-protection-gsros intent type

1

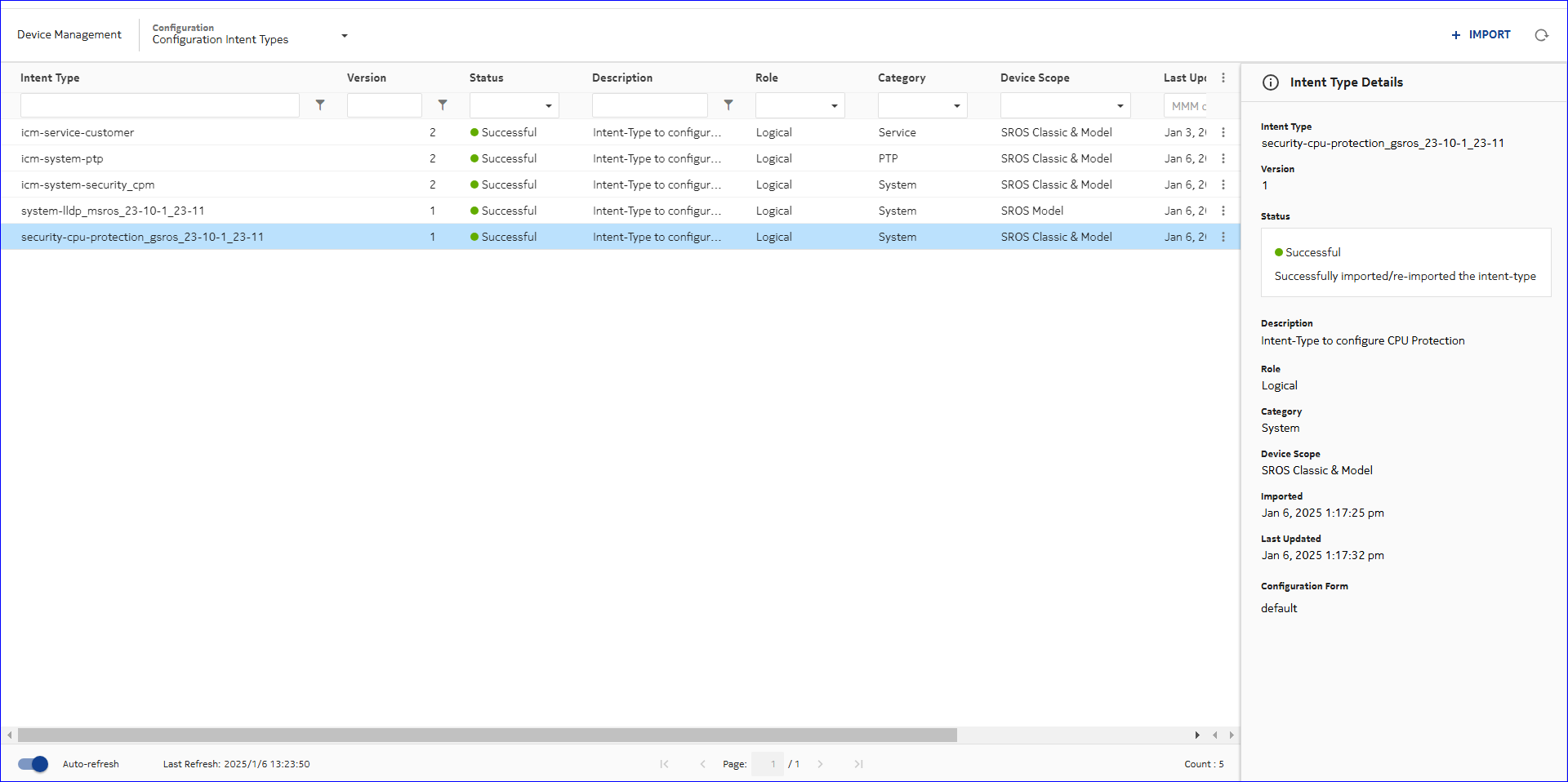

Import the intent type security-cpu-protection-gsros into Device Management, Configuration Intent Types.

2

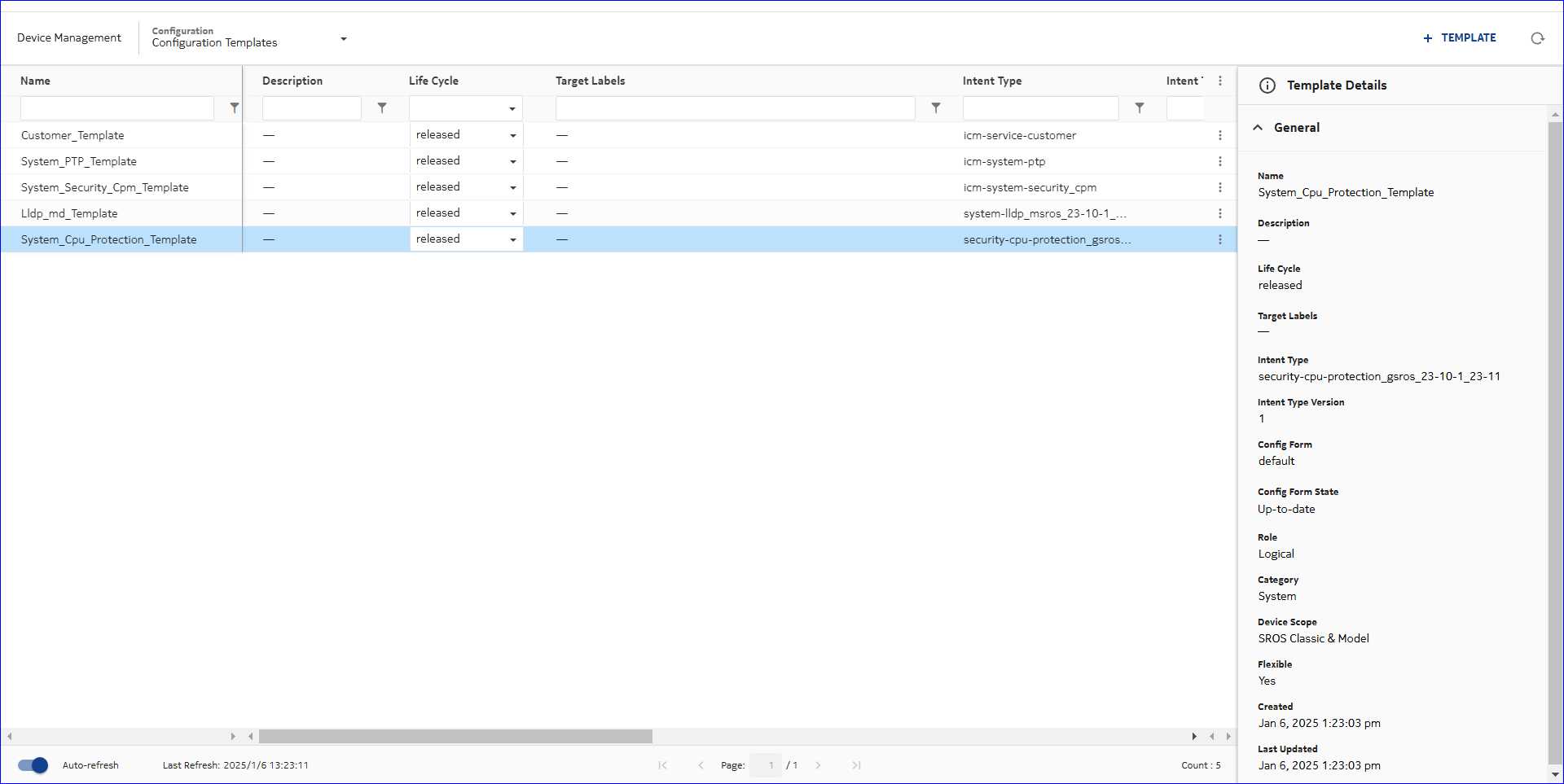

Create a configuration template in Device Management, Configuration Templates and set to released state.

For example, the configuration template created below is named as System_Cpu_Protection_Template.

3

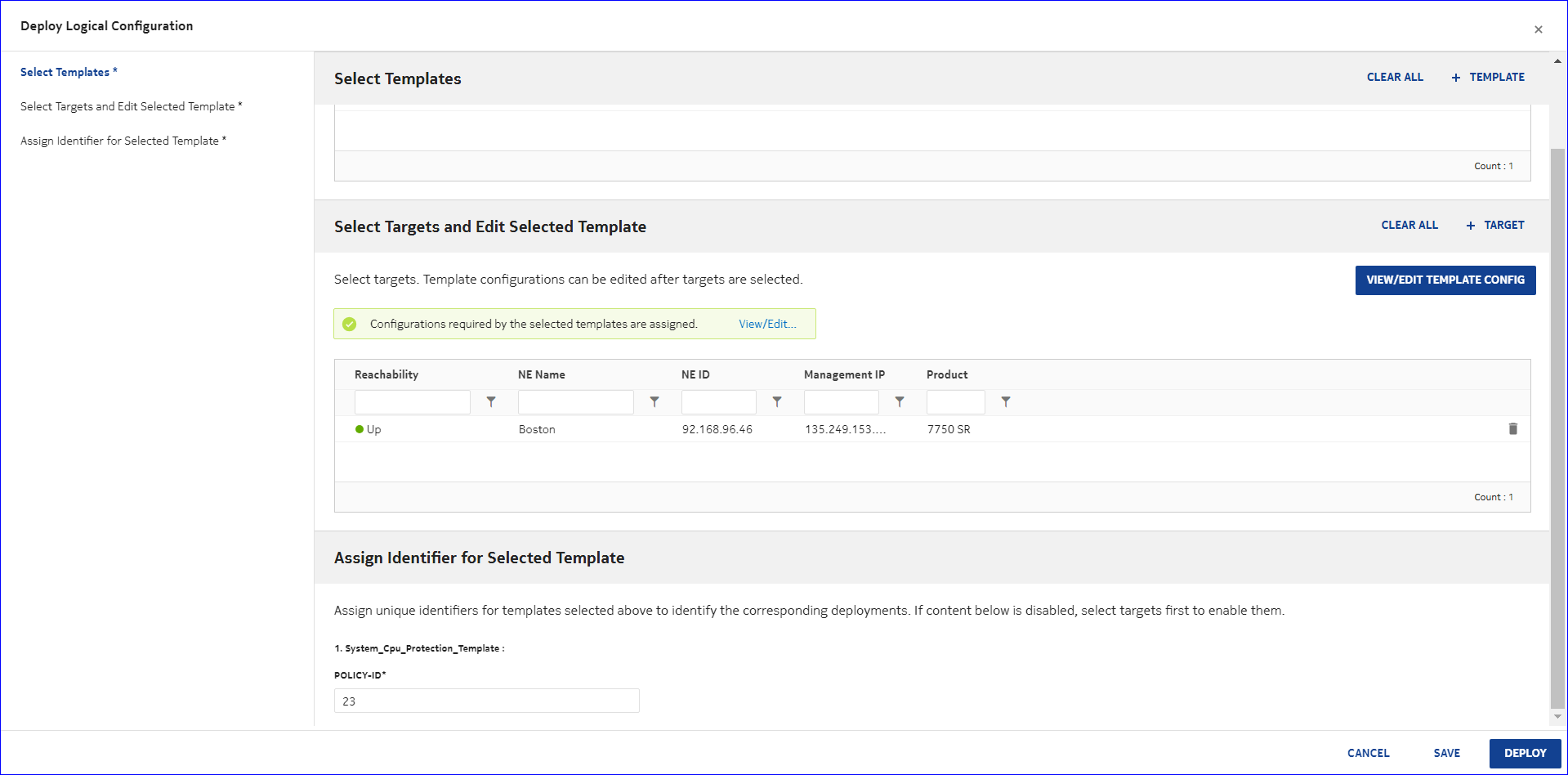

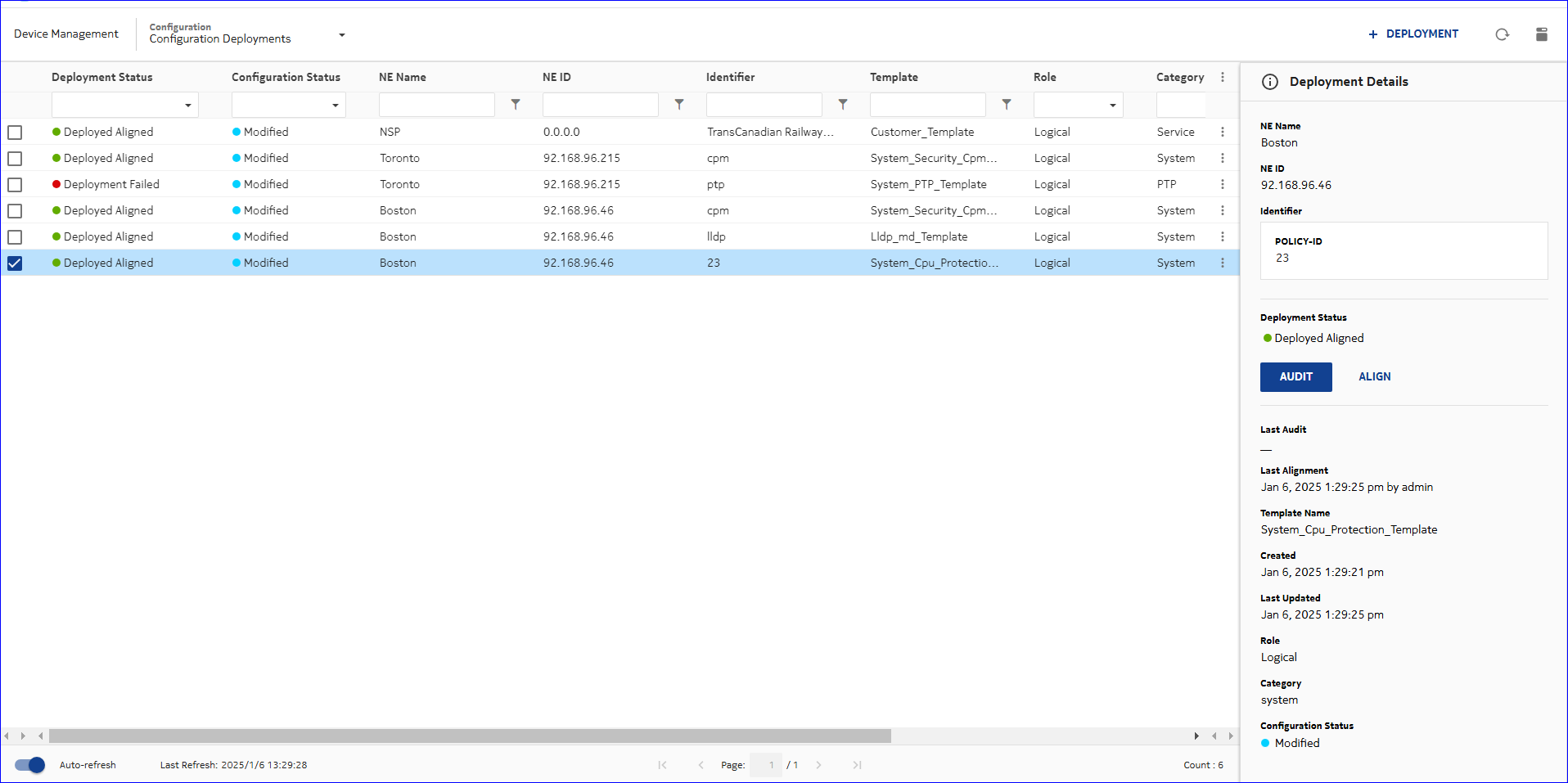

Create configuration deployments using the above configuration template.

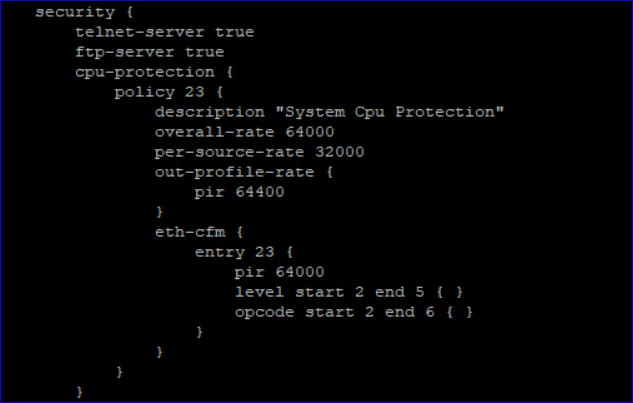

Figure 7-38: NE CLI after deployment:
NE CLI after deployment:

End of steps

To configure using icm-system-ptp intent type

1

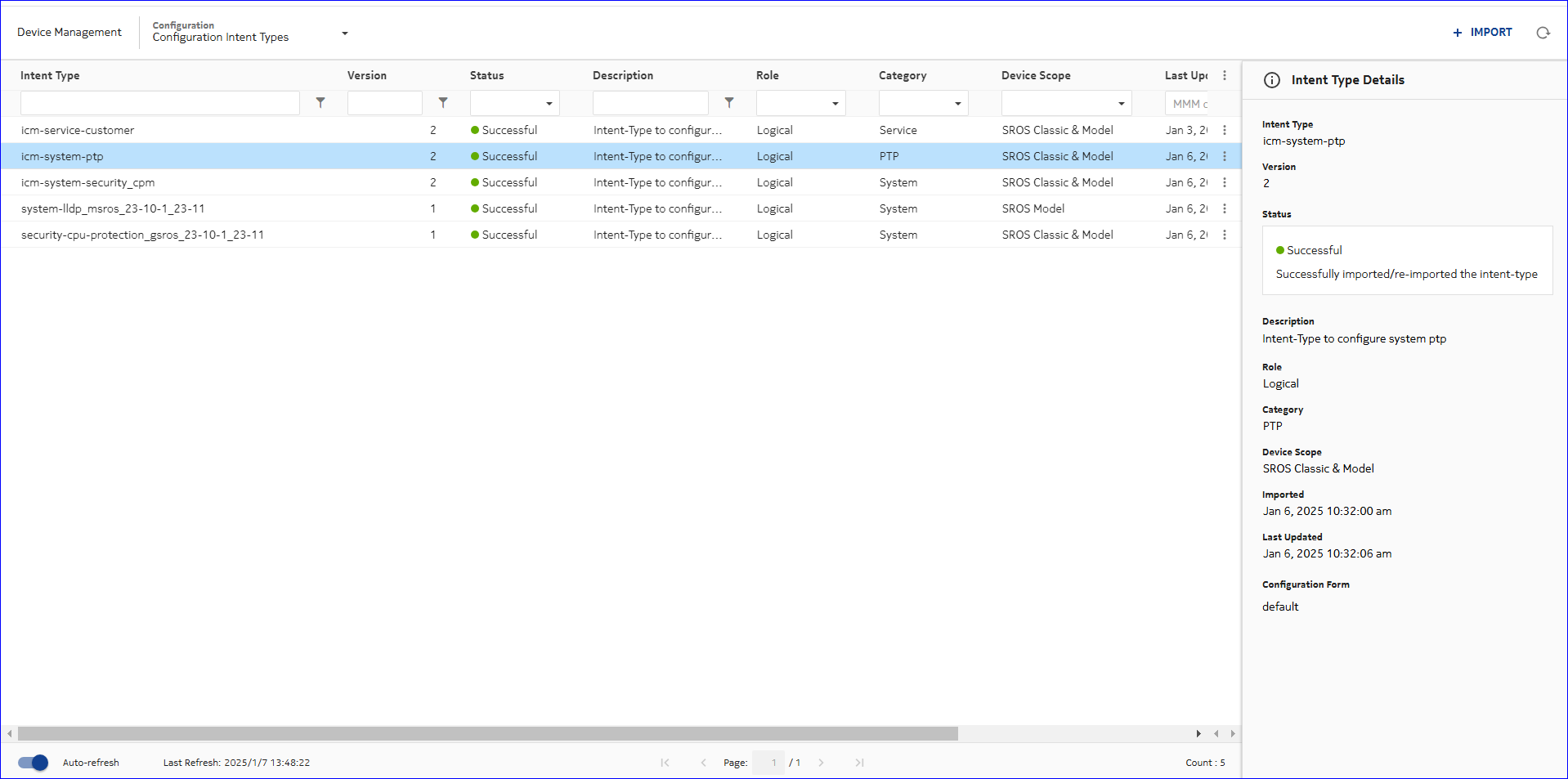

Import the intent type icm-system-ptp into Device Management, Configuration Intent Types.

2

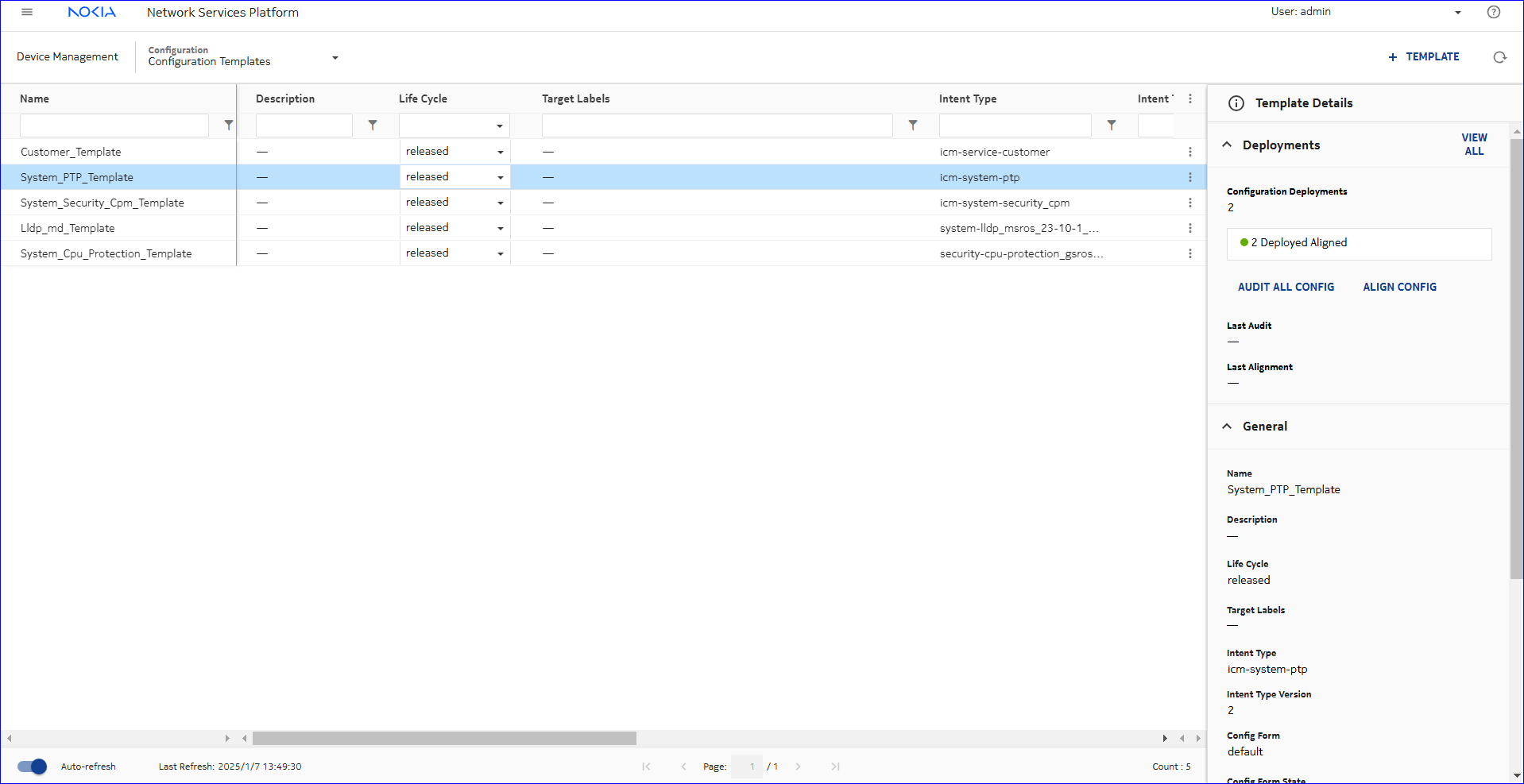

Create a configuration template in Device Management, Configuration Templates and set to released state.

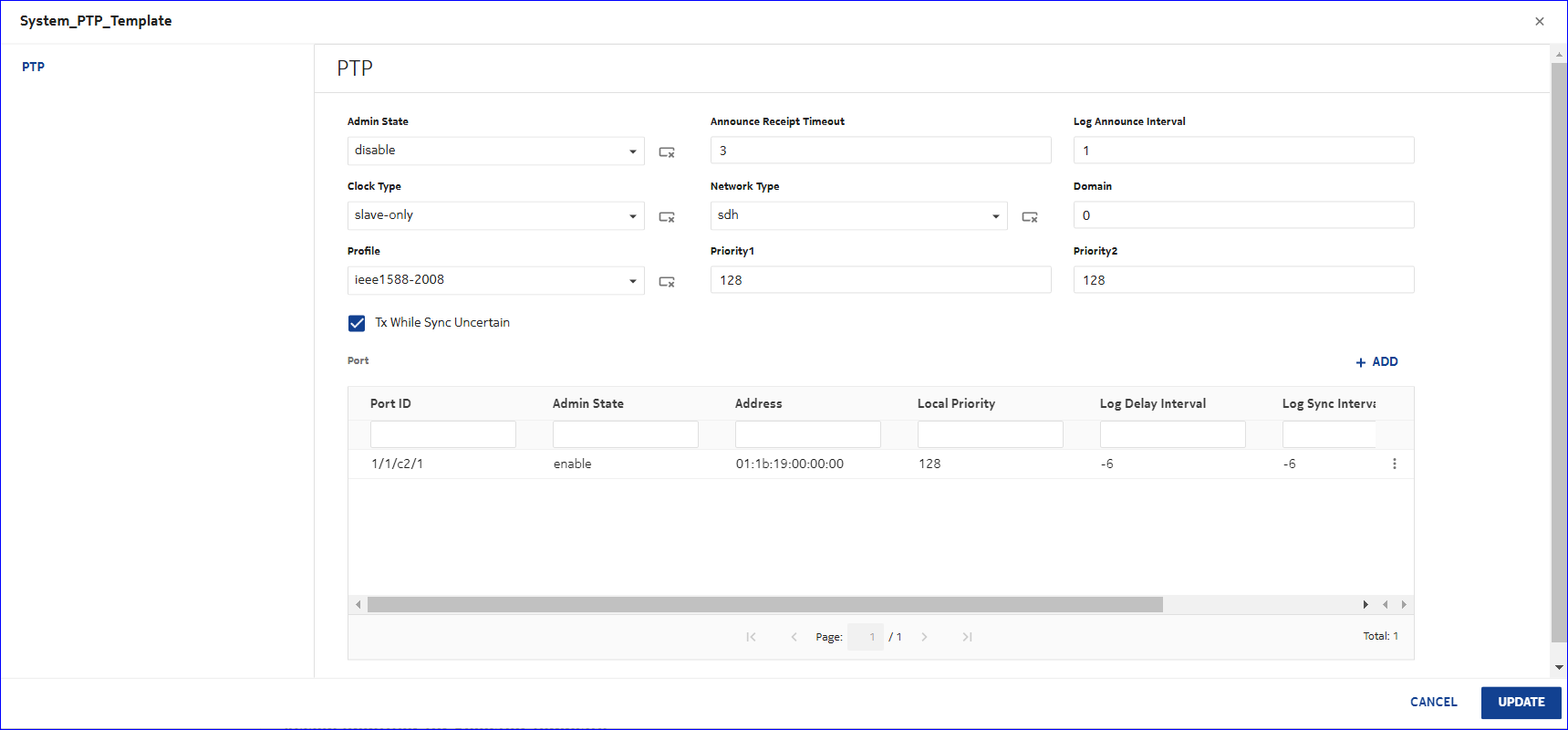

For example, the configuration template created below is named as System_PTP_Template.

3

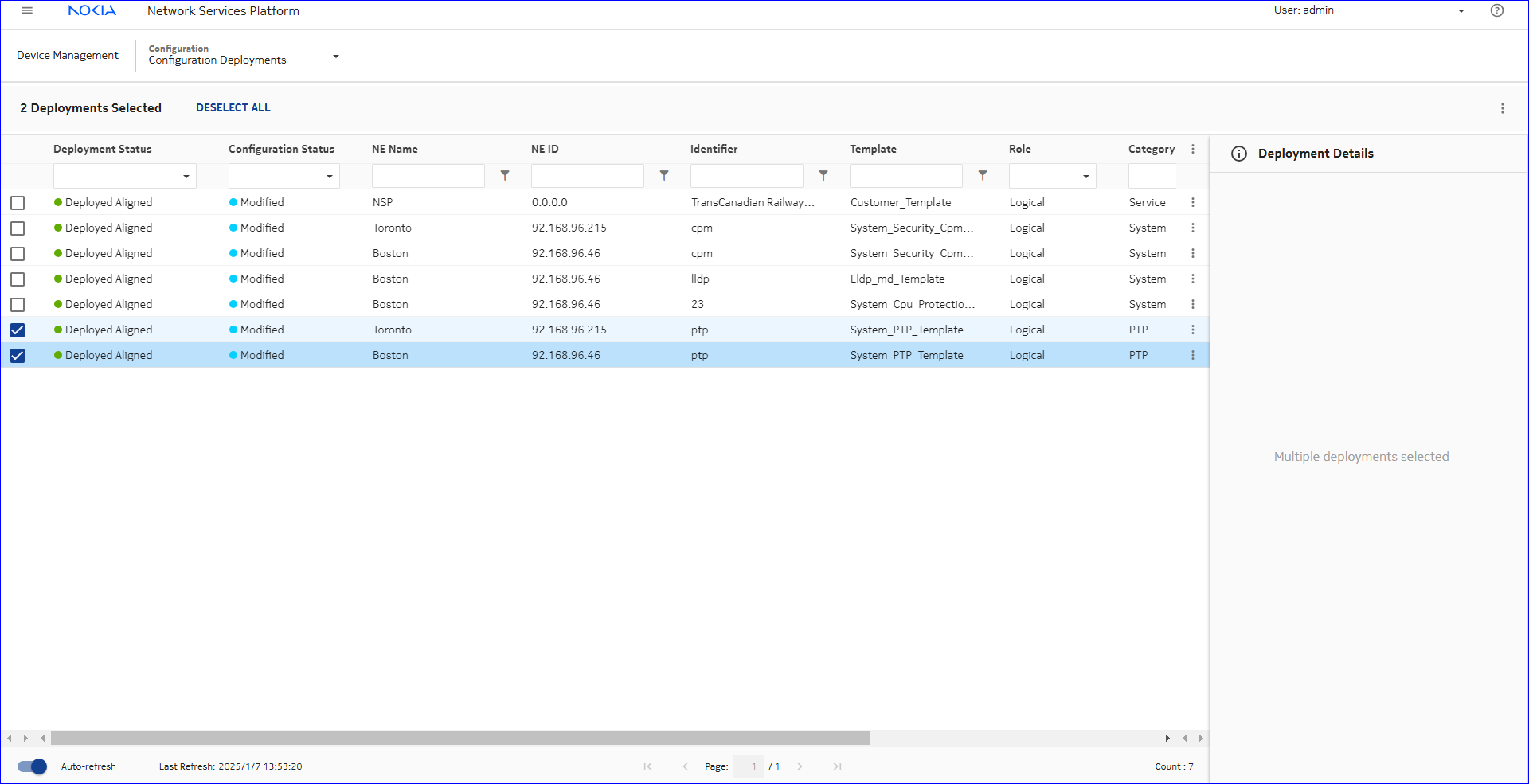

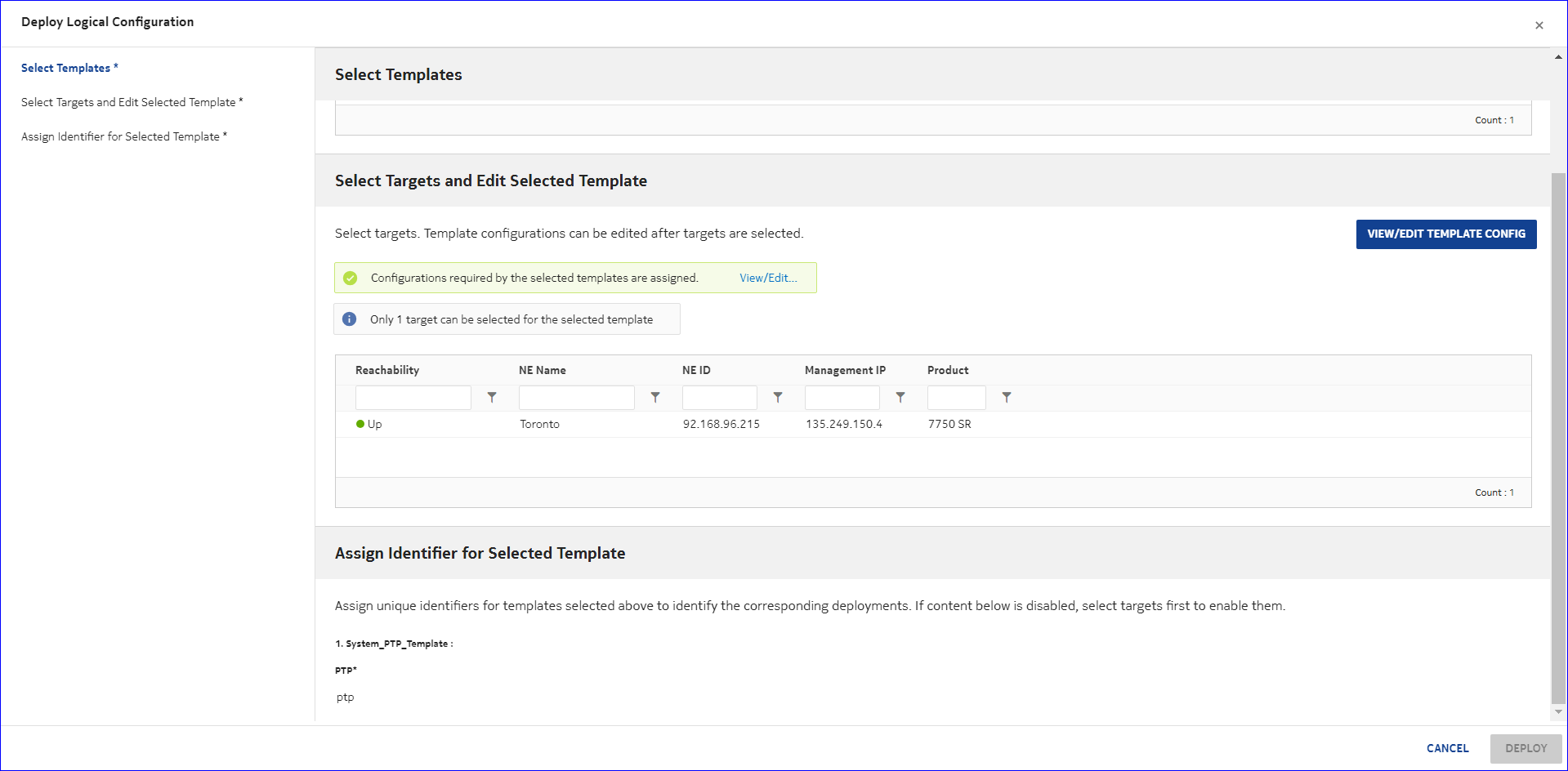

Create configuration deployments using the above configuration template.

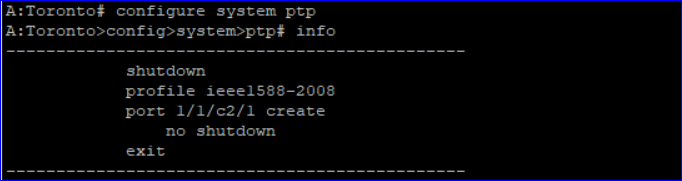

Figure 7-39: Classic NE CLI after deployment:
Classic NE CLI after deployment:

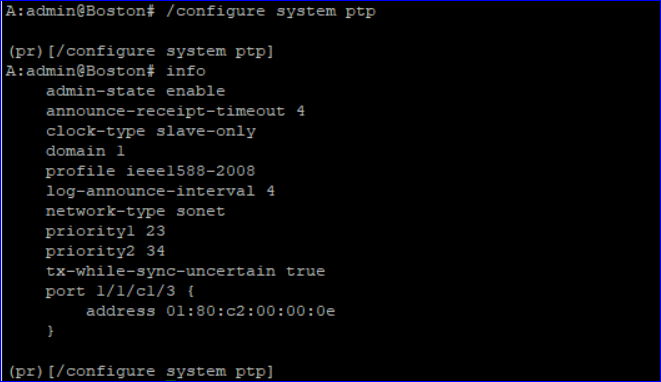

Figure 7-40: MD NE CLI after deployment:
MD NE CLI after deployment:

End of steps
