Port/Connector

To configure Port and Connectors using intent port-connector_gsros_23-10-1_23-11

port-connector_gsros_23-10-1_23-11 intent supports configuration of Breakout Type on connector port.


1

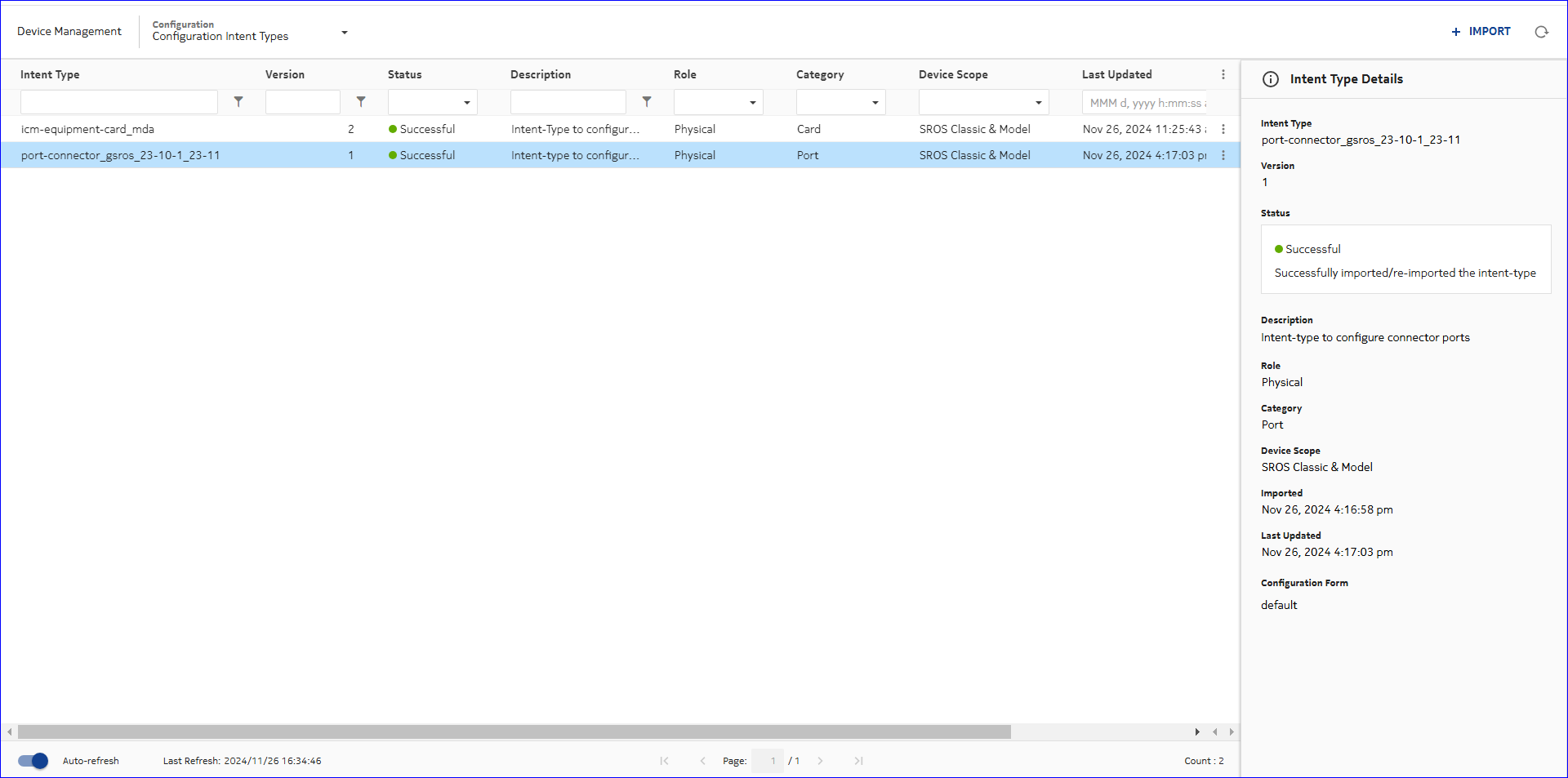

Import the intent type port-connector_gsros_23-10-1_23-11 into Device Management, Configuration Intent Types.

2

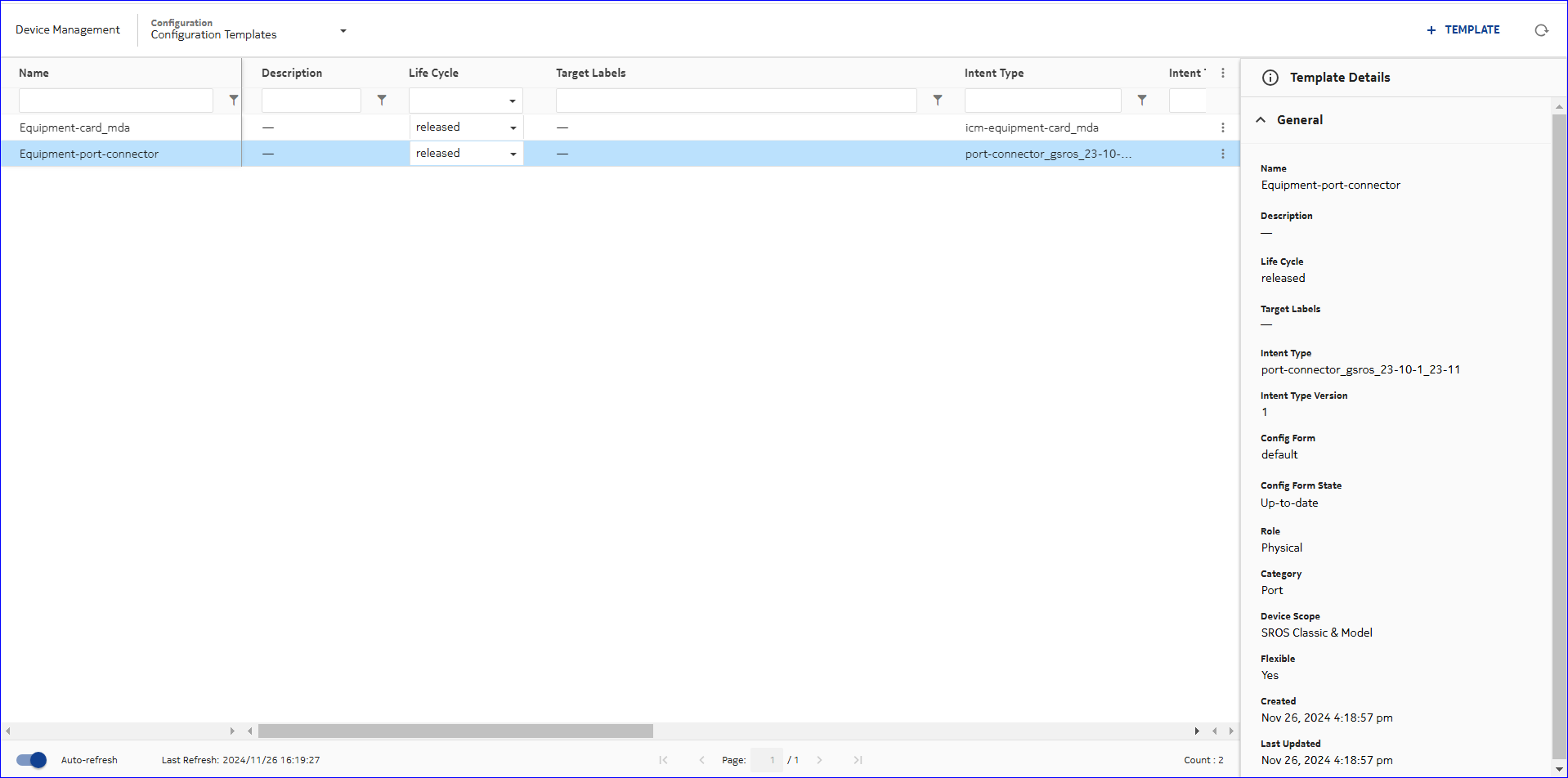

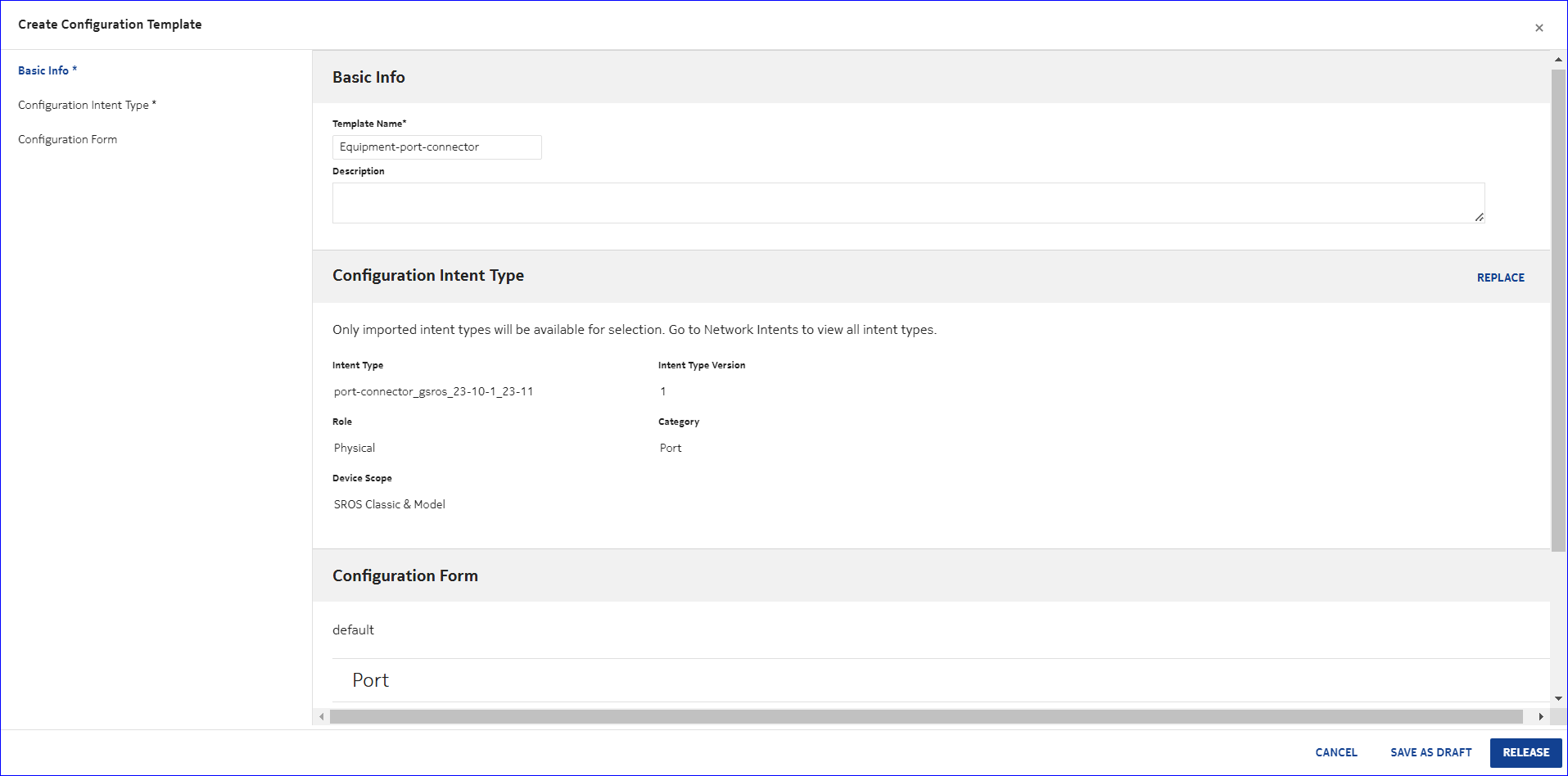

Create a configuration template in Device Management, Configuration Templates and set to released state.

For example, the configuration template created below is named as Equipment-port-connector.

3

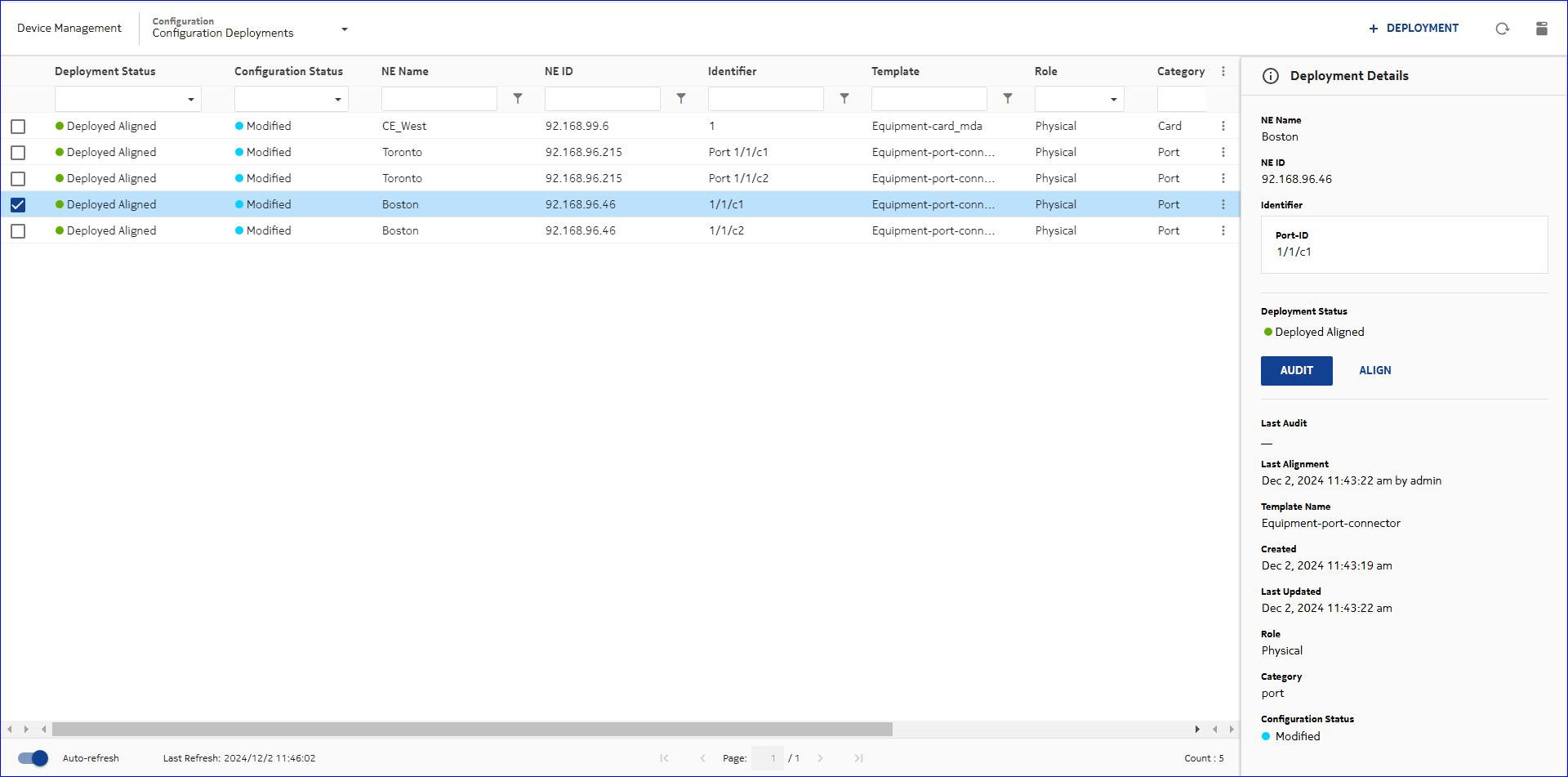

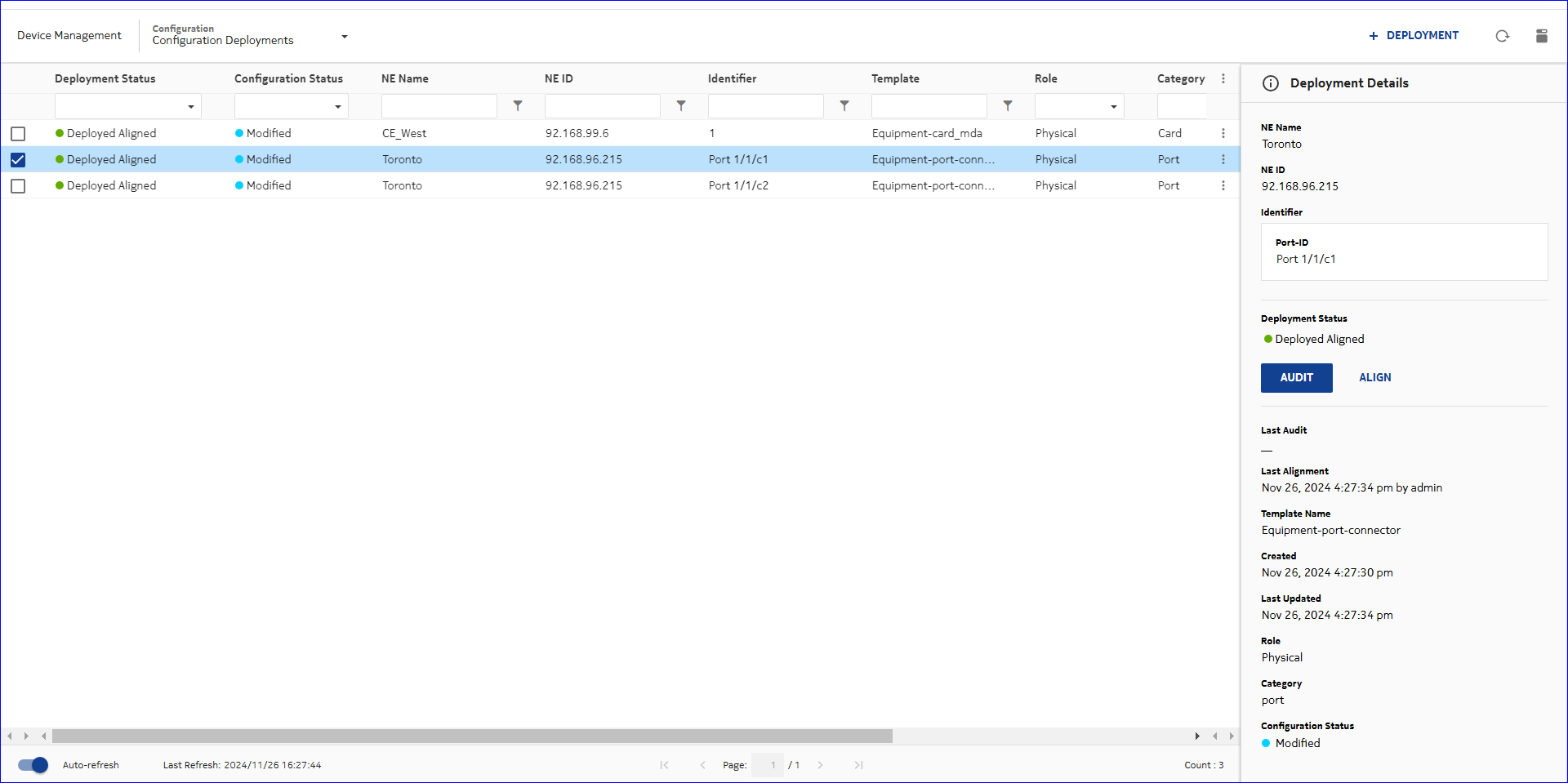

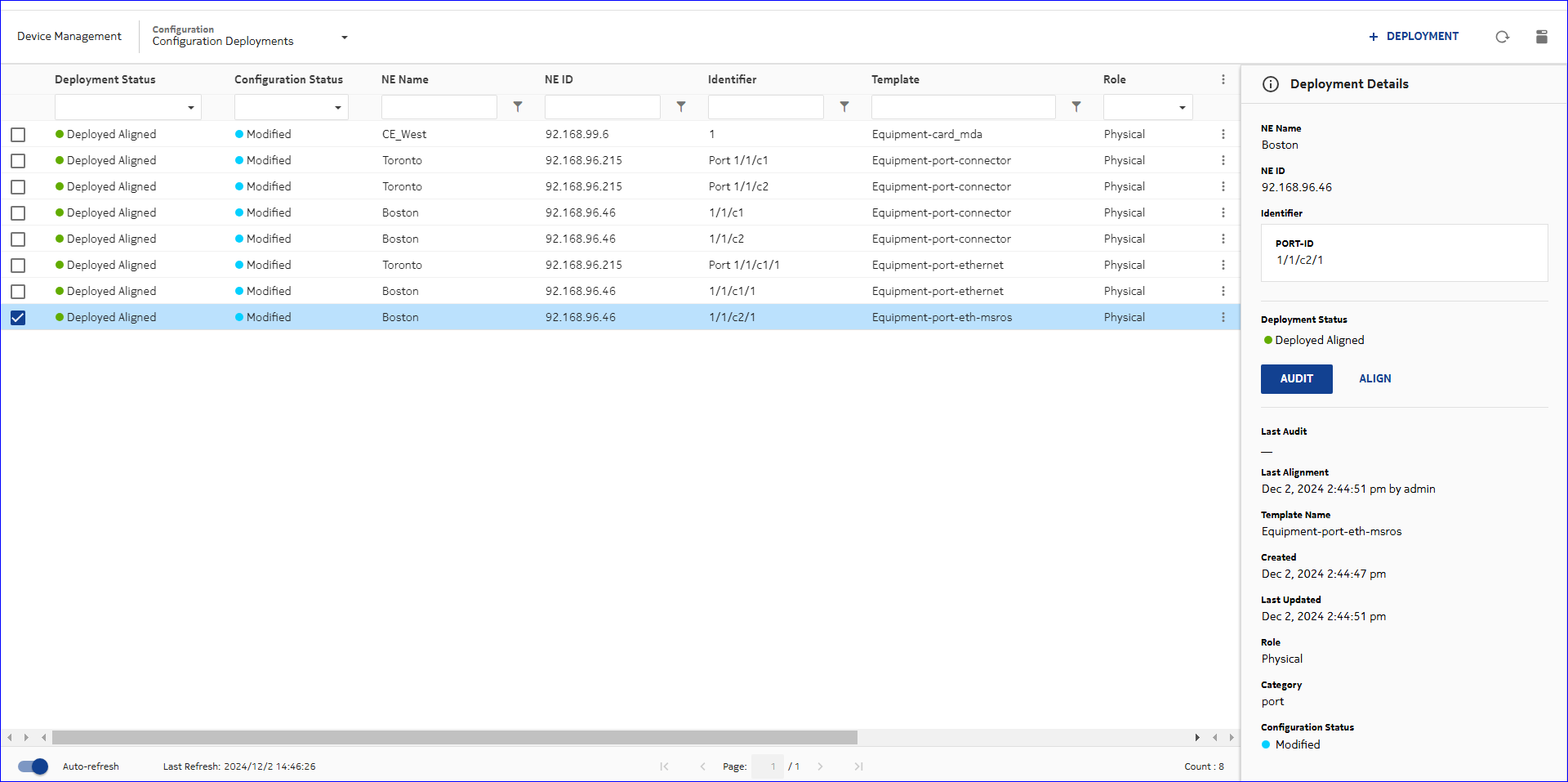

Create configuration deployments using the above configuration template.

For the following examples, targets are 1/1/c1 and 1/1/c2 for 7750 classic and MD nodes; selected c10-10g breakout on classic 7750 SR.

Ex. 7750 Classic

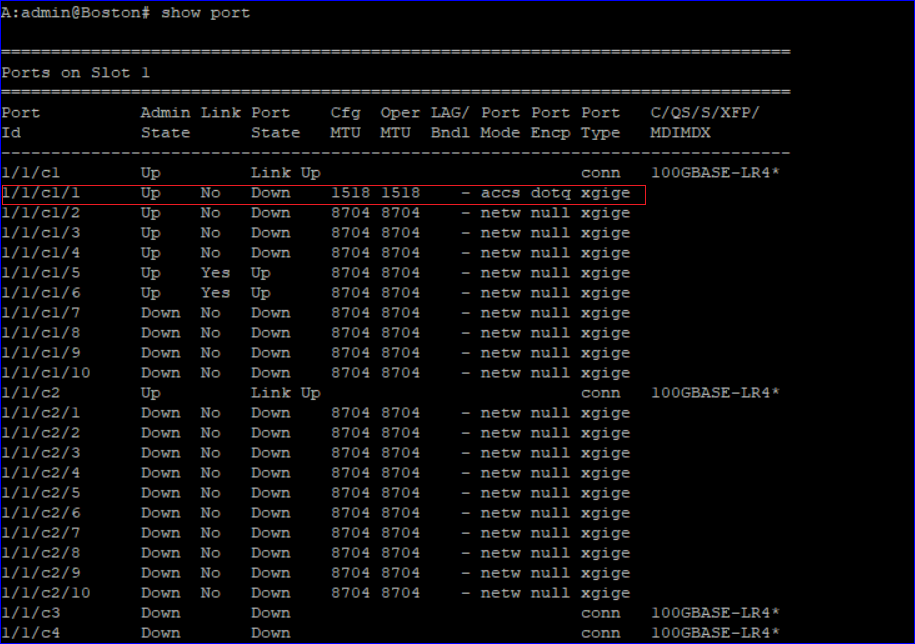

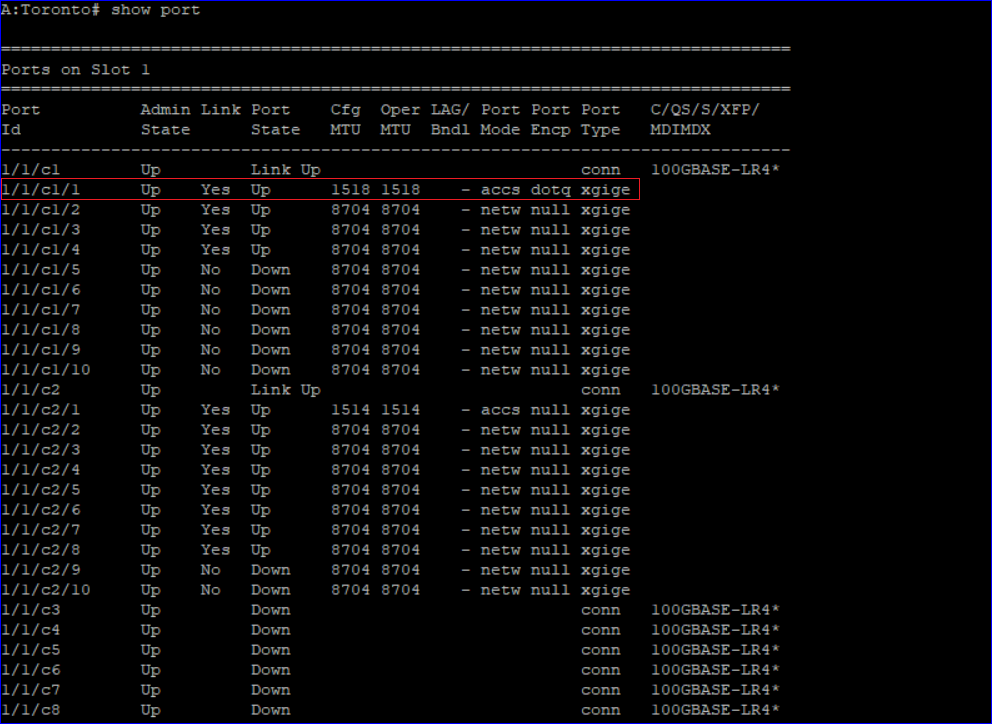

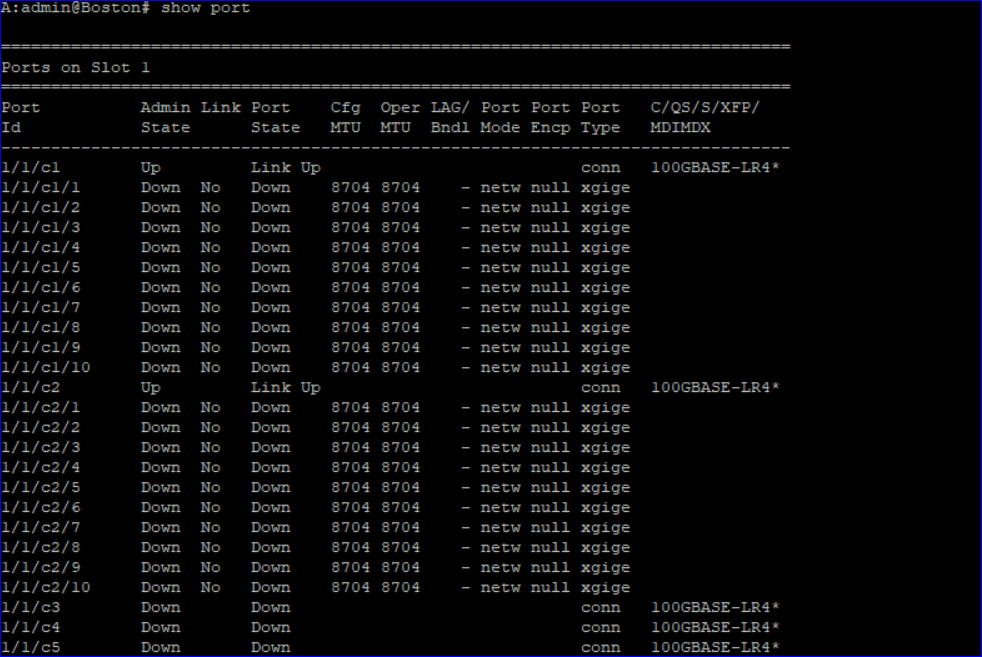

Figure 7-3: NE CLI check after deployment

Ex. 7750 MD

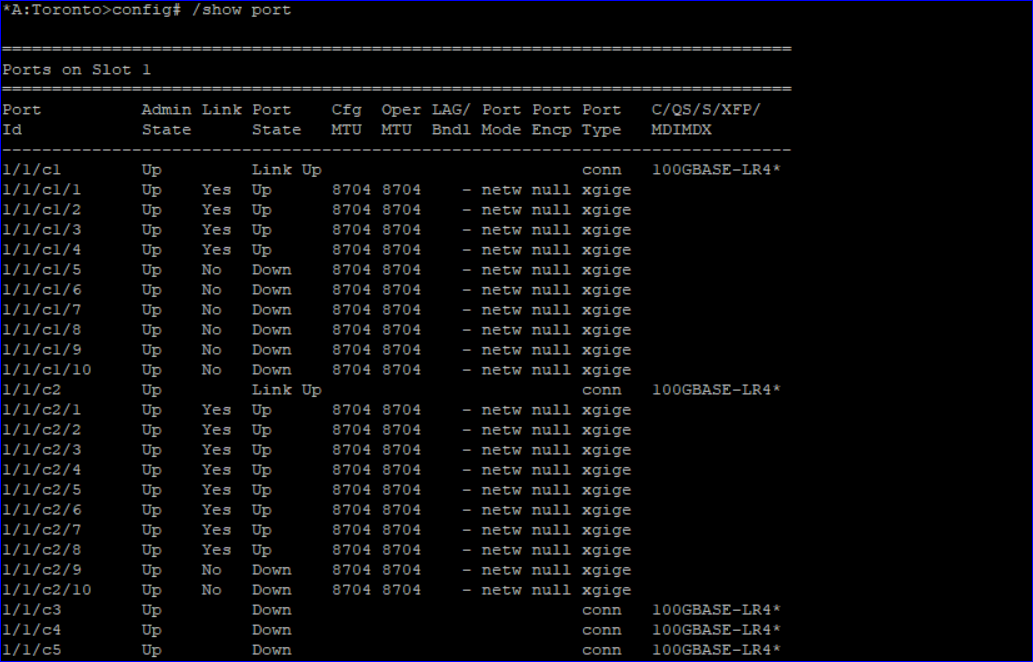

Figure 7-4: NE CLI check after deployment

End of steps

To configure Port using intent icm-equipment-port-ethernet

icm-equipment-port-ethernet intent type deployment can be created on ethernet ports. For this use case, after connector deployment, ethernet port configuration was tested on some of the newly created ports.


1

Prerequisites:

For Classic NE:

  • Accounting policy

    /configure log accounting-policy 36 record complete-ethernet-port

    /configure log accounting-policy 36 no shutdown

    /admin save

For MD NE:

  • Accounting policy

    /edit-config private

    /configure log accounting-policy 36 record complete-ethernet-port

    /commit

    /quit-config

2

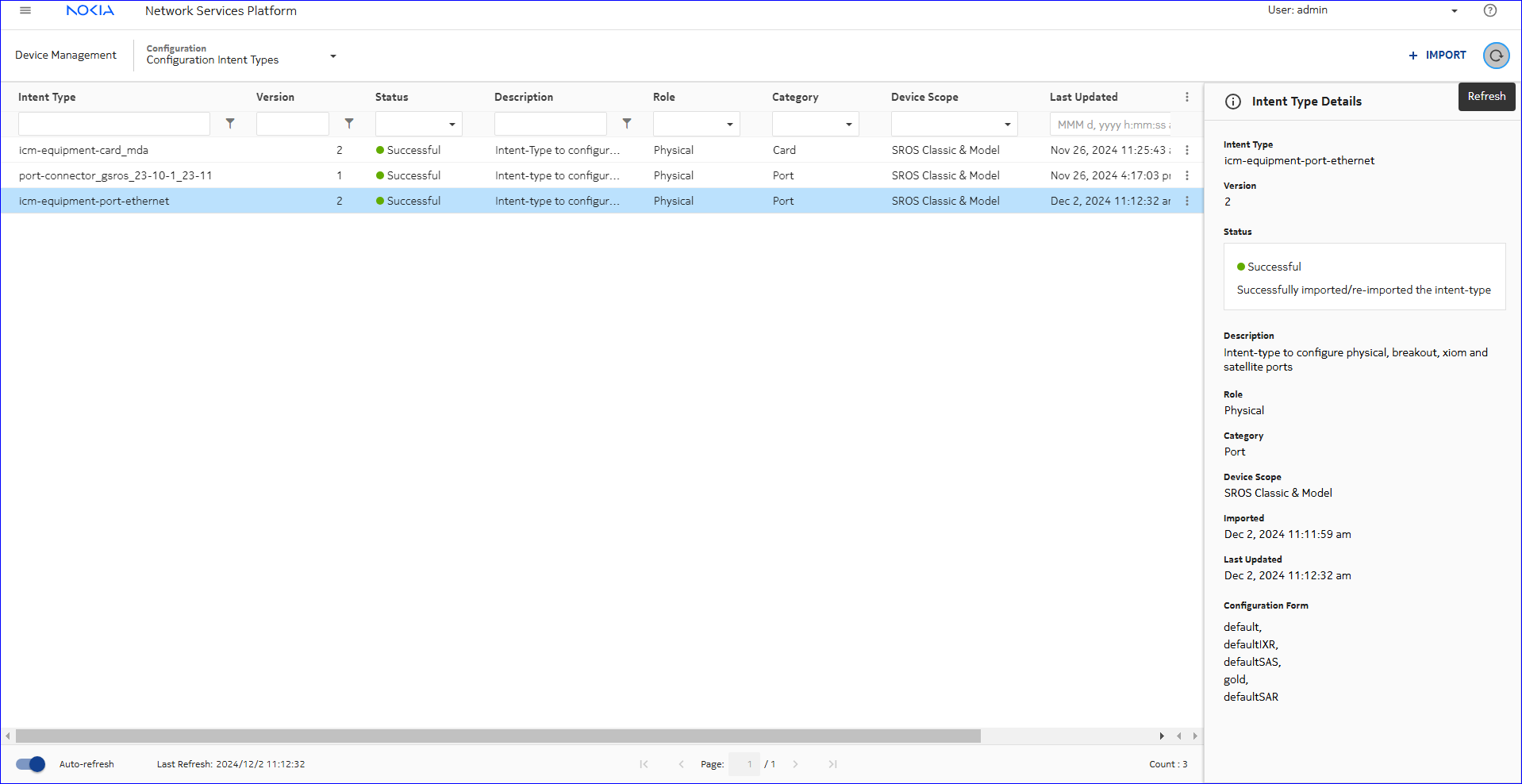

Import the intent type icm-equipment-port-ethernet into Device Management, Configuration Intent Types.

3

Create a configuration template in Device Management, Configuration Templates and set to released state.

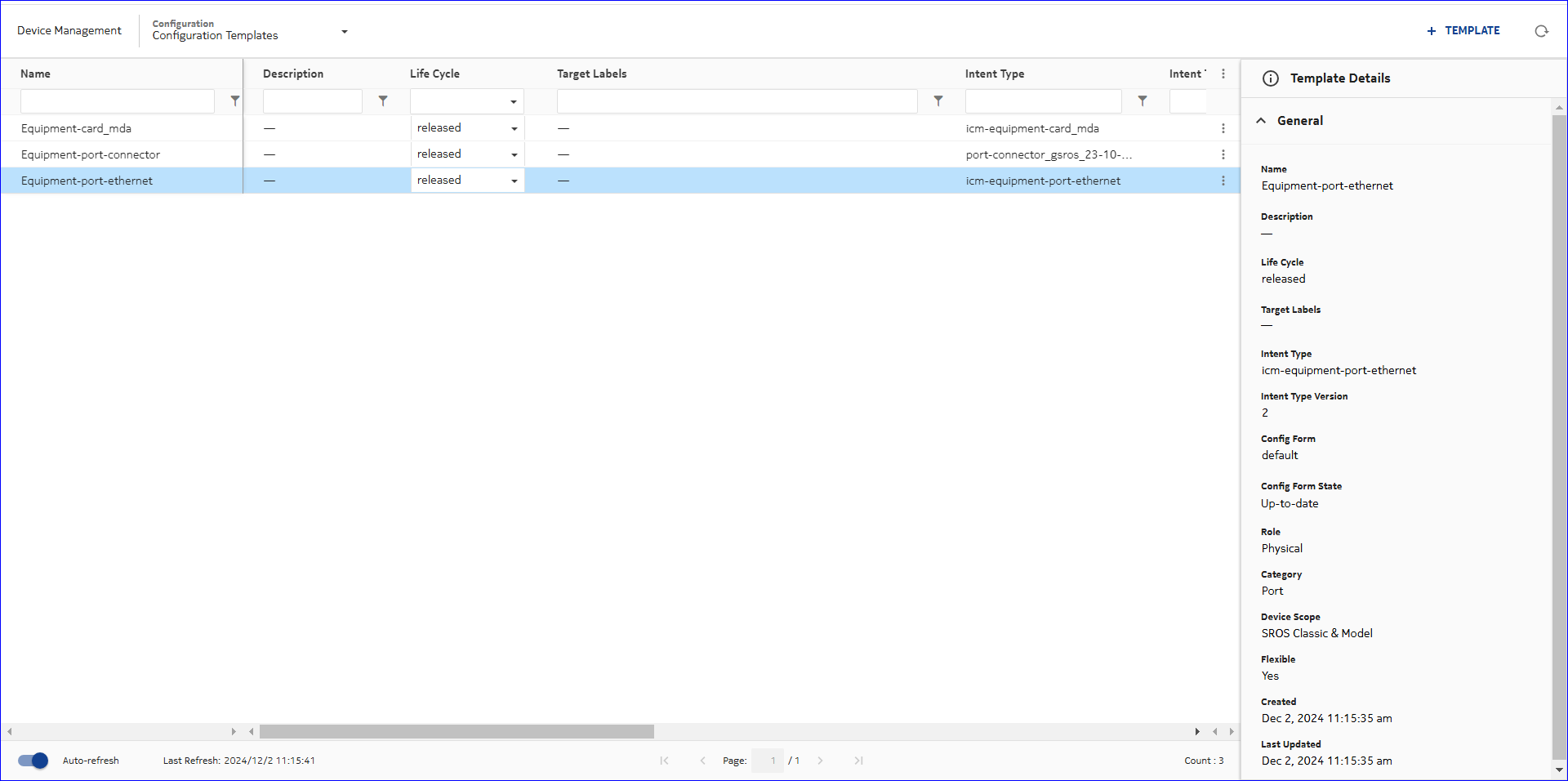

For example, the configuration template created below is named as Equipment-port-ethernet.

4

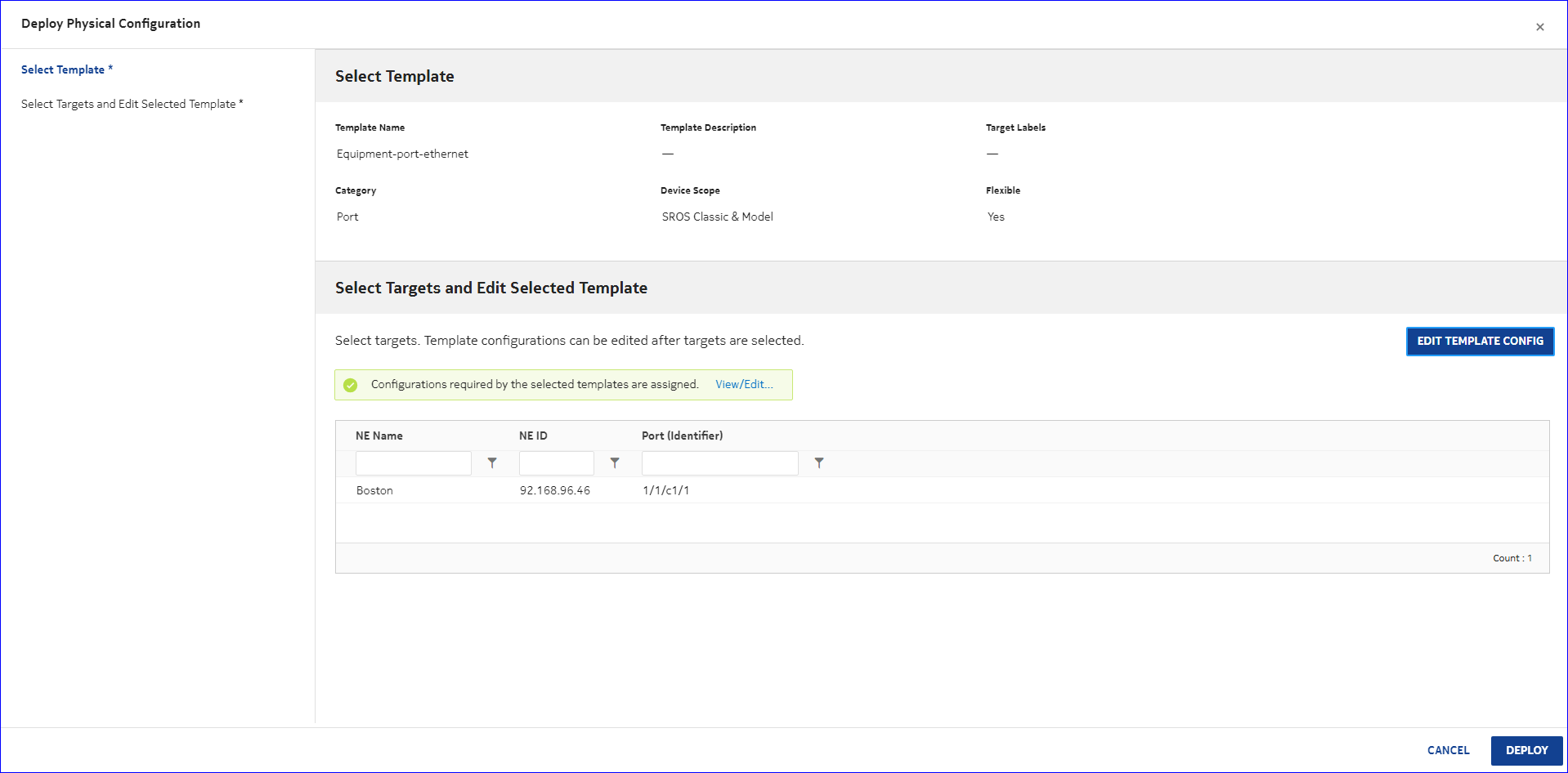

Create configuration deployments using the above configuration template.

For the following examples, targets are 1/1/c1/1 for 7750 classic and MD nodes.

Ex. 7750 Classic

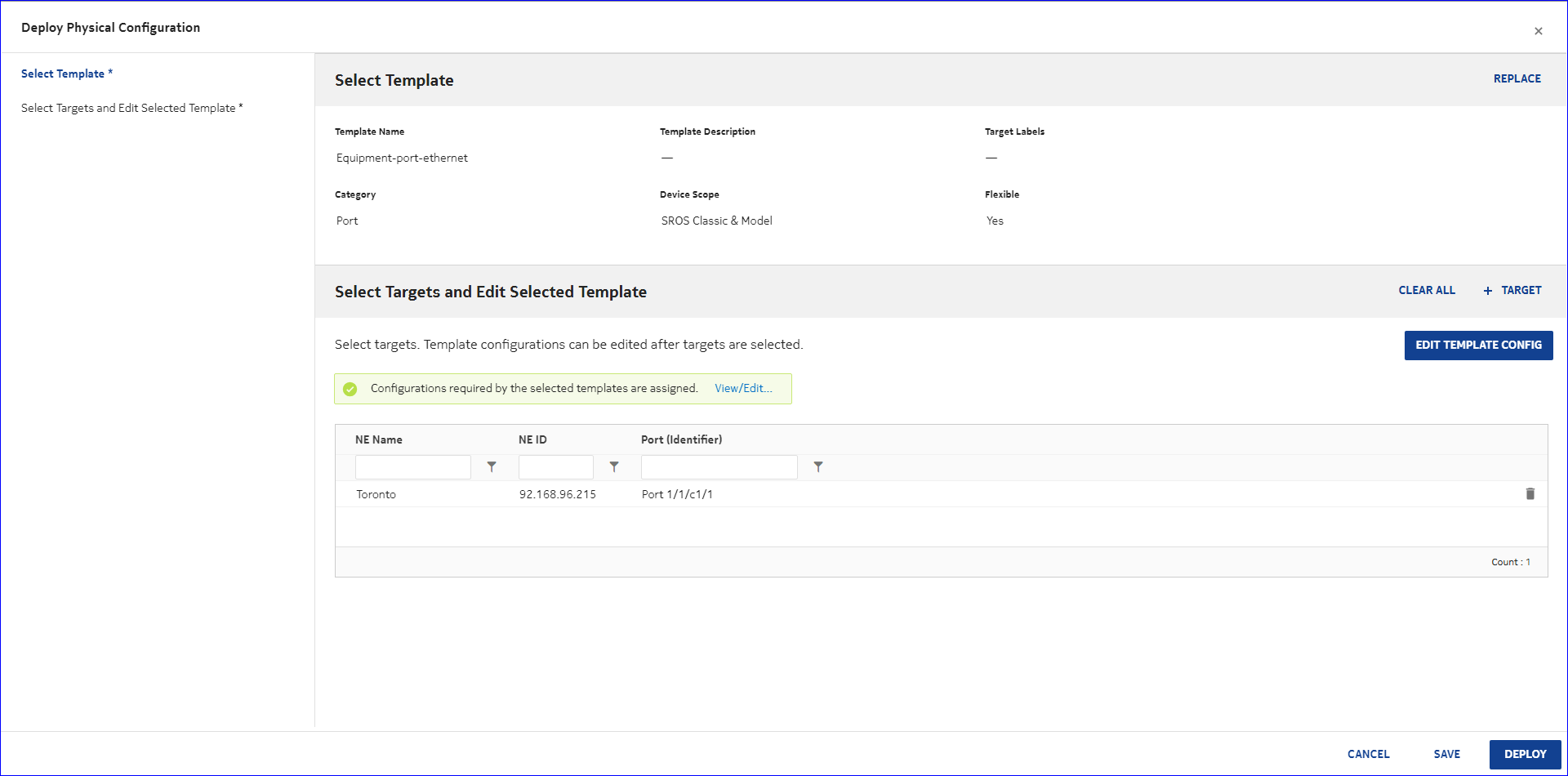

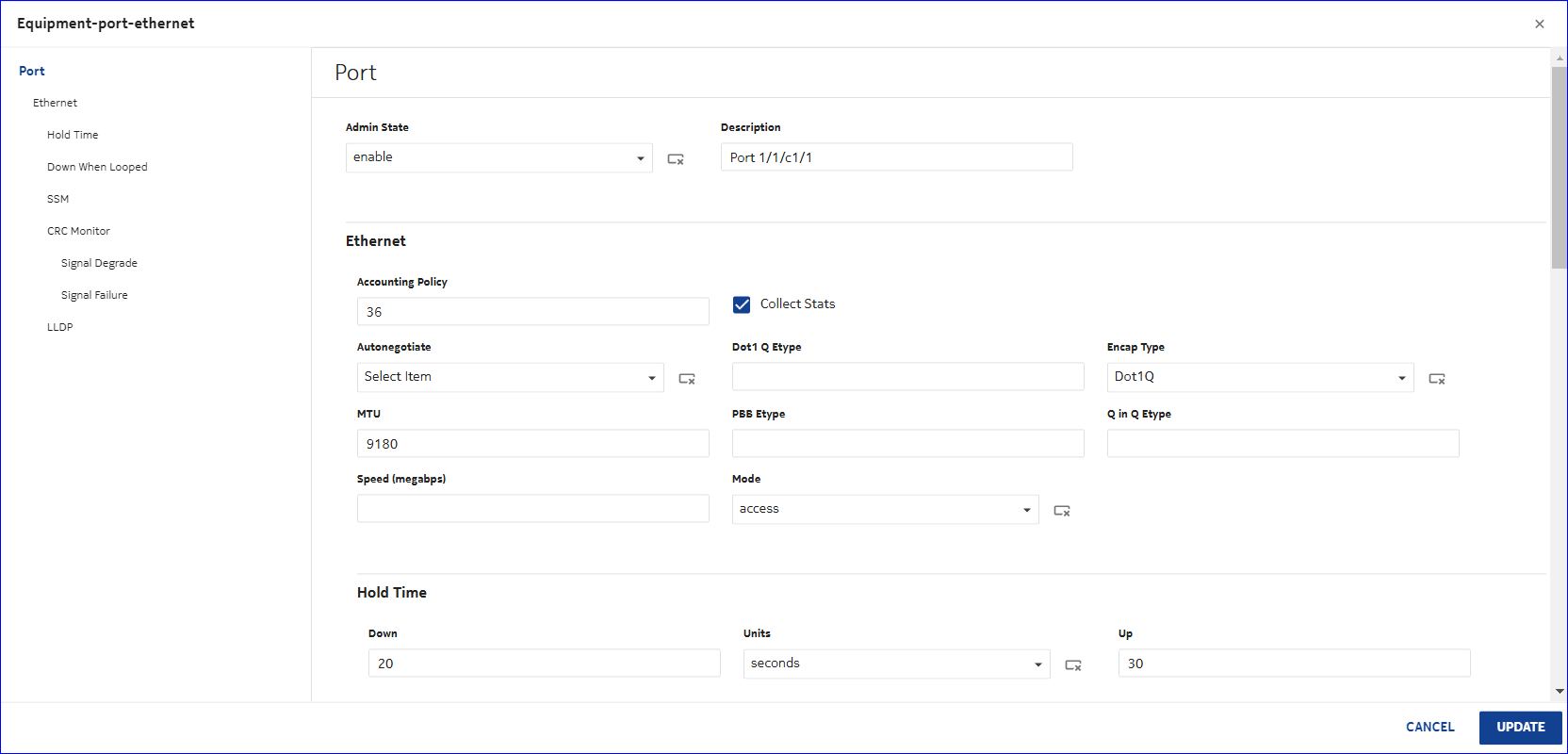

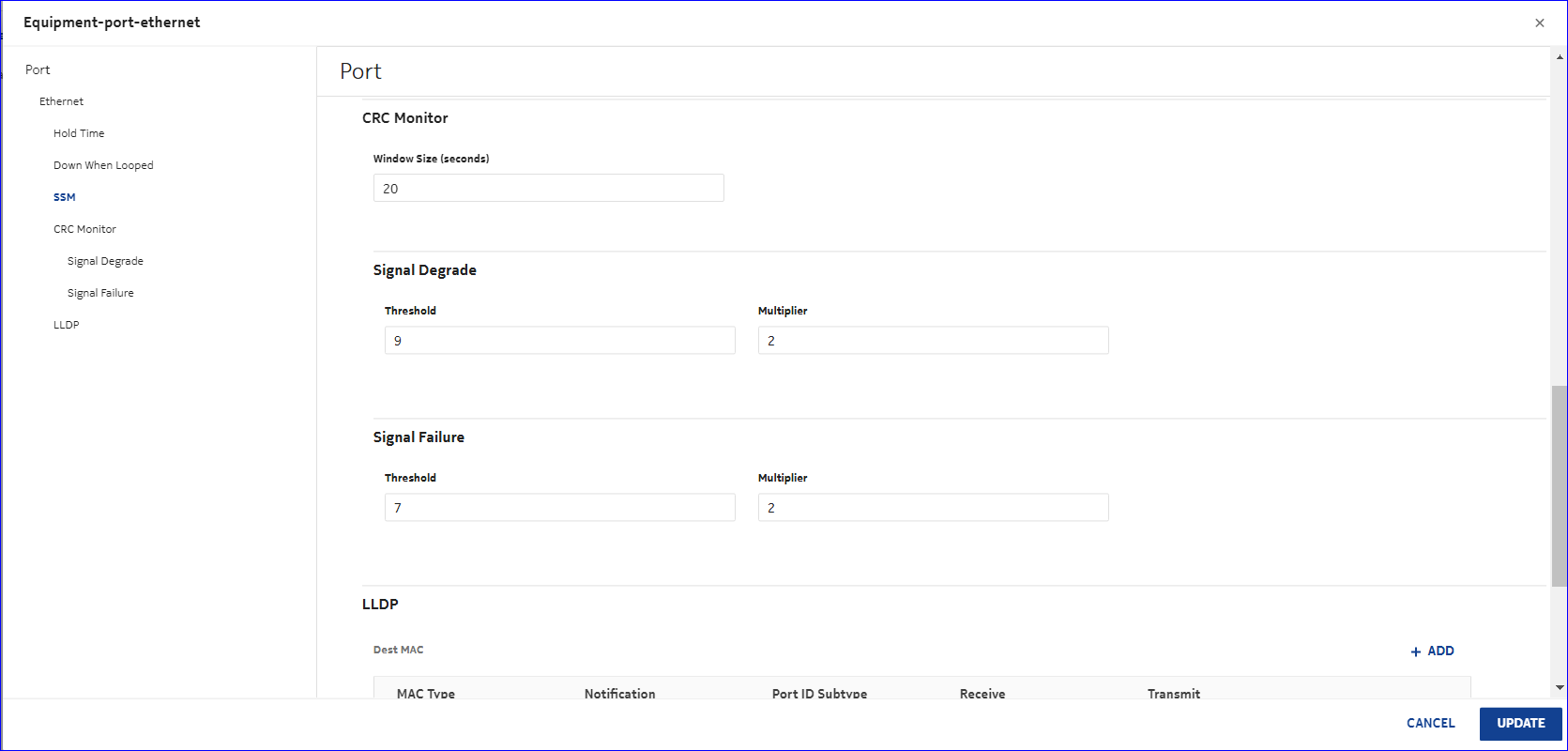

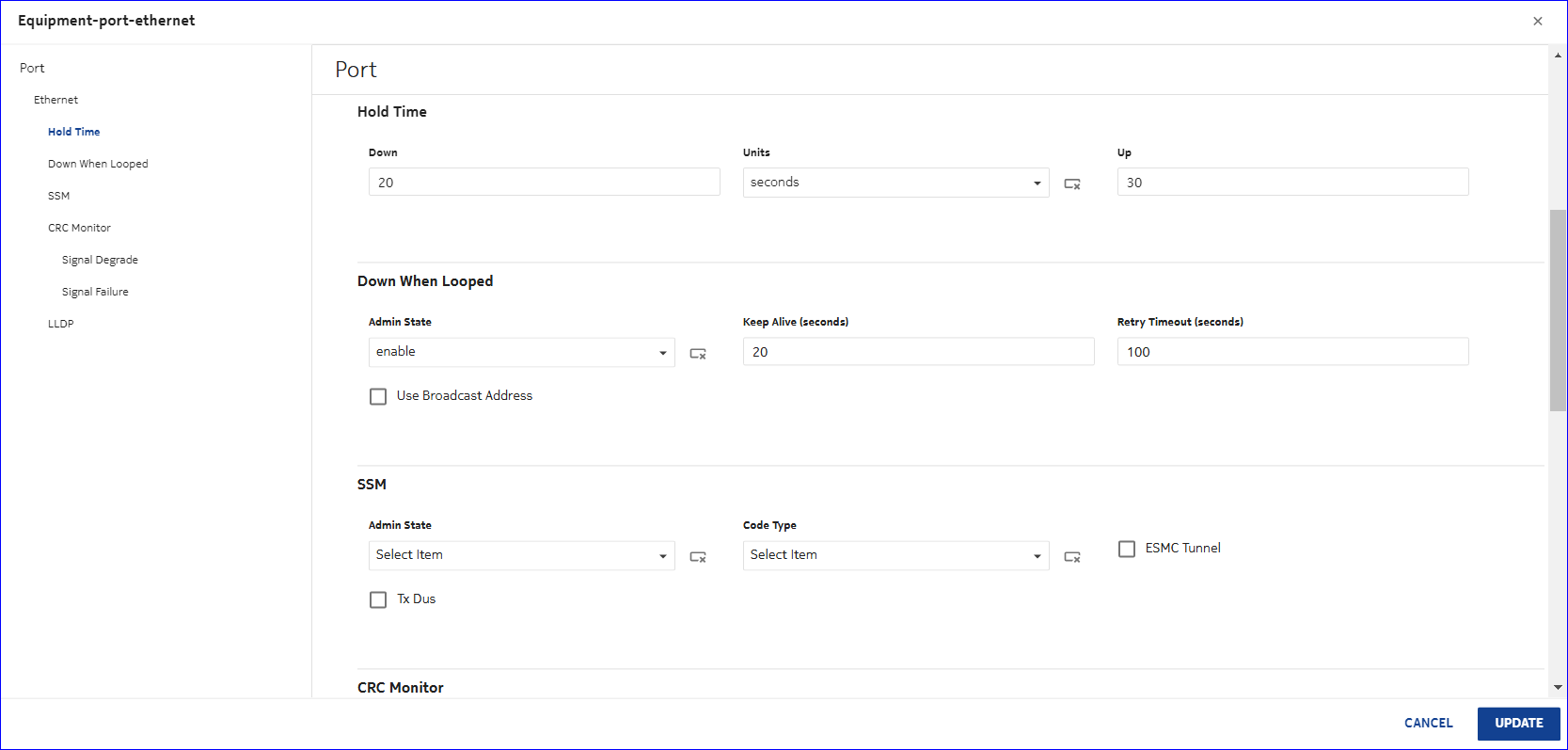

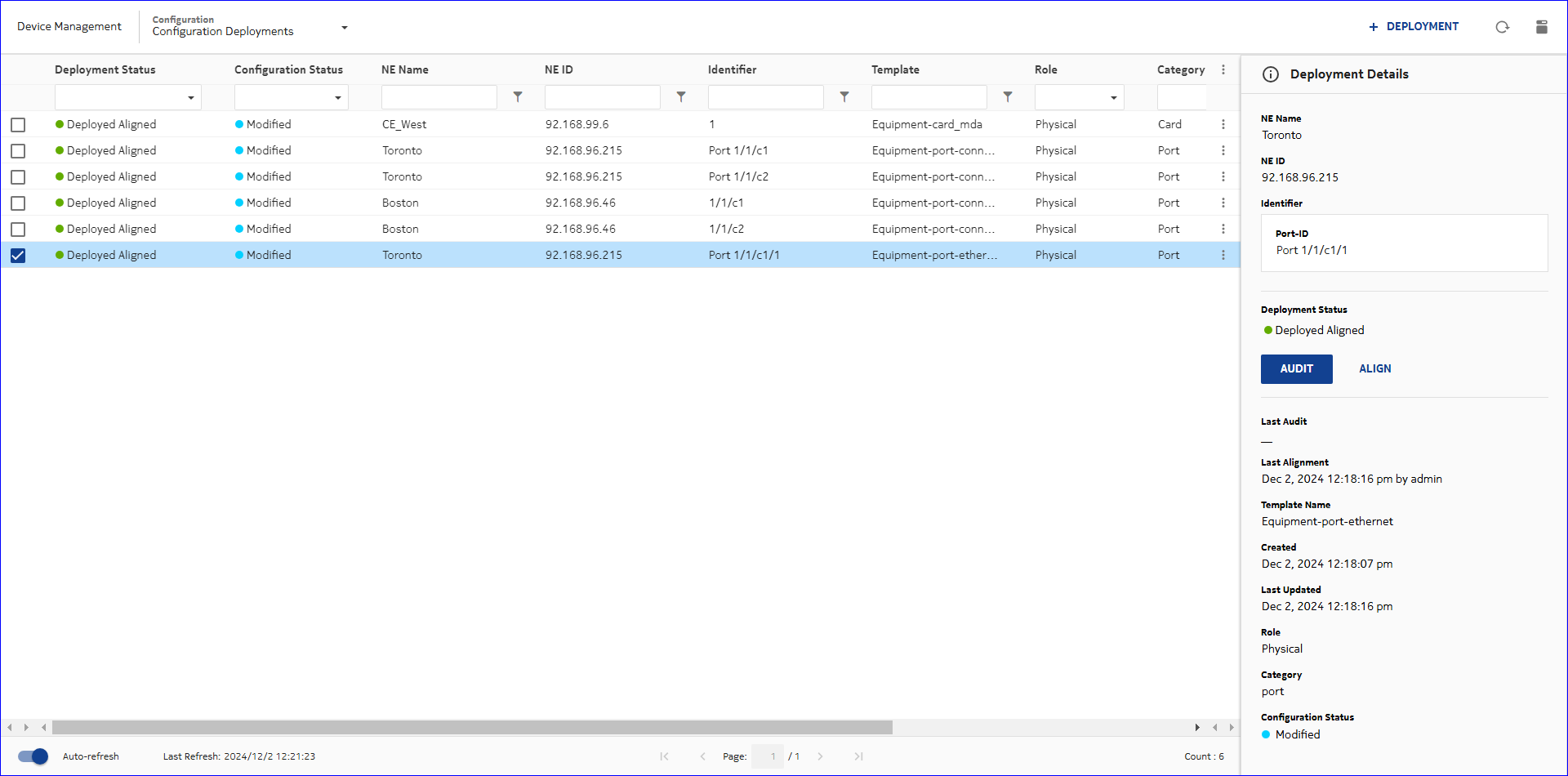

Deployment form attribute values:

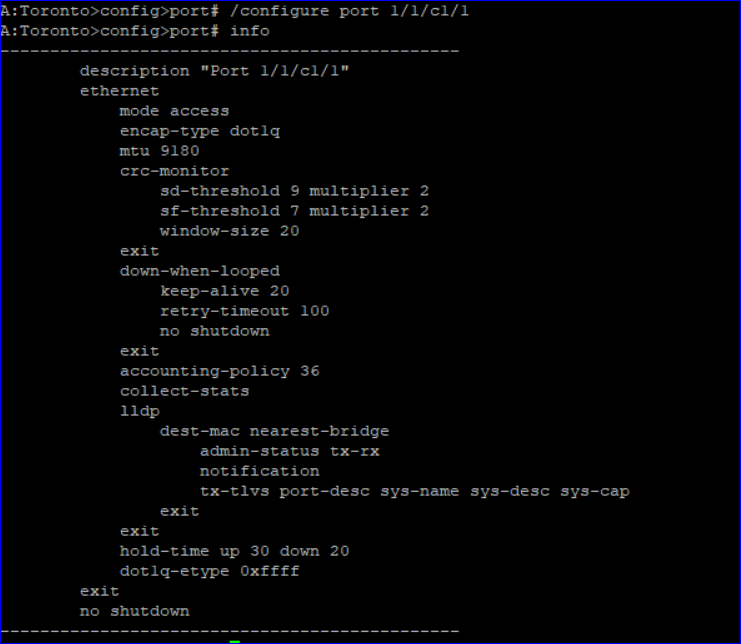

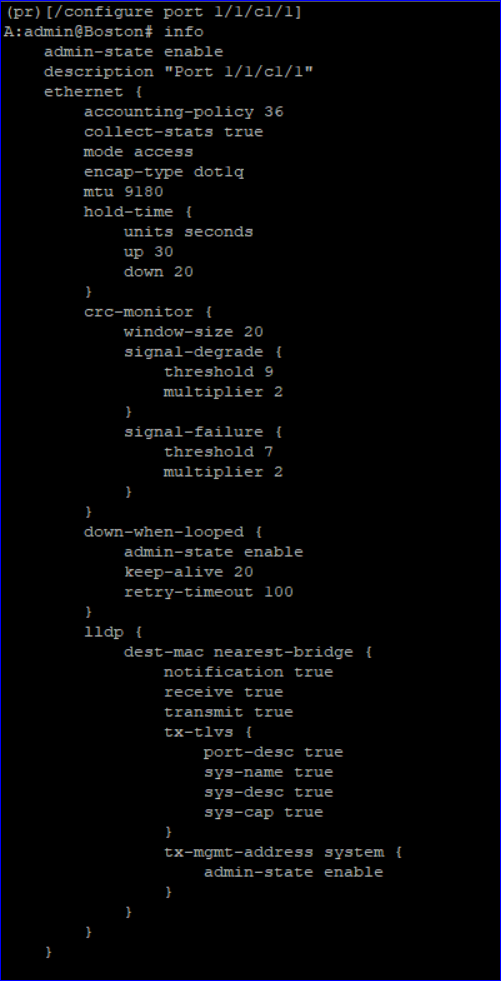

Figure 7-5: NE CLI after deployment
Figure 7-6: NE CLI after deployment

Ex. 7750 MD

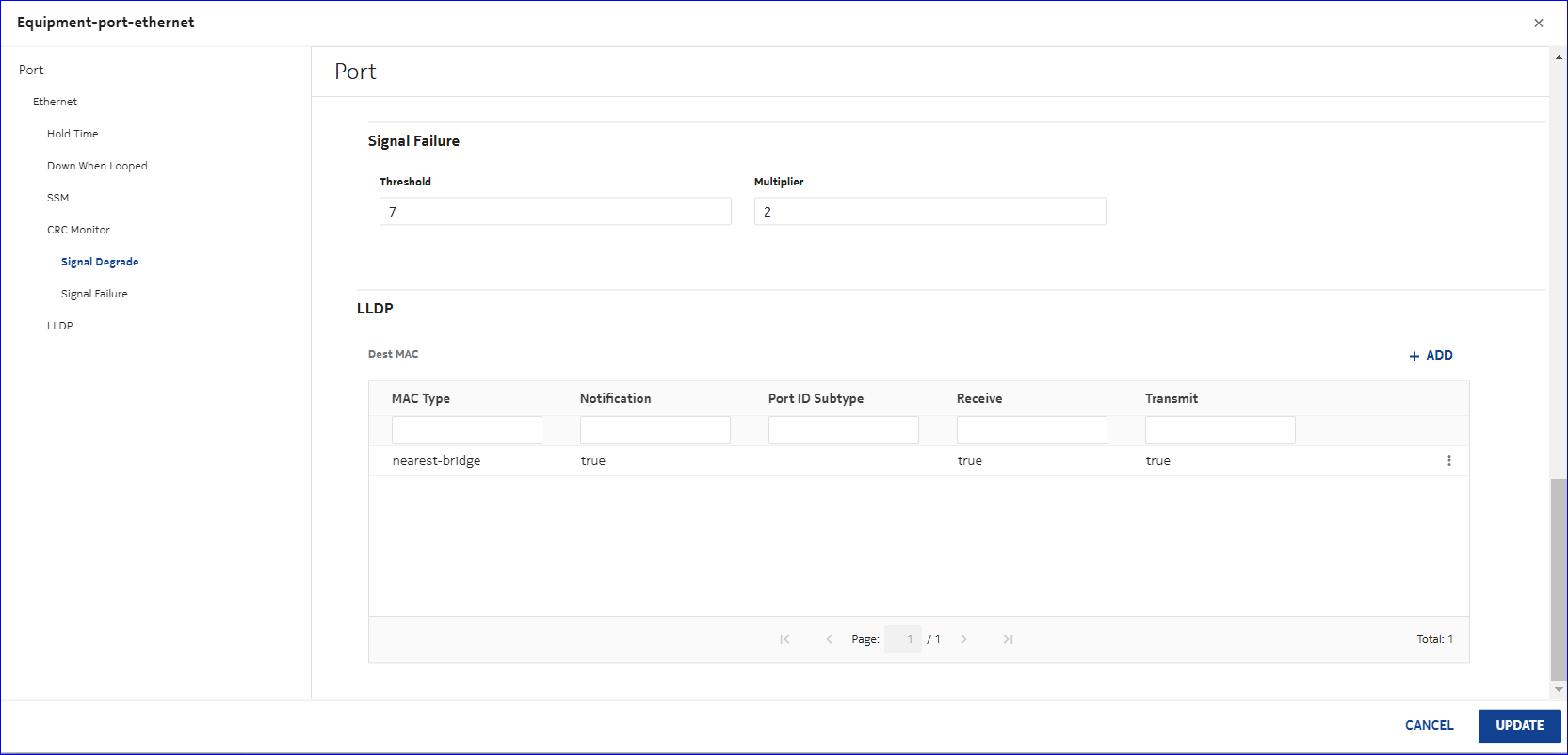

Deployment form attribute values:

Figure 7-7: NE CLI after deployment
NE CLI after deployment
Figure 7-8: NE CLI after deployment

End of steps

To configure Ethernet Port using intent port-eth_msros_23-10-1_24-4

port-eth_msros_23-10-1_24-4 supports configuration of ethernet port on MD NE.


1

Pre-configuration:

oper-group

  • /configure service oper-group "OperGroup-1"

dist-cpu-protection

  • /configure system security dist-cpu-protection policy "port-cpu-protect-1" type port

accounting-policy

  • /configure log accounting-policy 20

port scheduler policy

  • /configure qos port-scheduler-policy "port-sch-policy-1"

hw-agg-shaper-scheduler-policy

  • /configure qos hw-agg-shaper-scheduler-policy "hw-agg-shaper-sch-pol-1"

2

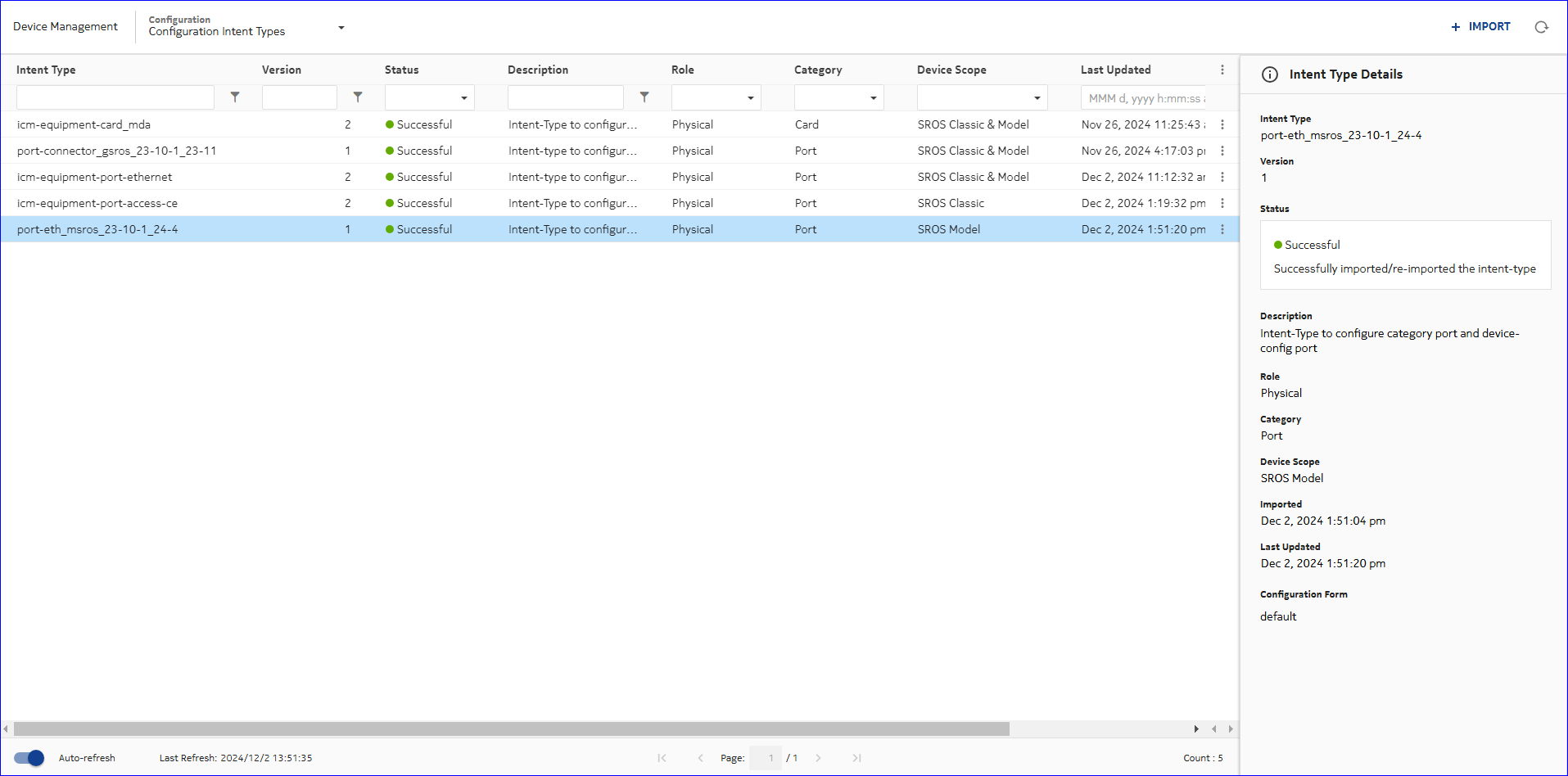

Import intent type port-eth_msros_23-10-1_24-4 into Device Management, Configuration Intent Types.

3

Create a configuration template in Device Management, Configuration Templates and set to released state.

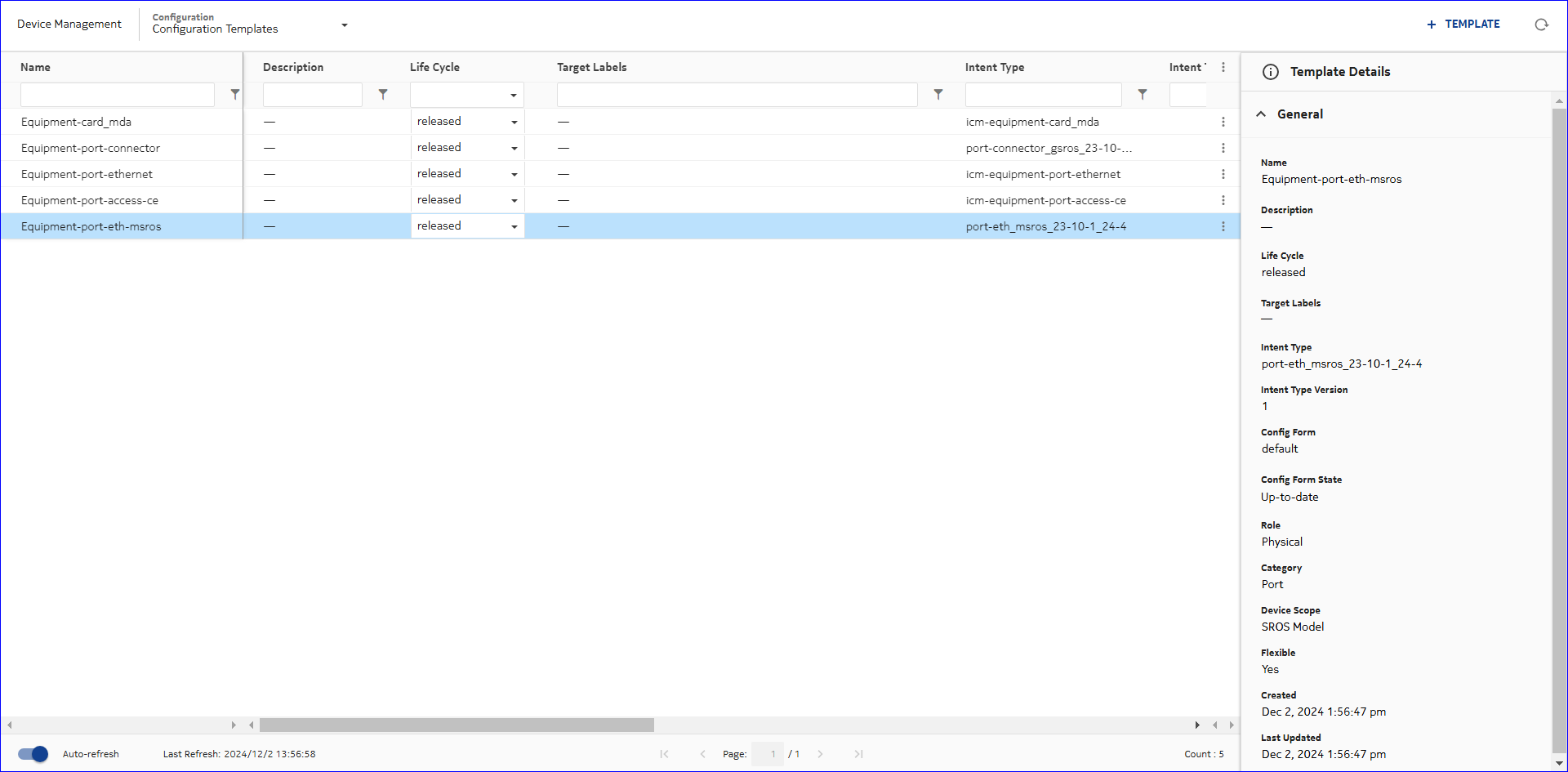

For example, the configuration template created below is named as Equipment-port-eth-msros.

4

Create configuration deployments using the above configuration template.

For the following example, targets are 1/1/c2 /1 for 7750 MD nodes.

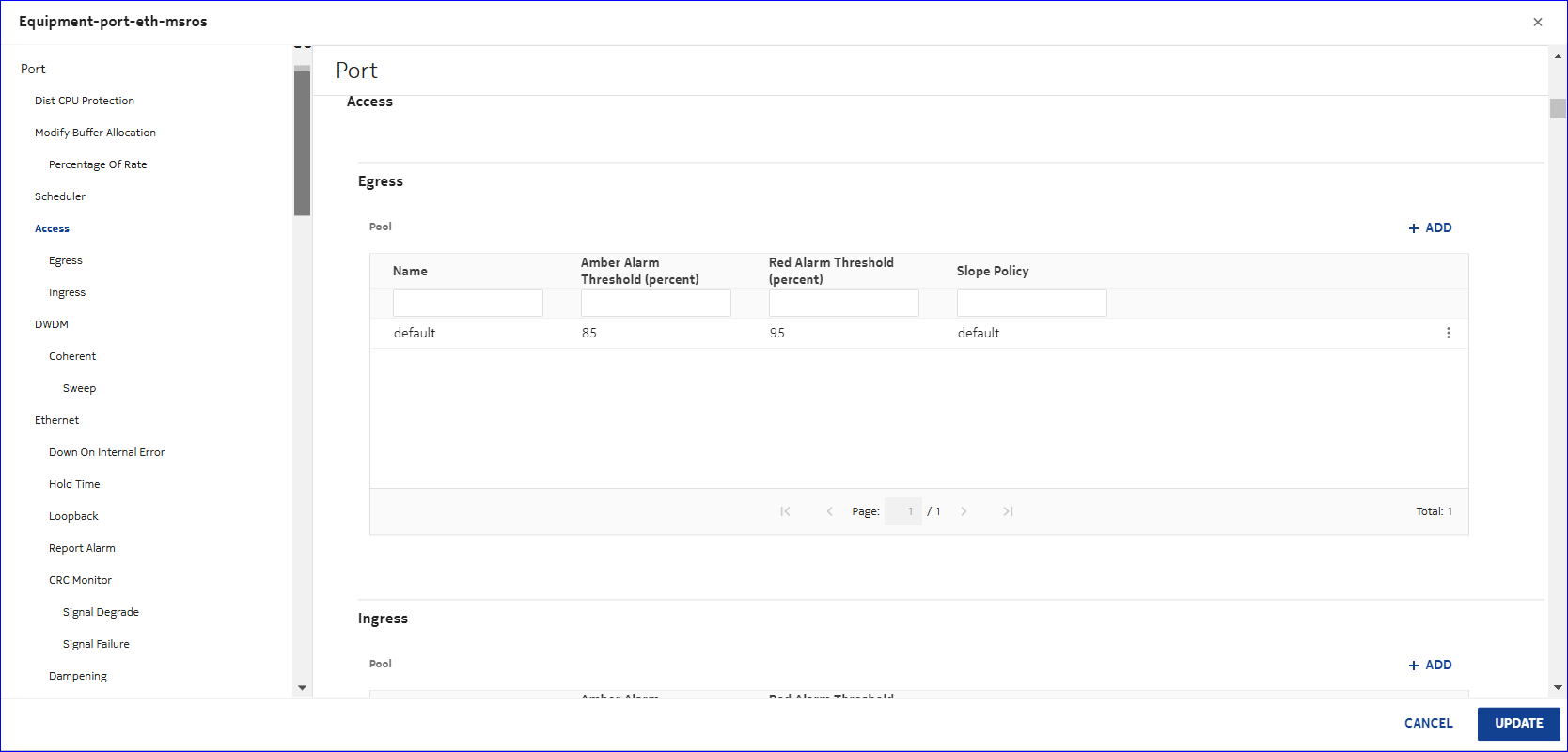

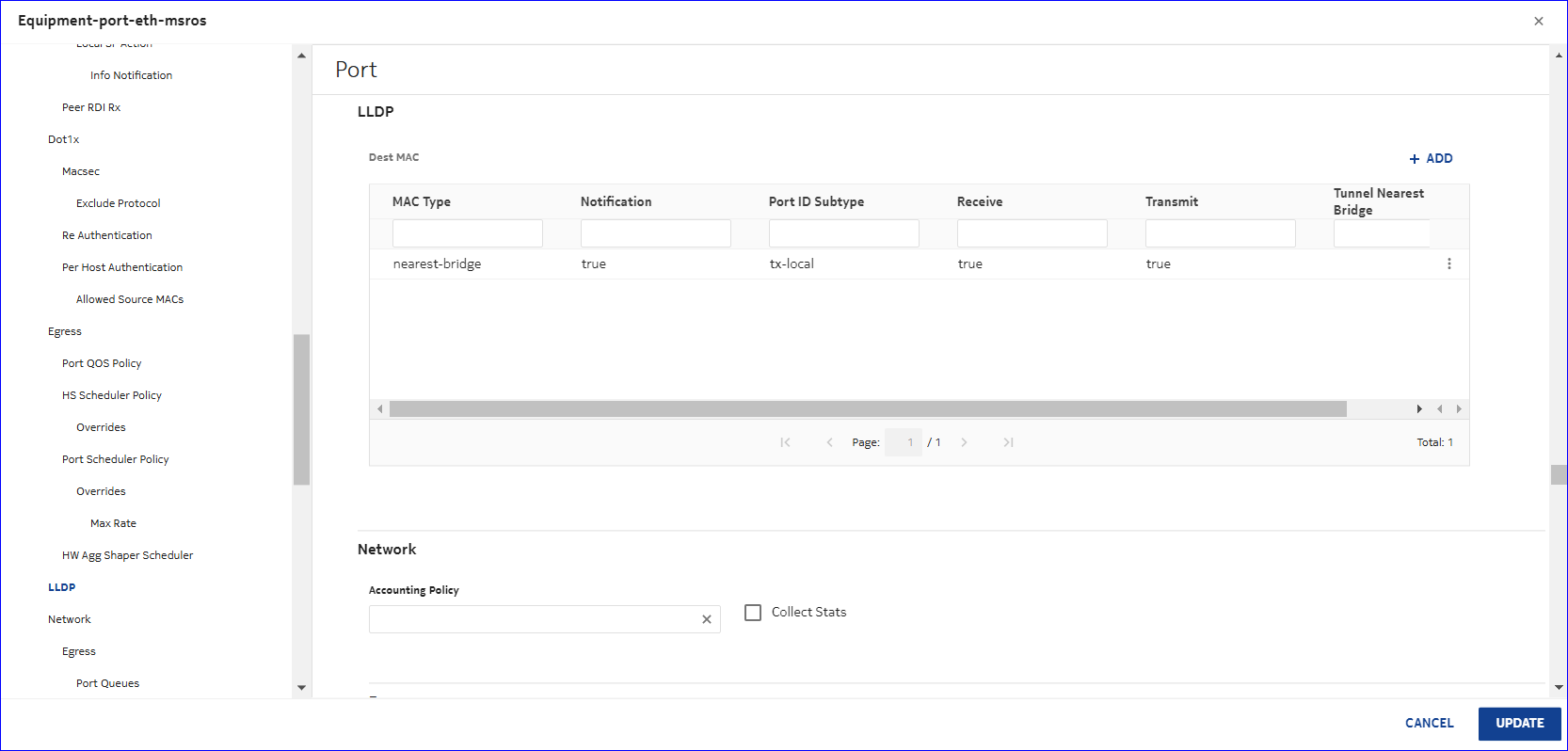

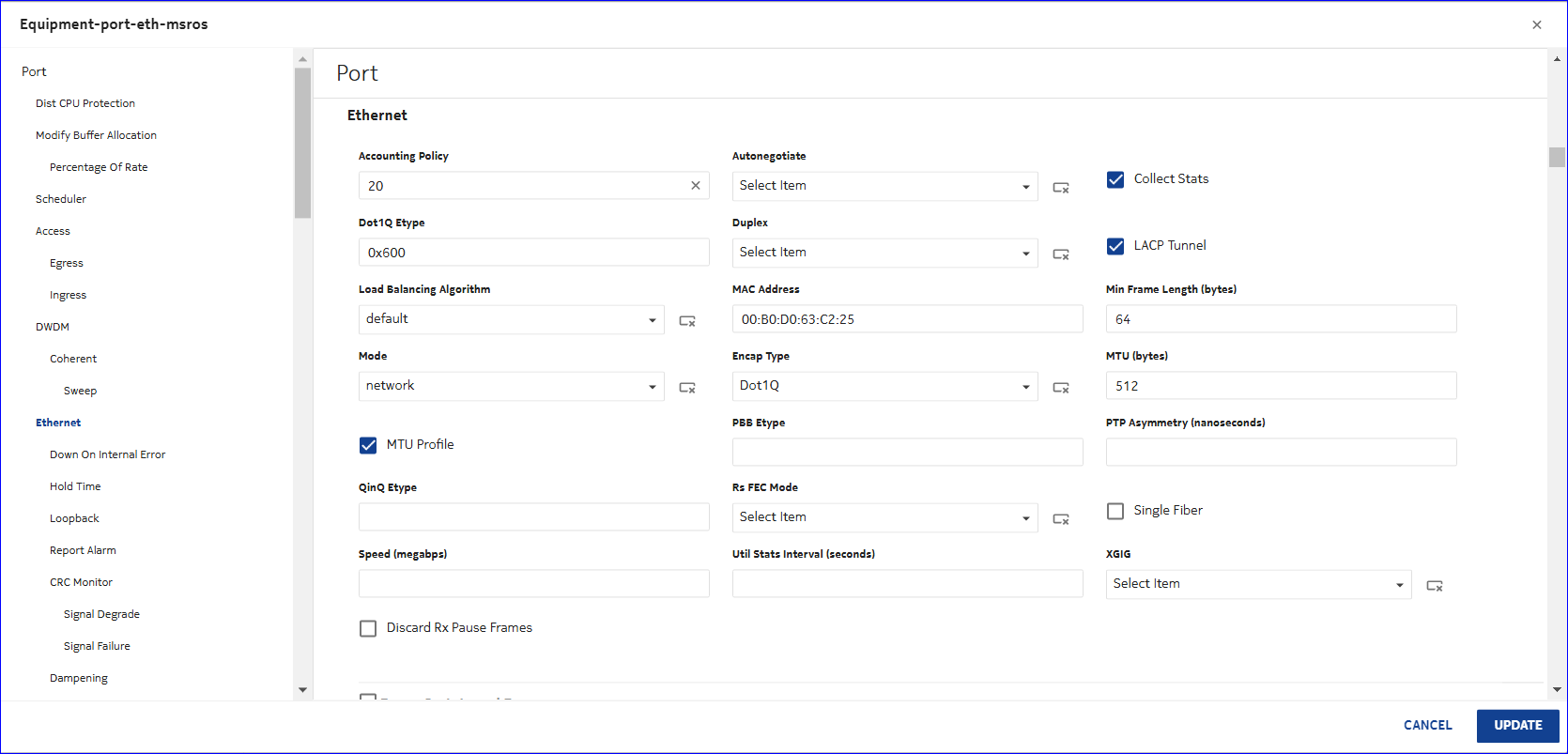

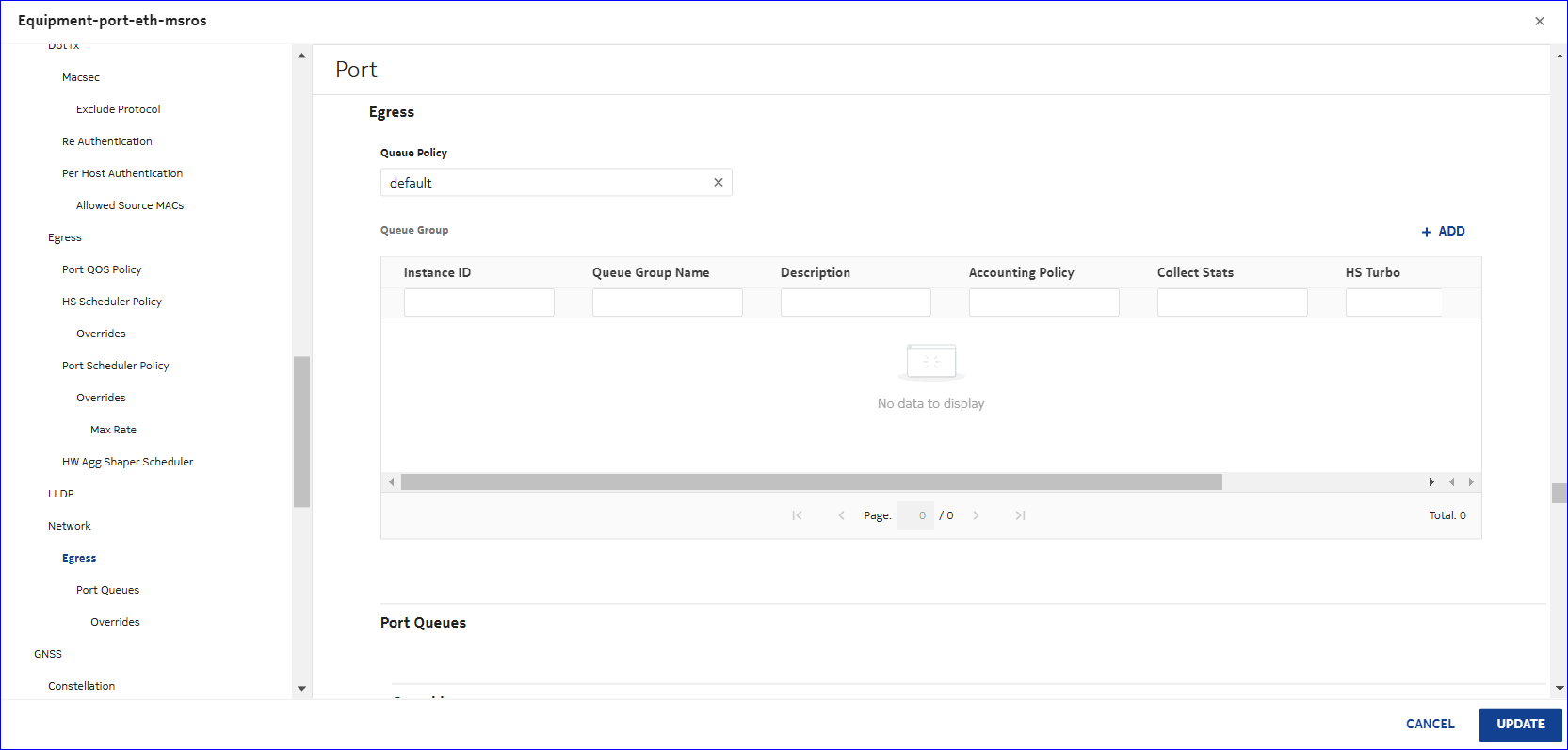

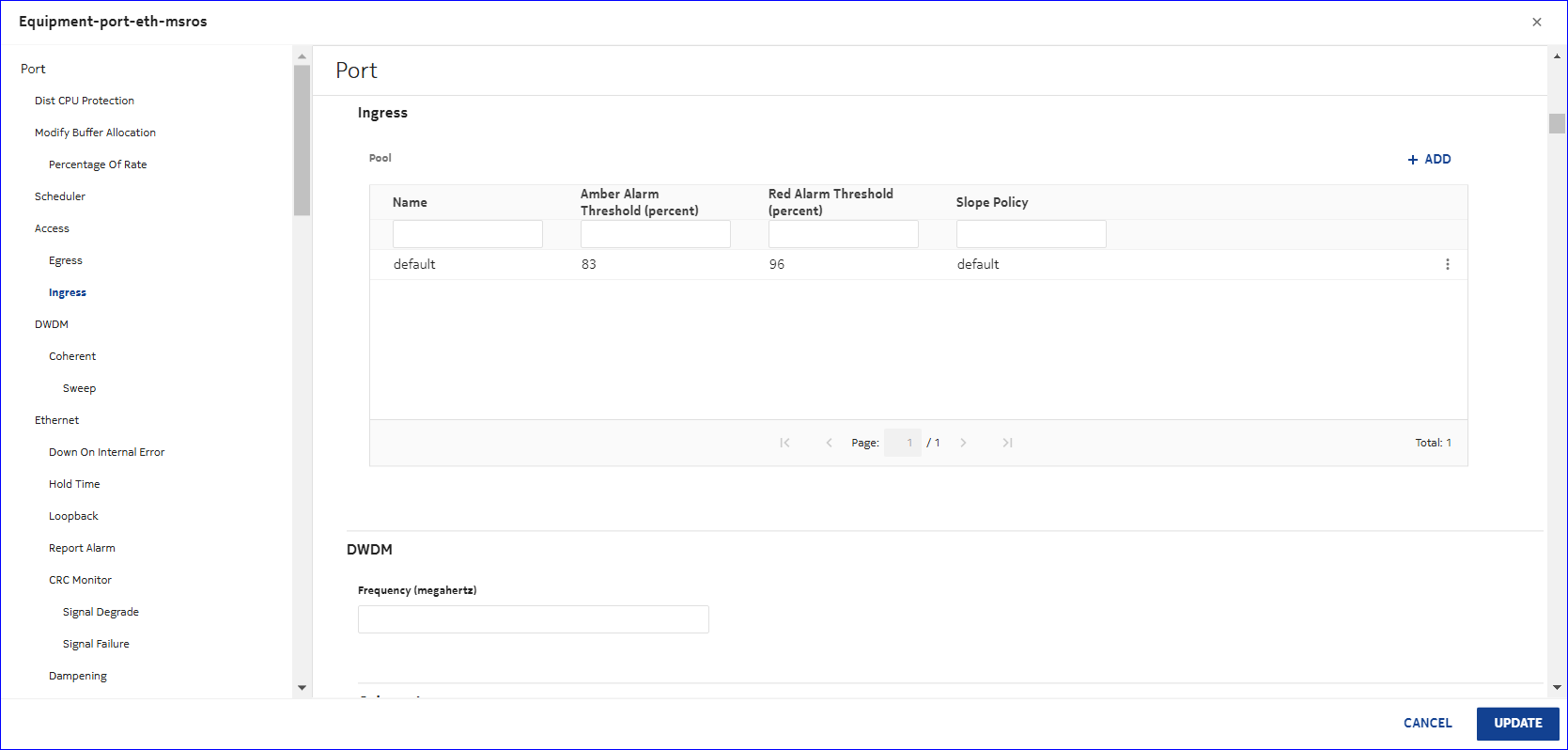

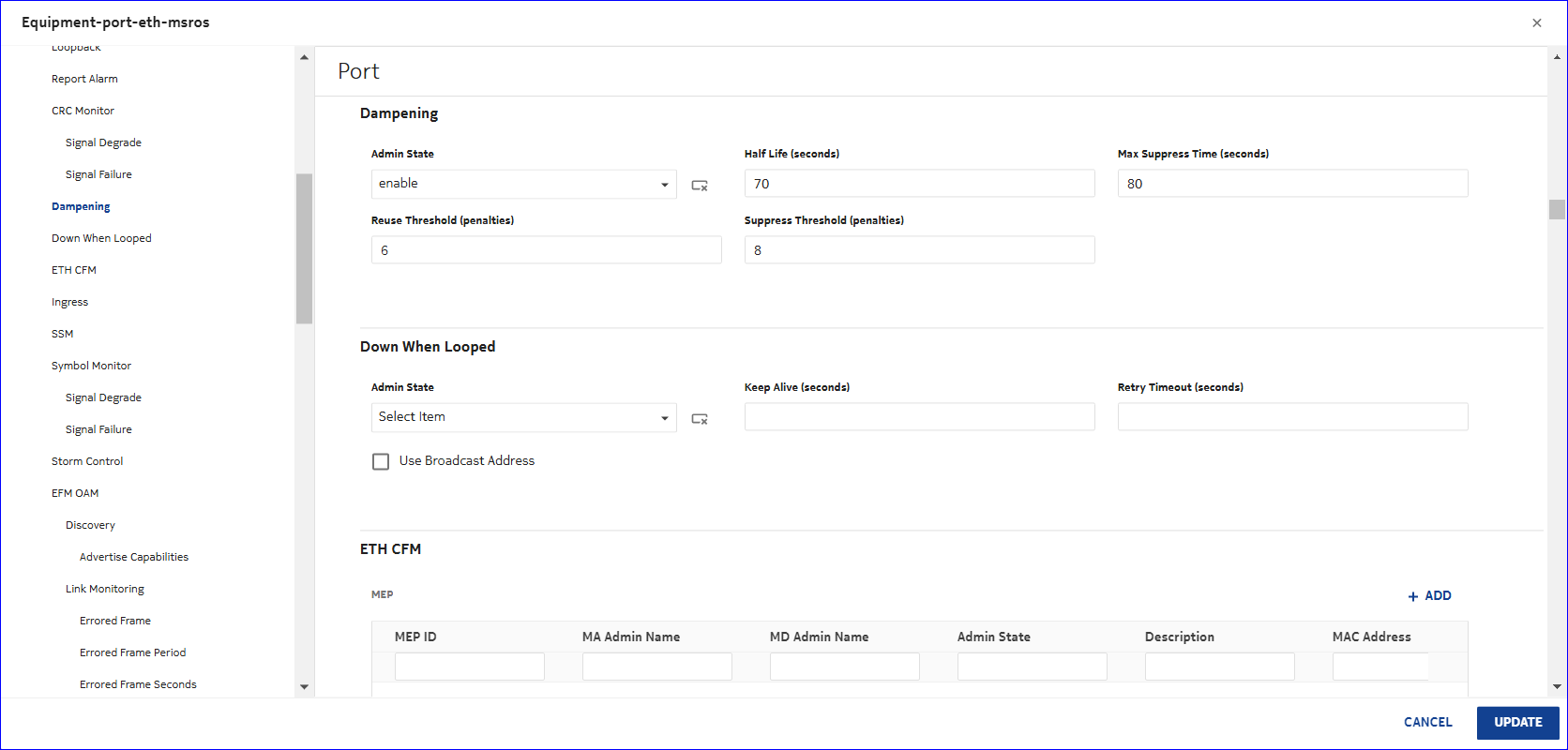

Attribute values in the configuration deployment form:

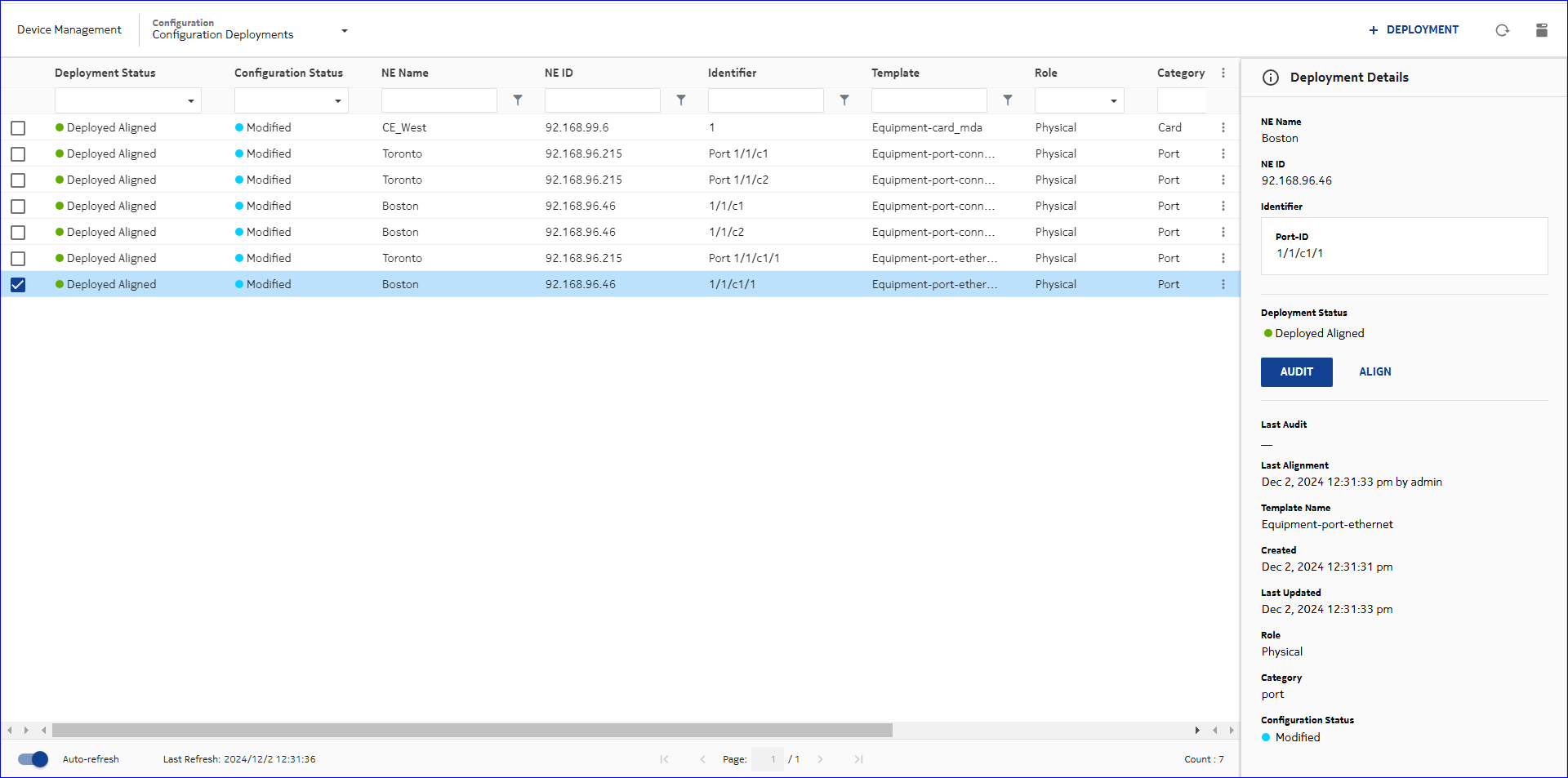

Figure 7-9: Final successful deployment

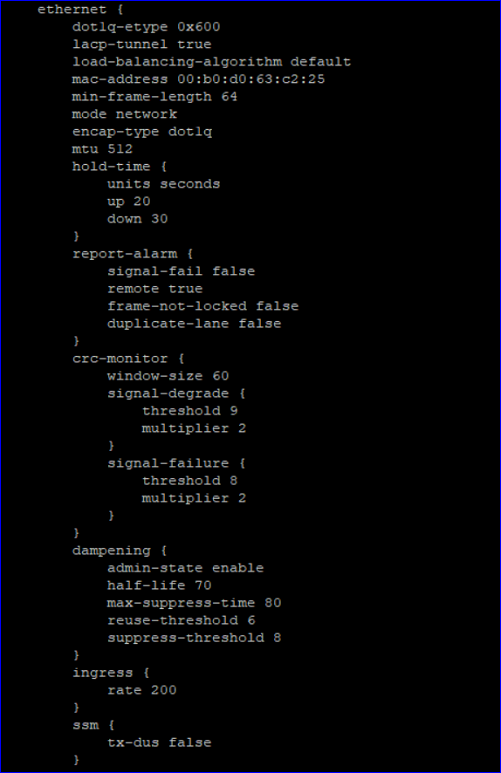

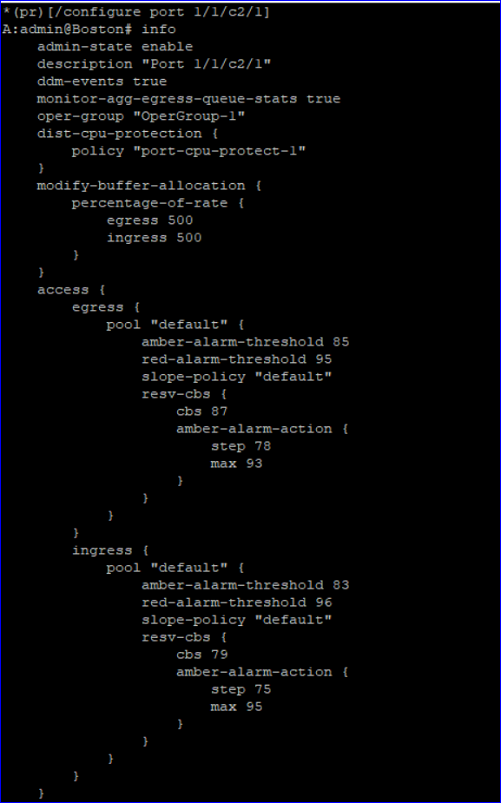

Figure 7-10: NE CLI after deployment
NE CLI after deployment

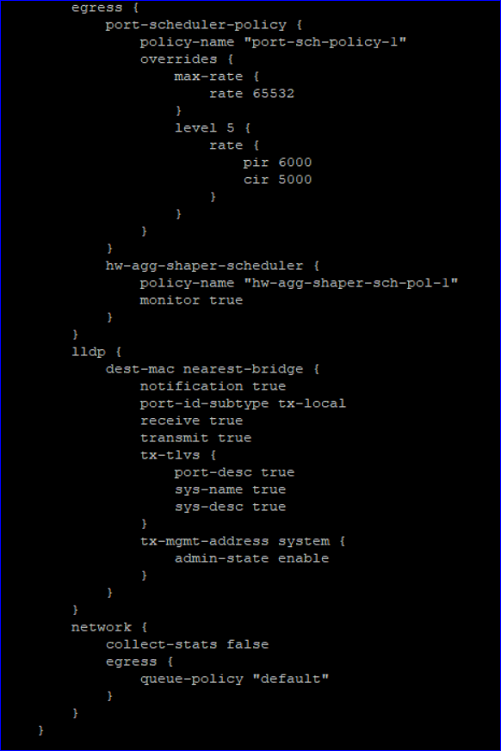

Figure 7-11: NE CLI after deployment
NE CLI after deployment
Figure 7-12: NE CLI after deployment
NE CLI after deployment

End of steps
