For this use case, post-upgrade checks, show commands, and node configs are run on the nodes and compared to pre-upgrade.

NSP post-upgrade checks:

• Node version in Device Management is updated to the new version

• Network Health View, Network Map View, and Inventory View are updated as expected

Additional NSP checks depend on NSP-enabled features. Some possible checks include:

• Service Management - all services are in the same state pre-upgrade

• Configuration Deployments (ICM) - deployment status is the same pre-upgrade

• Telemetry - stats collection works as expected post-upgrade

• OAM tests continue to pass post-node upgrade

The following are examples of commands run during Pre-check. Run the commands again, then save the output to a file and compare it to the pre-upgrade output.

show card
show chassis
show mda

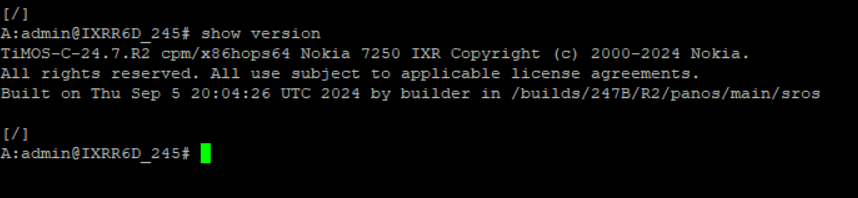

show version
show bof
show service service-using
show service sdp-using
show oam-pm tests
show system lldp neighbor
show router interface
show router rsvp neighbor
show router ospf neighbor
show system netconf connection
show system grpc connection
show port
show system information

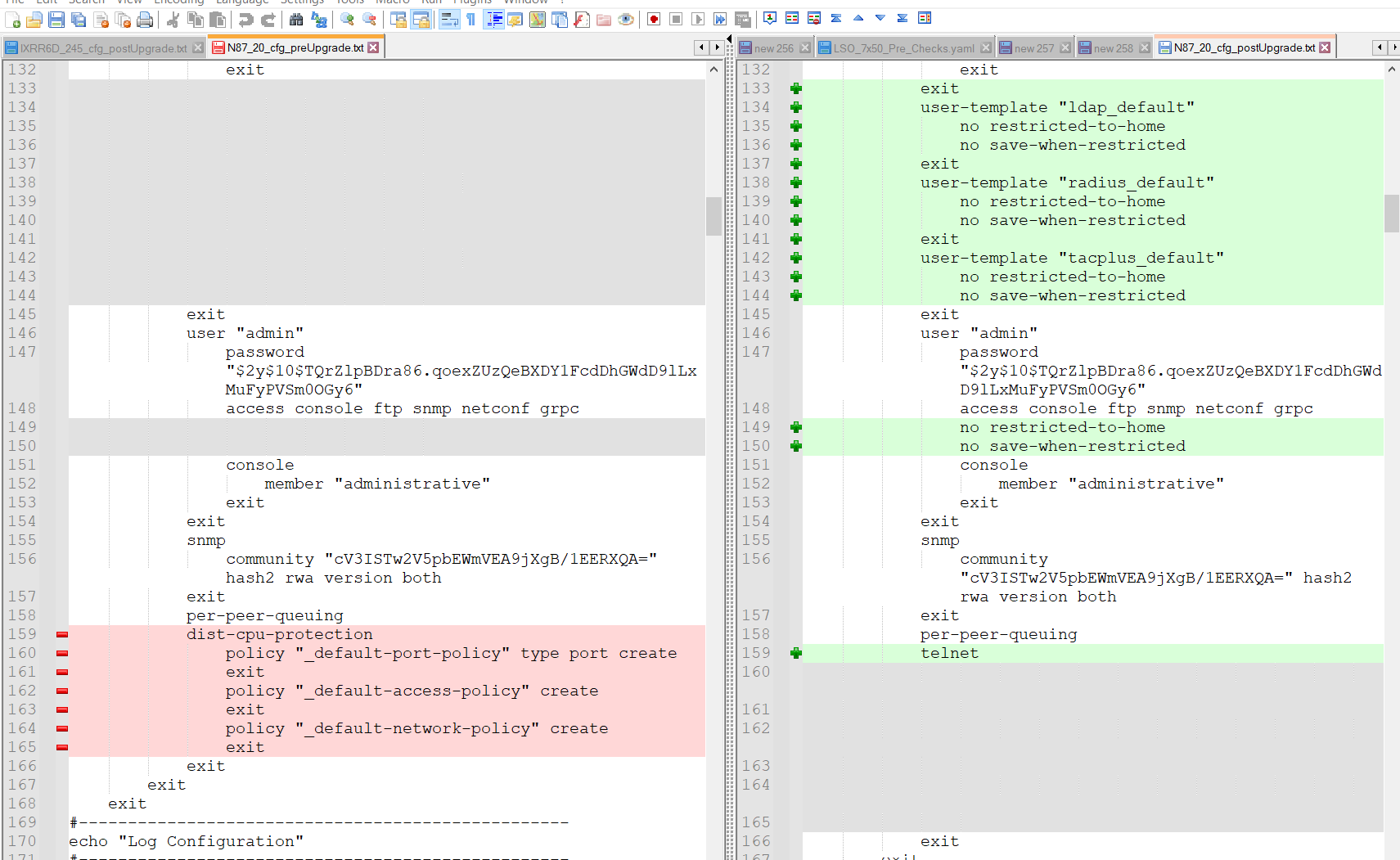

The following 7750 SR example shows some default config changes occurred when upgrading from 23.10 R2 to 24.7 R2:

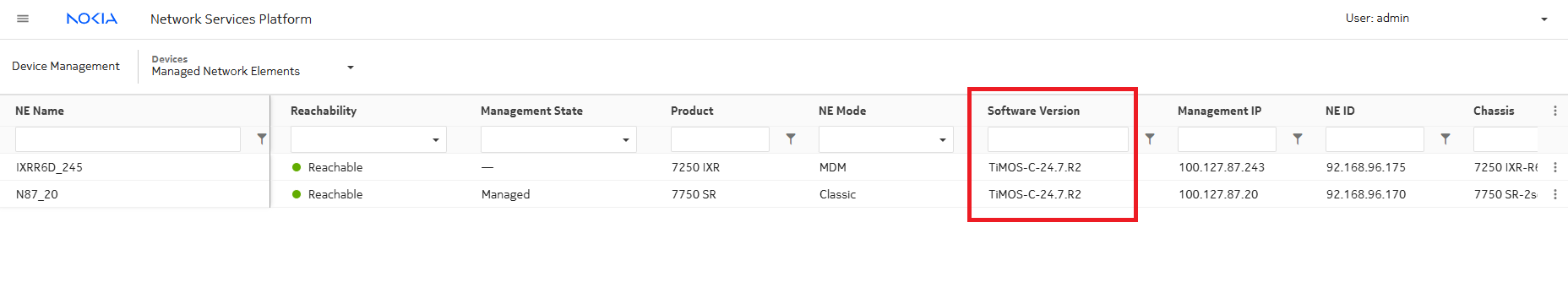

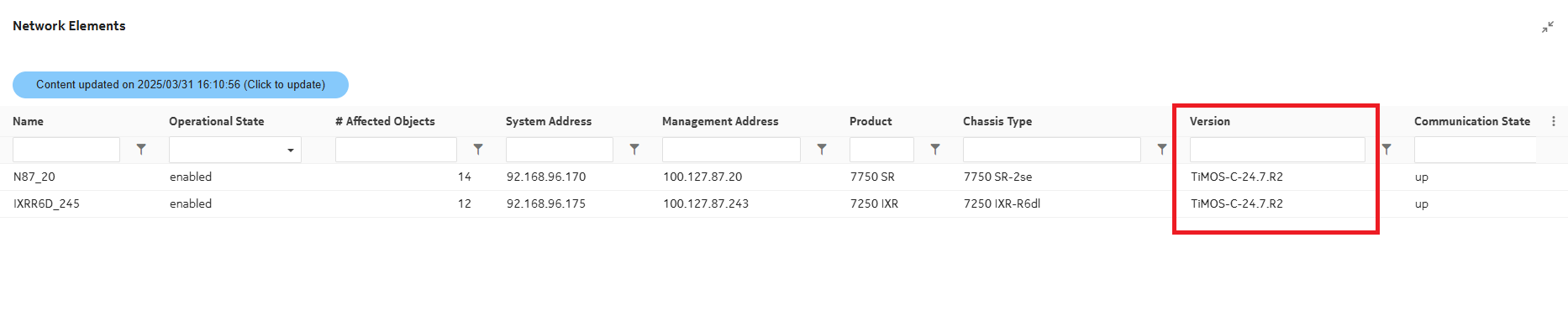

Users can check that the software version is successfully updated in Device Management and in the Network Elements dashboard:
