Single phase upgrade: preparing the upgrade

Steps

Upgrade is completed in one single phase with no pauses. The maintenance window will run before the start of the upgrade until it is complete.


1

Navigate to Device Management, All operations.

.

2

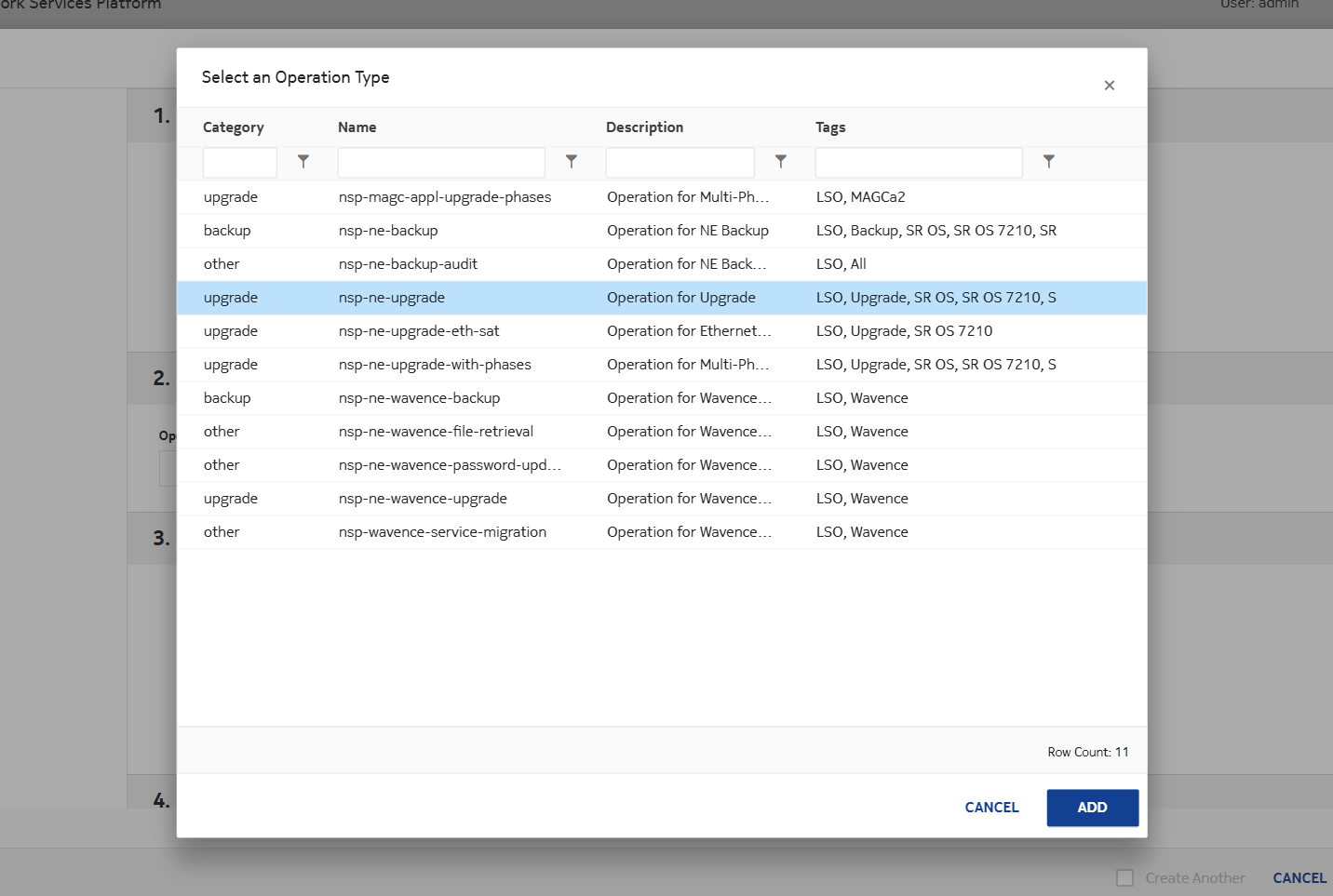

Select Operation, Operation Type and choose "nsp-ne-upgrade" from the list.

3

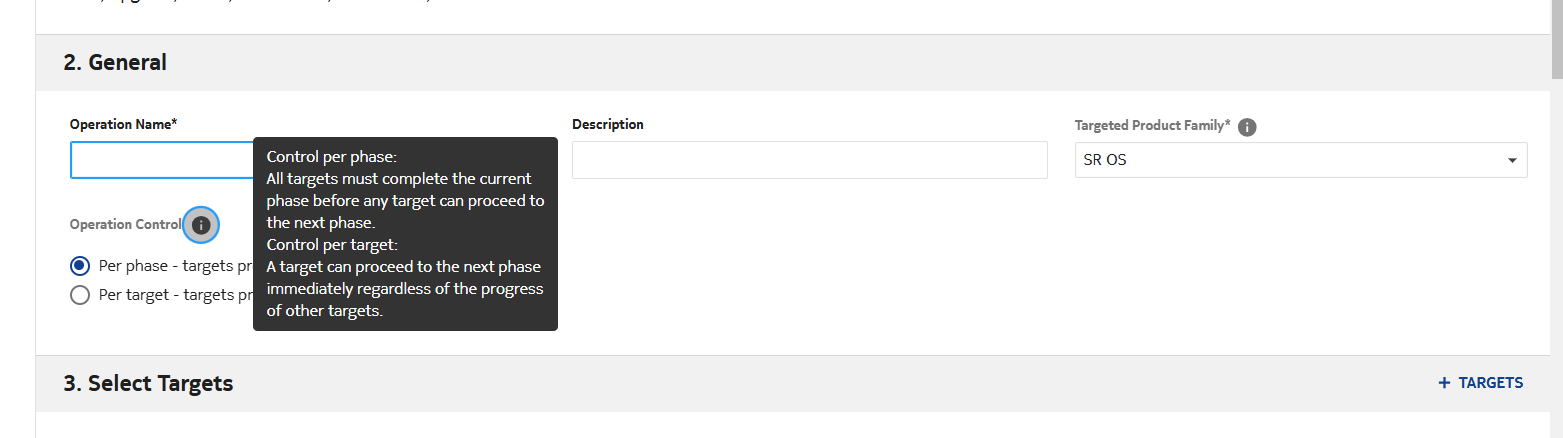

Under General, fill out the Operation Name and select the Operation Control.

4

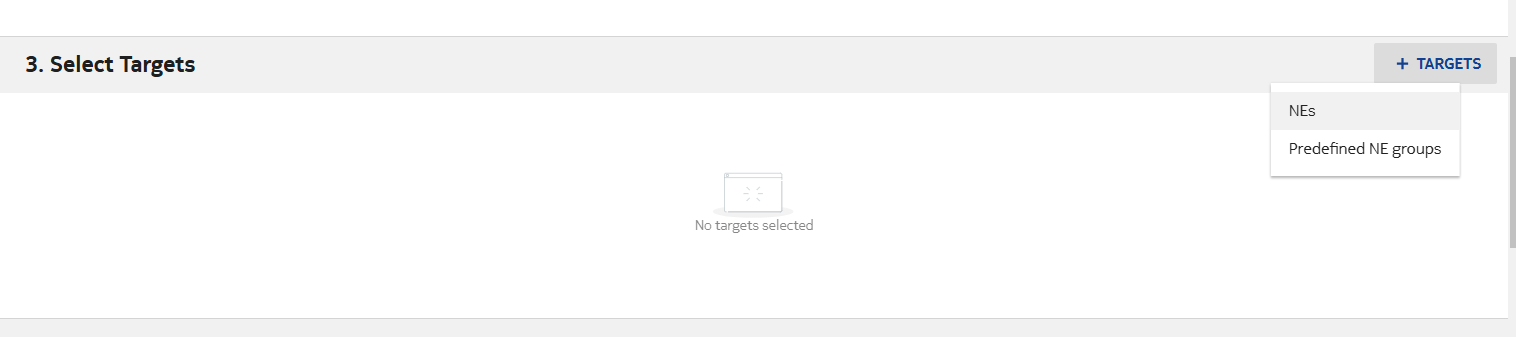

Select png1.png TARGETS, NEs or Predefined NE groups.

5

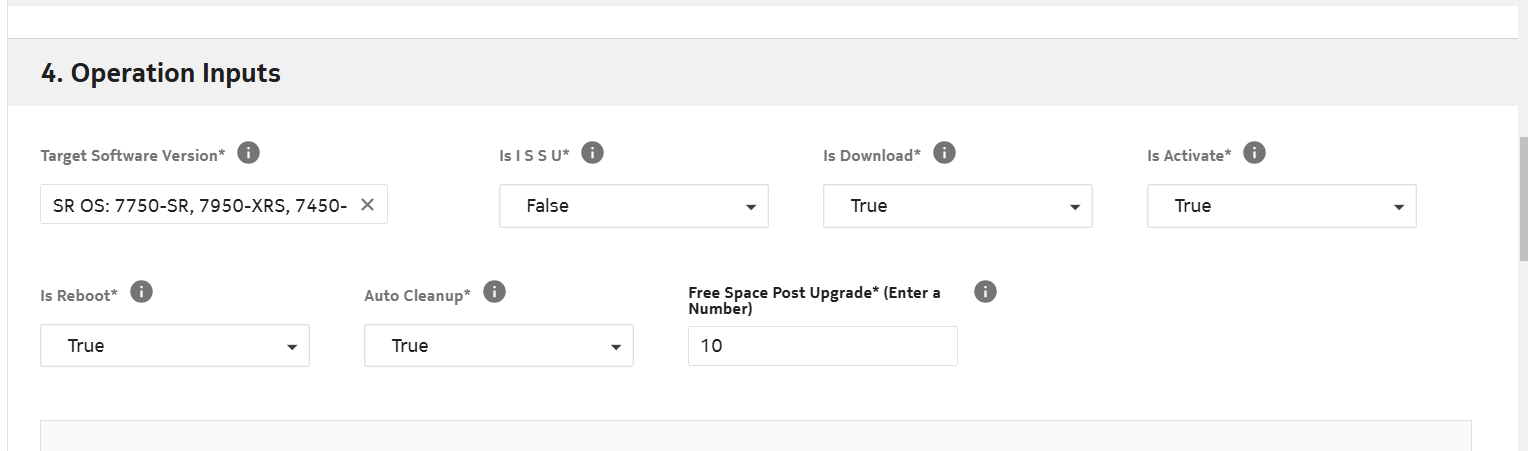

Select Operation Inputs:

With single phase upgrades, users can select to enable or disable any of the phases. Below are the default options:

Note: Users cannot set both isISSU and isReboot to True.

6

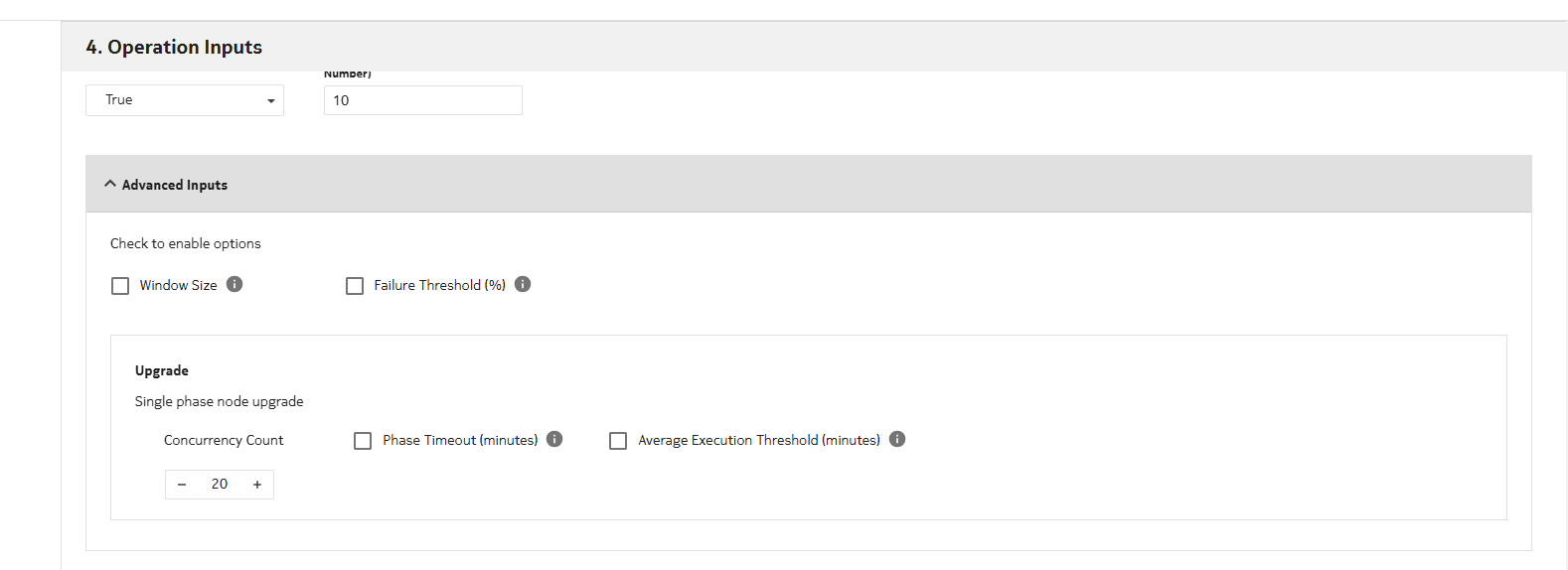

Users can select any of these optional Advanced Inputs for each of the phases:

End of steps
