Install the required artifact bundles

Purpose

Use this procedure to make the required intent types available to Service Management in NSP. This procedure is based on the procedure for installing an artifact bundle in the NSP Network Automation Guide.

For example, the reference procedure in NSP 24.4 is How do I install an artifact bundle?.

Steps
Download the required intent type bundles

1

Download the following artifact bundles from the NSP software delivery site.

  • NSP product artifact bundle for Service Fulfillment

  • NSP SR OS vendor-agnostic telemetry adaptation artifact bundle

Install the artifact bundle in NSP

2

Open Artifacts, Artifact Bundles.

3

Click IMPORT & INSTALL.

4

In the form that opens, drag and drop the zip file, or click Browse and navigate to the files on your system.

5

To install the artifact bundle immediately, click IMPORT & INSTALL. To import without installing, click IMPORT.

The chosen operation is triggered immediately. The artifact bundle status is updated to Imported or Installed when NSP has confirmed the status of all artifacts in the artifact bundle.

6

To install a bundle in Imported status, choose Install bundle from the png3.png (Table row actions) menu.

End of steps

Result

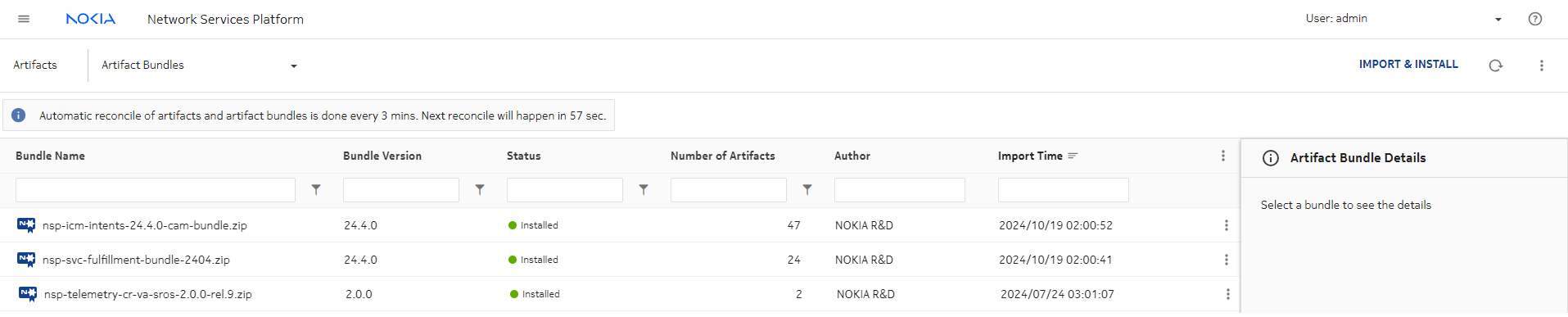

The bundles appear in the Artifacts, Artifact Bundles view:

View the figure

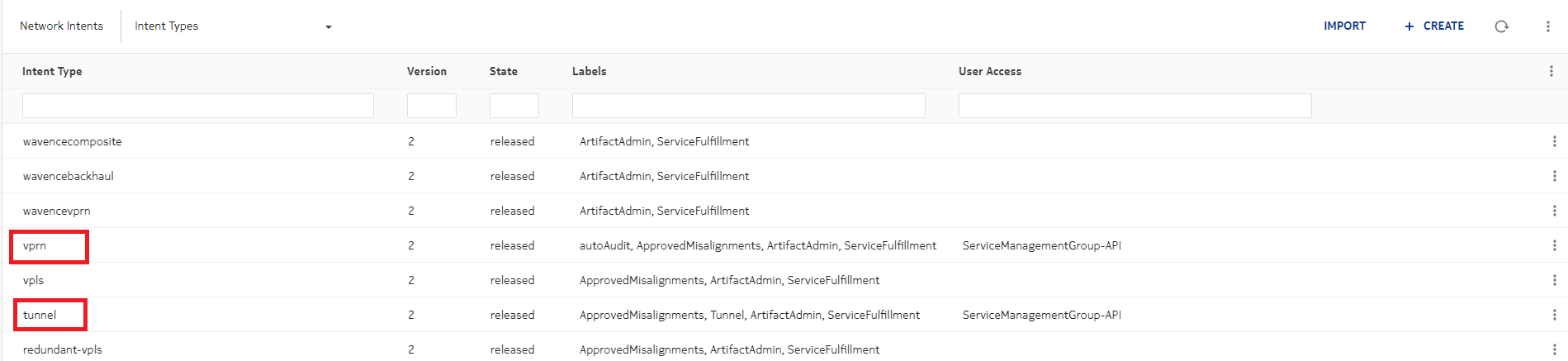

The service intent types, including the tunnel and vprn intent types which are required for this use case, appear in the Network Intents, Intent Types view.

View the figure
