Service stitching – ELAN services

Service stitching algorithm for Elan services

The following are the service stitching algorithm for Elan services with their stitching criteria:

Algorithm	Stitching Criteria
route-target	sites must have inverse matching route-target values
service-name	matching service-name
evi	sites must have matching evi values and inverse matching local/remote ac values
vcid	site's tunnel binding must have matching vcid

Service stitching with service-name algorithm

Stitch the Elan service created on MD NE using the following API.

POST: (https://{{server}}/restconf/data/nsp-service-intent:stitchservices)

BODY:

    {
       "input":{
       "service-type":"elan",
       "algorithm":"service-name",
       "sites":["92.168.96.190","92.168.96.46"]
       }
    }

RESPONSE:

    {
       "response": {
          "status": 0,
          "startRow": 0,
          "endRow": 0,
          "totalRows": 1,
          "data": "Successfully submitted to Job Manager for Service Stitch processing with Job Name: elan_service-name-1727419509598",
          "errors": null
       }
    }

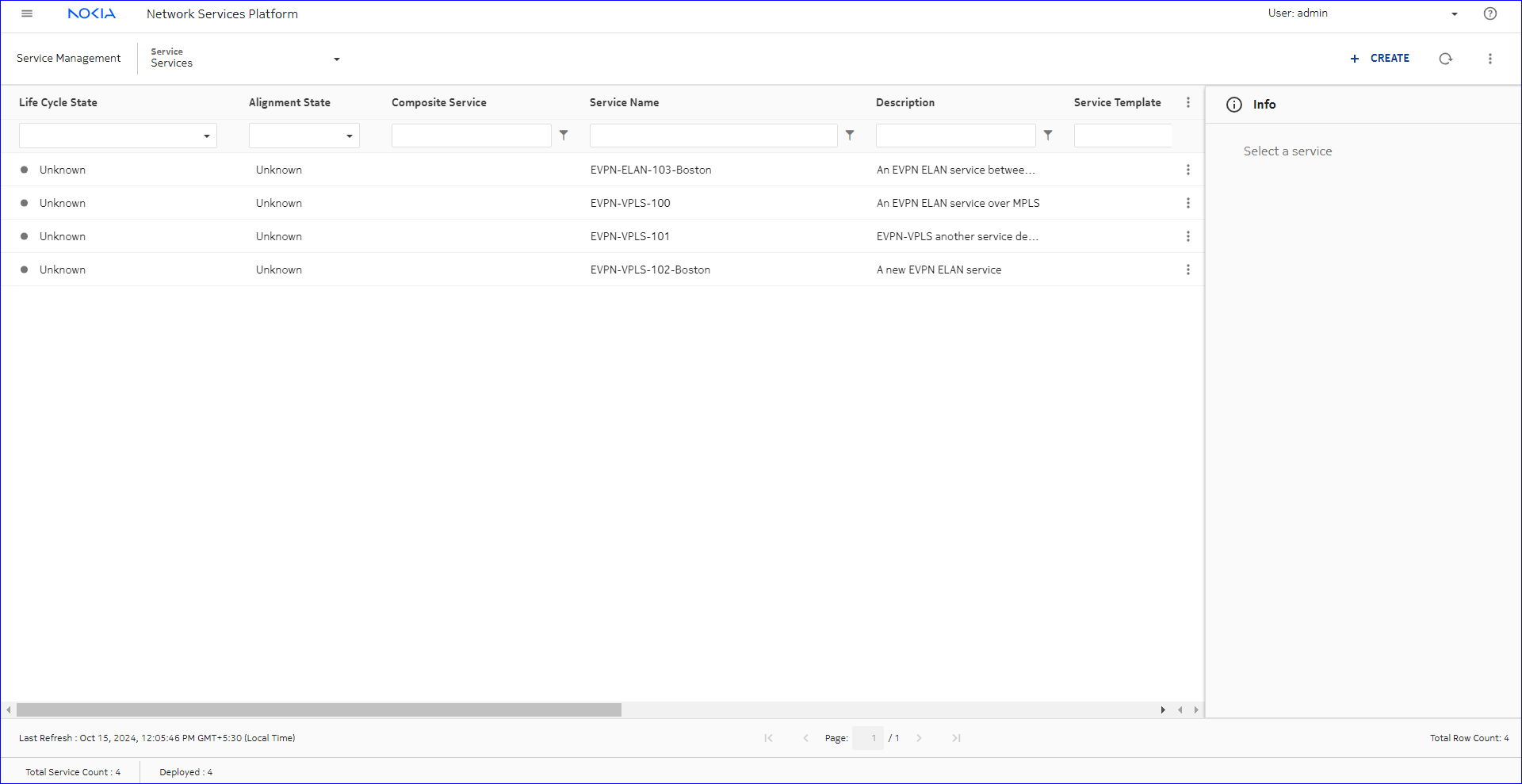

Ensure the service gets listed in the NSP Service Management in 'Unknown' state.

End of steps

Service stitching with evi algorithm

Stitch the Elan service created on MD NE using the following API:

POST: (https://{{server}}/restconf/data/nsp-service-intent:stitchservices)

BODY:

    {
       "input":{
       "service-type":"elan",
       "algorithm":"evi",
       "sites":["92.168.96.190","92.168.96.46"]
       }
    }

RESPONSE:

    {
       "response": {
          "status": 0,
          "startRow": 0,
          "endRow": 0,
          "totalRows": 1,
          "data": "Successfully submitted to Job Manager for Service Stitch processing with Job Name: elan_evi-1728379514781"
          "errors": null
       }
    }

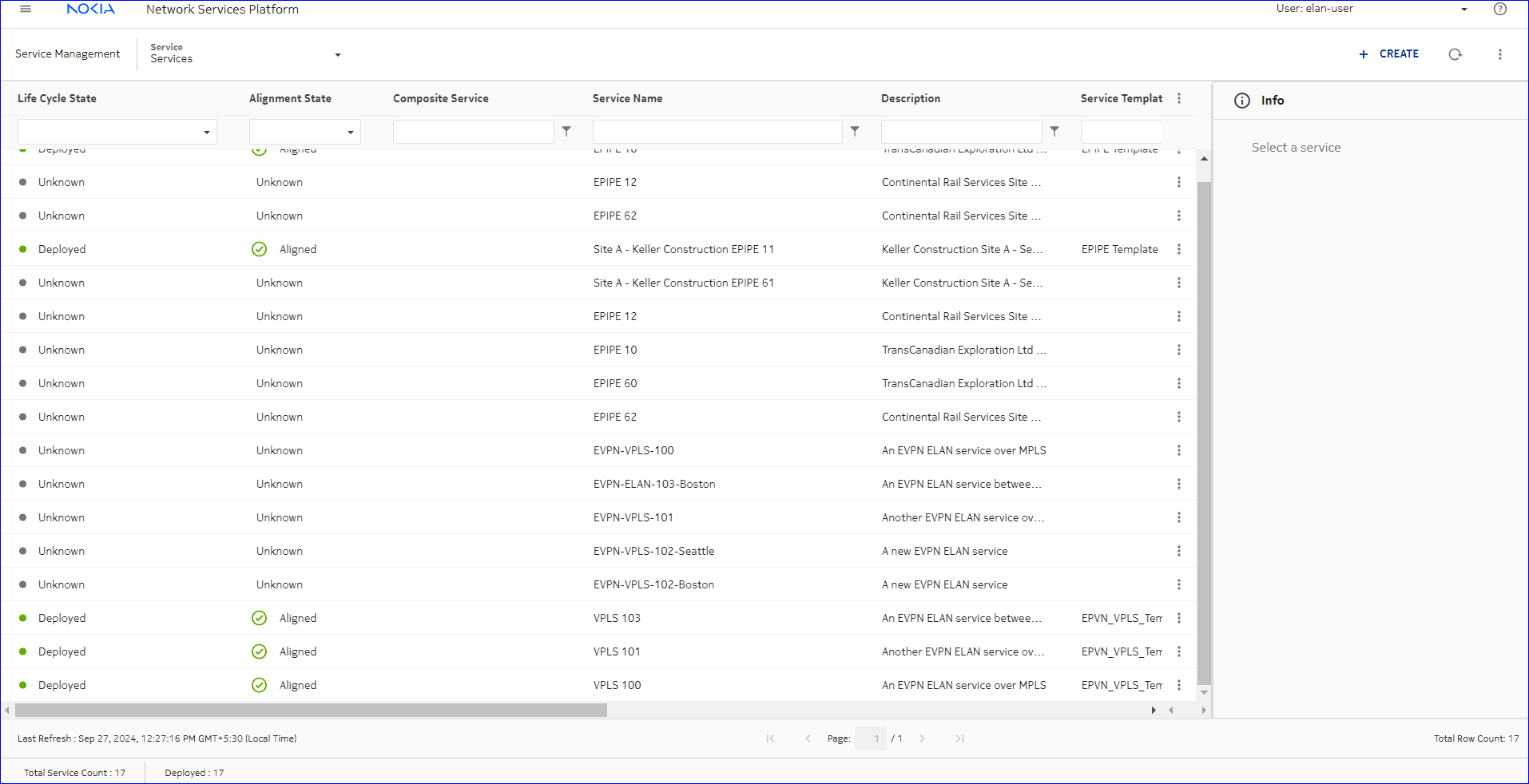

Ensure the service gets listed in the NSP Service Management in 'Unknown' state.

End of steps
