ICM QoS SAPEGRESS/SAPINGRESS


1	In Device Management, select Configuration Deployments. From the DEPLOYMENT drop-down menu, select Logical.

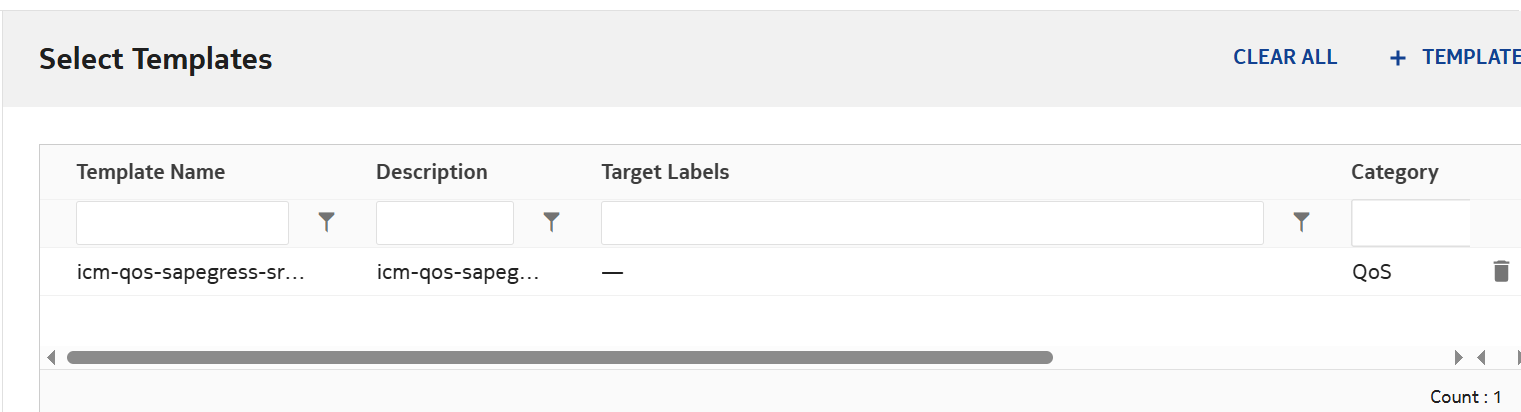

2	Click on + TEMPLATE and select icm-qos-sapegress-srqos.
3	Click on +TARGETS and select NEs. Select the NE and click ADD.
4	Click on VIEW/EDIT TEMPLATE CONFIG.

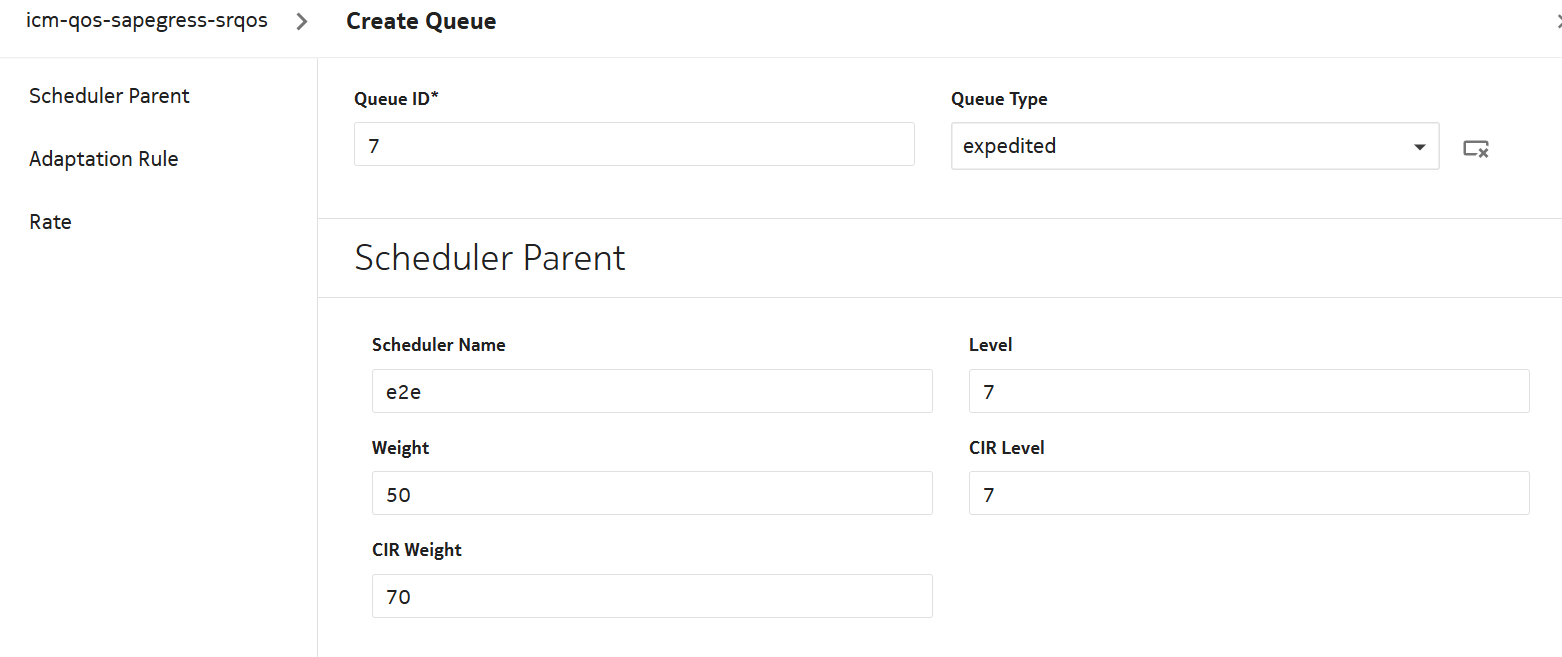

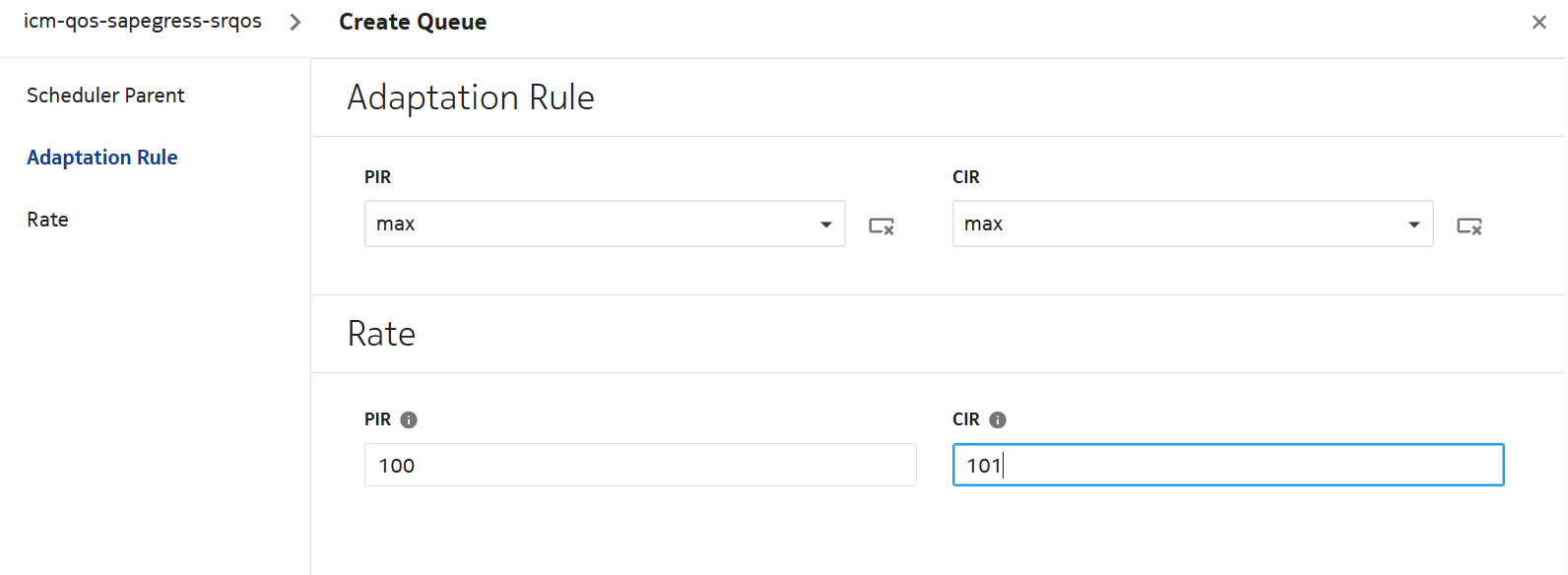

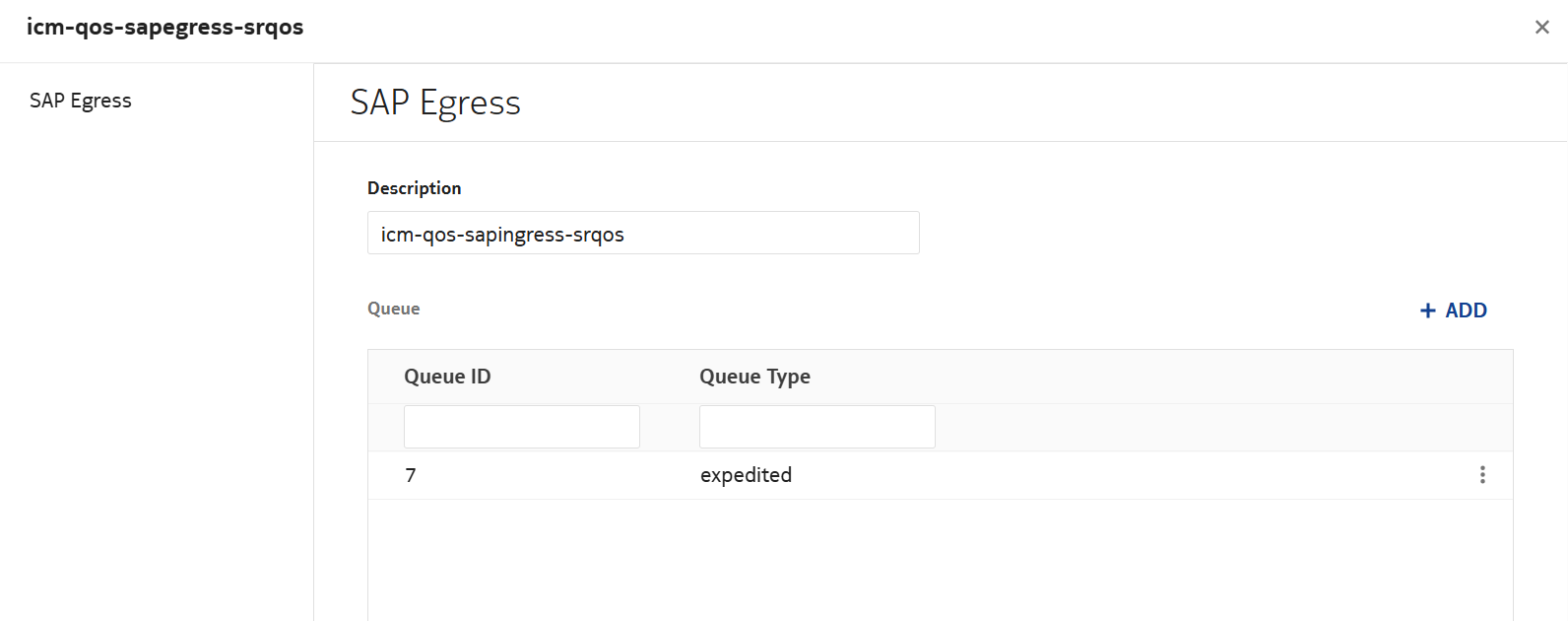

5	Under Create Queue, enter the following attributes. Queue ID and Type, and Scheduler Parent attributes: Adaptation Rule and Rate attributes: Entry should look as follows:

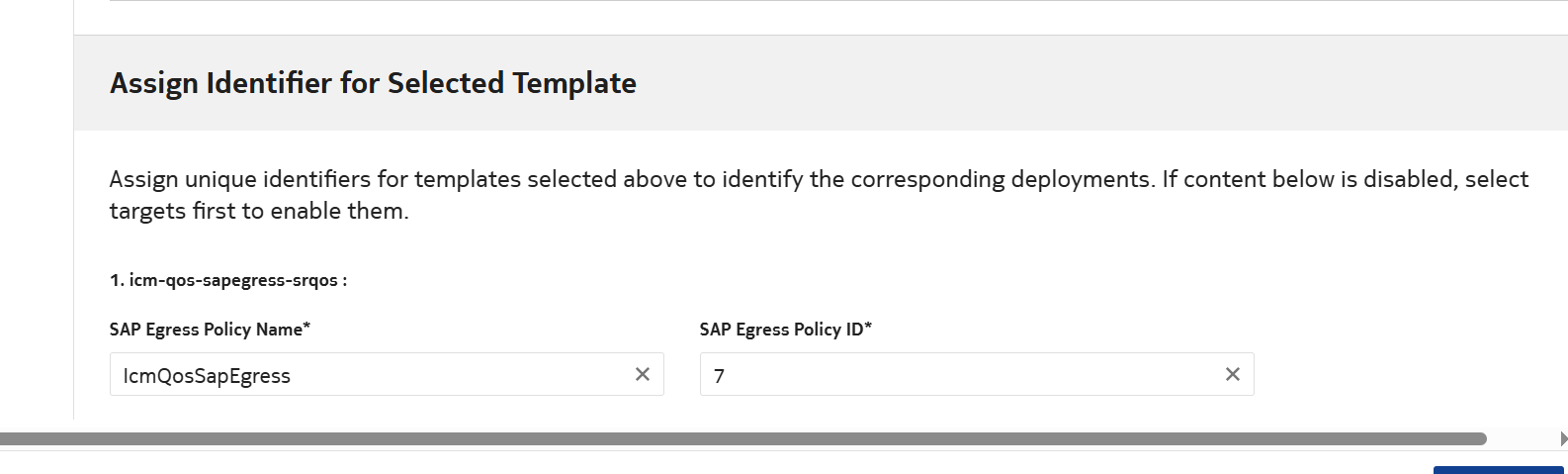

6	Enter the SAP Egress Policy Name and SAG Egress Policy ID, then click DEPLOY.

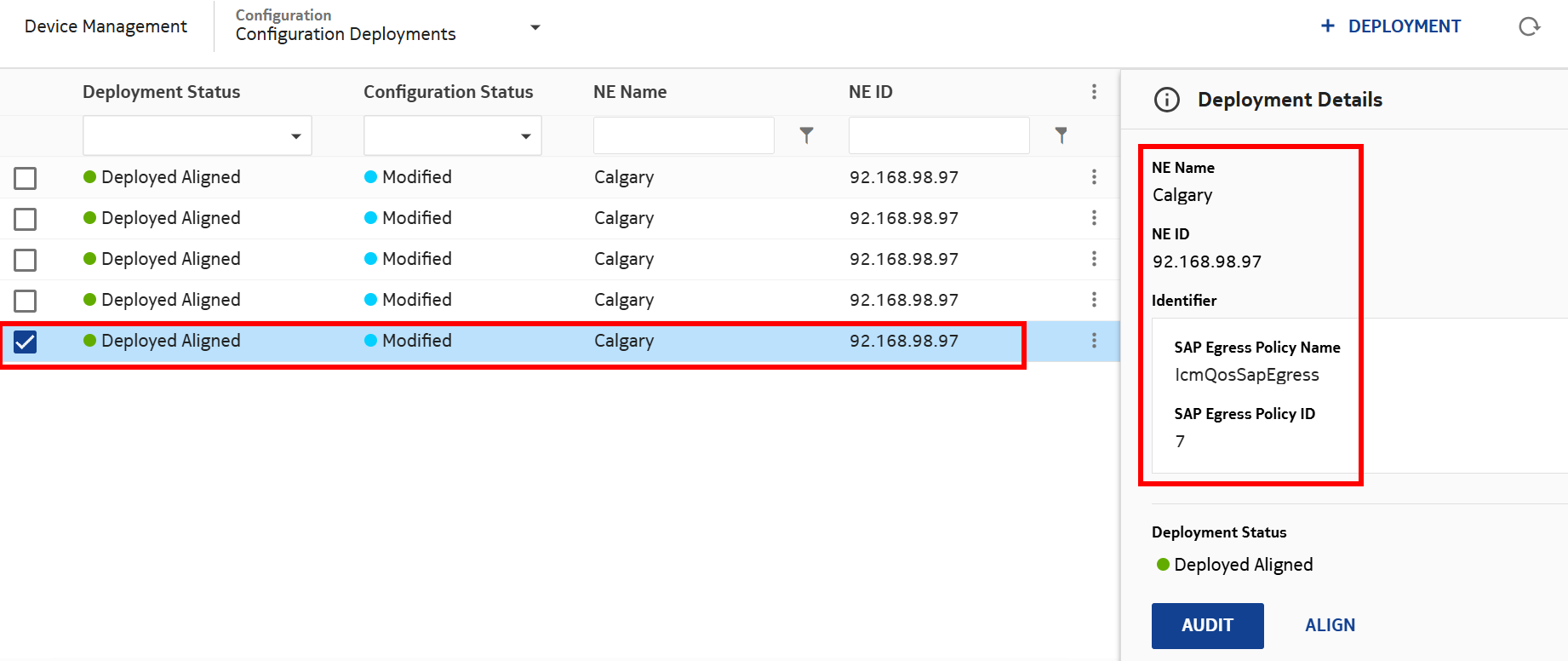

7	Verify that the configuration is Deployed and Aligned.

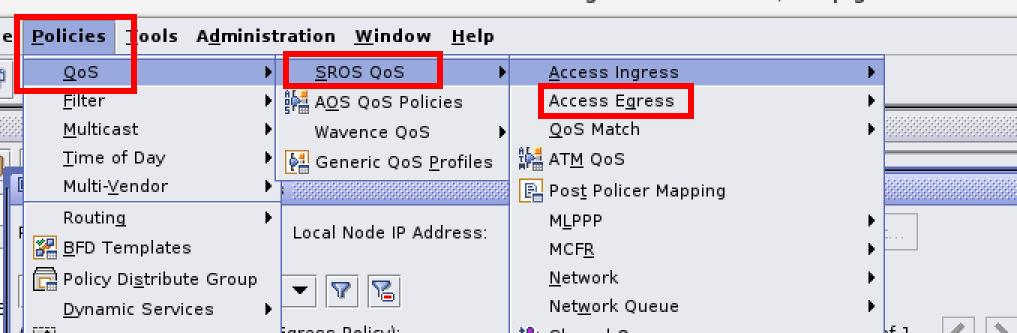

8	Login to NFM-P and navigate to Policies > QoS > SROS QoS > Access Egress.

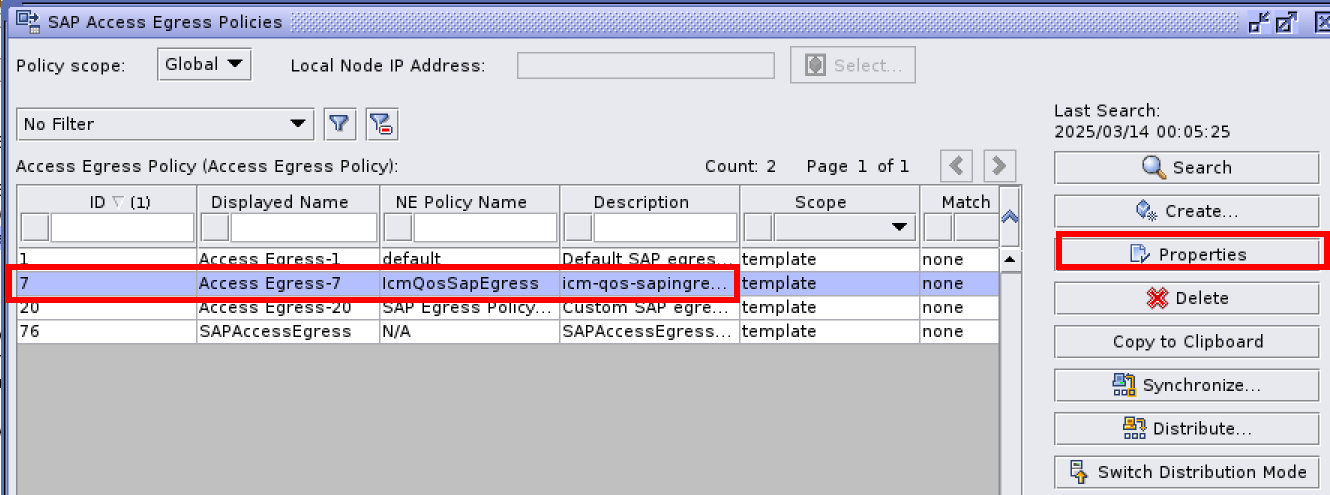

9	Select the Policy and click on Properties.

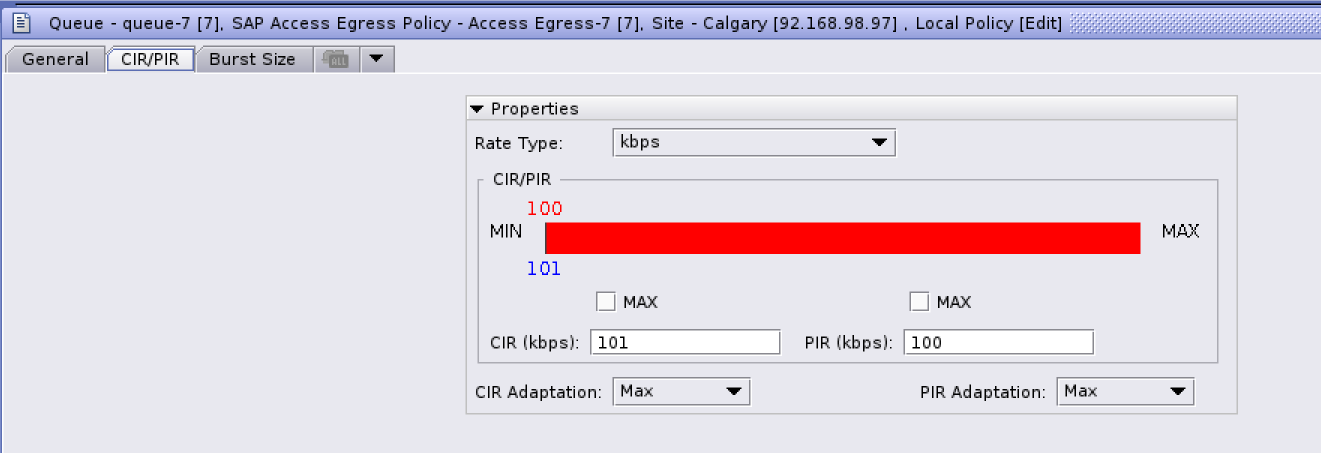

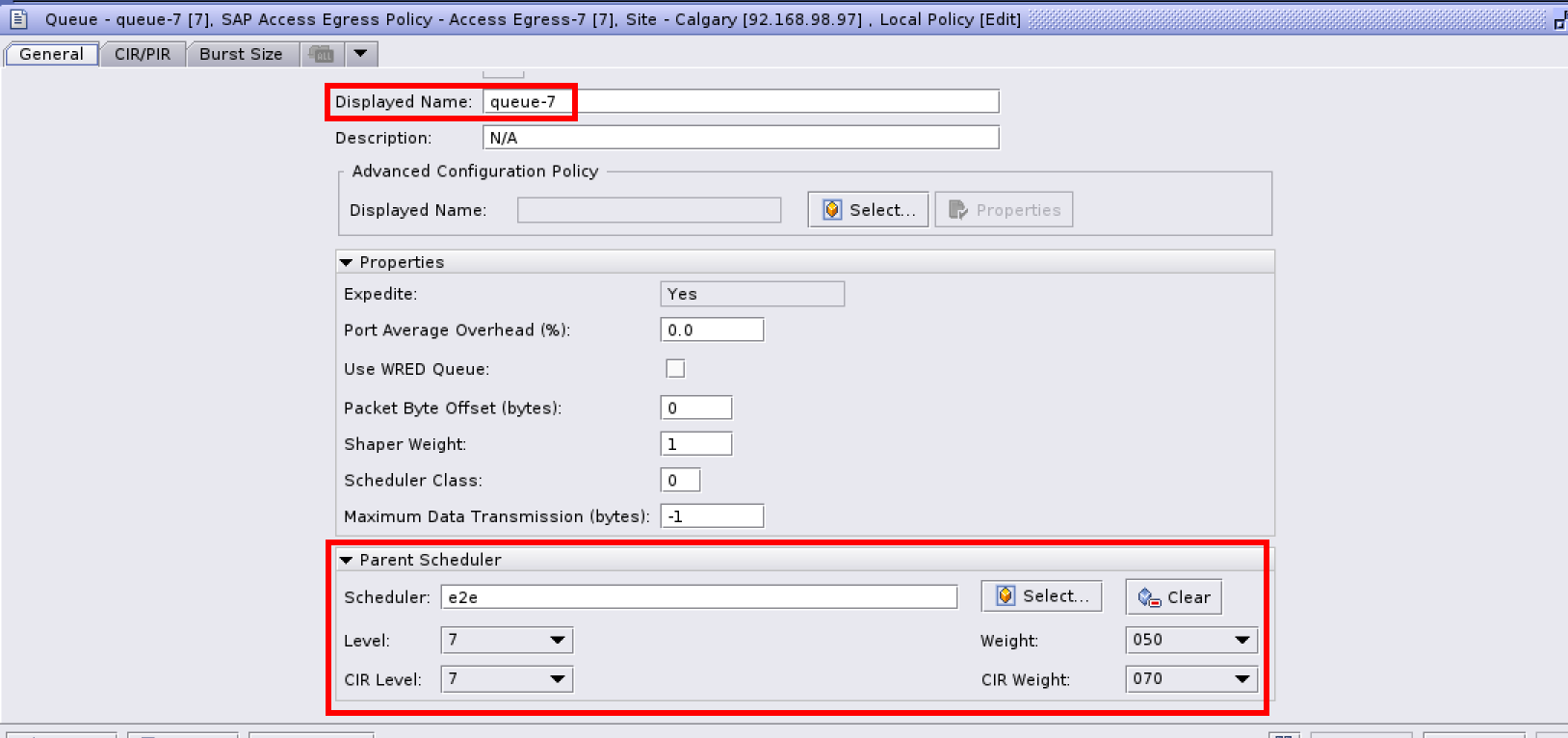

10	Navigate to Local Definition and verify the entry. Select the entry and click on Properties to see the attributes.

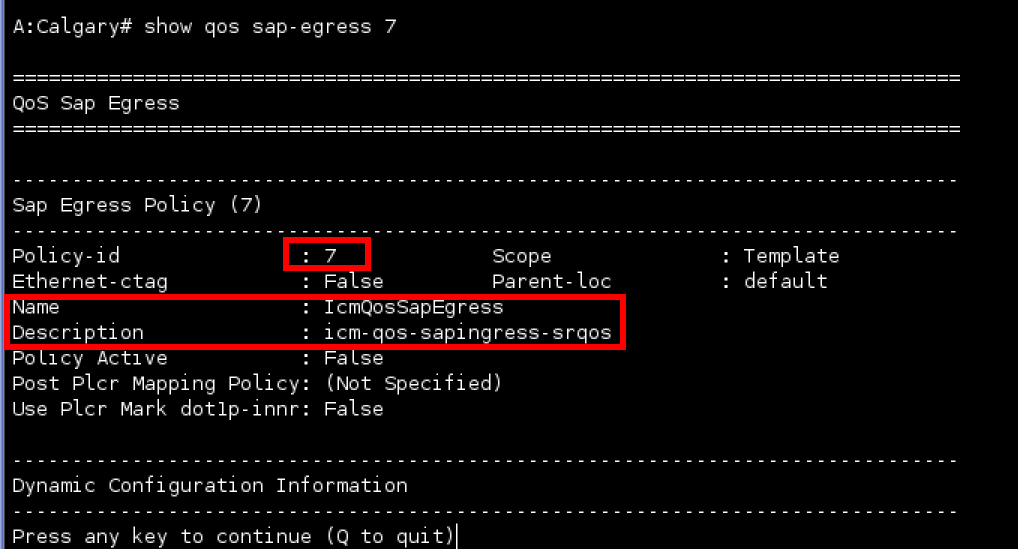

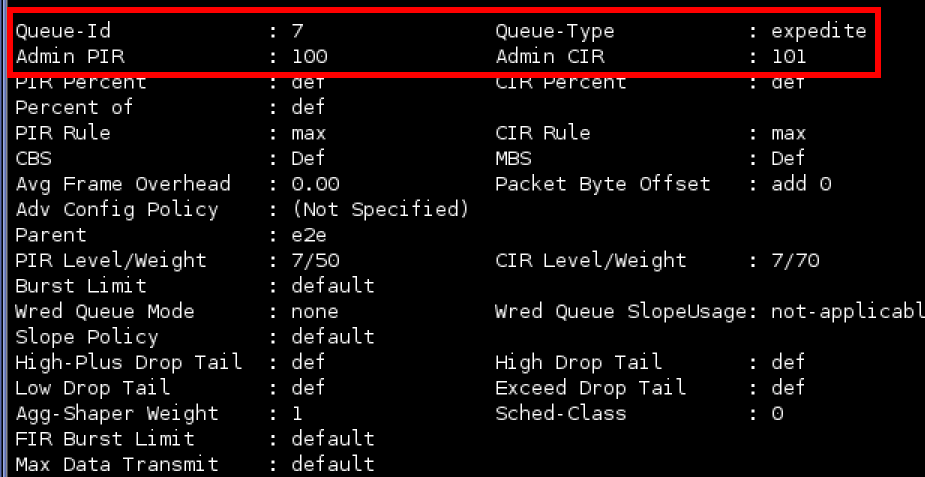

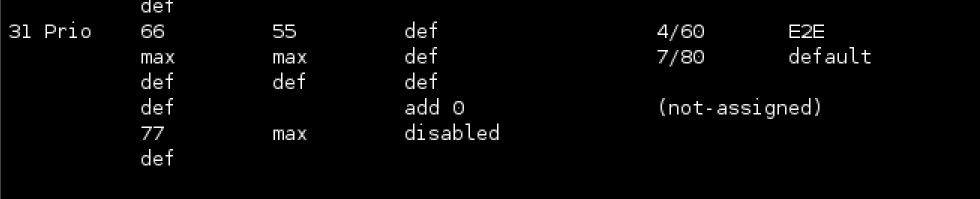

11	Log into NE and verify the configuration is deployed. Show command of the SAP Egress: End of steps


1	In Device Management, select Configuration Deployments. From the DEPLOYMENT drop-down menu, select Logical.

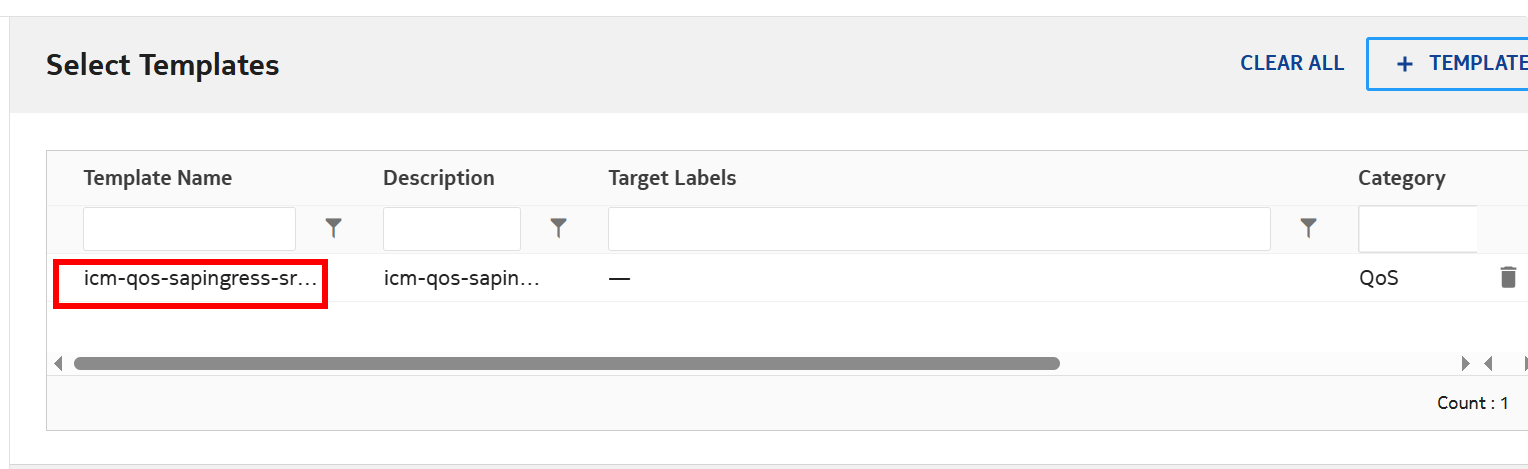

2	Click on +TEMPLATE and select icm-qos-sapingress-srqos.

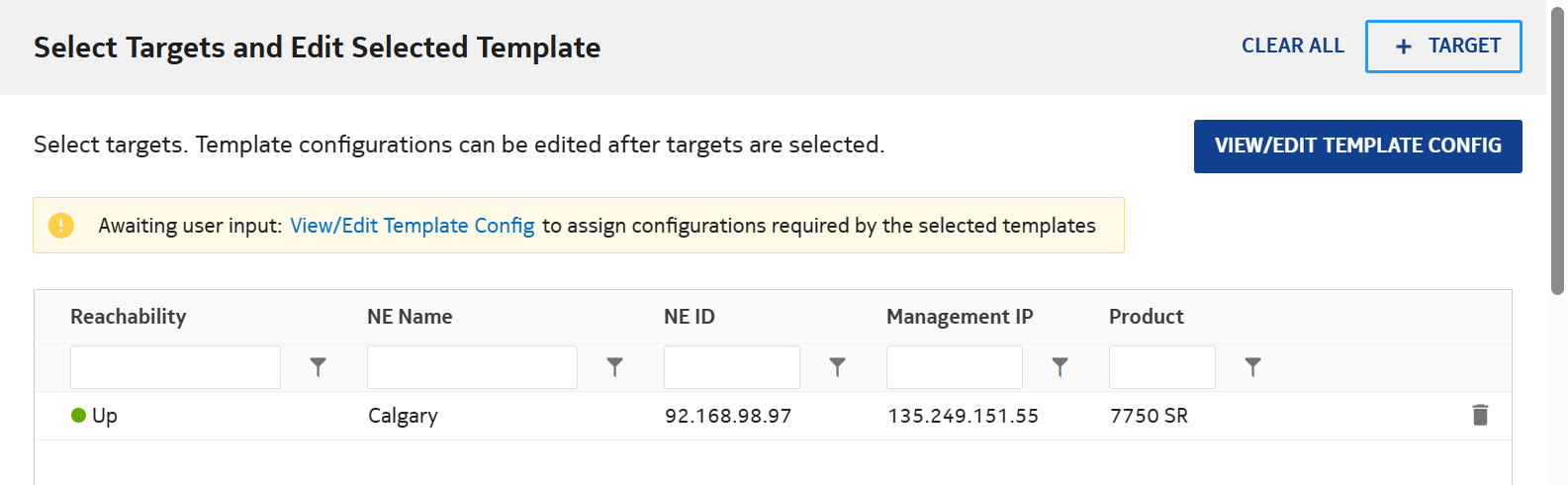

3	Click on +TARGETS and select NEs. Select the NE and click ADD..

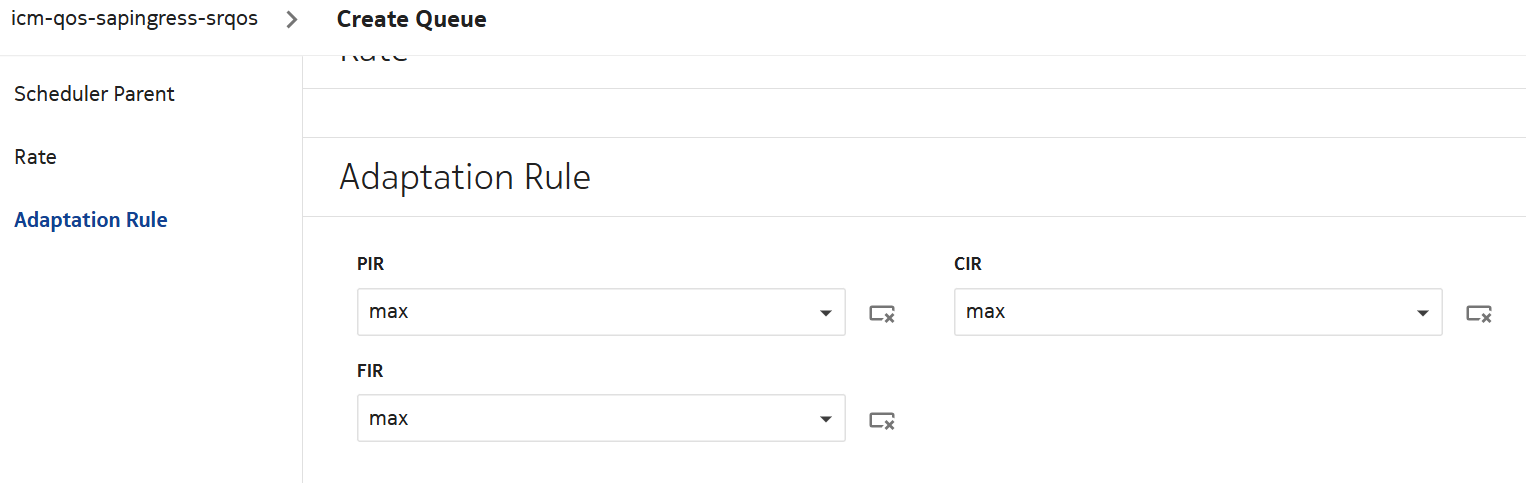

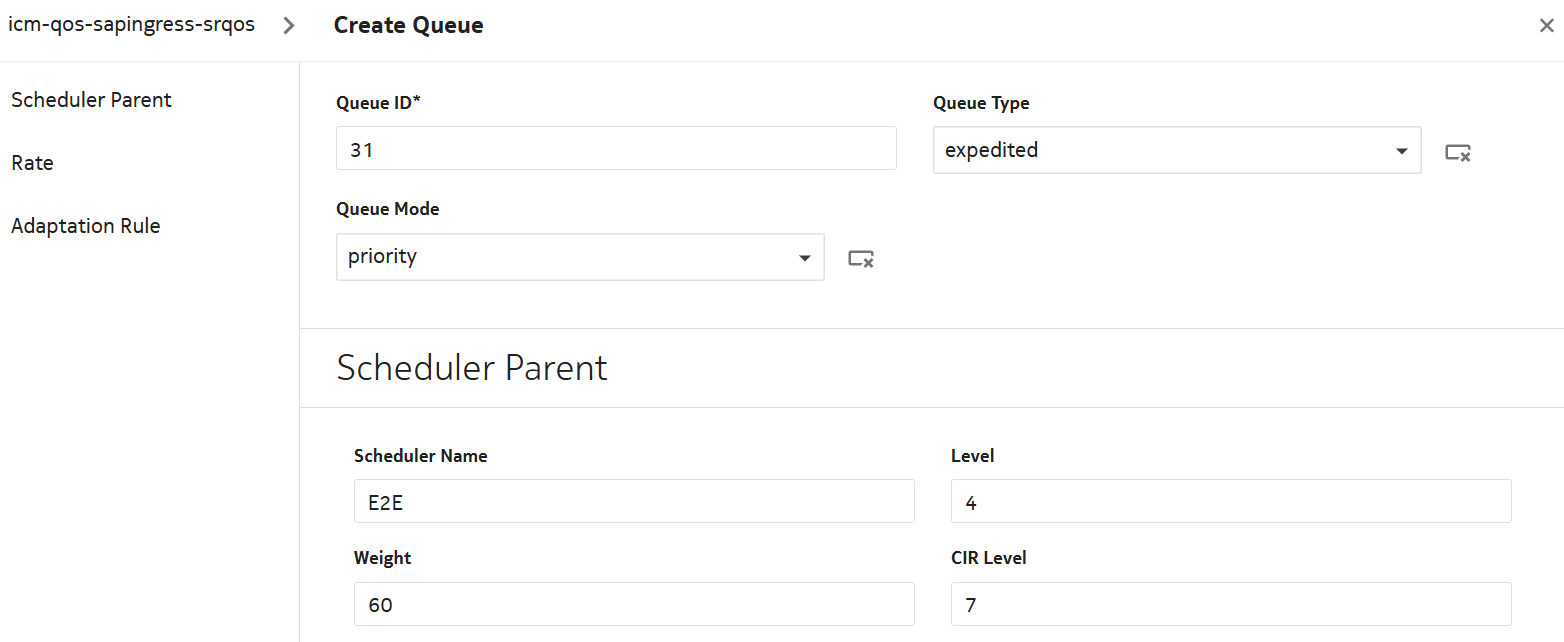

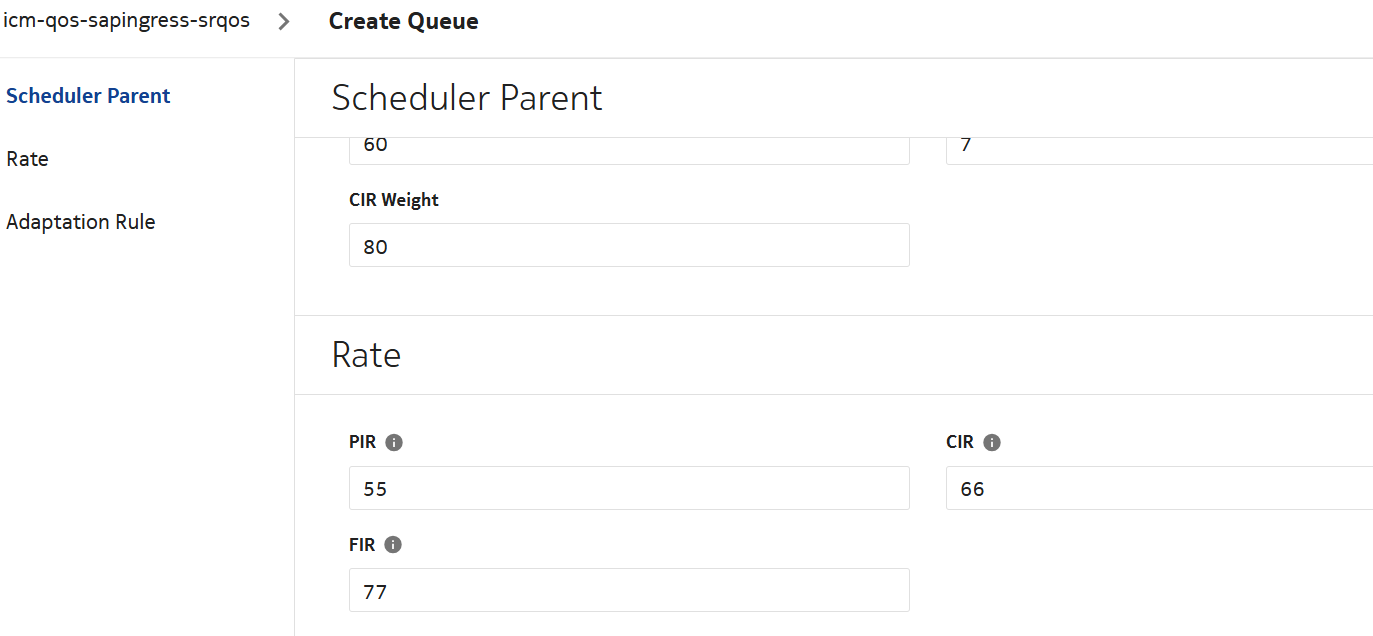

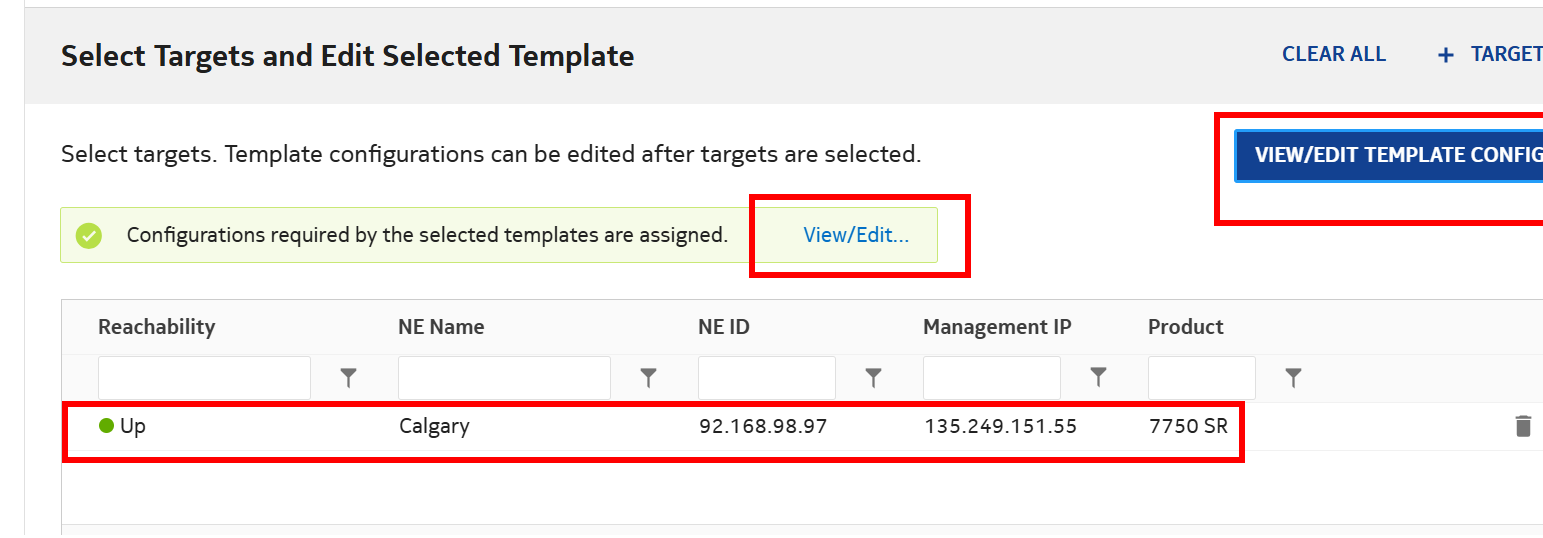

4	Click on VIEW/EDIT TEMPLATE CONFIG. Under Create Queue, enter the required details:

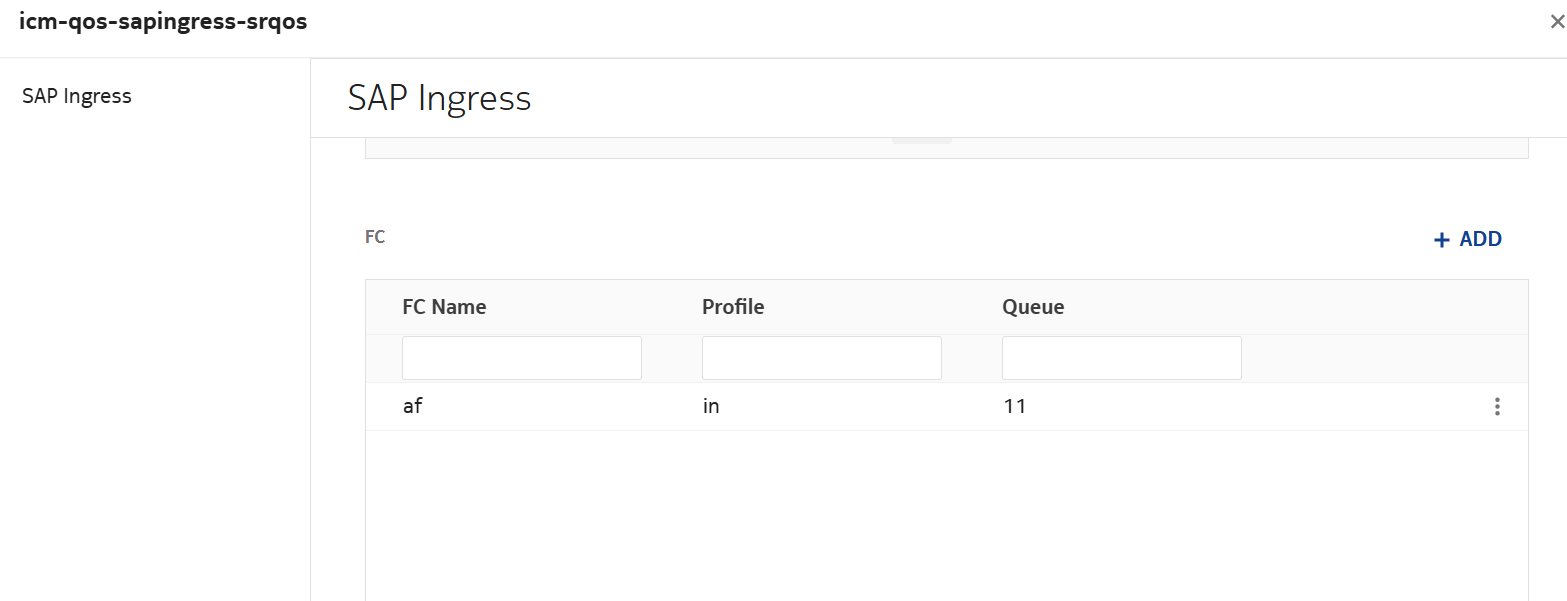

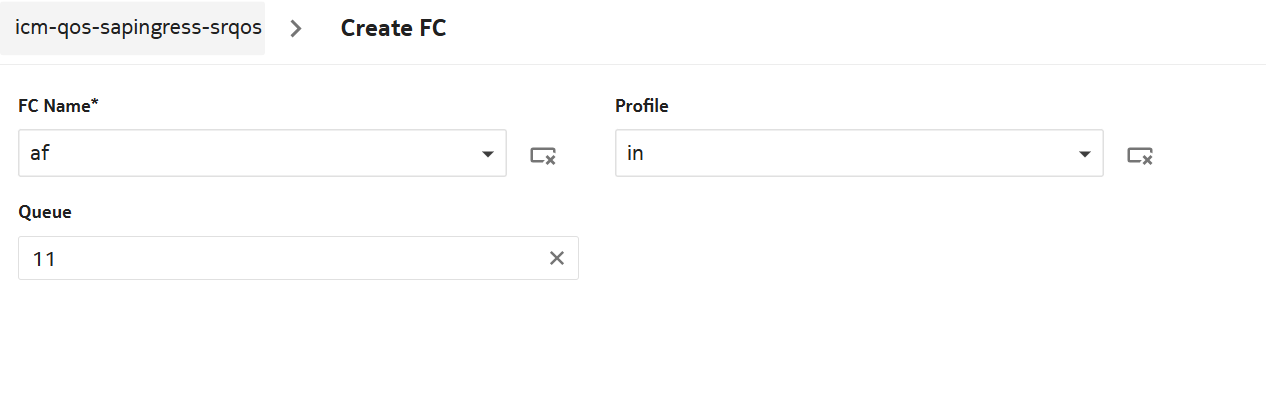

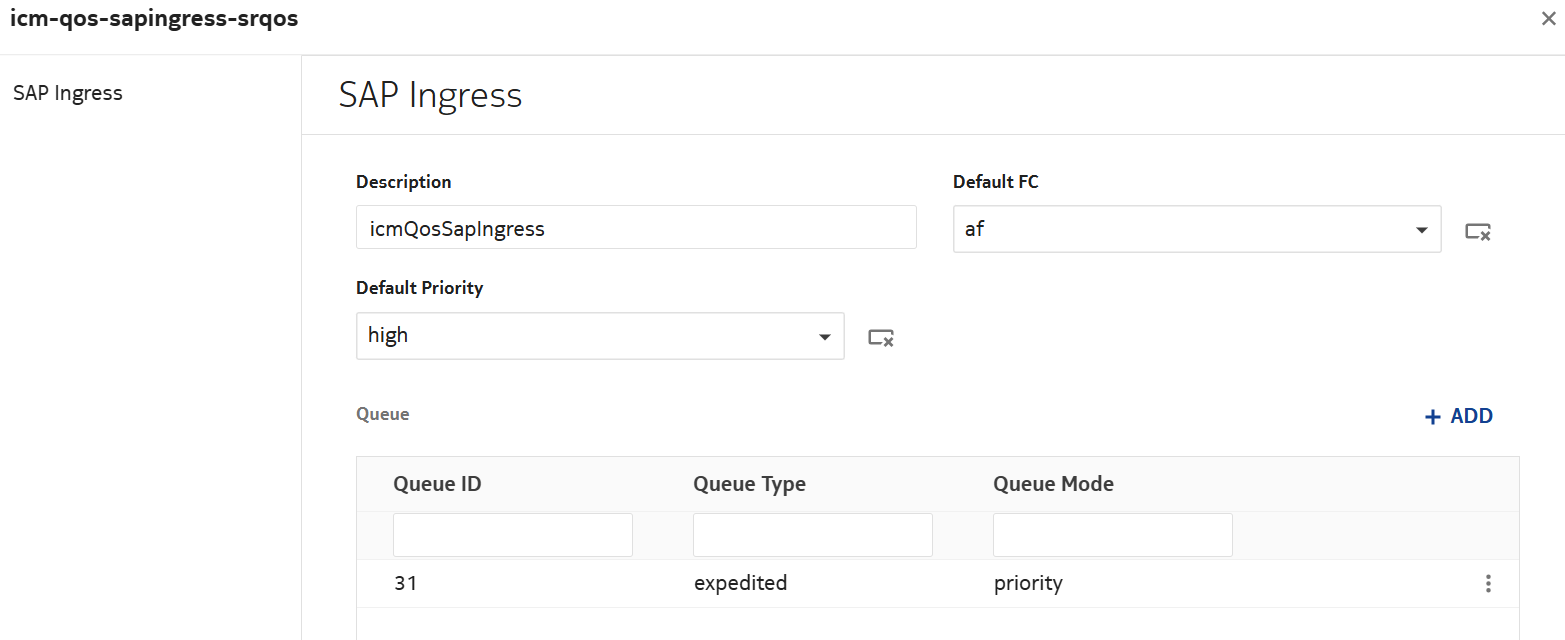

5	Under Create FC, enter the required details: Queue and FC entries should look as follows:

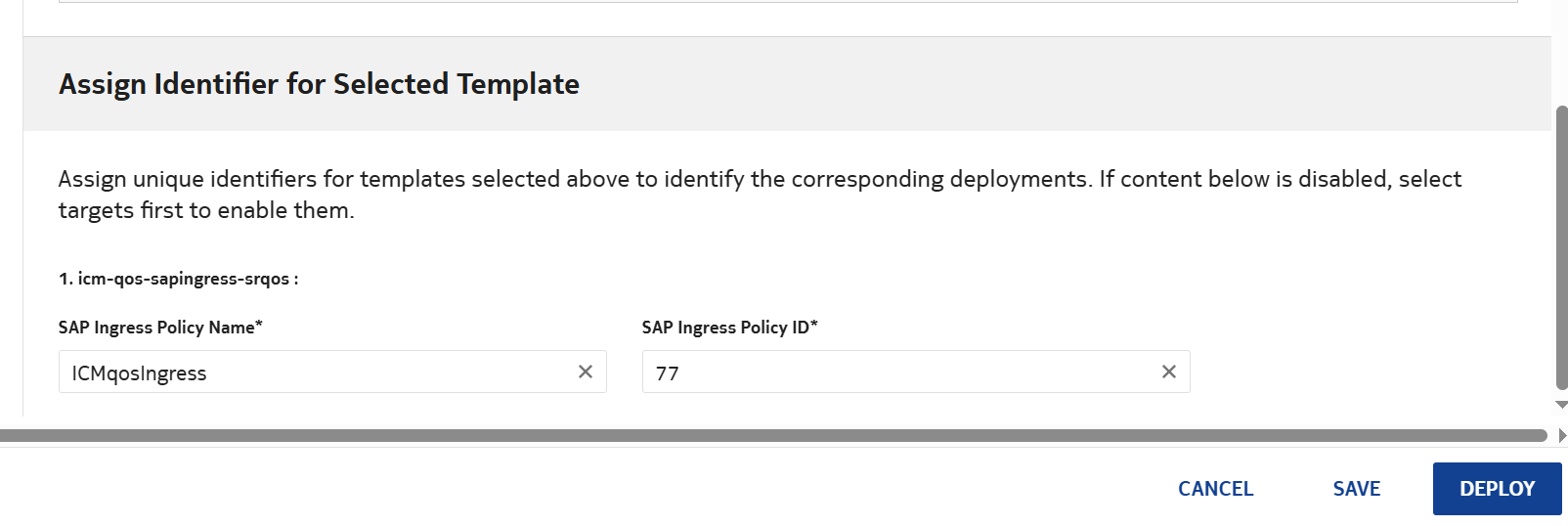

6	Enter the SAP Ingress Policy Name and SAG Ingress Policy ID. Click DEPLOY.
7	Verify that the configuration is Deployed and Aligned.

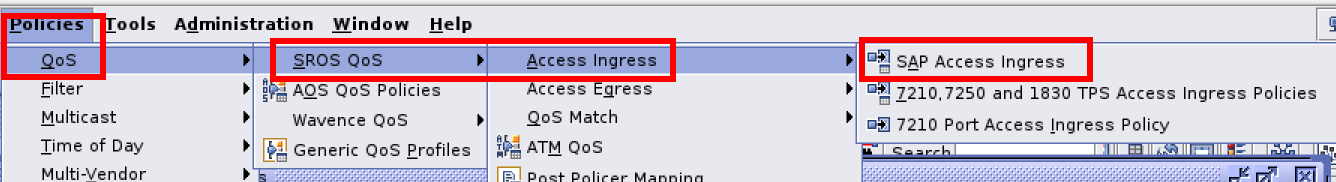

8	Login to NFM-P and navigate to Policies > QoS > SROS QoS > Access Ingress.

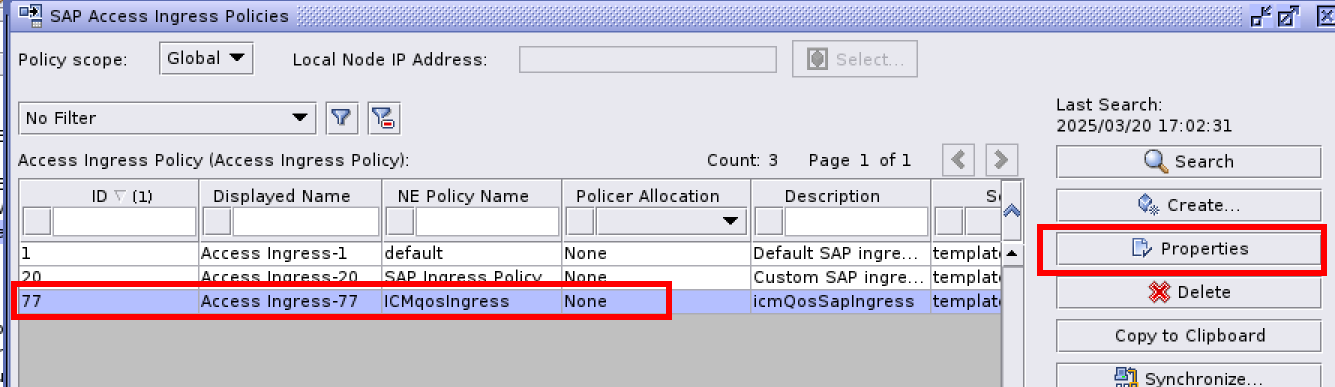

9	Select the Policy and click on Properties.

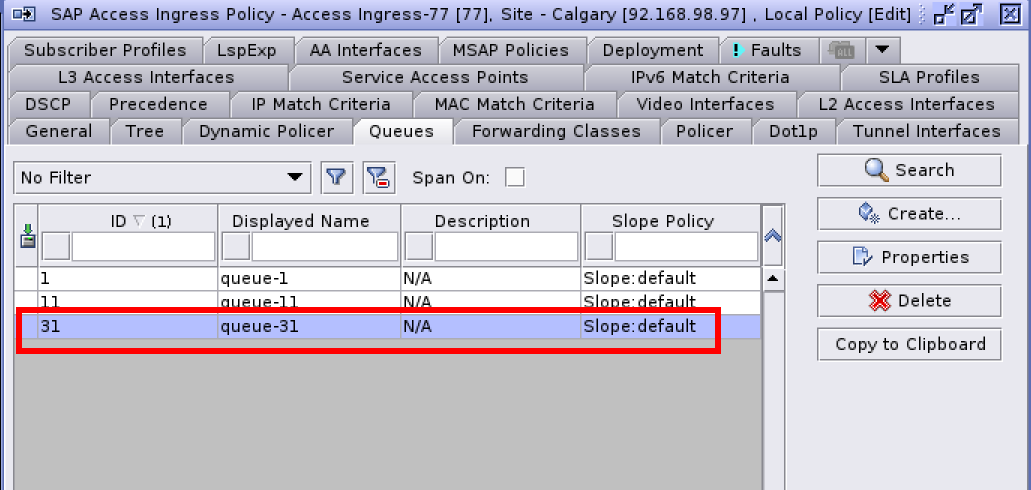

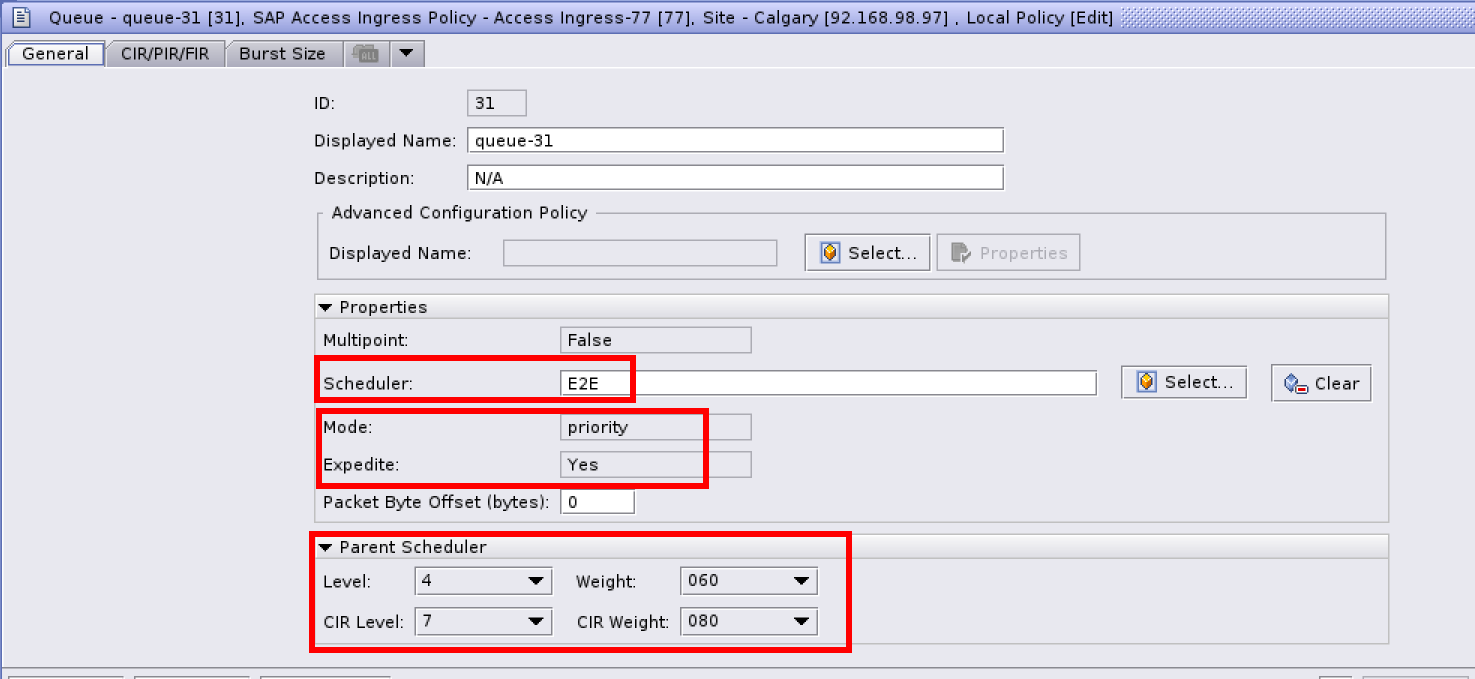

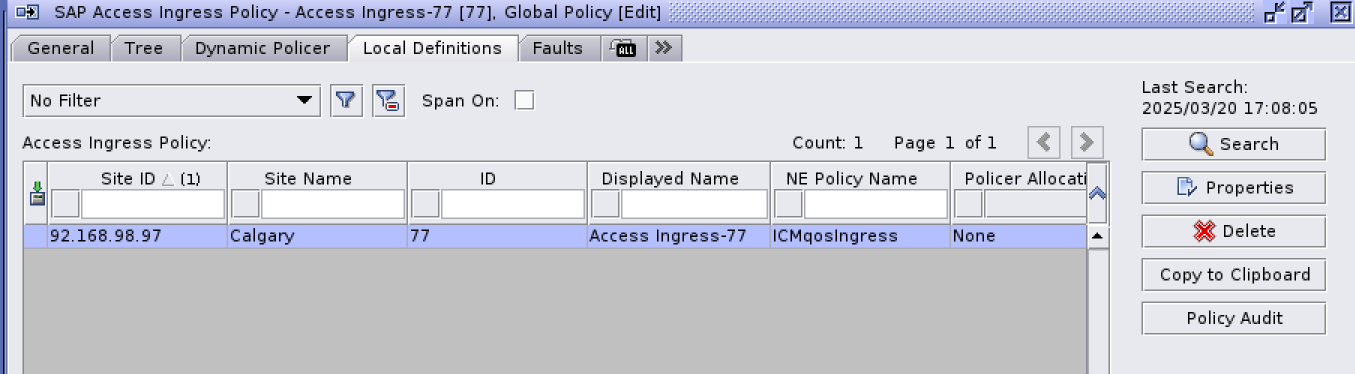

10	Navigate to Local Definition and verify the entry. Select the entry and click on Properties to see the attributes.

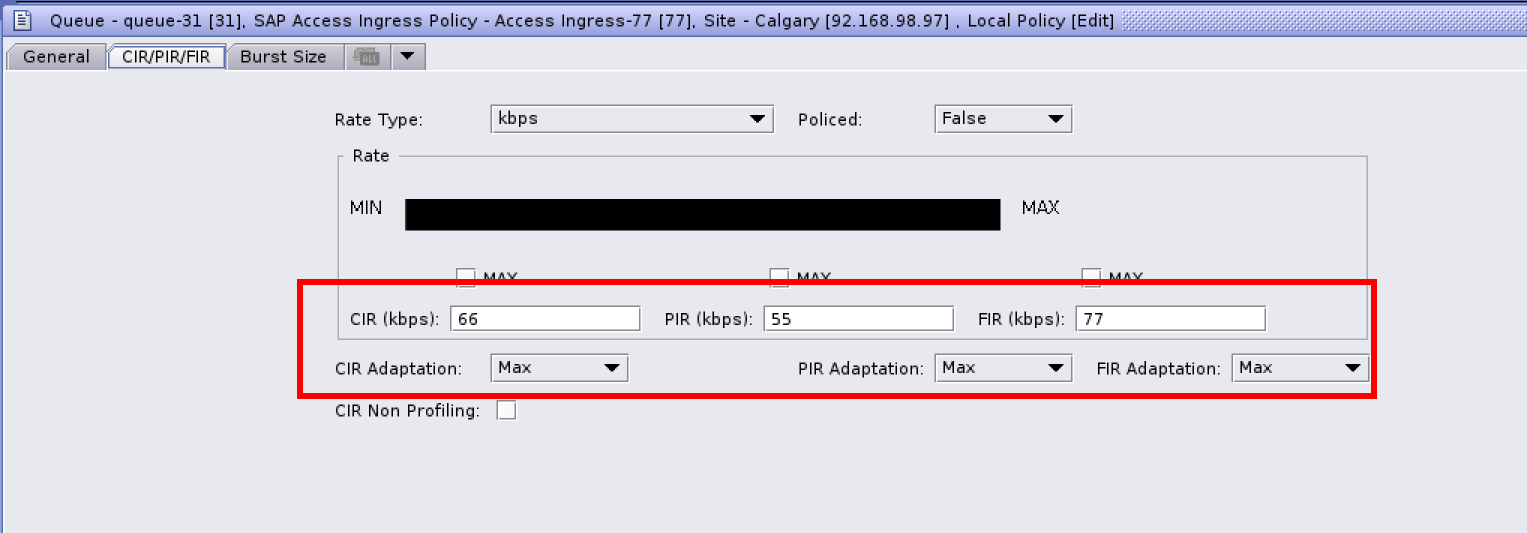

11	Below are the attributes of the policy that is applied in NSP:

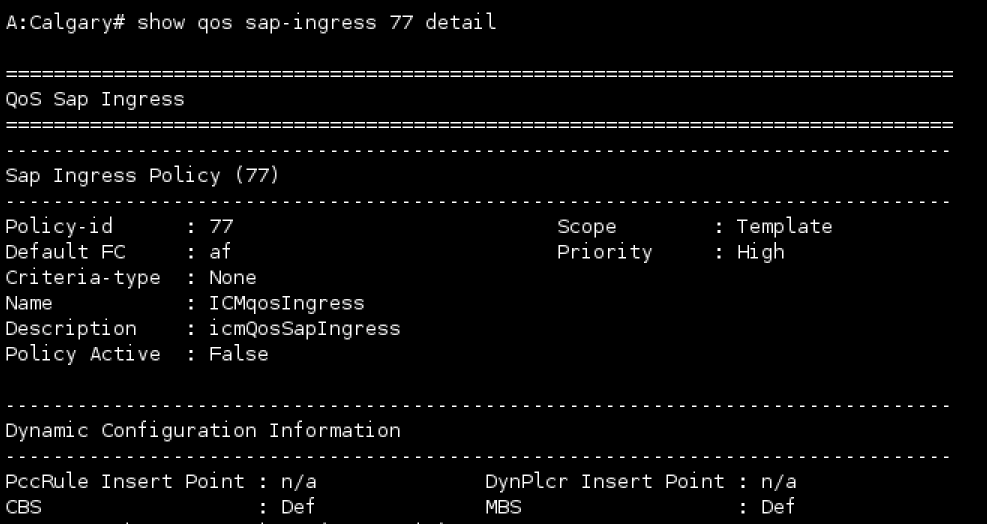

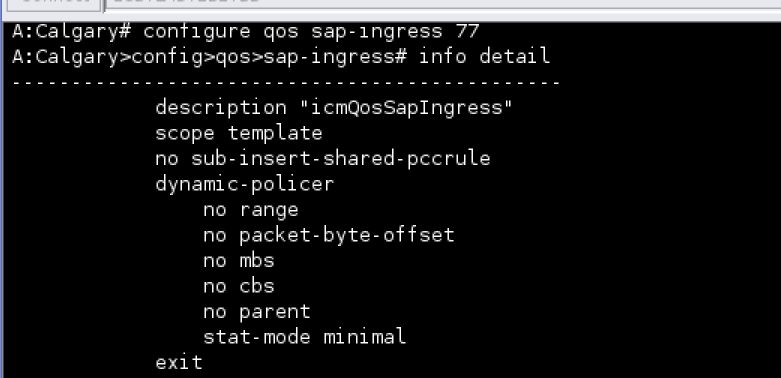

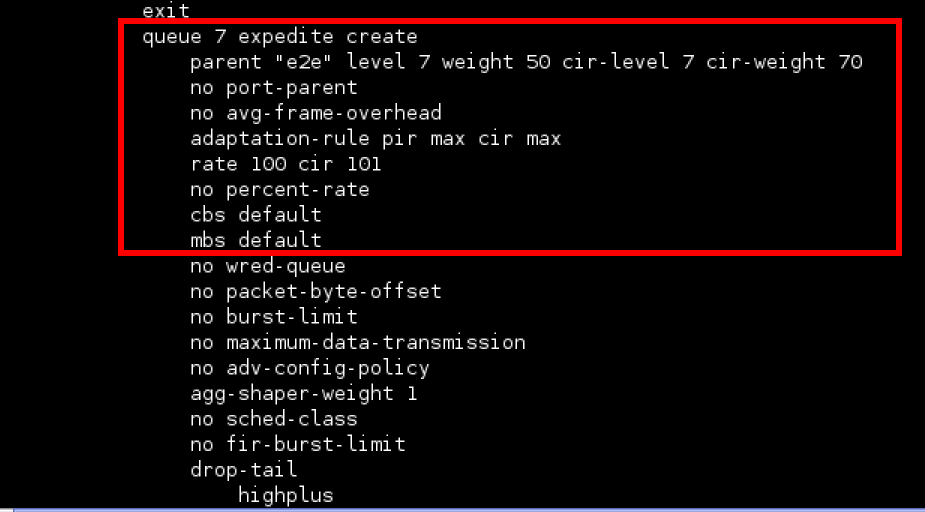

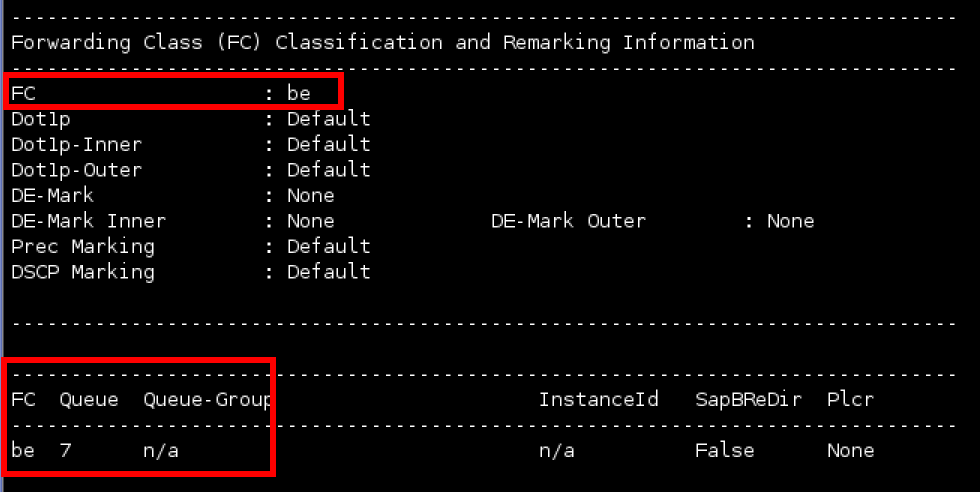

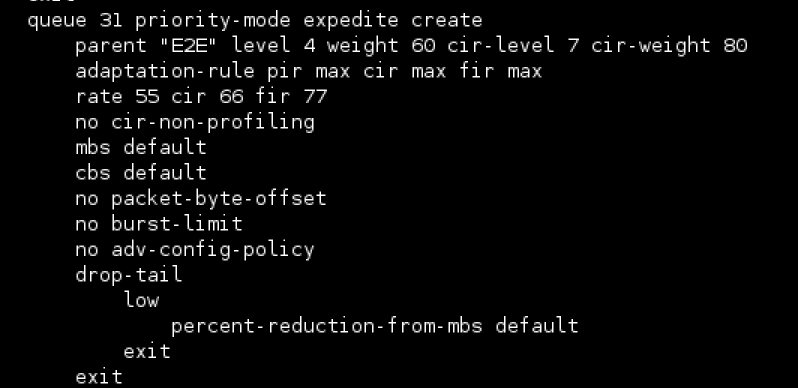

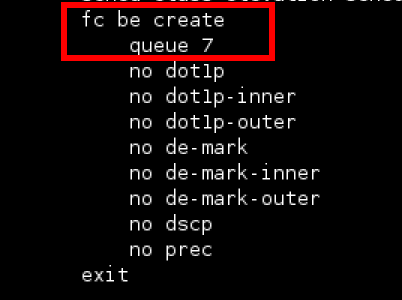

12	Log into NE and verify the configuration is deployed. Data in config mode: End of steps
