Install device configuration artifacts

Prerequisites

Obtain the following artifact bundles from the NSP software download site and save them to your local system. See “Obtaining artifacts” in the NSP Network Automation Guide for more information.

  • device-config-artifacts-csros-23-10-1-nsp-23-11-0-cam-v6

  • device-config-artifacts-gsros-23-10-1-nsp-23-11-0-cam-v4

  • device-config-artifacts-msros-23-10-1-nsp-23-11-0-cam-v6

  • device-config-artifacts-usros-23-10-1-nsp-23-11-0-cam-v4

Steps

1

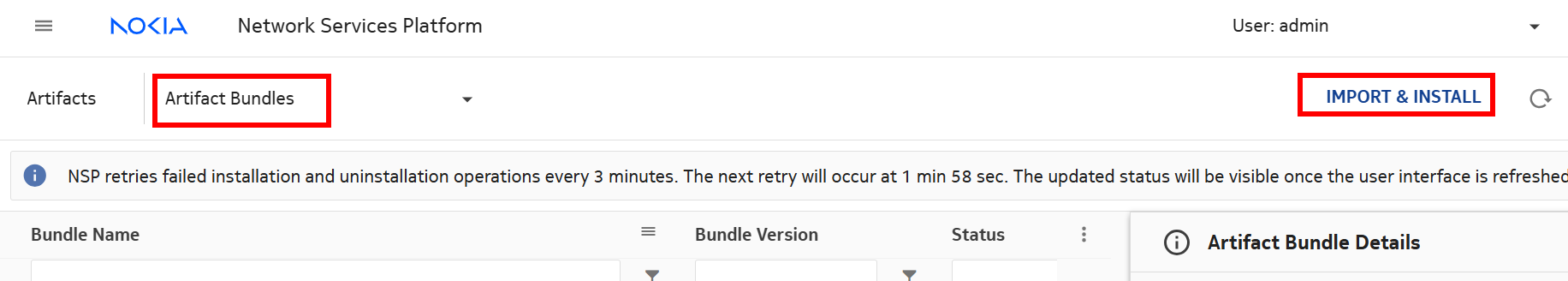

Open Artifacts, Artifact Bundles, and click on IMPORT & INSTALL.

2

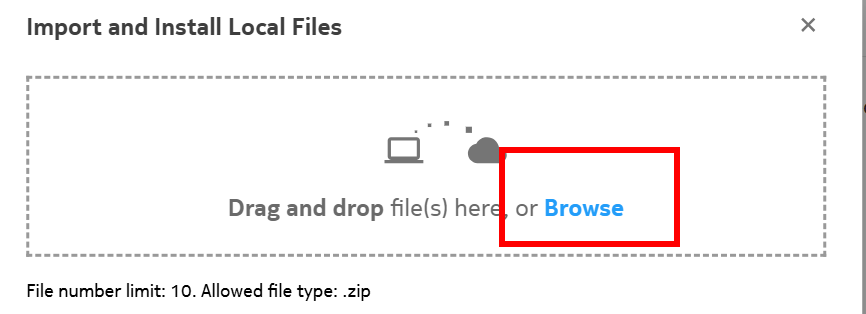

Import the CAM bundles and click install.

3

Import all the intents and create templates.

Intents covered:

  • icm-logical-lag-access

  • lag_msros_23-10-1_24-4

  • lag_csros_23-10-1_24-4

  • icm-filter-ip_filter-2408

  • filter-ml-port-list_csros_23-10-1_23-11

  • filter-ml-port-list_msros_23-10-1_23-11

  • filter-ml-ip-prefix-list_msros_23-10-1_23-11

  •  qos-network-queue_msros_23-10-1_24-4

  •  qos-policer-control-policy_msros_23-10-1_24-4

  •  qos-sap-egress_msros_23-10-1_23-11

  •  qos-sap-ingress_msros_23-10-1_23-11

  •  qos-shared-queue_msros_23-10-1_23-11

  •  qos-slope-policy_msros_23-10-1_23-11

  •  qos-network-queue_csros_23-10-1_23-11

  • qos-policer-control_csros_23-10-1_23-11

  • qos-sap-egress_csros_23-10-1_24-4

  • qos-sap-ingress_csros_23-10-1_24-4

  • icm-qos-sapegress-srqos

  • icm-qos-sapingress-srqos

  • qos-network_gsros_23-10-1_23-11

  • qos-schedulerpolicy_gsros_23-10-1_23-11

  • macsec-ca_csros_23-10-1_23-11

  • system-lldp_csros_23-10-1_23-11

  • icm-service-system_evpn

  • file-accounting_gsros_23-10-1_23-11

4

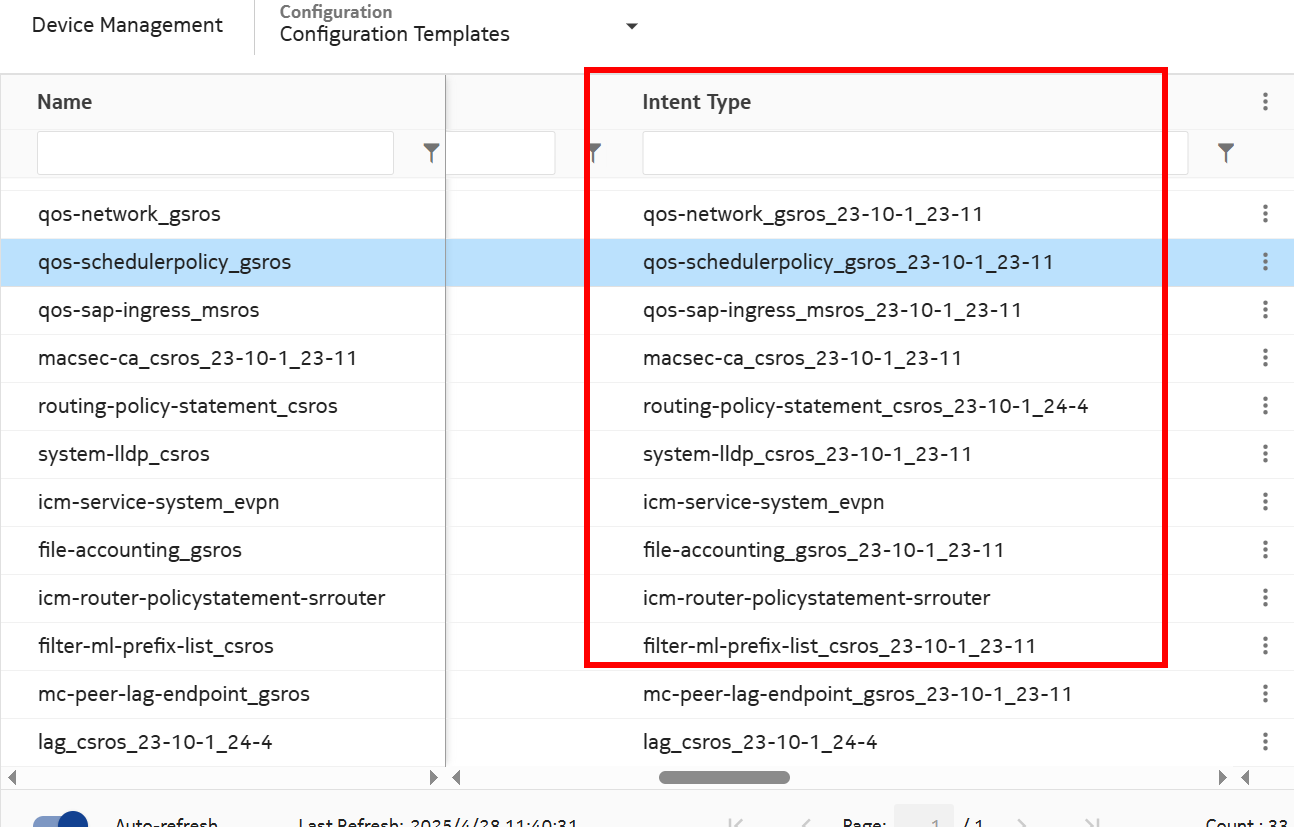

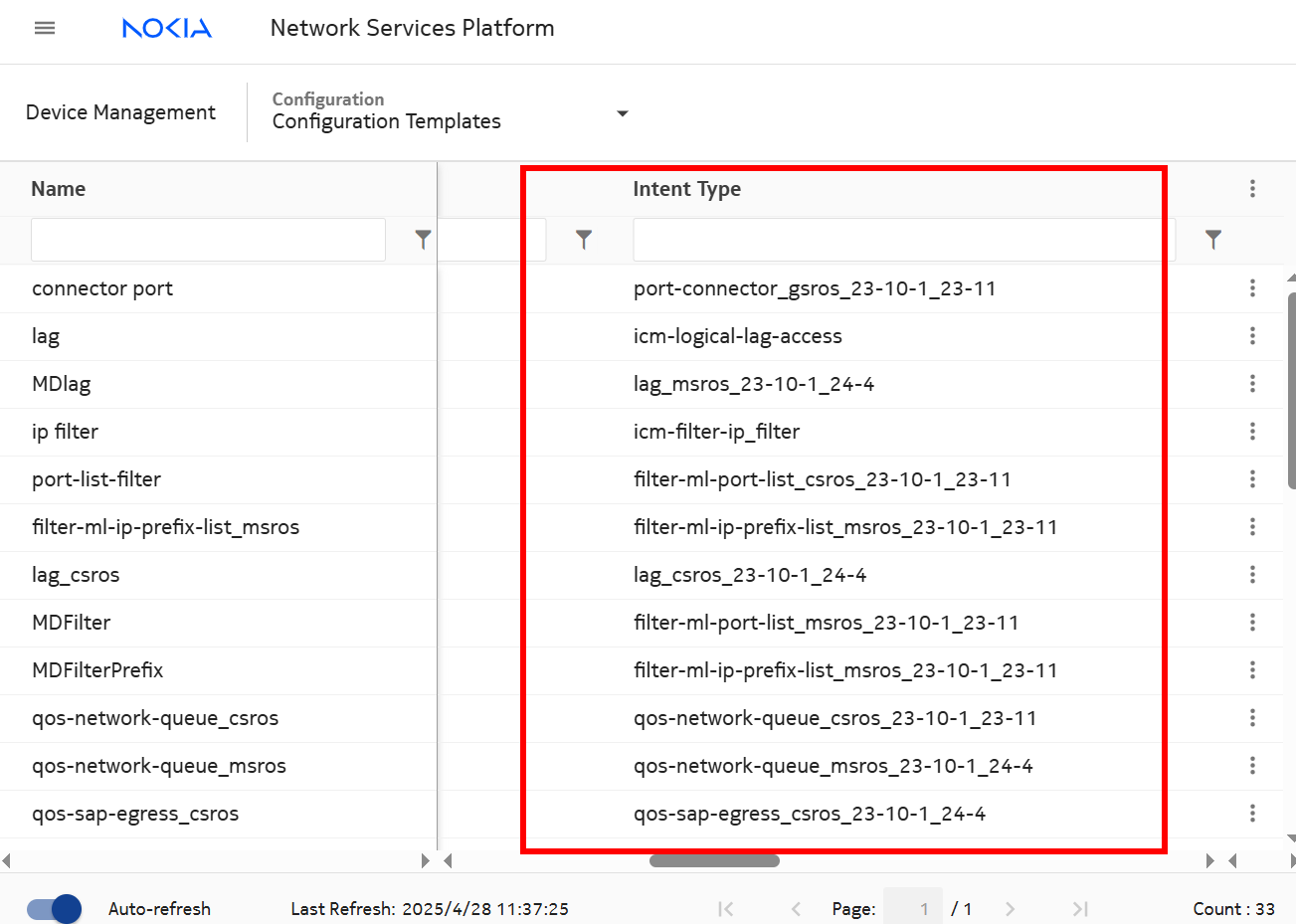

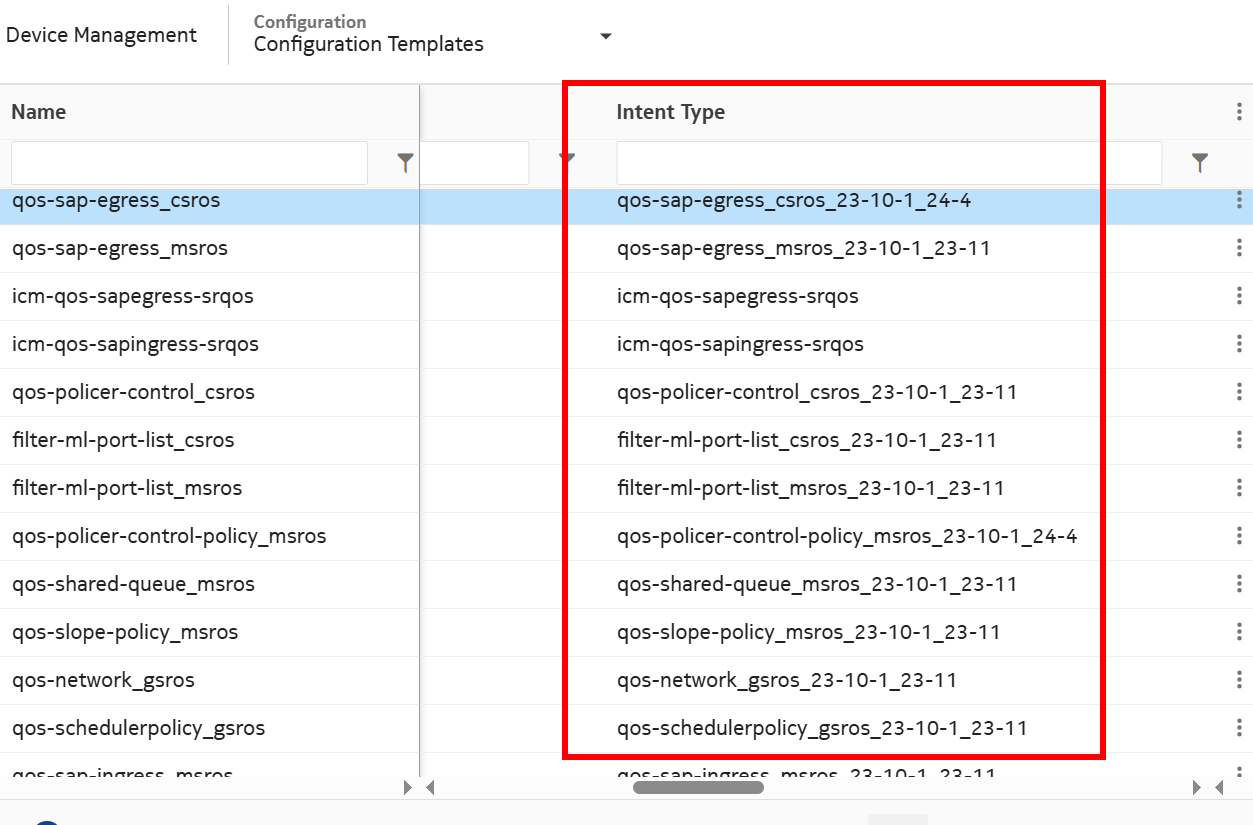

Template created for the intents:

End of steps
