LAG configuration

Prerequisites

  • Port Mode and Encap should be configured in the node.

  • System ETH-CFM, Domain, and Monitor-Oper-Group should be configured in the node if used in LAG.

Intents used

  • icm-logical-lag-access

  • lag_csros_23-10-1_24-4

  • lag_msros_23-10-1_24-4

To configure LAG

1

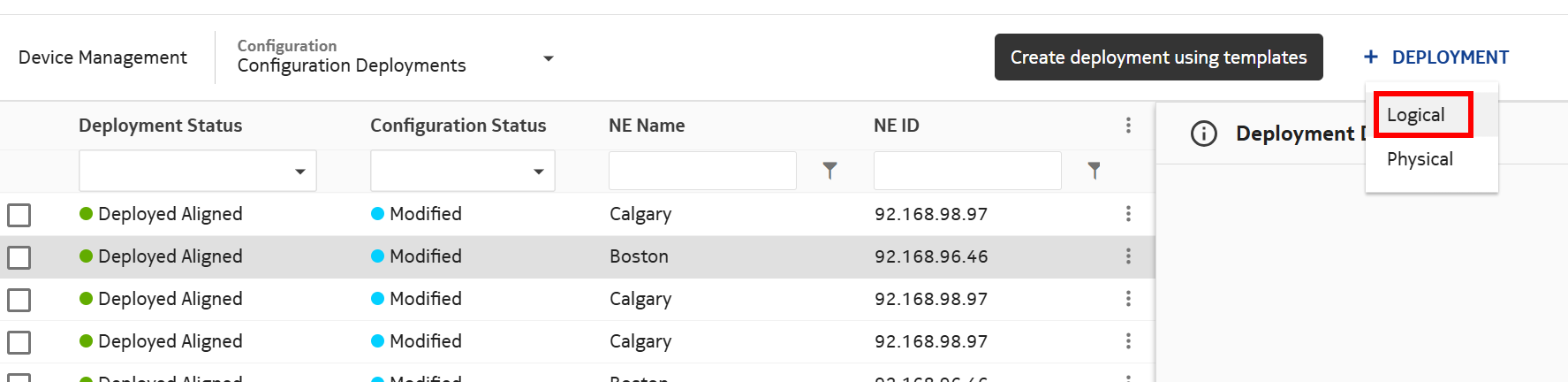

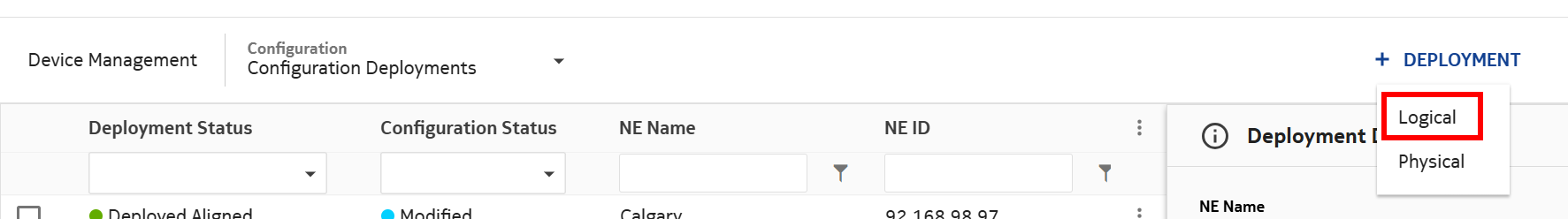

Under + DEPLOYMENT, select Logical.

2

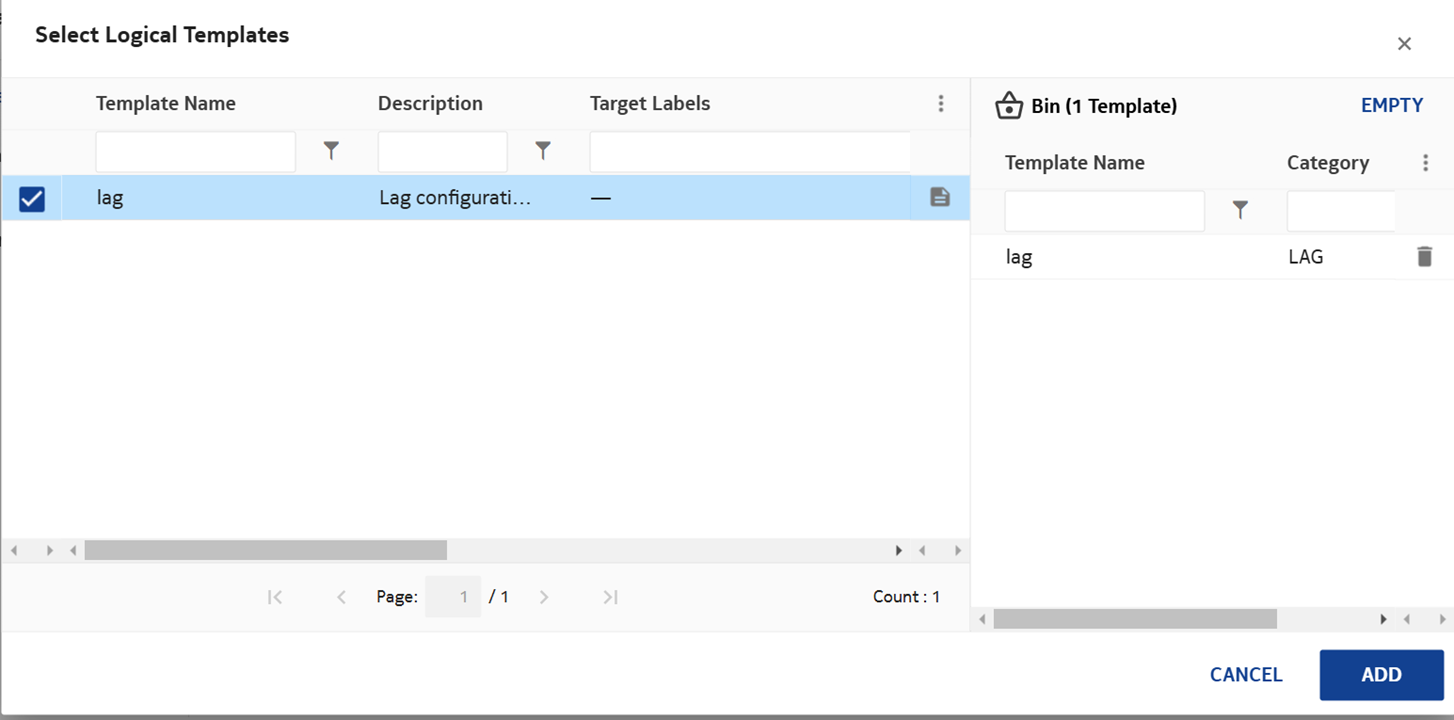

Click on the + TEMPLATE and select the LAG. Click ADD .

3

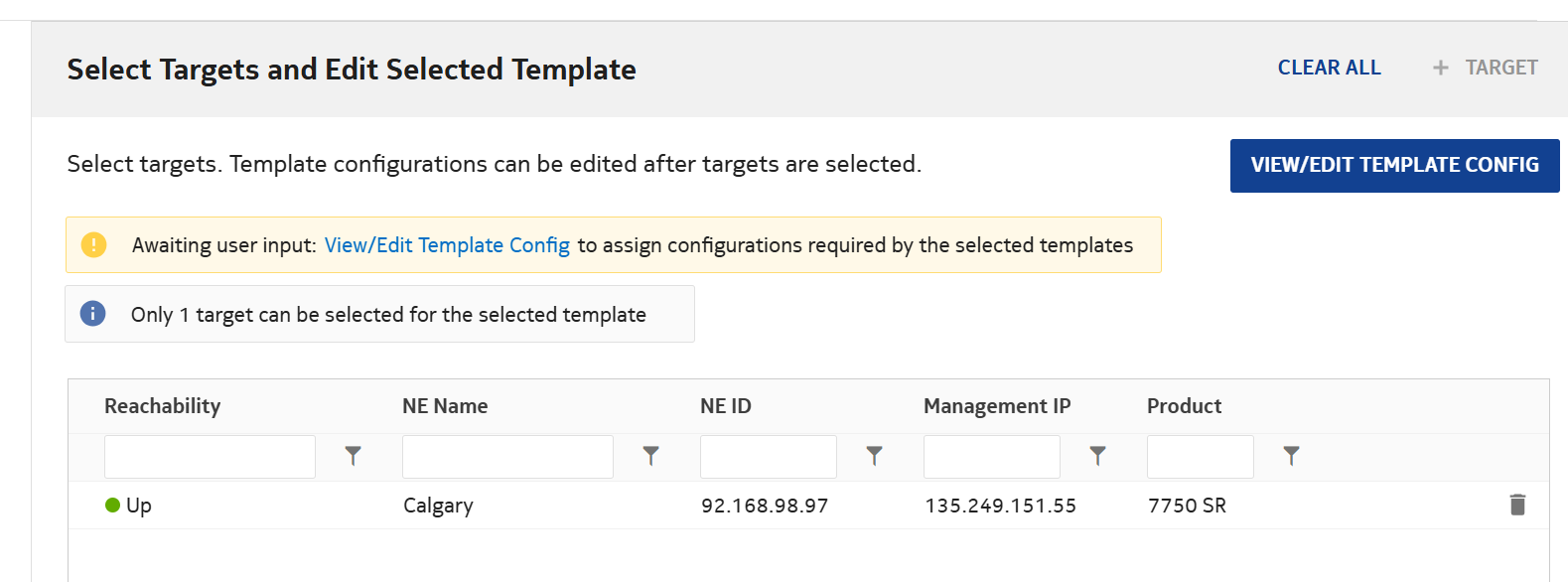

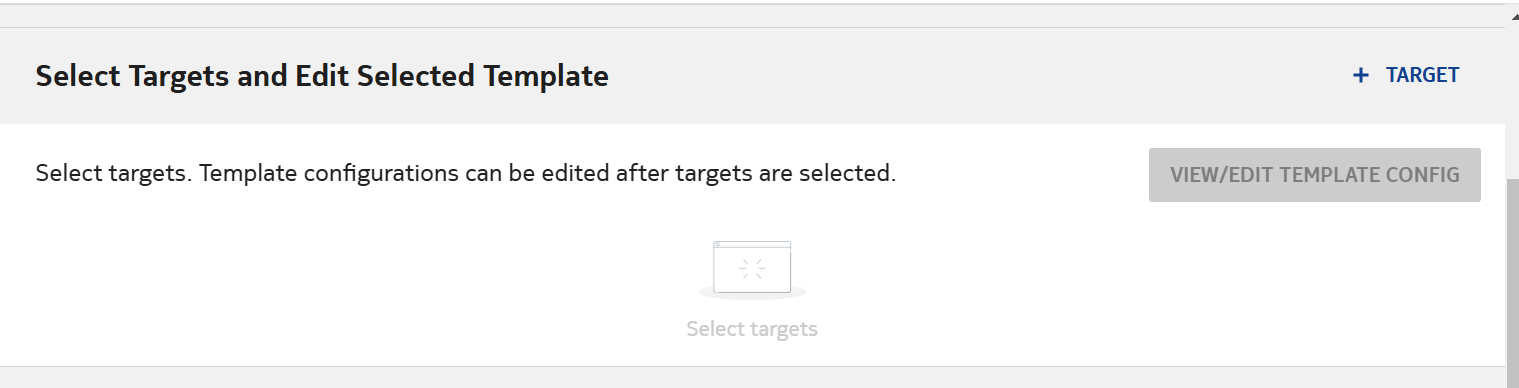

Click + TARGET.

4

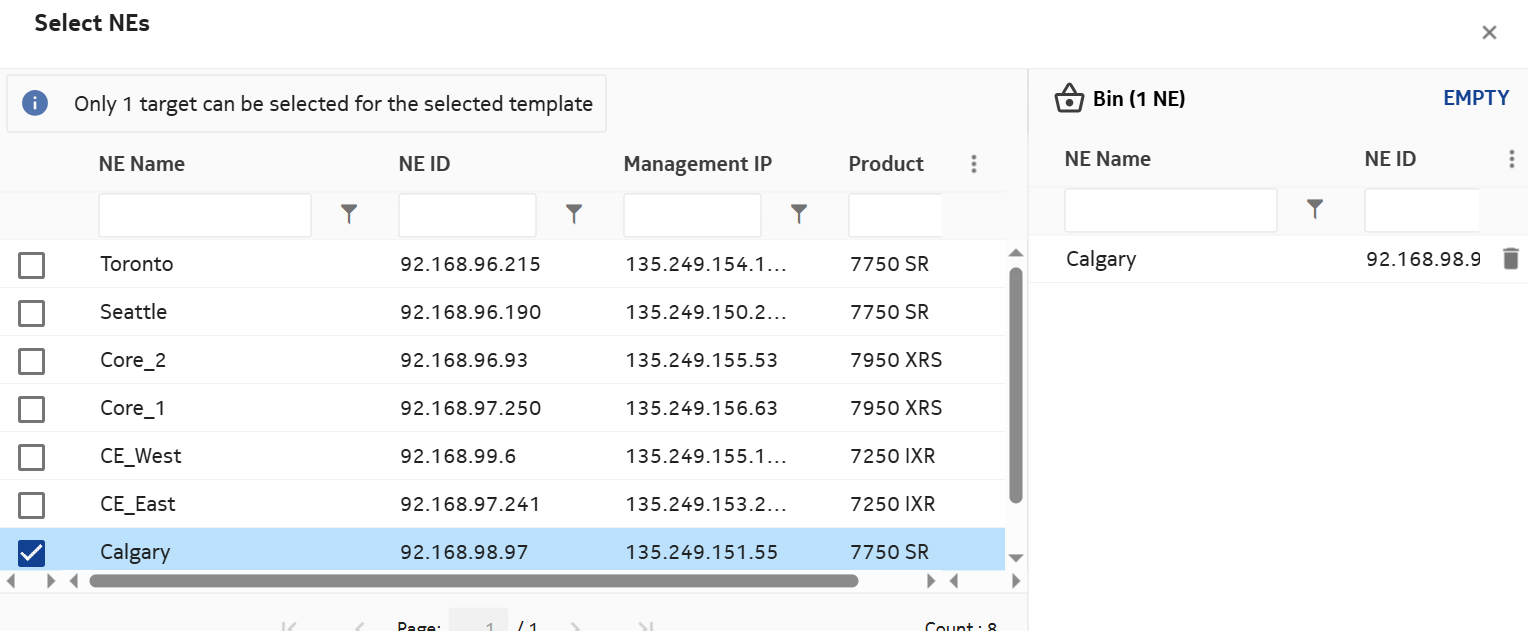

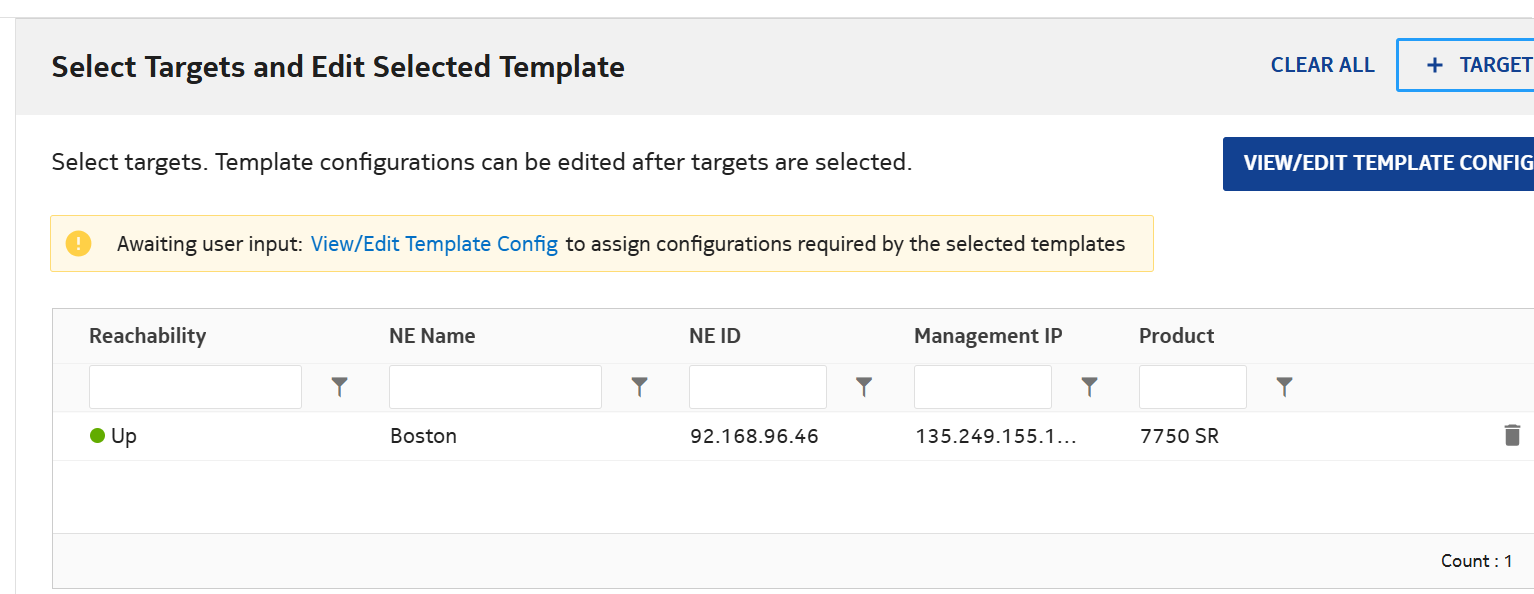

Select the NE from the list and click ADD.

5

Once added, select the NE.

6

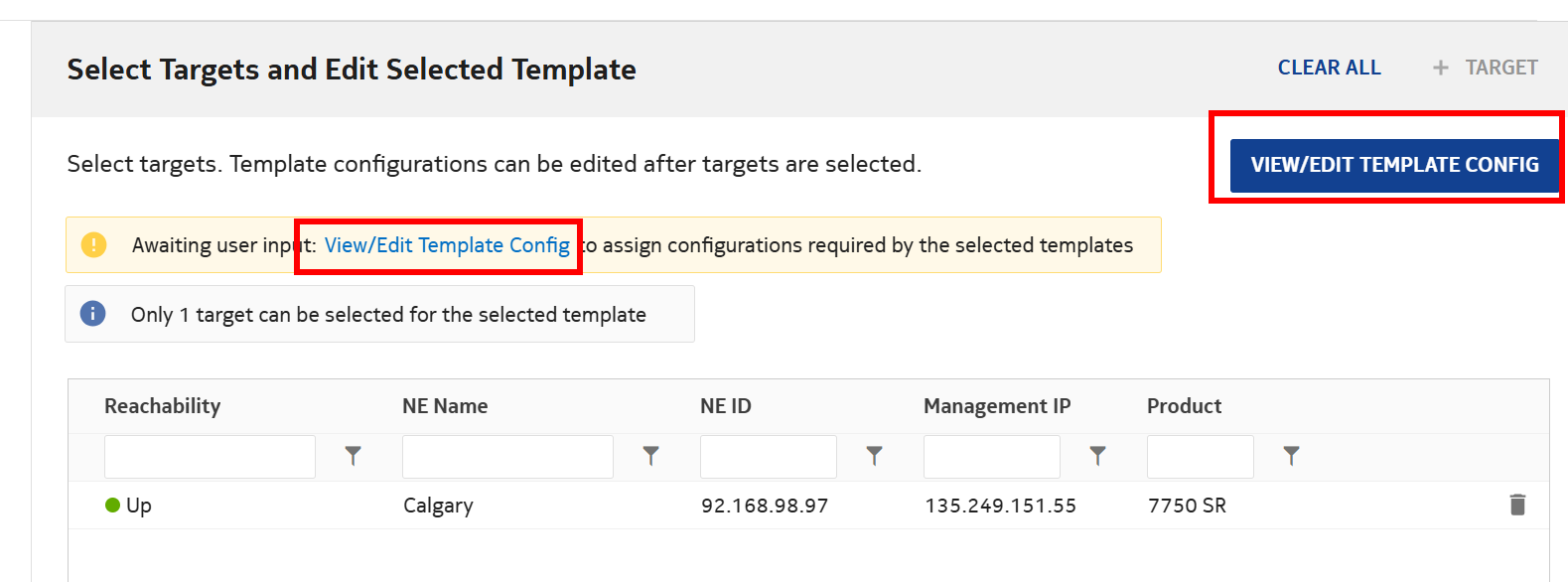

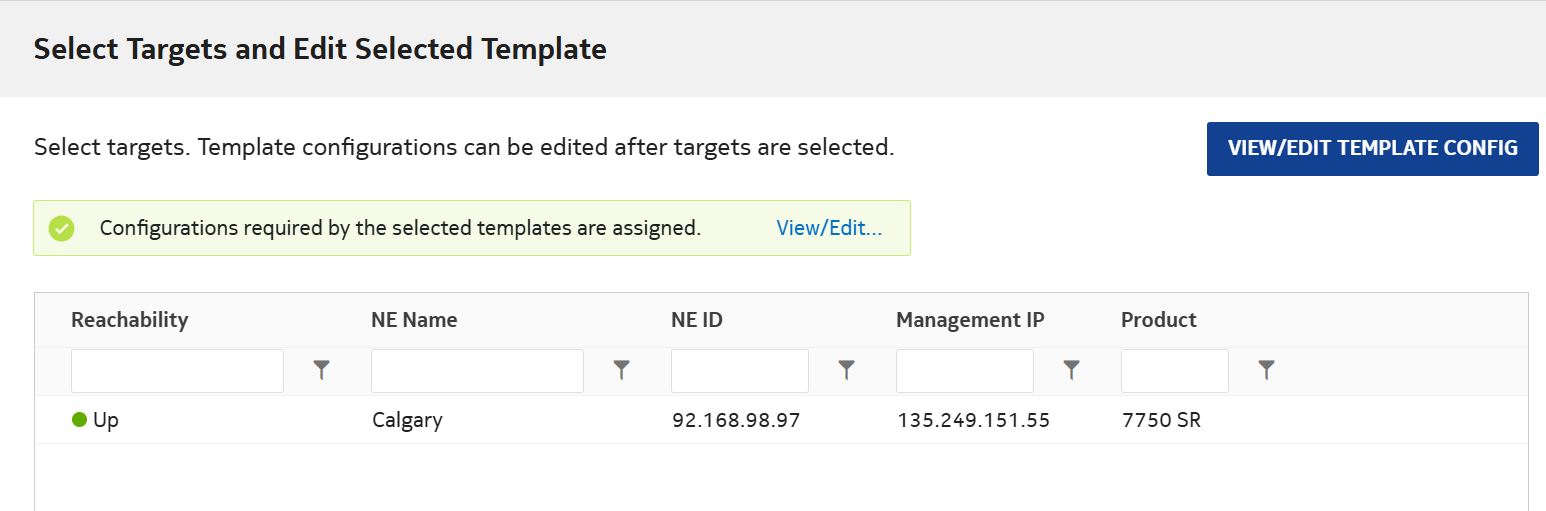

Click on View/Edit Template Config.

7

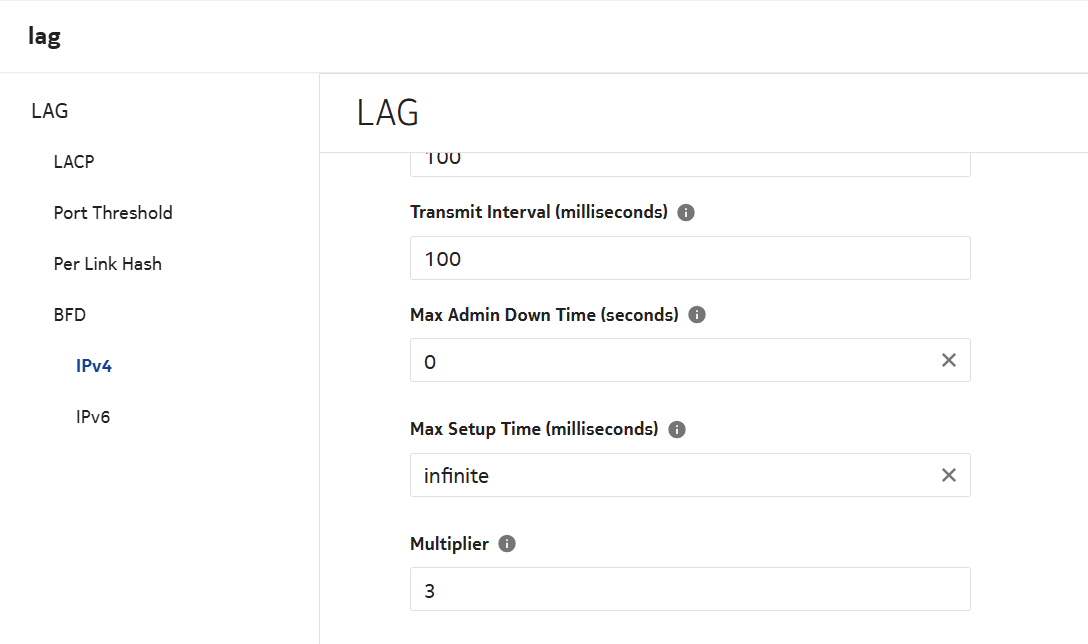

Fill in the required attributes as shown below.

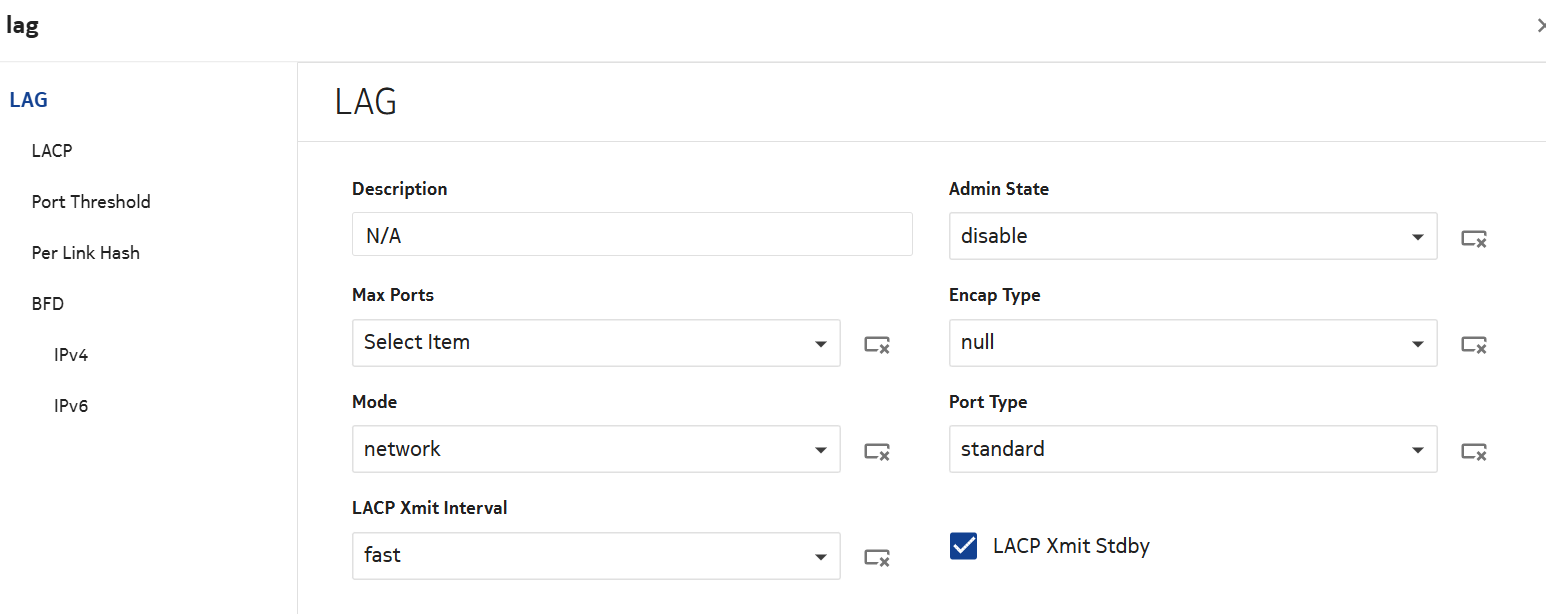

LAG attributes:

Port Threshold attributes:

IPv4 attributes:

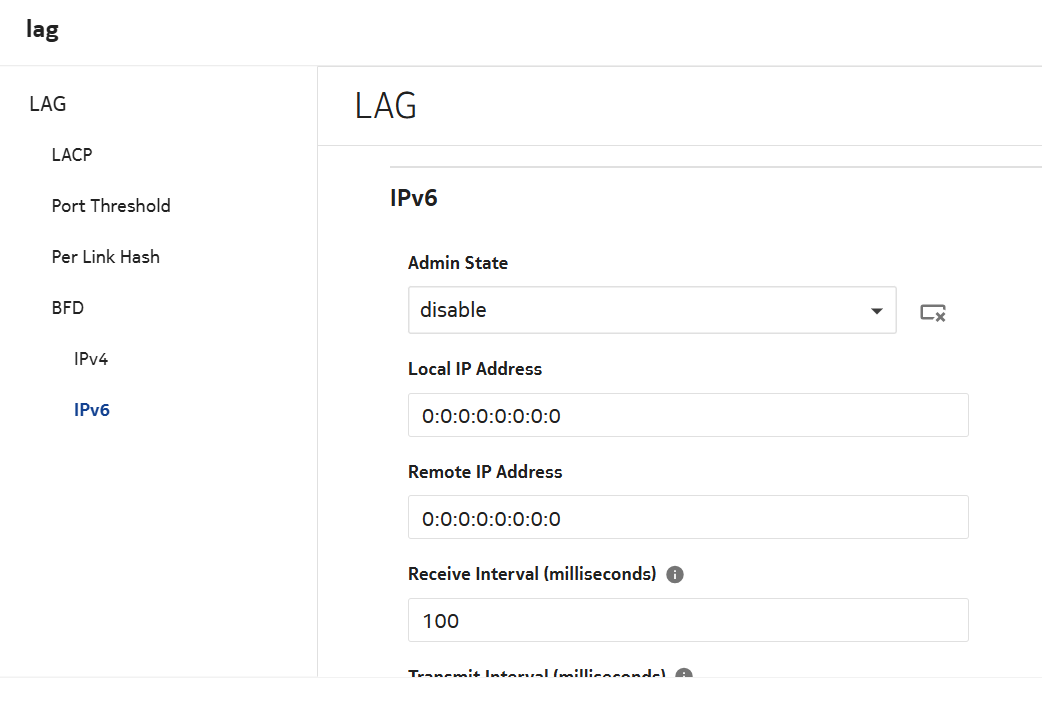

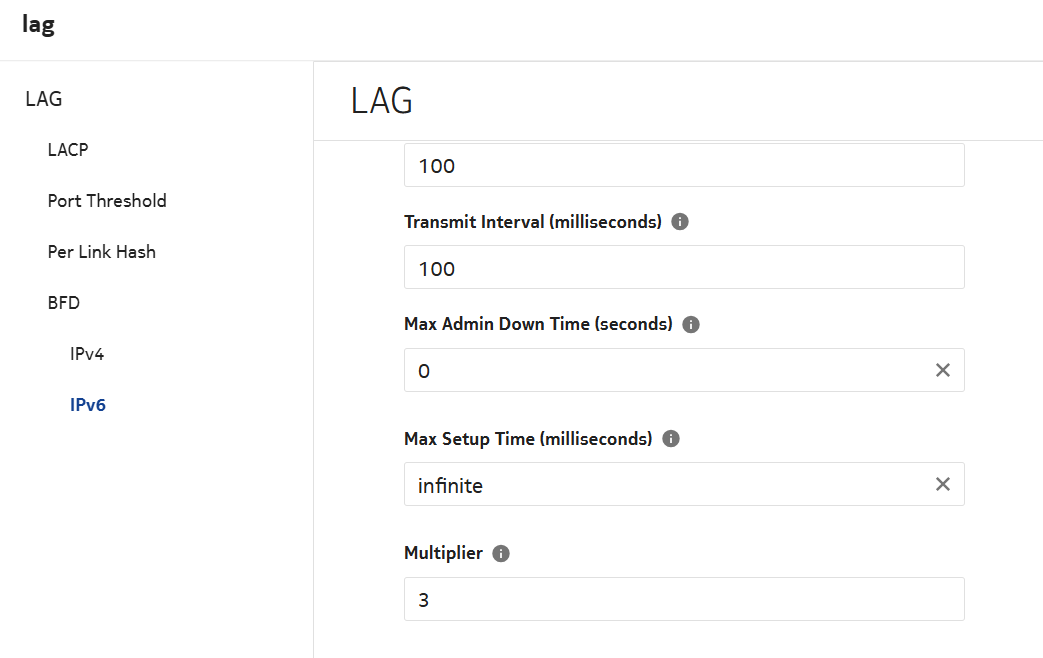

IPv6 attributes:

8

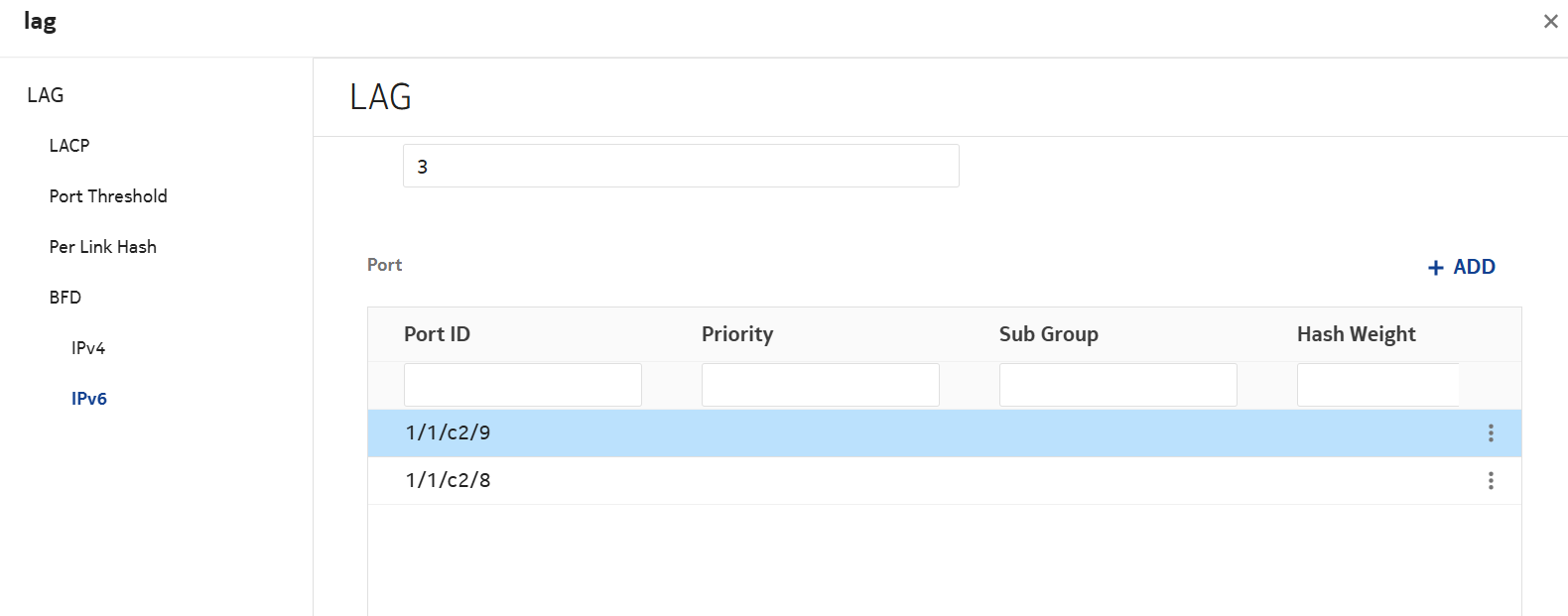

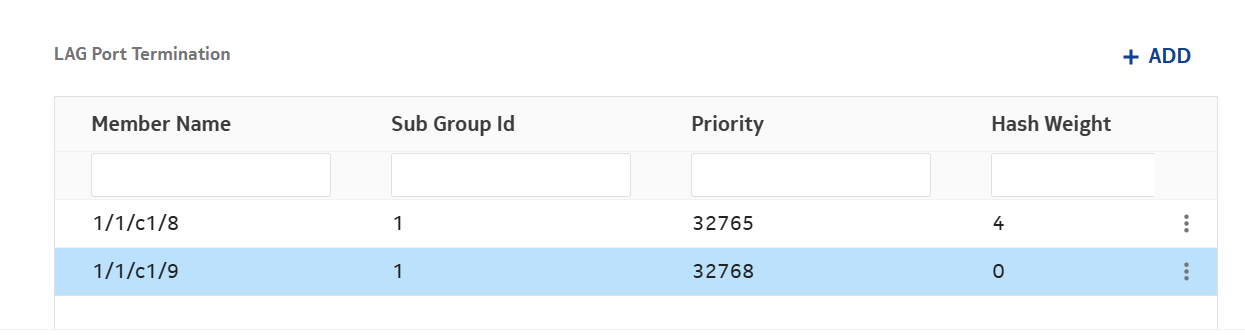

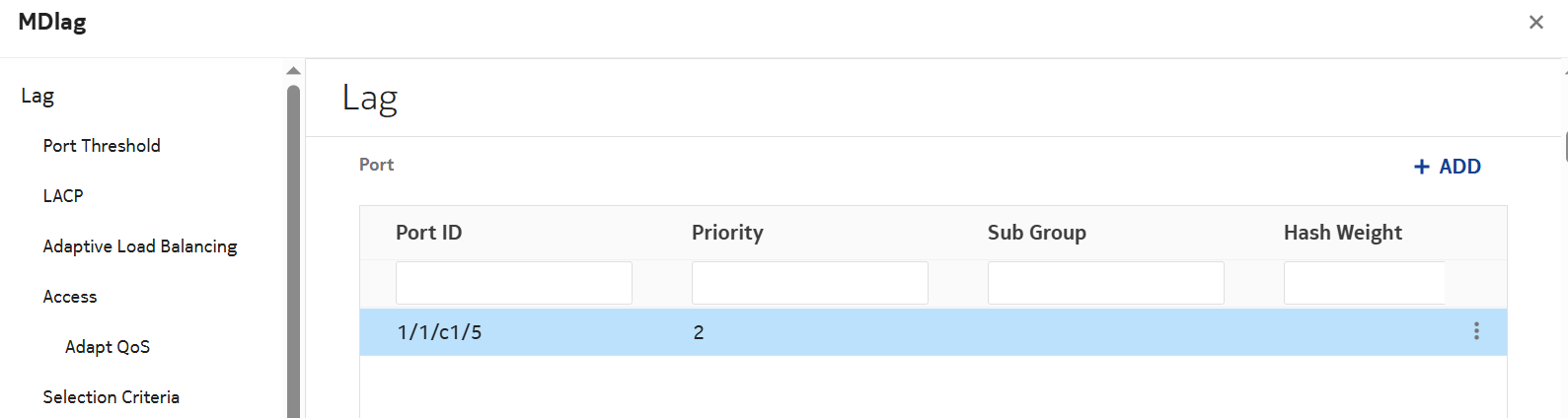

Select the following port to add to LAG, then click UPDATE.

9

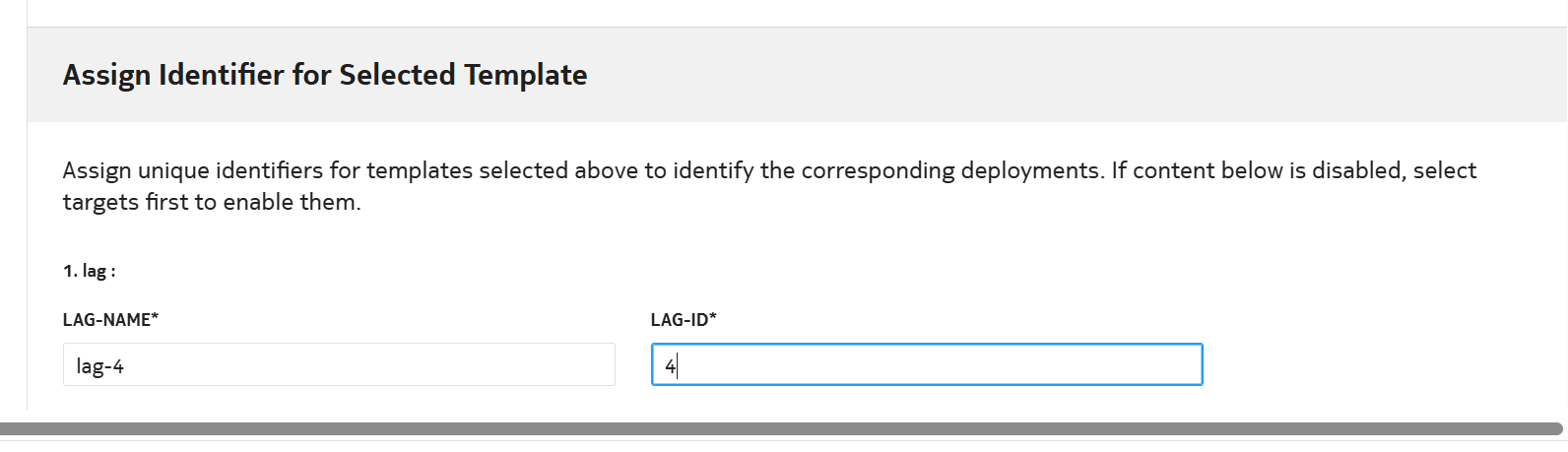

Set the LAG-NAME and LAG-ID, and click on DEPLOY.

10

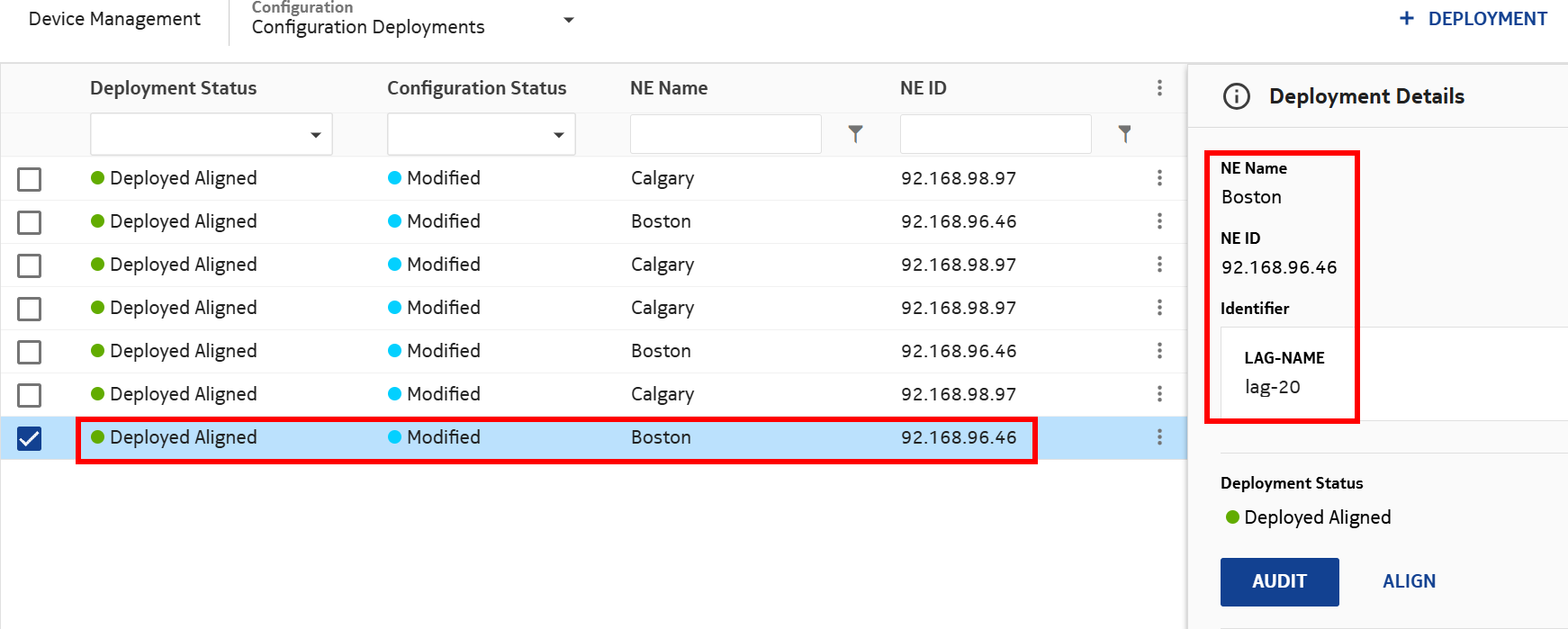

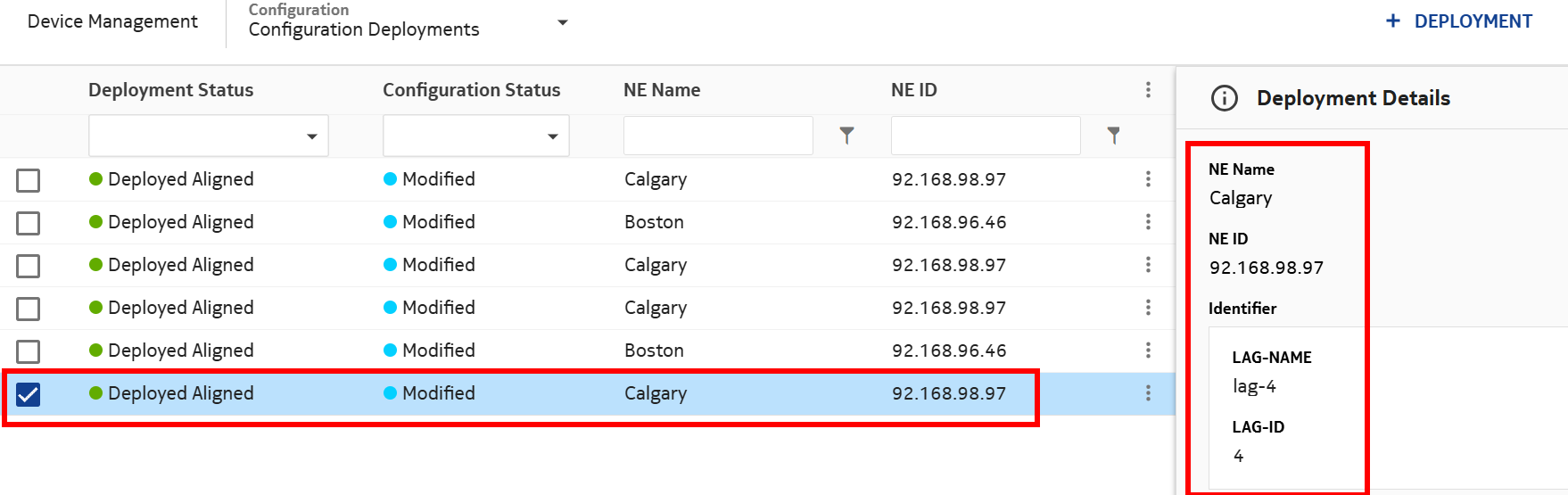

Confirm that the configuration is Deployed and Aligned.

11

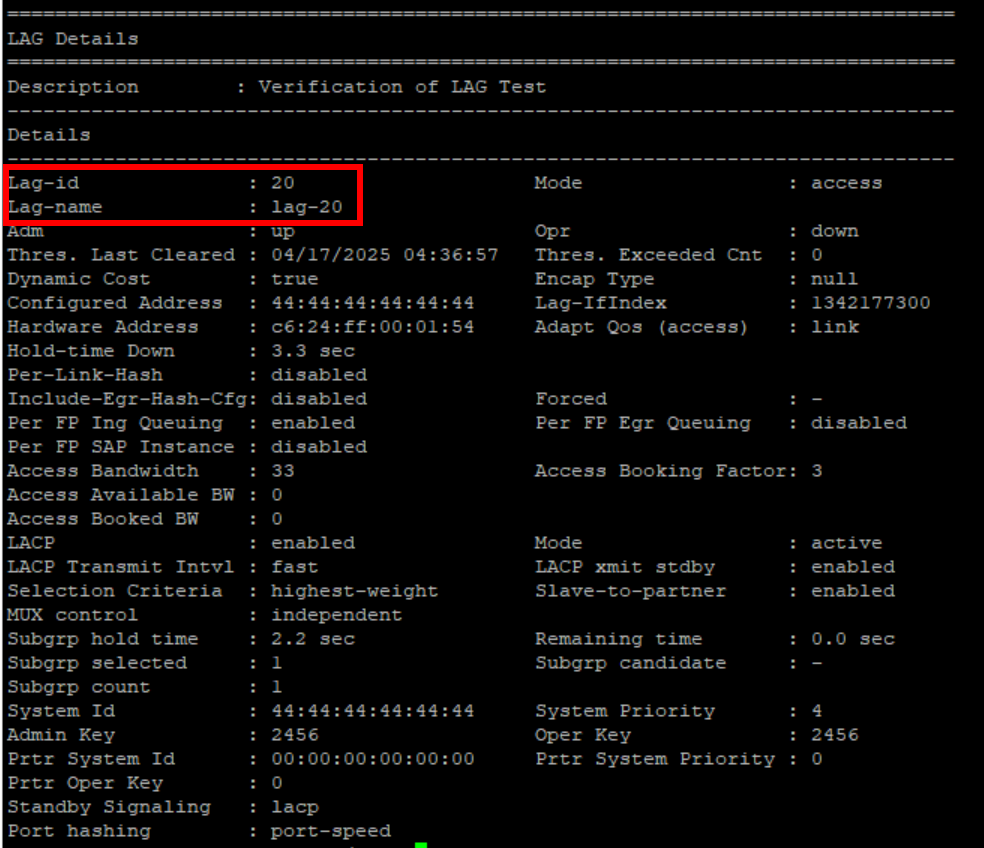

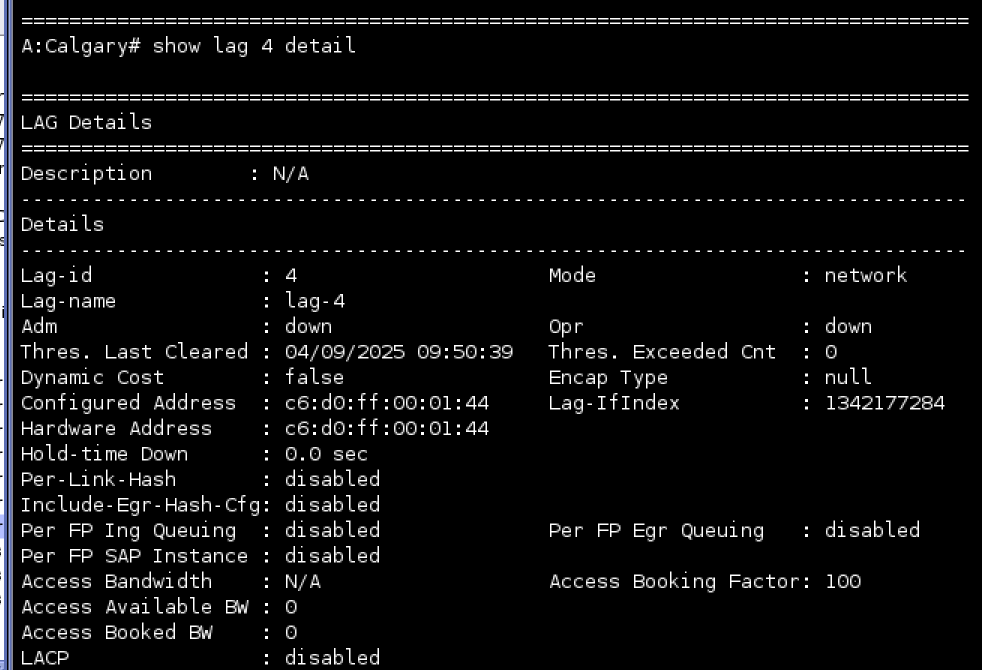

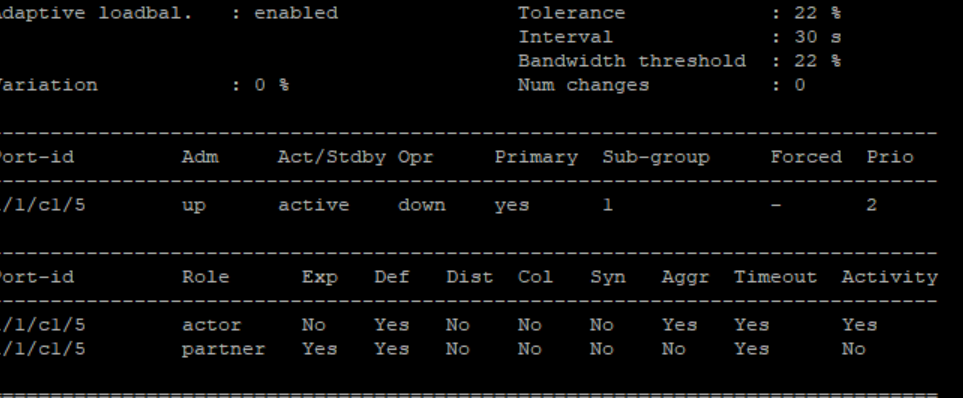

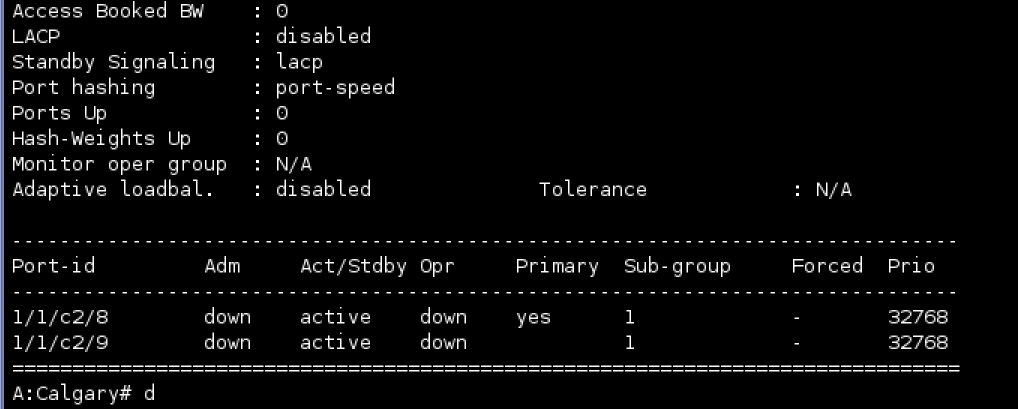

Log into NE and verify the same.

12

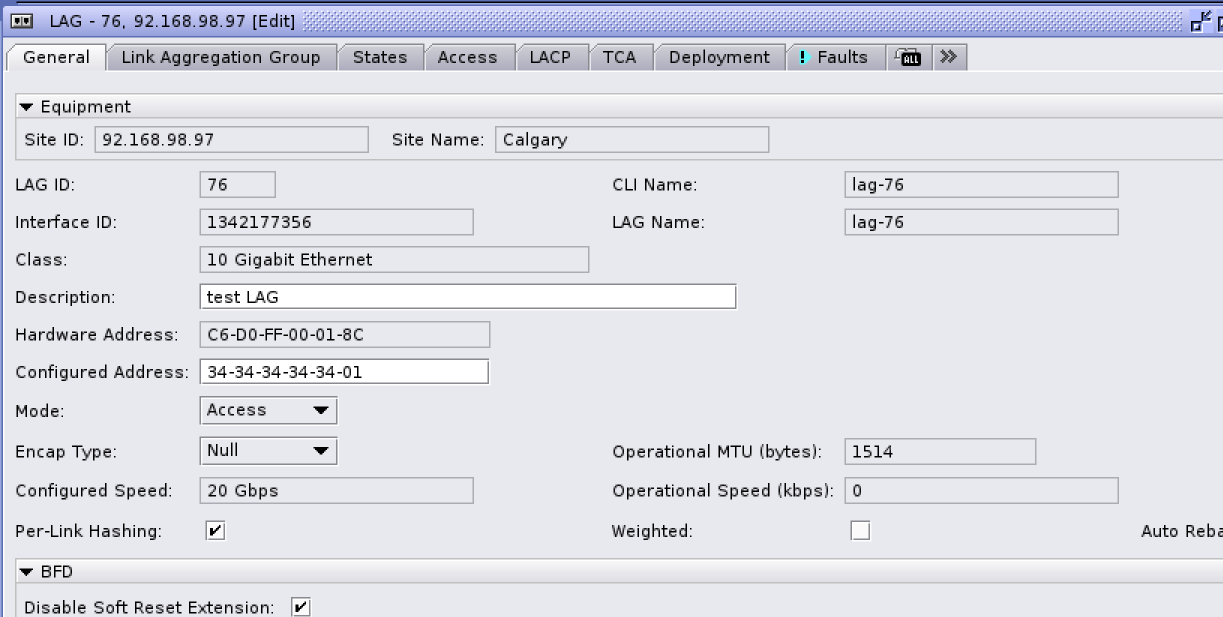

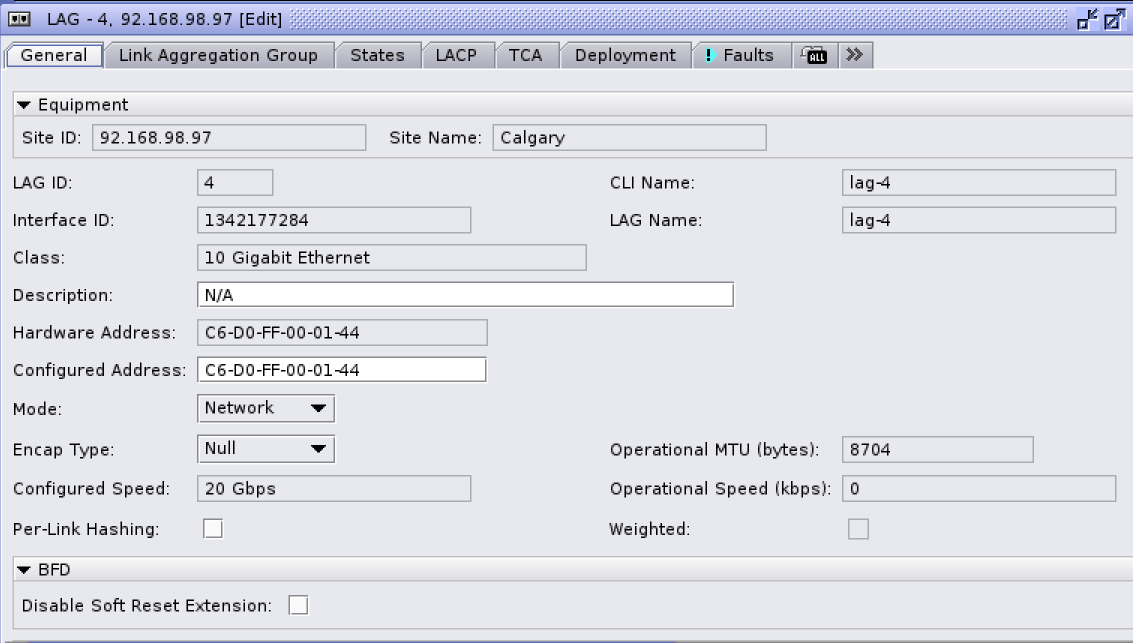

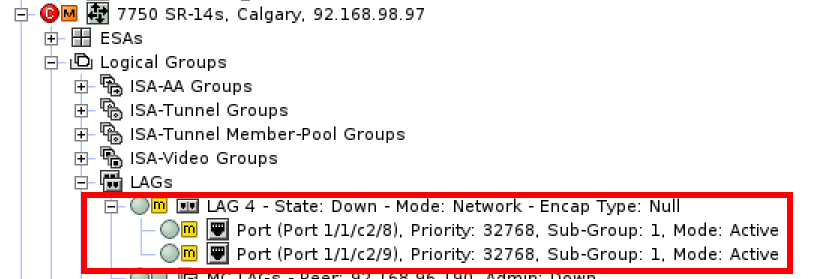

Log into NFM-P and verify the same. Right-click on LAG and navigate to Properties.

General details:

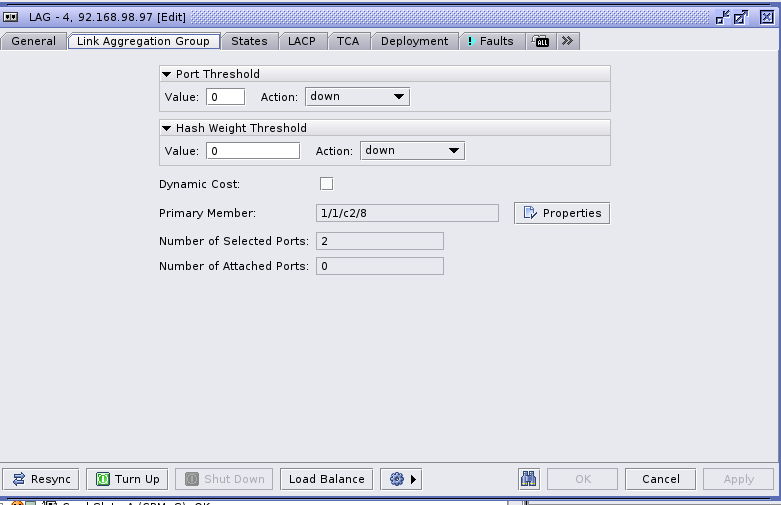

Link Aggregation Group details:

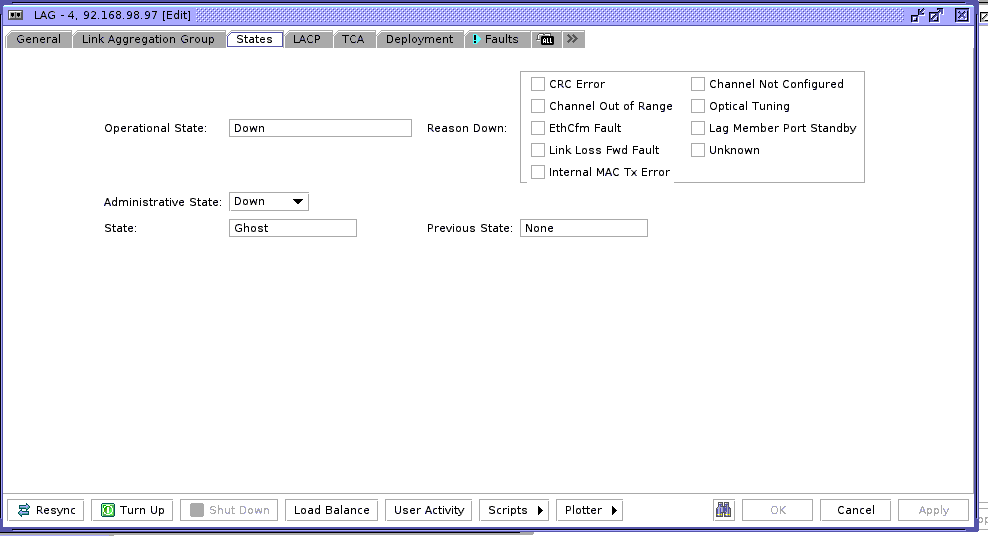

LAG States:

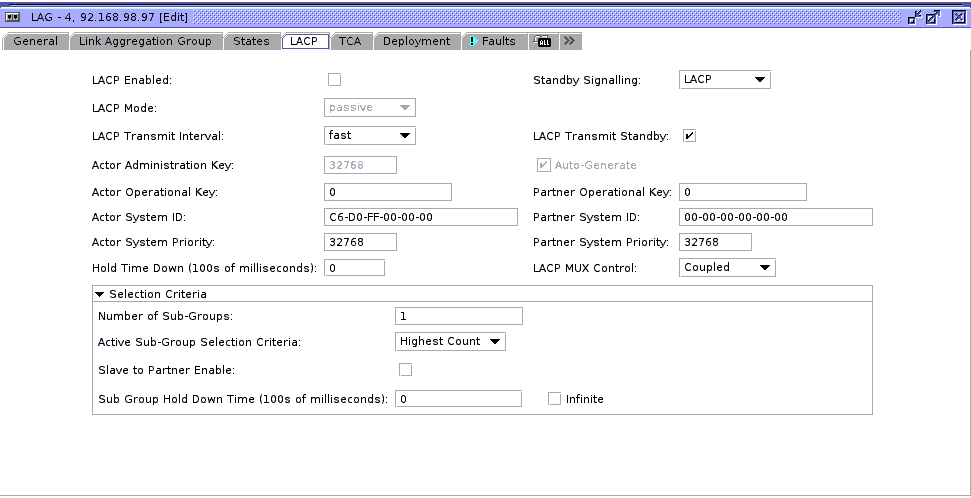

LACP details:

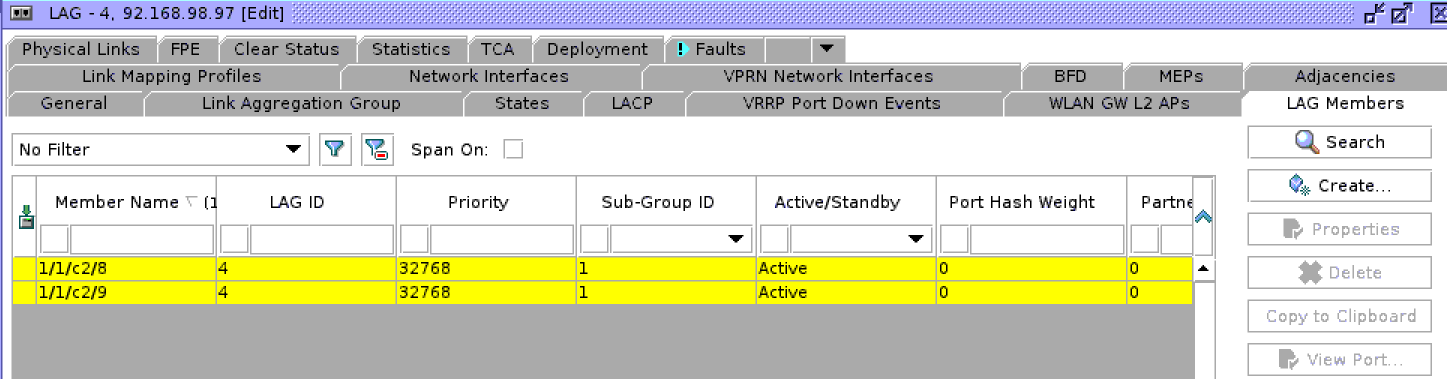

LAG Members:

End of steps

To configure LAG using lag_csros_23-10-1_24-4 intent

Prerequisites: Oper Group should pre-exist before associating to LAG.


1

Click on Development and select Logical.

2

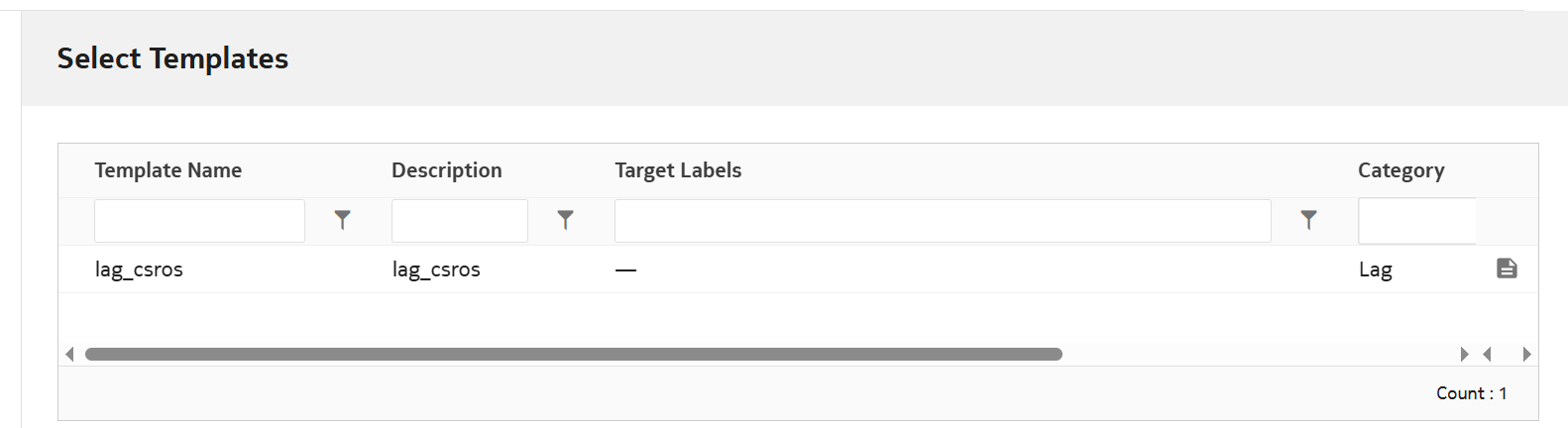

Click on the template and select lag_csros intent.

3

Click on TARGET and select classic SR node.

4

Click on View/Edit Template Configuration.

5

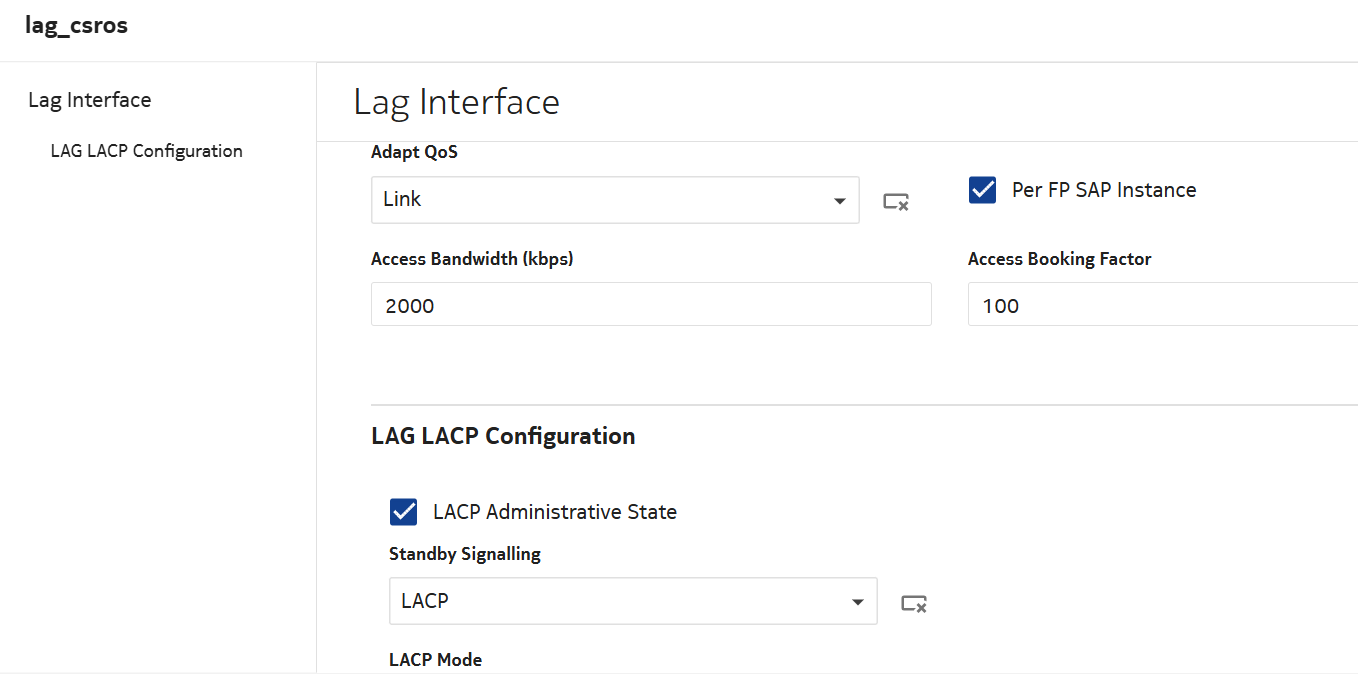

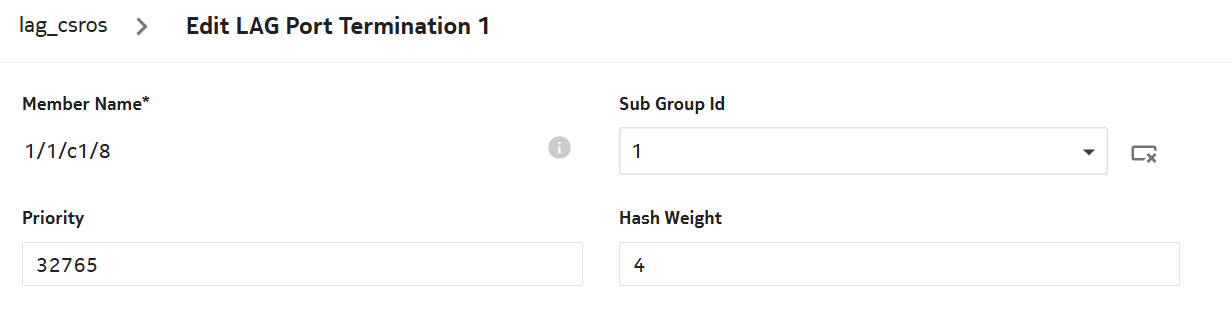

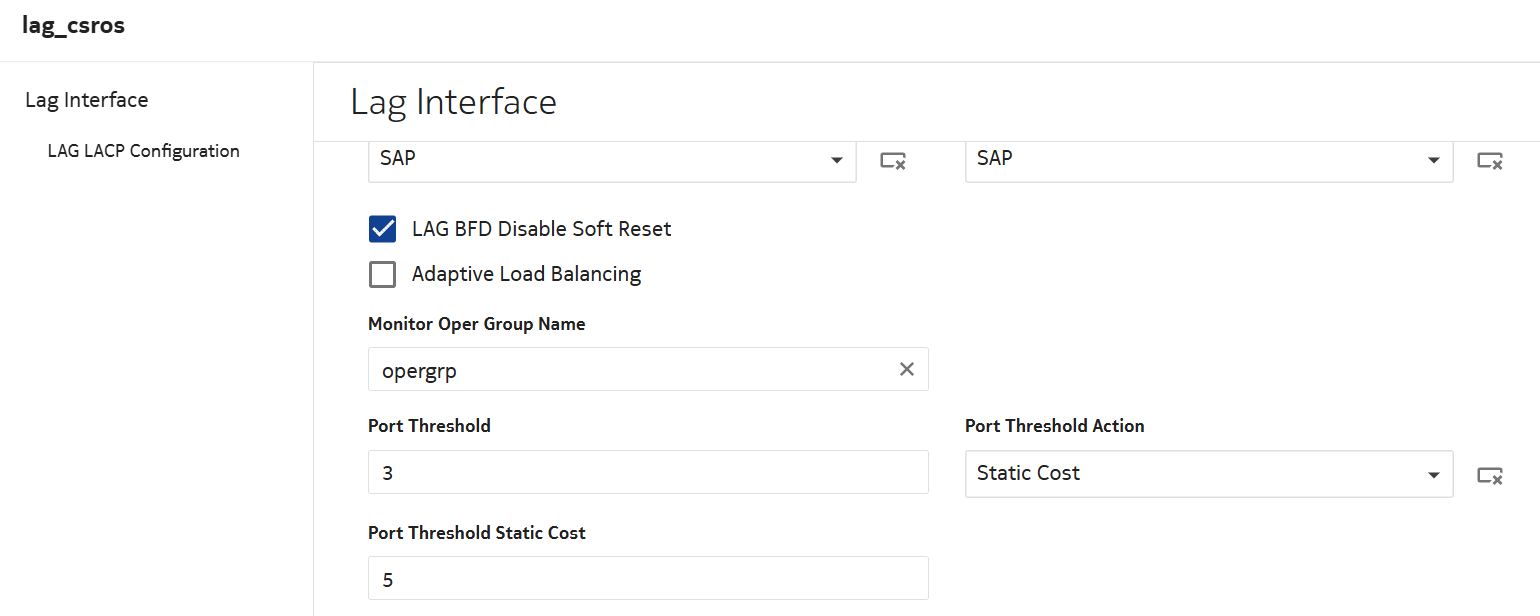

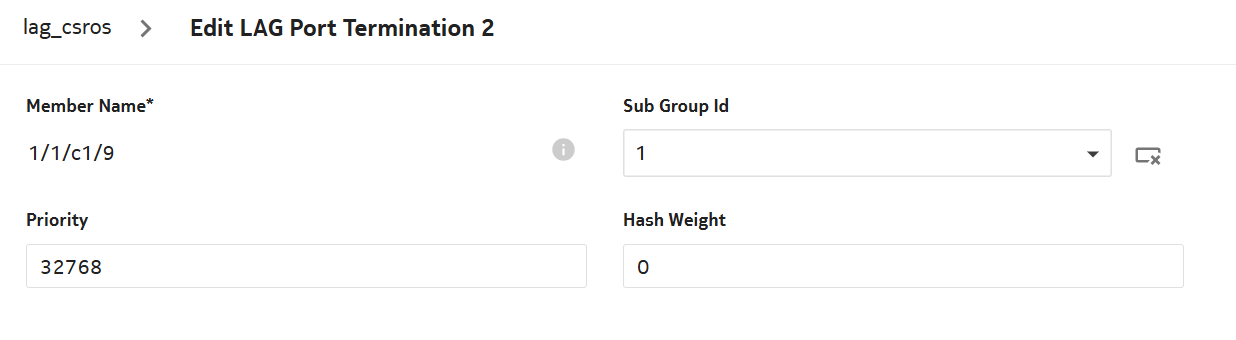

Configure the following attributes.

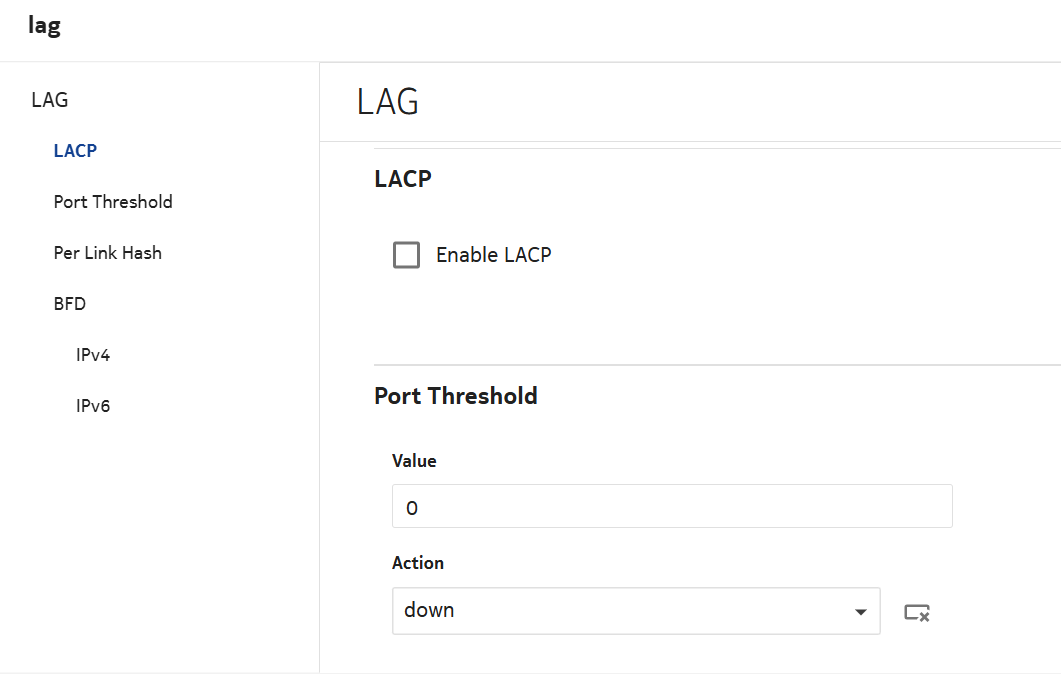

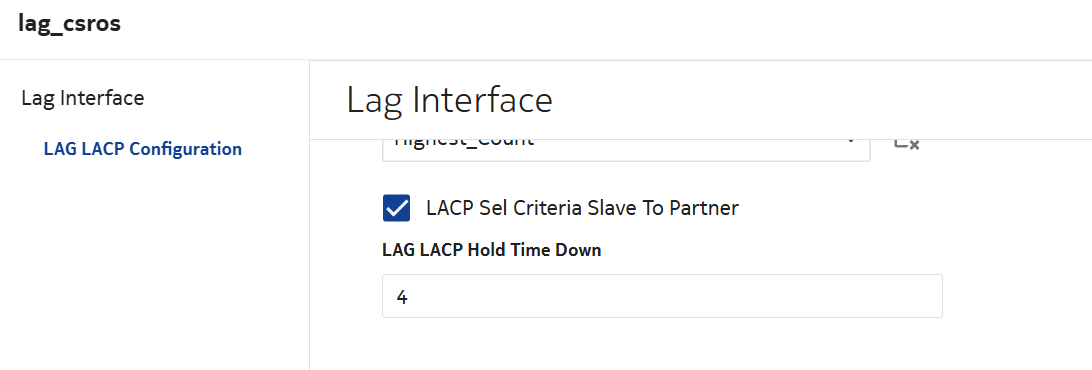

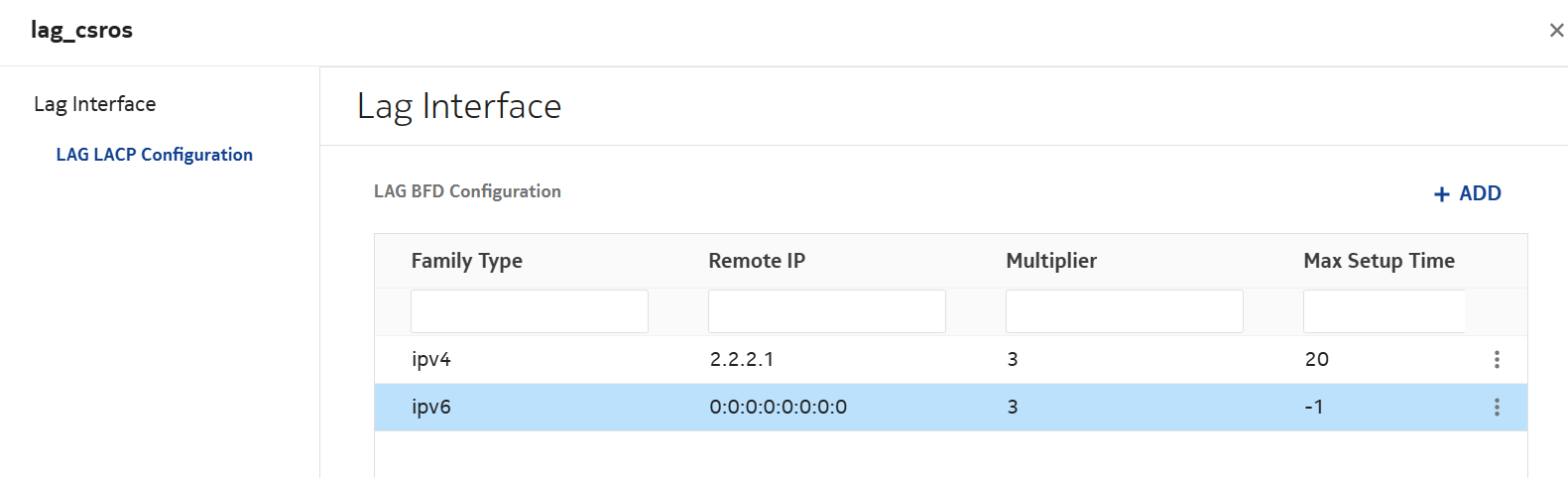

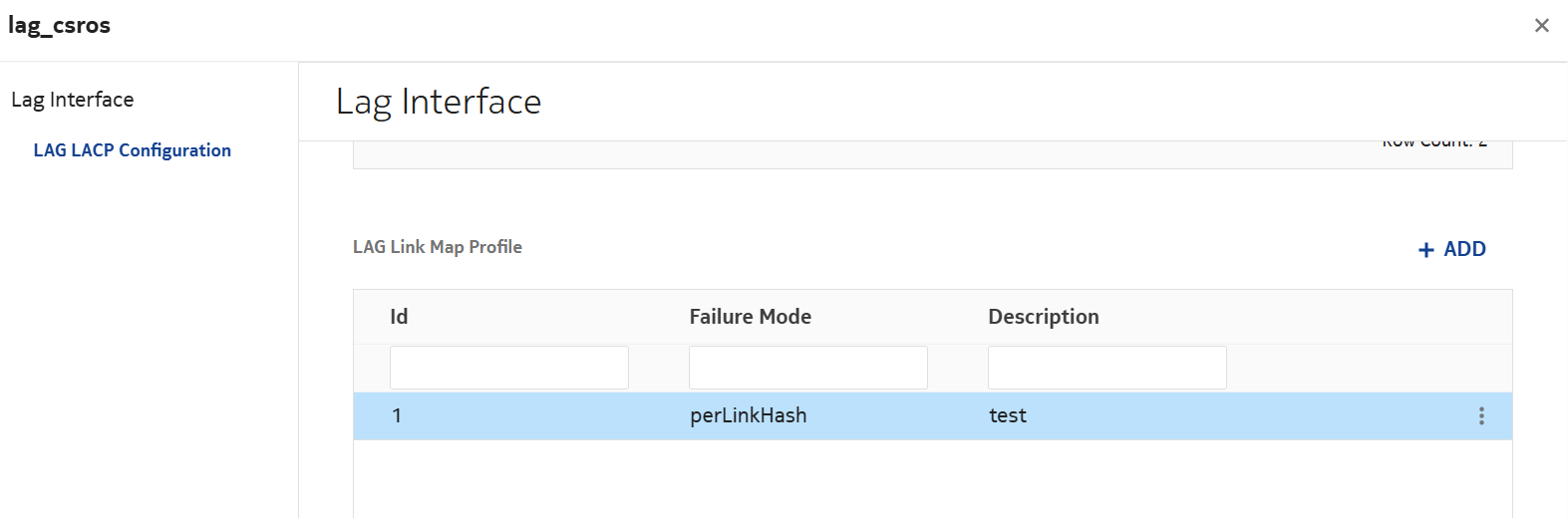

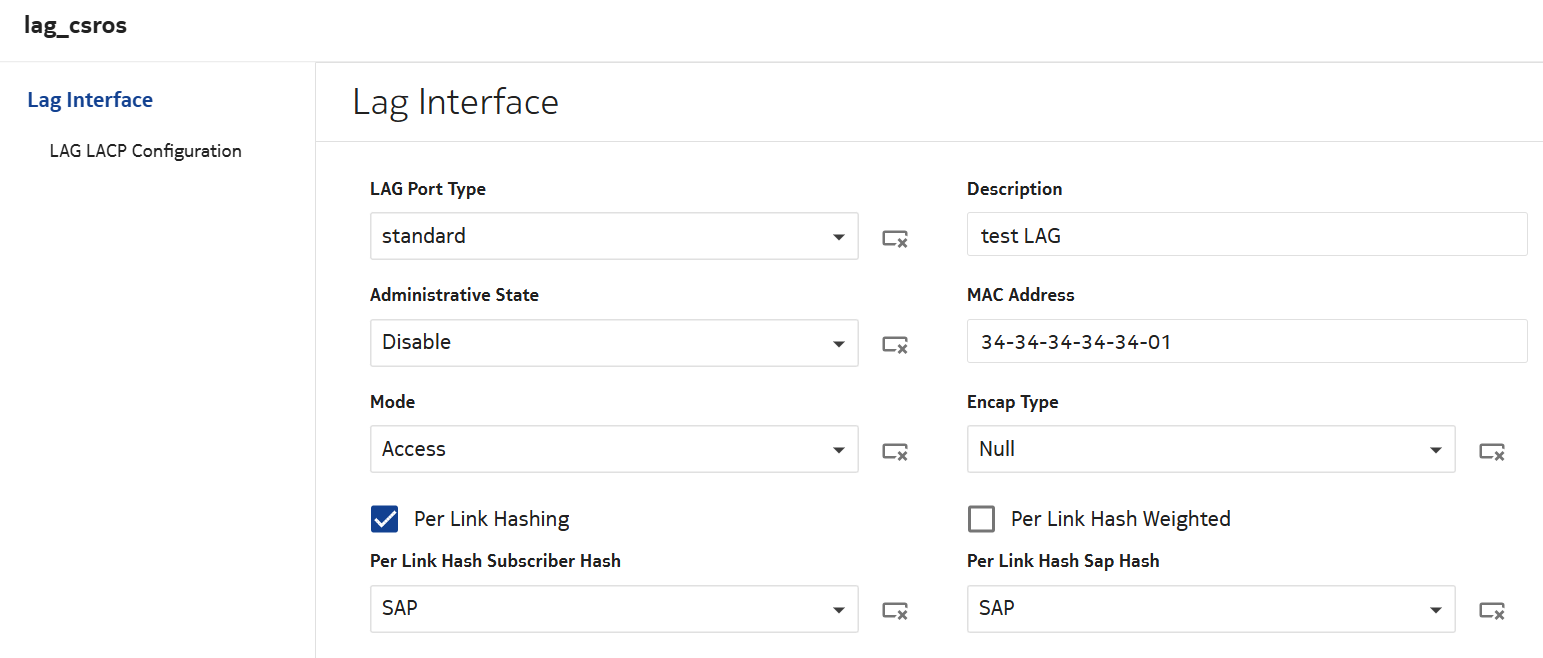

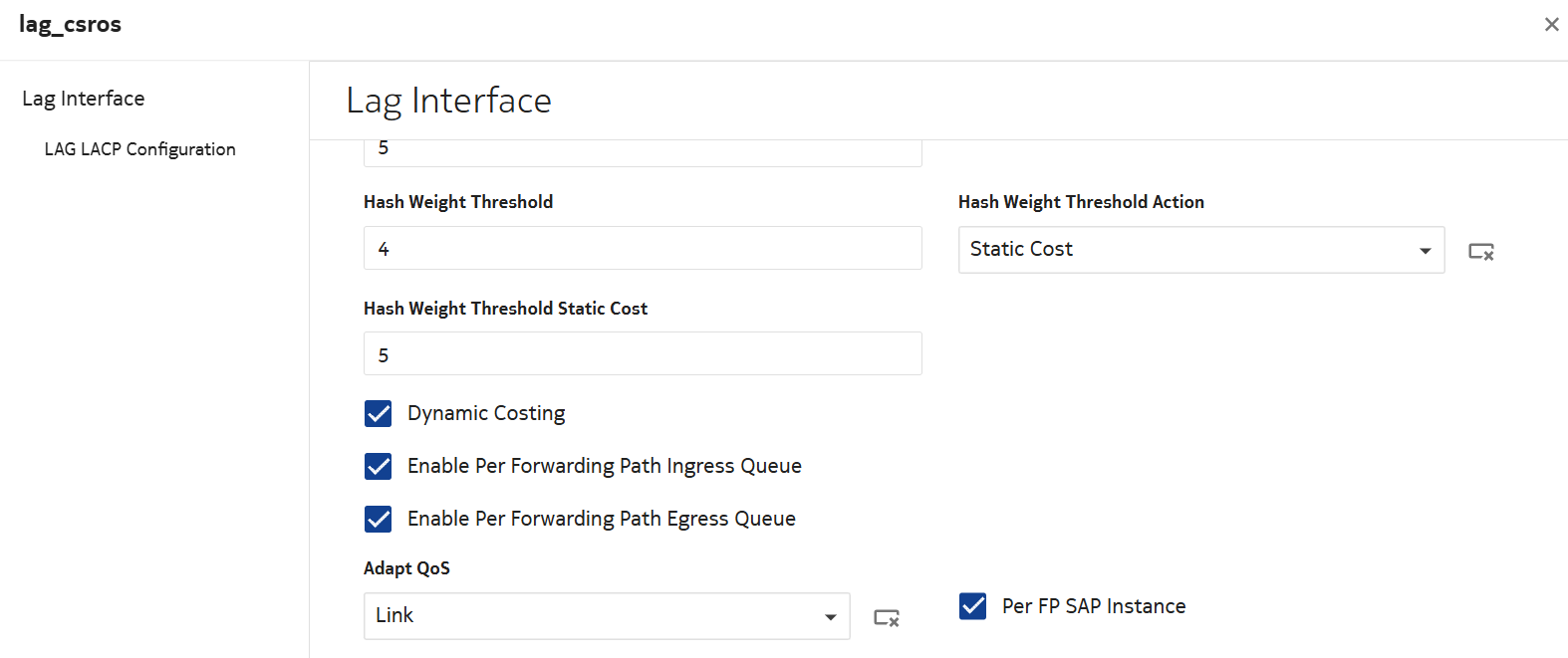

Lag Interface attributes:

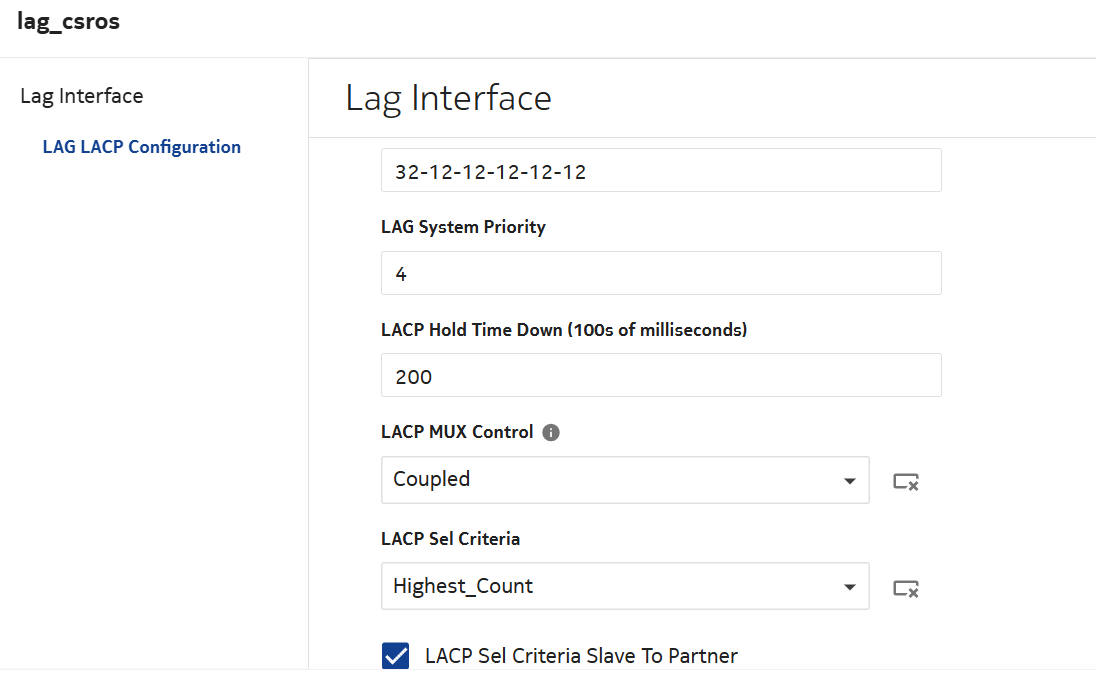

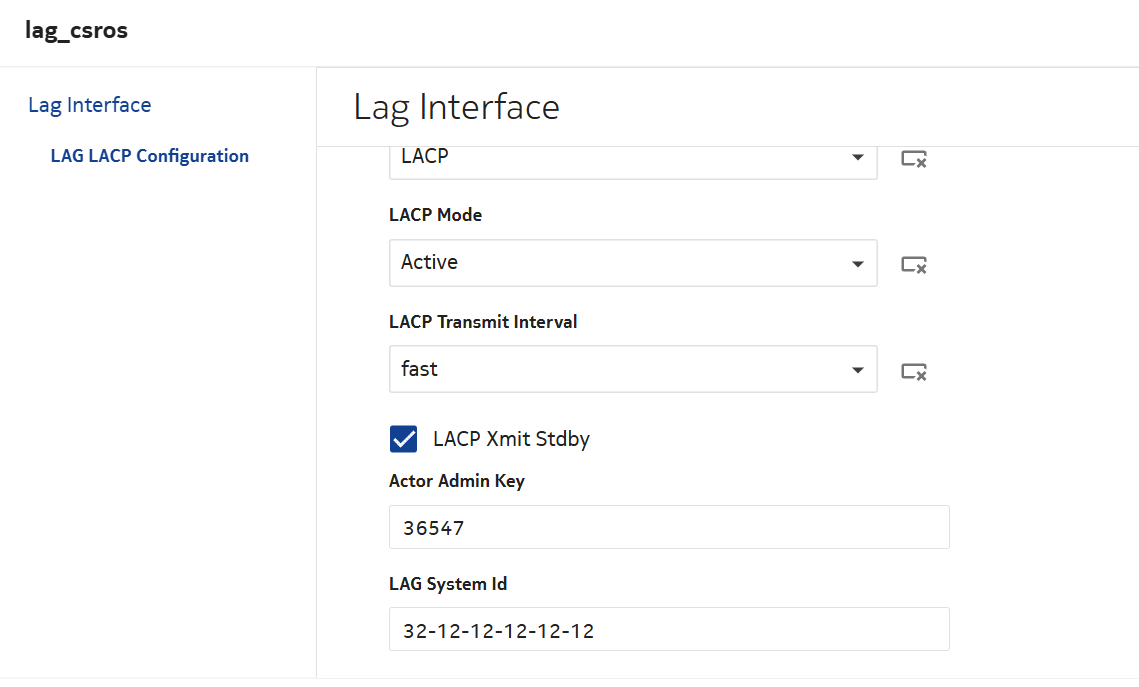

LAG LACP Configuration attributes:

6

Click on UPDATE.

7

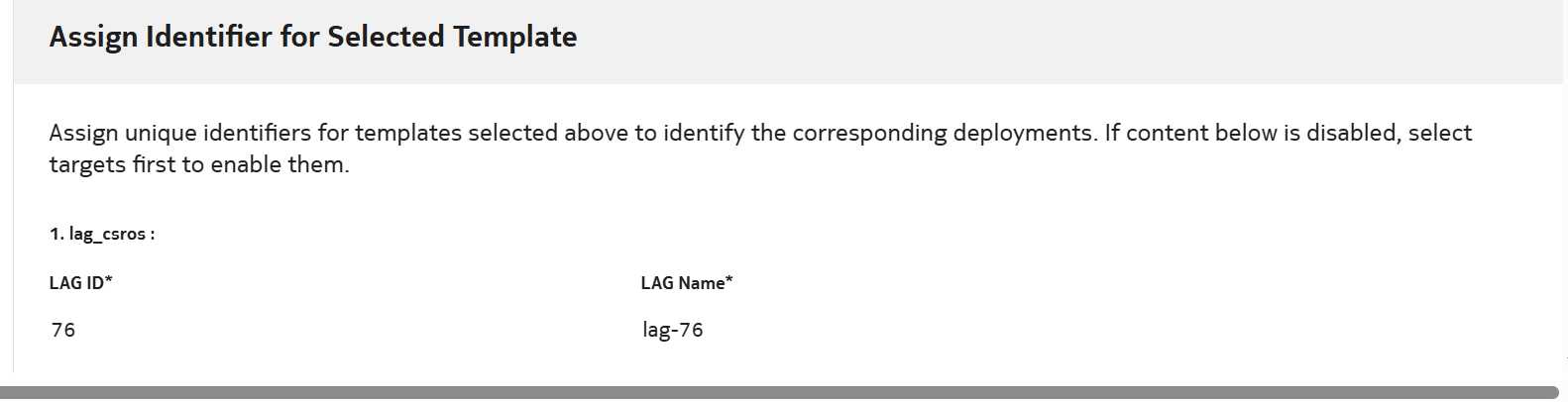

Enter the LAG ID.

8

Click DEPLOY.

9

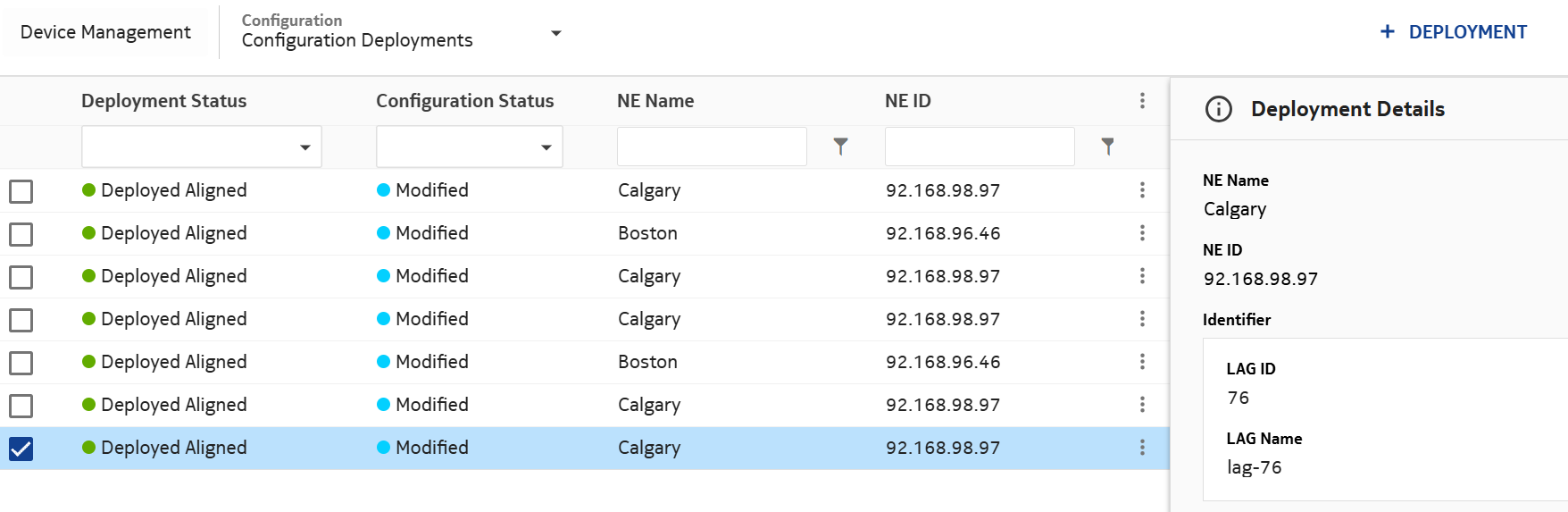

Check that the configuration is Deployed and Aligned.

10

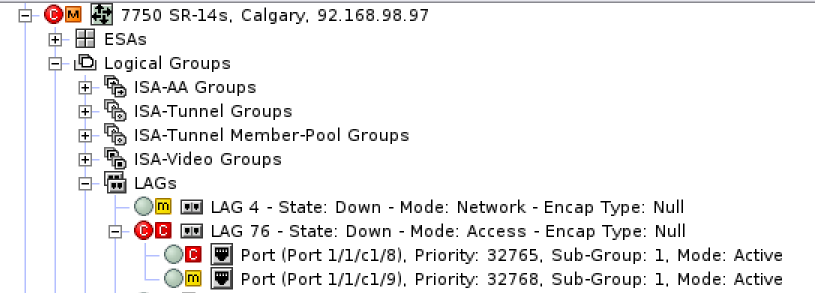

Log into NFM-P and confirm the same. Right-click on LAG 76 and select Properties.

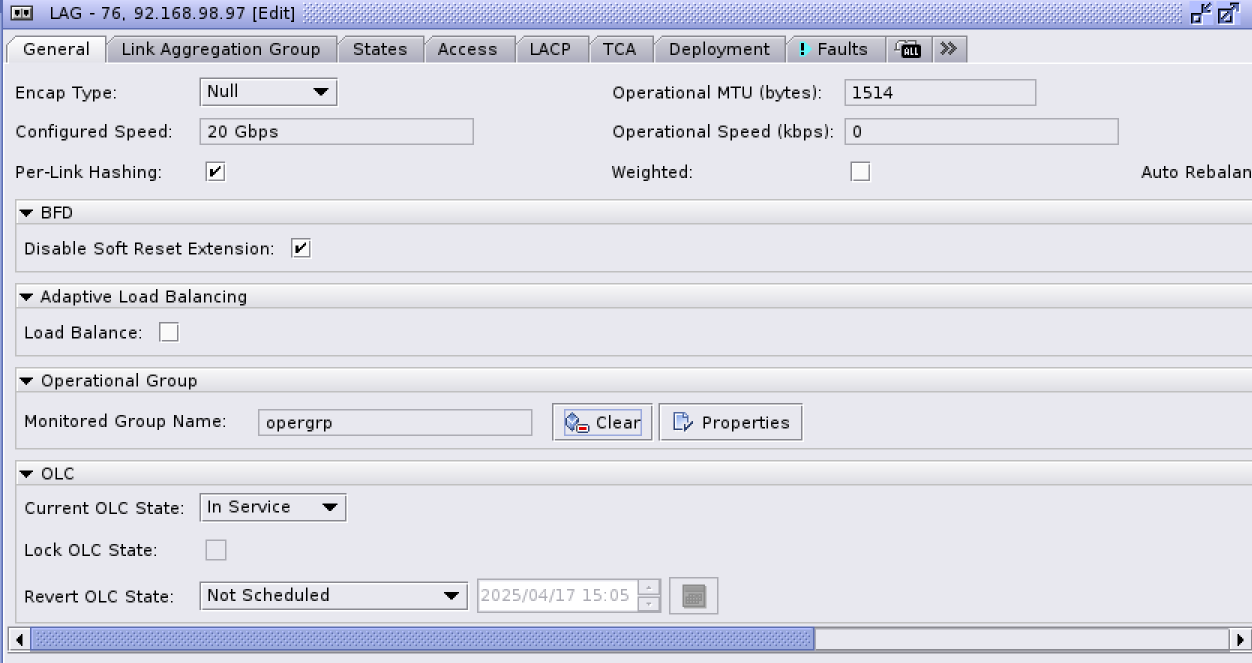

General details:

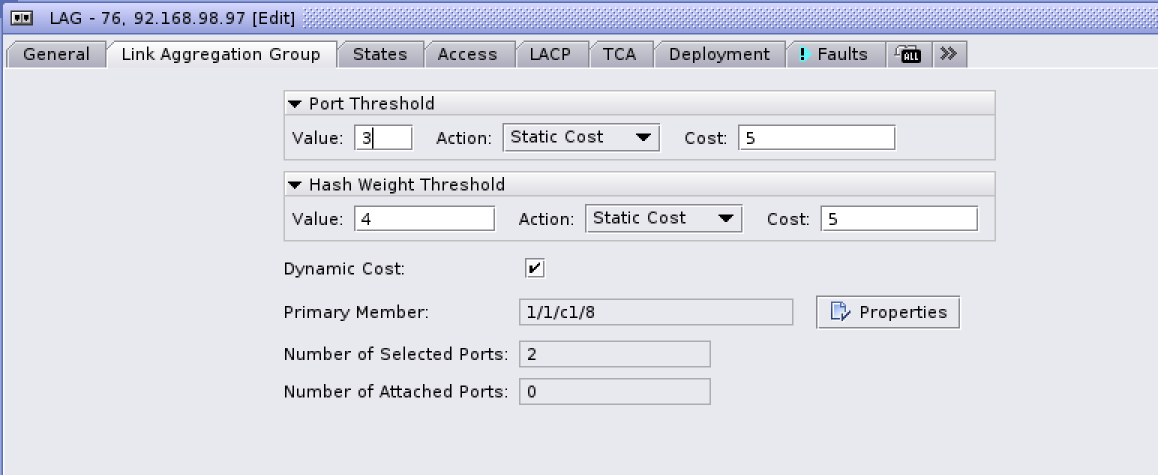

Link Aggregation Group details:

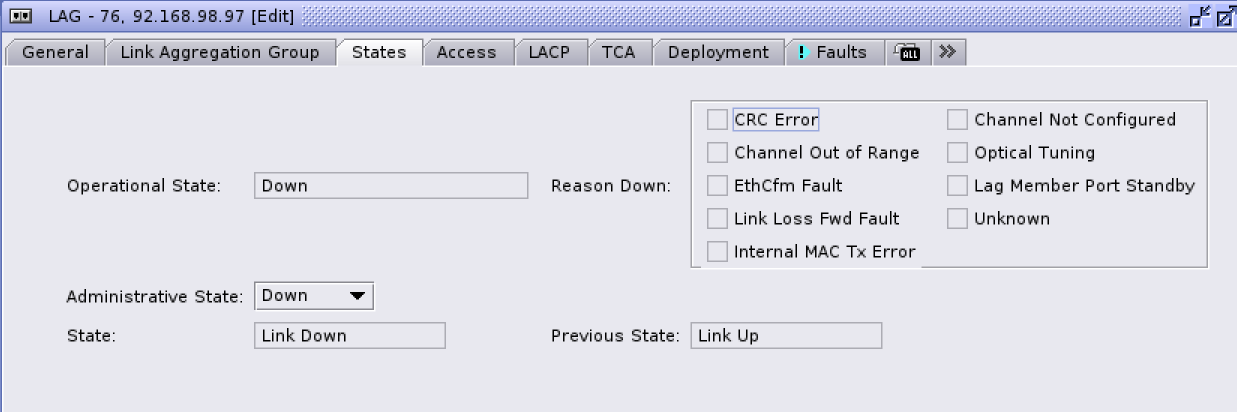

LAG States:

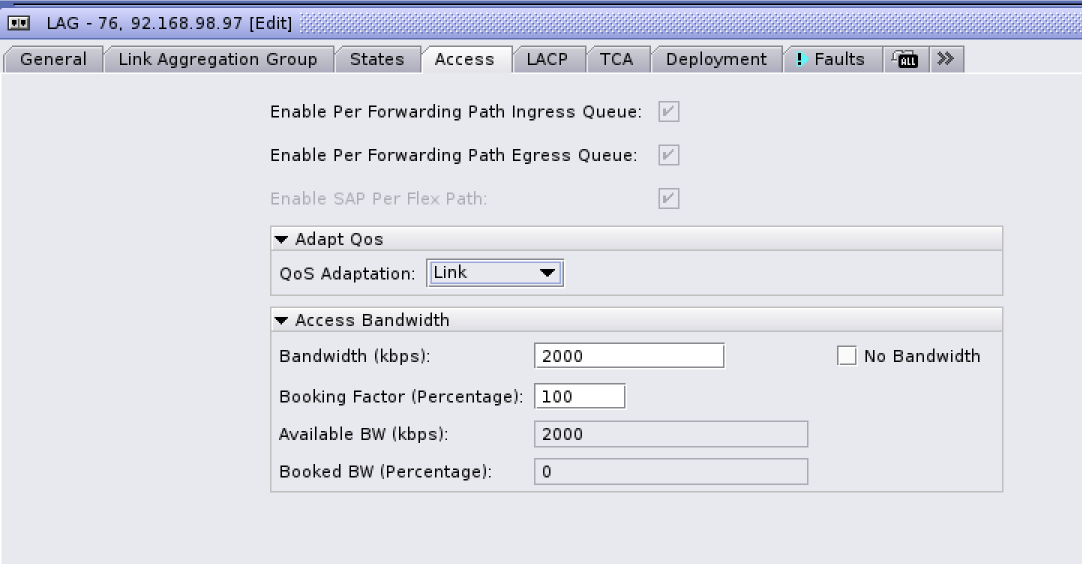

LAG Access details:

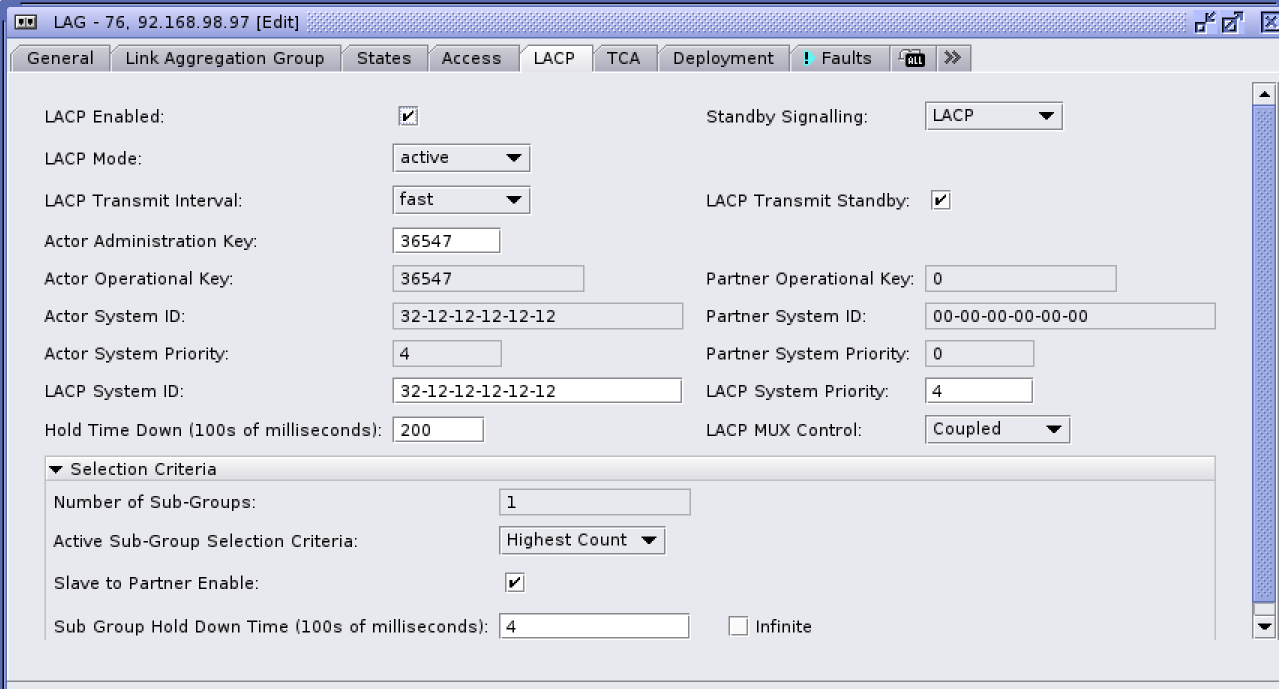

LACP details:

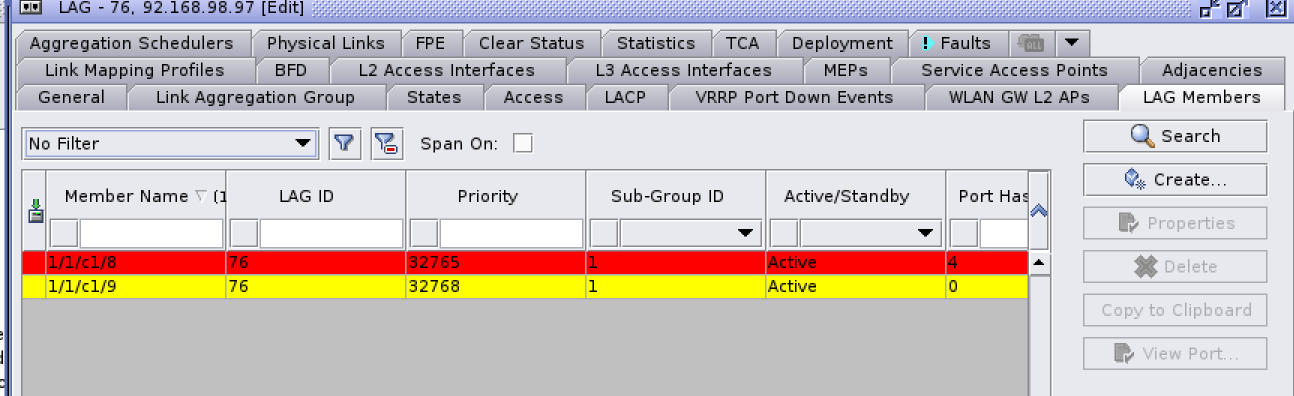

LAG Members:

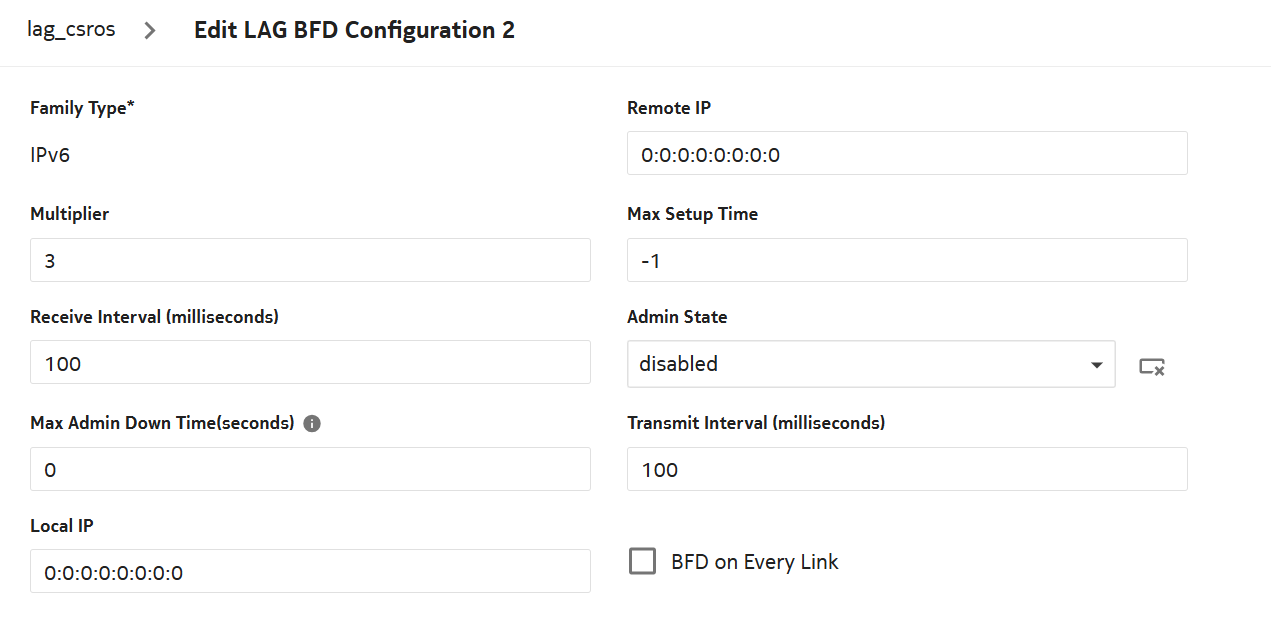

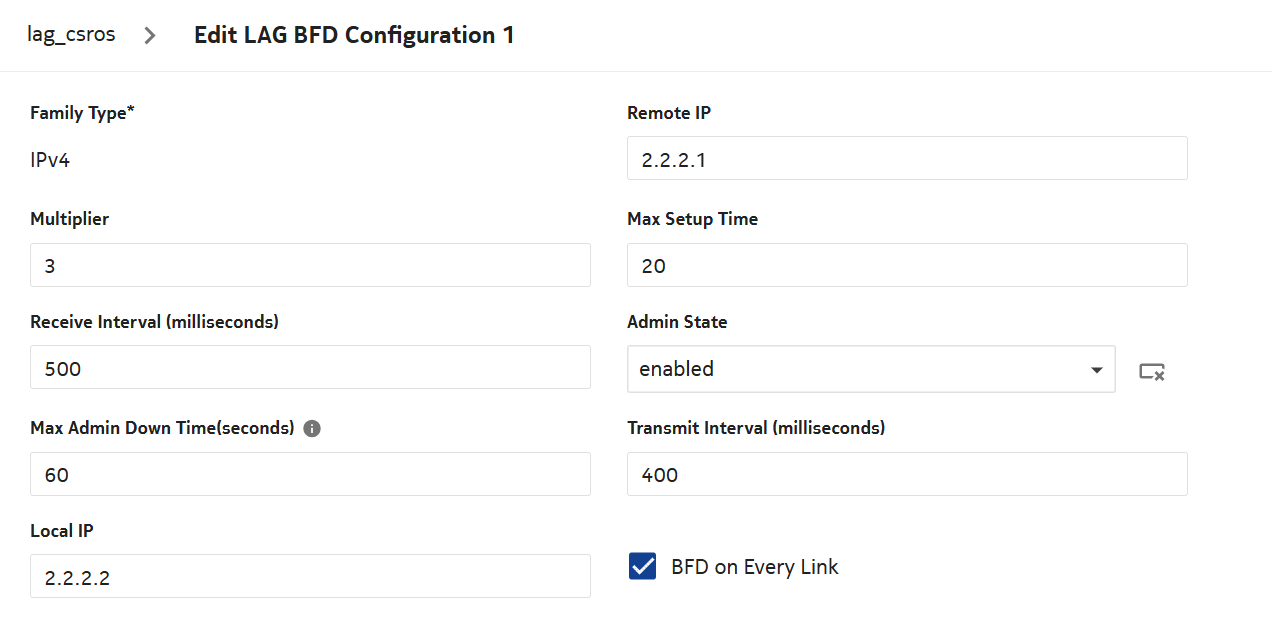

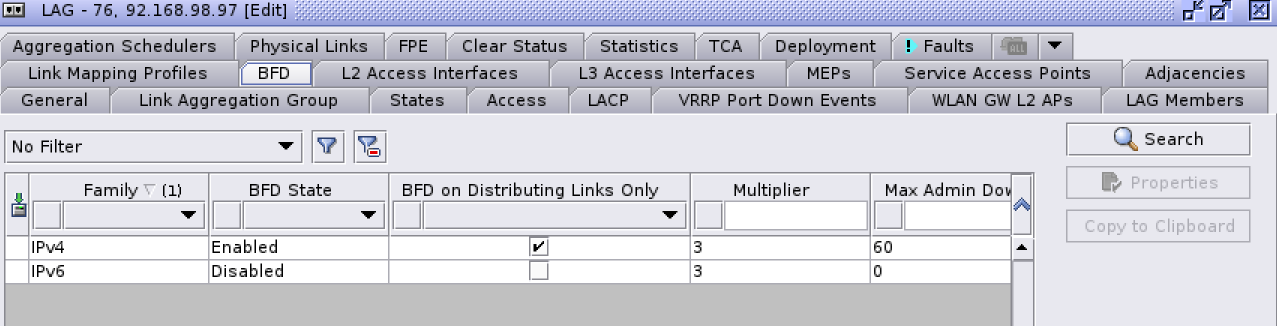

BFD details:

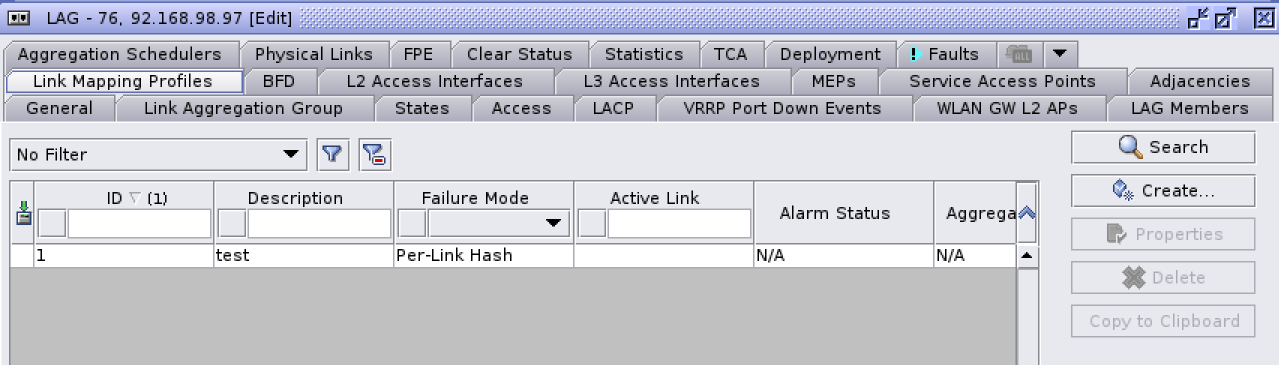

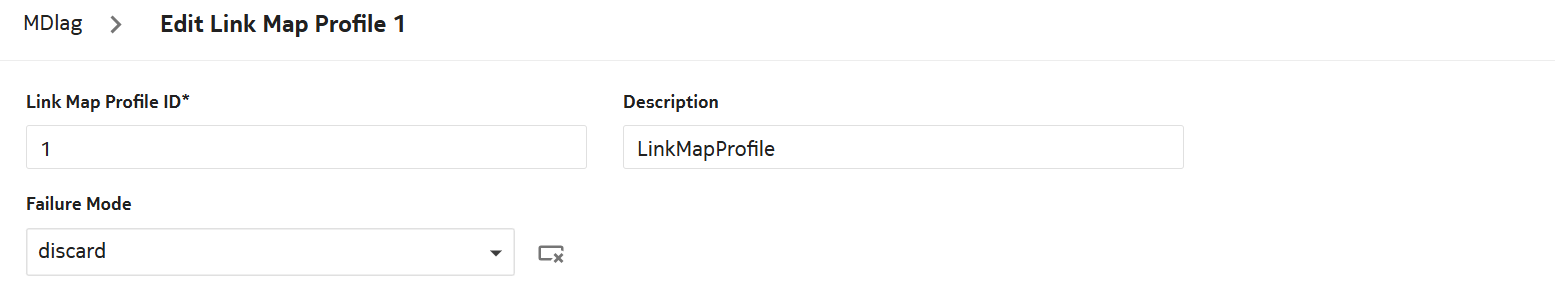

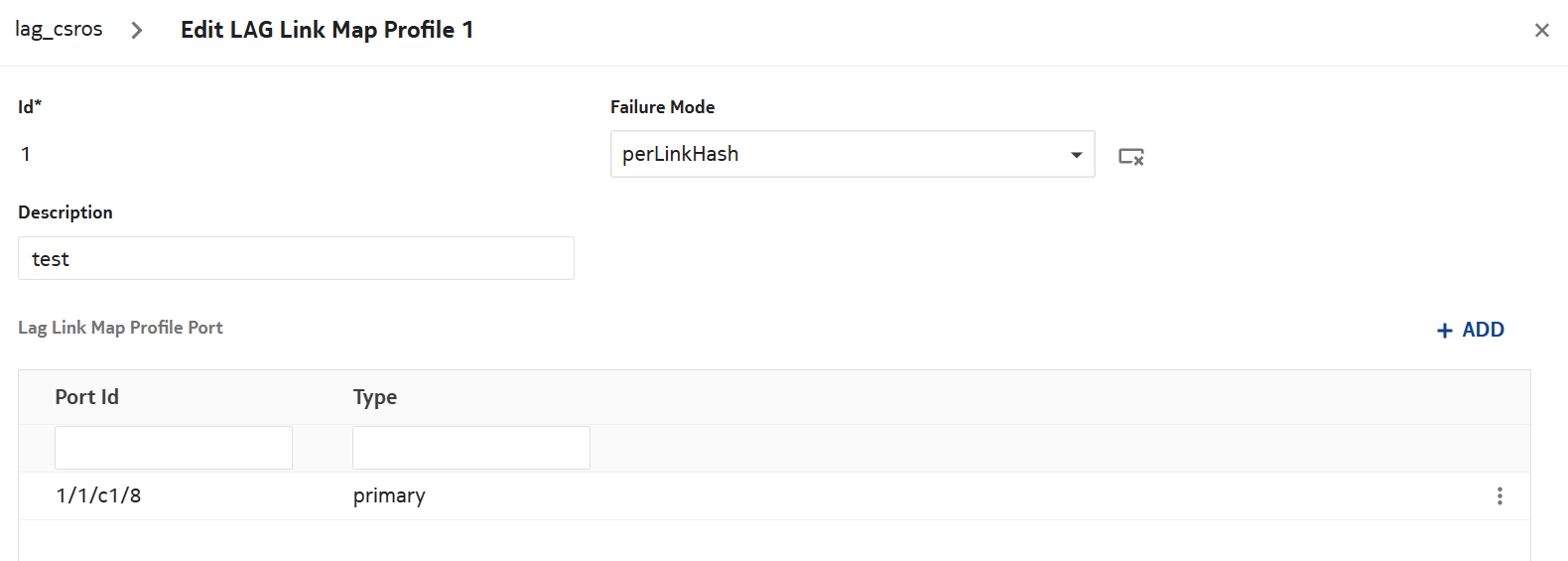

Link Mapping Profiles:

11

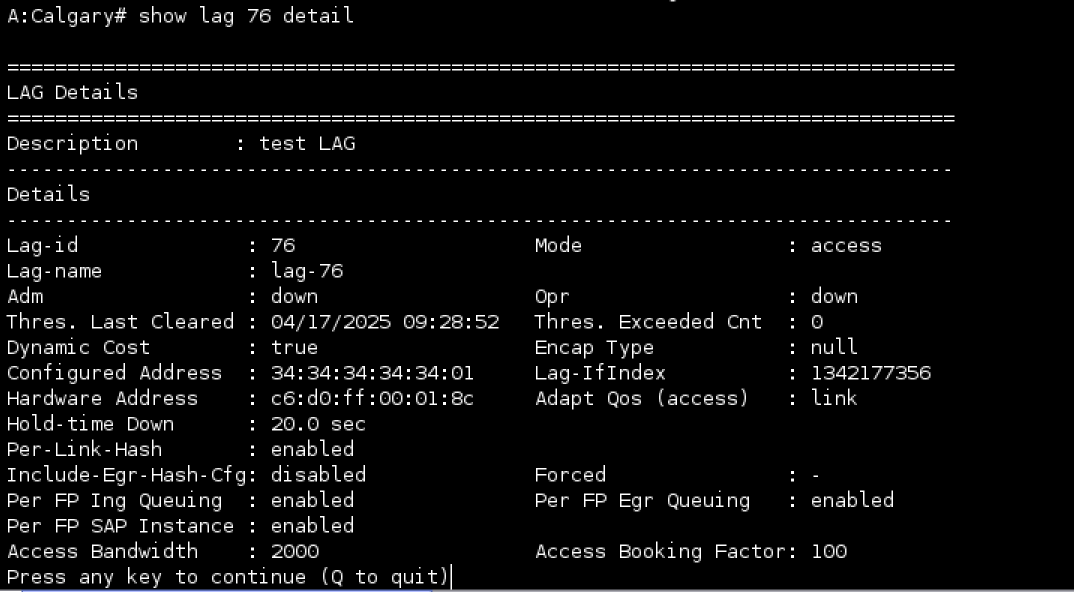

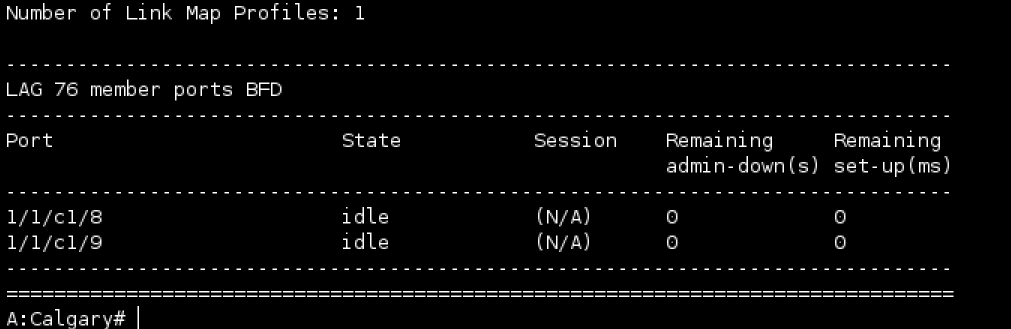

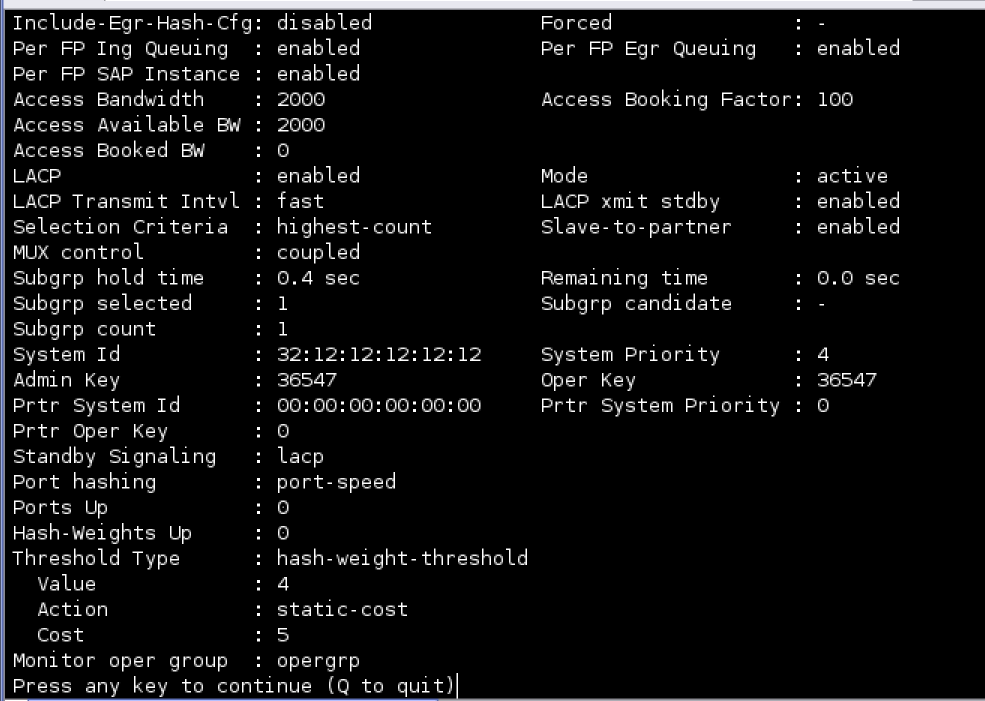

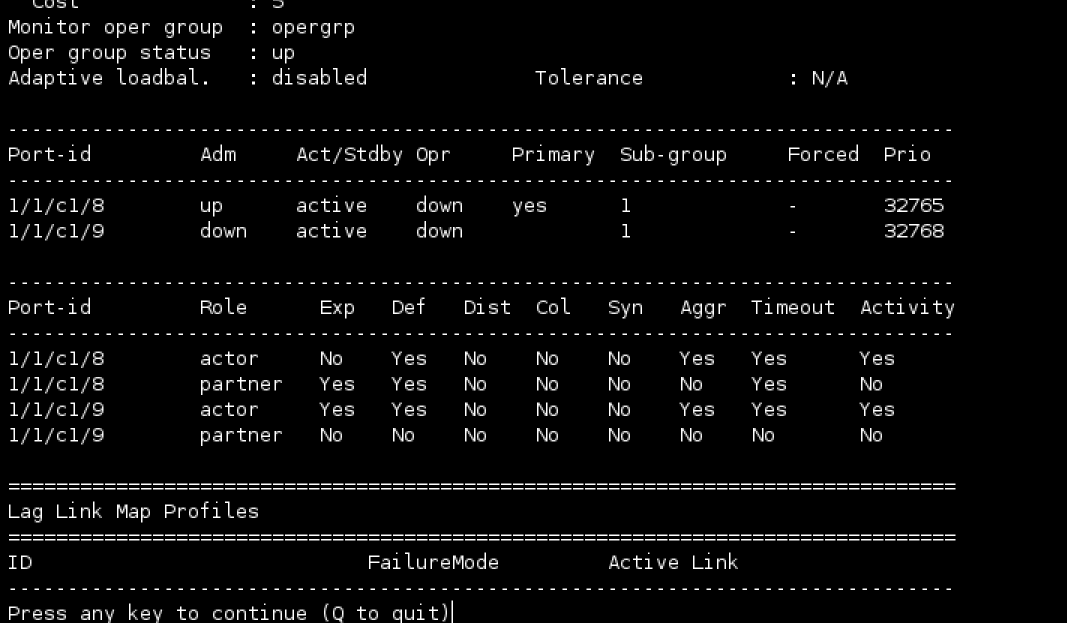

Log into NE and confirm the same.

End of steps

To configure LAG using lag_msros_23-10-1_24-4 intent

1

Click on Deployment and select Logical.

2

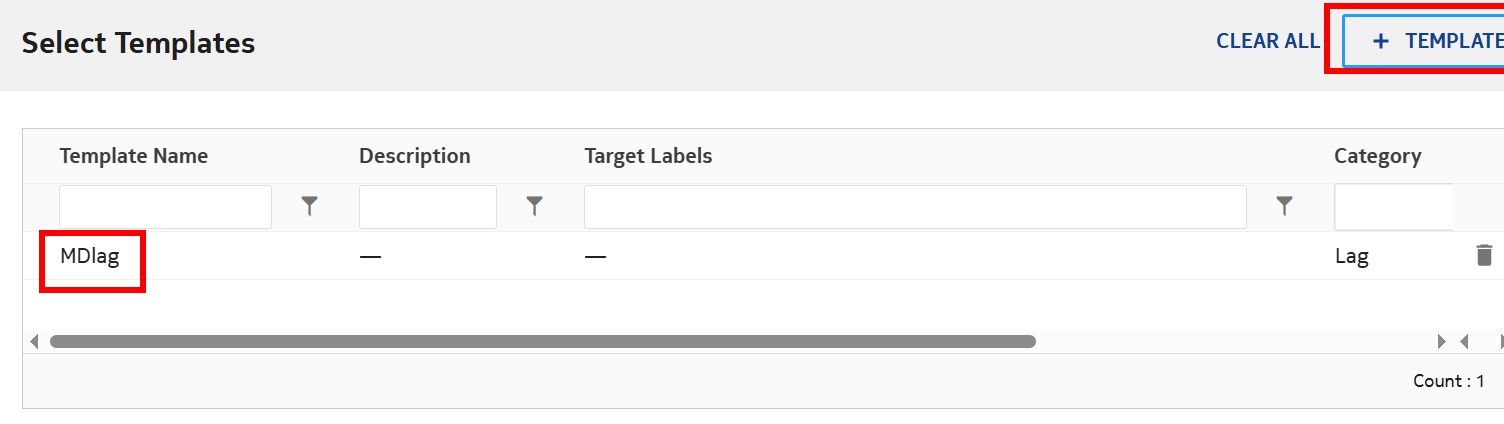

Click on +TEMPLATE and add MD LAG intent.

3

Click on TARGET and select NE.

4

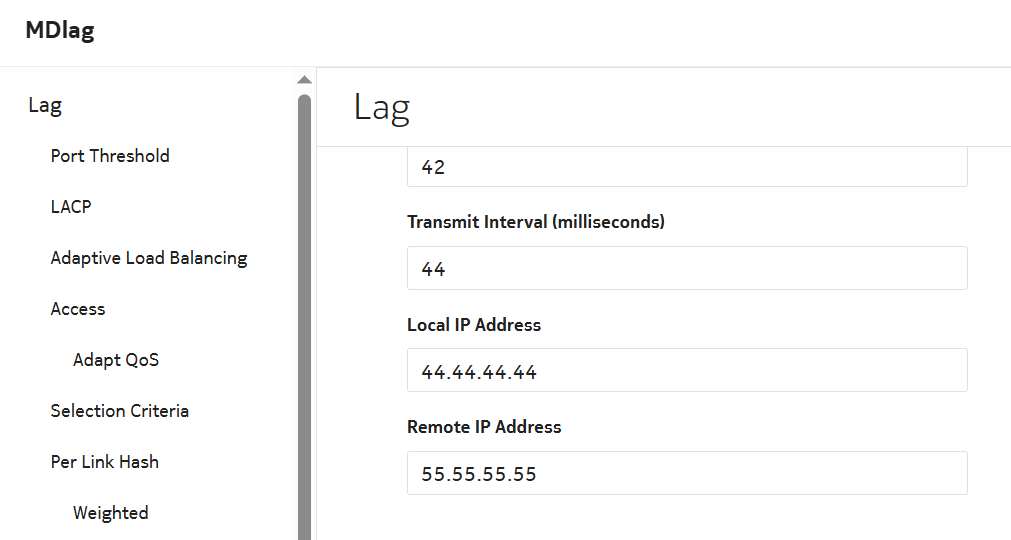

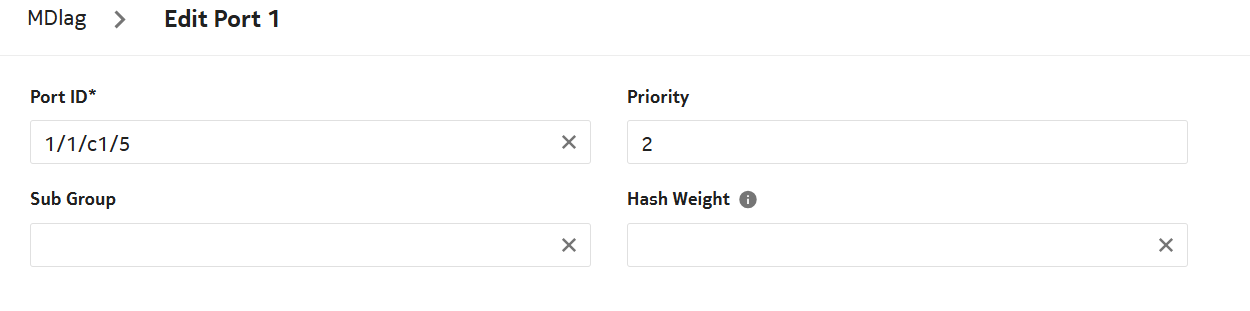

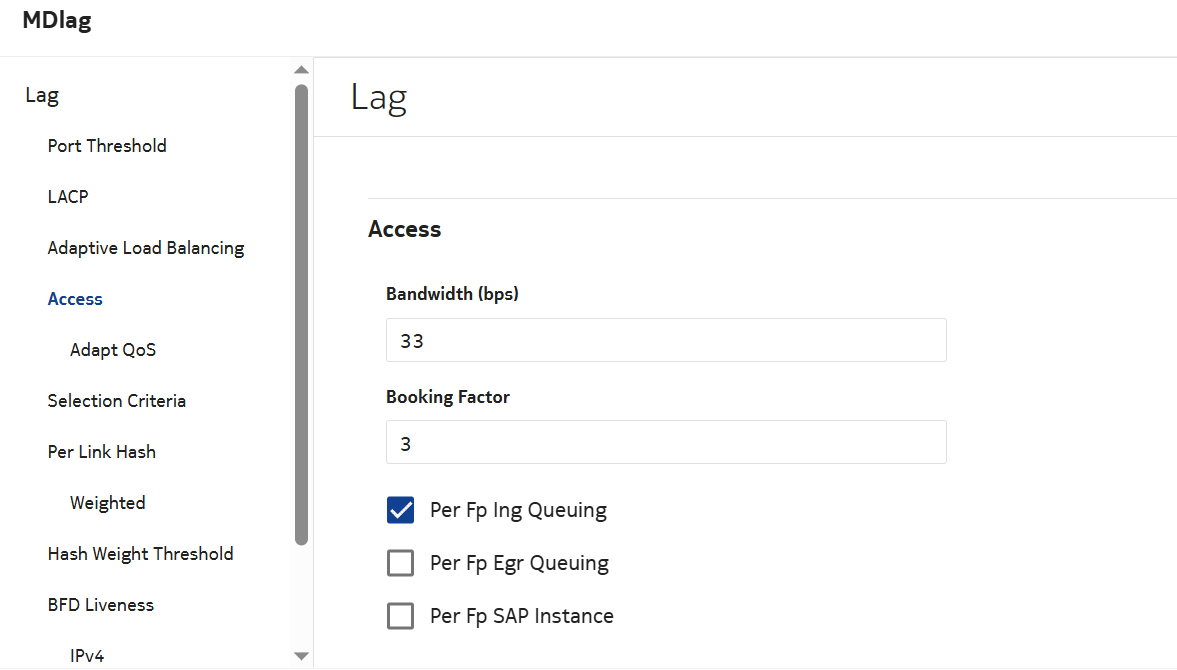

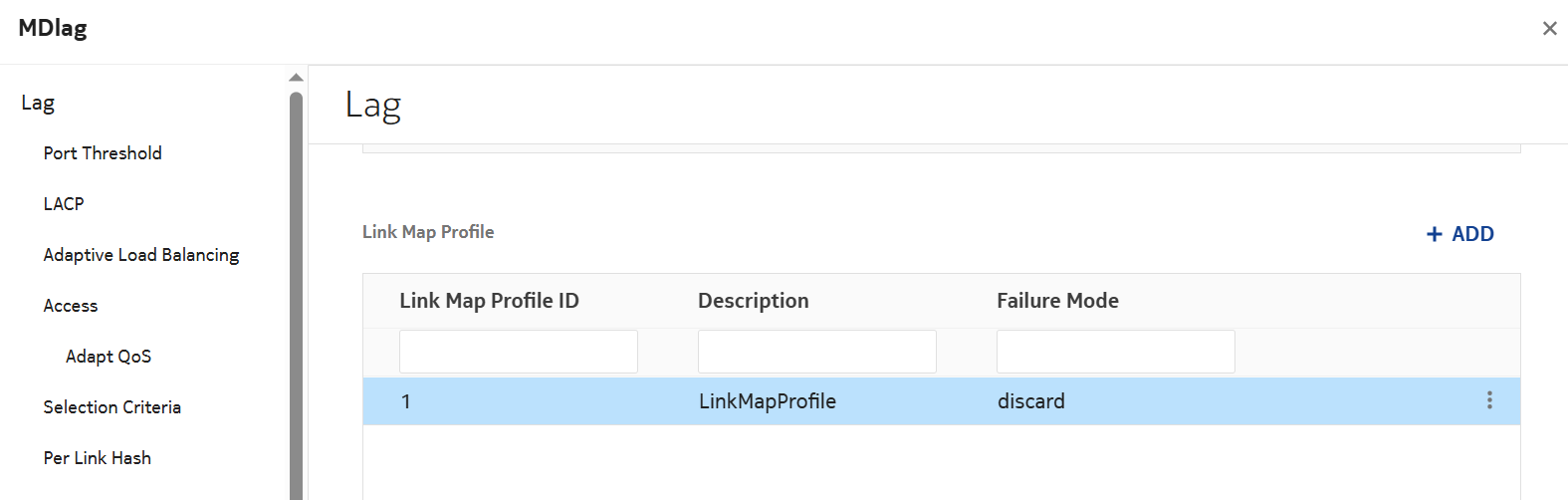

Click on View/Edit Template Config and configure the following attributes.

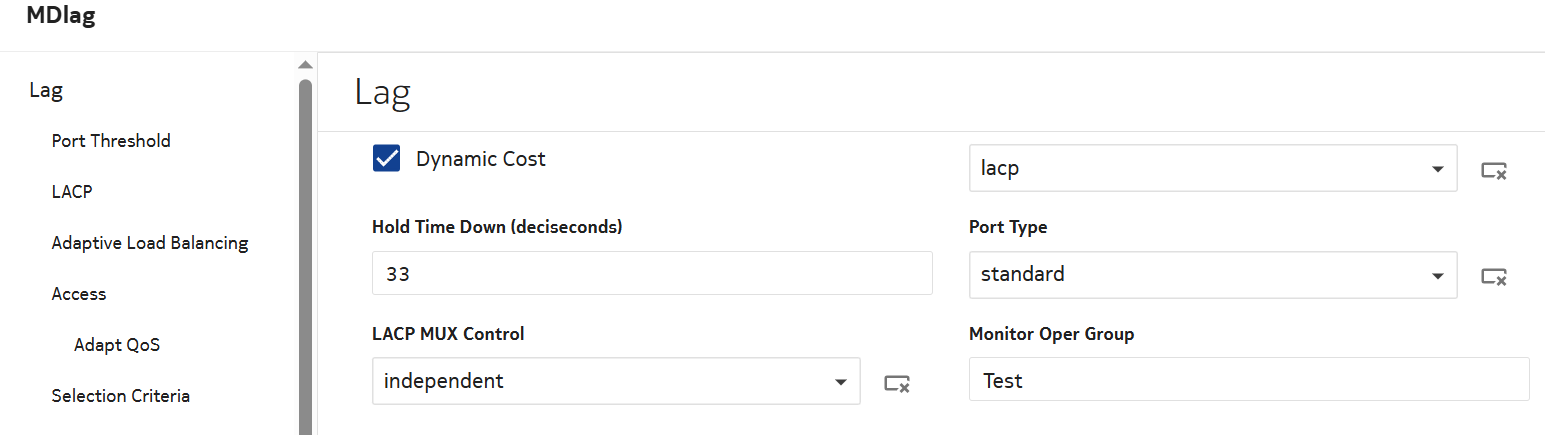

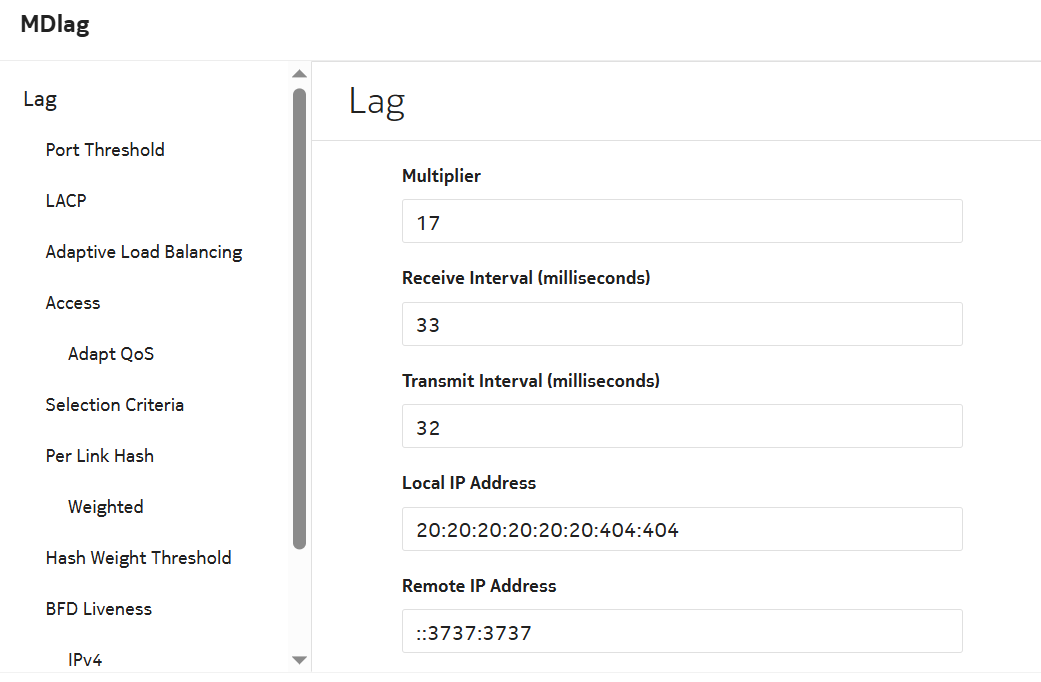

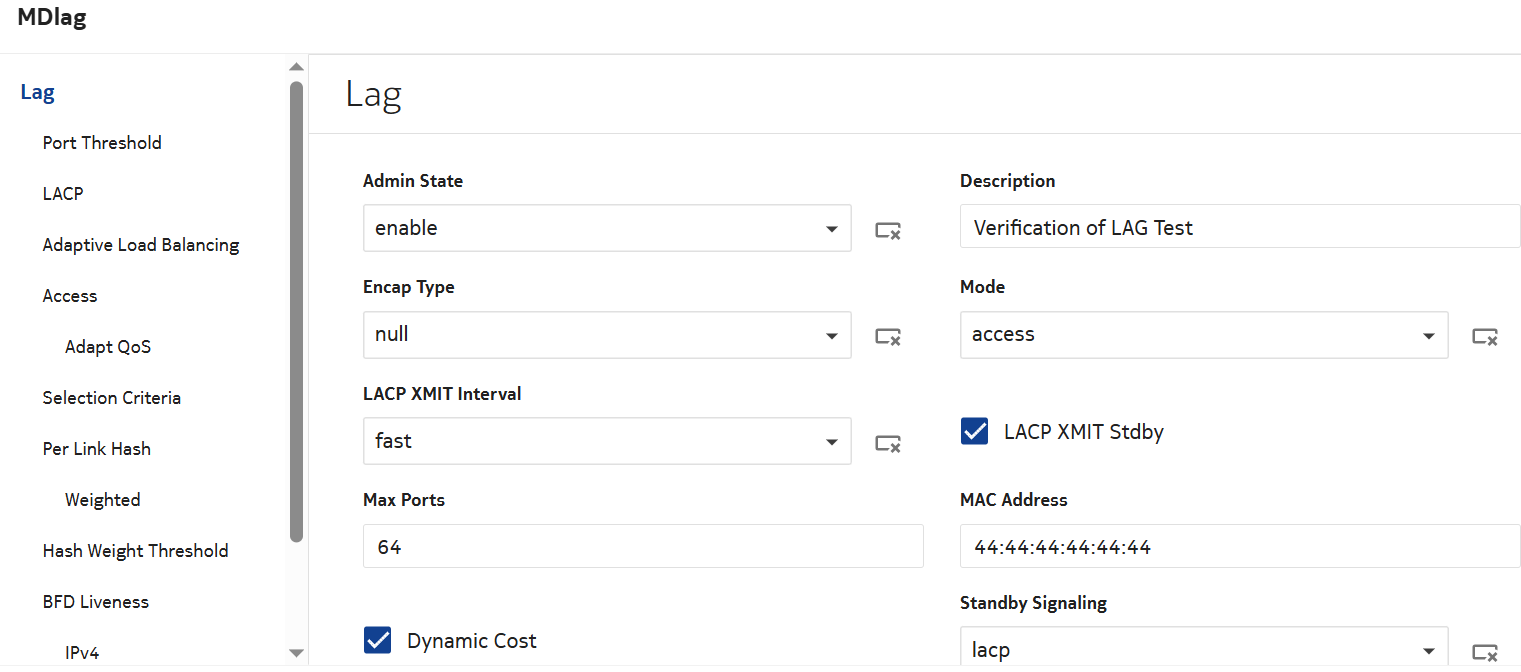

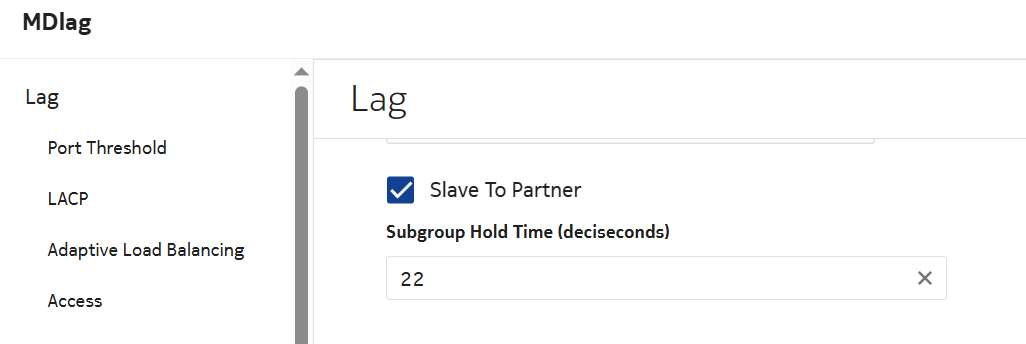

Lag attributes:

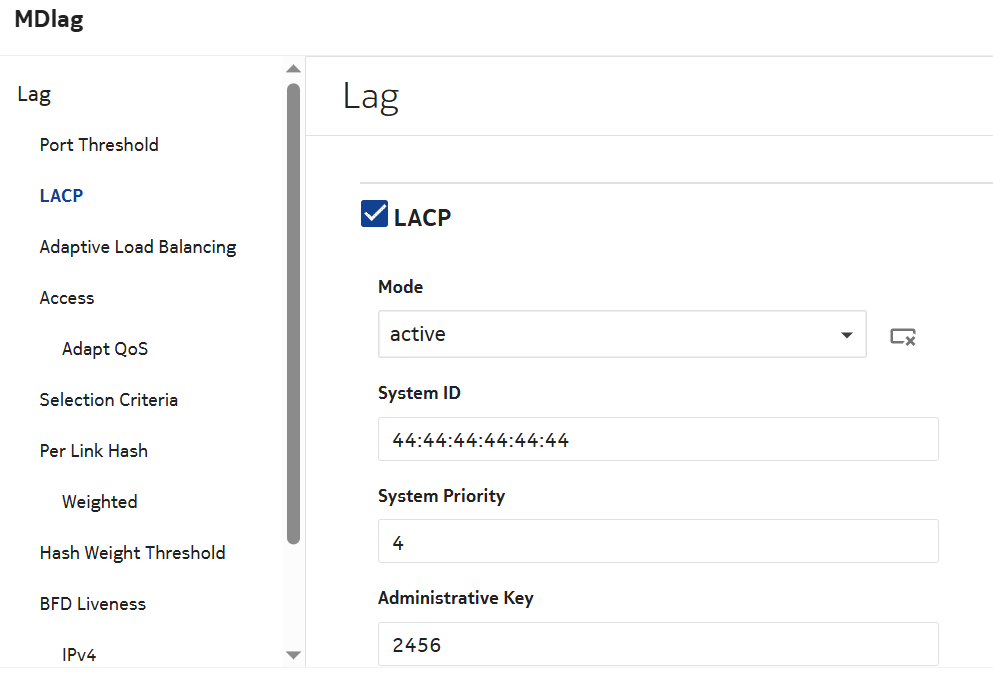

LACP attributes:

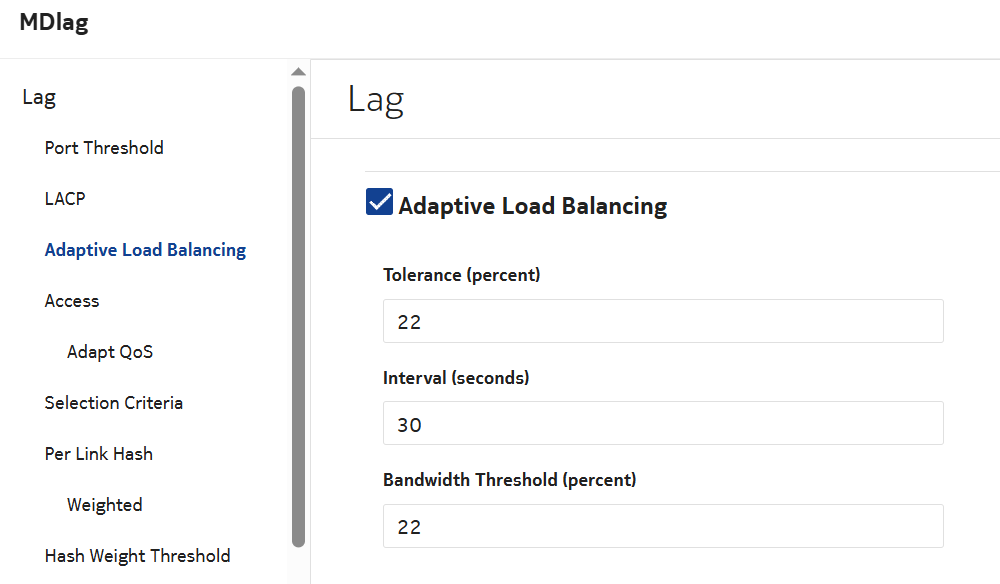

Adaptive Load Balancing attributes:

Access attributes:

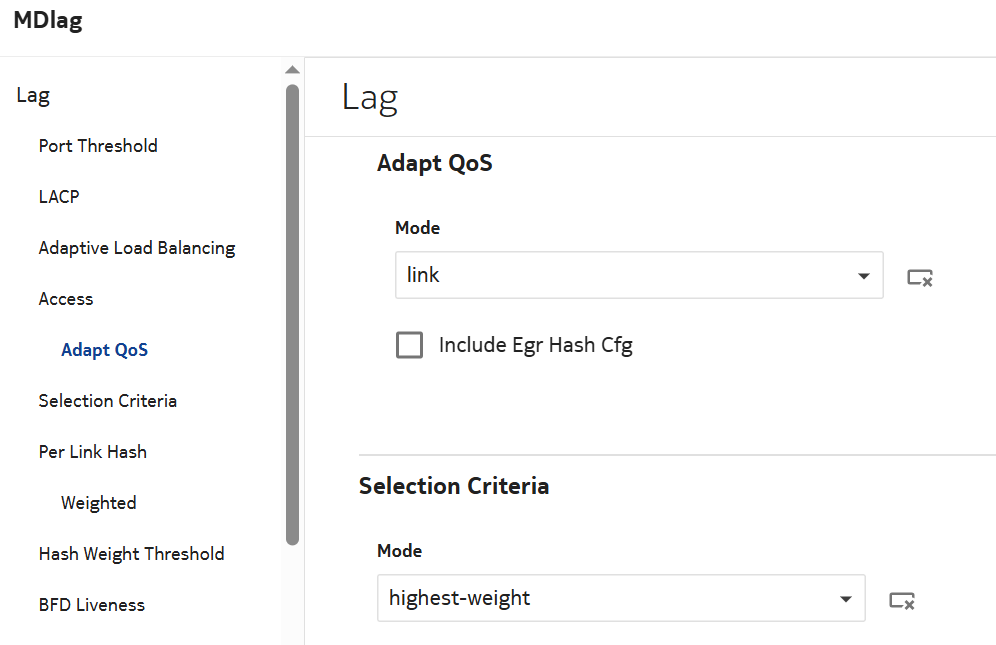

Adapt QoS and Select Criteria attributes:

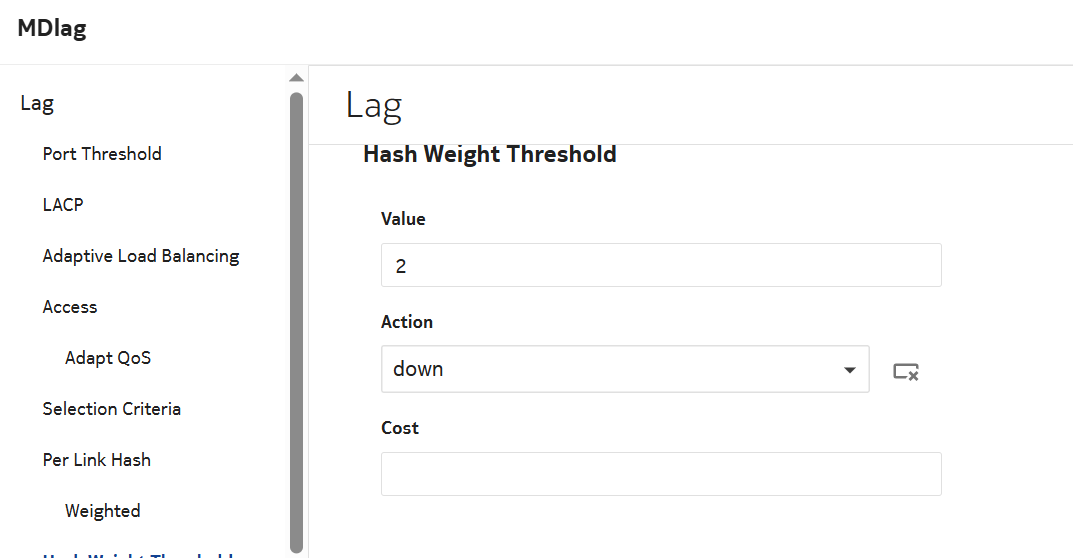

Hash Weight Threshold attributes:

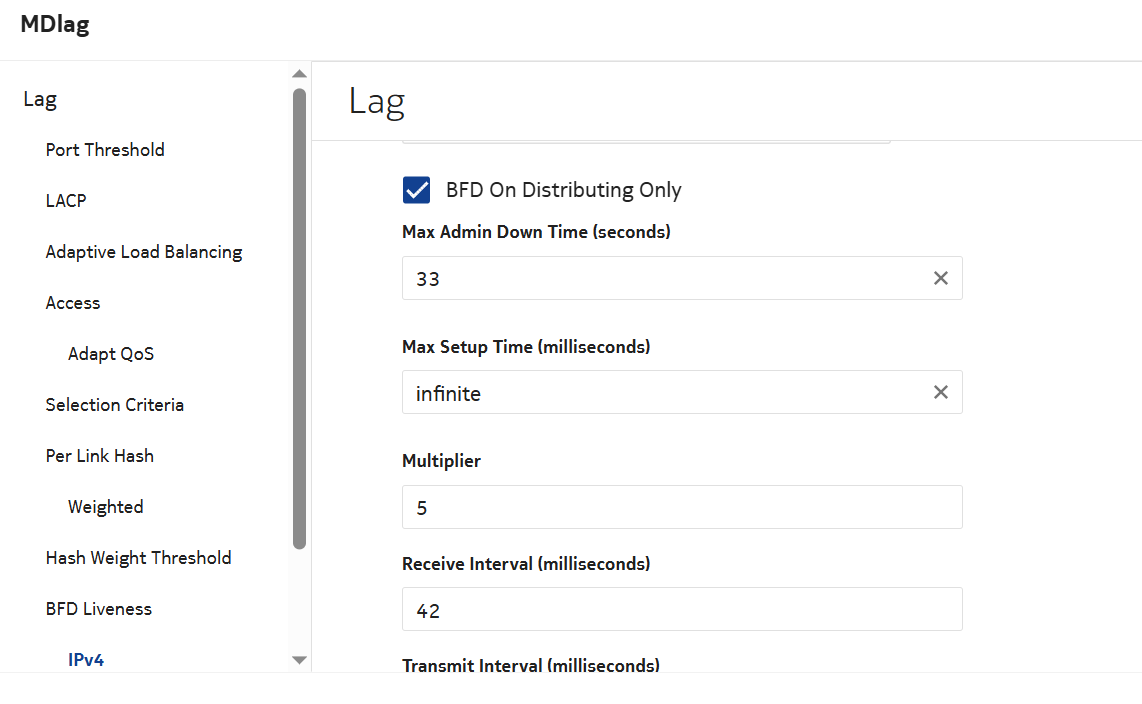

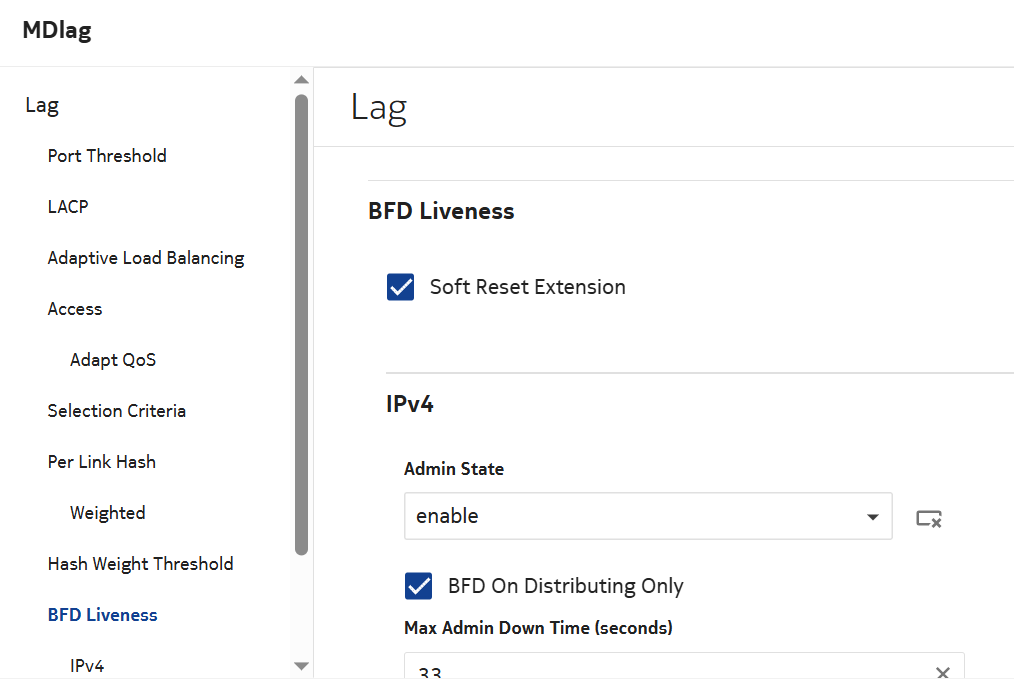

BFD Liveness attributes:

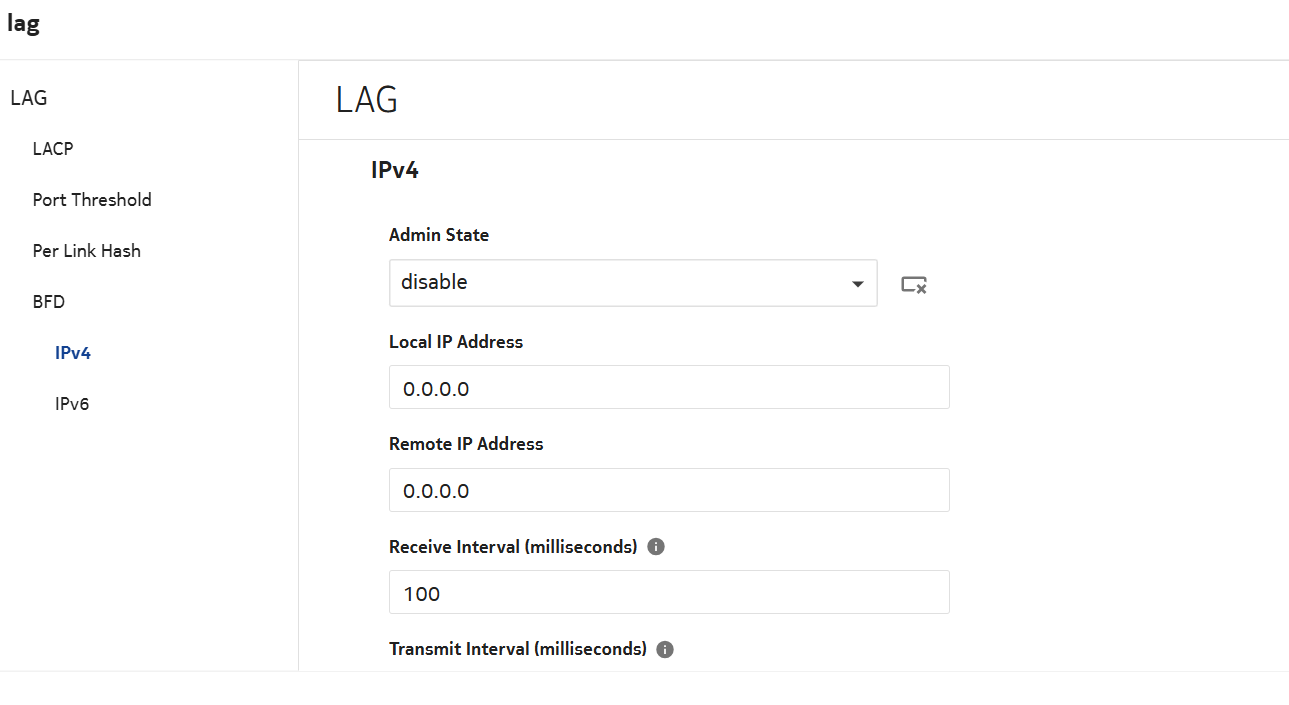

IPv4 attributes:

IPv6 attributes:

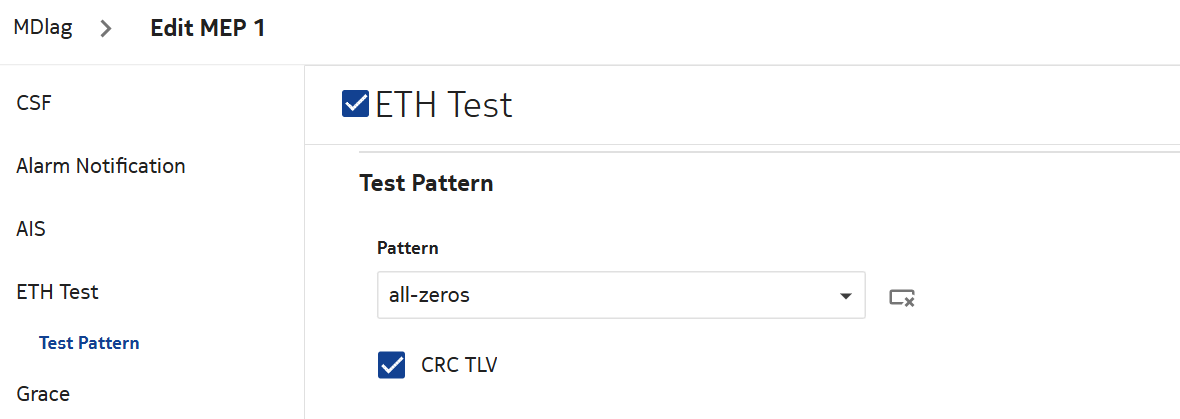

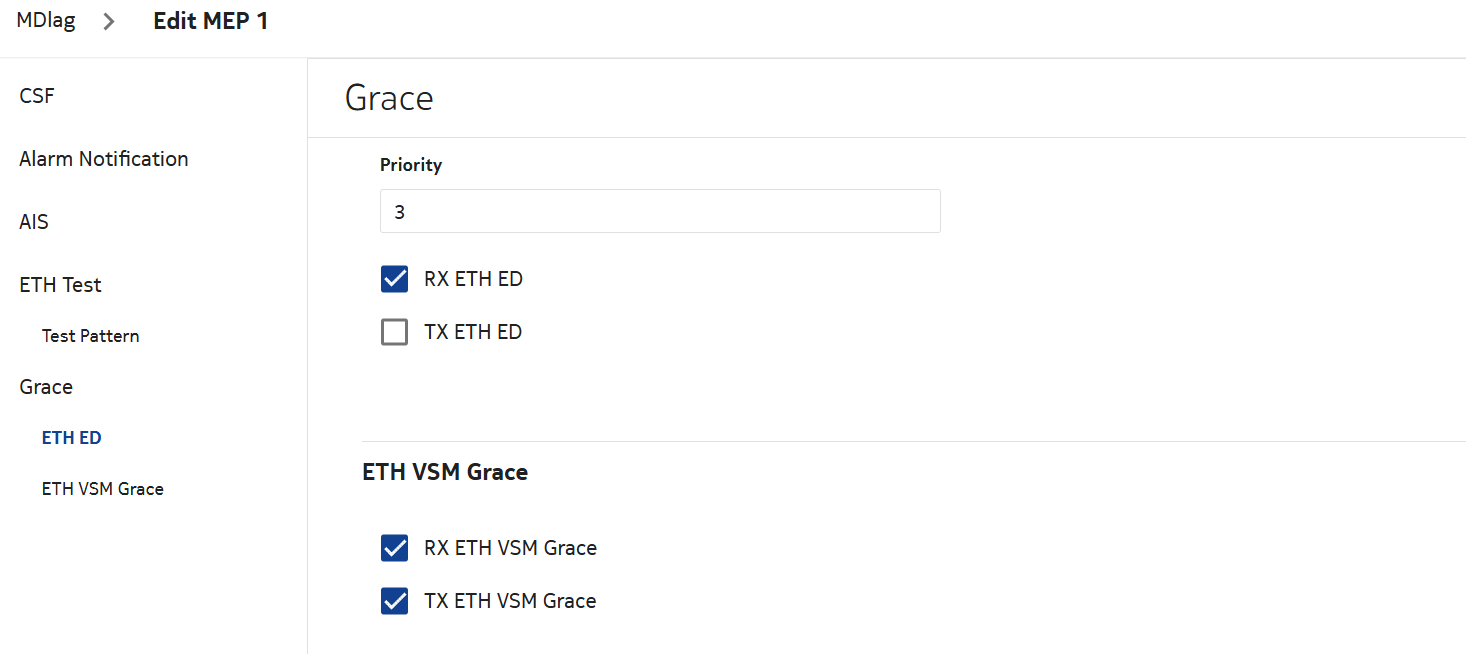

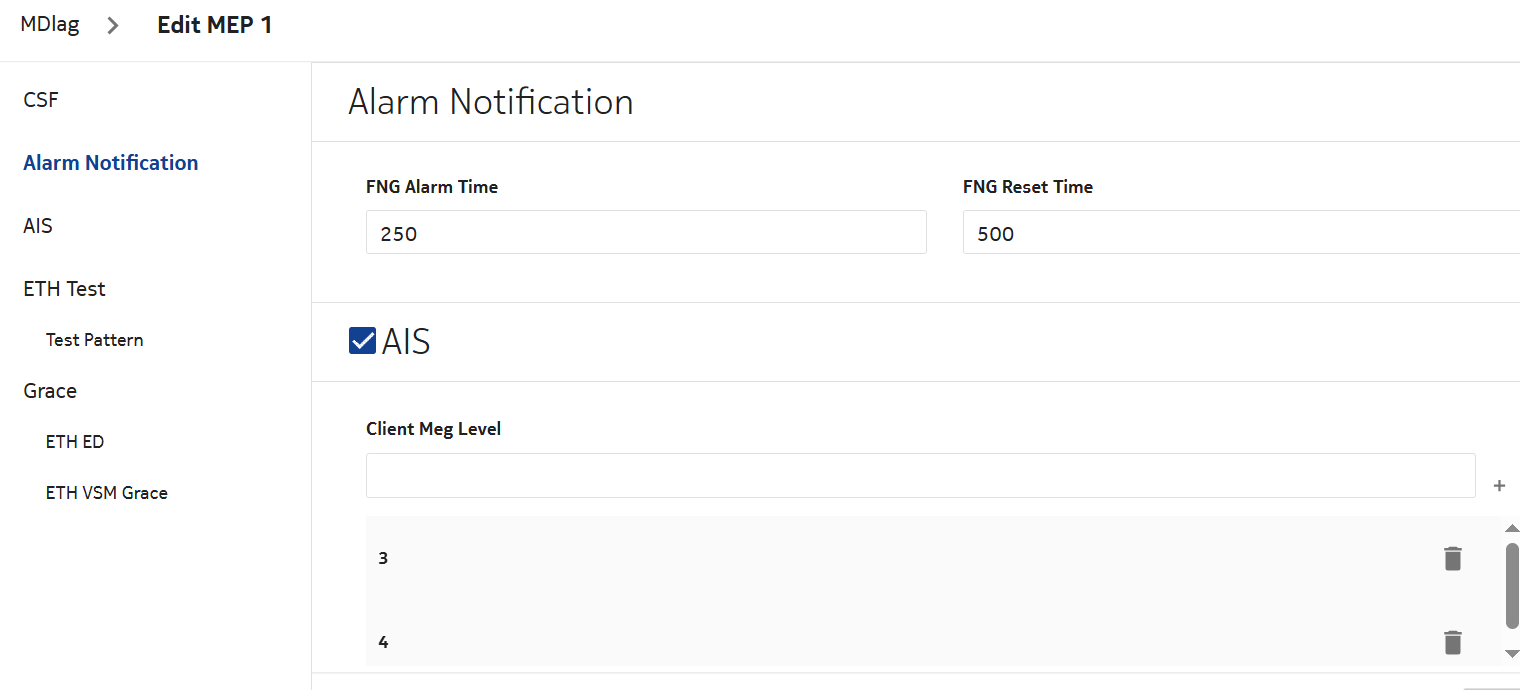

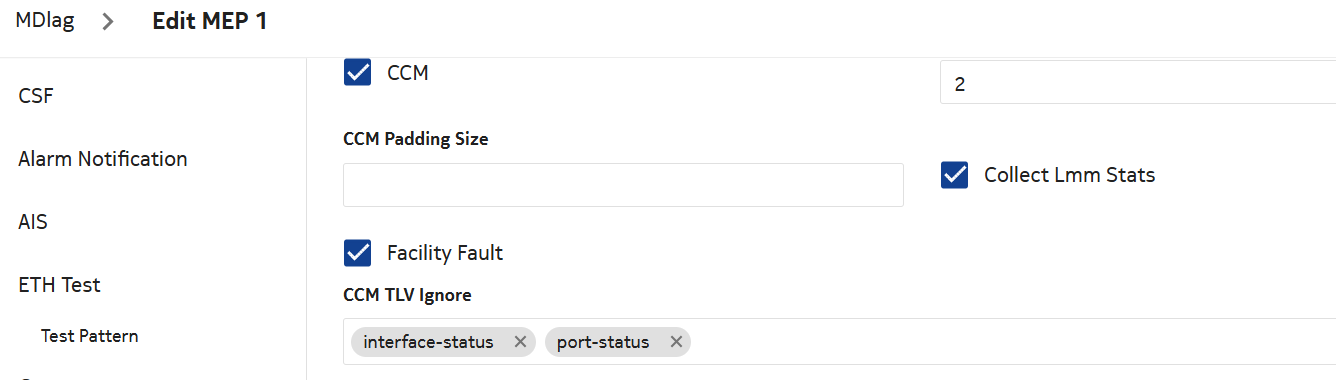

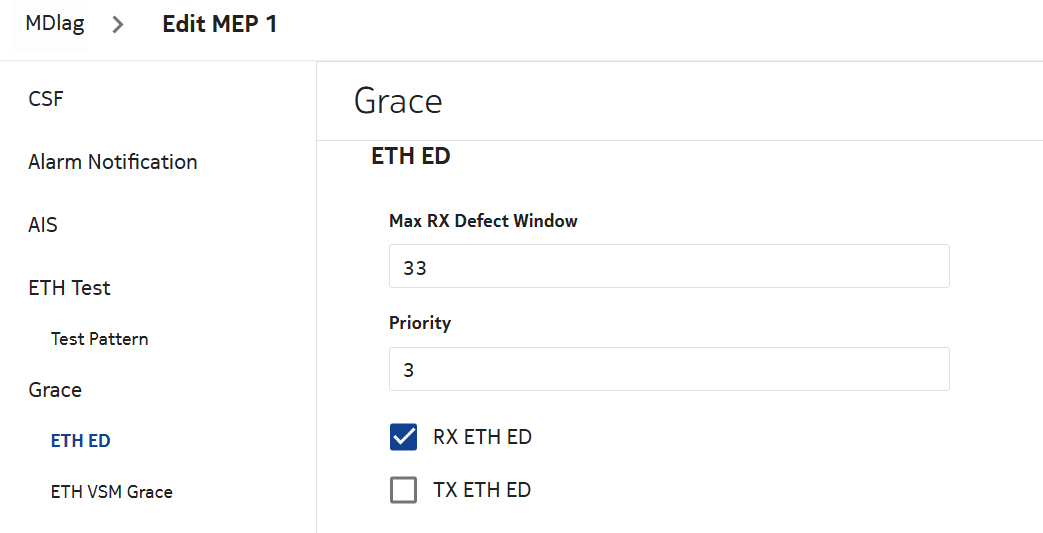

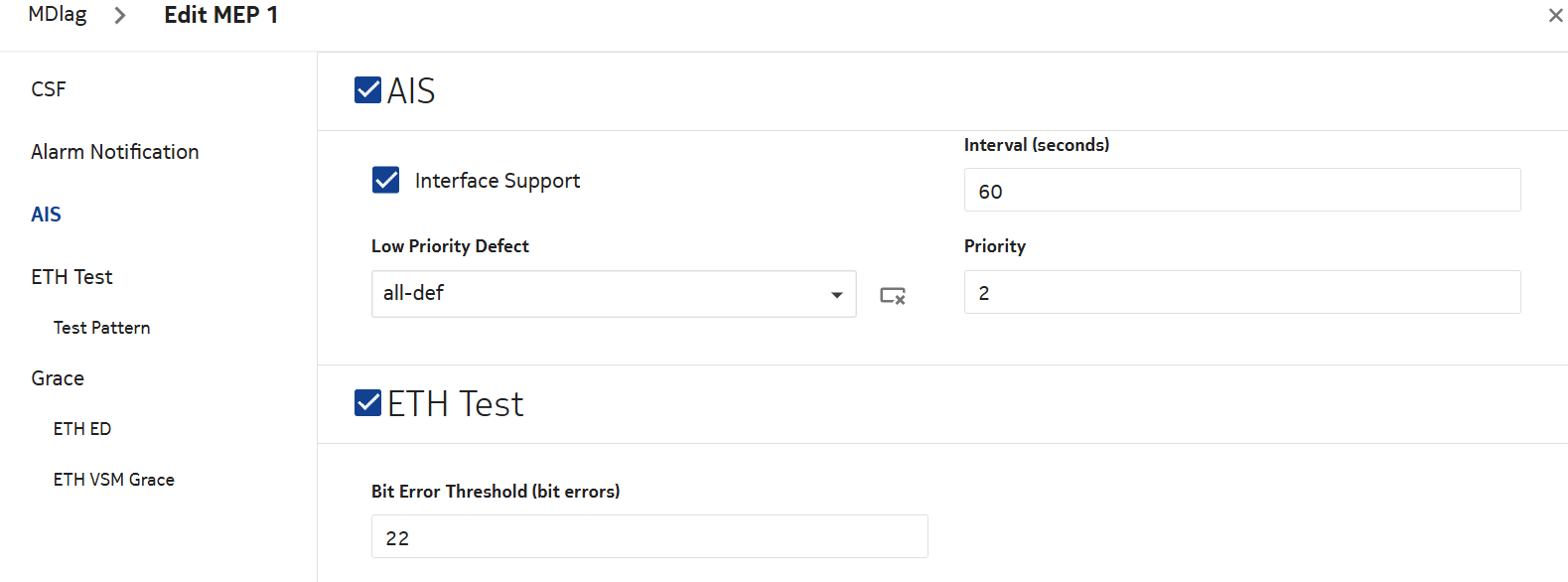

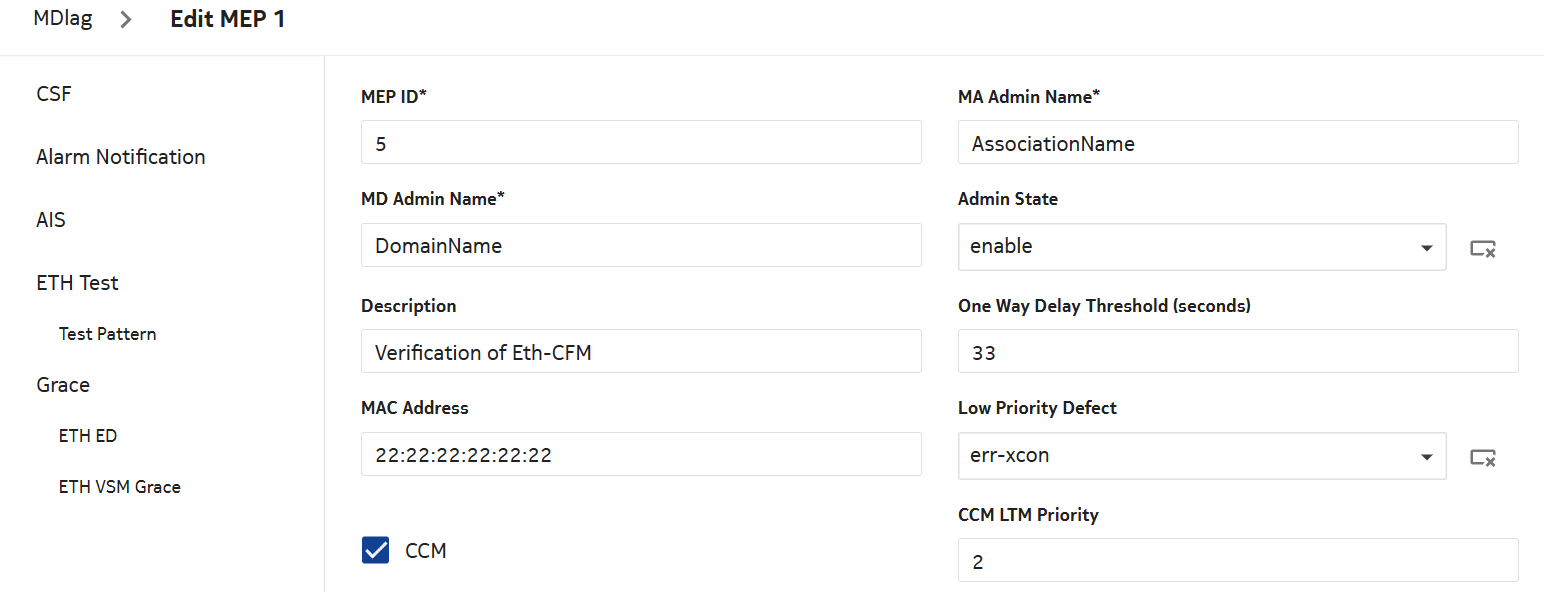

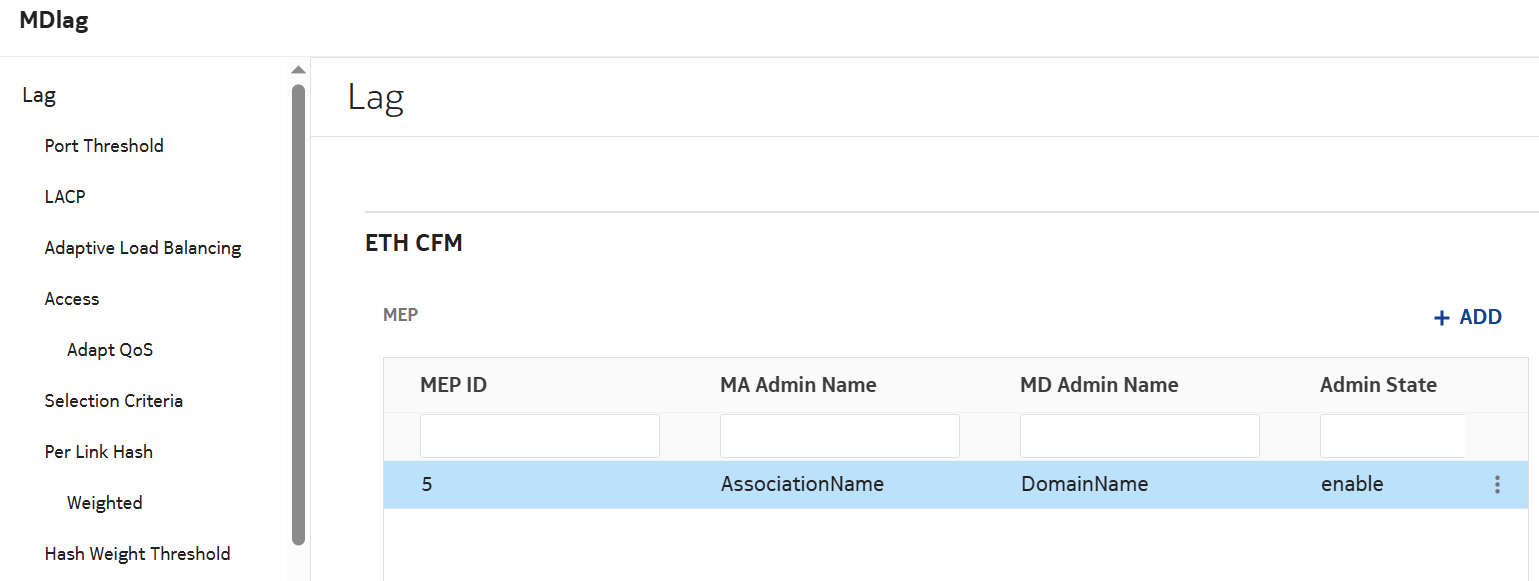

MEP attributes:

5

Click UPDATE.

6

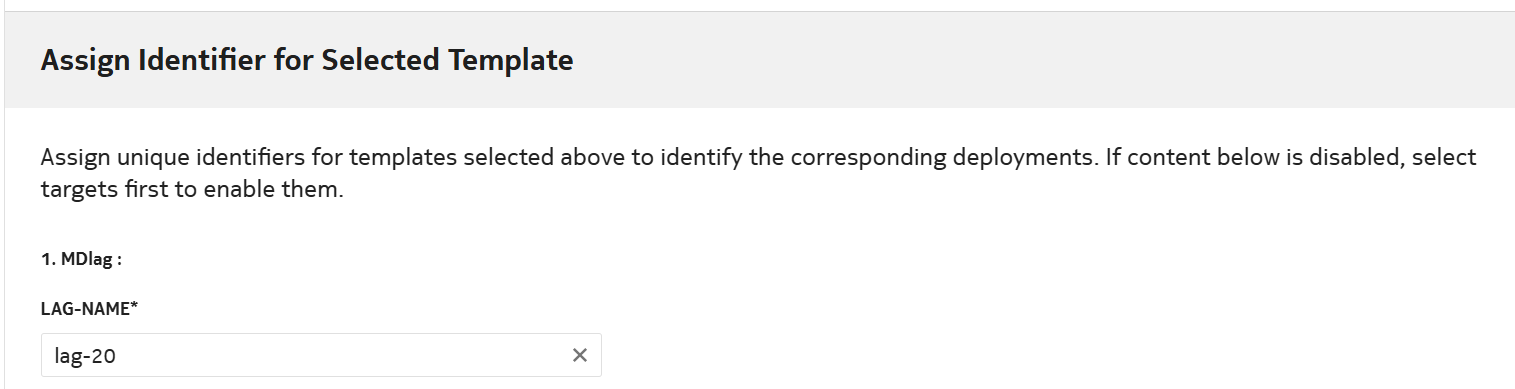

Enter the LAG name.

7

Click DEPLOY.

8

Check that the configuration is Deployed and Aligned.

9

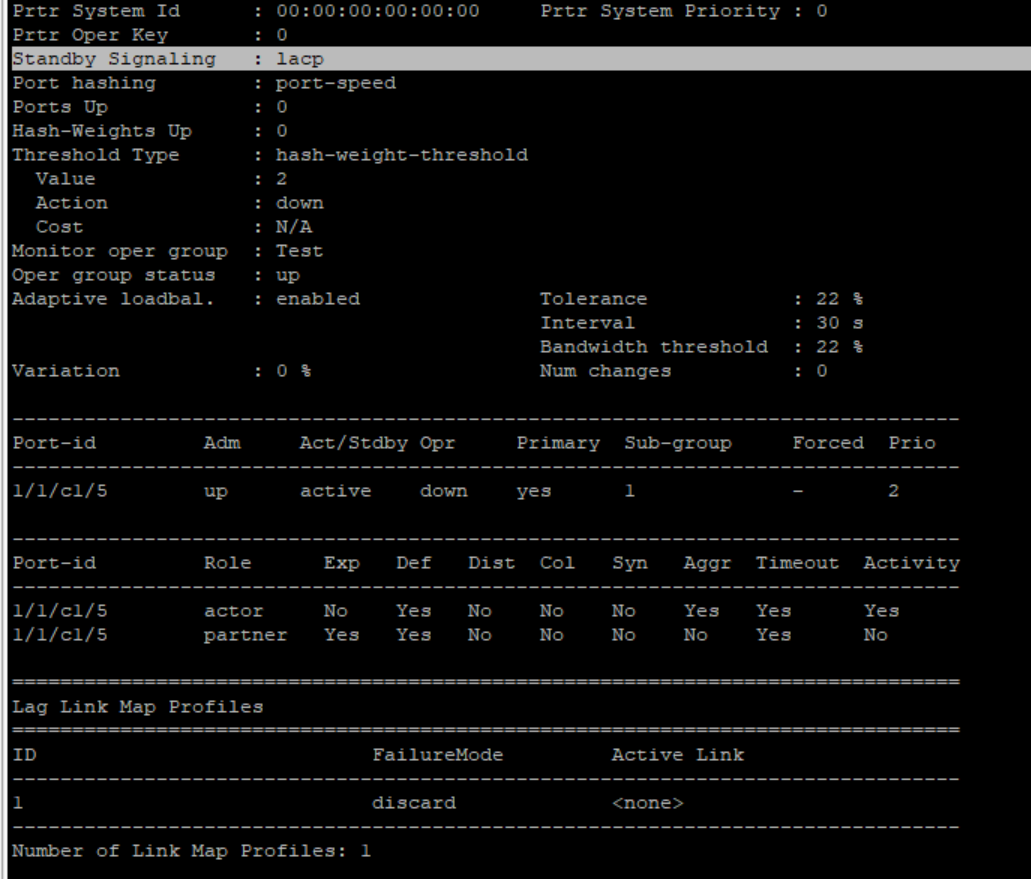

Log into NE and confirm the same.

End of steps
