Service stitching – IES services

Service stitching algorithm for IES services

The following are the service stitching algorithm for IES services with their stitching criteria:

Algorithm	Stitching Criteria
service-name	matching service-name

IES service stitching with service-name algorithm

Services which are to be stitched with service-name algorithm should have same service names on the end sites.

Stitch the IES service created on MD NE using the following API:

POST: (https://{{server}}/restconf/data/nsp-service-intent:stitchservices)

BODY:

{
    "input":{
        "service-type":"ies",
        "algorithm":"service-name",
        "sites":["92.168.98.97","92.168.96.215"]
    }
}

RESPONSE:

{
    "response": {
        "status": 0,
        "startRow": 0,
        "endRow": 0,
        "totalRows": 1,
        "data": "Successfully submitted to Job Manager for Service Stitch processing with Job Name: ies_service-name-1528357814456",
        "errors": null
    }
}

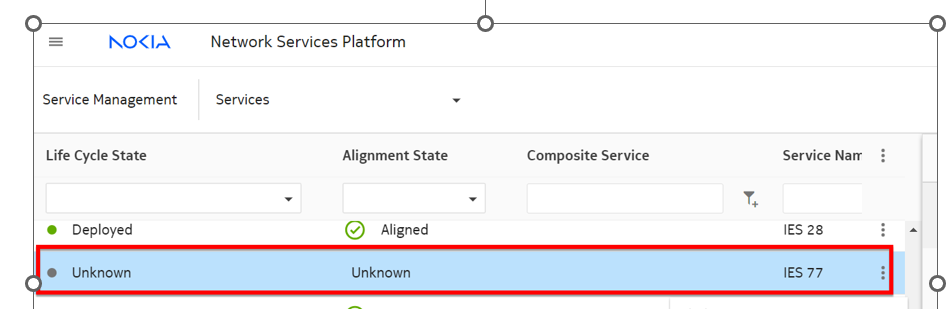

Once the IES service stitching is successful, ensure the service gets listed in the NSP Service Management in 'Unknown' state.

End of steps
