Segment Routing with IS-IS Control Plane
This chapter provides information about Segment Routing (SR) with Intermediate System to Intermediate System (IS-IS) control plane.
Topics in this chapter include:
Applicability
Segment routing is supported in SR OS Release 13.0, and later. This chapter was initially written for SR OS Release 13.0.R3, but the MD-CLI in the current edition corresponds to SR OS Release 25.10.R1.
Overview
Segment Routing (SR) is a technology for IP/Multi-Protocol Label Switching (MPLS) networks that enables source routing. With source routing, operators can specify a forwarding path, from ingress to egress, that is independent of the shortest path determined by the Interior Gateway Protocol (IGP).
The main benefit of segment routing compared to other source routing protocols (such as ReSource reserVation Protocol with Traffic Engineering (RSVP-TE)) is that, from a control plane perspective, no signaling protocol is required. Segment routing provides a path or tunnel, encoded as a sequential list of sub-paths or segments that are advertised within the segment routing domain, using extensions to well-known link state routing protocols, such as IS-IS or Open Shortest Path First (OSPF).
Implementation
A segment routing tunnel can contain a single segment that represents the destination node, or it can contain a list of segments that the tunnel must traverse. The tunnel can be established over an IPv4/IPv6 MPLS or IPv6 data plane, encoded as a stack of MPLS labels or as a number of IPv6 addresses contained in an IPv6 extension header.
Network elements are modeled as segments. For each segment, IGP advertises an identifier referred to as a segment ID (SID).
The two segment types are:
Prefix segment — Globally unique and allocated from a Segment Routing Global Block (SRGB), typically multi-hop and signaled by the IGP. It is the Equal Cost Multi-Path ECMP-aware shortest path IGP route to a related prefix. A typical example of a prefix segment is a node SID. Within the SR OS implementation, the node SID is either the system address or another interface address in the Global Routing Table (GRT) of type loopback. Node SIDs are advertised in IS-IS using a prefix SID sub-TLV (Type Length Value).
Adjacency segment — Locally unique and allocated from the local dynamic label space, so that other routers in the SR domain can use the same label space. Adjacency segments are signaled by the IGP. Within the SR OS implementation, adjacency SIDs are automatically assigned and advertised when the SR context within the IGP instance is enabled. Adjacency SIDs are advertised in IS-IS using an adjacency SID sub-TLV.
To make prefix segments globally unique within the segment routing domain, an indexing mechanism is required, because production networks consist of multiple vendors and multiple products. As a result, it is often difficult to agree on a common SRGB for the prefix SIDs.
All routers within the SR domain are expected to configure and advertise the same Prefix SID index range for an IGP instance. The label value used by each router to represent a prefix can be local to that router by the use of an offset label, referred to as a start label:
Local label (for a prefix) = local start label + {Prefix SID index}
Within the SR OS implementation, prefix Loop-Free Alternate (LFA) is supported for segment routing to improve the Fast ReRoute (FRR) coverage. Remote LFA (RLFA) is also supported. With RLFA, segment routing shortest path tunnels are used as a virtual LFA or repair tunnel toward the PQ node. RLFA is described in Remote Loop-Free Alternate Node Protection. Topology-independent LFA (TI-LFA) is also supported and is described in Topology-Independent Loop-Free Alternate for Link Protection.
Configuration
The following example uses IS-IS as an IGP protocol, with an MPLS data plane and services enabled using LFA and RLFA. Example topology shows the example topology with seven PEs.
Initial configuration

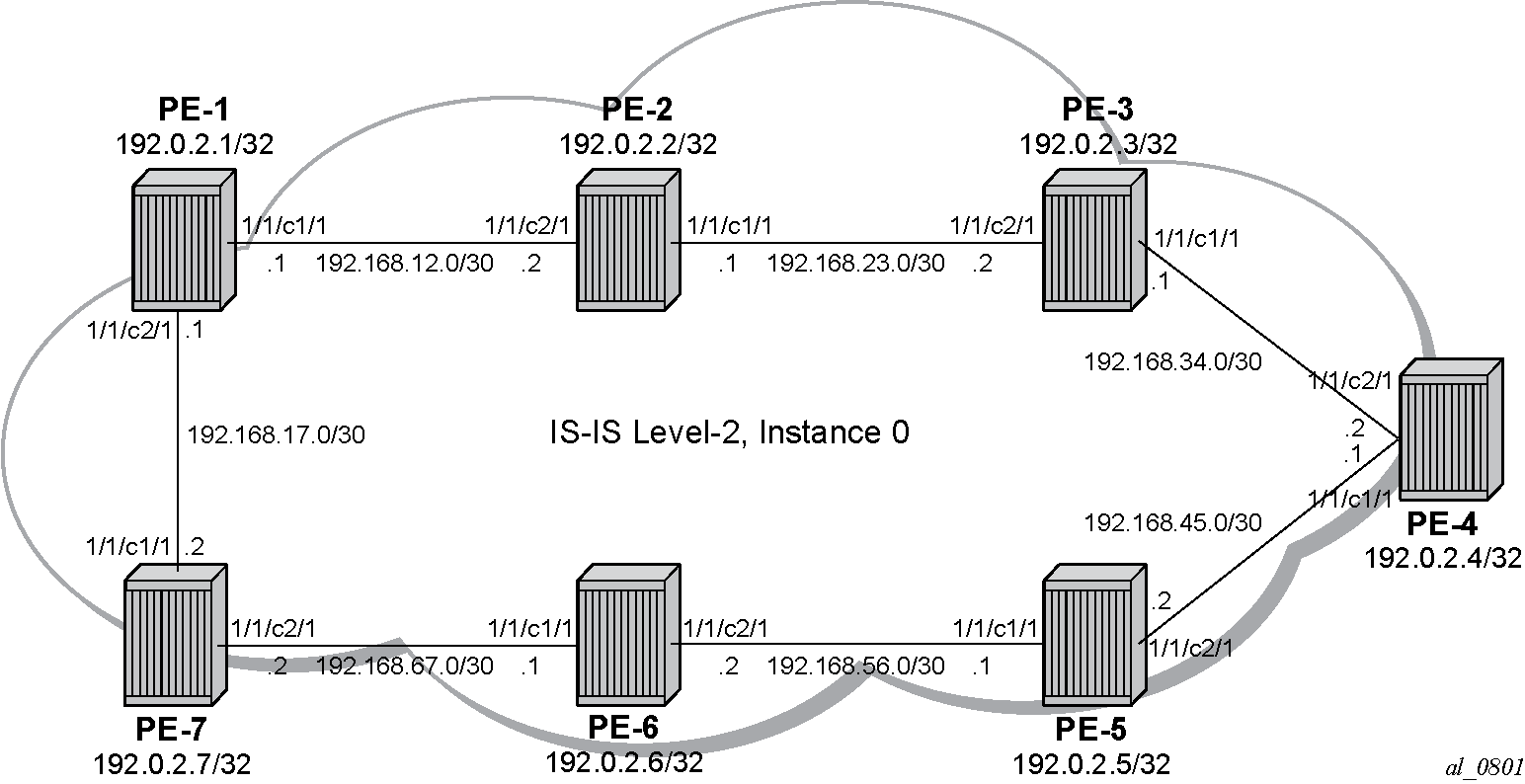

The system and IP interface addresses are configured according to Example topology.
IS-IS level 2 is selected as the IGP to distribute routing information between all PEs. All IS-IS interfaces are of type point-to-point to avoid running the Designated Router/Backup Designated Router (DR/BDR) election process.
Segment routing configuration
Before enabling segment routing on a router, define a dedicated SRGB. This SRGB is required on each individual router part of the SR domain and is used to allocate the Prefix SIDs.
By default, an SRGB is not instantiated and, when configured by the operator, it is taken from the system dynamic label range. By default, the following label ranges are available:
[/]
A:admin@PE-1# show router mpls-labels label-range
===============================================================================
Label Ranges
===============================================================================
Label Type Start Label End Label Aging Available Total
-------------------------------------------------------------------------------
Static 32 18431 - 18400 18400
Dynamic 18432 524287 0 505856 505856
Seg-Route 0 0 - 0 0
===============================================================================
For simplicity, the same SRGB is used in this example for all SR domain routers. Within the command, a start value and end value define the size of the SRGB. The following command configures an SRGB of 10000 MPLS labels, from label 20000 to label 29999:
# on PE-1, PE-2, PE-3, PE-4, PE-5, PE-6, PE-7:
configure {
router "Base" {
mpls-labels {
sr-labels {
start 20000
end 29999
}
}
[/]
A:admin@PE-1# show router mpls-labels label-range
===============================================================================
Label Ranges
===============================================================================
Label Type Start Label End Label Aging Available Total
-------------------------------------------------------------------------------
Static 32 18431 - 18400 18400
Dynamic 18432 524287 0 505756 505856
Seg-Route 20000 29999 - 0 10000
===============================================================================
This command is repeated for all other nodes. The allocated MPLS labels are only for the prefix SIDs. The adjacency SIDs, which are only locally unique, are taken from the dynamic range; in this example, between 18432 and 524287.
The following steps are taken to configure segment routing:
Enable router capability in IGP instance
It is mandatory to enable the router-capability parameter inside the IS-IS instance, to advertise SR support among the IS-IS adjacencies. By configuring this command within the IGP instance, the SR capability sub-TLV is propagated and is used to indicate the index range and the start label. The SR algorithm sub-TLV is also used to advertise the algorithm used for path calculations. Only Shortest Path First (SPF) (value 0) is defined. This is configured as follows:
# on PE-1, PE-2, PE-3, PE-4, PE-5, PE-6, PE-7:
configure {
router "Base" {
isis 0 {
advertise-router-capability area
The flooding parameter is a mandatory parameter in this CLI command. The keyword area or as indicates that the router capabilities label switched path (LSP) should be advertised throughout the same level or throughout the whole Autonomous System (AS). In the preceding example, all routers belong to the same level, so the area argument is sufficient. When the SR context within the IGP instance is enabled, both IS-IS sub-TLVs are flooded.
Define prefix SID index range
The SR OS implementation for SR provides two mutually exclusive modes of operation to define the Prefix SID index range: global mode and per-instance mode. Per-instance mode is useful in a seamless MPLS environment when multiple IGP instances are used. The main difference between the modes is the way that the start label and index range are calculated.
Mode comparison compares global mode and per-instance mode:
|
Global mode |
Per-instance mode |
|---|---|
|
Applicable for all IGP instances on that node |
Applicable for one dedicated IGP instance |
|
Start label is first label of SRGB |
Start label is configurable (but part of SRGB range); use of non-overlapping sub-ranges of SRGB |
|
Prefix SID index range is ‟size” of SRGB |
Prefix SID index-range is configurable |
|
If SRGB needs to change, disable SR and delete prefix-SID-ranges in all IGP instances |
If prefix SID index and/or label range needs to change, disable SR in that specific IGP instance |
|
SW checks whether any allocated SID index/label goes out of range. SW checks also for overlaps of the resulting net label value range across IGP instances. |
|
For simplicity, global mode is used for this example, as follows:
# on PE-1, PE-2, PE-3, PE-4, PE-5, PE-6, PE-7:
configure {
router "Base" {
isis 0 {
segment-routing {
prefix-sid-range {
global
}
Configure node SID
To be able to set up SR shortest path tunnels to all routers of the SR domain, each router needs to be uniquely defined within the SR domain. Therefore, the system address or other loopback interface in the GRT is assigned a node SID.
Both an IPv4 and an IPv6 node SID can be configured using an index or a label. The node SID for a node has a label equal to the sum of the start label (20000), which is the first label of the SRGB on all nodes, and the index on the node.
It is possible to configure IS-IS node SIDs, protocol-independent node SIDs, or both:
IS-IS prefix SIDs
IS-IS prefix SIDs are configured on the system interface in the IS-IS context. The following IS-IS IPv4 node SIDs are applicable for IS-IS instance 0 and cannot be shared with other IGPs. In this example, an IS-IS IPv4 node SID is configured using an index on all PEs except PE-7, as follows:
# on PE-1:
configure {
router "Base" {
isis 0 {
interface "system" {
ipv4-node-sid {
index 1 # on PE-2: index 2, on PE-3: index 3, ...
Because the SRGB is the same on all nodes, each node in the network can be reached using the same MPLS label in the range from 20000 to 29999. For example, the node SID for PE-1 on all nodes is 20001 (= start label 20000 + index 1).
When there is one consistent SRGB for the SR domain, the SR OS allows the use of absolute MPLS label values instead of index values. For example, on PE-1, an operator can use an explicit MPLS label value, as follows:
# on PE-1:
configure {
router "Base" {
isis 0 {
interface "system" {
ipv4-node-sid {
label 20001
Internally, this explicit value is translated into an index value (index-value 1) before advertising it toward its neighbors, taking into account the prefix SID index-range mode (global or per-instance) and the SRGB.
Protocol-independent prefix SIDs
In this example, the configuration on PE-7 does not include an IS-IS prefix SID; the node SID is protocol-independent instead. This node SID can be used in multiple IGP instances.
Protocol-independent prefix SIDs are configured in the configure router segment-routing sr-mpls context, as follows:
# on PE-7:
configure {
router "Base" {
segment-routing {
sr-mpls {
prefix-sids "system"
node-sid true
ipv4-sid {
index 4007 # protocol-independent SID shared by IGPs
}
With one consistent SRGB for the SR domain, absolute values can be configured instead, as follows:
# on PE-1:
configure {
router "Base" {
segment-routing {
sr-mpls {
prefix-sids "system"
node-sid true
ipv4-sid {
label 24007 # protocol-independent SID shared by IGPs
}
When both an IS-IS node SID and a protocol-independent node SID are configured on the same node, the IS-IS node SID is advertised by IS-IS, not the protocol-independent node SID.
Enable segment routing
Enable SR context within the IGP instance, as follows:
# on PE-1, PE-2, PE-3, PE-4, PE-5, PE-6, PE-7:
configure {
router "Base" {
isis 0 {
segment-routing {
admin-state enable
Verification
After enabling the SR context within an IGP instance, the SR capability sub-TLV, and the SR algorithm sub-TLV between all routers within the SR domain, are flooded. The following show command displays the SR related router capability information on PE-1:
[/]
A:admin@PE-1# show router isis capabilities level 2
===============================================================================
Rtr Base ISIS Instance 0 Capabilities
===============================================================================
Displaying Level 2 capabilities
-------------------------------------------------------------------------------
LSP ID : PE-1.00-00
Router Cap : 192.0.2.1, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
LSP ID : PE-2.00-00
Router Cap : 192.0.2.2, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
LSP ID : PE-3.00-00
Router Cap : 192.0.2.3, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
LSP ID : PE-4.00-00
Router Cap : 192.0.2.4, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
LSP ID : PE-5.00-00
Router Cap : 192.0.2.5, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
LSP ID : PE-6.00-00
Router Cap : 192.0.2.6, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
LSP ID : PE-7.00-00
Router Cap : 192.0.2.7, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
Level (2) Capability Count : 7
===============================================================================
A similar output occurs for each router in the SR domain.
After enabling the SR context within the IGP instance, the assigned index for each locally configured prefix SID is advertised. After the advertisement of prefix SIDs, MPLS data plane Ingress Label Mapping (ILM) is programmed with a pop operation. In this context, a show command can be used to display the prefix SIDs, in order, within the SR domain, for example, on PE-1:
[/]
A:admin@PE-1# show router isis prefix-sids
===============================================================================
Rtr Base ISIS Instance 0 Prefix/SID Table
===============================================================================
Prefix SID Lvl/Typ SRMS AdvRtr
Shared MT Flags
-------------------------------------------------------------------------------
192.0.2.1/32 1 2/Int. N PE-1
No 0 NnP
192.0.2.2/32 2 2/Int. N PE-2
N.A. 0 NnP
192.0.2.3/32 3 2/Int. N PE-3
N.A. 0 NnP
192.0.2.4/32 4 2/Int. N PE-4
N.A. 0 NnP
192.0.2.5/32 5 2/Int. N PE-5
N.A. 0 NnP
192.0.2.6/32 6 2/Int. N PE-6
N.A. 0 NnP
192.0.2.7/32 4007 2/Int. N PE-7
N.A. 0 NnP
-------------------------------------------------------------------------------
No. of Prefix/SIDs: 7 (7 unique)
-------------------------------------------------------------------------------
SRMS: Y/N = prefix SID advertised by SR Mapping Server (Y) or not (N)
S = SRMS prefix SID is selected to be programmed
Flags: R = Re-advertisement
N = Node-SID
nP = no penultimate hop POP
E = Explicit-Null
V = Prefix-SID carries a value
L = value/index has local significance
Shared: Yes = local shared Node-SID
No = not a local shared Node-SID
N.A. = not applicable for Remote prefix-sid
===============================================================================
By default, the SR OS implementation sets the node SID (or N–flag) and no Penultimate hop PoP (or nP–flag) inside the prefix SID TLV. Another useful flag that can be set is the re-advertisement (or R-flag). The R-flag is set when a prefix SID is propagated between levels or areas, or redistribution is in place (from another protocol).
De node SID of PE-1 is 20001 is an IS-IS node SID, so it is not shared with other IGPs; only the node SID of PE-7 is a protocol-independent node SID that can be shared with other IGPs, but that is only applicable on PE-7 itself, as follows:
[/]
A:admin@PE-7# show router isis prefix-sids
===============================================================================
Rtr Base ISIS Instance 0 Prefix/SID Table
===============================================================================
Prefix SID Lvl/Typ SRMS AdvRtr
Shared MT Flags
-------------------------------------------------------------------------------
192.0.2.1/32 1 2/Int. N PE-1
N.A. 0 NnP
192.0.2.2/32 2 2/Int. N PE-2
N.A. 0 NnP
192.0.2.3/32 3 2/Int. N PE-3
N.A. 0 NnP
192.0.2.4/32 4 2/Int. N PE-4
N.A. 0 NnP
192.0.2.5/32 5 2/Int. N PE-5
N.A. 0 NnP
192.0.2.6/32 6 2/Int. N PE-6
N.A. 0 NnP
192.0.2.7/32 4007 2/Int. N PE-7
Yes 0 NnP
-------------------------------------------------------------------------------
No. of Prefix/SIDs: 7 (7 unique)
-------------------------------------------------------------------------------
SRMS: Y/N = prefix SID advertised by SR Mapping Server (Y) or not (N)
S = SRMS prefix SID is selected to be programmed
Flags: R = Re-advertisement
N = Node-SID
nP = no penultimate hop POP
E = Explicit-Null
V = Prefix-SID carries a value
L = value/index has local significance
Shared: Yes = local shared Node-SID
No = not a local shared Node-SID
N.A. = not applicable for Remote prefix-sid
===============================================================================Prefix SID information can also be viewed within the IGP database attached to (extended) IP prefix reachability TLVs. For example, on PE-1, as follows:
[[/]
A:admin@PE-1# show router isis database PE-1.00-00 detail level 2
===============================================================================
Rtr Base ISIS Instance 0 Database (detail)
===============================================================================
Displaying Level 2 database
-------------------------------------------------------------------------------
LSP ID : PE-1.00-00 Level : L2
Sequence : 0x6 Checksum : 0xf93a Lifetime : 1106
Version : 1 Pkt Type : 20 Pkt Ver : 1
Attributes: L1L2 Max Area : 3 Alloc Len : 1492
SYS ID : 1920.0000.2001 SysID Len : 6 Used Len : 254
TLVs :
Supp Protocols:
Protocols : IPv4
IS-Hostname : PE-1
Router ID :
Router ID : 192.0.2.1
Router Cap : 192.0.2.1, D:0, S:0
TE Node Cap : B E M P
SR Cap: IPv4 MPLS-IPv6
SRGB Base:20000, Range:10000
SR Alg: metric based SPF
Node MSD Cap: BMI : 12 ERLD : 15
---snip---
Internal Reach:
---snip---
Default Metric: (I) 0
Delay Metric : (I) 0
Expense Metric: (I) 0
Error Metric : (I) 0
IP Address : 192.0.2.1
IP Mask : 255.255.255.255
I/F Addresses :
I/F Address : 192.0.2.1
---snip---
TE IP Reach :
---snip---
Default Metric : 0
Control Info: S, prefLen 32
Prefix : 192.0.2.1
Sub TLV :
Prefix-SID Index:1, Algo:0, Flags:NnP
Level (2) LSP Count : 1
-------------------------------------------------------------------------------
---snip---
Prefix-SID Flags : R = Re-advertisement Flag
N = Node-SID Flag
nP = no penultimate hop POP
E = Explicit-Null Flag
V = Prefix-SID carries a value
L = value/index has local significance
---snip---
===============================================================================
After enabling the SR context within the IGP instance, adjacency SIDs are also automatically assigned and advertised for each formed adjacency over an IP interface. From a data plane perspective, one local adjacency SID consumes one ILM entry, programming a pop operation.
Similar to prefix SIDs, adjacency SID information can be viewed within the IGP database attached to IS neighbor TLVs, as follows:
[/]
A:admin@PE-1# show router isis database PE-1.00-00 detail level 2 | match Adj pre-lines 6 post-lines 1
TE IS Nbrs :
Nbr : PE-2.00
Default Metric : 10
Sub TLV Len : 19
IF Addr : 192.168.12.1
Nbr IP : 192.168.12.2
Adj-SID: Flags:v4VL Weight:0 Label:524287
TE IS Nbrs :
Nbr : PE-7.00
Default Metric : 10
Sub TLV Len : 19
IF Addr : 192.168.17.1
Nbr IP : 192.168.17.2
Adj-SID: Flags:v4VL Weight:0 Label:524286
TE IP Reach :
---snip---
Adj-SID Flags : v4/v6 = IPv4 or IPv6 Address-Family
B = Backup Flag
V = Adj-SID carries a value
L = value/index has local significance
S = Set of Adjacencies
P = Persistently allocated
---snip---
By default, the SR OS implementation sets the value (V-flag), meaning that the adjacency SID carries a value (as opposed to an index). Also, the local L-flag is set by default, meaning that the adjacency SID has only local significance. The v4-flag set to 0 means that the adjacency SID references to an adjacency with outgoing IPv4 encapsulation.
Another way to display adjacency SID information is using the show router isis adjacency detail command.
[/]
A:admin@PE-1# show router isis adjacency "int-PE-1-PE-2" detail
===============================================================================
Rtr Base ISIS Instance 0 Adjacency (detail)
===============================================================================
Hostname : PE-2
SystemID : 1920.0000.2002 SNPA : 02:0e:01:01:00:0b
Interface : int-PE-1-PE-2 Up Time : 0d 00:05:31
State : Up Priority : 0
Nbr Sys Typ : L2 L. Circ Typ : L2
Hold Time : 27 Max Hold : 27
Adj Level : L2 MT Enabled : No
Topology : Unicast
IPv6 Neighbor : ::
IPv4 Neighbor : 192.168.12.2
IPv4 Adj SID : Label 524287
IPv4 SID Protect : No
Restart Support : Disabled
Restart Status : Not currently being helped
Restart Supressed : Disabled
Number of Restarts : 0
Last Restart at : Never
===============================================================================
[/]
A:admin@PE-1# show router isis adjacency "int-PE-1-PE-7" detail
===============================================================================
Rtr Base ISIS Instance 0 Adjacency (detail)
===============================================================================
Hostname : PE-7
SystemID : 1920.0000.2007 SNPA : 02:24:01:01:00:01
Interface : int-PE-1-PE-7 Up Time : 0d 00:04:55
State : Up Priority : 0
Nbr Sys Typ : L2 L. Circ Typ : L2
Hold Time : 27 Max Hold : 27
Adj Level : L2 MT Enabled : No
Topology : Unicast
IPv6 Neighbor : ::
IPv4 Neighbor : 192.168.17.2
IPv4 Adj SID : Label 524286
IPv4 SID Protect : No
Restart Support : Disabled
Restart Status : Not currently being helped
Restart Supressed : Disabled
Number of Restarts : 0
Last Restart at : Never
===============================================================================
Finally, when enabling the SR context within the IGP instance, the SR module resolves received prefixes with prefix SID sub-TLVs present. As a result, MPLS data plane resources are consumed. The ILM is programmed with a swap operation and the label-to-next-hop-label-forwarding-entry (LTN) with a push operation, both pointing to the primary and/or LFA next-hop label forwarding entry (NHLFE). Also, an SR tunnel is added in the Tunnel Table Manager (TTM). As a result, an SR shortest path tunnel is set up to each other router that is part of the SR domain. Now, SR shortest path tunnels can be used for all users of TTM.
Example 1 - VPRN service with LFA and RLFA enabled
In the network topology of Example topology, no LDP and RSVP-TE signaling protocols are enabled. Each router of the SR domain has a full mesh of SR shortest path tunnels to the other routers, and no LDP and RSVP-TE LSPs are present. For example, on PE-1, the TTM looks as follows:
[/]
A:admin@PE-1# show router tunnel-table
===============================================================================
IPv4 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref Nexthop Metric
Color
-------------------------------------------------------------------------------
192.0.2.2/32 isis (0) MPLS 524291 11 192.168.12.2 10
192.0.2.3/32 isis (0) MPLS 524292 11 192.168.12.2 20
192.0.2.4/32 isis (0) MPLS 524293 11 192.168.12.2 30
192.0.2.5/32 isis (0) MPLS 524295 11 192.168.17.2 30
192.0.2.6/32 isis (0) MPLS 524296 11 192.168.17.2 20
192.0.2.7/32 isis (0) MPLS 524294 11 192.168.17.2 10
192.168.12.2/32 isis (0) MPLS 524289 11 192.168.12.2 0
192.168.17.2/32 isis (0) MPLS 524290 11 192.168.17.2 0
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
==============================================================================
The objective is to configure a VPRN between PE-1 and PE-7, using SR shortest path tunnels as transport tunnel, as follows:
# on PE-1:
configure {
service {
vprn "VPRN-100" {
admin-state enable
service-id 100
customer "1"
autonomous-system 64496
bgp-ipvpn {
mpls {
admin-state enable
route-distinguisher "192.0.2.1:100"
vrf-target {
community "target:64496:100"
}
auto-bind-tunnel {
resolution any
}
}
}
interface "loopback" {
loopback true
ipv4 {
primary {
address 10.10.1.1
prefix-length 32
}
}
}
# on PE-7:
configure {
service {
vprn "VPRN-100" {
admin-state enable
service-id 100
customer "1"
autonomous-system 64496
bgp-ipvpn {
mpls {
admin-state enable
route-distinguisher "192.0.2.7:100"
vrf-target {
community "target:64496:100"
}
auto-bind-tunnel {
resolution any
}
}
}
interface "loopback" {
loopback true
ipv4 {
primary {
address 10.10.1.7
prefix-length 32
}
}
}
Within the VPRN service configuration, a loopback interface is created on both PEs to verify the transport mechanism. Tunnel information displaying the MPLS label value is retrieved using the show router fp-tunnel-table <slot number> command, as follows:
[/]
A:admin@PE-1# show router fp-tunnel-table 1 192.0.2.7/32
===============================================================================
IPv4 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
192.0.2.7/32 SR-ISIS-0 524291
24007
192.168.17.2 1/1/c2/1:1000
-------------------------------------------------------------------------------
Total Entries : 1
-------------------------------------------------------------------------------
===============================================================================
This means that, when traffic arrives on PE-1, the MPLS label 24007 is pushed to reach destination PE-7. Because, in this example, the prefix SID index range global mode is used, the value 24007 comes from the start label on PE-7 (first label of the SRGB, which is 20000, plus the configured index value of node SID PE-7 (4007)), so 24007.
Enabling prefix LFA within the IS-IS context on PE-1 enables LFA/FRR protection:
# on PE-1:
configure {
router "Base" {
isis 0 {
loopfree-alternate {
The IS-IS LFA coverage on PE-1 is as follows:
[/]
A:admin@PE-1# show router isis lfa-coverage
===============================================================================
Rtr Base ISIS Instance 0 LFA Coverage
===============================================================================
Topology Level Node IPv4 IPv6
-------------------------------------------------------------------------------
IPV4 Unicast L1 0/0(0%) 3/11(27%) 0/0(0%)
IPV6 Unicast L1 0/0(0%) 0/0(0%) 0/0(0%)
IPV4 Multicast L1 0/0(0%) 0/0(0%) 0/0(0%)
IPV6 Multicast L1 0/0(0%) 0/0(0%) 0/0(0%)
IPV4 Unicast L2 2/6(33%) 3/11(27%) 0/0(0%)
IPV6 Unicast L2 0/0(0%) 0/0(0%) 0/0(0%)
IPV4 Multicast L2 0/0(0%) 0/0(0%) 0/0(0%)
IPV6 Multicast L2 0/0(0%) 0/0(0%) 0/0(0%)
===============================================================================
Next-hop LFA protection is present for node PE-4, node PE-5, and the link between PE-4 and PE-5, as follows:
[/]
A:admin@PE-1# show router route-table alternative
===============================================================================
Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
Alt-NextHop Alt-
Metric
-------------------------------------------------------------------------------
192.0.2.1/32 Local Local 00h16m16s 0
system 0
192.0.2.2/32 Remote ISIS 00h11m57s 18
192.168.12.2 10
192.0.2.3/32 Remote ISIS 00h11m54s 18
192.168.12.2 20
192.0.2.4/32 Remote ISIS 00h11m54s 18
192.168.12.2 30
192.168.17.2 (LFA) 40
192.0.2.5/32 Remote ISIS 00h11m03s 18
192.168.17.2 30
192.168.12.2 (LFA) 40
192.0.2.6/32 Remote ISIS 00h11m03s 18
192.168.17.2 20
192.0.2.7/32 Remote ISIS 00h11m03s 18
192.168.17.2 10
192.168.12.0/30 Local Local 00h16m16s 0
int-PE-1-PE-2 0
192.168.17.0/30 Local Local 00h16m16s 0
int-PE-1-PE-7 0
192.168.23.0/30 Remote ISIS 00h15m57s 18
192.168.12.2 20
192.168.34.0/30 Remote ISIS 00h15m47s 18
192.168.12.2 30
192.168.45.0/30 Remote ISIS 00h14m35s 18
192.168.12.2 40
192.168.17.2 (LFA) 50
192.168.56.0/30 Remote ISIS 00h15m12s 18
192.168.17.2 30
192.168.67.0/30 Remote ISIS 00h15m12s 18
192.168.17.2 20
-------------------------------------------------------------------------------
No. of Routes: 14
Flags: n = Number of times nexthop is repeated
Backup = BGP backup route
LFA = Loop-Free Alternate nexthop
S = Sticky ECMP requested
===============================================================================
[/]
A:admin@PE-1# show router fp-tunnel-table 1
===============================================================================
IPv4 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
192.0.2.2/32 SR-ISIS-0 524293
20002
192.168.12.2 1/1/c1/1:1000
192.0.2.3/32 SR-ISIS-0 524294
20003
192.168.12.2 1/1/c1/1:1000
192.0.2.4/32 SR-ISIS-0 524295
20004
192.168.12.2 1/1/c1/1:1000
20004
192.168.17.2(B) 1/1/c2/1:1000
192.0.2.5/32 SR-ISIS-0 524296
20005
192.168.17.2 1/1/c2/1:1000
20005
192.168.12.2(B) 1/1/c1/1:1000
192.0.2.6/32 SR-ISIS-0 524292
20006
192.168.17.2 1/1/c2/1:1000
192.0.2.7/32 SR-ISIS-0 524291
24007
192.168.17.2 1/1/c2/1:1000
192.168.12.2/32 SR 524289
3
192.168.12.2 1/1/c1/1:1000
192.168.17.2/32 SR 524290
3
192.168.17.2 1/1/c2/1:1000
-------------------------------------------------------------------------------
Total Entries : 8
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@PE-1# show router tunnel-table detail
===============================================================================
Tunnel Table (Router: Base)
===============================================================================
Destination : 192.0.2.2/32
NextHop : 192.168.12.2
Tunnel Flags : entropy-label-capable
Age : 00h01m06s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524293 Preference : 11
Tunnel Label : 20002 Tunnel Metric : 10
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.0.2.3/32
NextHop : 192.168.12.2
Tunnel Flags : entropy-label-capable
Age : 00h01m06s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524294 Preference : 11
Tunnel Label : 20003 Tunnel Metric : 20
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.0.2.4/32 [L]
NextHop : 192.168.12.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h01m04s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524295 Preference : 11
Tunnel Label : 20004 Tunnel Metric : 30
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.0.2.5/32 [L]
NextHop : 192.168.17.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h01m04s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524296 Preference : 11
Tunnel Label : 20005 Tunnel Metric : 30
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.0.2.6/32
NextHop : 192.168.17.2
Tunnel Flags : entropy-label-capable
Age : 00h01m06s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524292 Preference : 11
Tunnel Label : 20006 Tunnel Metric : 20
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.0.2.7/32
NextHop : 192.168.17.2
Tunnel Flags : entropy-label-capable
Age : 00h01m06s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524291 Preference : 11
Tunnel Label : 24007 Tunnel Metric : 10
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.168.12.2/32
NextHop : 192.168.12.2
Tunnel Flags : is-adjacency-tunnel
Age : 00h01m06s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524289 Preference : 11
Tunnel Label : 3 Tunnel Metric : 0
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Destination : 192.168.17.2/32
NextHop : 192.168.17.2
Tunnel Flags : is-adjacency-tunnel
Age : 00h01m06s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524290 Preference : 11
Tunnel Label : 3 Tunnel Metric : 0
Tunnel MTU : 8914 Max Label Stack : 1
-------------------------------------------------------------------------------
Number of tunnel-table entries : 8
Number of tunnel-table entries with LFA : 2
===============================================================================
When a failure occurs on the primary SR path (only applicable for prefix PE-4/PE-5 and the link between PE-4 and PE-5), the traffic takes the LFA backup SR path to the destination using the same MPLS label value.
To extend the LFA FRR coverage, for example, to find an LFA protection for node PE-7, which is one of the VPRN service endpoints, RLFA can be enabled. RLFA creates a virtual LFA by using a repair tunnel to carry packets to a point in the network from where they will not be looped back to the source, but forwarded (SPF-based) toward the destination prefix.
The RLFA implementation uses the PQ algorithm. The node where RLFA is configured (PE-1 in this example) computes an extended P-space and a Q-space. The intersection of both spaces is called the PQ-node. This PQ node is the destination node of the repair tunnel using an SR shortest path tunnel. To compute both spaces, SPF is used.
In this example, IS-IS is used as the IGP, using a default metric value of 10 for all links. With the assumption that the link between PE-1 and PE-7 is broken, the calculation of both the extended P-space and the Q-space at PE-1 is as follows:
-
extended P-space — An SPF computed from node PE-1 and rooted at PE-2. It is used to calculate the set of routers that are reachable without any path transiting the protected link between PE-1 and PE-7. The following nodes belong to the extended P-space: PE-2, PE-3, PE-4, and PE-5.
-
Q-space — A reverse SPF computed from PE-1 and rooted from PE-7 (acting as destination proxy). It is used to calculate the set of routers that can reach PE-7 without transiting the protected link between PE-1 and PE-7. The nodes PE-4, PE-5, and PE-6 belong to the Q-space.
Possible PQ-nodes are PE-4 or PE-5, because they are in the intersection of both spaces.
RLFA is configured as follows:
# on PE-1:
configure {
router "Base" {
isis 0 {
loopfree-alternate {
remote-lfa
The following command shows the SR LFA coverage:
[/]
A:admin@PE-1# show router isis sr-lfa-coverage
===============================================================================
Rtr Base ISIS Instance 0 SR LFA Coverage
===============================================================================
MT-ID SidType Level Proto LFA RLFA TILFA Coverage
-------------------------------------------------------------------------------
0 node-sid L2 ipv4 2(33%) 4(66%) 0(0%) 6/6(100%)
0 adj-sid L2 ipv4 0(0%) 2(100%) 0(0%) 2/2(100%)
===============================================================================
The nodes PE-2, PE-3, PE-6, and PE-7 now have RLFA protection, whereas PE-4 and PE-5 have LFA protection.
[/]
A:admin@PE-1# show router fp-tunnel-table 1
===============================================================================
IPv4 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
192.0.2.2/32 SR-ISIS-0 524293
20002
192.168.12.2 1/1/c1/1:1000
20002
20005
192.168.17.2(B) 1/1/c2/1:1000
192.0.2.3/32 SR-ISIS-0 524294
20003
192.168.12.2 1/1/c1/1:1000
20003
20005
192.168.17.2(B) 1/1/c2/1:1000
192.0.2.4/32 SR-ISIS-0 524295
20004
192.168.12.2 1/1/c1/1:1000
20004
192.168.17.2(B) 1/1/c2/1:1000
192.0.2.5/32 SR-ISIS-0 524296
20005
192.168.17.2 1/1/c2/1:1000
20005
192.168.12.2(B) 1/1/c1/1:1000
192.0.2.6/32 SR-ISIS-0 524292
20006
192.168.17.2 1/1/c2/1:1000
20006
20004
192.168.12.2(B) 1/1/c1/1:1000
192.0.2.7/32 SR-ISIS-0 524291
24007
192.168.17.2 1/1/c2/1:1000
24007
20004
192.168.12.2(B) 1/1/c1/1:1000
192.168.12.2/32 SR 524289
3
192.168.12.2 1/1/c1/1:1000
20002
20005
192.168.17.2(B) 1/1/c2/1:1000
192.168.17.2/32 SR 524290
3
192.168.17.2 1/1/c2/1:1000
24007
20004
192.168.12.2(B) 1/1/c1/1:1000
-------------------------------------------------------------------------------
Total Entries : 8
-------------------------------------------------------------------------------
===============================================================================
The main difference between normal prefix LFA and RLFA is that for RLFA a two-MPLS label stack is pushed by the head-end node (PE-1). The top label is the SR-label to reach the PQ node (for example, 20004 for PE-4) and the bottom label is the SR-label to reach the destination node (for example, 24007 for PE-7). The label stack inside the show command is ordered from bottom-most to top-most.

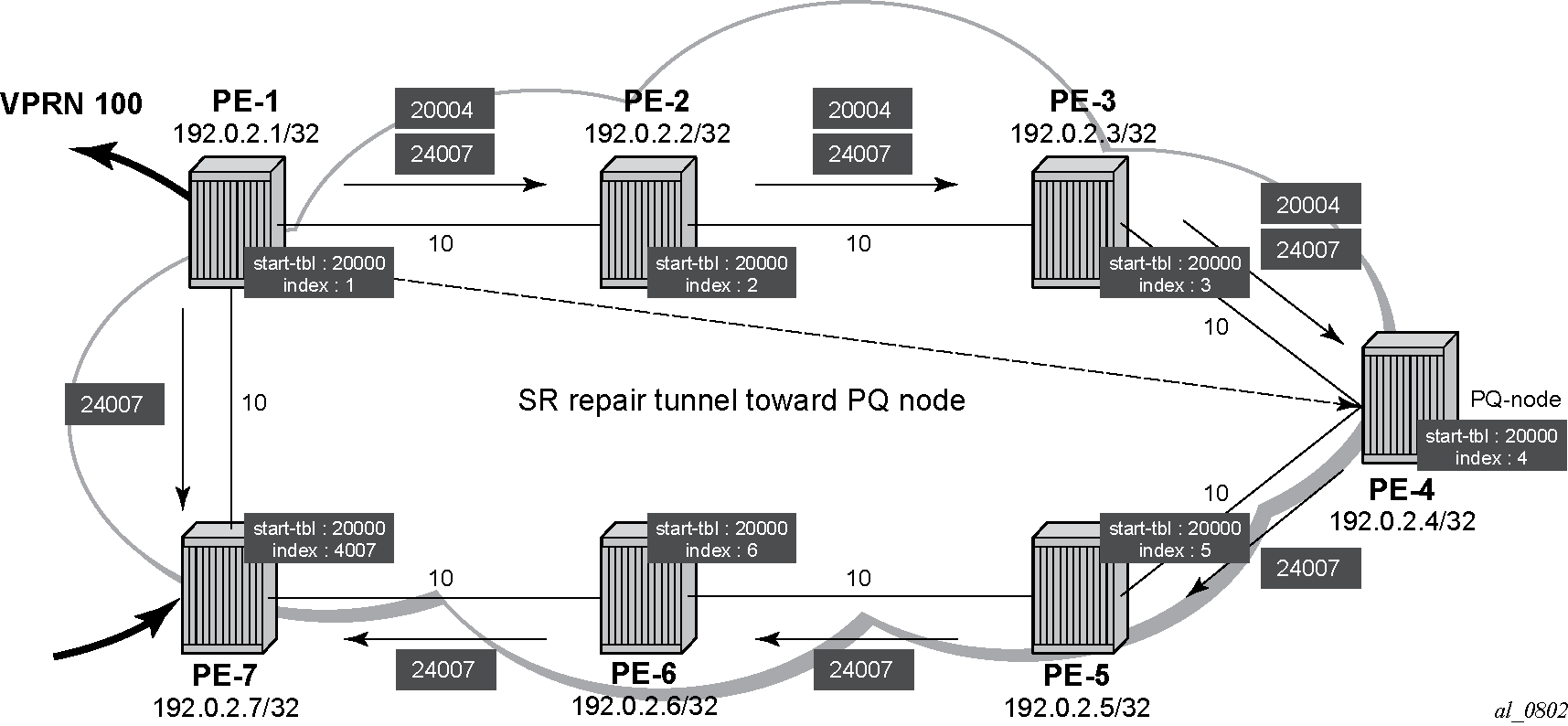

RLFA traffic path during protection illustrates the RLFA traffic path protecting the link between PE-1 and PE-7:
Inside the TTM, a tunnel-flag, has-lfa, is set for all destination nodes that have LFA protection available. The last two tunnels are adjacency tunnels and have in addition the flag is-adjacency-tunnel.
[/]
A:admin@PE-1# show router tunnel-table detail
===============================================================================
Tunnel Table (Router: Base)
===============================================================================
Destination : 192.0.2.2/32 [L]
NextHop : 192.168.12.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h00m49s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524293 Preference : 11
Tunnel Label : 20002 Tunnel Metric : 10
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.0.2.3/32 [L]
NextHop : 192.168.12.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h00m49s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524294 Preference : 11
Tunnel Label : 20003 Tunnel Metric : 20
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.0.2.4/32 [L]
NextHop : 192.168.12.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h00m51s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524295 Preference : 11
Tunnel Label : 20004 Tunnel Metric : 30
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.0.2.5/32 [L]
NextHop : 192.168.17.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h00m51s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524296 Preference : 11
Tunnel Label : 20005 Tunnel Metric : 30
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.0.2.6/32 [L]
NextHop : 192.168.17.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h00m49s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524292 Preference : 11
Tunnel Label : 20006 Tunnel Metric : 20
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.0.2.7/32 [L]
NextHop : 192.168.17.2
Tunnel Flags : has-lfa entropy-label-capable
Age : 00h00m49s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524291 Preference : 11
Tunnel Label : 24007 Tunnel Metric : 10
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.168.12.2/32 [L]
NextHop : 192.168.12.2
Tunnel Flags : has-lfa is-adjacency-tunnel
Age : 00h00m49s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524289 Preference : 11
Tunnel Label : 3 Tunnel Metric : 0
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Destination : 192.168.17.2/32 [L]
NextHop : 192.168.17.2
Tunnel Flags : has-lfa is-adjacency-tunnel
Age : 00h00m49s
CBF Classes : (Not Specified)
Owner : isis (0) Encap : MPLS
Tunnel ID : 524290 Preference : 11
Tunnel Label : 3 Tunnel Metric : 0
Tunnel MTU : 8910 Max Label Stack : 2
-------------------------------------------------------------------------------
Number of tunnel-table entries : 8
Number of tunnel-table entries with LFA : 8
===============================================================================
Verification of the loopback address configured within the VPRN service context on PE-7 (using loopback address 10.10.1.7/32) shows that an SR shortest path tunnel is used as the transport mechanism:
[/]
A:admin@PE-1# show router service-name "VPRN-100" route-table 10.10.1.7/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.7/32
Protocol : BGP_VPN
Age : 00h02m07s
Preference : 170
Indirect Next-Hop : 192.0.2.7
Label : 524284
VPN Next-Hop Index : 10
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.7 (SR-ISIS tunnel:524291)
Metric : 10
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
In the following example, LFA/RLFA is no longer configured on the PE-1 node:
# on PE-1:
configure {
router "Base" {
isis 0 {
delete loopfree-alternate
Example 2 - TTM preference with VPRN service
The following example is a variant on the previous example. The difference in this example is that, in addition to segment routing, LDP and RSVP-TE are also enabled between PE-1 and PE-7. A single RSVP LSP is configured originating at PE-1 and terminating at PE-7.
The objective of this example is to show the difference in protocol preference within TTM and how to influence the default behavior. This can be useful in case of migration scenarios from a non-SR environment toward a hybrid environment having LDP/RSVP and SR enabled.
# on PE-1:
configure {
router "Base" {
mpls {
admin-state enable
interface "int-PE-1-PE-7" {
}
path "dyn" {
admin-state enable
}
lsp "LSP-PE-1-PE-7" {
admin-state enable
type p2p-rsvp
to 192.0.2.7
primary "dyn"
}
}
}
rsvp {
admin-state enable
interface "int-PE-1-PE-7" {
}
}
ldp {
interface-parameters {
interface "int-PE-1-PE-7" {
ipv4 {
}
}
}
}
# on PE-7:
configure {
router "Base" {
mpls {
admin-state enable
interface "int-PE-7-PE-1" {
}
}
rsvp {
admin-state enable
interface "int-PE-7-PE-1" {
}
}
ldp {
interface-parameters {
interface "int-PE-7-PE-1" {
ipv4 {
}
}
}
}
By enabling LDP and RSVP between PE-1 and PE-7, the TTM on both nodes changed. With the VPRN service between PE-1 and PE-7 of example 1, only those two specific service endpoints are displayed:
[/]
A:admin@PE-1# show router tunnel-table 192.0.2.7
===============================================================================
IPv4 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref Nexthop Metric
Color
-------------------------------------------------------------------------------
192.0.2.7/32 rsvp MPLS 1 7 192.168.17.2 10
192.0.2.7/32 ldp MPLS 65537 9 192.168.17.2 10
192.0.2.7/32 isis (0) MPLS 524291 11 192.168.17.2 10
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
[/]
A:admin@PE-7# show router tunnel-table 192.0.2.1
===============================================================================
IPv4 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref Nexthop Metric
Color
-------------------------------------------------------------------------------
192.0.2.1/32 ldp MPLS 65537 9 192.168.17.1 10
192.0.2.1/32 isis (0) MPLS 524294 11 192.168.17.1 10
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
On node PE-1, an RSVP LSP, an LDP LSP, and an SR shortest path tunnel (using IS-IS) are present. Because the VPRN service has auto-bind-tunnel resolution any enabled, the protocol type with the highest TTM preference (meaning the lowest absolute preference value in TTM) is taken; in this case, the RSVP LSP. This can be verified for the configured loopback address within the VPRN service context, as follows:
[/]
A:admin@PE-1# show router 100 route-table 10.10.1.7/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.7/32
Protocol : BGP_VPN
Age : 00h01m37s
Preference : 170
Indirect Next-Hop : 192.0.2.7
Label : 524284
VPN Next-Hop Index : 10
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.7 (RSVP tunnel:1)
Metric : 10
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
On node PE-7, only an LDP LSP and an SR shortest path tunnel (using IS-IS) are present. Because the VPRN service has auto-bind-tunnel resolution any enabled, the protocol type with highest TTM preference (meaning the lowest absolute preference value in TTM) is taken; in this case, the LDP LSP. This can be verified for the configured loopback address within the VPRN service context, as follows:
[/]
A:admin@PE-7# show router 100 route-table 10.10.1.1/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.1/32
Protocol : BGP_VPN
Age : 00h02m45s
Preference : 170
Indirect Next-Hop : 192.0.2.1
Label : 524284
VPN Next-Hop Index : 10
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.1 (LDP tunnel)
Metric : 10
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
Some configuration changes are possible to change this default behavior:
-
It is possible to change the auto-bind-tunnel resolution any command into auto-bind-tunnel resolution filter. Because this is a service-specific parameter, the operator has the choice to only configure this on one specific service endpoint. From a migration point of view, a smooth and easy SR migration is possible, not affecting any other deployed services on this node.
-
It is possible to change the SR tunnel-table protocol preference on a node. From a migration point of view, this affects all services initiating on this node.
Using the current example, PE-1 implements the auto-bind-tunnel change (option 1), while PE-7 implements the TTM preference change (option 2).
On PE-1, a resolution-filter CLI context within VPRN service 100 must be created. The example uses a resolution-filter context, which uses a filter to only allow SR shortest path tunnels (IS-IS based). The auto-bind-tunnel resolution any command is changed into resolution filter, as follows:
# on PE-1:
configure {
service {
vprn "VPRN-100" {
bgp-ipvpn {
mpls {
auto-bind-tunnel {
resolution filter
resolution-filter {
sr-isis true
}
}
As a result, the RSVP LSP is no longer used on PE-1. Instead, the SR shortest path tunnel is used for the traffic from PE-1 to PE-7:
[/]
A:admin@PE-1# show router 100 route-table 10.10.1.7/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.7/32
Protocol : BGP_VPN
Age : 00h00m09s
Preference : 170
Indirect Next-Hop : 192.0.2.7
Label : 524284
VPN Next-Hop Index : 11
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.7 (SR-ISIS tunnel:524291)
Metric : 10
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
The VPRN service on node PE-7 is still using the LDP LSP as transport mechanism to reach node PE-1 at this point. Because the previous CLI change is only done within the VPRN service context 100 on PE-1, only the direction from PE-1 to PE-7 is affected.
Another way to influence the default TTM preference is shown as follows on the PE-7 node. Using the default behavior, the LDP LSP is used, because of the preference value of 9. If the SR tunnel table preference value is lowered to a value smaller than LDP, for instance 4, the SR shortest path tunnels originating on this node will always have preference compared to LDP LSP. On PE-7, the SR tunnel table preference is configured with a value of 4, as follows:
# on PE-7:
configure {
router "Base" {
isis 0 {
segment-routing {
tunnel-table-pref 4
[/]
A:admin@PE-7# show router tunnel-table 192.0.2.1
===============================================================================
IPv4 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref Nexthop Metric
Color
-------------------------------------------------------------------------------
192.0.2.1/32 isis (0) MPLS 524291 4 192.168.17.1 10
192.0.2.1/32 ldp MPLS 65537 9 192.168.17.1 10
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
As a result, the LDP LSP is no longer used on PE-7 and the SR shortest path tunnel is the preferred transport tunnel:
[/]
A:admin@PE-7# show router service-name "VPRN-100" route-table 10.10.1.1/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.1/32
Protocol : BGP_VPN
Age : 00h00m19s
Preference : 170
Indirect Next-Hop : 192.0.2.1
Label : 524284
VPN Next-Hop Index : 10
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.1 (SR-ISIS tunnel:524294)
Metric : 10
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
At this point, within the VPRN service, the SR shortest path tunnels are used bidirectionally between PE-1 and PE-7.
If, for example, an operator configures explicit SDP binding within the same VPRN service on both endpoints, the explicit SDPs will always have preference. In this example, manual SDPs are configured on nodes PE-1 and PE-7, both using LDP, as follows:
# on PE-1:
configure {
service
sdp 17 {
admin-state enable
delivery-type mpls
ldp true
far-end {
ip-address 192.0.2.7
}
}
vprn "VPRN-100" {
spoke-sdp 17:100 {
}
# on PE-7:
configure {
service {
sdp 71 {
admin-state enable
delivery-type mpls
ldp true
far-end {
ip-address 192.0.2.1
}
}
vprn "VPRN-100" {
spoke-sdp 71:100 {
}
As a result, SR shortest path tunnels are no longer used, but rather LDP-based SDPs are used instead:
[/]
A:admin@PE-1# show router 100 route-table 10.10.1.7/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.7/32
Protocol : BGP_VPN
Age : 00h00m04s
Preference : 170
Indirect Next-Hop : 192.0.2.7
Label : 524284
VPN Next-Hop Index : 12
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.7 (SDP tunnel:17)
Metric : 0
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
[/]
A:admin@PE-7# show router 100 route-table 10.10.1.1/32 extensive
===============================================================================
Route Table (Service: 100)
===============================================================================
Dest Prefix : 10.10.1.1/32
Protocol : BGP_VPN
Age : 00h00m10s
Preference : 170
Indirect Next-Hop : 192.0.2.1
Label : 524284
VPN Next-Hop Index : 11
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : N/A
Resolving Next-Hop : 192.0.2.1 (SDP tunnel:71)
Metric : 0
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
Conclusion
Segment Routing is a technique using extensions of the existing link state protocols, and using existing MPLS or IPv6 infrastructure as the data plane. It is a source routing technique similar to RSVP-TE, but without the need to run an extra signaling protocol. SR also avoids other scaling restrictions of associated RSVP-TE, such as midpoint state. SR is simple to control and operate because the intelligence and state are part of the packet, not held by the network. Other benefits are that SR can be introduced in an incremental way using different migration scenarios to assure a smooth transition.
