EVPN Sticky ECMP for IP Prefix Routes
This chapter provides information about EVPN sticky ECMP for IP prefix routes.
Topics in this chapter include:
Applicability
The information and the configuration in this chapter are based on SR OS Release 25.3.R1. Sticky ECMP for BGP routes is supported in SR OS Release 19.10 and later. Sticky ECMP for EVPN IFL and EVPN IFF routes is supported in SR OS Release 23.10 and later.
EVPN sticky ECMP can be combined with weighted ECMP and IP aliasing ECMP. For weighted ECMP, see the EVPN unequal ECMP for RT5 IFL and IFF routes chapter. For IP aliasing ECMP, see the EVPN IP Aliasing for IP Prefix Routes chapter.
Overview
Sticky ECMP is implemented in software and—for FP-based platforms—each sticky route takes 64 next-hop hashing buckets in the data path. When CNF-10 is removed or a network failure causes CNF-10 to be unreachable, TOR-5 withdraws the IP prefix route for prefix 10.10.0.0/24 and the flows are redistributed over the remaining next-hops according to the weighted ECMP set. Existing flows to TOR-2, TOR-3, or TOR-4 may be affected and the potential applications' TCP sessions to the CNFs too. When sticky ECMP is configured, the existing flows via TOR-2, TOR-3, or TOR-4 remain unchanged; only the flows via TOR-5 are affected and must be redistributed over the remaining routes that are shown in Redistributed traffic flows after CNF-10 is removed. Table Sticky ECMP flow distribution when one next-hop is removed for 10.10.0.0/24 in the Appendix shows the distribution over the internal hashing buckets.

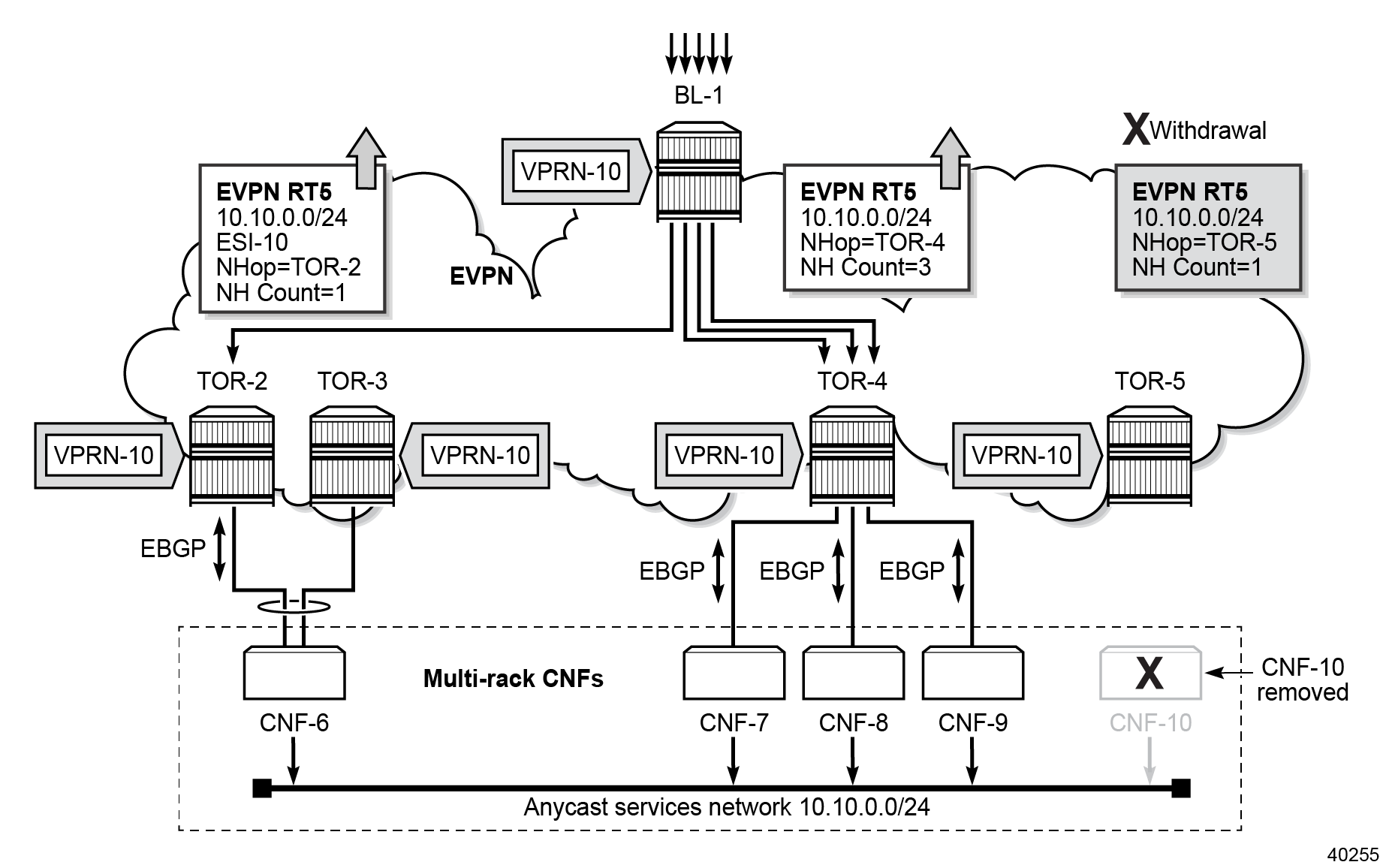

The same issue arises when an additional CNF is added. When initially all flows are distributed over TOR-2, TOR-3, and TOR-4, and CNF-10 is added afterward, only a subset of the flows is affected. The total ECMP weight is initially 1 + 3 = 4 and after CNF-10 is added, the total ECMP weight becomes 1 + 3 + 1 = 5. This implies that 80% of the existing flows via TOR-2, TOR-3, or TOR-4 remain unchanged, while 20% of the flows moves to CNF-10 with TOR-5 as next-hop, see Sticky ECMP flow distribution when one next-hop is added for 10.10.0.0/24 in the Appendix.
The sticky-ecmp command enables stickiness and is configurable in policy actions.
*A:BL-1# tree flat detail | match sticky-ecmp
configure router policy-options policy-statement default-action no sticky-ecmp
configure router policy-options policy-statement default-action sticky-ecmp
configure router policy-options policy-statement entry action no sticky-ecmp
configure router policy-options policy-statement entry action sticky-ecmp
The sticky-ecmp command only has effect in a BGP import policy applied to one or more BGP peers in the base router or in a service; it has no effect in a BGP export policy.
Configuration
The following examples are described in this section;
- Sticky ECMP for EVPN IFL over MPLS

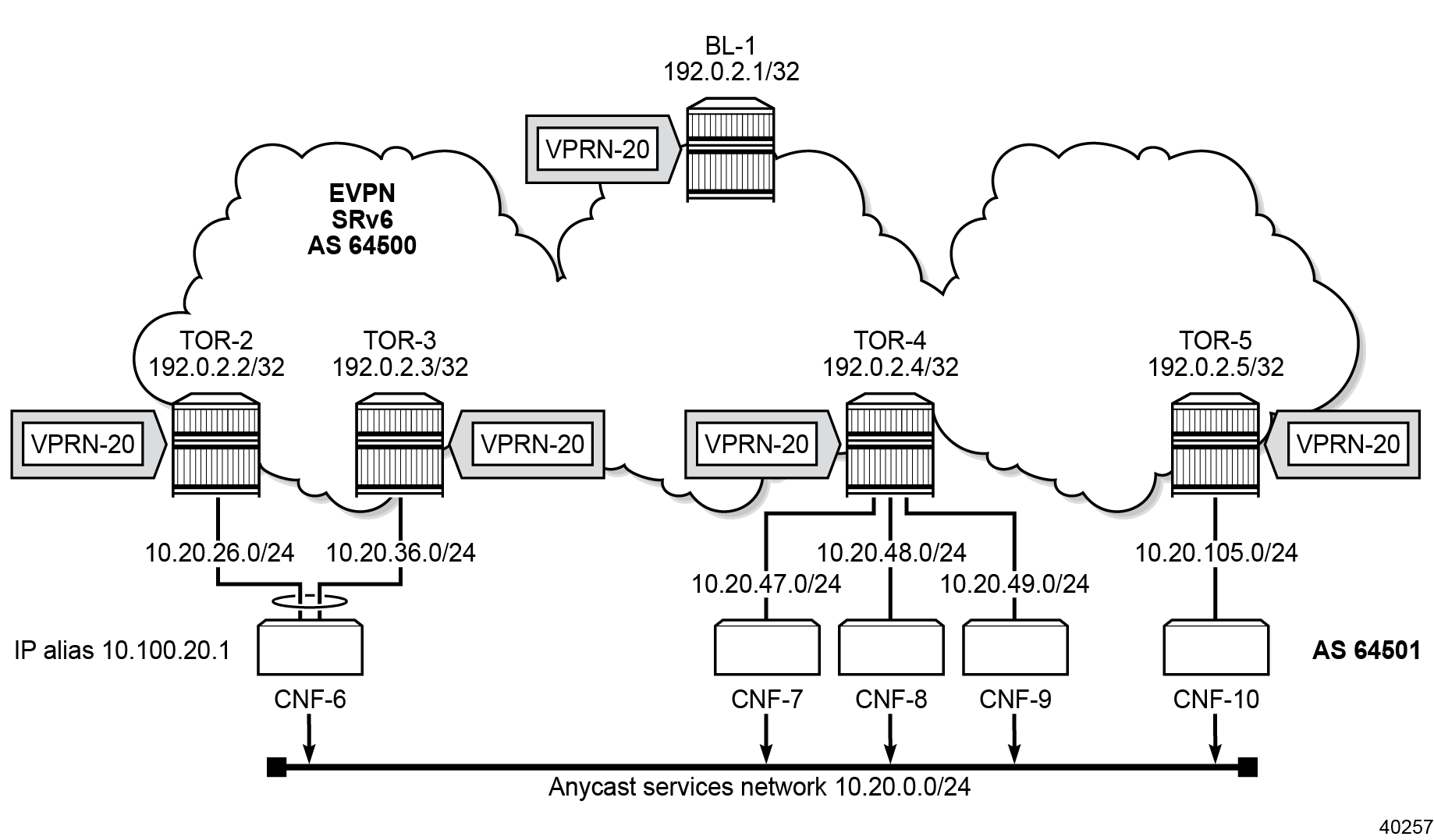

- Sticky ECMP for EVPN IFL over SRv6

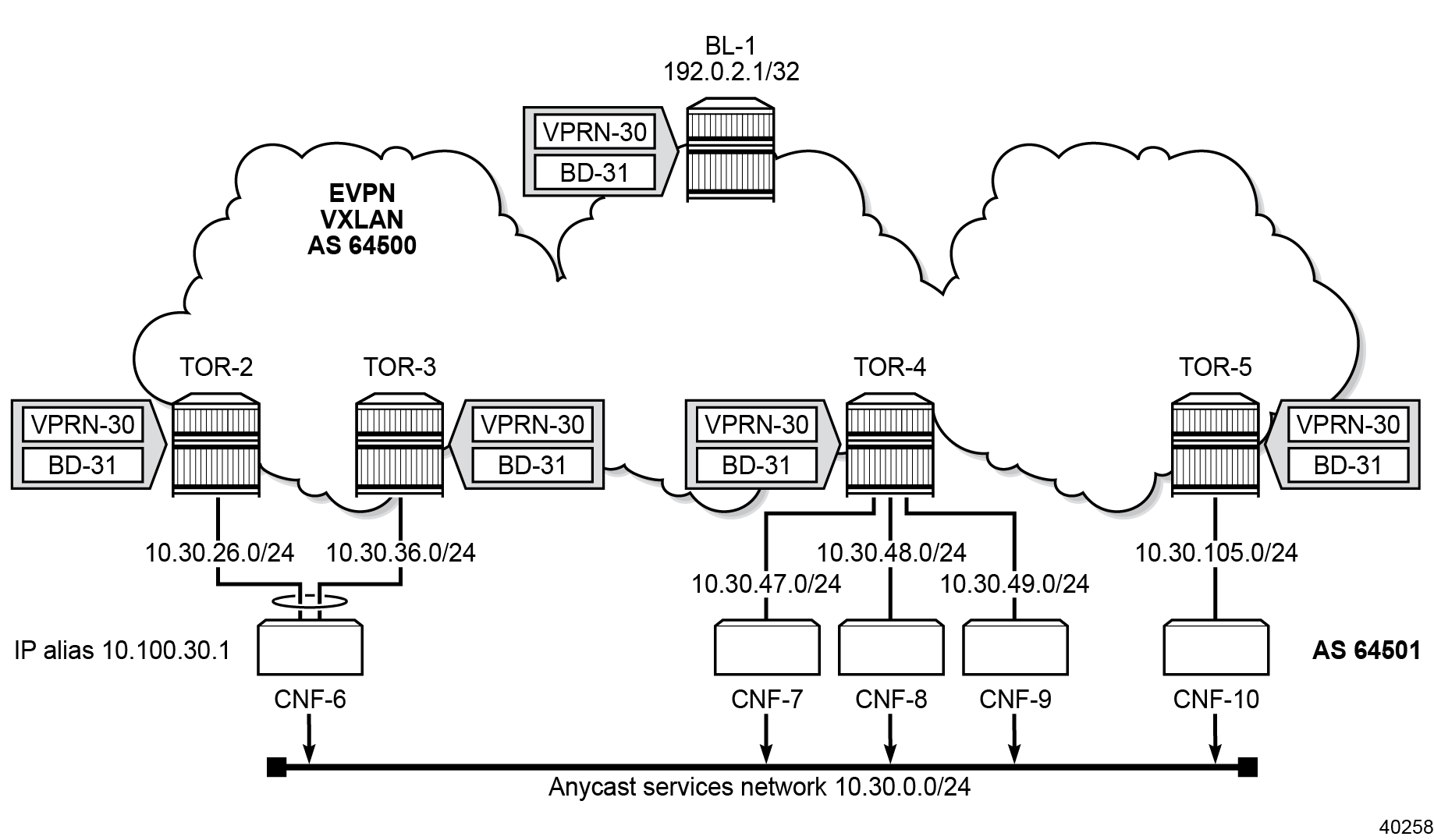

- Sticky ECMP for EVPN IFF over VXLAN
Sticky ECMP can be combined with regular ECMP, weighted ECMP, and IP aliasing ECMP. In all examples in the following sections, weighted ECMP is enabled on BL-1 and all TORs; IP aliasing ECMP is configured on TOR-2 and TOR-3.

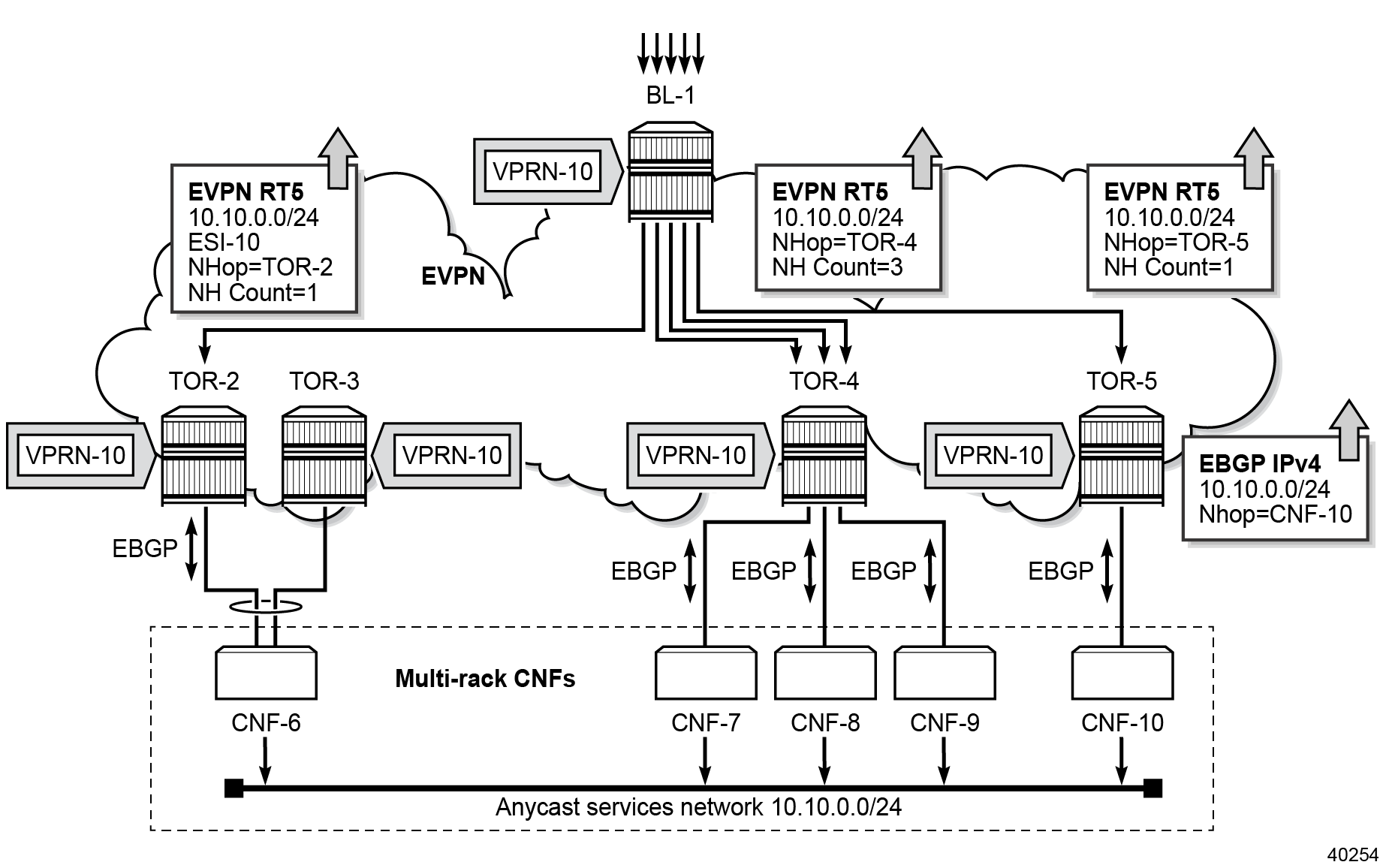

Sticky ECMP for EVPN IFL over MPLS
- TOR-2 and TOR-3 are both connected to CNF-6 and have IP aliasing ECMP
- TOR-4 is connected to CNF-7, CNF-8, and CNF-9
- TOR-5 is connected to CNF-10
Configuration
The initial configuration includes:
- cards, MDAs, ports
- router interfaces
- SR-ISIS on the router interfaces in AS 64500
- IBGP between route reflector (RR) BL-1 and each TOR for the EVPN address family
Sticky ECMP is only configured on BL-1 using the following policy which adds stickiness to prefix 10.10.0.0/24 in VPRN-10:
# on BL-1:
configure
router Base
policy-options
begin
prefix-list "cnf_ips-10"
prefix 10.10.0.0/24 longer
exit
community "comm-10"
members "target:64500:10"
exit
policy-statement "import-add-stickiness-vprn-10"
entry 10
from
prefix-list "cnf_ips-10"
community "comm-10"
exit
action accept
sticky-ecmp # add stickiness
exit
exit
entry 11
from
community "comm-10"
exit
action accept
exit
exit
exit
The sticky-ecmp command only has effect in import policies. It suffices to configure this policy on one BGP peer in the base router on BL-1, as follows. For the same destination 10.10.0.0/24, the router programs the next-hops (192.0.2.2, 192.0.2.3, 192.0.2.4, and 192.0.2.5) as sticky even if only BGP peer 192.0.2.2 is configured with this import policy.
# on RR BL-1:
configure
router Base
bgp
vpn-apply-import
vpn-apply-export
rapid-withdrawal
split-horizon
rapid-update evpn
group "TORs"
family evpn
type internal
cluster 192.0.2.1
peer-as 64500
neighbor 192.0.2.2
import "import-add-stickiness-vprn-10"
exit
neighbor 192.0.2.3
exit
neighbor 192.0.2.4
exit
neighbor 192.0.2.5
exit
exit
Alternatively, the import policy can also be configured at service level, see further.
On the TORs, the BGP configuration does not include such import policy:
# on TOR-2, TOR-3, TOR-4, TOR-5:
configure
router Base
autonomous-system 64500
bgp
vpn-apply-import
vpn-apply-export
rapid-withdrawal
rapid-update evpn
group "BL"
family evpn
type internal
peer-as 64500
neighbor 192.0.2.1
exit
exit
exit
The configuration of VPRN-10 on BL-1 is as follows:
# on BL-1:
configure
service
vprn 10 name "VPRN-10" customer 1 create
description "EVPN-MPLS IFL VPRN-10"
ecmp 10
interface "test-10" create
address 172.20.10.1/32
sap 1/1/c10/1:10 create
exit
exit
bgp-evpn
mpls
auto-bind-tunnel
resolution any
exit
evi 10
evpn-link-bandwidth
advertise
weighted-ecmp
exit
route-distinguisher 192.0.2.1:10
vrf-target target:64500:10
no shutdown
exit
exit
no shutdown
The service configuration on TOR-2 is as follows. The Ethernet segment is configured on TOR-2 and TOR-3 for IP aliasing ECMP. EBGP is configured in VPRN-10 with neighbor CNF-6 on TOR-2 only, not on TOR-3.
# on TOR-2:
configure
service
system
bgp-evpn
ethernet-segment "ES-10" virtual create # same on TOR-3
esi 00:00:00:00:00:23:23:23:10:00
service-carving
mode auto
exit
multi-homing all-active
vprn-next-hop 10.100.10.1 # IP alias on CNF-6
evi
evi-range 10
exit
no shutdown
exit
exit
exit
vprn 10 name "VPRN-10" customer 1 create
description "EVPN-MPLS IFL VPRN-10"
ecmp 10
router-id 192.0.2.2 # on TOR-3: 192.0.2.3
autonomous-system 64500
interface "int-VPRN10-TOR-2-to-CNF-6" create # "...-TOR-3-..."
address 10.10.26.1/24 # on TOR-3: 10.10.36.1/24
sap 1/1/c3/1:10 create
exit
exit
interface "loopback" create # only on TOR-2; not on TOR-3
address 10.100.10.2/32
loopback
exit
static-route-entry 10.100.10.1/32
next-hop 10.10.26.2 # on TOR-3: 10.10.36.2
no shutdown
exit
exit
bgp-evpn
mpls
auto-bind-tunnel
resolution any
exit
evi 10
evpn-link-bandwidth
advertise
weighted-ecmp
exit
route-distinguisher 192.0.2.2:10 # on TOR-3: 192.0.2.3:10
vrf-target target:64500:10
no shutdown
exit
exit
bgp # only on TOR-2; no EBGP in VPRN-10 on TOR-3
rapid-withdrawal
split-horizon
group "PE-CE-10"
family ipv4
type external
export "export-evpn-ifl-bgp"
peer-as 64501
neighbor 10.100.10.1
local-address 10.100.10.2
evpn-link-bandwidth
add-to-received-bgp 1
exit
exit
exit
exit
no shutdown
The nodes in AS 64500 exchange EVPN IFL routes for VPRN-10, while the EBGP sessions between VPRN-10 on the TORs and the base router on the CNFs exchange BGP IPv4 routes. The export policy "export-evpn-ifl-bgp" in VPRN-10 on the TORs is needed to export BGP routes for the corresponding EVPN IFL routes:
# on TOR-2, TOR-3, TOR-4, TOR-5:
configure
router Base
policy-options
begin
policy-statement "export-evpn-ifl-bgp"
entry 10
from
protocol evpn-ifl
exit
to
protocol bgp
exit
action accept
exit
exit
exit
commit
On TOR-4, VPRN-10 is configured as follows:
# on TOR-4:
configure
service
vprn 10 name "VPRN-10" customer 1 create
description "EVPN-MPLS IFL VPRN-10"
ecmp 10
autonomous-system 64500
interface "int-VPRN10-TOR-4-CNF-7" create
address 10.10.47.1/24
sap 1/1/c4/1:10 create
exit
exit
interface "int-VPRN10-TOR-4-CNF-8" create
address 10.10.48.1/24
sap 1/1/c5/1:10 create
exit
exit
interface "int-VPRN10-TOR-4-CNF-9" create
address 10.10.49.1/24
sap 1/1/c6/1:10 create
exit
exit
bgp-evpn
mpls
auto-bind-tunnel
resolution any
exit
evi 10
evpn-link-bandwidth
advertise
weighted-ecmp
exit
route-distinguisher 192.0.2.4:10
vrf-target target:64500:10
no shutdown
exit
exit
bgp
multi-path
ipv4 10
exit
rapid-withdrawal
split-horizon
group "PE-CE-10"
family ipv4
type external
export "export-evpn-ifl-bgp"
peer-as 64501
neighbor 10.10.47.2
evpn-link-bandwidth
add-to-received-bgp 1
exit
exit
neighbor 10.10.48.2
evpn-link-bandwidth
add-to-received-bgp 1
exit
exit
neighbor 10.10.49.2
evpn-link-bandwidth
add-to-received-bgp 1
exit
exit
exit
exit
no shutdown
For VPRN-10, TOR-5 only has neighbor CNF-10 and the configuration is as follows:
# on TOR-5:
configure
service
vprn 10 name "VPRN-10" customer 1 create
description "EVPN-MPLS IFL VPRN-10"
ecmp 10
autonomous-system 64500
interface "int-VPRN10-TOR-5-CNF-10" create
address 10.10.105.1/24
sap 1/1/c3/1:10 create
exit
exit
bgp-evpn
mpls
auto-bind-tunnel
resolution any
exit
evi 10
evpn-link-bandwidth
advertise
weighted-ecmp
exit
route-distinguisher 192.0.2.5:10
vrf-target target:64500:10
no shutdown
exit
exit
bgp
rapid-withdrawal
split-horizon
group "PE-CE-10"
family ipv4
type external
export "export-evpn-ifl-bgp"
peer-as 64501
neighbor 10.10.105.2
evpn-link-bandwidth
add-to-received-bgp 1
exit
exit
exit
exit
no shutdown
The BGP configuration on the corresponding CNF-10 is as follows:
# on CNF-10 (simulated by SR OS node):
configure
router Base
policy-options
begin
community "comm-vrf10"
members "target:64500:10"
exit
prefix-list "anycast-ip-10"
prefix 10.10.0.0/24 longer
exit
policy-statement "export-anycast-ip-10"
entry 10
from
protocol direct
prefix-list "anycast-ip-10"
exit
action accept
community add "comm-vrf10" # for VPRN-10 on TORs
exit
exit
exit
commit
info
exit
bgp
rapid-withdrawal
split-horizon
group "PE-CE-10"
neighbor 10.10.105.1
type external
export "export-anycast-ip-10"
local-as 64501
peer-as 64500
exit
exit
no shutdown
exit
The configuration on the other CNFs is similar. The BGP configuration of CNF-6 uses the alias IP 10.100.10.1, as follows:
# on CNF-6 (simulated by SR OS node):
configure
router Base
bgp
rapid-withdrawal
split-horizon
group "PE-CE-10"
neighbor 10.100.10.2 # neighbor reachable via static route
local-address 10.100.10.1
type external
export "export-anycast-ip-10"
local-as 64501
peer-as 64500
exit
exit
no shutdown
Verification
BL-1 has stickiness applied for destination 10.10.0.0/24 on IBGP peer 192.0.2.2. For the same destination 10.10.0.0/24, BL-1 programs the next-hops as sticky even if only one of them is configured with sticky ECMP. The following route table for prefix 10.10.0.0 in VPRN-10 shows that sticky ECMP is not only requested for the EVPN IFL route with next-hop 192.0.2.2, but also for the EVPN IFL routes with next-hops 192.0.2.3, 192.0.2.4, or 192.0.2.5, as indicated with [S]:
*A:BL-1# show router service-name "VPRN-10" route-table 10.10.0.0
===============================================================================
Route Table (Service: 10)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.10.0.0/24 [S] Remote EVPN-IFL 00h02m50s 170
192.0.2.2 (tunneled:SR-ISIS:524291) 10
10.10.0.0/24 [S] Remote EVPN-IFL 00h02m50s 170
192.0.2.3 (tunneled:SR-ISIS:524295) 10
10.10.0.0/24 [S] Remote EVPN-IFL 00h02m50s 170
192.0.2.4 (tunneled:SR-ISIS:524299) 10
10.10.0.0/24 [S] Remote EVPN-IFL 00h02m50s 170
192.0.2.5 (tunneled:SR-ISIS:524303) 10
-------------------------------------------------------------------------------
No. of Routes: 4
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
Stickiness is applied for all routes to the same destination, regardless of the weight of these routes.
On BL-1, the extensive route table for prefix 10.10.0.0 shows that sticky ECMP is enabled (Sticky ECMP: Yes). The ECMP weight is different for the different next-hops, but the stickiness applies to all next-hops.
*A:BL-1# show router service-name "VPRN-10" route-table 10.10.0.0 extensive
===============================================================================
Route Table (Service: 10)
===============================================================================
Dest Prefix : 10.10.0.0/24
Protocol : EVPN-IFL
Age : 00h03m34s
Preference : 170
Sticky ECMP : Yes
Indirect Next-Hop : 192.0.2.2
Label : 524283
VPN Next-Hop Index : 23
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 1
Resolving Next-Hop : 192.0.2.2 (SR-ISIS tunnel:524291)
Metric : 10
ECMP-Weight : N/A
Indirect Next-Hop : 192.0.2.3
Label : 524281
VPN Next-Hop Index : 20
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 1
Resolving Next-Hop : 192.0.2.3 (SR-ISIS tunnel:524295)
Metric : 10
ECMP-Weight : N/A
Indirect Next-Hop : 192.0.2.4
Label : 524281
VPN Next-Hop Index : 25
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 3
Resolving Next-Hop : 192.0.2.4 (SR-ISIS tunnel:524299)
Metric : 10
ECMP-Weight : N/A
Indirect Next-Hop : 192.0.2.5
Label : 524283
VPN Next-Hop Index : 27
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 1
Resolving Next-Hop : 192.0.2.5 (SR-ISIS tunnel:524303)
Metric : 10
ECMP-Weight : N/A
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
The FIB for prefix 10.10.0.0/24 includes the S-flag, as follows:
*A:BL-1# show router service-name "VPRN-10" fib 1 10.10.0.0/24
===============================================================================
FIB Display
===============================================================================
Prefix [Flags] Protocol
NextHop
-------------------------------------------------------------------------------
10.10.0.0/24 [S] EVPN-IFL
192.0.2.2 (VPRN Label:524283 Transport:SR-ISIS:524291)
192.0.2.3 (VPRN Label:524281 Transport:SR-ISIS:524295)
192.0.2.4 (VPRN Label:524281 Transport:SR-ISIS:524299)
192.0.2.5 (VPRN Label:524283 Transport:SR-ISIS:524303)
-------------------------------------------------------------------------------
Total Entries : 1
-------------------------------------------------------------------------------
Flags : S = sticky ECMP supported; R = missing hardware resources
-------------------------------------------------------------------------------
===============================================================================
TOR-2, TOR-4, and TOR-5 have a BGP route for anycast prefix 10.10.0.0/24 in the route table for VPRN-10 with default preference 170 and these TORs generate an EVPN IFL route for this anycast prefix. BL-1 receives the following three IP prefix routes for prefix 10.0.0.0/24:
*A:BL-1# show router bgp routes evpn ip-prefix prefix 10.10.0.0/24
===============================================================================
BGP Router ID:192.0.2.1 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN IP-Prefix Routes
===============================================================================
Flag Route Dist. Prefix
Tag Gw Address
NextHop
Label
ESI
-------------------------------------------------------------------------------
u*>i 192.0.2.2:10 10.10.0.0/24
0 00:00:00:00:00:00
192.0.2.2
LABEL 524283
00:00:00:00:00:23:23:23:10:00 # EVPN IP aliasing
u*>i 192.0.2.4:10 10.10.0.0/24
0 00:00:00:00:00:00
192.0.2.4
LABEL 524281
ESI-0
u*>i 192.0.2.5:10 10.10.0.0/24
0 00:00:00:00:00:00
192.0.2.5
LABEL 524283
ESI-0
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
The detailed information of these IP prefix routes includes the Sticky flag for the route with next-hop 192.0.2.2, which is the peer that is configured with the import policy to add stickiness:
*A:BL-1# show router bgp routes evpn ip-prefix prefix 10.10.0.0/24 hunt
===============================================================================
BGP Router ID:192.0.2.1 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN IP-Prefix Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network : n/a
Nexthop : 192.0.2.2
Path Id : None
From : 192.0.2.2
Res. Nexthop : 192.168.12.2
Local Pref. : 100 Interface Name : int-BL-1-TOR-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community : target:64500:10 evpn-bandwidth:1:1 bgp-tunnel-encap:MPLS
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.2
Origin : IGP
Flags : Used Valid Best Sticky
Route Source : Internal
AS-Path : 64501
EVPN type : IP-PREFIX
ESI : 00:00:00:00:00:23:23:23:10:00
Tag : 0
Gateway Address: 00:00:00:00:00:00
Prefix : 10.10.0.0/24
Route Dist. : 192.0.2.2:10
MPLS Label : LABEL 524283
Route Tag : 0
Neighbor-AS : 64501
DB Orig Val : N/A Final Orig Val : N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 00h04m46s
-------------------------------------------------------------------------------
Network : n/a
Nexthop : 192.0.2.4
Path Id : None
From : 192.0.2.4
Res. Nexthop : 192.168.14.2
Local Pref. : 100 Interface Name : int-BL-1-TOR-4
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community : target:64500:10 evpn-bandwidth:1:3 bgp-tunnel-encap:MPLS
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.4
Origin : IGP
Flags : Used Valid Best
Route Source : Internal
AS-Path : 64501
EVPN type : IP-PREFIX
ESI : ESI-0
Tag : 0
Gateway Address: 00:00:00:00:00:00
Prefix : 10.10.0.0/24
Route Dist. : 192.0.2.4:10
MPLS Label : LABEL 524281
Route Tag : 0
Neighbor-AS : 64501
DB Orig Val : N/A Final Orig Val : N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 00h04m30s
-------------------------------------------------------------------------------
Network : n/a
Nexthop : 192.0.2.5
Path Id : None
From : 192.0.2.5
Res. Nexthop : 192.168.15.2
Local Pref. : 100 Interface Name : int-BL-1-TOR-5
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community : target:64500:10 evpn-bandwidth:1:1 bgp-tunnel-encap:MPLS
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.5
Origin : IGP
Flags : Used Valid Best
Route Source : Internal
AS-Path : 64501
EVPN type : IP-PREFIX
ESI : ESI-0
Tag : 0
Gateway Address: 00:00:00:00:00:00
Prefix : 10.10.0.0/24
Route Dist. : 192.0.2.5:10
MPLS Label : LABEL 524283
Route Tag : 0
Neighbor-AS : 64501
DB Orig Val : N/A Final Orig Val : N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 00h04m21s
-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
---snip---
Sticky ECMP for EVPN IFL over SRv6
Example topology - IFL EVPN-SRv6 shows the topology with VPRN-20 in an EVPN SRv6 network.
Configuration
- cards, MDAs, ports
- router interfaces
- IS-IS on the router interfaces of BL-1 and the TORs, except for the router interfaces between TORs and CNFs
- SRv6 on BL-1 and the TORs
- IBGP on BL-1 and the TORs with BL-1 acting as RR
On BL-1, the policy "add-stickiness-vprn-20" can be applied at BGP peer level or at service level. In the following configuration, the policy is applied as vrf-import policy in VPRN-20:
# on BL-1:
configure
router Base
policy-options
begin
prefix-list "cnf_ips-20"
prefix 10.20.0.0/24 longer
exit
community "comm-20"
members "target:64500:20"
exit
policy-statement "AS-20"
entry 1
action accept
as-path-prepend 64503 1
community add "comm-20"
exit
exit
exit
policy-statement "add-stickiness-vprn-20"
entry 12
from
prefix-list "cnf_ips-20"
community "comm-20"
exit
action accept
sticky-ecmp
exit
exit
entry 13
from
community "comm-20"
exit
action accept
exit
exit
exit
commit
exit
exit
service
vprn 20 name "VPRN-20" customer 1 create
description "IFL-SRv6"
ecmp 10
interface "test-20" create
address 172.20.20.1/30
sap 1/1/c10/1:20 create
exit
exit
segment-routing-v6 1 create
locator "BL1-loc"
function
end-dt4
end-dt6
end-dt46
exit
exit
exit
bgp-evpn
segment-routing-v6 bgp 1
evi 20
evpn-link-bandwidth
advertise
weighted-ecmp
exit
route-distinguisher 192.0.2.1:20
source-address 2001:db8::2:1
srv6-instance 1 default-locator "BL1-loc"
vrf-export "AS-20"
vrf-import "add-stickiness-vprn-20
vrf-target target:64500:20
no shutdown
exit
exit
no shutdown
The configuration of VPRN-20 on the TORs is similar, but without the stickiness. IP aliasing ECMP is implemented on TOR-2 and TOR-3 in a similar way as in Sticky ECMP for EVPN IFL over MPLS. The configuration of the CNFs is also similar.
Verification
On BL-1, the routes for prefix 10.20.0.0 have sticky ECMP enabled for all next-hops, as follows:
*A:BL-1# show router service-name "VPRN-20" route-table 10.20.0.0/24
===============================================================================
Route Table (Service: 20)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.20.0.0/24 [S] Remote EVPN-IFL 00h03m58s 170
2001:db8:aaaa:102:7b1d:b000:: (tunneled:SRV6) 10
10.20.0.0/24 [S] Remote EVPN-IFL 00h03m58s 170
2001:db8:aaaa:103:7b1d:9000:: (tunneled:SRV6) 10
10.20.0.0/24 [S] Remote EVPN-IFL 00h03m58s 170
2001:db8:aaaa:104:7b1d:9000:: (tunneled:SRV6) 10
10.20.0.0/24 [S] Remote EVPN-IFL 00h03m58s 170
2001:db8:aaaa:105:7b1d:b000:: (tunneled:SRV6) 10
-------------------------------------------------------------------------------
No. of Routes: 4
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
The extensive route table also shows the stickiness, which applies for all the next-hops regardless of the ECMP weights.
*A:BL-1# show router service-name "VPRN-20" route-table 10.20.0.0 extensive
===============================================================================
Route Table (Service: 20)
===============================================================================
Dest Prefix : 10.20.0.0/24
Protocol : EVPN-IFL
Age : 00h02m05s
Preference : 170
Sticky ECMP : Yes
Indirect Next-Hop : 192.0.2.2
SRV6 SID : 2001:db8:aaaa:102:7b1d:b000::
VPN Next-Hop Index : 33
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 1
Resolving Next-Hop : 2001:db8:aaaa:102:7b1d:b000:: (SRV6 tunnel)
Metric : 10
ECMP-Weight : 1
Indirect Next-Hop : 192.0.2.3
SRV6 SID : 2001:db8:aaaa:103:7b1d:9000::
VPN Next-Hop Index : 35
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 1
Resolving Next-Hop : 2001:db8:aaaa:103:7b1d:9000:: (SRV6 tunnel)
Metric : 10
ECMP-Weight : 1
Indirect Next-Hop : 192.0.2.4
SRV6 SID : 2001:db8:aaaa:104:7b1d:9000::
VPN Next-Hop Index : 37
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 3
Resolving Next-Hop : 2001:db8:aaaa:104:7b1d:9000:: (SRV6 tunnel)
Metric : 10
ECMP-Weight : 3
Indirect Next-Hop : 192.0.2.5
SRV6 SID : 2001:db8:aaaa:105:7b1d:b000::
VPN Next-Hop Index : 38
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
ECMP-Weight : 1
Resolving Next-Hop : 2001:db8:aaaa:105:7b1d:b000:: (SRV6 tunnel)
Metric : 10
ECMP-Weight : 1
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
BL-1 uses the following EVPN IP prefix routes:
*A:BL-1# show router bgp routes evpn ip-prefix prefix 10.20.0.0/24
===============================================================================
BGP Router ID:192.0.2.1 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN IP-Prefix Routes
===============================================================================
Flag Route Dist. Prefix
Tag Gw Address
NextHop
Label
ESI
-------------------------------------------------------------------------------
u*>i 192.0.2.2:20 10.20.0.0/24
0 00:00:00:00:00:00
192.0.2.2
504283
00:00:00:00:00:23:23:23:20:00 # IP aliasing ECMP
u*>i 192.0.2.4:20 10.20.0.0/24
0 00:00:00:00:00:00
192.0.2.4
504281
ESI-0
u*>i 192.0.2.5:20 10.20.0.0/24
0 00:00:00:00:00:00
192.0.2.5
504283
ESI-0
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
The detailed information of these IP prefix routes includes the Sticky flag for all next-hops, as follows:
*A:BL-1# show router bgp routes evpn ip-prefix prefix 10.20.0.0/24 hunt
===============================================================================
BGP Router ID:192.0.2.1 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN IP-Prefix Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network : n/a
Nexthop : 192.0.2.2
Path Id : None
From : 192.0.2.2
Res. Nexthop : 192.168.12.2
Local Pref. : 100 Interface Name : int-BL-1-TOR-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community : target:64500:20 evpn-bandwidth:1:1
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.2
Origin : IGP
Flags : Used Valid Best Sticky
Route Source : Internal
AS-Path : 64501
EVPN type : IP-PREFIX
ESI : 00:00:00:00:00:23:23:23:20:00
Tag : 0
Gateway Address: 00:00:00:00:00:00
Prefix : 10.20.0.0/24
Route Dist. : 192.0.2.2:20
MPLS Label : 504283
Route Tag : 0
Neighbor-AS : 64501
DB Orig Val : N/A Final Orig Val : N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 00h01m13s
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:102::
Full Sid : 2001:db8:aaaa:102:7b1d:b000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Network : n/a
Nexthop : 192.0.2.4
Path Id : None
From : 192.0.2.4
Res. Nexthop : 192.168.14.2
Local Pref. : 100 Interface Name : int-BL-1-TOR-4
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community : target:64500:20 evpn-bandwidth:1:3
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.4
Origin : IGP
Flags : Used Valid Best Sticky
Route Source : Internal
AS-Path : 64501
EVPN type : IP-PREFIX
ESI : ESI-0
Tag : 0
Gateway Address: 00:00:00:00:00:00
Prefix : 10.20.0.0/24
Route Dist. : 192.0.2.4:20
MPLS Label : 504281
Route Tag : 0
Neighbor-AS : 64501
DB Orig Val : N/A Final Orig Val : N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 00h00m58s
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:104::
Full Sid : 2001:db8:aaaa:104:7b1d:9000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Network : n/a
Nexthop : 192.0.2.5
Path Id : None
From : 192.0.2.5
Res. Nexthop : 192.168.15.2
Local Pref. : 100 Interface Name : int-BL-1-TOR-5
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community : target:64500:20 evpn-bandwidth:1:1
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.5
Origin : IGP
Flags : Used Valid Best Sticky
Route Source : Internal
AS-Path : 64501
EVPN type : IP-PREFIX
ESI : ESI-0
Tag : 0
Gateway Address: 00:00:00:00:00:00
Prefix : 10.20.0.0/24
Route Dist. : 192.0.2.5:20
MPLS Label : 504283
Route Tag : 0
Neighbor-AS : 64501
DB Orig Val : N/A Final Orig Val : N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 00h00m45s
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:105::
Full Sid : 2001:db8:aaaa:105:7b1d:b000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
---snip---
Sticky ECMP for EVPN IFF over VXLAN
Example topology - IFF EVPN-VXLAN shows the topology with R-VPLS BD-31 linked to VPRN-30 in an EVPN-VXLAN network.
Configuration
- cards, MDAs, ports
- router interfaces
- IS-IS on the router interfaces of BL-1 and the TORs, except for the router interfaces between TORs and CNFs
- IBGP on BL-1 and the TORs with BL-1 acting as RR
On BL-1, the import policy adds ECMP stickiness to R-VPLS BD-31. This import policy is applied as vsi-import in R-VPLS BD-31, but it can also be applied at BGP peer level. The configuration on BL-1 is as follows:
# on BL-1:
configure
router Base
policy-options
begin
prefix-list "cnf_ips-30"
prefix 10.30.0.0/24 longer
exit
community "comm-31"
members "target:64500:31"
exit
policy-statement "import-add-stickiness-rvpls-31"
entry 10
from
prefix-list "cnf_ips-30"
community "comm-31"
exit
action accept
sticky-ecmp # add stickiness
exit
exit
entry 11
from
community "comm-31"
exit
action accept
exit
exit
exit
exit
commit
exit
service
vprn 30 name "VPRN-30" customer 1 create
ecmp 10
interface "test-30" create
address 172.20.30.1/32
loopback
exit
interface "int-BD-31" create
vpls "BD-31"
evpn-tunnel
exit
exit
no shutdown
exit
vpls 31 name "BD-31" customer 1 create
description "broadcast domain 31 connected to VPRN-30"
allow-ip-int-bind
exit
vxlan instance 1 vni 31 create
exit
bgp
vsi-import "import-add-stickiness-rvpls-31"
exit
bgp-evpn
ip-route-advertisement
ip-route-link-bandwidth
advertise weight dynamic max-dynamic-weight 128
weighted-ecmp
exit
evi 31
vxlan bgp 1 vxlan-instance 1
no shutdown
exit
exit
stp
shutdown
exit
no shutdown
exit
The configuration on TOR-2 is as follows. The EVI in the ES for IP aliasing ECMP corresponds to the R-VPLS BD-31.
# on TOR-2:
configure
router Base
policy-options
begin
policy-statement "export-to-bgp"
entry 10
to
protocol bgp
exit
action accept
exit
exit
exit
commit
exit
exit
service
system
bgp-evpn
ethernet-segment "ES-31" virtual create # same on TOR-3
esi 00:00:00:00:00:23:23:23:31:00
service-carving
mode auto
exit
multi-homing all-active
vprn-next-hop 10.100.30.1
evi
evi-range 31
exit
no shutdown
exit
info
exit
exit
vprn 30 name "VPRN-30" customer 1 create
ecmp 10
autonomous-system 64500
interface "int-BD-31" create
vpls "BD-31"
evpn-tunnel
exit
exit
interface "int-VPRN30-TOR-2-to-CNF-6" create
address 10.30.26.1/24 # on TOR-3: 10.30.36.1/24
sap 1/1/c3/1:30 create
exit
exit
interface "loopback" create # only on TOR-2, not on TOR-3
address 10.100.30.2/32
loopback
exit
static-route-entry 10.100.30.1/32
next-hop 10.30.26.2 # on TOR-3: 10.30.36.1
no shutdown
exit
exit
bgp # only on TOR-2, no EBGP on TOR-3
preference 168 # preferred over EVPN IFF routes (169)
rapid-withdrawal
group "PE-CE"
type external
export "export-to-bgp" # from any protocol to bgp
peer-as 64501
neighbor 10.100.30.1 # IP alias
evpn-link-bandwidth
add-to-received-bgp 1
exit
exit
exit
no shutdown
exit
no shutdown
exit
vpls 31 name "BD-31" customer 1 create # same on TOR-3, TOR-4, TOR-5
allow-ip-int-bind
exit
vxlan instance 1 vni 31 create
exit
bgp
exit
bgp-evpn
ip-route-advertisement
ip-route-link-bandwidth
advertise weight dynamic max-dynamic-weight 128
weighted-ecmp
exit
evi 31
vxlan bgp 1 vxlan-instance 1
auto-disc-route-advertisement
mh-mode network
no shutdown
exit
exit
stp
shutdown
exit
no shutdown
exit
The configuration on the other TORs is similar, but the interface addresses are used instead of the IP alias.
EVPN IFF routes have a default preference of 169, whereas EVPN IFL routes have a default preference of 170. The TORs with EBGP sessions to the CNFs receive the EBGP route for the anycast prefix with default BGP preference 170 and they advertise an EVPN IFF route for the anycast prefix with preference 169. When the TORs receive EVPN IFF routes for the anycast prefix with preference 169, the EVPN IFF routes have preference over the EBGP route. The TORs install the EVPN IFF route in the route table for VPRN-30 and they withdraw their own generated EVPN IFF route, so BL-1 will not have EVPN IFF routes to each TOR. To prefer the EBGP route over the EVPN IFF routes, the preference of the EBGP routes is configured with a value lower than 169.
Verification
TOR-2, TOR-4, and TOR-5 install the prefix 10.30.0.0 in VPRN-30 with the configured preference 168; on TOR-2 as follows:
*A:TOR-2# show router 30 route-table 10.30.0.0
===============================================================================
Route Table (Service: 30)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.30.0.0/24 Remote BGP 00h01m14s 168
10.30.26.2 1
-------------------------------------------------------------------------------
No. of Routes: 1The BGP route for prefix 10.30.0.0/24 is preferred over the EVPN IFF routes for the same anycast prefix, so TOR-2, TOR-4, and TOR-5 each generate an EVPN IFF route for prefix 10.30.0.0/24. BL-1 receives the following three IP prefix routes for prefix 10.30.0.0/24:
*A:BL-1# show router bgp routes evpn ip-prefix prefix 10.30.0.0/24
===============================================================================
BGP Router ID:192.0.2.1 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN IP-Prefix Routes
===============================================================================
Flag Route Dist. Prefix
Tag Gw Address
NextHop
Label
ESI
-------------------------------------------------------------------------------
u*>i 192.0.2.2:31 10.30.0.0/24
0 00:02:fe:ff:ff:5c
192.0.2.2
VNI 31
00:00:00:00:00:23:23:23:31:00
u*>i 192.0.2.4:31 10.30.0.0/24
0 00:04:fe:ff:ff:5c
192.0.2.4
VNI 31
ESI-0
u*>i 192.0.2.5:31 10.30.0.0/24
0 00:05:fe:ff:ff:5c
192.0.2.5
VNI 31
ESI-0
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
On BL-1, the EVPN-IFF routes for prefix 10.30.0.0 in VPRN-30 have stickiness for all next-hops, as follows:
*A:BL-1# show router service-name "VPRN-30" route-table 10.30.0.0
===============================================================================
Route Table (Service: 30)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.30.0.0/24 [S] Remote EVPN-IFF 00h00m26s 169
int-BD-31 (ET-00:02:fe:ff:ff:5c) 0
10.30.0.0/24 [S] Remote EVPN-IFF 00h00m26s 169
int-BD-31 (ET-00:03:fe:ff:ff:5c) 0
10.30.0.0/24 [S] Remote EVPN-IFF 00h00m26s 169
int-BD-31 (ET-00:04:fe:ff:ff:5c) 0
10.30.0.0/24 [S] Remote EVPN-IFF 00h00m26s 169
int-BD-31 (ET-00:05:fe:ff:ff:5c) 0
-------------------------------------------------------------------------------
No. of Routes: 4
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
*A:BL-1# show router service-name "VPRN-30" route-table 10.30.0.0 extensive
===============================================================================
Route Table (Service: 30)
===============================================================================
Dest Prefix : 10.30.0.0/24
Protocol : EVPN-IFF
Age : 00h00m58s
Preference : 169
Sticky ECMP : Yes
Next-Hop : int-BD-31 (ET-00:02:fe:ff:ff:5c)
Interface : int-BD-31
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
Metric : 0
ECMP-Weight : 1
Next-Hop : int-BD-31 (ET-00:03:fe:ff:ff:5c)
Interface : int-BD-31
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
Metric : 0
ECMP-Weight : 1
Next-Hop : int-BD-31 (ET-00:04:fe:ff:ff:5c)
Interface : int-BD-31
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
Metric : 0
ECMP-Weight : 3
Next-Hop : int-BD-31 (ET-00:05:fe:ff:ff:5c)
Interface : int-BD-31
QoS : Priority=n/c, FC=n/c
Source-Class : 0
Dest-Class : 0
Metric : 0
ECMP-Weight : 1
-------------------------------------------------------------------------------
No. of Destinations: 1
===============================================================================
Conclusion
When EVPN IP prefix routes advertise an additional route with a new next-hop for the same prefix or when an EVPN IP prefix is withdrawn for that prefix, the number of paths changes and therefore, the flow distribution changes. Upon withdrawal of one of the next-hops, sticky ECMP redistributes only the affected flows. When adding a next-hop, sticky ECMP minimizes the impact on existing flows. This way, the number of TCP resets is limited. The stickiness is solely associated with next-hops and not with links at LAG level.
Appendix
The sticky ECMP implementation is based on software. The ECMP behavior is emulated by repeating each ECMP next-hop of the sticky route a number of times, depending on the next-hop normalized weight, in different hashing buckets. The assignment of hashing buckets is not based on the number of existing next-hops for a router, but on the maximum number of internal hashing buckets, which is 64 in FP-based platforms and 16 in IXR platforms.
Sticky ECMP flow distribution when one next-hop is removed for 10.10.0.0/24 compares the initial sticky ECMP distribution with three next-hops with the sticky ECMP flow distribution when next-hop 3 is removed as in Redistributed traffic flows after CNF-10 is removed. Next-hop 2 has weight 3 while next-hops 1 and 3 have weight 1.
| Initial sticky ECMP distribution with next-hop 1 (weight 1), next-hop 2 (weight 3), and next-hop 3 (weight 1) | Sticky ECMP distribution after next-hop 3 fails | ||
|---|---|---|---|
| bucket | next-hop | bucket | next-hop |
| 00 | 1 | 00 | 1 |
| 01 | 2 | 01 | 2 |
| 02 | 2 | 02 | 2 |
| 03 | 2 | 03 | 2 |
| 04 | 3 | 04 | 1 |
| 05 | 1 | 05 | 1 |
| 06 | 2 | 06 | 2 |
| 07 | 2 | 07 | 2 |
| 08 | 2 | 08 | 2 |
| 09 | 3 | 09 | 2 |
| 10 | 1 | 10 | 1 |
| 11 | 2 | 11 | 2 |
| 12 | 2 | 12 | 2 |
| 13 | 2 | 13 | 2 |
| 14 | 3 | 14 | 2 |
| 15 | 1 | 15 | 1 |
| 16 | 2 | 16 | 2 |
| 17 | 2 | 17 | 2 |
| 18 | 2 | 18 | 2 |
| 19 | 3 | 19 | 2 |
| 20 | 1 | 20 | 1 |
| 21 | 2 | 21 | 2 |
| 22 | 2 | 22 | 2 |
| 23 | 2 | 23 | 2 |
| 24 | 3 | 24 | 1 |
| 25 | 1 | 25 | 1 |
| 26 | 2 | 26 | 2 |
| 27 | 2 | 27 | 2 |
| 28 | 2 | 28 | 2 |
| 29 | 3 | 29 | 2 |
| 30 | 1 | 30 | 1 |
| 31 | 2 | 31 | 2 |
| 32 | 2 | 32 | 2 |
| 33 | 2 | 33 | 2 |
| 34 | 3 | 34 | 2 |
| 35 | 1 | 35 | 1 |
| 36 | 2 | 36 | 2 |
| 37 | 2 | 37 | 2 |
| 38 | 2 | 38 | 2 |
| 39 | 3 | 39 | 2 |
| 40 | 1 | 40 | 1 |
| 41 | 2 | 41 | 2 |
| 42 | 2 | 42 | 2 |
| 43 | 2 | 43 | 2 |
| 44 | 3 | 44 | 1 |
| 45 | 1 | 45 | 1 |
| 46 | 2 | 46 | 2 |
| 47 | 2 | 47 | 2 |
| 48 | 2 | 48 | 2 |
| 49 | 3 | 49 | 2 |
| 50 | 1 | 50 | 1 |
| 51 | 2 | 51 | 2 |
| 52 | 2 | 52 | 2 |
| 53 | 2 | 53 | 2 |
| 54 | 3 | 54 | 2 |
| 55 | 1 | 55 | 1 |
| 56 | 2 | 56 | 2 |
| 57 | 2 | 57 | 2 |
| 58 | 2 | 58 | 2 |
| 59 | 3 | 59 | 2 |
| 60 | 1 | 60 | 1 |
| 61 | 2 | 61 | 2 |
| 62 | 2 | 62 | 2 |
| 63 | 2 | 63 | 2 |
All existing flows with next-hops 1 (TOR-2) or 2 (TOR-4) remain unchanged; only the flows with next-hop 3 (TOR-5) are redistributed over the remaining paths according to the weighted ECMP set.
Similarly, when the initial ECMP distribution has two next-hops (next-hop 1 with weight 1 and next-hop 2 with weight 3) and a third next-hop (next-hop 3 with weight 1) is added, the stickiness ensures that only 20% of the flows is redistributed, as shown in Sticky ECMP flow distribution when one next-hop is added for 10.10.0.0/24. The initial situation is different from the preceding table.
| Initial sticky ECMP distribution with next-hop (weight 1) and next-hop 2 (weight 3) | Sticky ECMP distribution after next-hop 3 (weight 1) is added | ||
|---|---|---|---|
| bucket | next-hop | bucket | next-hop |
| 00 | 1 | 00 | 1 |
| 01 | 2 | 01 | 2 |
| 02 | 2 | 02 | 2 |
| 03 | 2 | 03 | 2 |
| 04 | 1 | 04 | 3 |
| 05 | 2 | 05 | 2 |
| 06 | 2 | 06 | 2 |
| 07 | 2 | 07 | 2 |
| 08 | 1 | 08 | 1 |
| 09 | 2 | 09 | 3 |
| 10 | 2 | 10 | 2 |
| 11 | 2 | 11 | 2 |
| 12 | 1 | 12 | 1 |
| 13 | 2 | 13 | 2 |
| 14 | 2 | 14 | 3 |
| 15 | 2 | 15 | 2 |
| 16 | 1 | 16 | 1 |
| 17 | 2 | 17 | 2 |
| 18 | 2 | 18 | 2 |
| 19 | 2 | 19 | 3 |
| 20 | 1 | 20 | 1 |
| 21 | 2 | 21 | 2 |
| 22 | 2 | 22 | 2 |
| 23 | 2 | 23 | 2 |
| 24 | 1 | 24 | 3 |
| 25 | 2 | 25 | 2 |
| 26 | 2 | 26 | 2 |
| 27 | 2 | 27 | 2 |
| 28 | 1 | 28 | 1 |
| 29 | 2 | 29 | 3 |
| 30 | 2 | 30 | 2 |
| 31 | 2 | 31 | 2 |
| 32 | 1 | 32 | 1 |
| 33 | 2 | 33 | 2 |
| 34 | 2 | 34 | 3 |
| 35 | 2 | 35 | 2 |
| 36 | 1 | 36 | 1 |
| 37 | 2 | 37 | 2 |
| 38 | 2 | 38 | 2 |
| 39 | 2 | 39 | 3 |
| 40 | 1 | 40 | 1 |
| 41 | 2 | 41 | 2 |
| 42 | 2 | 42 | 2 |
| 43 | 2 | 43 | 2 |
| 44 | 1 | 44 | 3 |
| 45 | 2 | 45 | 2 |
| 46 | 2 | 46 | 2 |
| 47 | 2 | 47 | 2 |
| 48 | 1 | 48 | 1 |
| 49 | 2 | 49 | 3 |
| 50 | 2 | 50 | 2 |
| 51 | 2 | 51 | 2 |
| 52 | 1 | 52 | 1 |
| 53 | 2 | 53 | 2 |
| 54 | 2 | 54 | 3 |
| 55 | 2 | 55 | 2 |
| 56 | 1 | 56 | 1 |
| 57 | 2 | 57 | 2 |
| 58 | 2 | 58 | 2 |
| 59 | 2 | 59 | 3 |
| 60 | 1 | 60 | 1 |
| 61 | 2 | 61 | 2 |
| 62 | 2 | 62 | 2 |
| 63 | 2 | 63 | 2 |
