BNG Dual-Homing with EVPN VPWS in the Access Network and SRv6 Transport
This chapter describes BNG dual-homing with EVPN VPWS in the access network and SRv6 transport.
Topics in this chapter include:
Appendix with configuration files
Applicability
The information and configuration in this chapter is based on SR OS Release 22.10.R1. The feature described in this chapter applies to all FP4 and above based SR systems; it is not supported on VSR.
Enhanced subscriber management (ESM) is prerequisite knowledge. This chapter can serve as an SRv6 primer for subscriber management users who are less familiar with this technology.
Overview
Segment routing over IPv6 dataplane (SRv6) is a technology that supports overlay network designs over a single dataplane protocol (IPv6). The size of an IPv6 address (128 bits) is large enough to carry more information than only the addressing of interfaces on a network device. SRv6 allows for additional information so that an IPv6 address can encode functions that extend beyond simple node reachability information. Mature routing protocols (IGP and BGP) with proven fast rerouting mechanisms continue to be used to disseminate SRv6 information across the networks. The mix of those fast-rerouting mechanisms, SRv6, and synchronized subscribers in dual-homed environment enhanced subscriber management with multi-chassis synchronization (ESM MCS) results in simplified and robust access networks that benefit service providers and their customers.
This chapter describes an example topology with:
- redundant BNGs
- synchronized subscribers
- an SRv6-based network providing access to the subscribers
- routing on the core side where the cost of advertised subscriber routes depends on the forwarding state—specifically, the subscriber routed redundancy protocol (SRRP) state—in the access network
Note: Although SRv6 is the transport technology described in this
chapter, SRv6 is not a prerequisite for active/standby BNG with EVPN VPWS in the
access network. Multi-chassis BNG redundancy can be realized with a variety of other
transport technologies in the access network.
This chapter provides integrated configuration content for BNG and SRv6.

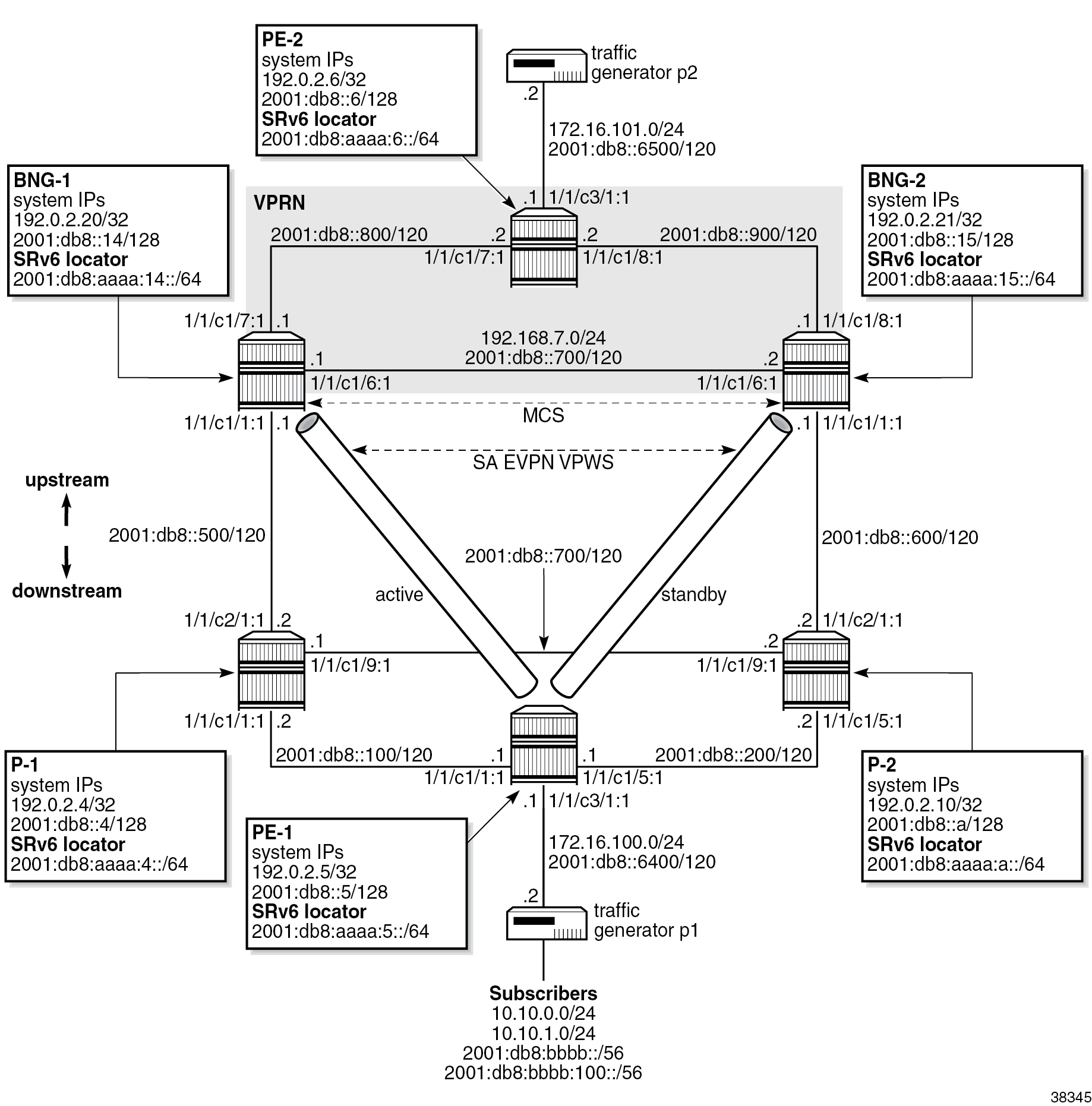

Example topology shows the example topology used throughout this chapter. The terminology is as follows:
- The access network refers to all nodes downstream of the BNGs, including the interfaces and SAPs on the BNGs connected to that part of the network.
- The core part of the network refers to all nodes upstream of the BNGs, including the interfaces and SAPs on the BNGs connecting them to that part of the network.
- The term "EVPN VPWS" is used interchangeably with "Epipe" because the EVPN VPWS deployed in the access network is configured in SR OS nodes as an Epipe.
Note: Although terms such as "active or standby subscriber" or
"active or standby node" are commonly used in redundant BNG topologies and may
occasionally be used within this document, it is important to state that subscribers
and nodes do not have redundancy states, such as "active" or "standby". Only SRRP
has states that are here referred to as "active" and "standby".
At a high level, the topology in Example topology can be described in terms of access-related configuration, subscriber-related configuration, and core-related configuration.
Access-related configuration
- Subscribers are connected to the first-mile access node (PE-1), which is dual-homed to the two BNGs (BNG-1 and BNG-2).
- Pseudowire (PW) ports on the two BNGs are part of an Ethernet segment (ES) configured in single-active (SA) mode in the EVPN VPWS multihoming (MH) environment.
- The EVPN transport technology in the access network is SRv6.
Subscriber-related configuration
- There are 10 IPoE and 10 PPPoE dual-stack sessions terminated on a PW-SAP in a VPRN on both BNGs.
- Each IPoE and PPPoE session has an IPv4 address, a DHCPv6 identity association for non-temporary addresses (IA-NA), and a DHCPv4 identity association for prefix delegation (IA-PD) addresses. IA-PD addresses are modeled as managed routes with IPv6 next hops.
- Each session is mapped to a separate subscriber.
- Subscriber sessions are synchronized between the two BNGs. A fully synchronized model offers redundancy protection with minimal loss during network outages.
- DHCPv4/v6 servers are instantiated on the BNGs and their pools are synchronized, except for DHCPv4 pools used for internal address assignment to PPPoEv4 sessions. IPv4 addresses for PPPoEv4 sessions are synchronized in DHCPv4 pools through PPPoE session synchronization and not directly through DHCP pools.
- The SRRP state is indirectly derived from the state of the dual-homed EVPN ES in the access network and does not rely on exchange of SRRP keepalive messages between the two BNGs.
- A redundant interface between the two BNGs provides a temporary path for subscriber traffic while the network is converging during switchovers.
Core-related configuration
- A VPRN with SRv6 transport is deployed in the core.
- SRRP-aware routing on the core side ensures that the core traffic follows the BNG with the active SRRP instance. In other words, traffic in both directions (upstream and downstream) is attracted to one BNG or the other based on the SRRP state.
The example topology provides protection against failures of network elements in the access and core networks, including the BNGs themselves.
Subscriber traffic is run between two ports of a traffic generator. For topology verification purposes, network failures are purposefully introduced and their effect on the subscriber traffic is examined.
Subscriber synchronization
The subscriber state is synchronized between the two BNGs, including DHCPv4/v6 lease state and PPPoEv4/v6 states.
DHCPv4/v6 pools on the local DHCP servers in both BNGs are synchronized in access-driven mode (except for the pools used for internal IP address allocation to PPPoEv4, which are synchronized indirectly through PPPoE session synchronization). In access driven mode, the DHCPv4/v6 servers in each BNG are configured identically and are attached to an interface with the same IP address. Both servers can allocate IP addresses at any time; however, to prevent duplication of IP addresses, access to only one server is allowed at any given time. This restriction is achieved through the redundancy model, which relies on the SA mode of operation on the ES coupled with SRRP.

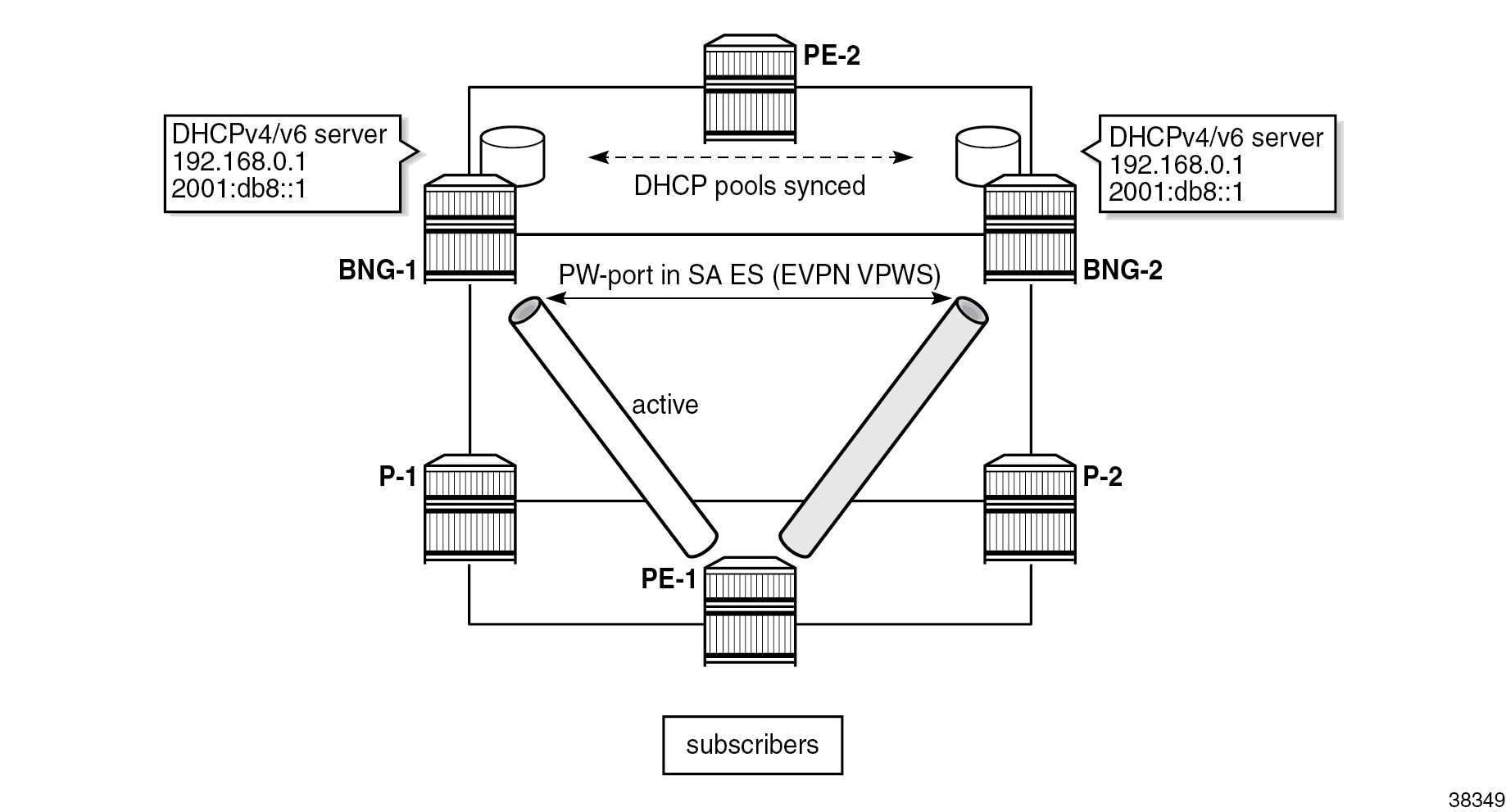

DHCP pool synchronization in access-driven mode shows a topology using the redundancy model, where subscribers have access only to BNG-1 via EVPN VPWS multihoming. The path of the EVPN VPWS on the left side is active while the path on the right side is standby.
SRv6
This section provides a brief introduction to SRv6. For more information about SRv6, refer to the "Segment Routing over IPv6" chapter in the 7750 SR and 7950 XRS Segment Routing and PCE Advanced Configuration Guide for Classic CLI and "EVPN VPWS Services with SRv6 Transport" chapter in the 7450 ESS, 7750 SR, 7950 XRS, and VSR Layer 2 Services and EVPN Advanced Configuration Guide for MD CLI and to the 7750 SR and 7950 XRS Segment Routing and PCE User Guide.
SRv6 allows for more flexible network management over a single IPv6 dataplane protocol, using the following concepts:
- traffic engineering, where traffic is securely steered through pre-selected network nodes on its way to the destination
- network programmability, which includes encoding higher-level functions (such as service identification) into the IPv6 address
At the dataplane level, SRv6-based traffic steering is implemented with the help of a routing extension header, called a segment routing header (SRH). Each application typically provides its own type of the routing header, as is the case here, with inherent support for security.
The SRH contains a list of segments, each of which has a unique segment identifier (SID), through which a packet is steered as it transits the network on its way to the destination. These segments may be nodes, adjacencies, bindings to downstream tunnels, and so on. Each node that owns a SID in the SRH needs to intercept the SRv6 packet for inspection and consequently update the IPv6 header. Transit nodes that are not in the SRH list do not intercept SRv6 packets because the packet is not addressed to them. Such transit nodes forward the packet to the destination based on a lookup of the destination address (DA) in the outer IPv6 header.
As well as identifying specific segments via IPv6 addresses in SRv6, SIDs carry additional information beyond node reachability. This additional information instructs the target node how to map arriving IPv6 packets to a service. For example, a SID can be an IPv6 address that, in addition to carrying the address of the target node (SRv6 prefix or a locator), also carries specific EVPN VPWS information. This additional information is interpreted at the target node as “extract the payload of this packet and process it in the context of EVPN Epipe ID=10”. In this way, an arriving IPv6 packet is directly mapped into the corresponding service based on the IPv6 address, without the need for additional transport protocols such as MPLS with its VC labels.

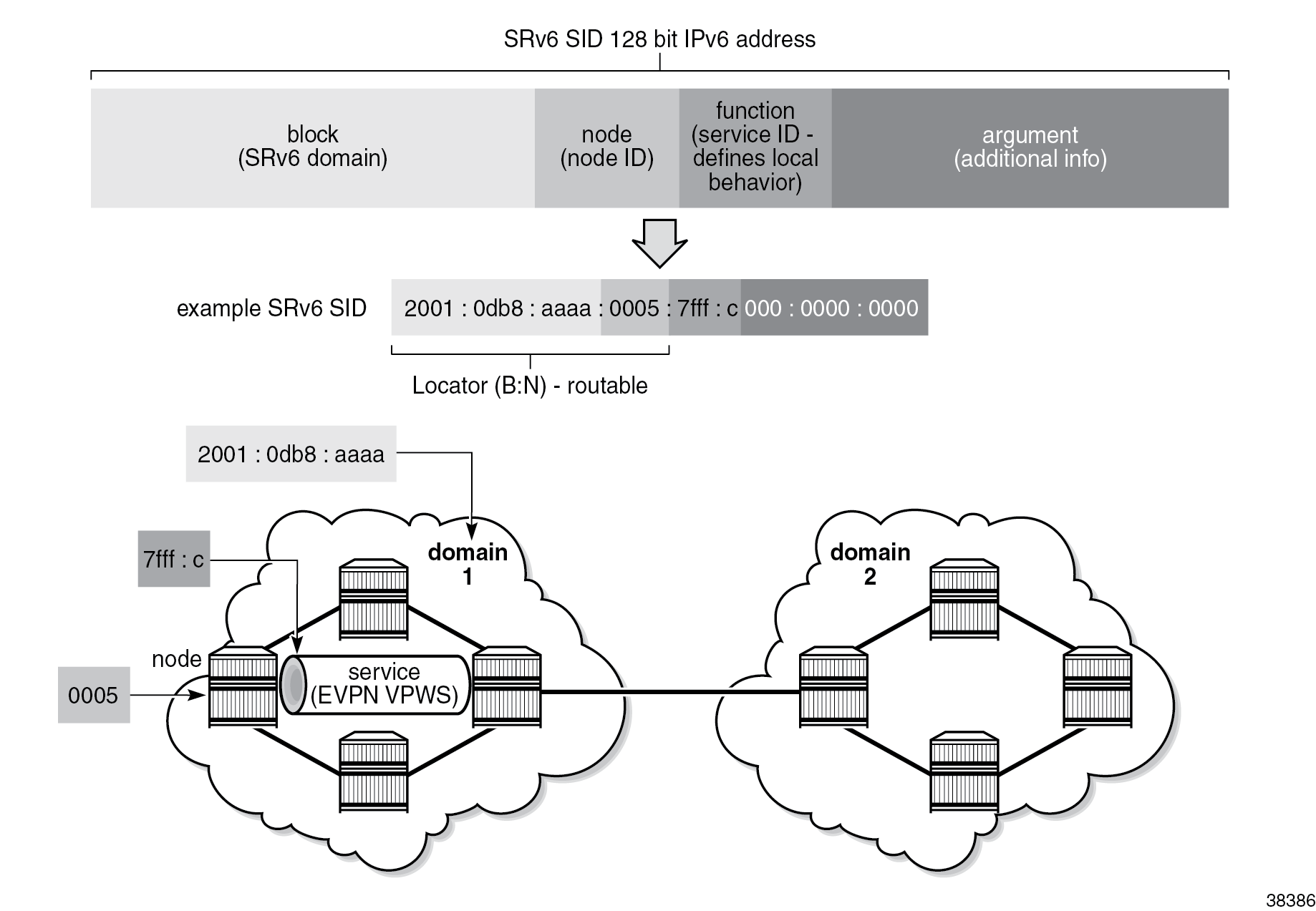

SRv6 SID shows the SID structure, where the length of the fields is configurable.
To differentiate between SIDs used in plain routing and the higher level SIDs that are used with services (such as EVPN and VPRN), the SIDs are sometimes referred to as transport SIDs and service SIDs. SIDs are advertised in routing protocols through segment routing extensions. Nokia SR OS supports such extensions in IS-IS for transport-related SIDs and in BGP for Layer 2 and Layer 3 service-related SIDs.
SIDs are an integral part of routing in SRv6, but SIDs are not interface addresses; SIDs are configured and allocated in respective segment-routing-v6 contexts (outside of the interface configuration) to the Base router and service to which they pertain.
As SRv6 SID shows, the block and the node form a locator field in the SID. The locator field is used for node reachability in basic destination-based routing. Typically, a node advertises IPv6 prefixes matching the locator function of its SIDs. In SR OS, when the locator prefix is advertised in IS-IS, it is encoded in an SRv6 Locator Sub-TLV, which is an SRv6 extension in IS-IS. A node can advertise multiple locators simultaneously (for example, one locator per Flexible-Algorithm).
The block part of the locator defines an SRv6 domain. In an SRv6 domain, nodes share the same block prefix. SRv6 domains can be considered as administrative units that can be formed based on geography or some other logical entity, such as enterprise VPN. The node part of the locator is unique to each node.
The function part of the locator defines a local behavior on the node that owns the SID. Specific functions that can be associated with SIDs are described in RFC 8986 and RFC 8402. The End and End.X functions are used by IS-IS to create repair tunnels and backup paths (topology-independent loop-free-alternate (TI-LFA) and remote LFA). The combination of TI-LFA and remote LFA provides full coverage of any access network. The End function represents the node prefix which is reachable based on the shortest path. The End.X function represents links between the nodes (these links are router adjacencies which can be local or remote) and is used to specify the router adjacency (for example, for strict mode routing) out of which the frame is forwarded. Together, the End and End.X functions are used to install optimal and loop-free backup paths in the forwarding plane with achievable failover times of less than 50 ms.
The table SRv6 endpoint behaviors shows the functions used in this chapter:
| Function | Description | Advertised in |
|---|---|---|
| End | SRv6 instantiation of a node SID | IS-IS SRv6 End SID sub-TLV |
| End.X | SRv6 instantiation of an adjacency SID | IS-IS SRv6 End.X SID sub-TLV |
| End.DX2 | decapsulation and L2 cross-connect (L2VPN) | EVPN VPWS AD per-EVI route |
| End.DT4 | decapsulation and specific IPv4 table lookup (IPv4-L3VPN) | BGP |
| End.DT6 | decapsulation and specific IPv6 table lookup (IPv6-L3VPN) | BGP |
| End.B6.Encap.Red | function bound to an SRv6-policy with reduced encapsulation | N/A |
The argument field is optional, and it can carry additional information related to the local function. It is set to 0 inSR OS.
Routing
IS-IS is used as IGP to disseminate node reachability information (the node’s interface routes, BGP next hops, SRv6 locators, and node and adjacency SIDs), while BGP is used to disseminate SRv6 service SIDs and VPN and EVPN routes.

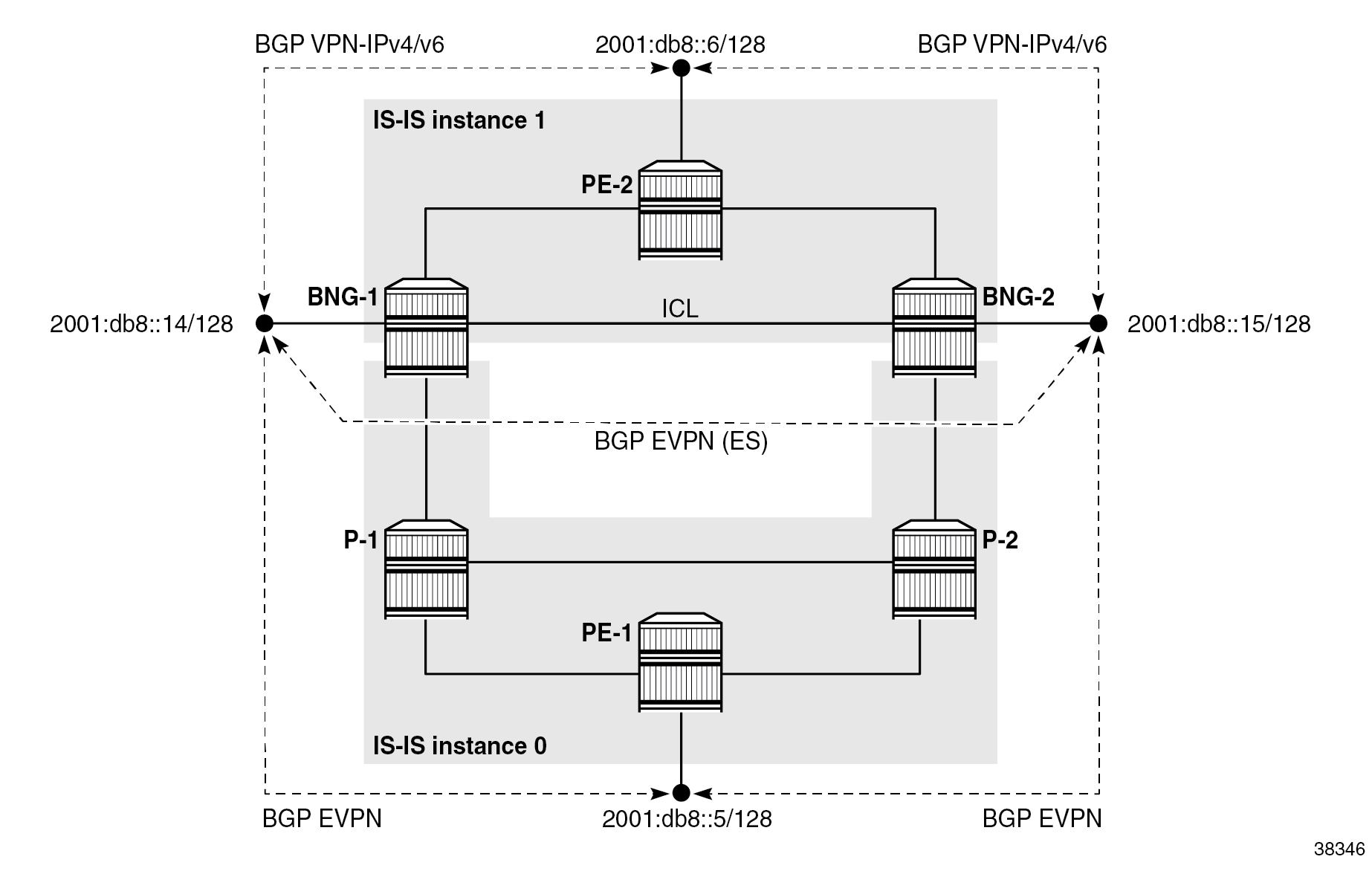

As shown in Separation of routing domains, IS-IS is segmented into two instances:
- IS-IS instance 0 runs in the access network
- IS-IS instance 1 runs in the core part of the network, including the inter-chassis link (ICL) between the two BNGs
The system IPv6 addresses are included in both instances. There is no route exchange between the two IS-IS instances.
IPv6 BGP peering is established directly (with no route reflector) between the service endpoints with respective BGP address families, as shown in Separation of routing domains. IPv6 BGP peering is not a prerequisite and IPv4 BGP peering would work just as well.
The ICL must be highly redundant but does not need to support high bandwidth. Its use is typically limited to subscriber synchronization and to shunt data traffic between BNGs during transient network conditions while the network reconverges during switchovers. For cost reductions, it may not be desirable to dimension this ICL to carry all subscriber traffic during prolonged periods of network failures. To minimize the use of ICL for data traffic, the topology shown in Separation of routing domains relies on the separation of IS-IS routing domains between the access network and the core network, as described in the Examining failovers section. The hard separation of IS-IS routing domains is not a prerequisite or the only design option, but rather an arbitrary choice used in this chapter.

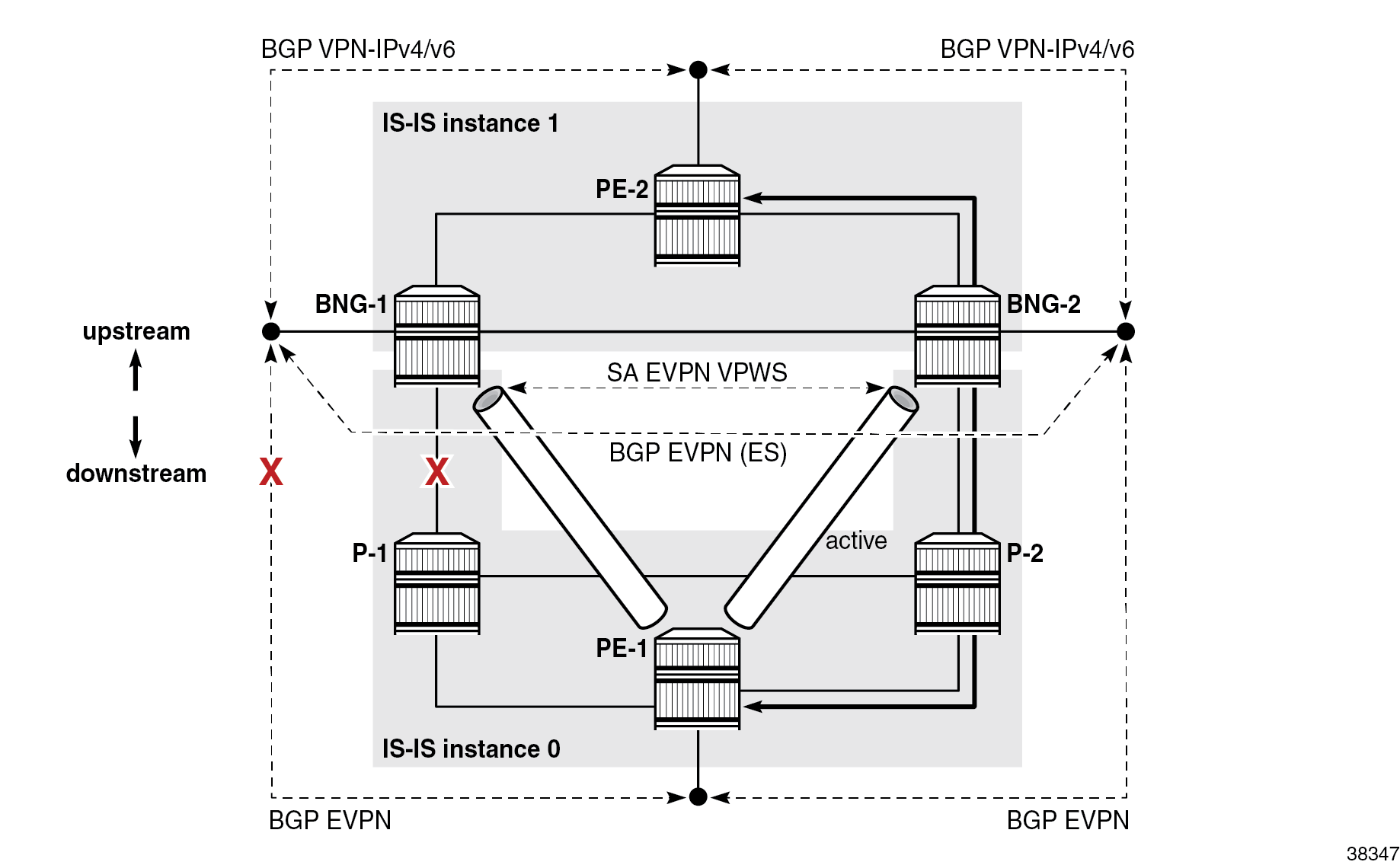

When the link between the nodes BNG-1 (with the active SRRP) and P-1 fails, the PE-1 BGP next hop becomes unreachable on BNG-1 because of the separation of IS-IS routing domains, which causes the active EVPN VPWS between BNG-1 and PE-1 to switch over to BNG-2. The switch to BNG-2, combined with SRRP-aware routing on the core side, ensures that the use of ICL is limited to transient conditions while routing is converging during the failure. Optimal traffic flow during network failures shows the steady state traffic path after the network has converged: the path from PE-1 to PE-2 via P-2 and BNG-2.

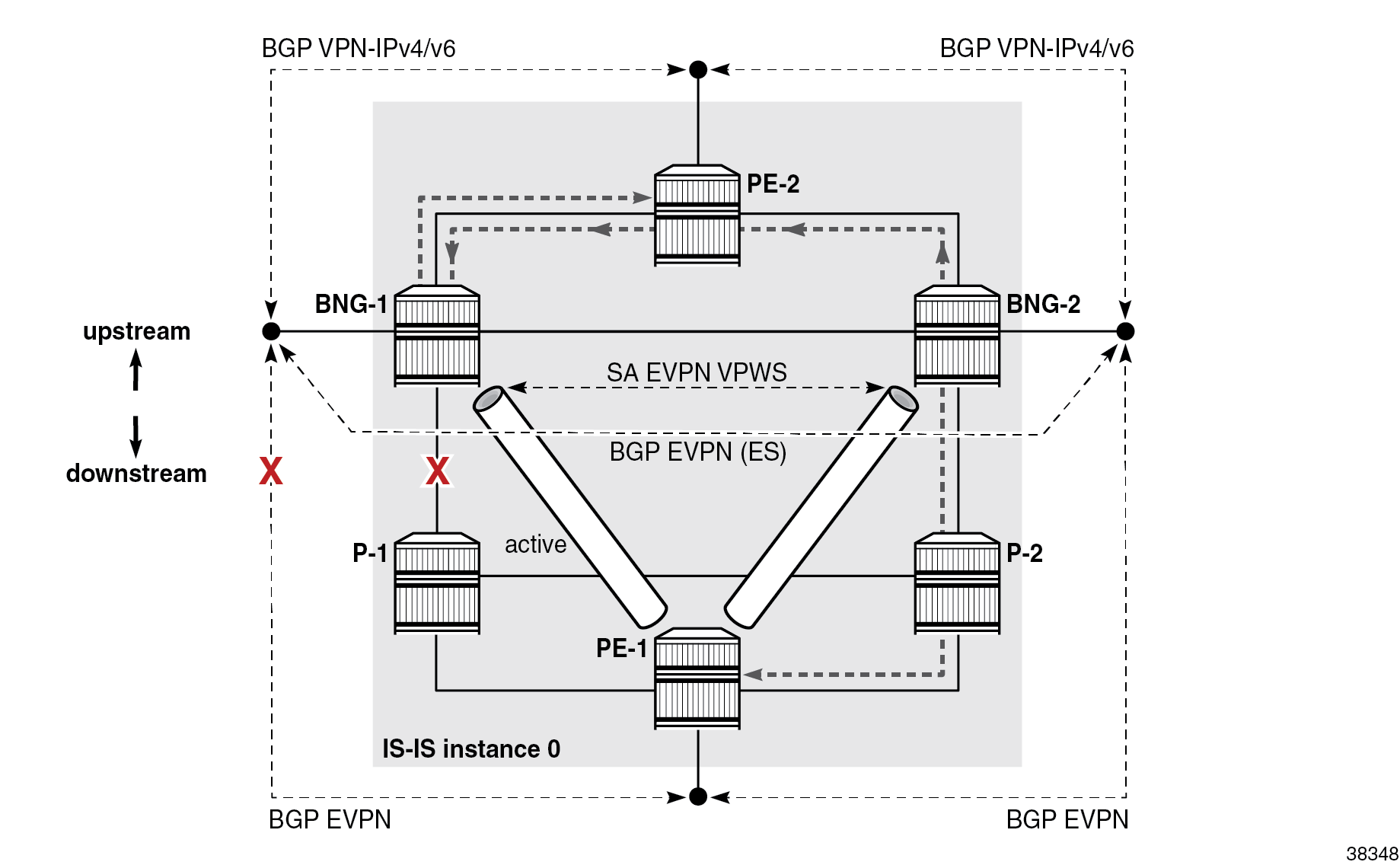

In an alternative design where all nodes are in the same IS-IS routing instance 0, the PE-1 node continues to be reachable from BNG-1 (via BNG-2 or PE-2) even after the access link on BNG-1 fails. As a result, BNG-1 remains the designated forwarder (DF) for the ES and SRRP on BNG-1 remains in the active state. This causes traffic in both directions to take a path over the ICL link or even to cross some of the core links twice, as shown in Suboptimal traffic flow during network failure . Traffic from PE-1 goes via P-2 to BNG-2, which sends the traffic to DF BNG-1 via PE-2 (the ICL is not used). BNG-1 forwards the traffic (back to) PE-2.
IPv4 addressing
Subscriber traffic in the overlay network utilizes both IPv4 and IPv6 address families, as part of dual-stack configuration. Comparatively, the underlay network is based on SRv6, with the advantage that IPv4 addressing is no longer needed.
Therefore, in the example topology, IPv4 addresses in the underlay network are removed from most interfaces. There are a few exceptions where local IPv4 addresses are kept, but without advertising them into the network, which means that routing protocols in the underlay network remain free of IPv4 addresses.
The following are exceptions where IPv4 addresses in the underlay network are still used:
- System IPv4 addresses are still used locally on each node for legacy reasons where some functionalities may still require it. For example, in EVPN VPWS multihoming, an IPv4 system address is required to derive the route distinguisher (RD) for the ES route (even if static RD for the EVPN VPWS is configured).
- Multi-chassis synchronization (MCS) peering between the two nodes is supported only over IPv4 addresses. For the MCS peering, the system IP addresses of the BNGs are used, with static routes over the IPv4 next hops configured on the direct link between the two BNG nodes. Because this link directly connects the two BNGs, no advertisement of the IPv4 prefix is required.
- The redundant-Interface command under the BNG group-interface context also requires IPv4 addressing. Those IPv4 addresses are also not advertised into the network.
SRv6 policy
For illustrative purposes, the example uses a static SR policy of type SRv6 in the access network. This SR policy is configured with segment list entries, which are node SIDs that are to be visited on the way to the final destination.
The SR policy is treated as a routing entity whose configured endpoint is installed as an entry in the tunnel table. The SR policy becomes the protocol owner of such an entry in the routing or tunnel table. The tunnel entry can be used for BGP next-hop resolution.
Configuring hops in the SR policy triggers the generation of an SRH, which is further described in the Configuration section.
The SR policy in the example steers traffic onto a longer path, despite a shorter path with lower cost being available. This behavior is shown in Static SRv6 policy paths where traffic from the BNGs to PE-1, and vice versa, always flows through both P-1 and P-2.
Examining failovers
The configuration used in this chapter has been tested by running traffic and incurring network failures at various points. Traffic was monitored after the failures to ensure the traffic was flowing through a predicted path.

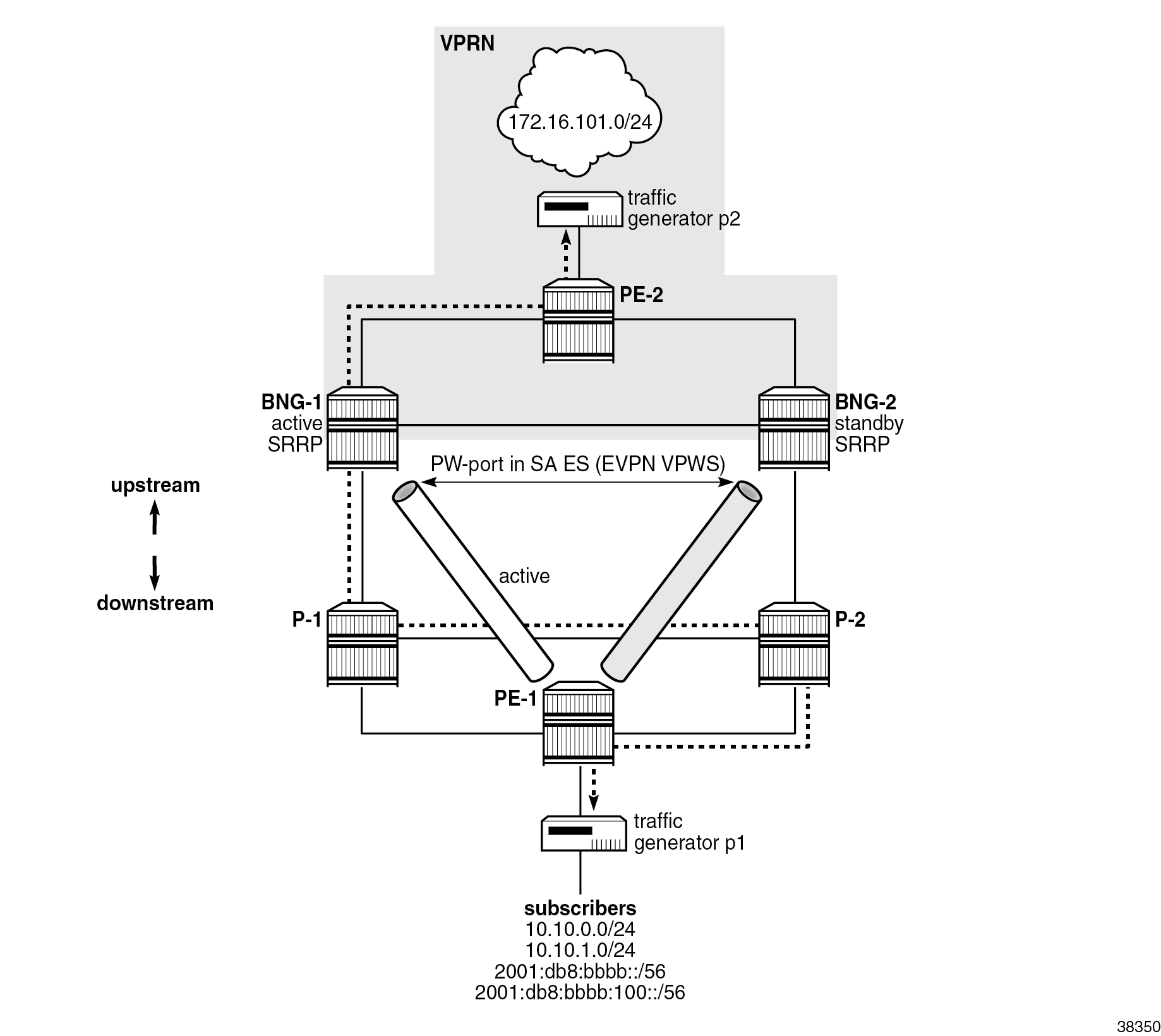

Traffic is run bidirectionally between two ports on a traffic generator, representing the subscribers on the 10.10.x.x networks and the Internet on the 172.16.101.x network.
BNG-1 advertises subscriber IPv4 and IPv6 subnets into the core network (VPRN) with lower cost than BNG-2, because SRRP is active on BNG-1 and standby on BNG-2.
In the access network, the ES in EVPN VPWS on BNG-1 is selected as DF due to a higher preference.
Traffic through the access network is steered by the SRH, which is inserted by the static SR policy configured on both BNGs and PE-1. In the upstream direction, traffic follows the path depicted in Baseline traffic flow: from traffic generator port 1 via PE-1, P-2, P-1, BNG-1, and PE-2 to traffic generator port 2. Downstream traffic follows the same path in reverse direction.
Three switchovers are examined:
- switchover due to failure of the link between BNG-1 and P-1
- switchover due to failure of the network link connecting BNG-1 to PE-2
- switchover due to failure of the entire BNG-1 node
In all three cases, the failover time depends on the failure detection speed and convergence of the routing protocols. Nokia encourages operators to run performance-related tests, which includes measuring failover times, in their own test environment on service routers with Nokia native hardware (non-server based service routers).
Failure detection speed can, in some cases, be improved by bi-directional forwarding detection (BFD). In the example topology, BFD is configured for detection of BGP peer failures.
Switchover caused by the failure of the access link on BNG-1

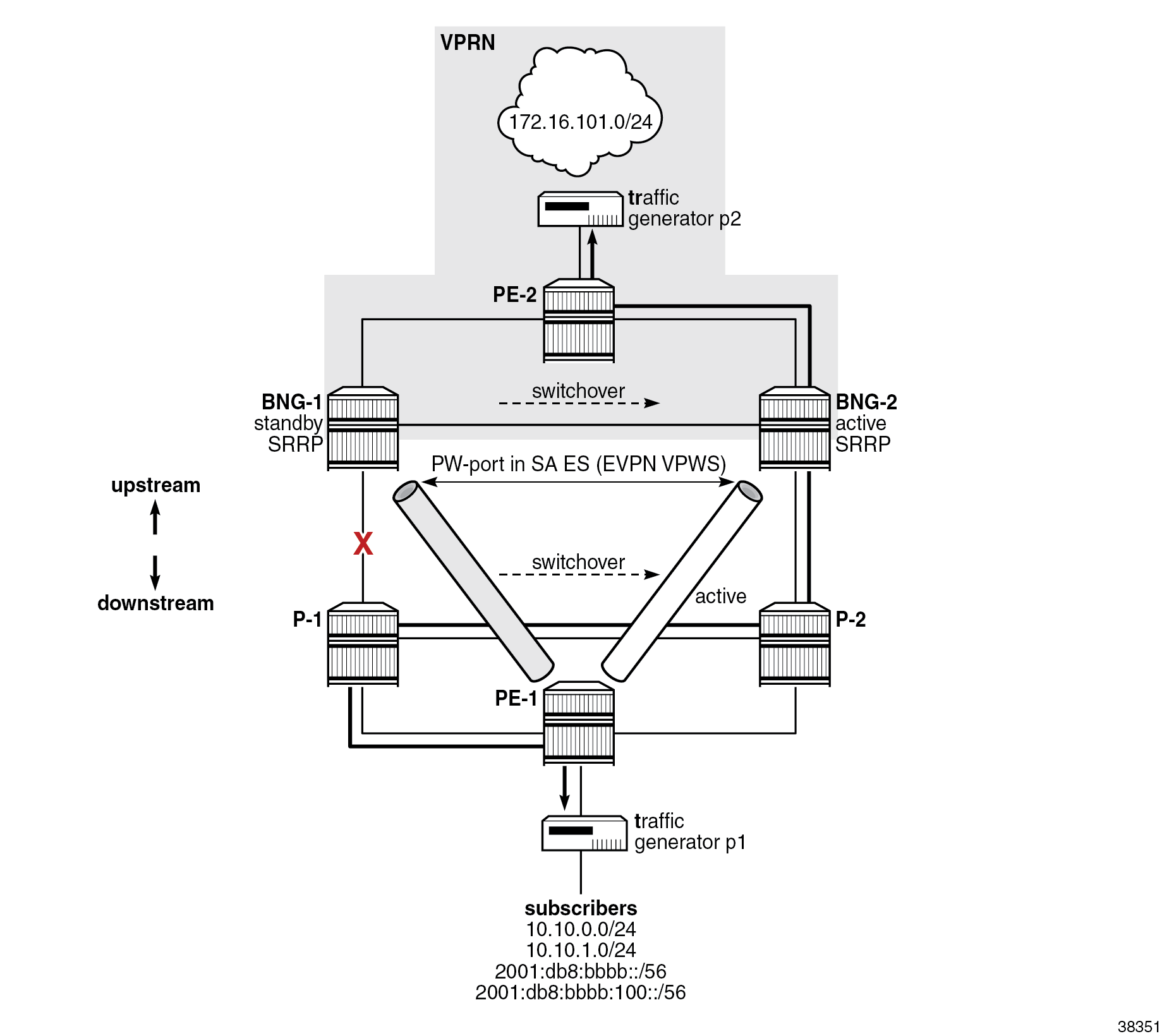

Access port failure shows a switchover scenario where the access port on BNG-1 toward P-1 is disabled and all traffic is diverted to BNG-2 as indicated. The traffic detour over the link between P-1 and P-2 is taken because the static SR policies favor longer paths over shorter.
The following events trigger the traffic switchover from BNG-1 to BNG-2:
- When the access port on BNG-1 is disabled, the BGP peering connection between BNG-1 and PE-1 is lost because of the separation of IS-IS routing domains. The BGP connection is required for the advertisement of the overlay EVPN routes.
- On BNG-1, the speed of detecting the BGP connection failure is locally driven by the speeds of the link loss detection and the consequent IS-IS algorithm that is run to determine that an alternate path to the BGP peer (PE-1) does not exist.
- On PE-1, the speed of detecting the BGP connection failure is driven by the speed of IS-IS link state advertisement (LSA) propagation.
- The severed BGP connection between BNG-1 and PE-1 triggers the DF election process on the ES between the two BNGs, which is driven by BGP. BNG-2 is selected as the DF and BNG-1 as the non-DF.
- The newly elected DF on BNG-2 performs the following actions:
- It activates EVPN VPWS toward PE-1 so that traffic can be sent to it and be received from it. (More explicitly, it advertises an Auto-Discovery route with the Primary flag (P-bit) set to 1 to indicate that it is active, and the Backup flag (B-bit) set to zero.)
- It triggers activation of SRRP on BNG-2 (but does not activate it). SRRP continues to run through its own state machine, which involves waiting for three times the SRRP transmit interval (SRRP keepalive messages) before it becomes active. Due to this delay in becoming active, it is still important to have a short SRRP transmit interval configured under SRRP, even if SRRP keepalive messages are not exchanged between the two BNGs, as in this example. In other words, SRRP activation is driven by the DF outcome of the EVPN ES election process, which then triggers the SRRP activation process with its own state machine.
- PE-1 does not wait for the BGP update from BNG-2 that contains the new DF decision. PE-1 activates the stored backup route from BNG-2 as soon as it realizes, via IS-IS, that the BGP connection to BNG-1 is lost.
-
Lastly, the activation of SRRP on BNG-2 triggers the advertisement of subscriber routes into the core with a lower cost than that advertised by BNG-1. After the core network converges, traffic in the downstream direction is diverted from the link between PE-2 and BNG-1 to the link between PE-2 and BNG-2. While the routing is converging, traffic in the downstream direction might be flowing from BNG-1 to BNG-2 through the redundant interface (over the ICL) between the two BNGs.
Switchover caused by the network link failure between BNG-1 and PE-2

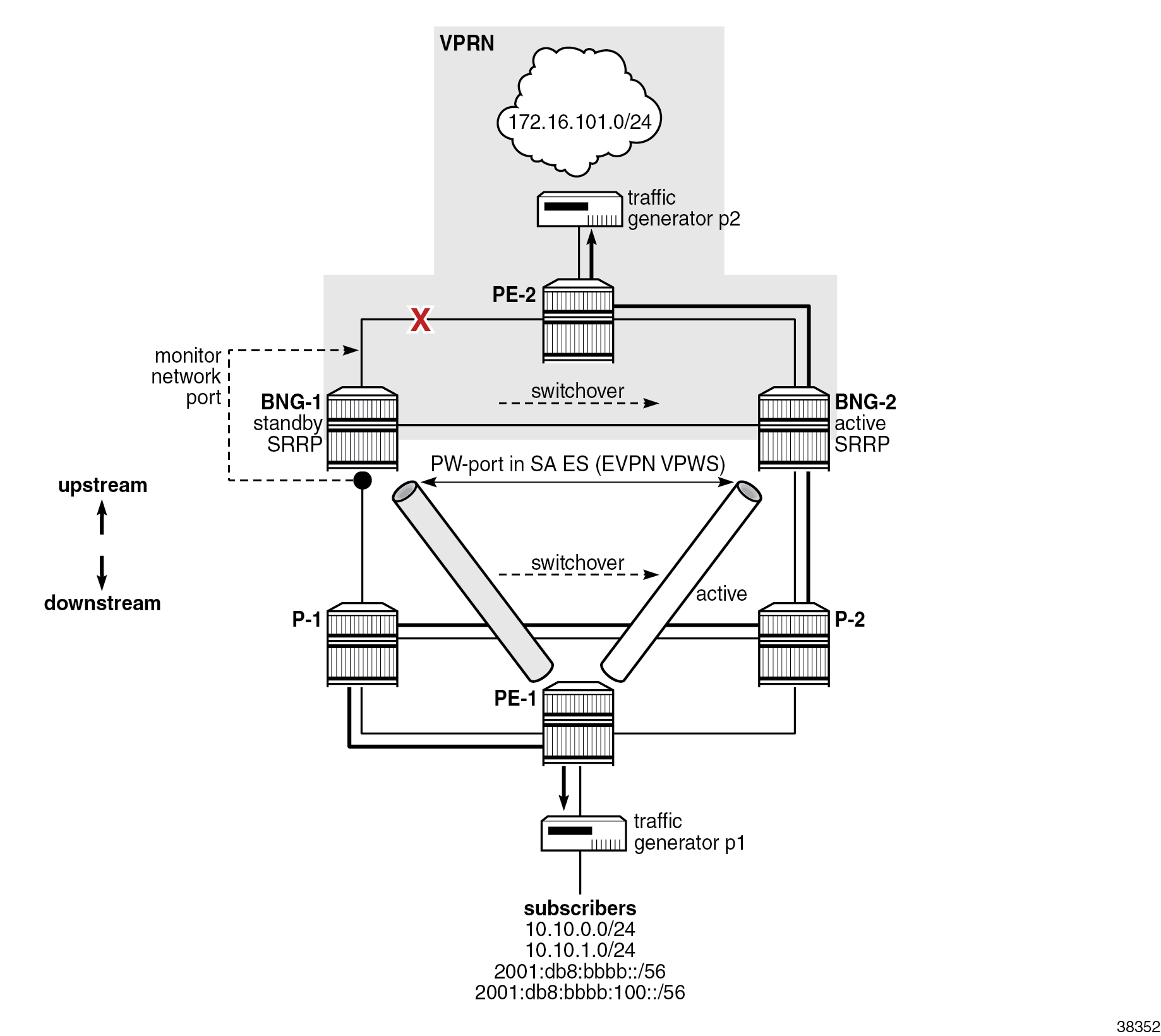

In Network port failure, the port on BNG-1 toward PE-2 is disabled, which results in a switchover due to the network link failure between BNG-1 and PE-2. All traffic is diverted to BNG-2. The traffic detour over the link between P-1 and P-2 is taken because of the static SR policies on BNGs and PE-1.
A failure of the core link on BNG-1 diverts downstream traffic to BNG-2 in the core network, which uses VPRN. But in the access network, which uses EVPN, traffic still flows through BNG-1, which remains the DF on EVPN ES and where SRRP is active. To prevent a scenario where the inter-chassis link is used to carry traffic between the two BNGs during the failure, a feedback loop from the core port to the access port is required. In this way, the state change of the core port is reflected in the access port and, as result, traffic is completely diverted from BNG-1 to BNG-2. This feedback loop is implemented through an operational group associated with a core port and monitored by the access port.
The remainder of the switchover mechanics are the same as those in the Switchover caused by the failure of the access link on BNG-1 section.
Switchover caused by the BNG-1 node failure
After the loss of the BGP peering connection to BNG-1, BNG-2 becomes the DF for the EVPN ES. The BGP peering connection loss can be detected by a loss of link on BNG-2, by BFD, or by IS-IS LSA propagation.
BNG-2 becoming DF has the same effects as already described in the previous two cases.
Recovery
To restore the network to its state from before the failure, the operators have the option to revert traffic automatically to the primary paths that were available before the failure. The revertive behavior involves another switchover, which is associated with possible traffic loss. Whether to enable revertive behavior is a choice between the cost of another switchover measured by affected user experience due to a small traffic loss and the cost of keeping the traffic on backup paths which may not be optimized for such traffic.
To ensure minimal traffic loss when revertive behavior is enabled, the network must have fully converged after the recovery, before the switchover to the previous state occurs. For example, upon reboot, the recovered BNG must be fully integrated into the network; that is, all subscribers must be synchronized between the two BNGs, the BGP peering sessions must be reestablished, and routes exchanged. The synchronization between the BNGs is independent of the exchange of BGP routes and these events may occur in any sequence. For this reason, bootup timers must be configured properly to make sure that all relevant processes are completed before the switchover occurs. Bootup timers are described in the Configuration section.
Configuration
The complete configuration files for all six nodes in this example topology are provided in the Appendix.
The examples in this section focus on the Forwarding Path Extension (FPE)-based PW port in multihomed EVPN environments with SRv6 transport.
The configuration shown in this section is mainly for the two nodes that represent the two endpoints of the EVPN VPWS: BNG-1 and PE-1.
The configuration blocks, together with the output of the show commands, cover the following topics:
- FPE
- SRv6
- IS-IS routing related to SRv6
- BGP routing related to SRv6
- EVPN VPWS (including ES and PW port) and service-related SRv6 configuration
- VPRN-related SRv6 configuration
- multi-chassis redundancy configuration
- DHCP server configuration
- subscriber management configuration
While many of these topics are described in other chapters, the purpose of this chapter is to show how they interact together.
The less important parts in the configuration blocks or the output from the show commands are removed for brevity.
FPE
In SR OS Release 22.10, the example setup requires three FPE-based port cross-connects (PXCs) on each BNG, one for each of:
- the SRv6 origin
- the SRv6 termination
- the PW port
All three PXCs are port-based and they are set up on the same port. Selecting port-based PXCs in this example versus MAC- or internal-based PXCs is an arbitrary choice. Either type of PXC can be used.
The PXC configuration on BNG-1 is as follows. The configuration on BNG-2 is identical. Other nodes do not have a PW port and require only two PXCs for SRv6.
[pr:/configure port-xc]
A:admin@bng-1#
pxc 1 {
admin-state enable
description "fpe srv6 origin"
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
description "fpe srv6 termination"
port-id 1/1/c4/1
}
pxc 3 {
admin-state enable
description "fpe pw-port"
port-id 1/1/c4/1
}
The logical PXC ports are configured as follows:
[pr:/configure]
A:admin@bng-1#
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port pxc-3.a {
admin-state enable
}
port pxc-3.b {
admin-state enable
}
}
The following FPE configuration is required for PW port and SRv6 configuration:
[pr:/configure]
A:admin@bng-1#
fwd-path-ext {
sdp-id-range {
start 17500
end 17600
}
fpe 1 {
description "srv6 origination"
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
description "srv6 termination"
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
fpe 3 {
description "pw-port on a single port"
path {
pxc 3
}
application {
pw-port-extension { }
}
}
SRv6
SRv6 is configured on several levels:
- the base routing context level (which is the focus of this section)
- the IS-IS routing protocol level
- the services level
The static SRv6 policy is configured in the base routing context and is examined in the context of the Epipe to which it is applied.
Relevant to the example setup, the global SRv6 configuration under the base router provides:
- an SRv6 association with an FPE
- an SRv6 locator
- the source address
- the allocation and behavior of End and End.X SIDs
Note: Nokia encourages that the source address is configured at the Base routing context
level. Although some entities, such as EVPN or VPRN services, provide the
configuration option for the source address, other entities, such as the static
SR policy, do not. In these cases, the entities inherit the source address from
the global configuration provided here. Without the configured source address,
SRv6 is not operational.
[pr:/configure router "Base" segment-routing segment-routing-v6]
A:admin@bng-1#
origination-fpe [1]
source-address 2001:db8::14
locator "bng-1-loc" {
admin-state enable
block-length 48
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:14::/64
}
}
base-routing-instance {
locator "bng-1-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
The following show command displays a summary of SRv6 on a global level:
A:admin@bng-1# /show router segment-routing-v6 summary
===============================================================================
Segment Routing v6
===============================================================================
Origination FPE : 1
Source IPv6 Address : 2001:db8::14
===============================================================================
Locator Admin State
Prefix
-------------------------------------------------------------------------------
bng-1-loc Up
2001:db8:aaaa:14::/64
---snip---
The following show output lists the node and adjacency SIDs:
A:admin@bng-1# /show router segment-routing-v6 base-routing-instance
===============================================================================
Segment Routing v6 Base Routing Instance
===============================================================================
Locator
Type Function SID Status/InstId
SRH-mode Protection Interface
-------------------------------------------------------------------------------
bng-1-loc
End 1 2001:db8:aaaa:14:0:1000:: ok
USP
-------------------------------------------------------------------------------
Auto-allocated End.X: USP Protected,
-------------------------------------------------------------------------------
End.X *524287 2001:db8:aaaa:14:7fff:f000:: 1
USP Protected int-1-bng-1-pe-2
ISIS Level: L2 Mac Address: b4:a0:01:01:00:07 Nbr Sys Id: 1920.0000.2006
End.X *524288 2001:db8:aaaa:14:8000:: 0
USP Protected int-1-bng-1-p-1
ISIS Level: L2 Mac Address: b4:9e:01:01:00:0b Nbr Sys Id: 1920.0000.2004
End.X *524289 2001:db8:aaaa:14:8000:1000:: 1
USP Protected int-1-bng-1-bng-2
ISIS Level: L2 Mac Address: b4:98:01:01:00:06 Nbr Sys Id: 1920.0000.2021
-------------------------------------------------------------------------------
Legend: * - System allocated
The InstId field for End.X SIDs shows the IS-IS instance in which they are configured.
SRv6 locators are used for node reachability and are, through route advertisements, installed in the route tables of other nodes. For example, the following output shows the SRv6 locator of BNG-1 is installed in the IPv6 routing table of BNG-2:
A:admin@bng-2# /show router route-table ipv6
===============================================================================
IPv6 Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
---snip---
2001:db8:aaaa:14::/64 Remote ISIS(1) 02h14m11s 18
2001:db8:aaaa:14::/64 (tunneled:SRV6-ISIS) 20
---snip---
IS-IS routing related to SRv6
As described in the Routing section, IS-IS is split into two instances. Instance 0, as indicated by its configured interfaces, is active on the access side. Instance 1 is active on the core side, including the link between the two BNGs.
The segment-routing-v6 section in the IS-IS configuration block references the SRv6 locator that IS-IS, together with its basic functions (node and adjacency SIDs), advertises into the network.
Some of the IS-IS configuration outside of the isis segment-routing-v6 context is directly pertinent to SRv6. For example, the SRv6 locator is only advertised when the wide-metrics command is configured.
BNG-2 is configured similarly to BNG-1. P-1, P-2, and PE-1 have only IS-IS instance 0 configured, while PE-2 has only IS-IS instance 1 configured. Although only a portion of the configuration on BNG-1 is provided, the IS-IS configuration on other nodes in respective IS-IS instances is similar with different naming for interfaces and for the SRv6 locator.
Between the two IS-IS instances in BNG-1, the only configuration difference is that they reference different interfaces. In the following example, only one repeated part of the IS-IS instance 1 configuration is shown:
[pr:/configure router "Base"]
isis 0 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "bng-2-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-bng-2-p-2" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
isis 1 {
---snip---
interface "int-1-bng-2-bng-1" {
}
interface "int-1-bng-2-pe-2" {
}
interface "system" {
}
---snip---
The following show command confirms that IS-IS adjacencies in instance 1 are up. A similar command can be used for IS-IS instance 0.
A:admin@bng-1# /show router isis 1 adjacency
===============================================================================
Rtr Base ISIS Instance 1 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
bng-2 L2 Up 24 int-1-bng-1-bng-2 0
pe-2 L2 Up 9 int-1-bng-1-pe-2 0
-------------------------------------------------------------------------------
Adjacencies : 2
Further SRv6-related information in IS-IS, such as exchanged locators or node SIDs, can be explored by using commands under the following hierarchy:
A:admin@bng-1# /show router isis 1 segment-routing-v6
The following show command lists the locators that are present in IS-IS instance 1 on BNG-1. These locators can be local or learned through IS-IS. For BNG-1, locator 2001:db8:aaaa:14::/64 is local.
A:admin@bng-1# /show router isis 1 segment-routing-v6 locator
===============================================================================
Rtr Base ISIS Instance 1 SRv6 Locator Table
===============================================================================
Prefix AdvRtr MT Lvl/Typ
AttributeFlags Tag Flags Algo
-------------------------------------------------------------------------------
2001:db8:aaaa:6::/64 pe-2 0 2/Int.
- 0 - 0
2001:db8:aaaa:14::/64 bng-1 0 2/Int.
- 0 - 0
2001:db8:aaaa:15::/64 bng-2 0 2/Int.
- 0 - 0
-------------------------------------------------------------------------------
BGP peering
IBGP is used to exchange EVPN and VPRN routes between the BNGs and the edge nodes (PE-1 and PE-2). IBGP peering sessions with corresponding address families are shown in Separation of routing domains.
In the EVPN part of the network, BGP is used between the two BNGs to elect the DF on the ES, and between the BNGs and PE-1 to exchange the reachability EVPN routes. PE-1 uses the advertised EVPN route from the BNGs to set up and activate an EVPN VPWS connection toward the active (DF) BNG.
In the VPRN, the two BNGs exchange VPN-IPv4 and VPN-IPv6 routes (subscriber and Internet routes from the traffic generator) with PE-2.
BGP is not configured on nodes P-1 and P-2.
Consider the following when configuring BGP:
- All BGP peers are IPv6 peers.
- The advertise-ipv6-next-hops command for the VPN IPv4 and VPN IPv6 address families must be explicitly enabled. By default, only IPv4 next hops are advertised, which in this case do not exist. The counterpart command for EVPN address family is enabled under the bgp-evpn configuration for the corresponding Epipe: the route-next-hop system-ipv6 command is configured in the configure service epipe <..> bgp-evpn segment-routing-v6 context.
- The extended-nh-encoding command must be enabled to allow IPv6 next hops for the VPN IPv4 address family.
- The SR policy used for traffic steering is deployed in the access network.
- BFD is enabled for faster failure detection of all BGP neighbors.
For the SR policy to take effect, the target node referenced in the endpoint command must advertise its routes with a color extended community, in the format community:color, that matches the one configured in the policy. The configured color extended community advertised by BNG-1 is color-20. Rather than exporting this color extended community through a VSI-export policy at the service level, for simplicity reasons, it is exported at the global BGP level. This way, the color extended community can be easily added to the existing communities, such as the route target (RT) community in the Epipe.
Note: With the alternative approach relying on the VSI export
policy, the RT community would need to be explicitly readvertised along with the
color extended community.
The routing policy name used to export the color extended community is "pol-color-20". It is applied only toward the BGP peer PE-1 (neighbor 2001:db8::5). To activate the export policy, the vpn-apply-export command must be specifically enabled in MD-CLI.
The BGP configuration on BNG-1 is as follows:
[pr:/configure router "Base"]
A:admin@bng-1#
bgp {
admin-state enable
vpn-apply-export true
vpn-apply-import true
rapid-withdrawal true
rapid-update {
vpn-ipv4 true
vpn-ipv6 true
evpn true
}
extended-nh-encoding {
vpn-ipv4 true
}
advertise-ipv6-next-hops {
vpn-ipv6 true
vpn-ipv4 true
}
group "evpn" {
peer-as 64500
local-address 2001:db8::14
bfd-liveness true
family {
evpn true
}
}
group "ipvpn" {
peer-as 64500
local-address 2001:db8::14
bfd-liveness true
family {
vpn-ipv4 true
vpn-ipv6 true
}
}
neighbor "2001:db8::5" {
group "evpn"
export {
policy ["pol-color-20"]
}
}
neighbor "2001:db8::6" {
group "ipvpn"
}
neighbor "2001:db8::15" {
group "evpn"
}
}
The following shows the export policy "pol-color-20", which adds the community "color-20" to all BGP route advertisements with the family type EVPN originating from the service with the tag 11. For this purpose, the EVPN VPWS (Epipe) is explicitly tagged with tag 11, as shown in the Epipe configuration section.
[pr:/configure policy-options]
A:admin@bng-1#
community "color-20" {
member "color:00:20" { }
}
policy-statement "pol-color-20" {
entry 10 {
from {
family [evpn]
tag 11
}
action {
action-type accept
community {
add ["color-20"]
}
}
}
}
BFD is enabled on the interface advertised as the next hop in BGP updates:
[pr:/configure router "Base"]
A:admin@bng-1#
autonomous-system 64500
router-id 192.0.2.20
interface "system" {
ipv4 {
primary {
address 192.0.2.20
prefix-length 32
}
}
ipv6 {
bfd {
admin-state enable
transmit-interval 100
receive 100
multiplier 2
}
address 2001:db8::14 {
prefix-length 128
}
}
}
The BGP configurations on nodes BNG-2, PE-1, and PE-2 are similar in that both PE-1 and PE-2 nodes only interact with the two BNGs within their respective address families.
The following command shows a summary of the BGP status. The output of this command has been shortened to show only that the peers are communicating and exchanging routes. The advertised routes are examined in the service configuration sections.
A:admin@bng-1# show router bgp summary
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
BGP Admin State : Up BGP Oper State : Up
---snip---
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
2001:db8::5
64500 11617 0 04d00h46m 1/1/3 (Evpn)
11621 0
2001:db8::6
64500 11618 0 04d00h46m 1/1/2 (VpnIPv4)
11620 0 1/1/2 (VpnIPv6)
2001:db8::15
64500 11621 0 04d00h46m 3/3/3 (Evpn)
11620 0
-------------------------------------------------------------------------------
EVPN VPWS (including ES and PW port) and related SRv6 configuration
EVPN VPWS is configured as an Epipe. The three instances to be configured are:
- SRv6
- BGP
- BGP-EVPN
The SRv6 instance is configured at the top level of the Epipe and represents the dataplane instantiation of SRv6. In Release 22.10, SRv6 can be used only with the EVPN control plane (BGP-EVPN). Under this hierarchy:
- The SRv6 locator is referenced.
- The function part (End.DX2) required for creating the service SID is defined. The function value can be allocated statically or automatically; in this case, it is allocated automatically.
The BGP instance is configured at the top level of the Epipe (bgp 1 in the example), where RT and RD can be optionally configured (otherwise they are auto-derived) and where VSI policies are applied.
The BGP-EVPN instance is configured at the top level of the Epipe, with information related to EVPN control plane signaling. The number 1 in the segment-routing-v6 1 configuration under the bgp-evpn context refers to the bgp 1 instance. Consider the following aspects of this configuration:
- The source IPv6 address of the SRv6 tunnel is, in this case, the system IP address (2001:db8::14). If the source address is not defined in the configuration, the one from the global SRv6 configuration is used. Without the source address defined in one of those two places, the SRv6 transport for the service is non-operational.
- The Epipe is tagged with a tag 11 (0xb), which is used to identify the Epipe in the BGP export policy for the color extended community, as described in the BGP peering section.
- The resolution fallback-tunnel-to-route-table command forces the system to first check if the next hops for the received EVPN routes are present (or resolved) in the tunnel table, before falling back to the routing table for the resolution. This is required because the endpoint in the SR policy, along with the color, is installed in the tunnel table. A valid next-hop resolution via SR policy is a trigger for the addition of the SRH to the packet header. Without the SR policy, the SRH is not added, and the packet takes the shortest path to the final destination based on plain destination-based routing.
- The route-next-hop command identifies the next hop that is used in EVPN route advertisements. In this case, it is the system IPv6 address, but it can be any reachable locally configured IPv6 address.
The benefit of using the multi-instance provisioning model via three provisioning instances (SRv6, BGP, and BGP-EVPN) within the Epipe is that it offers more configuration flexibility when it comes to provisioning multiple data and control planes in the same service.
The Epipes on the two BNGs are configured with the same Ethernet tags. When the AD per-EVI routes with those tags are advertised, the AD per-EVI route advertised from BNG-1 has the P-bit set to 1 and the B-bit set to 0, making it the active route on PE-1. BNG-2 advertises the same AD per-EVI route (but with a different next-hop) with the value of the P-bit set to 0 and the B-bit to 1, making it the standby route on the PE-1.
[pr:/configure service epipe "evpn-dual-homing"]
A:admin@bng-1#
admin-state enable
service-id 11
customer "1"
segment-routing-v6 1 {
locator "bng-1-loc" {
function {
end-dx2 {
}
}
}
}
bgp 1 {
}
bgp-evpn {
evi 11
local-attachment-circuit "bng" {
eth-tag 2
}
remote-attachment-circuit "access" {
eth-tag 1
}
segment-routing-v6 1 {
admin-state enable
default-route-tag 0xb
source-address 2001:db8::14
resolution fallback-tunnel-to-route-table
srv6 {
instance 1
default-locator "bng-1-loc"
}
route-next-hop {
system-ipv6
}
}
}
The preceding configuration defines the remote EVPN destination (or connection to the remote node over SRv6) in the Epipe. The local termination point in the Epipe is a PW port. The PW port is FPE-based and associated with the Epipe, as follows:
[pr:/configure pw-port 1]
A:admin@bng-1#
encap-type qinq
epipe "evpn-dual-homing" {
admin-state enable
fpe-id 3
oper-up-on-mh-standby true
}
The oper-up-on-mh-standby command is related to an optimization of the ES in EVPN VPWS multihoming. The effect of this command is that the PW port and its SAPs remain operationally up when the associated ES is non-DF. This effect results in faster recovery during switchovers when the PW port has a large number of PW SAPs in the subscriber-management environment. In other words, during a non-DF to DF transition (standby to active), the system does not have to wait additional time to bring up thousands of PW SAPs from a down to an up state before it starts forwarding traffic.
The geo-redundant BNG setup in this chapter relies on two superimposed redundancy mechanisms:
- EVPN multihoming deployed in the access network-based DF election on the ES
- SRRP-based redundancy in ESM
These two redundancy mechanisms are, by themselves, independent of each other. However, to provide predictable results, they must be made co-dependent where one mechanism drives the other. In this context, EVPN MH as a technology deployed in the access network is used to detect the failures and to drive the state of SRRP. SRRP follows the states of the EVPN MH through operational groups.
ESM geo-redundancy based on SRRP does not support active-active mode of operation for a set of paired SRRP instances. As a result, the EVPN MH must be configured in the single-active (SA) mode of operation. The load-balancing between the two BNGs is achieved by distributing the activity of multiple SRRP instances across the two BNGs, some of them being active on one side and some of them on the other. In other words, the granularity of load balancing in ESM is per SRRP instance.
The configuration for coupling EVPN MH and SRRP through operational groups is shown in the following three configuration snippets, involving the definition of the operational group, the SA ES, and the SRRP messaging SAP.
The following configures the operational group "ES-1" with hold times of 0 s to prevent any reaction time delays during switchovers. Only the up time is set explicitly to 0 (from a default value of 4 s). The default value for a hold down time is already set to 0.
[pr:/configure service oper-group "ES-1"]
A:admin@bng-1#
hold-time {
up 0
}
The following configures SA ES "ES-1" as part of the operational group "ES-1" and associated with PW-port 1. The state of the operational group "ES-1" depends on the state of the ES. If the ES is elected as the DF, then the operational group is up. Otherwise, it is down.
[pr:/configure service system]
A:admin@bng-1#
bgp {
evpn {
ethernet-segment "ES-1" {
admin-state enable
esi 0x01010101010101010101
orig-ip 2001:db8::14
route-next-hop 2001:db8::14
multi-homing-mode single-active
oper-group "ES-1"
df-election {
es-activation-timer 0
service-carving-mode manual
manual {
preference {
mode revertive
value 150
}
}
}
association {
pw-port 1 {
pw-port-headend true
}
}
}
}
}
In the preceding ES configuration, the orig-ip command and the route-next-hop command must be explicitly configured in pure IPv6 environments. By default, the ES route is advertised with an IPv4 address as the next hop, which is not reachable in this example.
Under the df-election context, the configuration of the preference value influences which side becomes active and which becomes standby and the configuration of the preference mode indicates whether to enable revertive behavior, as explained in the Recovery section. In this example, the es-activation-timer command is set to 0 s, which means that the DF election occurs immediately after the failure is detected. Configuring this timer to a value greater than 0 allows some time for the peer routes to be received and collected before DF election is run. This configuration is applicable to environments with multiple routes and nodes in the same ES, but can be ignored in this example topology with only two BNGs.
The following configures the SRRP messaging SAP that tracks the state of the ES (active/standby) by monitoring the operational group "ES-1". The state of the SRRP messaging SAP is up if the ES is a DF, and down if it is a non-DF. An SRRP instance with a messaging SAP in a down state assumes the INIT state, rendering its side as standby. The pairing SRRP instance on the other BNG becomes active.
[pr:/configure service vprn "dual-homing" subscriber-interface "sub-int-1" group-interface "group-int-1"]
A:admin@bng-1#
srrp 1 {
admin-state enable
keep-alive-interval 2
message-path pw-1:2.4094
}
sap pw-1:2.4094 {
monitor-oper-group "ES-1"
}
The boot timer, whose purpose is to wait for routing to converge after a node reboots, is also important when revertive mode is enabled in the ES. The boot timer accounts for completion of subscriber synchronization between the two BNGs upon reboot. In this example, there is a wait time of 2 minutes after the node reboot for the network to converge before the ES is considered stable and ready for DF election.
*[pr:/configure redundancy]
A:admin@bng-1#
bgp-evpn {
ethernet-segment {
boot-timer 120
}
}
The multihomed Epipe configuration on PE-1 (the subscriber-connecting access node) is as follows:
[pr:/configure service epipe "dual-homing"]
A:admin@pe-1# info
admin-state enable
service-id 11
customer "1"
segment-routing-v6 1 {
locator "pe-1-loc" {
function {
end-dx2 {
}
}
}
}
sap 1/1/c3/1:*.* {
}
bgp-evpn {
evi 11
local-attachment-circuit "access" {
eth-tag 1
}
remote-attachment-circuit "bng" {
eth-tag 2
}
segment-routing-v6 1 {
admin-state enable
default-route-tag 0xb
source-address 2001:db8::5
resolution fallback-tunnel-to-route-table
srv6 {
instance 1
default-locator "pe-1-loc"
}
route-next-hop {
system-ipv6
}
}
}
SR policy
An SR policy is identified by the tuple <headend, color,
endpoint>, and its origin can be derived from the path computation
element protocol (PCEP), BGP, or may be static via configuration.
In this example, a static SR policy is used in the access network as a traffic-engineering tool to guide traffic through a predetermined network path. This path is configured in the SR policy segment-list command as a list of next hop SIDs that are programmed into the SRH.
The SR policy is not explicitly applied to an object in a classical sense, such
as routing policies, which are applied in routing and service contexts. Instead,
the end-node and the color parameters
configured in the SR policy are programmed (or activated) in the tunnel table.
As such, the SR policy is used for the BNG advertised next-hop resolution in the
tunnel table. Forcing the next-hop resolution through the tunnel-table is
configured via the resolution route-table | tunnel-table |
fallback-tunnel-to-route-table command under the Epipe
configuration.
The segment-list command references the node-SIDs, while the
endpoint configured in the SR policy is not a SID but
instead a regular IPv6 address of the destination node. When multiple routing
policies with the same endpoint and color are defined, the one with the highest
preference prevails and is installed in the tunnel-table.
The head-end local command signifies that the SR policy is locally defined and activated, as opposed to advertised to BGP peers.
The binding SID is a mandatory local SID associated with the SR policy. Its
function value is end-b6-encaps-red.
The reachability of the first SID in the SR policy must be validated before the SR policy is activated.
Multiple segment lists can be defined in the SR policy. Traffic between these segment lists can be distributed according to the configured weight (not shown in the following configuration).
The SR policy does not have the configuration option for the source-address. Instead, it uses the one configured for the segment-routing configuration in the global routing context. Without the source-address configured in the global SRv6 context, the SR policy is not activated.
[pr:/configure router "Base" segment-routing sr-policies]
A:admin@bng-1#
admin-state enable
static-policy "to-pe-1-long-path" {
admin-state enable
color 20
endpoint 2001:db8::5
preference 150
head-end local
type srv6
segment-routing-v6 {
binding-sid 1 {
locator {
locator-name "bng-1-loc"
function end-b6-encaps-red
}
}
}
segment-list 1 {
admin-state enable
segment 1 {
srv6-sid 2001:db8:aaaa:4:0:1000::
}
segment 2 {
srv6-sid 2001:db8:aaaa:a:0:1000::
}
}
}
To verify that the SR policy has been activated:
A:admin@pe-1# show router segment-routing sr-policies static
===============================================================================
SR-Policies Path
===============================================================================
-------------------------------------------------------------------------------
Type : srv6
Active : Yes Owner : static
Color : 20
Head : 0.0.0.0 Endpoint Addr : 2001:db8::14
RD : 0 Preference : 150
SRv6 BSID 1 : 2001:db8:aaaa:5:0:7000::
TunnelId : 917506 Age : 189018
Origin ASN : 0 Origin : 0.0.0.0
NumReEval : 1 ReEvalReason : route-add
NumActPathChange: 0 Last Change : 11/01/2022 08:39:33
Maintenance Policy: N/A
Path Segment Lists:
Segment-List : 1 Weight : 1
S-BFD State : Down S-BFD Transitio*: 0
Num Segments : 2 Last Change : 11/01/2022 08:39:30
Seg 1 SID : 2001:db8:aaaa:a:0:1000:: State : resolved-up
Seg 2 SID : 2001:db8:aaaa:4:0:1000:: State : N/A
-------------------------------------------------------------------------------
Type : srv6
Active : Yes Owner : static
Color : 30
Head : 0.0.0.0 Endpoint Addr : 2001:db8::15
RD : 0 Preference : 150
SRv6 BSID 1 : 2001:db8:aaaa:5:0:6000::
TunnelId : 917507 Age : 189036
Origin ASN : 0 Origin : 0.0.0.0
NumReEval : 1 ReEvalReason : route-add
NumActPathChange: 0 Last Change : 11/01/2022 08:39:33
Maintenance Policy: N/A
Path Segment Lists:
Segment-List : 1 Weight : 1
S-BFD State : Down S-BFD Transitio*: 0
Num Segments : 2 Last Change : 11/01/2022 08:39:30
Seg 1 SID : 2001:db8:aaaa:4:0:1000:: State : resolved-up
Seg 2 SID : 2001:db8:aaaa:a:0:1000:: State : N/A
Verify routes
In this section, show commands are used to verify forwarding and show routing-related information. The outputs from the following show commands focus primarily (but not exclusively) on nodes BNG-1 and PE-1, which are the endpoints of the active leg of EVPN VPWS multihoming.
The following command shows the SRv6 information on BNG-1. The locator SID is advertised to other nodes via IS-IS. The locator SID is installed in the routing table of all other nodes and is used for reachability information.
A:admin@bng-1# show router segment-routing-v6 locator
=============================================================================
Locator bng-1-loc
=============================================================================
Admin State : Up
Prefix : 2001:db8:aaaa:14::/64
Block Length : 48
Label Block :
Function Length : 20
Flex Algorithm : 0
Termination FPE : 2
Static Function
Max Entries : 1
Label-Block :
---snip---
The following command lists different SIDs allocated to BNG-1:
- one node SID (End), advertised in IS-IS
- three adjacency SIDs (End.X), representing the BNG-1 connections to adjacent nodes BNG-2, PE-2, and P-1 (these SIDs are used to build fast failover alternate paths and are also advertised in IS-IS)
- one EVPN SID (End.DX2), advertised via BGP-EVPN for EVPN routes
- two VPN SIDs (End.DT4 and End.DT6), advertised via BGP-IPVPN for VPN-IPv4 and VPN-IPv6 routes
- one binding SID (End.b6.encaps.red), for the SRv6 static segment-policy (this SID is not advertised in this case)
A:admin@bng-1# show router segment-routing-v6 local-sid
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:14:0:1000:: End 1
bng-1-loc
Base
2001:db8:aaaa:14:0:2000:: End.b6.encaps* 2
bng-1-loc
None
2001:db8:aaaa:14:7fff:c000:: End.DT6 524284
bng-1-loc
SvcId: 10 Name: dual-homing
2001:db8:aaaa:14:7fff:d000:: End.DT4 524285
bng-1-loc
SvcId: 10 Name: dual-homing
2001:db8:aaaa:14:7fff:e000:: End.DX2 524286
bng-1-loc
SvcId: 11 Name: evpn-dual-homing
2001:db8:aaaa:14:7fff:f000:: End.X 524287
bng-1-loc
None
2001:db8:aaaa:14:8000:: End.X 524288
bng-1-loc
None
2001:db8:aaaa:14:8000:1000:: End.X 524289
bng-1-loc
None
The following route table on BNG-1 shows:
- system IPv6 interfaces from all other nodes learned through IS-IS
- IPv6 prefixes on links between all nodes learned through IS-IS
- SRv6 locators from all nodes learned through IS-IS
- all local SIDs except for service SIDs, which are part of services and not global routing
BNGs are connected to both the core network (VPRN) and the access network (EVPN), so network addresses from all nodes are visible on a BNG. By contrast, the PE-1 node in the EVPN part of the network sees only routes in the EVPN part of the network, but not the routes in the VPRN part of the network (Example topology).
A:admin@bng-1# show router route-table ipv6
===============================================================================
IPv6 Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::4/128 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 10
2001:db8::5/128 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::6/128 [L] Remote ISIS(1) 02d03h06m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 10
2001:db8::a/128 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::14/128 Local Local 02d03h06m 0
system 0
2001:db8::15/128 [L] Remote ISIS(1) 02d03h06m 18
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 10
2001:db8::100/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::200/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::300/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::400/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::500/120 Local Local 02d03h06m 0
int-1-bng-1-p-1 0
2001:db8::600/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::700/120 Local Local 02d03h06m 0
int-1-bng-1-bng-2 0
2001:db8::800/120 Local Local 02d03h06m 0
int-1-bng-1-pe-2 0
2001:db8::900/120 [L] Remote ISIS(1) 02d03h06m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8::a00/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::6400/120 Remote ISIS 02d03h06m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::6500/120 [L] Remote ISIS(1) 02d03h06m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8:aaaa:4::/64 Remote ISIS 02d03h06m 18
2001:db8:aaaa:4::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:5::/64 Remote ISIS 02d03h06m 18
2001:db8:aaaa:5::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:6::/64 Remote ISIS(1) 02d03h06m 18
2001:db8:aaaa:6::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:a::/64 Remote ISIS 02d03h06m 18
2001:db8:aaaa:a::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:14::/64 Local SRV6 02d03h06m 3
fe80::201-"_tmnx_fpe_2.a" 0
2001:db8:aaaa:14:0:1000::/128 Local SRV6 02d03h06m 3
Black Hole 0
2001:db8:aaaa:14:0:2000::/128 Local SRV6-Pol* 02d03h06m 14
2001:db8::5 (tunneled:SRV6-Policy:917506) 1
2001:db8:aaaa:14:7fff:f000::/128 Local ISIS(1) 02d03h06m 18
2001:db8:aaaa:14:7fff:f000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:14:8000::/128 Local ISIS 02d03h06m 18
2001:db8:aaaa:14:8000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:14:8000:1000::/128 Local ISIS(1) 02d03h06m 18
2001:db8:aaaa:14:8000:1000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:15::/64 Remote ISIS(1) 02d03h06m 18
2001:db8:aaaa:15::/64 (tunneled:SRV6-ISIS) 20
The state of the ES "ES-1" on the two BNGs is DF for BNG-1 and NDF for BNG-2, as follows:
A:admin@bng-1# /show service id "evpn-dual-homing" ethernet-segment "ES-1"
---snip---
Pw-Port Eth-Seg Status
-----------------------------------------------------------------------------
1 ES-1 DF
A:admin@bng-2# /show service id "evpn-dual-homing" ethernet-segment "ES-1"
---snip---
Pw-Port Eth-Seg Status
-----------------------------------------------------------------------------
1 ES-1 NDF
PE-1 receives the following two AD per-EVI EVPN routes: the first AD per-EVI route is received from BNG-1 as primary (P=1, B=0), while the second AD per-EVI route is received from BNG-2 as backup (P=0, B=1):
A:admin@pe-1# show router bgp routes evpn auto-disc tag 2 hunt
===============================================================================
BGP Router ID:192.0.2.5 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN Auto-Disc Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Nexthop : 2001:db8::14
From : 2001:db8::14
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-pe-1-p-1
AIGP Metric : None IGP Cost : 30
Community : color:00:20 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 1 B: 0
Originator Id : None Peer Router Id : 192.0.2.20
Flags : Used Valid Best IGP
Route Source : Internal
EVPN type : AUTO-DISC
ESI : 01:01:01:01:01:01:01:01:01:01
Tag : 2
Route Dist. : 192.0.2.20:11
MPLS Label : 524286
Route Tag : 0
Last Modified : 02d03h38m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:e000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Nexthop : 2001:db8::15
From : 2001:db8::15
Res. Nexthop : fe80::b6a1:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-pe-1-p-2
AIGP Metric : None IGP Cost : 30
Community : color:00:30 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 1
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
EVPN type : AUTO-DISC
ESI : 01:01:01:01:01:01:01:01:01:01
Tag : 2
Route Dist. : 192.0.2.21:11
MPLS Label : 524286
Route Tag : 0
Last Modified : 02d03h38m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:15::
Full Sid : 2001:db8:aaaa:15:7fff:e000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
When an IPv4 packet from the traffic generator enters the SAP of the Epipe on PE-1, the packet goes through the Epipe toward the Epipe’s other endpoint, which is the EVPN destination on BNG-1. BNG-1 is the primary EVPN destination because PE-1 receives an active (P=1, B=0) AD-per EVI route with the tag 2 from BNG-1. This route has:
- color 20
- next-hop 2001:db8::14 (BNG-1)
- service SID 2001:db8:aaaa:14:7fff:e000:: (End.DX2 on BNG-1)
The service SID is the final destination of the packet and it is inserted in the SRH as the first segment. The received next-hop in the route must be resolved before the route is validated and installed in the routing table. The first attempt to resolve the next-hop for this route is performed through the tunnel table, as indicated by the resolution fallback-tunnel-to-route-table command. The following command shows the IPv6 tunnel table with an entry for the next-hop address 2001:db8::14 and color 20, as received in the AD per-EVI route. The owner of this entry is SRv6-policy and the encapsulation is SRv6.
A:admin@pe-1# show router tunnel-table ipv6
===============================================================================
IPv6 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref
Nexthop Color Metric
-------------------------------------------------------------------------------
2001:db8::14/128 srv6-pol SRV6 917506 14
fpe_1.a 20 0
2001:db8::15/128 srv6-pol SRV6 917507 14
fpe_1.a 30 0
2001:db8:aaaa:4::/64 [L] srv6-isis SRV6 524290 0
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 20
2001:db8:aaaa:5:8000:1000::/128 [L] srv6-isis SRV6 524289 0
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 10
2001:db8:aaaa:5:8000:2000::/128 [L] srv6-isis SRV6 524292 0
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 10
2001:db8:aaaa:a::/64 [L] srv6-isis SRV6 524293 0
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 20
2001:db8:aaaa:14::/64 [L] srv6-isis SRV6 524297 0
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 30
2001:db8:aaaa:15::/64 [L] srv6-isis SRV6 524294 0
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 30
---snip---
A more detailed output for the next-hop entry in the tunnel table reveals two additional SIDs, which are the SIDs from the configured SR policy:
- 2001:db8:aaaa:a:0:1000:: is the node SID for P-2
- 2001:db8:aaaa:4:0:1000:: is the node SID for P-1
A:admin@pe-1# show router tunnel-table ipv6 detail
Tunnel Table (Router: Base)
---snip---
Destination : 2001:db8::14/128
NextHop : fpe_1.a
NextHop Weight : 1
Tunnel Flags : has-color
Age : 03d02h15m Color : 20
CBF Classes : (Not Specified)
Owner : srv6-pol Encap : SRV6
Tunnel ID : 917506 Preference : 14
Tunnel SRV6 SID : 2001:db8:aaaa:a:0:1000:: Tunnel Metric : 0
: 2001:db8:aaaa:4:0:1000::
Tunnel MTU : - Max Label Stack : 2
---snip---
The presence of the two node SIDs for P-2 and P-1 implies that the nodes P-2 and P-1 must be visited, in that order, on the path from PE-1 to BNG-1. This path is accomplished by inserting the SRH header into the packet. The trigger for the SRH creation and insertion into the packet is the next-hop resolution via SR policy.
Because the End.B6.Encap.Red function for the binding SID in the SR policy reduces the encapsulation, as defined in RFC 8986, the node SID for P-2 is not part of the SRH, even though it is listed as the first node to be visited in the segment list of the SR policy. As the first node to be visited, its SID is directly included in the DA in the SRv6 header of the packet without repeating itself in the SRH. The SRH contains two SIDs: the node SID for P-1 (2001:db8:aaaa:4:0:1000::) and the service SID (2001:db8:aaaa:14:7fff:e000:) which represents the Epipe on BNG-1, retrieved from the received EVPN AD-per-EVI route. These two SIDs are, in turn, copied to the IPv6 DA field of the packet by the visited nodes, as described in the "Segment Routing over IPv6" chapter in the 7750 SR and 7950 XRS Segment Routing and PCE Advanced Configuration Guide for MD CLI.
The longest match lookup for the DA 2001:db8:aaaa:a:0:1000:: (P-2 node-SID) reveals the next hop leading to its SRv6 locator (P-2 locator):
A:admin@pe-1# show router route-table ipv6 2001:db8:aaaa:a:0:1000:: extensive
========================================================================
Route Table (Router: Base)
=========================================================================
Dest Prefix : 2001:db8:aaaa:a::/64
Protocol : ISIS
Age : 03d02h40m
Preference : 18
Next-Hop : 2001:db8:aaaa:a::/64 (SRV6-ISIS tunnel)
---snip---
The tunnel table for next hop 2001:db8:aaaa:a::/64 (P-2 SRv6 locator) points to the link-local IPv6 address of the adjacent node that advertised this next hop (P-2 SRv6 locator) in IS-IS:
A:admin@pe-1# show router tunnel-table ipv6 2001:db8:aaaa:a::/64 detail
=========================================================================
Tunnel Table (Router: Base)
Destination : 2001:db8:aaaa:a::/64 [L]
NextHop : fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2"
Tunnel Flags : has-lfa
Age : 03d02h42m
CBF Classes : (Not Specified)
Owner : srv6-isis (0) Encap : SRV6
Tunnel ID : 524293 Preference : 0
Tunnel SRV6 SID : - Tunnel Metric : 20
Tunnel MTU : 8894 Max Label Stack : 0
-------------------------------------------------------------------------
The neighbor cache on PE-1 shows the mapping between the link local IPv6 of the adjacent next hop and its MAC address, which is the destination MAC address in the packet:
A:admin@pe-1# show router neighbor
=========================================================================
Neighbor Table (Router: Base)
=========================================================================
IPv6 Address Interface
MAC Address State Expiry Type RTR
-------------------------------------------------------------------------
---snip---
fe80::b6a1:ffff:fe00:0 int-1-pe-1-p-2
b4:a1:01:01:00:05 REACHABLE 00h00m25s Dynamic Yes
---snip---
In summary:
- PE-1 receives an AD per-EVI from BNG-1 with the address of the final destination (service SID), the route color, and the next-hop of the advertised route.
- The next-hop resolution in the tunnel table points to the SR policy with SRv6 encapsulation.
- The SR policy is configured with a list of node SIDs that need to be visited, with the first SID in the list copied to the destination IPv6 address of the packet.
- The remaining SID in the SR policy along with the service SID advertised in the route are populated in the SRH.
- The destination MAC address is resolved through a series of lookups that lead to the directly connected IS-IS node that advertised the SRv6 locator for the first node to be visited.
Without the SR policy, the SRH would not be inserted into the packet. As a result, the final destination (the service SID on BNG-1 for EVPN, 2001:db8:aaaa:14:7fff:e000::) would immediately be populated in the DA field of the packet. The destination-based lookup for this DA gives us a different next hop for the packet (P-1 instead of P-2):
A:admin@pe-1# show router route-table ipv6 2001:db8:aaaa:14:7fff:e000:: extensive
Route Table (Router: Base)
Dest Prefix : 2001:db8:aaaa:14::/64
Protocol : ISIS
Age : 04d07h47m
Preference : 18
Next-Hop : 2001:db8:aaaa:14::/64 (SRV6-ISIS tunnel)
---snip---
A:admin@pe-1# show router tunnel-table 2001:db8:aaaa:14::/64 detail
Tunnel Table (Router: Base)
Destination : 2001:db8:aaaa:14::/64 [L]
NextHop : fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1"
---snip---
Owner : srv6-isis (0) Encap : SRV6
Tunnel ID : 524297 Preference : 0
Tunnel SRV6 SID : - Tunnel Metric : 30
Tunnel MTU : 8894 Max Label Stack : 0
VPRN related SRv6 configuration
The SRv6 locator and functions in a VPRN are configured in a similar way as in the EVPN.
The export VRF policy advertises the subscriber subnets on the active SRRP node with a better metric than the same routes on the node with standby SRRP. The result is that traffic in the downstream direction is attracted to the node with the active SRRP instance.
[pr:/configure service vprn "dual-homing"]
A:admin@bng-1#
admin-state enable
service-id 10
customer "1"
segment-routing-v6 1 {
locator "bng-1-loc" {
function {
end-dt4 {
}
end-dt6 {
}
}
}
}
bgp-ipvpn {
segment-routing-v6 1 {
admin-state enable
route-distinguisher "192.0.2.20:10"
source-address 2001:db8::14
vrf-target {
community "target:64500:10"
}
vrf-export {
policy ["srrp-aware-routing"]
}
srv6 {
instance 1
default-locator "bng-1-loc"
}
}
}
bgp {
}
[pr:/configure policy-options policy-statement "srrp-aware-routing"]
A:admin@bng-1# info
description "vrf-export; advertising sub-if routes based on srrp state"
entry 10 {
from {
state srrp-master
protocol {
name [direct]
}
}
action {
action-type accept
local-preference 150
community {
add ["dual-homing"]
}
}
}
entry 20 {
from {
state srrp-non-master
protocol {
name [direct]
}
}
action {
action-type accept
local-preference 100
community {
add ["dual-homing"]
}
}
}
Multi-chassis redundancy configuration
The full configuration under the configure redundancy multi-chassis peer <IP address> context is provided in the configuration files in the Appendix.
This section emphasizes on the time synchronization of each node to the same clock, which is an aspect of the subscriber synchronization that is easily overlooked. Without times that match on both BNGs, the subscribers are not synchronized. In the example, simple network timing protocol (SNTP) is used.
[pr:/configure system time]
A:admin@bng-1#
prefer-local-time true
zone {
standard {
name cst
}
}
dst-zone "CDT" {
end {
day sunday
month november
hours-minutes "02:00"
}
start {
day sunday
month march
hours-minutes "02:00"
}
}
sntp {
admin-state enable
server 135.227.160.253 {
}
}
DHCP server configuration
DHCP configuration shows that all pools are synchronized via the peer command, except for the pool for PPPoEv4 sessions. The IP addresses in the pool for PPPoE sessions are synchronized indirectly as part of the PPPoE session synchronization.
The second important aspect of the DHCP redundancy in access driven mode is that the DHCP servers are associated with interfaces configured with the same IP address on both BNGs (see the Appendix ).
[pr:/configure service vprn "dual-homing"]
A:admin@bng-1#
dhcp-server {
dhcpv4 "dhcpv4" {
admin-state enable
pool-selection {
use-gi-address {
scope pool
}
use-pool-from-client {
}
}
pool "dhcpv4-1" {
max-lease-time 1200
failover {
admin-state enable
peer 192.0.2.21 {
sync-tag "dhcp4"
}
}
subnet 10.10.0.0/24 {
address-range 10.10.0.10 end 10.10.0.100 {
failover-control-type access-driven
}
}
}
pool "pppoev4-1" {
max-lease-time 1200
subnet 10.10.1.0/24 {
address-range 10.10.1.10 end 10.10.1.100 {
failover-control-type access-driven
}
}
}
}
dhcpv6 "dhcpv6" {
admin-state enable
pool-selection {
use-pool-from-client {
}
}
pool "dhcpv6-1" {
delegated-prefix {
minimum 56
}
failover {
admin-state enable
peer 192.0.2.21 {
sync-tag "dhcp6"
}
}
prefix 2001:db8:bbbb::/56 {
failover-control-type access-driven
preferred-lifetime 900
valid-lifetime 1200
renew-time 600
rebind-time 1000
prefix-type {
wan-host true
}
}
prefix 2001:db8:bbbb:100::/56 {
failover-control-type access-driven
preferred-lifetime 900
valid-lifetime 1200
renew-time 600
rebind-time 1000
prefix-type {
pd true
}
}
}
}
}
[pr:/configure service vprn "dual-homing" interface "loopback-1"]
A:admin@bng-1#
admin-state enable
loopback true
ipv4 {
local-dhcp-server "dhcpv4"
primary {
address 192.168.0.1
prefix-length 32
}
}
ipv6 {
local-dhcp-server "dhcpv6"
address 2001:db8::1 {
prefix-length 128
}
}
Subscriber management configuration
The subscriber management configuration is provided in the configuration files shown in the Appendix.
The following output shows that there are 20 dual-stack subscribers instantiated:
A:admin@bng-1# show service active-subscribers summary
===============================================================================
Active Subscriber table summary
===============================================================================
Total Count : 20
===============================================================================
The following output, showing a hierarchical view of each subscriber type, is shortened for brevity.
A:admin@bng-1# show service active-subscribers hierarchy
===============================================================================
Active Subscribers Hierarchy
===============================================================================
-- ipoe-ds-1
(sub-profile-1)
|
+-- sap:[pw-1:2.11] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:01 - svc:10
|
|-- 10.10.0.10 - DHCP
|
+-- 2001:db8:bbbb:14::1/128 - DHCP6
|
+-- 2001:db8:bbbb:15::/64 - DHCP6-PD-MR
---snip---
-- pppoe-1
(sub-profile-1)
|
+-- sap:[pw-1:2.1] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:01 - sid:1 - svc:10
|
|-- 10.10.1.10 - IPCP
|
+-- 2001:db8:bbbb::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1::/64 - DHCP6-PD-MR
---snip---
Summary of show commands
Show commands are powerful tools when building and troubleshooting networks. An extensive set of show command outputs relevant to the example topology described in this chapter are provided in separate files for BNG-1, P-1, and PE-1. The following is the list of these commands. Not all commands are applicable to all nodes; for example, commands related to subscriber management do not apply to P and PE nodes.
The following commands show ports and router interfaces:
show port
show router <id> interface
The following command shows FPE information:
show fwd-path-ext fpe <id>The following commands show EVPN VPWS information:
show service id <name> base
show service id <name> bgp-evpn
show service system bgp-evpn ethernet-segment name <name>
show service system bgp-evpn ethernet-segment name <name> evi evi-1 <id>
show router bgp routes evpn eth-seg detail
show router bgp routes evpn auto-disc tag <id> detail
show service id <name> ethernet-segment <name>
show service id <name> segment-routing-v6 detail
show service id <name> segment-routing-v6 instance 1 destinations
show service id <name> segment-routing-v6 instance 1 end-dx2
show service id <name> segment-routing-v6 instance 1 locator <name>The following commands show VPRN information:
show service id <name> base
show service id <name> bgp-ipvpn segment-routing-v6
show service id <name> segment-routing-v6 instance 1 locator <name>
show router <id> route-table
show router <id> route-table ipv6
show router bgp routes vpn-ipv4 hunt
show router bgp routes vpn-ipv6 hunt
The following commands show SRv6-related information:
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router segment-routing-v6 local-sid context <id>
The following commands show routing and forwarding information:
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
The following commands show BGP and IS-IS
information:
show router bgp summary
show router isis adjacency
show router isis database
show router isis 1 adjacency
show router isis 1 database
show router isis <instance-id> adjacency
show router isis <instance-id> database
The following commands show redundancy-related information:
show redundancy multi-chassis sync peer <ip-address> detail
tools dump redundancy multi-chassis sync-database
The following commands show subscriber-related information:
show service active-subscribers summary
show service active-subscribers hierarchy
show service id <id> subscriber-hosts detail
show service id <id> ipoe session
show service id <id> pppoe session
show service id <id> dhcp lease-state
show service id <id> dhcp6 lease-state
show srrp <id> detail
The following commands show DHCP information:
show router <id> dhcp local-dhcp-server <name> summary
show router <id> dhcp6 local-dhcp-server <name> summary
show router <id> dhcp local-dhcp-server <name> leases
show router <id> dhcp6 local-dhcp-server <name> leases
Conclusion
Resilient overlay networks that support traffic engineering can be built with the simplicity of a single dataplane protocol (IPv6) using SRv6. When SRv6 is deployed in the access network in combination with BNG dual-homing, subscribers are protected against network failures with minimal recovery times. This chapter shows one example of such network.
Appendix
The following configurations are included.
bng-1-config
# TiMOS-C-22.10.R1 cpm/x86_64 Nokia 7750 SR Copyright (c) 2000-2022 Nokia.
# All rights reserved. All use subject to applicable license agreements.
# Built on Sun Oct 30 14:49:55 PDT 2022 by builder in /builds/c/2210B/R1/panos/main/sros
# Configuration format version 22.10 revision 0
# Generated 2022-11-01T10:41:30.6-05:00 by admin from 135.231.208.32
# Commit ID 5
# Committed 2022-11-01T10:37:59.8-05:00 by admin (MD-CLI) from 135.231.208.32
# Commit ID 4
# Committed 2022-11-01T10:36:36.8-05:00 by admin (MD-CLI) from 135.231.208.32
# Commit ID 3
# Committed 2022-11-01T10:33:20.1-05:00 by admin (MD-CLI) from 135.231.208.32
# Commit ID 2
# Committed 2022-11-01T10:32:34.0-05:00 by admin (MD-CLI) from 135.231.208.32
# Commit ID 1
# Committed 2022-11-01T10:04:53.3-05:00 by system (MD-CLI) from Console
# Log "System booted version C-22.10.R1."
configure {
aaa {
radius {
server-policy "radius-server-1" {
servers {
router-instance "Base"
server 1 {
server-name "free-radius-1"
}
}
}
}
}
card 1 {
card-type iom5-e
mda 1 {
mda-type me6-100gb-qsfp28
}
mda 2 {
mda-type me6-100gb-qsfp28
}
}
fwd-path-ext {
sdp-id-range {
start 17500
end 17600
}
fpe 1 {
description "srv6 origination"
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
description "srv6 termination"
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
fpe 3 {
description "pw-port on a single port"
path {
pxc 3
}
application {
pw-port-extension {
}
}
}
}
log {
filter "1001" {
named-entry "10" {
description "Collect only events of major severity or higher"
action forward
match {
severity {
gte major
}
}
}
}
log-id "100" {
description "Default Serious Errors Log"
filter "1001"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
log-id "99" {
description "Default System Log"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
}
policy-options {
community "color-20" {
member "color:00:20" { }
}
community "dual-homing" {
member "target:64500:10" { }
}
policy-statement "pol-color-20" {
entry 10 {
from {
family [evpn]
tag 12
}
action {
action-type accept
community {
add ["color-20"]
}
}
}
entry 20 {
from {
family [evpn]
tag 11
}
action {
action-type accept
community {
add ["color-20"]
}
}
}
}
policy-statement "srrp-aware-routing" {
description "vrf-export; advertizing sub-if routes based on srrp state"
entry 10 {
from {
state srrp-master
protocol {
name [direct]
}
}
action {
action-type accept
local-preference 150
community {
add ["dual-homing"]
}
}
}
entry 20 {
from {
state srrp-non-master
protocol {
name [direct]
}
}
action {
action-type accept
local-preference 100
community {
add ["dual-homing"]
}
}
}
}
policy-statement "sub-mgmt-routes" {
description "this is not applied, but if it was - it would work fine through vrf-export"
entry 10 {
from {
protocol {
name [sub-mgmt]
}
}
action {
action-type accept
community {
add ["dual-homing"]
}
}
}
}
}
port 1/1/c1 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c1/1 {
admin-state enable
description "to p-1 access; mutually exclusive with lag-2"
monitor-oper-group "network-port"
ethernet {
mode hybrid
}
}
port 1/1/c1/2 {
admin-state disable
description "lag-2 to p-1 access; mutually exclusive with port 1/1/c1/1"
ethernet {
mode hybrid
}
}
port 1/1/c1/3 {
admin-state disable
description "lag-2 to p-1 access; mutually exclusive with port 1/1/c1/1"
ethernet {
mode hybrid
}
}
port 1/1/c1/4 {
admin-state enable
description "spare port to p-1 access"
ethernet {
mode hybrid
}
}
port 1/1/c1/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/6 {
admin-state enable
description "to bng-2"
ethernet {
mode hybrid
}
}
port 1/1/c1/7 {
admin-state enable
description "to pe-2 network"
oper-group "network-port"
ethernet {
mode hybrid
}
}
port 1/1/c1/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/9 {
admin-state enable
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c1/10 {
admin-state enable
description "RADIUS and mirroring"
ethernet {
mode hybrid
}
}
port 1/1/c2 {
admin-state enable
connector {
breakout c1-100g
}
}
port 1/1/c2/1 {
admin-state enable
ethernet {
mode hybrid
encap-type dot1q
dot1x {
tunneling true
}
}
}
port 1/1/c4 {
admin-state enable
connector {
breakout c4-10g
}
}
port 1/1/c4/1 {
admin-state enable
description "PXC 1,2,3; fpe 1,2,3; srv6 orig, term, pw-port single port"
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c4/2 {
admin-state enable
}
port 1/1/c4/3 {
admin-state enable
}
port 1/1/c4/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port pxc-3.a {
admin-state enable
}
port pxc-3.b {
admin-state enable
}
port-xc {
pxc 1 {
admin-state enable
description "fpe srv6 origin"
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
description "fpe srv6 termination"
port-id 1/1/c4/1
}
pxc 3 {
admin-state enable
description "fpe pw-port single port"
port-id 1/1/c4/1
}
}
pw-port 1 {
encap-type qinq
epipe "evpn-dual-homing" {
admin-state enable
fpe-id 3
oper-up-on-mh-standby true
}
}
redundancy {
multi-chassis {
peer 192.0.2.21 {
admin-state enable
sync {
admin-state enable
local-dhcp-server true
srrp true
sub-mgmt {
ipoe true
pppoe true
}
tags {
pw-port 1 {
sync-tag "pw-port-1"
}
}
track-srrp 1 {
}
}
}
}
bgp-evpn {
ethernet-segment {
boot-timer 120
}
}
}
router "Base" {
autonomous-system 64500
router-id 192.0.2.20
interface "int-1-bng-1-bng-2" {
port 1/1/c1/6:1
gre-termination true
ipv4 {
primary {
address 192.168.7.1
prefix-length 24
}
}
ipv6 {
address 2001:db8::701 {
prefix-length 120
}
}
}
interface "int-1-bng-1-p-1" {
port 1/1/c1/1:1
ipv6 {
address 2001:db8::501 {
prefix-length 120
}
}
}
interface "int-1-bng-1-pe-2" {
port 1/1/c1/7:1
ipv6 {
address 2001:db8::801 {
prefix-length 120
}
}
}
interface "system" {
ipv4 {
primary {
address 192.0.2.20
prefix-length 32
}
}
ipv6 {
bfd {
admin-state enable
transmit-interval 100
receive 100
multiplier 2
}
address 2001:db8::14 {
prefix-length 128
}
}
}
interface "to-radius" {
port 1/1/c1/10:114
ipv4 {
primary {
address 192.168.114.20
prefix-length 24
}
}
}
bgp {
admin-state enable
vpn-apply-export true
vpn-apply-import true
rapid-withdrawal true
rapid-update {
vpn-ipv4 true
vpn-ipv6 true
evpn true
}
extended-nh-encoding {
vpn-ipv4 true
}
advertise-ipv6-next-hops {
vpn-ipv6 true
vpn-ipv4 true
}
group "evpn" {
peer-as 64500
local-address 2001:db8::14
bfd-liveness true
family {
evpn true
}
}
group "ipvpn" {
peer-as 64500
local-address 2001:db8::14
bfd-liveness true
family {
vpn-ipv4 true
vpn-ipv6 true
}
}
neighbor "2001:db8::5" {
group "evpn"
export {
policy ["pol-color-20"]
}
}
neighbor "2001:db8::6" {
group "ipvpn"
}
neighbor "2001:db8::15" {
group "evpn"
}
}
isis 0 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "bng-1-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-bng-1-p-1" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
isis 1 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "bng-1-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-bng-1-bng-2" {
}
interface "int-1-bng-1-pe-2" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
radius {
server "free-radius-1" {
address 192.168.114.2
secret "HDqTwZYSvEu934VNhUQy/pubZxTKpSDzvHg=" hash2
accept-coa true
}
}
segment-routing {
sr-policies {
admin-state enable
static-policy "to-pe-1-long-path" {
admin-state enable
color 10
endpoint 2001:db8::5
preference 150
head-end local
type srv6
segment-routing-v6 {
binding-sid 1 {
locator {
locator-name "bng-1-loc"
function end-b6-encaps-red
}
}
}
segment-list 1 {
admin-state enable
segment 1 {
srv6-sid 2001:db8:aaaa:4:0:1000::
}
segment 2 {
srv6-sid 2001:db8:aaaa:a:0:1000::
}
}
}
}
segment-routing-v6 {
origination-fpe [1]
source-address 2001:db8::14
locator "bng-1-loc" {
admin-state enable
block-length 48
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:14::/64
}
}
base-routing-instance {
locator "bng-1-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
}
}
static-routes {
route 192.0.2.21/32 route-type unicast {
next-hop "192.168.7.2" {
admin-state enable
}
}
}
}
service {
oper-group "ES-1" {
hold-time {
up 0
}
}
oper-group "network-port" {
hold-time {
up 0
}
}
system {
bgp {
evpn {
ethernet-segment "ES-1" {
admin-state enable
esi 0x01010101010101010101
orig-ip 2001:db8::14
route-next-hop 2001:db8::14
multi-homing-mode single-active
oper-group "ES-1"
df-election {
es-activation-timer 0
service-carving-mode manual
manual {
preference {
mode revertive
value 150
}
}
}
association {
pw-port 1 {
pw-port-headend true
}
}
}
}
}
}
epipe "evpn-dual-homing" {
admin-state enable
service-id 11
customer "1"
segment-routing-v6 1 {
locator "bng-1-loc" {
function {
end-dx2 {
}
}
}
}
bgp 1 {
}
bgp-evpn {
evi 11
local-attachment-circuit "bng" {
eth-tag 2
}
remote-attachment-circuit "access" {
eth-tag 1
}
segment-routing-v6 1 {
admin-state enable
default-route-tag 0xb
source-address 2001:db8::14
resolution fallback-tunnel-to-route-table
srv6 {
instance 1
default-locator "bng-1-loc"
}
route-next-hop {
system-ipv6
}
}
}
}
sdp 1 {
admin-state enable
signaling off
far-end {
ip-address 192.168.7.2
}
}
vpls "capture-sap" {
admin-state enable
service-id 5
customer "1"
capture-sap pw-1:*.* {
radius-auth-policy "radius-1"
track-srrp 1
trigger-packet {
dhcp true
dhcp6 true
pppoe true
}
ipoe-session {
admin-state enable
ipoe-session-policy "ipoe-session-policy-1"
}
pppoe {
policy "ppp-policy-1"
}
}
}
vprn "dual-homing" {
admin-state enable
service-id 10
customer "1"
segment-routing-v6 1 {
locator "bng-1-loc" {
function {
end-dt4 {
}
end-dt6 {
}
}
}
}
bgp-ipvpn {
segment-routing-v6 1 {
admin-state enable
route-distinguisher "192.0.2.20:10"
source-address 2001:db8::14
vrf-target {
community "target:64500:10"
}
vrf-export {
policy ["srrp-aware-routing"]
}
srv6 {
instance 1
default-locator "bng-1-loc"
}
}
}
bgp {
}
interface "loopback-1" {
admin-state enable
loopback true
ipv4 {
local-dhcp-server "dhcpv4"
primary {
address 192.168.0.1
prefix-length 32
}
neighbor-discovery {
local-proxy-arp false
remote-proxy-arp false
}
dhcp {
admin-state enable
}
}
ipv6 {
local-dhcp-server "dhcpv6"
address 2001:db8::1 {
prefix-length 128
}
}
}
redundant-interface "red-int-bng-1-bng-2" {
admin-state enable
description "static to system ip"
spoke-sdp 1:1 {
admin-state enable
ingress {
vc-label 1000
}
egress {
vc-label 1000
}
}
ipv4 {
primary {
address 192.168.11.1
prefix-length 24
remote-ip 192.168.11.2
}
}
}
dhcp-server {
dhcpv4 "dhcpv4" {
admin-state enable
pool-selection {
use-gi-address {
scope pool
}
use-pool-from-client {
}
}
pool "dhcpv4-1" {
max-lease-time 1200
failover {
admin-state enable
peer 192.0.2.21 {
sync-tag "dhcp4"
}
}
subnet 10.10.0.0/24 {
address-range 10.10.0.10 end 10.10.0.100 {
failover-control-type access-driven
}
}
}
pool "pppoev4-1" {
max-lease-time 1200
subnet 10.10.1.0/24 {
address-range 10.10.1.10 end 10.10.1.100 {
failover-control-type access-driven
}
}
}
}
dhcpv6 "dhcpv6" {
admin-state enable
pool-selection {
use-pool-from-client {
}
}
pool "dhcpv6-1" {
delegated-prefix {
minimum 56
}
failover {
admin-state enable
peer 192.0.2.21 {
sync-tag "dhcp6"
}
}
prefix 2001:db8:bbbb::/56 {
failover-control-type access-driven
preferred-lifetime 900
valid-lifetime 1200
renew-time 600
rebind-time 1000
prefix-type {
wan-host true
}
}
prefix 2001:db8:bbbb:100::/56 {
failover-control-type access-driven
preferred-lifetime 900
valid-lifetime 1200
renew-time 600
rebind-time 1000
prefix-type {
pd true
}
}
}
}
}
subscriber-interface "sub-int-1" {
admin-state enable
ipv4 {
address 10.10.0.1 {
prefix-length 24
gateway 10.10.0.254
track-srrp 1
}
address 10.10.1.1 {
prefix-length 24
gateway 10.10.1.254
track-srrp 1
}
}
ipv6 {
delegated-prefix-length variable
prefix 2001:db8:bbbb::/56 {
track-srrp 1
host-type wan
}
prefix 2001:db8:bbbb:100::/56 {
track-srrp 1
host-type pd
}
link-local-address {
address fe80::b696:ffff:fe00:0
}
}
group-interface "group-int-1" {
admin-state enable
radius-auth-policy "radius-1"
oper-up-while-empty true
redundant-interface "red-int-bng-1-bng-2"
dynamic-routes-track-srrp {
}
ipv4 {
neighbor-discovery {
remote-proxy-arp true
populate false
}
dhcp {
admin-state enable
server [192.168.0.1]
trusted true
gi-address 10.10.0.1
match-circuit-id true
option-82 {
action keep
vendor-specific-option {
pool-name true
}
}
lease-populate {
max-leases 100
}
client-applications {
dhcp true
}
}
}
ipv6 {
auto-reply {
neighbor-solicitation true
router-solicitation true
}
dhcp6 {
pd-managed-route {
}
relay {
admin-state enable
server ["2001:db8::1"]
client-applications {
dhcp true
ppp true
}
}
}
router-advertisements {
admin-state enable
force-mcast ip-mac
options {
managed-configuration true
reachable-time 10000
retransmit-timer 3
}
}
router-solicit {
admin-state disable
}
}
ipoe-session {
admin-state enable
ipoe-session-policy "ipoe-session-policy-1"
sap-session-limit 100
force-auth {
cid-change false
rid-change false
}
}
pppoe {
admin-state enable
policy "ppp-policy-1"
session-limit 100
sap-session-limit 100
}
local-address-assignment {
admin-state enable
ipv4 {
server "dhcpv4"
client-applications {
ppp true
}
}
}
srrp 1 {
admin-state enable
keep-alive-interval 2
message-path pw-1:2.4094
}
sap pw-1:2.4094 {
monitor-oper-group "ES-1"
}
}
}
}
}
sfm 1 {
sfm-type m-sfm6-7/12
}
subscriber-mgmt {
ipoe-session-policy "ipoe-session-policy-1" {
}
sub-profile "sub-profile-1" {
}
sla-profile "sla-profile-1" {
}
sub-ident-policy "sub-ident-policy-1" {
sla-profile-map {
use-direct-map-as-default true
}
sub-profile-map {
use-direct-map-as-default true
}
}
ppp-policy "ppp-policy-1" {
max-sessions-per-mac 100
allow-same-circuit-id-for-dhcp true
ncp-renegotiation ignore
}
radius-authentication-policy "radius-1" {
password "ncd8qyrNUMhYfa2SfrUqHMDZ9IXn3sVSmYBzbw==" hash2
pppoe-access-method pap-chap
radius-server-policy "radius-server-1"
user-name {
format circuit-id
}
include-radius-attribute {
circuit-id true
nas-identifier true
}
}
msap-policy "msap-policy-1" {
sub-sla-mgmt {
subscriber-limit 100
sub-ident-policy "sub-ident-policy-1"
defaults {
subscriber-id {
sap-id
}
}
}
ies-vprn-only-sap-parameters {
anti-spoof next-hop-ip-and-mac-addr
ingress {
qos {
queuing-type service
}
}
}
}
}
system {
name "bng-1"
management-interface {
configuration-mode model-driven
cli {
cli-engine [md-cli classic-cli]
}
yang-modules {
nokia-submodules true
nokia-combined-modules false
}
snmp {
admin-state disable
}
}
login-control {
idle-timeout none
}
security {
aaa {
local-profiles {
profile "administrative" {
default-action permit-all
entry 10 {
match "configure system security"
action permit
}
entry 20 {
match "show system security"
action permit
}
entry 30 {
match "tools perform security"
action permit
}
entry 40 {
match "tools dump security"
action permit
}
entry 50 {
match "admin system security"
action permit
}
entry 100 {
match "configure li"
action deny
}
entry 110 {
match "show li"
action deny
}
entry 111 {
match "clear li"
action deny
}
entry 112 {
match "tools dump li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
kill-session true
lock true
validate true
}
}
}
profile "default" {
entry 10 {
match "exec"
action permit
}
entry 20 {
match "exit"
action permit
}
entry 30 {
match "help"
action permit
}
entry 40 {
match "logout"
action permit
}
entry 50 {
match "password"
action permit
}
entry 60 {
match "show config"
action deny
}
entry 65 {
match "show li"
action deny
}
entry 66 {
match "clear li"
action deny
}
entry 67 {
match "tools dump li"
action deny
}
entry 68 {
match "state li"
action deny
}
entry 70 {
match "show"
action permit
}
entry 75 {
match "state"
action permit
}
entry 80 {
match "enable-admin"
action permit
}
entry 90 {
match "enable"
action permit
}
entry 100 {
match "configure li"
action deny
}
}
}
}
ssh {
server-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
client-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
server-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
client-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
}
user-params {
local-user {
user "admin" {
password "$2y$10$TQrZlpBDra86.qoexZUzQeBXDY1FcdDhGWdD9lLxMuFyPVSm0OGy6"
access {
console true
}
console {
member ["administrative"]
}
}
}
}
}
time {
prefer-local-time true
zone {
standard {
name cst
}
}
dst-zone "CDT" {
end {
day sunday
month november
hours-minutes "02:00"
}
start {
day sunday
month march
hours-minutes "02:00"
}
}
sntp {
admin-state enable
server 135.227.160.253 {
}
}
}
}
}
# Finished 2022-11-01T10:41:30.6-05:00
bng-2-config
# TiMOS-C-22.10.R1 cpm/x86_64 Nokia 7750 SR Copyright (c) 2000-2022 Nokia.
# All rights reserved. All use subject to applicable license agreements.
# Built on Sun Oct 30 14:49:55 PDT 2022 by builder in /builds/c/2210B/R1/panos/main/sros
# Configuration format version 22.10 revision 0
# Generated 2022-11-01T10:41:32.5-05:00 by admin from 135.231.208.32
# Commit ID 1
# Committed 2022-11-01T10:04:58.4-05:00 by system (MD-CLI) from Console
# Log "System booted version C-22.10.R1."
configure {
aaa {
radius {
server-policy "radius-server-1" {
servers {
router-instance "Base"
server 1 {
server-name "free-radius-1"
}
}
}
}
}
card 1 {
card-type iom5-e
mda 1 {
mda-type me6-100gb-qsfp28
}
mda 2 {
mda-type me6-100gb-qsfp28
}
}
fwd-path-ext {
sdp-id-range {
start 17500
end 17600
}
fpe 1 {
description "srv6 origination"
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
description "srv6 termination"
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
fpe 3 {
description "pw-port on a single port"
path {
pxc 3
}
application {
pw-port-extension {
}
}
}
}
log {
filter "1001" {
named-entry "10" {
description "Collect only events of major severity or higher"
action forward
match {
severity {
gte major
}
}
}
}
log-id "100" {
description "Default Serious Errors Log"
filter "1001"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
log-id "99" {
description "Default System Log"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
}
policy-options {
community "color-30" {
member "color:00:30" { }
}
community "dual-homing" {
member "target:64500:10" { }
}
policy-statement "pol-color-30" {
entry 10 {
from {
family [evpn]
tag 11
}
action {
action-type accept
community {
add ["color-30"]
}
}
}
}
policy-statement "srrp-aware-routing" {
description "vrf-export; advertizing sub-if routes based on srrp state"
entry 10 {
from {
state srrp-master
protocol {
name [direct]
}
}
action {
action-type accept
local-preference 150
community {
add ["dual-homing"]
}
}
}
entry 20 {
from {
state srrp-non-master
protocol {
name [direct]
}
}
action {
action-type accept
local-preference 100
community {
add ["dual-homing"]
}
}
}
}
policy-statement "sub-mgmt-routes" {
description "this is not applied, but if it was - it would work fine through vrf-export"
entry 10 {
from {
protocol {
name [sub-mgmt]
}
}
action {
action-type accept
community {
add ["dual-homing"]
}
}
}
}
}
port 1/1/c1 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c1/1 {
admin-state enable
description "to p-2 access; mutually exclusive with lag-2"
monitor-oper-group "network-port"
ethernet {
mode hybrid
}
}
port 1/1/c1/2 {
admin-state disable
description "lag-2 to p-2 access; mutually exclusive with port 1/1/c1/1"
ethernet {
mode hybrid
}
}
port 1/1/c1/3 {
admin-state disable
description "lag-2 to p-2 access; mutually exclusive with port 1/1/c1/1"
ethernet {
mode hybrid
}
}
port 1/1/c1/4 {
admin-state enable
description "spare port to p-2 access"
ethernet {
mode hybrid
}
}
port 1/1/c1/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/6 {
admin-state enable
description "to bng-1"
ethernet {
mode hybrid
}
}
port 1/1/c1/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/8 {
admin-state enable
description "to pe-2 network"
oper-group "network-port"
ethernet {
mode hybrid
}
}
port 1/1/c1/9 {
admin-state enable
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c1/10 {
admin-state enable
description "RADIUS and mirroring"
ethernet {
mode hybrid
}
}
port 1/1/c4 {
admin-state enable
connector {
breakout c4-10g
}
}
port 1/1/c4/1 {
admin-state enable
description "PXC 1,2,3; fpe 1,2,3; srv6 orig, term, pw-port single port"
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c4/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port pxc-3.a {
admin-state enable
}
port pxc-3.b {
admin-state enable
}
port-xc {
pxc 1 {
admin-state enable
description "fpe srv6 origin"
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
description "fpe srv6 termination"
port-id 1/1/c4/1
}
pxc 3 {
admin-state enable
description "fpe pw-port single port"
port-id 1/1/c4/1
}
}
pw-port 1 {
encap-type qinq
epipe "evpn-dual-homing" {
admin-state enable
fpe-id 3
oper-up-on-mh-standby true
}
}
redundancy {
multi-chassis {
peer 192.0.2.20 {
admin-state enable
sync {
admin-state enable
local-dhcp-server true
srrp true
sub-mgmt {
ipoe true
pppoe true
}
tags {
pw-port 1 {
sync-tag "pw-port-1"
}
}
track-srrp 1 {
}
}
}
}
bgp-evpn {
ethernet-segment {
boot-timer 120
}
}
}
router "Base" {
autonomous-system 64500
router-id 192.0.2.21
interface "int-1-bng-2-bng-1" {
port 1/1/c1/6:1
gre-termination true
ipv4 {
primary {
address 192.168.7.2
prefix-length 24
}
}
ipv6 {
address 2001:db8::702 {
prefix-length 120
}
}
}
interface "int-1-bng-2-p-2" {
port 1/1/c1/1:1
ipv6 {
address 2001:db8::601 {
prefix-length 120
}
}
}
interface "int-1-bng-2-pe-2" {
port 1/1/c1/8:1
ipv6 {
address 2001:db8::901 {
prefix-length 120
}
}
}
interface "system" {
ipv4 {
primary {
address 192.0.2.21
prefix-length 32
}
}
ipv6 {
bfd {
admin-state enable
transmit-interval 100
receive 100
multiplier 2
}
address 2001:db8::15 {
prefix-length 128
}
}
}
interface "to-radius" {
port 1/1/c1/10:114
ipv4 {
primary {
address 192.168.114.21
prefix-length 24
}
}
}
bgp {
admin-state enable
vpn-apply-export true
vpn-apply-import true
rapid-withdrawal true
rapid-update {
vpn-ipv4 true
vpn-ipv6 true
evpn true
}
extended-nh-encoding {
vpn-ipv4 true
}
advertise-ipv6-next-hops {
vpn-ipv6 true
vpn-ipv4 true
}
group "evpn" {
peer-as 64500
local-address 2001:db8::15
bfd-liveness true
family {
evpn true
}
}
group "ipvpn" {
peer-as 64500
local-address 2001:db8::15
bfd-liveness true
family {
vpn-ipv4 true
vpn-ipv6 true
}
}
neighbor "2001:db8::5" {
group "evpn"
export {
policy ["pol-color-30"]
}
}
neighbor "2001:db8::6" {
group "ipvpn"
}
neighbor "2001:db8::14" {
group "evpn"
}
}
isis 0 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "bng-2-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-bng-2-p-2" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
isis 1 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "bng-2-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-bng-2-bng-1" {
}
interface "int-1-bng-2-pe-2" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
radius {
server "free-radius-1" {
address 192.168.114.2
secret "HDqTwZYSvEu934VNhUQy/pubZxTKpSDzvHg=" hash2
accept-coa true
}
}
segment-routing {
sr-policies {
admin-state enable
static-policy "to-pe-1-long-path" {
admin-state enable
color 10
endpoint 2001:db8::5
preference 150
head-end local
type srv6
segment-routing-v6 {
binding-sid 1 {
locator {
locator-name "bng-2-loc"
function end-b6-encaps-red
}
}
}
segment-list 1 {
admin-state enable
segment 1 {
srv6-sid 2001:db8:aaaa:a:0:1000::
}
segment 2 {
srv6-sid 2001:db8:aaaa:4:0:1000::
}
}
}
}
segment-routing-v6 {
origination-fpe [1]
source-address 2001:db8::15
locator "bng-2-loc" {
admin-state enable
block-length 48
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:15::/64
}
}
base-routing-instance {
locator "bng-2-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
}
}
static-routes {
route 192.0.2.20/32 route-type unicast {
next-hop "192.168.7.1" {
admin-state enable
}
}
}
}
service {
oper-group "ES-1" {
hold-time {
up 0
}
}
oper-group "network-port" {
hold-time {
up 0
}
}
system {
bgp {
evpn {
ethernet-segment "ES-1" {
admin-state enable
esi 0x01010101010101010101
orig-ip 2001:db8::15
route-next-hop 2001:db8::15
multi-homing-mode single-active
oper-group "ES-1"
df-election {
es-activation-timer 0
service-carving-mode manual
manual {
preference {
mode revertive
value 50
}
}
}
association {
pw-port 1 {
pw-port-headend true
}
}
}
}
}
}
epipe "evpn-dual-homing" {
admin-state enable
service-id 11
customer "1"
segment-routing-v6 1 {
locator "bng-2-loc" {
function {
end-dx2 {
}
}
}
}
bgp-evpn {
evi 11
local-attachment-circuit "bng" {
eth-tag 2
}
remote-attachment-circuit "access" {
eth-tag 1
}
segment-routing-v6 1 {
admin-state enable
default-route-tag 0xb
source-address 2001:db8::15
resolution fallback-tunnel-to-route-table
srv6 {
instance 1
default-locator "bng-2-loc"
}
route-next-hop {
ip-address 2001:db8::15
}
}
}
}
sdp 1 {
admin-state enable
signaling off
far-end {
ip-address 192.168.7.1
}
}
vpls "capture-sap" {
admin-state enable
service-id 5
customer "1"
capture-sap pw-1:*.* {
radius-auth-policy "radius-1"
track-srrp 1
trigger-packet {
dhcp true
dhcp6 true
pppoe true
}
ipoe-session {
admin-state enable
ipoe-session-policy "ipoe-session-policy-1"
}
pppoe {
policy "ppp-policy-1"
}
}
}
vprn "dual-homing" {
admin-state enable
service-id 10
customer "1"
segment-routing-v6 1 {
locator "bng-2-loc" {
function {
end-dt4 {
}
end-dt6 {
}
}
}
}
bgp-ipvpn {
segment-routing-v6 1 {
admin-state enable
route-distinguisher "192.0.2.21:10"
source-address 2001:db8::15
vrf-target {
community "target:64500:10"
}
vrf-export {
policy ["srrp-aware-routing"]
}
srv6 {
instance 1
default-locator "bng-2-loc"
}
}
}
bgp {
}
interface "loopback-1" {
admin-state enable
loopback true
ipv4 {
local-dhcp-server "dhcpv4"
primary {
address 192.168.0.1
prefix-length 32
}
neighbor-discovery {
local-proxy-arp false
remote-proxy-arp false
}
dhcp {
admin-state enable
}
}
ipv6 {
local-dhcp-server "dhcpv6"
address 2001:db8::1 {
prefix-length 128
}
}
}
redundant-interface "red-int-bng-2-bng-1" {
admin-state enable
spoke-sdp 1:1 {
admin-state enable
ingress {
vc-label 1000
}
egress {
vc-label 1000
}
}
ipv4 {
primary {
address 192.168.11.2
prefix-length 24
remote-ip 192.168.11.1
}
}
}
dhcp-server {
dhcpv4 "dhcpv4" {
admin-state enable
pool-selection {
use-gi-address {
scope pool
}
use-pool-from-client {
}
}
pool "dhcpv4-1" {
max-lease-time 1200
failover {
admin-state enable
peer 192.0.2.20 {
sync-tag "dhcp4"
}
}
subnet 10.10.0.0/24 {
address-range 10.10.0.10 end 10.10.0.100 {
failover-control-type access-driven
}
}
}
pool "pppoev4-1" {
max-lease-time 1200
subnet 10.10.1.0/24 {
address-range 10.10.1.10 end 10.10.1.100 {
failover-control-type access-driven
}
}
}
}
dhcpv6 "dhcpv6" {
admin-state enable
pool-selection {
use-pool-from-client {
}
}
pool "dhcpv6-1" {
delegated-prefix {
minimum 56
}
failover {
admin-state enable
peer 192.0.2.20 {
sync-tag "dhcp6"
}
}
prefix 2001:db8:bbbb::/56 {
failover-control-type access-driven
preferred-lifetime 900
valid-lifetime 1200
renew-time 600
rebind-time 1000
prefix-type {
wan-host true
}
}
prefix 2001:db8:bbbb:100::/56 {
failover-control-type access-driven
preferred-lifetime 900
valid-lifetime 1200
renew-time 600
rebind-time 1000
prefix-type {
pd true
}
}
}
}
}
subscriber-interface "sub-int-1" {
admin-state enable
ipv4 {
address 10.10.0.2 {
prefix-length 24
gateway 10.10.0.254
track-srrp 1
}
address 10.10.1.2 {
prefix-length 24
gateway 10.10.1.254
track-srrp 1
}
}
ipv6 {
delegated-prefix-length variable
prefix 2001:db8:bbbb::/56 {
track-srrp 1
host-type wan
}
prefix 2001:db8:bbbb:100::/56 {
track-srrp 1
host-type pd
}
link-local-address {
address fe80::b696:ffff:fe00:0
}
}
group-interface "group-int-1" {
admin-state enable
radius-auth-policy "radius-1"
oper-up-while-empty true
redundant-interface "red-int-bng-2-bng-1"
dynamic-routes-track-srrp {
}
ipv4 {
neighbor-discovery {
remote-proxy-arp true
populate false
}
dhcp {
admin-state enable
server [192.168.0.1]
trusted true
gi-address 10.10.0.2
match-circuit-id true
option-82 {
action keep
vendor-specific-option {
pool-name true
}
}
lease-populate {
max-leases 100
}
client-applications {
dhcp true
}
}
}
ipv6 {
auto-reply {
neighbor-solicitation true
router-solicitation true
}
dhcp6 {
pd-managed-route {
}
relay {
admin-state enable
server ["2001:db8::1"]
client-applications {
dhcp true
ppp true
}
}
}
router-advertisements {
admin-state enable
force-mcast ip-mac
options {
managed-configuration true
reachable-time 10000
retransmit-timer 3
}
}
router-solicit {
admin-state disable
}
}
ipoe-session {
admin-state enable
ipoe-session-policy "ipoe-session-policy-1"
sap-session-limit 100
force-auth {
cid-change false
rid-change false
}
}
pppoe {
admin-state enable
policy "ppp-policy-1"
session-limit 100
sap-session-limit 100
}
local-address-assignment {
admin-state enable
ipv4 {
server "dhcpv4"
client-applications {
ppp true
}
}
}
srrp 1 {
admin-state enable
keep-alive-interval 2
message-path pw-1:2.4094
}
sap pw-1:2.4094 {
monitor-oper-group "ES-1"
}
}
}
}
}
sfm 1 {
sfm-type m-sfm6-7/12
}
subscriber-mgmt {
ipoe-session-policy "ipoe-session-policy-1" {
}
sub-profile "sub-profile-1" {
}
sla-profile "sla-profile-1" {
}
sub-ident-policy "sub-ident-policy-1" {
sla-profile-map {
use-direct-map-as-default true
}
sub-profile-map {
use-direct-map-as-default true
}
}
ppp-policy "ppp-policy-1" {
max-sessions-per-mac 100
allow-same-circuit-id-for-dhcp true
ncp-renegotiation ignore
}
radius-authentication-policy "radius-1" {
password "ncd8qyrNUMhYfa2SfrUqHMDZ9IXn3sVSmYBzbw==" hash2
pppoe-access-method pap-chap
radius-server-policy "radius-server-1"
user-name {
format circuit-id
}
include-radius-attribute {
circuit-id true
nas-identifier true
}
}
msap-policy "msap-policy-1" {
sub-sla-mgmt {
subscriber-limit 100
sub-ident-policy "sub-ident-policy-1"
defaults {
subscriber-id {
sap-id
}
}
}
ies-vprn-only-sap-parameters {
anti-spoof next-hop-ip-and-mac-addr
ingress {
qos {
queuing-type service
}
}
}
}
}
system {
name "bng-2"
management-interface {
configuration-mode model-driven
cli {
cli-engine [md-cli classic-cli]
}
yang-modules {
nokia-submodules true
nokia-combined-modules false
}
snmp {
admin-state disable
}
}
login-control {
idle-timeout none
}
security {
aaa {
local-profiles {
profile "administrative" {
default-action permit-all
entry 10 {
match "configure system security"
action permit
}
entry 20 {
match "show system security"
action permit
}
entry 30 {
match "tools perform security"
action permit
}
entry 40 {
match "tools dump security"
action permit
}
entry 50 {
match "admin system security"
action permit
}
entry 100 {
match "configure li"
action deny
}
entry 110 {
match "show li"
action deny
}
entry 111 {
match "clear li"
action deny
}
entry 112 {
match "tools dump li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
kill-session true
lock true
validate true
}
}
}
profile "default" {
entry 10 {
match "exec"
action permit
}
entry 20 {
match "exit"
action permit
}
entry 30 {
match "help"
action permit
}
entry 40 {
match "logout"
action permit
}
entry 50 {
match "password"
action permit
}
entry 60 {
match "show config"
action deny
}
entry 65 {
match "show li"
action deny
}
entry 66 {
match "clear li"
action deny
}
entry 67 {
match "tools dump li"
action deny
}
entry 68 {
match "state li"
action deny
}
entry 70 {
match "show"
action permit
}
entry 75 {
match "state"
action permit
}
entry 80 {
match "enable-admin"
action permit
}
entry 90 {
match "enable"
action permit
}
entry 100 {
match "configure li"
action deny
}
}
}
}
ssh {
server-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
client-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
server-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
client-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
}
user-params {
local-user {
user "admin" {
password "$2y$10$TQrZlpBDra86.qoexZUzQeBXDY1FcdDhGWdD9lLxMuFyPVSm0OGy6"
access {
console true
}
console {
member ["administrative"]
}
}
}
}
}
time {
prefer-local-time true
zone {
standard {
name cst
}
}
dst-zone "CDT" {
end {
day sunday
month november
hours-minutes "02:00"
}
start {
day sunday
month march
hours-minutes "02:00"
}
}
sntp {
admin-state enable
server 135.227.160.253 {
}
}
}
}
}
# Finished 2022-11-01T10:41:32.6-05:00
p-1-config
# TiMOS-B-22.10.R1 both/x86_64 Nokia 7750 SR Copyright (c) 2000-2022 Nokia.
# All rights reserved. All use subject to applicable license agreements.
# Built on Sun Oct 30 14:49:55 PDT 2022 by builder in /builds/c/2210B/R1/panos/main/sros
# Configuration format version 22.10 revision 0
# Generated 2022-11-01T06:45:18.0Z by admin from 135.231.208.32
# Commit ID 1
# Committed 2022-11-01T06:08:15.6Z by system (MD-CLI) from Console
# Log "System booted version B-22.10.R1."
configure {
card 1 {
card-type iom-1
mda 1 {
mda-type me6-100gb-qsfp28
}
mda 2 {
mda-type me6-100gb-qsfp28
}
fp 1 {
}
}
fwd-path-ext {
fpe 1 {
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
}
log {
filter "1001" {
named-entry "10" {
description "Collect only events of major severity or higher"
action forward
match {
severity {
gte major
}
}
}
}
log-id "100" {
description "Default Serious Errors Log"
filter "1001"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
log-id "99" {
description "Default System Log"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
}
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port 1/1/c1 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c1/1 {
admin-state enable
ethernet {
mode hybrid
encap-type dot1q
}
}
port 1/1/c1/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c2/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/2 {
admin-state disable
ethernet {
mode hybrid
}
}
port 1/1/c2/3 {
admin-state disable
ethernet {
mode hybrid
}
}
port 1/1/c2/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c3/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c4 {
admin-state enable
connector {
breakout c4-10g
}
}
port 1/1/c4/1 {
admin-state enable
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c5 {
}
port 1/1/c6 {
}
port 1/2/c1 {
}
port 1/2/c2 {
}
port 1/2/c3 {
}
port 1/2/c4 {
}
port 1/2/c5 {
}
port 1/2/c6 {
}
port-xc {
pxc 1 {
admin-state enable
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
port-id 1/1/c4/1
}
}
router "Base" {
autonomous-system 64500
router-id 192.0.2.4
interface "int-1-p-1-bng-1" {
port 1/1/c2/1:1
ipv6 {
address 2001:db8::502 {
prefix-length 120
}
}
}
interface "int-1-p-1-p-2" {
port 1/1/c1/9:1
ipv6 {
address 2001:db8::a01 {
prefix-length 120
}
}
}
interface "int-1-p-1-pe-1" {
port 1/1/c1/1:1
ipv6 {
address 2001:db8::102 {
prefix-length 120
}
}
}
interface "system" {
ipv4 {
primary {
address 192.0.2.4
prefix-length 32
}
}
ipv6 {
address 2001:db8::4 {
prefix-length 128
}
}
}
interface "to-radius" {
port 1/1/c3/10:114
ipv4 {
primary {
address 192.168.114.4
prefix-length 24
}
}
}
bgp {
}
isis 0 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "p-1-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-p-1-bng-1" {
}
interface "int-1-p-1-p-2" {
}
interface "int-1-p-1-pe-1" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
segment-routing {
segment-routing-v6 {
origination-fpe [1]
source-address 2001:db8::4
locator "p-1-loc" {
admin-state enable
block-length 48
function-length 20
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:4::/64
}
}
base-routing-instance {
locator "p-1-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
}
}
}
system {
name "p-1"
management-interface {
configuration-mode model-driven
cli {
cli-engine [md-cli classic-cli]
}
yang-modules {
nokia-submodules true
nokia-combined-modules false
}
snmp {
admin-state disable
}
}
bluetooth {
advertising-timeout 30
}
login-control {
idle-timeout none
}
security {
aaa {
local-profiles {
profile "administrative" {
default-action permit-all
entry 10 {
match "configure system security"
action permit
}
entry 20 {
match "show system security"
action permit
}
entry 30 {
match "tools perform security"
action permit
}
entry 40 {
match "tools dump security"
action permit
}
entry 50 {
match "admin system security"
action permit
}
entry 100 {
match "configure li"
action deny
}
entry 110 {
match "show li"
action deny
}
entry 111 {
match "clear li"
action deny
}
entry 112 {
match "tools dump li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
kill-session true
lock true
validate true
}
}
}
profile "default" {
entry 10 {
match "exec"
action permit
}
entry 20 {
match "exit"
action permit
}
entry 30 {
match "help"
action permit
}
entry 40 {
match "logout"
action permit
}
entry 50 {
match "password"
action permit
}
entry 60 {
match "show config"
action deny
}
entry 65 {
match "show li"
action deny
}
entry 66 {
match "clear li"
action deny
}
entry 67 {
match "tools dump li"
action deny
}
entry 68 {
match "state li"
action deny
}
entry 70 {
match "show"
action permit
}
entry 75 {
match "state"
action permit
}
entry 80 {
match "enable-admin"
action permit
}
entry 90 {
match "enable"
action permit
}
entry 100 {
match "configure li"
action deny
}
}
}
}
ssh {
server-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
client-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
server-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
client-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
}
user-params {
local-user {
user "admin" {
password "$2y$10$TQrZlpBDra86.qoexZUzQeBXDY1FcdDhGWdD9lLxMuFyPVSm0OGy6"
access {
console true
}
console {
member ["administrative"]
}
}
}
}
}
}
}
# Finished 2022-11-01T06:45:18.0Z
p-2-config
# TiMOS-B-22.10.R1 both/x86_64 Nokia 7750 SR Copyright (c) 2000-2022 Nokia.
# All rights reserved. All use subject to applicable license agreements.
# Built on Sun Oct 30 14:49:55 PDT 2022 by builder in /builds/c/2210B/R1/panos/main/sros
# Configuration format version 22.10 revision 0
# Generated 2022-11-01T08:50:39.8Z by admin from 135.231.208.32
# Commit ID 1
# Committed 2022-11-01T08:13:40.0Z by system (MD-CLI) from Console
# Log "System booted version B-22.10.R1."
configure {
card 1 {
card-type iom-1
mda 1 {
mda-type me6-100gb-qsfp28
}
mda 2 {
mda-type me6-100gb-qsfp28
}
}
fwd-path-ext {
fpe 1 {
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
}
log {
filter "1001" {
named-entry "10" {
description "Collect only events of major severity or higher"
action forward
match {
severity {
gte major
}
}
}
}
log-id "100" {
description "Default Serious Errors Log"
filter "1001"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
log-id "99" {
description "Default System Log"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
}
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port 1/1/c1 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c1/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c2/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/2 {
admin-state disable
ethernet {
mode hybrid
}
}
port 1/1/c2/3 {
admin-state disable
ethernet {
mode hybrid
}
}
port 1/1/c2/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c3/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c4 {
admin-state enable
connector {
breakout c4-10g
}
}
port 1/1/c4/1 {
admin-state enable
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port-xc {
pxc 1 {
admin-state enable
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
port-id 1/1/c4/1
}
}
router "Base" {
autonomous-system 64500
router-id 192.0.2.10
interface "int-1-p-2-bng-2" {
port 1/1/c2/1:1
ipv6 {
address 2001:db8::602 {
prefix-length 120
}
}
}
interface "int-1-p-2-p-1" {
port 1/1/c1/9:1
ipv6 {
address 2001:db8::a02 {
prefix-length 120
}
}
}
interface "int-1-p-2-pe-1" {
port 1/1/c1/5:1
ipv6 {
address 2001:db8::202 {
prefix-length 120
}
}
}
interface "system" {
ipv4 {
primary {
address 192.0.2.10
prefix-length 32
}
}
ipv6 {
address 2001:db8::a {
prefix-length 128
}
}
}
interface "to-radius" {
port 1/1/c3/10:114
ipv4 {
primary {
address 192.168.114.10
prefix-length 24
}
}
}
isis 0 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "p-2-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-p-2-bng-2" {
}
interface "int-1-p-2-p-1" {
}
interface "int-1-p-2-pe-1" {
}
interface "system" {
}
level 2 {
wide-metrics-only true
}
}
segment-routing {
segment-routing-v6 {
origination-fpe [1]
source-address 2001:db8::a
locator "p-2-loc" {
admin-state enable
block-length 48
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:a::/64
}
}
base-routing-instance {
locator "p-2-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
}
}
}
system {
name "p-2"
management-interface {
configuration-mode model-driven
cli {
cli-engine [md-cli classic-cli]
}
yang-modules {
nokia-submodules true
nokia-combined-modules false
}
snmp {
admin-state disable
}
}
login-control {
idle-timeout none
}
security {
aaa {
local-profiles {
profile "administrative" {
default-action permit-all
entry 10 {
match "configure system security"
action permit
}
entry 20 {
match "show system security"
action permit
}
entry 30 {
match "tools perform security"
action permit
}
entry 40 {
match "tools dump security"
action permit
}
entry 50 {
match "admin system security"
action permit
}
entry 100 {
match "configure li"
action deny
}
entry 110 {
match "show li"
action deny
}
entry 111 {
match "clear li"
action deny
}
entry 112 {
match "tools dump li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
kill-session true
lock true
validate true
}
}
}
profile "default" {
entry 10 {
match "exec"
action permit
}
entry 20 {
match "exit"
action permit
}
entry 30 {
match "help"
action permit
}
entry 40 {
match "logout"
action permit
}
entry 50 {
match "password"
action permit
}
entry 60 {
match "show config"
action deny
}
entry 65 {
match "show li"
action deny
}
entry 66 {
match "clear li"
action deny
}
entry 67 {
match "tools dump li"
action deny
}
entry 68 {
match "state li"
action deny
}
entry 70 {
match "show"
action permit
}
entry 75 {
match "state"
action permit
}
entry 80 {
match "enable-admin"
action permit
}
entry 90 {
match "enable"
action permit
}
entry 100 {
match "configure li"
action deny
}
}
}
}
ssh {
server-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
client-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
server-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
client-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
}
user-params {
local-user {
user "admin" {
password "$2y$10$TQrZlpBDra86.qoexZUzQeBXDY1FcdDhGWdD9lLxMuFyPVSm0OGy6"
access {
console true
}
console {
member ["administrative"]
}
}
}
}
}
}
}
# Finished 2022-11-01T08:50:39.8Z
pe-1-config
# TiMOS-B-22.7.R1 both/x86_64 Nokia 7750 SR Copyright (c) 2000-2022 Nokia.
# All rights reserved. All use subject to applicable license agreements.
# Built on Tue Aug 2 14:18:47 PDT 2022 by builder in /builds/c/227B/R1/panos/main/sros
# Configuration format version 22.7 revision 0
# Generated 2022-10-27T09:42:24.8Z by admin from 135.231.208.32
# Commit ID 1
# Committed 2022-10-27T09:13:22.5Z by system (MD-CLI) from Console
# Log "System booted version B-22.7.R1."
configure {
card 1 {
card-type iom-1
mda 1 {
mda-type me6-100gb-qsfp28
}
mda 2 {
mda-type me6-100gb-qsfp28
xconnect {
mac 1 {
loopback 1 {
}
}
}
}
fp 1 {
}
}
connection-profile {
vlan 1 {
qtag-range 2 {
end 2
}
}
vlan 20 {
qtag-range 20 {
end 30
}
}
}
fwd-path-ext {
fpe 1 {
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
}
log {
filter "1001" {
named-entry "10" {
description "Collect only events of major severity or higher"
action forward
match {
severity {
gte major
}
}
}
}
log-id "100" {
description "Default Serious Errors Log"
filter "1001"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
log-id "50" {
source {
debug true
}
destination {
cli {
max-entries 1000
}
}
}
log-id "99" {
description "Default System Log"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
}
policy-options {
community "color-10" {
member "color:00:10" { }
}
policy-statement "pol-color-10" {
entry 10 {
from {
family [evpn]
tag 11
}
action {
action-type accept
community {
add ["color-10"]
}
}
}
entry 20 {
from {
family [evpn]
tag 12
}
action {
action-type accept
community {
add ["color-10"]
}
}
}
}
}
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port 1/1/c1 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c1/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c2/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c3/1 {
admin-state enable
ethernet {
mode hybrid
encap-type qinq
}
}
port 1/1/c3/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/10 {
admin-state enable
ethernet {
mode hybrid
encap-type dot1q
}
}
port 1/1/c4 {
admin-state enable
connector {
breakout c4-10g
}
}
port 1/1/c4/1 {
admin-state enable
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c5 {
}
port 1/1/c6 {
}
port 1/2/c1 {
}
port 1/2/c2 {
}
port 1/2/c3 {
}
port 1/2/c4 {
}
port 1/2/c5 {
}
port 1/2/c6 {
}
port 1/2/m1/1 {
}
port-xc {
pxc 1 {
admin-state enable
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
port-id 1/1/c4/1
}
}
router "Base" {
autonomous-system 64500
router-id 192.0.2.5
interface "int-1-pe-1-p-1" {
port 1/1/c1/1:1
ipv6 {
address 2001:db8::101 {
prefix-length 120
}
}
}
interface "int-1-pe-1-p-2" {
port 1/1/c1/5:1
ipv6 {
address 2001:db8::201 {
prefix-length 120
}
}
}
interface "system" {
ipv4 {
primary {
address 192.0.2.5
prefix-length 32
}
}
ipv6 {
bfd {
admin-state enable
transmit-interval 100
receive 100
multiplier 2
}
address 2001:db8::5 {
prefix-length 128
}
}
}
interface "to-ixia" {
port 1/1/c3/1:1.1
ipv4 {
primary {
address 172.16.100.1
prefix-length 24
}
}
ipv6 {
address 2001:db8::6401 {
prefix-length 120
}
}
}
interface "to-radius" {
port 1/1/c3/10:114
ipv4 {
primary {
address 192.168.114.5
prefix-length 24
}
}
}
bgp {
admin-state enable
vpn-apply-export true
vpn-apply-import true
rapid-withdrawal true
rapid-update {
evpn true
}
advertise-ipv6-next-hops {
evpn true
}
group "evpn" {
peer-as 64500
local-address 2001:db8::5
bfd-liveness true
family {
evpn true
}
}
neighbor "2001:db8::14" {
group "evpn"
export {
policy ["pol-color-10"]
}
}
neighbor "2001:db8::15" {
group "evpn"
export {
policy ["pol-color-10"]
}
}
}
isis 0 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "pe-1-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-pe-1-p-1" {
}
interface "int-1-pe-1-p-2" {
}
interface "system" {
}
interface "to-ixia" {
}
level 2 {
wide-metrics-only true
}
}
segment-routing {
sr-policies {
admin-state enable
static-policy "to-bng-1-long-path" {
admin-state enable
color 20
endpoint 2001:db8::14
preference 150
head-end local
type srv6
segment-routing-v6 {
binding-sid 1 {
locator {
locator-name "pe-1-loc"
function end-b6-encaps-red
}
}
}
segment-list 1 {
admin-state enable
segment 1 {
srv6-sid 2001:db8:aaaa:a:0:1000::
}
segment 2 {
srv6-sid 2001:db8:aaaa:4:0:1000::
}
}
}
static-policy "to-bng-2-long-path" {
admin-state enable
color 30
endpoint 2001:db8::15
preference 150
head-end local
type srv6
segment-routing-v6 {
binding-sid 1 {
locator {
locator-name "pe-1-loc"
function end-b6-encaps-red
}
}
}
segment-list 1 {
admin-state enable
segment 1 {
srv6-sid 2001:db8:aaaa:4:0:1000::
}
segment 2 {
srv6-sid 2001:db8:aaaa:a:0:1000::
}
}
}
}
segment-routing-v6 {
origination-fpe [1]
source-address 2001:db8::5
locator "pe-1-loc" {
admin-state enable
block-length 48
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:5::/64
}
static-function {
max-entries 5
}
}
base-routing-instance {
locator "pe-1-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
}
}
}
service {
system {
extended-default-qinq-sap-lookup true
}
epipe "dual-homing" {
admin-state enable
service-id 11
customer "1"
segment-routing-v6 1 {
locator "pe-1-loc" {
function {
end-dx2 {
}
}
}
}
sap 1/1/c3/1:*.* {
}
bgp-evpn {
evi 11
local-attachment-circuit "access" {
eth-tag 1
}
remote-attachment-circuit "bng" {
eth-tag 2
}
segment-routing-v6 1 {
admin-state enable
default-route-tag 0xb
source-address 2001:db8::5
resolution fallback-tunnel-to-route-table
srv6 {
instance 1
default-locator "pe-1-loc"
}
route-next-hop {
system-ipv6
}
}
}
}
}
system {
name "pe-1"
management-interface {
configuration-mode model-driven
cli {
cli-engine [md-cli classic-cli]
}
yang-modules {
nokia-submodules true
nokia-combined-modules false
}
snmp {
admin-state disable
}
}
ip {
allow-qinq-network-interface true
}
bluetooth {
advertising-timeout 30
}
login-control {
idle-timeout none
}
security {
aaa {
local-profiles {
profile "administrative" {
default-action permit-all
entry 10 {
match "configure system security"
action permit
}
entry 20 {
match "show system security"
action permit
}
entry 30 {
match "tools perform security"
action permit
}
entry 40 {
match "tools dump security"
action permit
}
entry 50 {
match "admin system security"
action permit
}
entry 100 {
match "configure li"
action deny
}
entry 110 {
match "show li"
action deny
}
entry 111 {
match "clear li"
action deny
}
entry 112 {
match "tools dump li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
kill-session true
lock true
validate true
}
}
}
profile "default" {
entry 10 {
match "exec"
action permit
}
entry 20 {
match "exit"
action permit
}
entry 30 {
match "help"
action permit
}
entry 40 {
match "logout"
action permit
}
entry 50 {
match "password"
action permit
}
entry 60 {
match "show config"
action deny
}
entry 65 {
match "show li"
action deny
}
entry 66 {
match "clear li"
action deny
}
entry 67 {
match "tools dump li"
action deny
}
entry 68 {
match "state li"
action deny
}
entry 70 {
match "show"
action permit
}
entry 75 {
match "state"
action permit
}
entry 80 {
match "enable-admin"
action permit
}
entry 90 {
match "enable"
action permit
}
entry 100 {
match "configure li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
validate true
}
}
}
}
}
ssh {
server-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
client-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
server-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
client-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
}
user-params {
local-user {
user "admin" {
password "$2y$10$TQrZlpBDra86.qoexZUzQeBXDY1FcdDhGWdD9lLxMuFyPVSm0OGy6"
access {
console true
}
console {
member ["administrative"]
}
}
}
}
}
}
}
# Finished 2022-10-27T09:42:24.8Z
pe-2-config
# TiMOS-B-22.10.R1 both/x86_64 Nokia 7750 SR Copyright (c) 2000-2022 Nokia.
# All rights reserved. All use subject to applicable license agreements.
# Built on Sun Oct 30 14:49:55 PDT 2022 by builder in /builds/c/2210B/R1/panos/main/sros
# Configuration format version 22.10 revision 0
# Generated 2022-11-01T08:08:00.1Z by admin from 135.231.208.32
# Commit ID 1
# Committed 2022-11-01T07:31:07.3Z by system (MD-CLI) from Console
# Log "System booted version B-22.10.R1."
configure {
card 1 {
card-type iom-1
mda 1 {
mda-type me6-100gb-qsfp28
}
mda 2 {
mda-type me6-100gb-qsfp28
}
fp 1 {
}
}
fwd-path-ext {
fpe 1 {
path {
pxc 1
}
application {
srv6 {
type origination
}
}
}
fpe 2 {
path {
pxc 2
}
application {
srv6 {
type termination
}
}
}
}
log {
filter "1001" {
named-entry "10" {
description "Collect only events of major severity or higher"
action forward
match {
severity {
gte major
}
}
}
}
log-id "100" {
description "Default Serious Errors Log"
filter "1001"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
log-id "99" {
description "Default System Log"
source {
main true
}
destination {
memory {
max-entries 500
}
}
}
}
port pxc-1.a {
admin-state enable
}
port pxc-1.b {
admin-state enable
}
port pxc-2.a {
admin-state enable
}
port pxc-2.b {
admin-state enable
}
port 1/1/c1 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c1/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c1/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c2/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c2/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3 {
admin-state enable
connector {
breakout c10-10g
}
}
port 1/1/c3/1 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/2 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/3 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/4 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/5 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/6 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/7 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/8 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/9 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c3/10 {
admin-state enable
ethernet {
mode hybrid
}
}
port 1/1/c4 {
admin-state enable
connector {
breakout c4-10g
}
}
port 1/1/c4/1 {
admin-state enable
ethernet {
mode hybrid
dot1x {
tunneling true
}
}
}
port 1/1/c5 {
}
port 1/1/c6 {
}
port 1/2/c1 {
}
port 1/2/c2 {
}
port 1/2/c3 {
}
port 1/2/c4 {
}
port 1/2/c5 {
}
port 1/2/c6 {
}
port-xc {
pxc 1 {
admin-state enable
port-id 1/1/c4/1
}
pxc 2 {
admin-state enable
port-id 1/1/c4/1
}
}
router "Base" {
autonomous-system 64500
router-id 192.0.2.6
interface "int-1-pe-2-bng-1" {
port 1/1/c1/7:1
ipv6 {
address 2001:db8::802 {
prefix-length 120
}
}
}
interface "int-1-pe-2-bng-2" {
port 1/1/c1/8:1
ipv6 {
address 2001:db8::902 {
prefix-length 120
}
}
}
interface "system" {
ipv4 {
primary {
address 192.0.2.6
prefix-length 32
}
}
ipv6 {
bfd {
admin-state enable
transmit-interval 100
receive 100
multiplier 2
}
address 2001:db8::6 {
prefix-length 128
}
}
}
interface "to-ixia" {
port 1/1/c3/1:1
ipv4 {
primary {
address 172.16.101.1
prefix-length 24
}
}
ipv6 {
address 2001:db8::6501 {
prefix-length 120
}
}
}
interface "to-radius" {
port 1/1/c3/10:114
ipv4 {
primary {
address 192.168.114.6
prefix-length 24
}
}
}
bgp {
admin-state enable
bfd-liveness true
rapid-withdrawal true
rapid-update {
vpn-ipv4 true
vpn-ipv6 true
}
extended-nh-encoding {
vpn-ipv4 true
}
advertise-ipv6-next-hops {
vpn-ipv6 true
vpn-ipv4 true
}
group "ipvpn" {
peer-as 64500
local-address 2001:db8::6
bfd-liveness true
family {
vpn-ipv4 true
vpn-ipv6 true
}
}
neighbor "2001:db8::14" {
group "ipvpn"
}
neighbor "2001:db8::15" {
group "ipvpn"
}
}
isis 1 {
admin-state enable
advertise-passive-only false
advertise-router-capability area
ipv6-routing native
level-capability 2
traffic-engineering true
area-address [49.0001]
loopfree-alternate {
remote-lfa {
}
ti-lfa {
}
}
traffic-engineering-options {
ipv6 true
application-link-attributes {
}
}
segment-routing-v6 {
admin-state enable
locator "pe-2-loc" {
level-capability 2
level 2 {
metric 10
}
}
}
interface "int-1-pe-2-bng-1" {
}
interface "int-1-pe-2-bng-2" {
}
interface "system" {
}
interface "to-ixia" {
}
level 2 {
wide-metrics-only true
}
}
segment-routing {
segment-routing-v6 {
origination-fpe [1]
source-address 2001:db8::6
locator "pe-2-loc" {
admin-state enable
block-length 48
termination-fpe [2]
prefix {
ip-prefix 2001:db8:aaaa:6::/64
}
}
base-routing-instance {
locator "pe-2-loc" {
function {
end 1 {
srh-mode usp
}
end-x-auto-allocate usp protection protected { }
}
}
}
}
}
}
service {
vprn "dual-homing" {
admin-state enable
service-id 10
customer "1"
segment-routing-v6 1 {
locator "pe-2-loc" {
function {
end-dt4 {
}
end-dt6 {
}
}
}
}
bgp-ipvpn {
segment-routing-v6 1 {
admin-state enable
route-distinguisher "192.0.2.6:10"
source-address 2001:db8::6
vrf-target {
community "target:64500:10"
}
srv6 {
instance 1
default-locator "pe-2-loc"
}
}
}
interface "vprn-10-to-ixia" {
ipv4 {
primary {
address 172.16.102.1
prefix-length 24
}
}
sap 1/1/c3/1:2 {
}
ipv6 {
address 2001:db8::6601 {
prefix-length 120
}
}
}
ipv6 {
router-advertisement {
interface "vprn-10-to-ixia" {
admin-state enable
max-advertisement-interval 15
min-advertisement-interval 10
}
}
}
}
}
system {
name "pe-2"
management-interface {
configuration-mode model-driven
cli {
cli-engine [md-cli classic-cli]
}
yang-modules {
nokia-submodules true
nokia-combined-modules false
}
snmp {
admin-state disable
}
}
bluetooth {
advertising-timeout 30
}
login-control {
idle-timeout none
}
security {
aaa {
local-profiles {
profile "administrative" {
default-action permit-all
entry 10 {
match "configure system security"
action permit
}
entry 20 {
match "show system security"
action permit
}
entry 30 {
match "tools perform security"
action permit
}
entry 40 {
match "tools dump security"
action permit
}
entry 50 {
match "admin system security"
action permit
}
entry 100 {
match "configure li"
action deny
}
entry 110 {
match "show li"
action deny
}
entry 111 {
match "clear li"
action deny
}
entry 112 {
match "tools dump li"
action deny
}
netconf {
base-op-authorization {
action true
cancel-commit true
close-session true
commit true
copy-config true
create-subscription true
delete-config true
discard-changes true
edit-config true
get true
get-config true
get-data true
get-schema true
kill-session true
lock true
validate true
}
}
}
profile "default" {
entry 10 {
match "exec"
action permit
}
entry 20 {
match "exit"
action permit
}
entry 30 {
match "help"
action permit
}
entry 40 {
match "logout"
action permit
}
entry 50 {
match "password"
action permit
}
entry 60 {
match "show config"
action deny
}
entry 65 {
match "show li"
action deny
}
entry 66 {
match "clear li"
action deny
}
entry 67 {
match "tools dump li"
action deny
}
entry 68 {
match "state li"
action deny
}
entry 70 {
match "show"
action permit
}
entry 75 {
match "state"
action permit
}
entry 80 {
match "enable-admin"
action permit
}
entry 90 {
match "enable"
action permit
}
entry 100 {
match "configure li"
action deny
}
}
}
}
ssh {
server-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
client-cipher-list-v2 {
cipher 190 {
name aes256-ctr
}
cipher 192 {
name aes192-ctr
}
cipher 194 {
name aes128-ctr
}
cipher 200 {
name aes128-cbc
}
cipher 205 {
name 3des-cbc
}
cipher 225 {
name aes192-cbc
}
cipher 230 {
name aes256-cbc
}
}
server-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
client-mac-list-v2 {
mac 200 {
name hmac-sha2-512
}
mac 210 {
name hmac-sha2-256
}
mac 215 {
name hmac-sha1
}
mac 220 {
name hmac-sha1-96
}
mac 225 {
name hmac-md5
}
mac 240 {
name hmac-md5-96
}
}
}
user-params {
local-user {
user "admin" {
password "$2y$10$TQrZlpBDra86.qoexZUzQeBXDY1FcdDhGWdD9lLxMuFyPVSm0OGy6"
access {
console true
}
console {
member ["administrative"]
}
}
}
}
}
}
}
# Finished 2022-11-01T08:08:00.1Z
users.radius
#
# Configuration file for the rlm_files module.
# Please see rlm_files(5) manpage for more information.
#
# This file contains authentication security and configuration
# information for each user. Accounting requests are NOT processed
# through this file. Instead, see 'accounting', in this directory.
#
# The first field is the user's name and can be up to
# 253 characters in length. This is followed (on the same line) with
# the list of authentication requirements for that user. This can
# include password, comm server name, comm server port number, protocol
# type (perhaps set by the "hints" file), and huntgroup name (set by
# the "huntgroups" file).
#
# If you are not sure why a particular reply is being sent by the
# server, then run the server in debugging mode (radiusd -X), and
# you will see which entries in this file are matched.
#
# When an authentication request is received from the comm server,
# these values are tested. Only the first match is used unless the
# "Fall-Through" variable is set to "Yes".
#
# A special user named "DEFAULT" matches on all usernames.
# You can have several DEFAULT entries. All entries are processed
# in the order they appear in this file. The first entry that
# matches the login-request will stop processing unless you use
# the Fall-Through variable.
#
# Indented (with the tab character) lines following the first
# line indicate the configuration values to be passed back to
# the comm server to allow the initiation of a user session.
# This can include things like the PPP configuration values
# or the host to log the user onto.
#
# You can include another `users' file with `$INCLUDE users.other'
#
# For a list of RADIUS attributes, and links to their definitions,
# see: http://www.freeradius.org/rfc/attributes.html
#
# Entries below this point are examples included in the server for
# educational purposes. They may be deleted from the deployed
# configuration without impacting the operation of the server.
#
#########################################################
# You should add test accounts to the TOP of this file! #
# See the example user "bob" above. #
#########################################################
cid-1 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-1",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-2 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-2",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-3 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-3",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-4 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-4",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-5 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-5",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-6 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-6",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-7 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-7",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-8 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-8",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-9 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-9",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
cid-10 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "ipoe-ds-10",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "dhcpv4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-2",
Fall-Through = No
pppoe-1 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-1",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-2 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-2",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-3 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-3",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-4 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-4",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-5 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-5",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-6 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-6",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-7 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-7",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-8 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-8",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-9 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-9",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-1",
Fall-Through = No
pppoe-10 Cleartext-Password := "cse-password"
Alc-Subsc-ID-Str = "pppoe-10",
Alc-Subsc-Prof-Str = "sub-profile-1",
Alc-SLA-Prof-Str = "sla-profile-1",
Alc-MSAP-Interface = "group-int-1",
Alc-MSAP-Policy = "msap-policy-1",
Alc-MSAP-Serv-Id = "10",
Framed-Pool = "pppoev4-1",
Framed-IPv6-Pool = "dhcpv6-1",
Alc-Delegated-IPv6-Pool = "dhcpv6-1",
Alc-Int-Dest-Id-Str = "vport-2",
Fall-Through = No
Show commands
In this section, the following show commands are used:
# FPE
====
show fwd-path-ext fpe 1 associations
show fwd-path-ext fpe 1
# EVPN
====
show service id "evpn-dual-homing" base
show service id "evpn-dual-homing" bgp-evpn
show service system bgp-evpn ethernet-segment name "ES-1"
show service system bgp-evpn ethernet-segment name "ES-1" evi evi-1 11
show router bgp routes evpn eth-seg detail
show router bgp routes evpn auto-disc tag 1 detail
show service id "evpn-dual-homing" ethernet-segment "ES-1"
show service id "evpn-dual-homing" segment-routing-v6 detail
show service id "evpn-dual-homing" segment-routing-v6 instance 1 destinations
show service id "evpn-dual-homing" segment-routing-v6 instance 1 end-dx2
show service id "evpn-dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
# IP-VPN
====
show service id "dual-homing" base
show service id "dual-homing" bgp-ipvpn segment-routing-v6
show service id "dual-homing" segment-routing-v6 instance 1 locator "bng-2-loc"
show router 10 route-table
show router 10 route-table ipv6
show router bgp routes vpn-ipv4 hunt
show router bgp routes vpn-ipv6 hunt
# SRv6
====
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router segment-routing-v6 local-sid context "10"
# GRT router and tunnel table
====
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
# BGP
====
show router bgp summary
# MCS
====
show redundancy multi-chassis sync peer 192.0.2.20 detail
tools dump redundancy multi-chassis sync-database
# subscribers:
====
show service active-subscribers summary
show service active-subscribers hierarchy
show service id 10 subscriber-hosts detail
show service id 10 ipoe session
show service id 10 pppoe session
show service id 10 dhcp lease-state
show service id 10 dhcp6 lease-state
show srrp 1 detail
# DHCP server:
====
show router 10 dhcp local-dhcp-server "dhcpv4" summary
show router 10 dhcp6 local-dhcp-server "dhcpv6" summary
show router 10 dhcp local-dhcp-server "dhcpv4" leases
show router 10 dhcp6 local-dhcp-server "dhcpv6" leases
#
===========
show port
show router interface
show router 10 interface
show fwd-path-ext fpe 1
show fwd-path-ext fpe 2
show fwd-path-ext fpe 3
show service id "evpn-dual-homing" base
show service id "evpn-dual-homing" bgp-evpn
show service system bgp-evpn ethernet-segment name "ES-1"
show service system bgp-evpn ethernet-segment name "ES-1" evi evi-1 11
show router bgp routes evpn eth-seg detail
show router bgp routes evpn auto-disc tag 1 detail
show service id "evpn-dual-homing" ethernet-segment "ES-1"
show service id "evpn-dual-homing" segment-routing-v6 detail
show service id "evpn-dual-homing" segment-routing-v6 instance 1 destinations
show service id "evpn-dual-homing" segment-routing-v6 instance 1 end-dx2
show service id "evpn-dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
show service id "dual-homing" base
show service id "dual-homing" bgp-ipvpn segment-routing-v6
show service id "dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
show router 10 route-table
show router 10 route-table ipv6
show router bgp routes vpn-ipv4 hunt
show router bgp routes vpn-ipv6 hunt
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router segment-routing-v6 local-sid context "10"
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
show router bgp summary
show router isis adjacency
show router isis database
show router isis 1 adjacency
show router isis 1 database
show redundancy multi-chassis sync peer 192.0.2.21 detail
tools dump redundancy multi-chassis sync-database
show service active-subscribers summary
show service active-subscribers hierarchy
show service id 10 subscriber-hosts detail
show service id 10 ipoe session
show service id 10 pppoe session
show service id 10 dhcp lease-state
show service id 10 dhcp6 lease-state
show srrp 1 detail
show router 10 dhcp local-dhcp-server "dhcpv4" summary
show router 10 dhcp6 local-dhcp-server "dhcpv6" summary
show router 10 dhcp local-dhcp-server "dhcpv4" leases
show router 10 dhcp6 local-dhcp-server "dhcpv6" leases
#
====
show port
show router interface
show router 10 interface
show fwd-path-ext fpe 1
show fwd-path-ext fpe 2
show fwd-path-ext fpe 3
show service id "evpn-dual-homing" base
show service id "evpn-dual-homing" bgp-evpn
show service system bgp-evpn ethernet-segment name "ES-1"
show service system bgp-evpn ethernet-segment name "ES-1" evi evi-1 11
show router bgp routes evpn eth-seg detail
show router bgp routes evpn auto-disc tag 1 detail
show service id "evpn-dual-homing" ethernet-segment "ES-1"
show service id "evpn-dual-homing" segment-routing-v6 detail
show service id "evpn-dual-homing" segment-routing-v6 instance 1 destinations
show service id "evpn-dual-homing" segment-routing-v6 instance 1 end-dx2
show service id "evpn-dual-homing" segment-routing-v6 instance 1 locator "bng-2-loc"
show service id "dual-homing" base
show service id "dual-homing" bgp-ipvpn segment-routing-v6
show service id "dual-homing" segment-routing-v6 instance 1 locator "bng-2-loc"
show router 10 route-table
show router 10 route-table ipv6
show router bgp routes vpn-ipv4 hunt
show router bgp routes vpn-ipv6 hunt
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router segment-routing-v6 local-sid context "10"
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
show router bgp summary
show router isis adjacency
show router isis database
show router isis 1 adjacency
show router isis 1 database
show router isis 1 database
show redundancy multi-chassis sync peer 192.0.2.20 detail
tools dump redundancy multi-chassis sync-database
show service active-subscribers summary
show service active-subscribers hierarchy
show service id 10 subscriber-hosts detail
show service id 10 ipoe session
show service id 10 pppoe session
show service id 10 dhcp lease-state
show service id 10 dhcp6 lease-state
show srrp 1 detail
show router 10 dhcp local-dhcp-server "dhcpv4" summary
show router 10 dhcp6 local-dhcp-server "dhcpv6" summary
show router 10 dhcp local-dhcp-server "dhcpv4" leases
show router 10 dhcp6 local-dhcp-server "dhcpv6" leases
# on PE-1:
====
show port
show router interface
show fwd-path-ext fpe 1
show fwd-path-ext fpe 2
show service id "dual-homing" base
show service id "dual-homing" bgp-evpn
show router bgp routes evpn auto-disc tag 2 detail
show service id "dual-homing" segment-routing-v6 detail
show service id "dual-homing" segment-routing-v6 instance 1 destinations
show service id "dual-homing" segment-routing-v6 instance 1 end-dx2
show service id "dual-homing" segment-routing-v6 instance 1 locator "pe-1-loc"
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
show router bgp summary
show router isis adjacency
show router isis database
# on PE-2:
=====
show port
show router interface
show router 10 interface
show fwd-path-ext fpe 1
show fwd-path-ext fpe 2
show service id "dual-homing" base
show service id "dual-homing" bgp-ipvpn segment-routing-v6
show service id "dual-homing" segment-routing-v6 instance 1 locator "pe-2-loc"
show router 10 route-table
show router 10 route-table ipv6
show router bgp routes vpn-ipv4 hunt
show router bgp routes vpn-ipv6 hunt
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router segment-routing-v6 local-sid context "10"
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
show router bgp summary
show router isis 1 adjacency
show router isis 1 database
# on P-1:
====
show port
show router interface
show fwd-path-ext fpe 1
show fwd-path-ext fpe 2
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
show router isis adjacency
show router isis database
# on P-2:
====
show port
show router interface
show fwd-path-ext fpe 1
show fwd-path-ext fpe 2
show router segment-routing-v6 base-routing-instance all
show router segment-routing-v6 local-sid context "Base"
show router route-table ipv6
show router tunnel-table ipv6
show router fp-tunnel-table 1 ipv6
show router isis adjacency
show router isis database
The output of several show commands is provided for the following nodes:
- bng-1
- p-1
- pe-1
Show commands on bng-1
A:admin@bng-1# /show port
===============================================================================
Ports on Slot 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
1/1/c1 Up Link Up conn 100GBASE-LR4*
1/1/c1/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/2 Down No Down 8936 8936 - hybr dotq xgige
1/1/c1/3 Down No Down 8936 8936 - hybr dotq xgige
1/1/c1/4 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/6 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/7 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/10 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c2 Up Link Up conn 100G CWDM4 M*
1/1/c2/1 Up Yes Up 8936 8936 - hybr dotq cgige
1/1/c3 Down Down conn 100G CLR4 *
1/1/c4 Up Link Up conn 100GBASE-LR4*
1/1/c4/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c4/2 Up No Down 8936 8936 - netw null xgige
1/1/c4/3 Up No Down 8936 8936 - netw null xgige
1/1/c4/4 Up No Down 8936 8936 - hybr dotq xgige
1/1/c5 Down Down conn 100G CWDM4 M*
1/1/c6 Down Down conn 100G CLR4 *
1/2/c1 Down Down conn 100GBASE-LR4*
1/2/c2 Down Down conn 100G CWDM4 M*
1/2/c3 Down Down conn 100G CLR4 *
1/2/c4 Down Down conn 100GBASE-LR4*
1/2/c5 Down Down conn 100G CWDM4 M*
1/2/c6 Down Down conn 100G CLR4 *
===============================================================================
Ports on Slot A
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
A/1 Up Yes Up 1514 1514 - netw null faste MDI
A/3 Down No Down 1514 1514 - netw null faste
A/4 Down No Down 1514 1514 - netw null faste
===============================================================================
Ports on Slot B
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
B/1 Up No Ghost 1514 1514 - netw null faste
B/3 Down No Ghost 1514 1514 - netw null faste
B/4 Down No Ghost 1514 1514 - netw null faste
===============================================================================
Ports on Port Cross Connect 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-1.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-1.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
Ports on Port Cross Connect 2
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-2.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-2.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
Ports on Port Cross Connect 3
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-3.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-3.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router interface
===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
_tmnx_fpe_1.a Up Up/Up Network pxc-1.a:1
fe80::100/64 PREFERRED
_tmnx_fpe_1.b Up Up/Up Network pxc-1.b:1
fe80::101/64 PREFERRED
_tmnx_fpe_2.a Up Up/Up Network pxc-2.a:1
fe80::200/64 PREFERRED
_tmnx_fpe_2.b Up Up/Up Network pxc-2.b:1
fe80::201/64 PREFERRED
_tmnx_fpe_3.a Up Up/Up Network pxc-3.a:1
fe80::300/64 PREFERRED
_tmnx_fpe_3.b Up Up/Up Network pxc-3.b:1
fe80::301/64 PREFERRED
int-1-bng-1-bng-2 Up Up/Up Network 1/1/c1/6:1
192.168.7.1/24 n/a
2001:db8::701/120 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
int-1-bng-1-p-1 Up Down/Up Network 1/1/c1/1:1
2001:db8::501/120 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
int-1-bng-1-pe-2 Up Down/Up Network 1/1/c1/7:1
2001:db8::801/120 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
system Up Up/Up Network system
192.0.2.20/32 n/a
2001:db8::14/128 PREFERRED
to-radius Up Up/Down Network 1/1/c1/10:114
192.168.114.20/24 n/a
-------------------------------------------------------------------------------
Interfaces : 11
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 interface
===============================================================================
Interface Table (Service: 10)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
group-int-1 Up Up/Up VPRN G* pw-1
loopback-1 Up Up/Up VPRN loopback
192.168.0.1/32 n/a
2001:db8::1/128 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
red-int-bng-1-bng-2 Up Up/Up VPRN R* spoke-1:1
192.168.11.1/24 n/a
sub-int-1 Up Up/Up VPRN S* subscriber
10.10.0.1/24 n/a
10.10.1.1/24 n/a
2001:db8:bbbb::/56 PREFERRED
2001:db8:bbbb:100::/56 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
-------------------------------------------------------------------------------
Interfaces : 4
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show fwd-path-ext fpe 1
===============================================================================
FPE Id: 1
===============================================================================
Description : srv6 origination
Multi-Path : Disabled
Path : pxc 1
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : origination
If-A Qos Policy : default
If-B MTU : 9786 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show fwd-path-ext fpe 2
===============================================================================
FPE Id: 2
===============================================================================
Description : srv6 termination
Multi-Path : Disabled
Path : pxc 2
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : termination
If-A Qos Policy : default
If-B MTU : 0 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show fwd-path-ext fpe 3
===============================================================================
FPE Id: 3
===============================================================================
Description : pw-port on a single port
Multi-Path : Disabled
Path : pxc 3
Pw Port Extension : Enabled Oper : up
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Disabled
If-A Qos Policy : default
If-B Qos Policy : default
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 11 Vpn Id : 0
Service Type : Epipe
MACSec enabled : no
Name : evpn-dual-homing
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 11/12/2022 16:22:36
Last Mgmt Change : 11/12/2022 16:21:35
Test Service : No
Admin State : Up Oper State : Up
MTU : 1514
Vc Switching : False
SAP Count : 0 SDP Bind Count : 1
Per Svc Hashing : Disabled Lbl Eth/IP L4 TEID: Disabled
Ignore MTU Mismat*: Disabled
Vxlan Src Tep Ip : N/A
Force QTag Fwd : Disabled
Lcl Switch Svc St : sap
Oper Group : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sdp:17500:1 SB(fpe_3.b) Fpe 0 8910 Up Up
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" bgp-evpn
===============================================================================
BGP EVPN Table
===============================================================================
EVI : 11 Creation Origin : manual
-------------------------------------------------------------------------------
Local AC Name Eth Tag Endpoint Ingress Label
-------------------------------------------------------------------------------
bng 2 0
-------------------------------------------------------------------------------
Number of local ACs : 1
-------------------------------------------------------------------------------
Remote AC Name Eth Tag Endpoint
-------------------------------------------------------------------------------
access 1
-------------------------------------------------------------------------------
Number of Remote ACs : 1
===============================================================================
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Admin State : Enabled
Srv6 Instance : 1
Default Locator : bng-1-loc
Oper Group : (Not Specified)
Default Route Tag : 0xb
Source Address : 2001:db8::14
ECMP : 1
Force Vlan VC Fwd : disabled
Next Hop Type : system-ipv6
Evi 3-byte Auto-RT : disabled
Route Resolution : fallback-tunnel-to-route-table
Force QinQ VC Fwd : none
MH Mode : network
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service system bgp-evpn ethernet-segment name "ES-1"
===============================================================================
Service Ethernet Segment
===============================================================================
Name : ES-1
Eth Seg Type : None
Admin State : Enabled Oper State : Up
ESI : 01:01:01:01:01:01:01:01:01:01
Oper ESI : 01:01:01:01:01:01:01:01:01:01
Auto-ESI Type : None
AC DF Capability : Include
Multi-homing : singleActive Oper Multi-homing : singleActive
ES SHG Label : None
Source BMAC LSB : None
PW Port Id : 1
PW Port Headend : enabled
ES Activation Timer : 0 secs
Oper Group : ES-1
Svc Carving : manual Oper Svc Carving : manual
Cfg Range Type : lowest-pref
-------------------------------------------------------------------------------
DF Pref Election Information
-------------------------------------------------------------------------------
Preference Preference Last Admin Change Oper Pref Do No
Mode Value Value Preempt
-------------------------------------------------------------------------------
revertive 150 11/12/2022 16:21:35 150 Disabled
-------------------------------------------------------------------------------
EVI Ranges: <none>
ISID Ranges: <none>
Vprn NextHop EVI Ranges : <none>
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service system bgp-evpn ethernet-segment name "ES-1" evi evi-1 11
===============================================================================
EVI DF and Candidate List
===============================================================================
EVI SvcId Actv Timer Rem DF DF Last Change
-------------------------------------------------------------------------------
11 11 0 yes 11/12/2022 16:21:35
===============================================================================
===============================================================================
DF Candidates Time Added Oper Pref Do Not
Value Preempt
-------------------------------------------------------------------------------
2001:db8::14 11/12/2022 16:23:33 150 Disabl*
2001:db8::15 11/12/2022 16:22:36 50 Disabl*
-------------------------------------------------------------------------------
Number of entries: 2
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes evpn eth-seg detail
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN Eth-Seg Routes
===============================================================================
Original Attributes
Network : n/a
Nexthop : 2001:db8::15
Path Id : None
From : 2001:db8::15
Res. Nexthop : fe80::b697:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-bng-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community :
df-election::DF-Type:Preference/DP:0/DF-Preference:50/AC:1
target:01:01:01:01:01:01
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : ETH-SEG
ESI : 01:01:01:01:01:01:01:01:01:01
Originator IP : 2001:db8::15
Route Dist. : 192.0.2.21:0
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
Modified Attributes
Network : n/a
Nexthop : 2001:db8::15
Path Id : None
From : 2001:db8::15
Res. Nexthop : fe80::b697:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-bng-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community :
df-election::DF-Type:Preference/DP:0/DF-Preference:50/AC:1
target:01:01:01:01:01:01
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : ETH-SEG
ESI : 01:01:01:01:01:01:01:01:01:01
Originator IP : 2001:db8::15
Route Dist. : 192.0.2.21:0
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Routes : 1
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes evpn auto-disc tag 1 detail
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN Auto-Disc Routes
===============================================================================
Original Attributes
Network : n/a
Nexthop : 2001:db8::5
Path Id : None
From : 2001:db8::5
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-p-1
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:10 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 0
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.5
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : ESI-0
Tag : 1
Route Dist. : 192.0.2.5:11
MPLS Label : 524288
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:5::
Full Sid : 2001:db8:aaaa:5:8000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Modified Attributes
Network : n/a
Nexthop : 2001:db8::5
Path Id : None
From : 2001:db8::5
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-p-1
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:10 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 0
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.5
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : ESI-0
Tag : 1
Route Dist. : 192.0.2.5:11
MPLS Label : 524288
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:5::
Full Sid : 2001:db8:aaaa:5:8000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Routes : 1
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" ethernet-segment "ES-1"
No sap entries
No sdp entries
No vxlan instance entries
===============================================================================
SDP Ethernet-Segment Information
===============================================================================
Pw-Port Eth-Seg Status
-------------------------------------------------------------------------------
1 ES-1 DF
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 detail
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DX2 *524286 2001:db8:aaaa:14:7fff:e000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 instance 1 destinations
===============================================================================
TEP, SID
===============================================================================
Instance TEP Address Segment Id
-------------------------------------------------------------------------------
1 2001:db8::5 2001:db8:aaaa:5:8000::
-------------------------------------------------------------------------------
Number of TEP, SID: 1
-------------------------------------------------------------------------------
===============================================================================
===============================================================================
Segment Routing v6 Ethernet Segment Dest
===============================================================================
Instance Eth SegId Num. Macs Last Change
-------------------------------------------------------------------------------
No Matching Entries
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 instance 1 end-dx2
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DX2 *524286 2001:db8:aaaa:14:7fff:e000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DX2 *524286 2001:db8:aaaa:14:7fff:e000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "dual-homing" base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 10 Vpn Id : 0
Service Type : VPRN
MACSec enabled : no
Name : dual-homing
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 11/12/2022 16:21:35
Last Mgmt Change : 11/12/2022 16:21:35
Admin State : Up Oper State : Up
Router Oper State : Up
Route Dist. : None VPRN Type : regular
Oper Route Dist : 0:0
Oper RD Type : none
AS Number : None Router Id : 192.0.2.20
ECMP : Enabled ECMP Max Routes : 1
Max IPv4 Routes : No Limit
Local Rt Domain-Id: None D-Path Lng Ignore : Disabled
Auto Bind Tunnel
Allow Flex-Alg-Fb : Disabled
Resolution : disabled
Weighted ECMP : Disabled ECMP Max Routes : 1
Strict Tnl Tag : Disabled
Max IPv6 Routes : No Limit
Ignore NH Metric : Disabled
Hash Label : Disabled
Entropy Label : Disabled
Vrf Target : None
Vrf Import : None
Vrf Export : None
MVPN Vrf Target : None
MVPN Vrf Import : None
MVPN Vrf Export : None
Car. Sup C-VPN : Disabled
Label mode : vrf
BGP VPN Backup : Disabled
BGP Export Inactv : Disabled
LOG all events : Disabled
SAP Count : 21 SDP Bind Count : 1
VSD Domain : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sap:[pw-1:2.1] qinq 8932 8888 Up Up
sap:[pw-1:2.2] qinq 8932 8888 Up Up
sap:[pw-1:2.3] qinq 8932 8888 Up Up
sap:[pw-1:2.4] qinq 8932 8888 Up Up
sap:[pw-1:2.5] qinq 8932 8888 Up Up
sap:[pw-1:2.6] qinq 8932 8888 Up Up
sap:[pw-1:2.7] qinq 8932 8888 Up Up
sap:[pw-1:2.8] qinq 8932 8888 Up Up
sap:[pw-1:2.9] qinq 8932 8888 Up Up
sap:[pw-1:2.10] qinq 8932 8888 Up Up
sap:[pw-1:2.11] qinq 8932 8888 Up Up
sap:[pw-1:2.12] qinq 8932 8888 Up Up
sap:[pw-1:2.13] qinq 8932 8888 Up Up
sap:[pw-1:2.14] qinq 8932 8888 Up Up
sap:[pw-1:2.15] qinq 8932 8888 Up Up
sap:[pw-1:2.16] qinq 8932 8888 Up Up
sap:[pw-1:2.17] qinq 8932 8888 Up Up
sap:[pw-1:2.18] qinq 8932 8888 Up Up
sap:[pw-1:2.19] qinq 8932 8888 Up Up
sap:[pw-1:2.20] qinq 8932 8888 Up Up
sap:pw-1:2.4094 qinq 8932 8888 Up Up
sdp:1:1 S(192.168.7.2) None 0 8890 Up Up
-------------------------------------------------------------------------------
[<sap-id>] indicates a Managed SAP
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "dual-homing" bgp-ipvpn segment-routing-v6
===============================================================================
Service 10 BGP-IPVPN Segment-Routing-V6 Information
===============================================================================
Admin State : Up
VRF Import : None
VRF Export : srrp-aware-routing
Route Dist. : 192.0.2.20:10
Oper Route Dist : 192.0.2.20:10
Oper RD Type : configured
Route Target : target:64500:10
Route Target Expor: None
Route Target Impor: None
Def Route Tag : 0x0
Route Resolution : route-table
Srv6 Instance : 1
Default Locator : bng-1-loc
Source Address : 2001:db8::14
Domain-Id : None
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
===============================================================================
Segment Routing v6 Instance 1 Service 10
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DT4 *524285 2001:db8:aaaa:14:7fff:d000:: ok
End.DT6 *524284 2001:db8:aaaa:14:7fff:c000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 route-table
===============================================================================
Route Table (Service: 10)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.10.0.0/24 Local Local 01d23h11m 0
sub-int-1 0
10.10.0.2/32 Remote Sub Mgmt 01d23h12m 0
[red-int-bng-1-bng-2] 0
10.10.0.10/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.11/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.12/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.13/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.14/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.15/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.16/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.17/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.18/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.19/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.0/24 Local Local 01d23h11m 0
sub-int-1 0
10.10.1.2/32 Remote Sub Mgmt 01d23h12m 0
[red-int-bng-1-bng-2] 0
10.10.1.10/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.11/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.12/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.13/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.14/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.15/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.16/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.17/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.18/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.19/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
172.16.102.0/24 Remote BGP VPN 01d23h12m 170
2001:db8:aaaa:6:8000:: (tunneled:SRV6) 20
192.168.0.1/32 Local Local 01d23h13m 0
loopback-1 0
192.168.11.0/24 Local Local 01d23h13m 0
red-int-bng-1-bng-2 0
-------------------------------------------------------------------------------
No. of Routes: 27
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 route-table ipv6
===============================================================================
IPv6 Route Table (Service: 10)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::1/128 Local Local 01d23h13m 0
loopback-1 0
2001:db8::6600/120 Remote BGP VPN 01d23h12m 170
2001:db8:aaaa:6:7fff:f000:: (tunneled:SRV6) 20
2001:db8:bbbb::/56 Local Local 01d23h11m 0
sub-int-1 0
2001:db8:bbbb::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb::1 0
2001:db8:bbbb:2::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:3::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:2::1 0
2001:db8:bbbb:4::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:5::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:4::1 0
2001:db8:bbbb:6::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:7::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:6::1 0
2001:db8:bbbb:8::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:9::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:8::1 0
2001:db8:bbbb:a::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:b::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:a::1 0
2001:db8:bbbb:c::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:d::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:c::1 0
2001:db8:bbbb:e::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:f::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:e::1 0
2001:db8:bbbb:10::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:11::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:10::1 0
2001:db8:bbbb:12::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:13::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:12::1 0
2001:db8:bbbb:14::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:15::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:14::1 0
2001:db8:bbbb:16::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:17::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:16::1 0
2001:db8:bbbb:18::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:19::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:18::1 0
2001:db8:bbbb:1a::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1b::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:1a::1 0
2001:db8:bbbb:1c::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1d::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:1c::1 0
2001:db8:bbbb:1e::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1f::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:1e::1 0
2001:db8:bbbb:20::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:21::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:20::1 0
2001:db8:bbbb:22::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:23::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:22::1 0
2001:db8:bbbb:24::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:25::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:24::1 0
2001:db8:bbbb:26::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:27::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:26::1 0
2001:db8:bbbb:100::/56 Local Local 01d23h11m 0
sub-int-1 0
-------------------------------------------------------------------------------
No. of Routes: 44
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes vpn-ipv4 hunt
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP VPN-IPv4 Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network : 172.16.102.0/24
Nexthop : 2001:db8::6
Route Dist. : 192.0.2.6:10 VPN Label : 524288
Path Id : None
From : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 100 Interface Name : int-1-bng-1-pe-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 20
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Fwd Class : None Priority : None
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:6::
Full Sid : 2001:db8:aaaa:6:8000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
VPRN Imported : 10
-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
Network : 10.10.0.0/24
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524285
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:d000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Network : 10.10.1.0/24
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524285
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:d000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes vpn-ipv6 hunt
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP VPN-IPv6 Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network : 2001:db8::6600/120
Nexthop : 2001:db8::6
Route Dist. : 192.0.2.6:10 VPN Label : 524287
Path Id : None
From : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 100 Interface Name : int-1-bng-1-pe-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 20
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Fwd Class : None Priority : None
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:6::
Full Sid : 2001:db8:aaaa:6:7fff:f000::
Behavior : End.DT6 (18)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
VPRN Imported : 10
-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
Network : 2001:db8:bbbb::/56
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524284
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:c000::
Behavior : End.DT6 (18)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Network : 2001:db8:bbbb:100::/56
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524284
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:c000::
Behavior : End.DT6 (18)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router segment-routing-v6 base-routing-instance all
===============================================================================
Segment Routing v6 Base Routing Instance
===============================================================================
Locator
Type Function SID Status/InstId
SRH-mode Protection Interface
-------------------------------------------------------------------------------
bng-1-loc
End 1 2001:db8:aaaa:14:0:1000:: ok
USP
-------------------------------------------------------------------------------
Auto-allocated End.X: USP Protected,
-------------------------------------------------------------------------------
End.X *524287 2001:db8:aaaa:14:7fff:f000:: 1
USP Protected int-1-bng-1-bng-2
ISIS Level: L2 Mac Address: b4:98:01:01:00:06 Nbr Sys Id: 1920.0000.2021
End.X *524288 2001:db8:aaaa:14:8000:: 0
USP Protected int-1-bng-1-p-1
ISIS Level: L2 Mac Address: b4:9e:01:01:00:0b Nbr Sys Id: 1920.0000.2004
End.X *524289 2001:db8:aaaa:14:8000:1000:: 1
USP Protected int-1-bng-1-pe-2
ISIS Level: L2 Mac Address: b4:a0:01:01:00:07 Nbr Sys Id: 1920.0000.2006
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
===============================================================================
Micro Segment Routing v6 Base Routing Instance
===============================================================================
Micro Segment Locator
Type Function SID Status/InstId
SRH-mode Oper Func Interface Protection
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router segment-routing-v6 local-sid context "Base"
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:14:0:1000:: End 1
bng-1-loc
Base
-------------------------------------------------------------------------------
SIDs : 1
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router segment-routing-v6 local-sid context "10"
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:14:7fff:c000:: End.DT6 524284
bng-1-loc
SvcId: 10 Name: dual-homing
2001:db8:aaaa:14:7fff:d000:: End.DT4 524285
bng-1-loc
SvcId: 10 Name: dual-homing
-------------------------------------------------------------------------------
SIDs : 2
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router route-table ipv6
===============================================================================
IPv6 Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::4/128 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 10
2001:db8::5/128 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::6/128 [L] Remote ISIS(1) 01d23h12m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 10
2001:db8::a/128 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::14/128 Local Local 01d23h13m 0
system 0
2001:db8::15/128 [L] Remote ISIS(1) 01d23h12m 18
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 10
2001:db8::100/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::200/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::500/120 Local Local 01d23h13m 0
int-1-bng-1-p-1 0
2001:db8::600/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::700/120 Local Local 01d23h13m 0
int-1-bng-1-bng-2 0
2001:db8::800/120 Local Local 01d23h13m 0
int-1-bng-1-pe-2 0
2001:db8::900/120 [L] Remote ISIS(1) 01d23h12m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8::a00/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::6400/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::6500/120 [L] Remote ISIS(1) 01d23h12m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8:aaaa:4::/64 Remote ISIS 01d23h12m 18
2001:db8:aaaa:4::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:5::/64 Remote ISIS 01d23h12m 18
2001:db8:aaaa:5::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:6::/64 Remote ISIS(1) 01d23h12m 18
2001:db8:aaaa:6::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:a::/64 Remote ISIS 01d23h12m 18
2001:db8:aaaa:a::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:14::/64 Local SRV6 01d23h13m 3
fe80::201-"_tmnx_fpe_2.a" 0
2001:db8:aaaa:14:0:1000::/128 Local SRV6 01d23h13m 3
Black Hole 0
2001:db8:aaaa:14:0:2000::/128 Local SRV6-Pol* 01d23h13m 14
2001:db8::5 (tunneled:SRV6-Policy:917506) 1
2001:db8:aaaa:14:7fff:f000::/128 Local ISIS(1) 01d23h12m 18
2001:db8:aaaa:14:7fff:f000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:14:8000::/128 Local ISIS 01d23h12m 18
2001:db8:aaaa:14:8000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:14:8000:1000::/128 Local ISIS(1) 01d23h12m 18
2001:db8:aaaa:14:8000:1000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:15::/64 Remote ISIS(1) 01d23h12m 18
2001:db8:aaaa:15::/64 (tunneled:SRV6-ISIS) 20
-------------------------------------------------------------------------------
No. of Routes: 27
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router tunnel-table ipv6
===============================================================================
IPv6 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref
Nexthop Color Metric
-------------------------------------------------------------------------------
2001:db8::5/128 srv6-pol SRV6 917506 14
fpe_1.a 10 0
2001:db8:aaaa:4::/64 srv6-isis SRV6 524296 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8:aaaa:5::/64 srv6-isis SRV6 524299 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8:aaaa:6::/64 [L] srv6-isis SRV6 524295 0
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8:aaaa:a::/64 srv6-isis SRV6 524297 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8:aaaa:14:7fff:f000::/128 [L] srv6-isis SRV6 524291 0
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 10
2001:db8:aaaa:14:8000::/128 srv6-isis SRV6 524292 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 10
2001:db8:aaaa:14:8000:1000::/128 [L] srv6-isis SRV6 524293 0
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 10
2001:db8:aaaa:15::/64 [L] srv6-isis SRV6 524294 0
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 20
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router fp-tunnel-table 1 ipv6
===============================================================================
IPv6 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
2001:db8:aaaa:4::/64 SRV6 524296
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:5::/64 SRV6 524299
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:6::/64 SRV6 524295
-
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 1/1/c1/7:1
-
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2"(B) 1/1/c1/6:1
2001:db8:aaaa:a::/64 SRV6 524297
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:15::/64 SRV6 524294
-
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 1/1/c1/6:1
-
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2"(B) 1/1/c1/7:1
2001:db8::5/128 SRV6-Policy -
2001:db8:aaaa:a:0:1000::/2001:db8:aaaa:4:0:1000::
0.140.1.1 pxc-1.b:1
2001:db8:aaaa:14:7fff:f000::/128 SRV6 524291
-
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 1/1/c1/6:1
2001:db8:aaaa:15:0:1000::
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2"(B) 1/1/c1/7:1
2001:db8:aaaa:14:8000::/128 SRV6 524292
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:14:8000:1000::/128 SRV6 524293
-
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 1/1/c1/7:1
2001:db8:aaaa:6:0:1000::
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2"(B) 1/1/c1/6:1
-------------------------------------------------------------------------------
Total Entries : 9
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp summary
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
BGP Admin State : Up BGP Oper State : Up
Total Peer Groups : 2 Total Peers : 3
Total VPN Peer Groups : 0 Total VPN Peers : 0
Current Internal Groups : 3 Max Internal Groups : 3
Total BGP Paths : 59 Total Path Memory : 21280
Total IPv4 Remote Rts : 0 Total IPv4 Rem. Active Rts : 0
Total IPv6 Remote Rts : 0 Total IPv6 Rem. Active Rts : 0
Total IPv4 Backup Rts : 0 Total IPv6 Backup Rts : 0
Total LblIpv4 Rem Rts : 0 Total LblIpv4 Rem. Act Rts : 0
Total LblIpv6 Rem Rts : 0 Total LblIpv6 Rem. Act Rts : 0
Total LblIpv4 Bkp Rts : 0 Total LblIpv6 Bkp Rts : 0
Total Supressed Rts : 0 Total Hist. Rts : 0
Total Decay Rts : 0
Total VPN-IPv4 Rem. Rts : 1 Total VPN-IPv4 Rem. Act. Rts: 1
Total VPN-IPv6 Rem. Rts : 1 Total VPN-IPv6 Rem. Act. Rts: 1
Total VPN-IPv4 Bkup Rts : 0 Total VPN-IPv6 Bkup Rts : 0
Total VPN Local Rts : 7 Total VPN Supp. Rts : 0
Total VPN Hist. Rts : 0 Total VPN Decay Rts : 0
Total MVPN-IPv4 Rem Rts : 0 Total MVPN-IPv4 Rem Act Rts : 0
Total MVPN-IPv6 Rem Rts : 0 Total MVPN-IPv6 Rem Act Rts : 0
Total MDT-SAFI Rem Rts : 0 Total MDT-SAFI Rem Act Rts : 0
Total McIPv4 Remote Rts : 0 Total McIPv4 Rem. Active Rts: 0
Total McIPv6 Remote Rts : 0 Total McIPv6 Rem. Active Rts: 0
Total McVpnIPv4 Rem Rts : 0 Total McVpnIPv4 Rem Act Rts : 0
Total McVpnIPv6 Rem Rts : 0 Total McVpnIPv6 Rem Act Rts : 0
Total EVPN Rem Rts : 4 Total EVPN Rem Act Rts : 4
Total L2-VPN Rem. Rts : 0 Total L2VPN Rem. Act. Rts : 0
Total MSPW Rem Rts : 0 Total MSPW Rem Act Rts : 0
Total RouteTgt Rem Rts : 0 Total RouteTgt Rem Act Rts : 0
Total FlowIpv4 Rem Rts : 0 Total FlowIpv4 Rem Act Rts : 0
Total FlowIpv6 Rem Rts : 0 Total FlowIpv6 Rem Act Rts : 0
Total FlowVpnv4 Rem Rts : 0 Total FlowVpnv4 Rem Act Rts : 0
Total FlowVpnv6 Rem Rts : 0 Total FlowVpnv6 Rem Act Rts : 0
Total Link State Rem Rts: 0 Total Link State Rem Act Rts: 0
Total SrPlcyIpv4 Rem Rts: 0 Total SrPlcyIpv4 Rem Act Rts: 0
Total SrPlcyIpv6 Rem Rts: 0 Total SrPlcyIpv6 Rem Act Rts: 0
===============================================================================
BGP Summary
===============================================================================
Legend : D - Dynamic Neighbor
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
2001:db8::5
64500 5669 0 01d23h12m 1/1/3 (Evpn)
5672 0
2001:db8::6
64500 5670 0 01d23h12m 1/1/2 (VpnIPv4)
5672 0 1/1/2 (VpnIPv6)
2001:db8::15
64500 5673 0 01d23h12m 3/3/3 (Evpn)
5672 0
-------------------------------------------------------------------------------
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis adjacency
===============================================================================
Rtr Base ISIS Instance 0 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
p-1 L2 Up 7 int-1-bng-1-p-1 0
-------------------------------------------------------------------------------
Adjacencies : 1
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis database
===============================================================================
Rtr Base ISIS Instance 0 Database
===============================================================================
LSP ID Sequence Checksum Lifetime Attributes
-------------------------------------------------------------------------------
Displaying Level 1 database
-------------------------------------------------------------------------------
Level (1) LSP Count : 0
Displaying Level 2 database
-------------------------------------------------------------------------------
p-1.00-00 0x13d 0x8ffb 762 L1L2
p-1.01-00 0x134 0x4d03 902 L1L2
pe-1.00-00 0x139 0x659e 863 L1L2
pe-1.01-00 0x133 0xe585 1063 L1L2
p-2.00-00 0x137 0xfd42 1085 L1L2
p-2.01-00 0x135 0x6dc8 938 L1L2
p-2.02-00 0x135 0xe56c 1042 L1L2
p-2.03-00 0x132 0xfa58 764 L1L2
bng-1.00-00 0x13d 0x160f 748 L1L2
bng-2.00-00 0x137 0x777b 675 L1L2
Level (2) LSP Count : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis 1 adjacency
===============================================================================
Rtr Base ISIS Instance 1 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
bng-2 L2 Up 27 int-1-bng-1-bng-2 0
pe-2 L2 Up 7 int-1-bng-1-pe-2 0
-------------------------------------------------------------------------------
Adjacencies : 2
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis 1 database
===============================================================================
Rtr Base ISIS Instance 1 Database
===============================================================================
LSP ID Sequence Checksum Lifetime Attributes
-------------------------------------------------------------------------------
Displaying Level 1 database
-------------------------------------------------------------------------------
Level (1) LSP Count : 0
Displaying Level 2 database
-------------------------------------------------------------------------------
pe-2.00-00 0x13a 0x105f 963 L1L2
pe-2.01-00 0x133 0x51fb 708 L1L2
pe-2.02-00 0x133 0x60ea 1055 L1L2
bng-1.00-00 0x13c 0x29a7 747 L1L2
bng-1.01-00 0x136 0x7b99 670 L1L2
bng-2.00-00 0x138 0x8827 1129 L1L2
Level (2) LSP Count : 6
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show redundancy multi-chassis sync peer 192.0.2.21 detail
===============================================================================
Multi-chassis Peer Table
===============================================================================
Peer
-------------------------------------------------------------------------------
Peer IP Address : 192.0.2.21
Description : (Not Specified)
Authentication : Disabled
Source IP Address : 192.0.2.20
Admin State : Enabled
Warm standby : No
Remote warm standby : No
Sub-mgmt options :
DHCP lease threshold : Inactive
Local / Remote : -- / --
-------------------------------------------------------------------------------
Sync-status
-------------------------------------------------------------------------------
Client Applications : SUBMGMT-IPOE SUBMGMT-PPPOE SRRP DHCPServer
Sync Admin State : Up
Sync Oper State : Up
Sync Oper Flags :
DB Sync State : inSync
Num Entries : 100
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
Rem Num Entries : 100
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
===============================================================================
MCS Application Stats
===============================================================================
Application : igmp
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : igmpSnooping
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : subMgmtIpoe
Num Entries : 10
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 10
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : srrp
Num Entries : 26
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 26
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : mcRing
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : mldSnooping
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : dhcpServer
Num Entries : 54
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 54
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : subHostTrk
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : subMgmtPppoe
Num Entries : 10
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 10
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : ipsec
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : mld
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : python
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : l2tp
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : diameterProxy
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : pimSnpgSap
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : pimSnpgSdp
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : diameterNode
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : nat
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
===============================================================================
===============================================================================
Ports synced on peer 192.0.2.21
===============================================================================
Port/Encap Tag
-------------------------------------------------------------------------------
pw-1 pw-port-1
===============================================================================
===============================================================================
SDPs synced on peer 192.0.2.21
===============================================================================
SDP/Vc-Id Tag
-------------------------------------------------------------------------------
===============================================================================
===============================================================================
DHCP Server instances synced on peer 192.0.2.21
===============================================================================
Router-Name Server-Name
Tag
-------------------------------------------------------------------------------
No instances found
===============================================================================
===============================================================================
Python cache instances synced on peer 192.0.2.21
===============================================================================
Python-Policy Tag
-------------------------------------------------------------------------------
No instances found
===============================================================================
No L2TP instances found.
===============================================================================
Track SRRP instances
===============================================================================
SRRP : 1
-------------------------------------------------------------------------------
L2TP tunnel ID start : 0
L2TP tunnel ID end : 0
===============================================================================
===============================================================================
Diameter proxy instances synced on peer 192.0.2.21
===============================================================================
Diameter-Peer-Policy Tag
-------------------------------------------------------------------------------
No instances found
===============================================================================
===============================================================================
Diameter node instances synced on peer 192.0.2.21
===============================================================================
Diameter Node Tag
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
No. of Diameter Nodes: 0
===============================================================================
===============================================================================
Nat groups synced on peer 192.0.2.21
===============================================================================
Nat group Tag
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
No. of Nat groups: 0
===============================================================================
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /tools dump redundancy multi-chassis sync-database
The following totals are for:
peer ip ALL, port/lag/sdp ALL, sync-tag ALL, application ALL
Valid Entries: 100
Locally Deleted Entries: 0
Locally Deleted Alarmed Entries: 0
Pending Global Delete Entries: 0
Omcr Alarmed Entries: 0
Omcr Standby Entries: 0
Associated Shared Records (ALL): 0
Associated Shared Records (LD): 0
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service active-subscribers summary
===============================================================================
Active Subscriber table summary
===============================================================================
Total Count : 20
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service active-subscribers hierarchy
===============================================================================
Active Subscribers Hierarchy
===============================================================================
-- ipoe-ds-1
(sub-profile-1)
|
+-- sap:[pw-1:2.11] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:01 - svc:10
|
|-- 10.10.0.12 - DHCP
|
+-- 2001:db8:bbbb::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1::/64 - DHCP6-PD-MR
-- ipoe-ds-10
(sub-profile-1)
|
+-- sap:[pw-1:2.20] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:0a - svc:10
|
|-- 10.10.0.13 - DHCP
|
+-- 2001:db8:bbbb:10::1/128 - DHCP6
|
+-- 2001:db8:bbbb:11::/64 - DHCP6-PD-MR
-- ipoe-ds-2
(sub-profile-1)
|
+-- sap:[pw-1:2.12] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:02 - svc:10
|
|-- 10.10.0.10 - DHCP
|
+-- 2001:db8:bbbb:2::1/128 - DHCP6
|
+-- 2001:db8:bbbb:3::/64 - DHCP6-PD-MR
-- ipoe-ds-3
(sub-profile-1)
|
+-- sap:[pw-1:2.13] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:03 - svc:10
|
|-- 10.10.0.14 - DHCP
|
+-- 2001:db8:bbbb:c::1/128 - DHCP6
|
+-- 2001:db8:bbbb:d::/64 - DHCP6-PD-MR
-- ipoe-ds-4
(sub-profile-1)
|
+-- sap:[pw-1:2.14] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:04 - svc:10
|
|-- 10.10.0.17 - DHCP
|
+-- 2001:db8:bbbb:8::1/128 - DHCP6
|
+-- 2001:db8:bbbb:9::/64 - DHCP6-PD-MR
-- ipoe-ds-5
(sub-profile-1)
|
+-- sap:[pw-1:2.15] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:05 - svc:10
|
|-- 10.10.0.11 - DHCP
|
+-- 2001:db8:bbbb:4::1/128 - DHCP6
|
+-- 2001:db8:bbbb:5::/64 - DHCP6-PD-MR
-- ipoe-ds-6
(sub-profile-1)
|
+-- sap:[pw-1:2.16] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:06 - svc:10
|
|-- 10.10.0.19 - DHCP
|
+-- 2001:db8:bbbb:e::1/128 - DHCP6
|
+-- 2001:db8:bbbb:f::/64 - DHCP6-PD-MR
-- ipoe-ds-7
(sub-profile-1)
|
+-- sap:[pw-1:2.17] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:07 - svc:10
|
|-- 10.10.0.18 - DHCP
|
+-- 2001:db8:bbbb:a::1/128 - DHCP6
|
+-- 2001:db8:bbbb:b::/64 - DHCP6-PD-MR
-- ipoe-ds-8
(sub-profile-1)
|
+-- sap:[pw-1:2.18] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:08 - svc:10
|
|-- 10.10.0.16 - DHCP
|
+-- 2001:db8:bbbb:6::1/128 - DHCP6
|
+-- 2001:db8:bbbb:7::/64 - DHCP6-PD-MR
-- ipoe-ds-9
(sub-profile-1)
|
+-- sap:[pw-1:2.19] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:09 - svc:10
|
|-- 10.10.0.15 - DHCP
|
+-- 2001:db8:bbbb:12::1/128 - DHCP6
|
+-- 2001:db8:bbbb:13::/64 - DHCP6-PD-MR
-- pppoe-1
(sub-profile-1)
|
+-- sap:[pw-1:2.1] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:01 - sid:1 - svc:10
|
|-- 10.10.1.10 - IPCP
|
+-- 2001:db8:bbbb:14::1/128 - DHCP6
|
+-- 2001:db8:bbbb:15::/64 - DHCP6-PD-MR
-- pppoe-10
(sub-profile-1)
|
+-- sap:[pw-1:2.10] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:0a - sid:1 - svc:10
|
|-- 10.10.1.19 - IPCP
|
+-- 2001:db8:bbbb:26::1/128 - DHCP6
|
+-- 2001:db8:bbbb:27::/64 - DHCP6-PD-MR
-- pppoe-2
(sub-profile-1)
|
+-- sap:[pw-1:2.2] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:02 - sid:1 - svc:10
|
|-- 10.10.1.11 - IPCP
|
+-- 2001:db8:bbbb:18::1/128 - DHCP6
|
+-- 2001:db8:bbbb:19::/64 - DHCP6-PD-MR
-- pppoe-3
(sub-profile-1)
|
+-- sap:[pw-1:2.3] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:03 - sid:1 - svc:10
|
|-- 10.10.1.12 - IPCP
|
+-- 2001:db8:bbbb:16::1/128 - DHCP6
|
+-- 2001:db8:bbbb:17::/64 - DHCP6-PD-MR
-- pppoe-4
(sub-profile-1)
|
+-- sap:[pw-1:2.4] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:04 - sid:1 - svc:10
|
|-- 10.10.1.13 - IPCP
|
+-- 2001:db8:bbbb:1a::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1b::/64 - DHCP6-PD-MR
-- pppoe-5
(sub-profile-1)
|
+-- sap:[pw-1:2.5] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:05 - sid:1 - svc:10
|
|-- 10.10.1.14 - IPCP
|
+-- 2001:db8:bbbb:1c::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1d::/64 - DHCP6-PD-MR
-- pppoe-6
(sub-profile-1)
|
+-- sap:[pw-1:2.6] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:06 - sid:1 - svc:10
|
|-- 10.10.1.15 - IPCP
|
+-- 2001:db8:bbbb:1e::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1f::/64 - DHCP6-PD-MR
-- pppoe-7
(sub-profile-1)
|
+-- sap:[pw-1:2.7] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:07 - sid:1 - svc:10
|
|-- 10.10.1.16 - IPCP
|
+-- 2001:db8:bbbb:20::1/128 - DHCP6
|
+-- 2001:db8:bbbb:21::/64 - DHCP6-PD-MR
-- pppoe-8
(sub-profile-1)
|
+-- sap:[pw-1:2.8] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:08 - sid:1 - svc:10
|
|-- 10.10.1.17 - IPCP
|
+-- 2001:db8:bbbb:22::1/128 - DHCP6
|
+-- 2001:db8:bbbb:23::/64 - DHCP6-PD-MR
-- pppoe-9
(sub-profile-1)
|
+-- sap:[pw-1:2.9] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:09 - sid:1 - svc:10
|
|-- 10.10.1.18 - IPCP
|
+-- 2001:db8:bbbb:24::1/128 - DHCP6
|
+-- 2001:db8:bbbb:25::/64 - DHCP6-PD-MR
-------------------------------------------------------------------------------
Number of active subscribers : 20
Flags: (N) = the host or the managed route is in non-forwarding state
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 subscriber-hosts detail
===============================================================================
Subscriber Host table
===============================================================================
Sap
IP Address
MAC Address PPPoE-SID Origin Fwding State
Subscriber
-------------------------------------------------------------------------------
[pw-1:2.1]
10.10.1.10
00:11:01:00:00:01 1 IPCP Fwding
pppoe-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000029636FE951
Acct-Q-Inst-Session-Id: B496FF0000002A636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.1]
2001:db8:bbbb:14::1/128
00:11:01:00:00:01 1 PPP-DHCP6 Fwding
pppoe-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000047636FE951
Acct-Q-Inst-Session-Id: B496FF0000002A636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.2]
10.10.1.11
00:11:01:00:00:02 1 IPCP Fwding
pppoe-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000002C636FE951
Acct-Q-Inst-Session-Id: B496FF0000002D636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.2]
2001:db8:bbbb:18::1/128
00:11:01:00:00:02 1 PPP-DHCP6 Fwding
pppoe-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000049636FE951
Acct-Q-Inst-Session-Id: B496FF0000002D636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.3]
10.10.1.12
00:11:01:00:00:03 1 IPCP Fwding
pppoe-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000002F636FE951
Acct-Q-Inst-Session-Id: B496FF00000030636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.3]
2001:db8:bbbb:16::1/128
00:11:01:00:00:03 1 PPP-DHCP6 Fwding
pppoe-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000046636FE951
Acct-Q-Inst-Session-Id: B496FF00000030636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.4]
10.10.1.13
00:11:01:00:00:04 1 IPCP Fwding
pppoe-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000032636FE951
Acct-Q-Inst-Session-Id: B496FF00000033636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.4]
2001:db8:bbbb:1a::1/128
00:11:01:00:00:04 1 PPP-DHCP6 Fwding
pppoe-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000048636FE951
Acct-Q-Inst-Session-Id: B496FF00000033636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.5]
10.10.1.14
00:11:01:00:00:05 1 IPCP Fwding
pppoe-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000035636FE951
Acct-Q-Inst-Session-Id: B496FF00000036636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.5]
2001:db8:bbbb:1c::1/128
00:11:01:00:00:05 1 PPP-DHCP6 Fwding
pppoe-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004A636FE951
Acct-Q-Inst-Session-Id: B496FF00000036636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.6]
10.10.1.15
00:11:01:00:00:06 1 IPCP Fwding
pppoe-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000038636FE951
Acct-Q-Inst-Session-Id: B496FF00000039636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.6]
2001:db8:bbbb:1e::1/128
00:11:01:00:00:06 1 PPP-DHCP6 Fwding
pppoe-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004B636FE951
Acct-Q-Inst-Session-Id: B496FF00000039636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.7]
10.10.1.16
00:11:01:00:00:07 1 IPCP Fwding
pppoe-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000003B636FE951
Acct-Q-Inst-Session-Id: B496FF0000003C636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.7]
2001:db8:bbbb:20::1/128
00:11:01:00:00:07 1 PPP-DHCP6 Fwding
pppoe-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004C636FE951
Acct-Q-Inst-Session-Id: B496FF0000003C636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.8]
10.10.1.17
00:11:01:00:00:08 1 IPCP Fwding
pppoe-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000003E636FE951
Acct-Q-Inst-Session-Id: B496FF0000003F636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.8]
2001:db8:bbbb:22::1/128
00:11:01:00:00:08 1 PPP-DHCP6 Fwding
pppoe-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004D636FE951
Acct-Q-Inst-Session-Id: B496FF0000003F636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.9]
10.10.1.18
00:11:01:00:00:09 1 IPCP Fwding
pppoe-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000041636FE951
Acct-Q-Inst-Session-Id: B496FF00000042636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.9]
2001:db8:bbbb:24::1/128
00:11:01:00:00:09 1 PPP-DHCP6 Fwding
pppoe-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004E636FE951
Acct-Q-Inst-Session-Id: B496FF00000042636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.10]
10.10.1.19
00:11:01:00:00:0a 1 IPCP Fwding
pppoe-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000044636FE951
Acct-Q-Inst-Session-Id: B496FF00000045636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.10]
2001:db8:bbbb:26::1/128
00:11:01:00:00:0a 1 PPP-DHCP6 Fwding
pppoe-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004F636FE951
Acct-Q-Inst-Session-Id: B496FF00000045636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.11]
10.10.0.12
00:13:01:00:00:01 N/A DHCP Fwding
ipoe-ds-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000013636FE94C
Acct-Q-Inst-Session-Id: B496FF00000010636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.11]
2001:db8:bbbb::1/128
00:13:01:00:00:01 N/A IPoE-DHCP6 Fwding
ipoe-ds-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000000F636FE94C
Acct-Q-Inst-Session-Id: B496FF00000010636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.12]
10.10.0.10
00:13:01:00:00:02 N/A DHCP Fwding
ipoe-ds-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000000A636FE94C
Acct-Q-Inst-Session-Id: B496FF00000005636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.12]
2001:db8:bbbb:2::1/128
00:13:01:00:00:02 N/A IPoE-DHCP6 Fwding
ipoe-ds-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000004636FE94C
Acct-Q-Inst-Session-Id: B496FF00000005636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.13]
10.10.0.14
00:13:01:00:00:03 N/A DHCP Fwding
ipoe-ds-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000001B636FE94C
Acct-Q-Inst-Session-Id: B496FF0000001C636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.13]
2001:db8:bbbb:c::1/128
00:13:01:00:00:03 N/A IPoE-DHCP6 Fwding
ipoe-ds-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000001F636FE94C
Acct-Q-Inst-Session-Id: B496FF0000001C636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.14]
10.10.0.17
00:13:01:00:00:04 N/A DHCP Fwding
ipoe-ds-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000025636FE951
Acct-Q-Inst-Session-Id: B496FF00000012636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.14]
2001:db8:bbbb:8::1/128
00:13:01:00:00:04 N/A IPoE-DHCP6 Fwding
ipoe-ds-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000011636FE94C
Acct-Q-Inst-Session-Id: B496FF00000012636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.15]
10.10.0.11
00:13:01:00:00:05 N/A DHCP Fwding
ipoe-ds-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000000B636FE94C
Acct-Q-Inst-Session-Id: B496FF00000007636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.15]
2001:db8:bbbb:4::1/128
00:13:01:00:00:05 N/A IPoE-DHCP6 Fwding
ipoe-ds-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000006636FE94C
Acct-Q-Inst-Session-Id: B496FF00000007636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.16]
10.10.0.19
00:13:01:00:00:06 N/A DHCP Fwding
ipoe-ds-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000027636FE951
Acct-Q-Inst-Session-Id: B496FF0000001E636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.16]
2001:db8:bbbb:e::1/128
00:13:01:00:00:06 N/A IPoE-DHCP6 Fwding
ipoe-ds-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000001D636FE94C
Acct-Q-Inst-Session-Id: B496FF0000001E636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.17]
10.10.0.18
00:13:01:00:00:07 N/A DHCP Fwding
ipoe-ds-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000026636FE951
Acct-Q-Inst-Session-Id: B496FF00000015636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.17]
2001:db8:bbbb:a::1/128
00:13:01:00:00:07 N/A IPoE-DHCP6 Fwding
ipoe-ds-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000014636FE94C
Acct-Q-Inst-Session-Id: B496FF00000015636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.18]
10.10.0.16
00:13:01:00:00:08 N/A DHCP Fwding
ipoe-ds-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000024636FE950
Acct-Q-Inst-Session-Id: B496FF00000009636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.18]
2001:db8:bbbb:6::1/128
00:13:01:00:00:08 N/A IPoE-DHCP6 Fwding
ipoe-ds-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000008636FE94C
Acct-Q-Inst-Session-Id: B496FF00000009636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.19]
10.10.0.15
00:13:01:00:00:09 N/A DHCP Fwding
ipoe-ds-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000020636FE94C
Acct-Q-Inst-Session-Id: B496FF00000021636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.19]
2001:db8:bbbb:12::1/128
00:13:01:00:00:09 N/A IPoE-DHCP6 Fwding
ipoe-ds-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000023636FE94E
Acct-Q-Inst-Session-Id: B496FF00000021636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.20]
10.10.0.13
00:13:01:00:00:0a N/A DHCP Fwding
ipoe-ds-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000016636FE94C
Acct-Q-Inst-Session-Id: B496FF00000017636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.20]
2001:db8:bbbb:10::1/128
00:13:01:00:00:0a N/A IPoE-DHCP6 Fwding
ipoe-ds-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000022636FE94E
Acct-Q-Inst-Session-Id: B496FF00000017636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
Number of subscriber hosts : 40
===============================================================================
[/]
A:admin@bng-1# /show service id 10 ipoe session
===============================================================================
IPoE sessions for svc-id 10
===============================================================================
Sap Id Mac Address Up Time MC-Stdby
Subscriber-Id
[CircuitID] | [RemoteID]
-------------------------------------------------------------------------------
[pw-1:2.11] 00:13:01:00:00:01 2d 02:51:27
ipoe-ds-1
[pw-1:2.12] 00:13:01:00:00:02 2d 02:51:27
ipoe-ds-2
[pw-1:2.13] 00:13:01:00:00:03 2d 02:51:26
ipoe-ds-3
[pw-1:2.14] 00:13:01:00:00:04 2d 02:51:26
ipoe-ds-4
[pw-1:2.15] 00:13:01:00:00:05 2d 02:51:27
ipoe-ds-5
[pw-1:2.16] 00:13:01:00:00:06 2d 02:51:26
ipoe-ds-6
[pw-1:2.17] 00:13:01:00:00:07 2d 02:51:26
ipoe-ds-7
[pw-1:2.18] 00:13:01:00:00:08 2d 02:51:26
ipoe-ds-8
[pw-1:2.19] 00:13:01:00:00:09 2d 02:51:26
ipoe-ds-9
[pw-1:2.20] 00:13:01:00:00:0a 2d 02:51:26
ipoe-ds-10
-------------------------------------------------------------------------------
CID | RID displayed when included in session-key
Number of sessions : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 pppoe session
===============================================================================
PPPoE sessions for svc-id 10
===============================================================================
Sap Id Mac Address Sid Up Time Type
IP/L2TP-Id/Interface-Id MC-Stdby
-------------------------------------------------------------------------------
[pw-1:2.1] 00:11:01:00:00:01 1 2d 02:51:21 local
10.10.1.10
00:01:00:02:00:01:00:01
[pw-1:2.2] 00:11:01:00:00:02 1 2d 02:51:21 local
10.10.1.11
00:02:00:02:00:02:00:01
[pw-1:2.3] 00:11:01:00:00:03 1 2d 02:51:21 local
10.10.1.12
00:03:00:02:00:03:00:01
[pw-1:2.4] 00:11:01:00:00:04 1 2d 02:51:21 local
10.10.1.13
00:04:00:02:00:04:00:01
[pw-1:2.5] 00:11:01:00:00:05 1 2d 02:51:21 local
10.10.1.14
00:05:00:02:00:05:00:01
[pw-1:2.6] 00:11:01:00:00:06 1 2d 02:51:21 local
10.10.1.15
00:06:00:02:00:06:00:01
[pw-1:2.7] 00:11:01:00:00:07 1 2d 02:51:21 local
10.10.1.16
00:07:00:02:00:07:00:01
[pw-1:2.8] 00:11:01:00:00:08 1 2d 02:51:21 local
10.10.1.17
00:08:00:02:00:08:00:01
[pw-1:2.9] 00:11:01:00:00:09 1 2d 02:51:21 local
10.10.1.18
00:09:00:02:00:09:00:01
[pw-1:2.10] 00:11:01:00:00:0a 1 2d 02:51:21 local
10.10.1.19
00:0A:00:02:00:0A:00:01
-------------------------------------------------------------------------------
Number of sessions : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 dhcp lease-state
===============================================================================
DHCP lease state table, service 10
===============================================================================
IP Address Mac Address Sap/Sdp Id Remaining Lease MC
LeaseTime Origin Stdby
-------------------------------------------------------------------------------
10.10.0.10 00:13:01:00:00:02 [pw-1:2.12] 00h13m42s DHCP
10.10.0.11 00:13:01:00:00:05 [pw-1:2.15] 00h13m42s DHCP
10.10.0.12 00:13:01:00:00:01 [pw-1:2.11] 00h13m42s DHCP
10.10.0.13 00:13:01:00:00:0a [pw-1:2.20] 00h13m42s DHCP
10.10.0.14 00:13:01:00:00:03 [pw-1:2.13] 00h13m42s DHCP
10.10.0.15 00:13:01:00:00:09 [pw-1:2.19] 00h13m42s DHCP
10.10.0.16 00:13:01:00:00:08 [pw-1:2.18] 00h13m43s DHCP
10.10.0.17 00:13:01:00:00:04 [pw-1:2.14] 00h13m44s DHCP
10.10.0.18 00:13:01:00:00:07 [pw-1:2.17] 00h13m44s DHCP
10.10.0.19 00:13:01:00:00:06 [pw-1:2.16] 00h13m44s DHCP
-------------------------------------------------------------------------------
Number of lease states : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 dhcp6 lease-state
===============================================================================
DHCP lease state table, service 10
===============================================================================
IP Address Mac Address Sap/Sdp Id Remaining Lease MC
LeaseTime Origin Stdby
-------------------------------------------------------------------------------
2001:db8:bbbb::1/128
00:13:01:00:00:01 [pw-1:2.11] 23h43m37s DHCP
2001:db8:bbbb:1::/64
00:13:01:00:00:01 [pw-1:2.11] 23h43m37s DHCP
2001:db8:bbbb:2::1/128
00:13:01:00:00:02 [pw-1:2.12] 23h43m36s DHCP
2001:db8:bbbb:3::/64
00:13:01:00:00:02 [pw-1:2.12] 23h43m36s DHCP
2001:db8:bbbb:4::1/128
00:13:01:00:00:05 [pw-1:2.15] 23h43m36s DHCP
2001:db8:bbbb:5::/64
00:13:01:00:00:05 [pw-1:2.15] 23h43m36s DHCP
2001:db8:bbbb:6::1/128
00:13:01:00:00:08 [pw-1:2.18] 23h43m36s DHCP
2001:db8:bbbb:7::/64
00:13:01:00:00:08 [pw-1:2.18] 23h43m36s DHCP
2001:db8:bbbb:8::1/128
00:13:01:00:00:04 [pw-1:2.14] 23h43m37s DHCP
2001:db8:bbbb:9::/64
00:13:01:00:00:04 [pw-1:2.14] 23h43m37s DHCP
2001:db8:bbbb:a::1/128
00:13:01:00:00:07 [pw-1:2.17] 23h43m37s DHCP
2001:db8:bbbb:b::/64
00:13:01:00:00:07 [pw-1:2.17] 23h43m37s DHCP
2001:db8:bbbb:c::1/128
00:13:01:00:00:03 [pw-1:2.13] 23h43m37s DHCP
2001:db8:bbbb:d::/64
00:13:01:00:00:03 [pw-1:2.13] 23h43m37s DHCP
2001:db8:bbbb:e::1/128
00:13:01:00:00:06 [pw-1:2.16] 23h43m37s DHCP
2001:db8:bbbb:f::/64
00:13:01:00:00:06 [pw-1:2.16] 23h43m37s DHCP
2001:db8:bbbb:10::1/128
00:13:01:00:00:0a [pw-1:2.20] 23h38m40s DHCP
2001:db8:bbbb:11::/64
00:13:01:00:00:0a [pw-1:2.20] 23h38m40s DHCP
2001:db8:bbbb:12::1/128
00:13:01:00:00:09 [pw-1:2.19] 23h38m40s DHCP
2001:db8:bbbb:13::/64
00:13:01:00:00:09 [pw-1:2.19] 23h38m40s DHCP
2001:db8:bbbb:14::1/128
00:11:01:00:00:01 [pw-1:2.1] 23h43m41s DHCP
2001:db8:bbbb:15::/64
00:11:01:00:00:01 [pw-1:2.1] 23h43m41s DHCP
2001:db8:bbbb:16::1/128
00:11:01:00:00:03 [pw-1:2.3] 23h43m41s DHCP
2001:db8:bbbb:17::/64
00:11:01:00:00:03 [pw-1:2.3] 23h43m41s DHCP
2001:db8:bbbb:18::1/128
00:11:01:00:00:02 [pw-1:2.2] 23h43m41s DHCP
2001:db8:bbbb:19::/64
00:11:01:00:00:02 [pw-1:2.2] 23h43m41s DHCP
2001:db8:bbbb:1a::1/128
00:11:01:00:00:04 [pw-1:2.4] 23h43m41s DHCP
2001:db8:bbbb:1b::/64
00:11:01:00:00:04 [pw-1:2.4] 23h43m41s DHCP
2001:db8:bbbb:1c::1/128
00:11:01:00:00:05 [pw-1:2.5] 23h43m42s DHCP
2001:db8:bbbb:1d::/64
00:11:01:00:00:05 [pw-1:2.5] 23h43m42s DHCP
2001:db8:bbbb:1e::1/128
00:11:01:00:00:06 [pw-1:2.6] 23h43m41s DHCP
2001:db8:bbbb:1f::/64
00:11:01:00:00:06 [pw-1:2.6] 23h43m41s DHCP
2001:db8:bbbb:20::1/128
00:11:01:00:00:07 [pw-1:2.7] 23h43m41s DHCP
2001:db8:bbbb:21::/64
00:11:01:00:00:07 [pw-1:2.7] 23h43m41s DHCP
2001:db8:bbbb:22::1/128
00:11:01:00:00:08 [pw-1:2.8] 23h43m42s DHCP
2001:db8:bbbb:23::/64
00:11:01:00:00:08 [pw-1:2.8] 23h43m42s DHCP
2001:db8:bbbb:24::1/128
00:11:01:00:00:09 [pw-1:2.9] 23h43m41s DHCP
2001:db8:bbbb:25::/64
00:11:01:00:00:09 [pw-1:2.9] 23h43m41s DHCP
2001:db8:bbbb:26::1/128
00:11:01:00:00:0a [pw-1:2.10] 23h43m41s DHCP
2001:db8:bbbb:27::/64
00:11:01:00:00:0a [pw-1:2.10] 23h43m41s DHCP
-------------------------------------------------------------------------------
Number of lease states : 40
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show srrp 1 detail
===============================================================================
SRRP Instance 1
===============================================================================
Description : (Not Specified)
Admin State : Up Oper State : master
Preempt : yes One GARP per SAP : no
Monitor Oper Group : None
System IP : 192.0.2.20
Service ID : VPRN 10
Group If : group-int-1 MAC Address : b4:96:ff:00:00:00
Grp If Description : N/A
Grp If Admin State : Up Grp If Oper State: Up
Subscriber If : sub-int-1
Sub If Admin State : Up Sub If Oper State: Up
Address : 10.10.0.1/24 Gateway IP : 10.10.0.254
Address : 10.10.1.1/24 Gateway IP : 10.10.1.254
Redundant If : red-int-bng-1-bng*
Red If Admin State : Up Red If Oper State: Up
Address : 192.168.11.1/24
Red Spoke-sdp : 1:1
Msg Path SAP : pw-1:2.4094 Passive : no
Admin Gateway MAC : Oper Gateway MAC : 00:00:5e:00:01:01
Standby-Forwarding : Disabled
Config Priority : 100 In-use Priority : 100
Master Priority : 100
Keep-alive Interval : 2 deci-seconds Master Since : 11/12/2022 16:23:34
Fib Population Mode : all
VRRP Policy 1 : None VRRP Policy 2 : None
-------------------------------------------------------------------------------
Statistics
-------------------------------------------------------------------------------
Become Master : 1 Master Changes : 1
Become Bkup Routing : 0 Become Bkup Shunt: 1
Become Non-Master : 0
Adv Sent : 849384 Adv Received : 0
Pri 0 Pkts Sent : 0 Pri 0 Pkts Rcvd : 0
Preempt Events : 0 Preempted Events : 0
Mesg Intvl Discards : 0 Mesg Intvl Errors: 0
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp local-dhcp-server "dhcpv4" summary
===============================================================================
DHCP server dhcpv4 router 10
===============================================================================
Admin State : inService
Operational State : inService
Persistency State : shutdown
User Data Base : N/A
Use gateway IP address : enabled (scope pool)
Use pool from client : enabled
Send force-renewals : disabled
Creation Origin : manual
Lease Hold Time : 0h0m0s
Lease Hold Time For : N/A
User-ident : mac-circuit-id
Failover Admin State : outOfService
Failover Oper State : shutdown
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Pool name : dhcpv4-1
-------------------------------------------------------------------------------
Failover Admin State : inService
Failover Oper State : normal
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Subnet Free % Stable Declined Offered Rem-pend Drain
-------------------------------------------------------------------------------
10.10.0.0/24 (A) 81 89% 10 0 0 0 N
Totals for pool 81 89% 10 0 0 0
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Pool name : pppoev4-1
-------------------------------------------------------------------------------
Failover Admin State : outOfService
Failover Oper State : shutdown
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Subnet Free % Stable Declined Offered Rem-pend Drain
-------------------------------------------------------------------------------
10.10.1.0/24 81 89% 10 0 0 0 N
Totals for pool 81 89% 10 0 0 0
-------------------------------------------------------------------------------
Totals for server 162 89% 20 0 0 0
-------------------------------------------------------------------------------
Interface associations
Interface Admin
-------------------------------------------------------------------------------
loopback-1 Up
-------------------------------------------------------------------------------
Local Address Assignment associations
Group interface Admin
-------------------------------------------------------------------------------
group-int-1 Up
No associated firewall domains found.
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp6 local-dhcp-server "dhcpv6" summary
===============================================================================
DHCP server dhcpv6 router 10
===============================================================================
Admin State : inService
Operational State : inService
Persistency State : shutdown
Use Link Address : disabled
Use pool from client : enabled
Creation Origin : manual
Lease Hold Time : 0h0m0s
Lease Hold Time For : N/A
User-ident : duid
Interface-id-mapping : disabled
Ignore-rapid-commit : disabled
Allow-lease-query : disabled
Auto-provisioned : false
Failover Admin State : outOfService
Failover Oper State : shutdown
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Pool name : dhcpv6-1
-------------------------------------------------------------------------------
Failover Admin State : inService
Failover Oper State : normal
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Prefix
Stable Declined Advert Rem-pend Drain
-------------------------------------------------------------------------------
2001:db8:bbbb::/56
(A) 40 0 0 0 N
2001:db8:bbbb:100::/56
(A) 0 0 0 0 N
Totals for pool 40 0 0 0
-------------------------------------------------------------------------------
Totals for server 40 0 0 0
-------------------------------------------------------------------------------
Interface associations
Interface Admin
-------------------------------------------------------------------------------
loopback-1 Up
-------------------------------------------------------------------------------
Local Address Assignment associations
Group interface Admin
-------------------------------------------------------------------------------
No associated firewall domains found.
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp local-dhcp-server "dhcpv4" leases
===============================================================================
Leases for DHCP server dhcpv4 router 10
===============================================================================
IP Address Lease State Mac Address Remaining Clnt Fail
PPP user name/Opt82 Circuit Id LifeTime Type Ctrl
User-db/Sticky-lease Hostname
-------------------------------------------------------------------------------
10.10.0.10 stable 00:13:01:00:00:02 0h23m42s dhcp local
cid-2
10.10.0.11 stable 00:13:01:00:00:05 0h23m42s dhcp local
cid-5
10.10.0.12 stable 00:13:01:00:00:01 0h23m42s dhcp local
cid-1
10.10.0.13 stable 00:13:01:00:00:0a 0h23m42s dhcp local
cid-10
10.10.0.14 stable 00:13:01:00:00:03 0h23m42s dhcp local
cid-3
10.10.0.15 stable 00:13:01:00:00:09 0h23m42s dhcp local
cid-9
10.10.0.16 stable 00:13:01:00:00:08 0h23m43s dhcp local
cid-8
10.10.0.17 stable 00:13:01:00:00:04 0h23m44s dhcp local
cid-4
10.10.0.18 stable 00:13:01:00:00:07 0h23m44s dhcp local
cid-7
10.10.0.19 stable 00:13:01:00:00:06 0h23m44s dhcp local
cid-6
10.10.1.10 internal N/A N/A ppp N/A
10.10.1.11 internal N/A N/A ppp N/A
10.10.1.12 internal N/A N/A ppp N/A
10.10.1.13 internal N/A N/A ppp N/A
10.10.1.14 internal N/A N/A ppp N/A
10.10.1.15 internal N/A N/A ppp N/A
10.10.1.16 internal N/A N/A ppp N/A
10.10.1.17 internal N/A N/A ppp N/A
10.10.1.18 internal N/A N/A ppp N/A
10.10.1.19 internal N/A N/A ppp N/A
-------------------------------------------------------------------------------
20 leases found
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp6 local-dhcp-server "dhcpv6" leases
===============================================================================
Leases for DHCPv6 server dhcpv6
===============================================================================
IP Address/Prefix Lease State Remaining Fail
Link-local Address LifeTime Ctrl
-------------------------------------------------------------------------------
2001:db8:bbbb::1/64
fe80::213:1ff:fe00:1 stable 1d0h13m local
2001:db8:bbbb:1::/64
fe80::213:1ff:fe00:1 stable 1d0h13m local
2001:db8:bbbb:2::1/64
fe80::213:1ff:fe00:2 stable 1d0h13m local
2001:db8:bbbb:3::/64
fe80::213:1ff:fe00:2 stable 1d0h13m local
2001:db8:bbbb:4::1/64
fe80::213:1ff:fe00:5 stable 1d0h13m local
2001:db8:bbbb:5::/64
fe80::213:1ff:fe00:5 stable 1d0h13m local
2001:db8:bbbb:6::1/64
fe80::213:1ff:fe00:8 stable 1d0h13m local
2001:db8:bbbb:7::/64
fe80::213:1ff:fe00:8 stable 1d0h13m local
2001:db8:bbbb:8::1/64
fe80::213:1ff:fe00:4 stable 1d0h13m local
2001:db8:bbbb:9::/64
fe80::213:1ff:fe00:4 stable 1d0h13m local
2001:db8:bbbb:a::1/64
fe80::213:1ff:fe00:7 stable 1d0h13m local
2001:db8:bbbb:b::/64
fe80::213:1ff:fe00:7 stable 1d0h13m local
2001:db8:bbbb:c::1/64
fe80::213:1ff:fe00:3 stable 1d0h13m local
2001:db8:bbbb:d::/64
fe80::213:1ff:fe00:3 stable 1d0h13m local
2001:db8:bbbb:e::1/64
fe80::213:1ff:fe00:6 stable 1d0h13m local
2001:db8:bbbb:f::/64
fe80::213:1ff:fe00:6 stable 1d0h13m local
2001:db8:bbbb:10::1/64
fe80::213:1ff:fe00:a stable 1d0h8m local
2001:db8:bbbb:11::/64
fe80::213:1ff:fe00:a stable 1d0h8m local
2001:db8:bbbb:12::1/64
fe80::213:1ff:fe00:9 stable 1d0h8m local
2001:db8:bbbb:13::/64
fe80::213:1ff:fe00:9 stable 1d0h8m local
2001:db8:bbbb:14::1/64
fe80::1:2:1:1 stable 1d0h13m local
2001:db8:bbbb:15::/64
fe80::1:2:1:1 stable 1d0h13m local
2001:db8:bbbb:16::1/64
fe80::3:2:3:1 stable 1d0h13m local
2001:db8:bbbb:17::/64
fe80::3:2:3:1 stable 1d0h13m local
2001:db8:bbbb:18::1/64
fe80::2:2:2:1 stable 1d0h13m local
2001:db8:bbbb:19::/64
fe80::2:2:2:1 stable 1d0h13m local
2001:db8:bbbb:1a::1/64
fe80::4:2:4:1 stable 1d0h13m local
2001:db8:bbbb:1b::/64
fe80::4:2:4:1 stable 1d0h13m local
2001:db8:bbbb:1c::1/64
fe80::5:2:5:1 stable 1d0h13m local
2001:db8:bbbb:1d::/64
fe80::5:2:5:1 stable 1d0h13m local
2001:db8:bbbb:1e::1/64
fe80::6:2:6:1 stable 1d0h13m local
2001:db8:bbbb:1f::/64
fe80::6:2:6:1 stable 1d0h13m local
2001:db8:bbbb:20::1/64
fe80::7:2:7:1 stable 1d0h13m local
2001:db8:bbbb:21::/64
fe80::7:2:7:1 stable 1d0h13m local
2001:db8:bbbb:22::1/64
fe80::8:2:8:1 stable 1d0h13m local
2001:db8:bbbb:23::/64
fe80::8:2:8:1 stable 1d0h13m local
2001:db8:bbbb:24::1/64
fe80::9:2:9:1 stable 1d0h13m local
2001:db8:bbbb:25::/64
fe80::9:2:9:1 stable 1d0h13m local
2001:db8:bbbb:26::1/64
fe80::a:2:a:1 stable 1d0h13m local
2001:db8:bbbb:27::/64
fe80::a:2:a:1 stable 1d0h13m local
-------------------------------------------------------------------------------
40 leases found
===========================================================================A:admin@bng-1# /show port
===============================================================================
Ports on Slot 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
1/1/c1 Up Link Up conn 100GBASE-LR4*
1/1/c1/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/2 Down No Down 8936 8936 - hybr dotq xgige
1/1/c1/3 Down No Down 8936 8936 - hybr dotq xgige
1/1/c1/4 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/6 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/7 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/10 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c2 Up Link Up conn 100G CWDM4 M*
1/1/c2/1 Up Yes Up 8936 8936 - hybr dotq cgige
1/1/c3 Down Down conn 100G CLR4 *
1/1/c4 Up Link Up conn 100GBASE-LR4*
1/1/c4/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c4/2 Up No Down 8936 8936 - netw null xgige
1/1/c4/3 Up No Down 8936 8936 - netw null xgige
1/1/c4/4 Up No Down 8936 8936 - hybr dotq xgige
1/1/c5 Down Down conn 100G CWDM4 M*
1/1/c6 Down Down conn 100G CLR4 *
1/2/c1 Down Down conn 100GBASE-LR4*
1/2/c2 Down Down conn 100G CWDM4 M*
1/2/c3 Down Down conn 100G CLR4 *
1/2/c4 Down Down conn 100GBASE-LR4*
1/2/c5 Down Down conn 100G CWDM4 M*
1/2/c6 Down Down conn 100G CLR4 *
===============================================================================
Ports on Slot A
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
A/1 Up Yes Up 1514 1514 - netw null faste MDI
A/3 Down No Down 1514 1514 - netw null faste
A/4 Down No Down 1514 1514 - netw null faste
===============================================================================
Ports on Slot B
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
B/1 Up No Ghost 1514 1514 - netw null faste
B/3 Down No Ghost 1514 1514 - netw null faste
B/4 Down No Ghost 1514 1514 - netw null faste
===============================================================================
Ports on Port Cross Connect 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-1.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-1.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
Ports on Port Cross Connect 2
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-2.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-2.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
Ports on Port Cross Connect 3
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-3.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-3.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router interface
===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
_tmnx_fpe_1.a Up Up/Up Network pxc-1.a:1
fe80::100/64 PREFERRED
_tmnx_fpe_1.b Up Up/Up Network pxc-1.b:1
fe80::101/64 PREFERRED
_tmnx_fpe_2.a Up Up/Up Network pxc-2.a:1
fe80::200/64 PREFERRED
_tmnx_fpe_2.b Up Up/Up Network pxc-2.b:1
fe80::201/64 PREFERRED
_tmnx_fpe_3.a Up Up/Up Network pxc-3.a:1
fe80::300/64 PREFERRED
_tmnx_fpe_3.b Up Up/Up Network pxc-3.b:1
fe80::301/64 PREFERRED
int-1-bng-1-bng-2 Up Up/Up Network 1/1/c1/6:1
192.168.7.1/24 n/a
2001:db8::701/120 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
int-1-bng-1-p-1 Up Down/Up Network 1/1/c1/1:1
2001:db8::501/120 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
int-1-bng-1-pe-2 Up Down/Up Network 1/1/c1/7:1
2001:db8::801/120 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
system Up Up/Up Network system
192.0.2.20/32 n/a
2001:db8::14/128 PREFERRED
to-radius Up Up/Down Network 1/1/c1/10:114
192.168.114.20/24 n/a
-------------------------------------------------------------------------------
Interfaces : 11
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 interface
===============================================================================
Interface Table (Service: 10)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
group-int-1 Up Up/Up VPRN G* pw-1
loopback-1 Up Up/Up VPRN loopback
192.168.0.1/32 n/a
2001:db8::1/128 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
red-int-bng-1-bng-2 Up Up/Up VPRN R* spoke-1:1
192.168.11.1/24 n/a
sub-int-1 Up Up/Up VPRN S* subscriber
10.10.0.1/24 n/a
10.10.1.1/24 n/a
2001:db8:bbbb::/56 PREFERRED
2001:db8:bbbb:100::/56 PREFERRED
fe80::b696:ffff:fe00:0/64 PREFERRED
-------------------------------------------------------------------------------
Interfaces : 4
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show fwd-path-ext fpe 1
===============================================================================
FPE Id: 1
===============================================================================
Description : srv6 origination
Multi-Path : Disabled
Path : pxc 1
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : origination
If-A Qos Policy : default
If-B MTU : 9786 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show fwd-path-ext fpe 2
===============================================================================
FPE Id: 2
===============================================================================
Description : srv6 termination
Multi-Path : Disabled
Path : pxc 2
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : termination
If-A Qos Policy : default
If-B MTU : 0 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show fwd-path-ext fpe 3
===============================================================================
FPE Id: 3
===============================================================================
Description : pw-port on a single port
Multi-Path : Disabled
Path : pxc 3
Pw Port Extension : Enabled Oper : up
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Disabled
If-A Qos Policy : default
If-B Qos Policy : default
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 11 Vpn Id : 0
Service Type : Epipe
MACSec enabled : no
Name : evpn-dual-homing
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 11/12/2022 16:22:36
Last Mgmt Change : 11/12/2022 16:21:35
Test Service : No
Admin State : Up Oper State : Up
MTU : 1514
Vc Switching : False
SAP Count : 0 SDP Bind Count : 1
Per Svc Hashing : Disabled Lbl Eth/IP L4 TEID: Disabled
Ignore MTU Mismat*: Disabled
Vxlan Src Tep Ip : N/A
Force QTag Fwd : Disabled
Lcl Switch Svc St : sap
Oper Group : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sdp:17500:1 SB(fpe_3.b) Fpe 0 8910 Up Up
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" bgp-evpn
===============================================================================
BGP EVPN Table
===============================================================================
EVI : 11 Creation Origin : manual
-------------------------------------------------------------------------------
Local AC Name Eth Tag Endpoint Ingress Label
-------------------------------------------------------------------------------
bng 2 0
-------------------------------------------------------------------------------
Number of local ACs : 1
-------------------------------------------------------------------------------
Remote AC Name Eth Tag Endpoint
-------------------------------------------------------------------------------
access 1
-------------------------------------------------------------------------------
Number of Remote ACs : 1
===============================================================================
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Admin State : Enabled
Srv6 Instance : 1
Default Locator : bng-1-loc
Oper Group : (Not Specified)
Default Route Tag : 0xb
Source Address : 2001:db8::14
ECMP : 1
Force Vlan VC Fwd : disabled
Next Hop Type : system-ipv6
Evi 3-byte Auto-RT : disabled
Route Resolution : fallback-tunnel-to-route-table
Force QinQ VC Fwd : none
MH Mode : network
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service system bgp-evpn ethernet-segment name "ES-1"
===============================================================================
Service Ethernet Segment
===============================================================================
Name : ES-1
Eth Seg Type : None
Admin State : Enabled Oper State : Up
ESI : 01:01:01:01:01:01:01:01:01:01
Oper ESI : 01:01:01:01:01:01:01:01:01:01
Auto-ESI Type : None
AC DF Capability : Include
Multi-homing : singleActive Oper Multi-homing : singleActive
ES SHG Label : None
Source BMAC LSB : None
PW Port Id : 1
PW Port Headend : enabled
ES Activation Timer : 0 secs
Oper Group : ES-1
Svc Carving : manual Oper Svc Carving : manual
Cfg Range Type : lowest-pref
-------------------------------------------------------------------------------
DF Pref Election Information
-------------------------------------------------------------------------------
Preference Preference Last Admin Change Oper Pref Do No
Mode Value Value Preempt
-------------------------------------------------------------------------------
revertive 150 11/12/2022 16:21:35 150 Disabled
-------------------------------------------------------------------------------
EVI Ranges: <none>
ISID Ranges: <none>
Vprn NextHop EVI Ranges : <none>
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service system bgp-evpn ethernet-segment name "ES-1" evi evi-1 11
===============================================================================
EVI DF and Candidate List
===============================================================================
EVI SvcId Actv Timer Rem DF DF Last Change
-------------------------------------------------------------------------------
11 11 0 yes 11/12/2022 16:21:35
===============================================================================
===============================================================================
DF Candidates Time Added Oper Pref Do Not
Value Preempt
-------------------------------------------------------------------------------
2001:db8::14 11/12/2022 16:23:33 150 Disabl*
2001:db8::15 11/12/2022 16:22:36 50 Disabl*
-------------------------------------------------------------------------------
Number of entries: 2
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes evpn eth-seg detail
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN Eth-Seg Routes
===============================================================================
Original Attributes
Network : n/a
Nexthop : 2001:db8::15
Path Id : None
From : 2001:db8::15
Res. Nexthop : fe80::b697:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-bng-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community :
df-election::DF-Type:Preference/DP:0/DF-Preference:50/AC:1
target:01:01:01:01:01:01
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : ETH-SEG
ESI : 01:01:01:01:01:01:01:01:01:01
Originator IP : 2001:db8::15
Route Dist. : 192.0.2.21:0
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
Modified Attributes
Network : n/a
Nexthop : 2001:db8::15
Path Id : None
From : 2001:db8::15
Res. Nexthop : fe80::b697:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-bng-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 10
Connector : None
Community :
df-election::DF-Type:Preference/DP:0/DF-Preference:50/AC:1
target:01:01:01:01:01:01
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : ETH-SEG
ESI : 01:01:01:01:01:01:01:01:01:01
Originator IP : 2001:db8::15
Route Dist. : 192.0.2.21:0
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Routes : 1
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes evpn auto-disc tag 1 detail
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN Auto-Disc Routes
===============================================================================
Original Attributes
Network : n/a
Nexthop : 2001:db8::5
Path Id : None
From : 2001:db8::5
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-p-1
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:10 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 0
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.5
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : ESI-0
Tag : 1
Route Dist. : 192.0.2.5:11
MPLS Label : 524288
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:5::
Full Sid : 2001:db8:aaaa:5:8000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Modified Attributes
Network : n/a
Nexthop : 2001:db8::5
Path Id : None
From : 2001:db8::5
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-bng-1-p-1
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:10 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 0
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.5
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : ESI-0
Tag : 1
Route Dist. : 192.0.2.5:11
MPLS Label : 524288
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:5::
Full Sid : 2001:db8:aaaa:5:8000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Routes : 1
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" ethernet-segment "ES-1"
No sap entries
No sdp entries
No vxlan instance entries
===============================================================================
SDP Ethernet-Segment Information
===============================================================================
Pw-Port Eth-Seg Status
-------------------------------------------------------------------------------
1 ES-1 DF
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 detail
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DX2 *524286 2001:db8:aaaa:14:7fff:e000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 instance 1 destinations
===============================================================================
TEP, SID
===============================================================================
Instance TEP Address Segment Id
-------------------------------------------------------------------------------
1 2001:db8::5 2001:db8:aaaa:5:8000::
-------------------------------------------------------------------------------
Number of TEP, SID: 1
-------------------------------------------------------------------------------
===============================================================================
===============================================================================
Segment Routing v6 Ethernet Segment Dest
===============================================================================
Instance Eth SegId Num. Macs Last Change
-------------------------------------------------------------------------------
No Matching Entries
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 instance 1 end-dx2
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DX2 *524286 2001:db8:aaaa:14:7fff:e000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "evpn-dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DX2 *524286 2001:db8:aaaa:14:7fff:e000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "dual-homing" base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 10 Vpn Id : 0
Service Type : VPRN
MACSec enabled : no
Name : dual-homing
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 11/12/2022 16:21:35
Last Mgmt Change : 11/12/2022 16:21:35
Admin State : Up Oper State : Up
Router Oper State : Up
Route Dist. : None VPRN Type : regular
Oper Route Dist : 0:0
Oper RD Type : none
AS Number : None Router Id : 192.0.2.20
ECMP : Enabled ECMP Max Routes : 1
Max IPv4 Routes : No Limit
Local Rt Domain-Id: None D-Path Lng Ignore : Disabled
Auto Bind Tunnel
Allow Flex-Alg-Fb : Disabled
Resolution : disabled
Weighted ECMP : Disabled ECMP Max Routes : 1
Strict Tnl Tag : Disabled
Max IPv6 Routes : No Limit
Ignore NH Metric : Disabled
Hash Label : Disabled
Entropy Label : Disabled
Vrf Target : None
Vrf Import : None
Vrf Export : None
MVPN Vrf Target : None
MVPN Vrf Import : None
MVPN Vrf Export : None
Car. Sup C-VPN : Disabled
Label mode : vrf
BGP VPN Backup : Disabled
BGP Export Inactv : Disabled
LOG all events : Disabled
SAP Count : 21 SDP Bind Count : 1
VSD Domain : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sap:[pw-1:2.1] qinq 8932 8888 Up Up
sap:[pw-1:2.2] qinq 8932 8888 Up Up
sap:[pw-1:2.3] qinq 8932 8888 Up Up
sap:[pw-1:2.4] qinq 8932 8888 Up Up
sap:[pw-1:2.5] qinq 8932 8888 Up Up
sap:[pw-1:2.6] qinq 8932 8888 Up Up
sap:[pw-1:2.7] qinq 8932 8888 Up Up
sap:[pw-1:2.8] qinq 8932 8888 Up Up
sap:[pw-1:2.9] qinq 8932 8888 Up Up
sap:[pw-1:2.10] qinq 8932 8888 Up Up
sap:[pw-1:2.11] qinq 8932 8888 Up Up
sap:[pw-1:2.12] qinq 8932 8888 Up Up
sap:[pw-1:2.13] qinq 8932 8888 Up Up
sap:[pw-1:2.14] qinq 8932 8888 Up Up
sap:[pw-1:2.15] qinq 8932 8888 Up Up
sap:[pw-1:2.16] qinq 8932 8888 Up Up
sap:[pw-1:2.17] qinq 8932 8888 Up Up
sap:[pw-1:2.18] qinq 8932 8888 Up Up
sap:[pw-1:2.19] qinq 8932 8888 Up Up
sap:[pw-1:2.20] qinq 8932 8888 Up Up
sap:pw-1:2.4094 qinq 8932 8888 Up Up
sdp:1:1 S(192.168.7.2) None 0 8890 Up Up
-------------------------------------------------------------------------------
[<sap-id>] indicates a Managed SAP
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "dual-homing" bgp-ipvpn segment-routing-v6
===============================================================================
Service 10 BGP-IPVPN Segment-Routing-V6 Information
===============================================================================
Admin State : Up
VRF Import : None
VRF Export : srrp-aware-routing
Route Dist. : 192.0.2.20:10
Oper Route Dist : 192.0.2.20:10
Oper RD Type : configured
Route Target : target:64500:10
Route Target Expor: None
Route Target Impor: None
Def Route Tag : 0x0
Route Resolution : route-table
Srv6 Instance : 1
Default Locator : bng-1-loc
Source Address : 2001:db8::14
Domain-Id : None
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id "dual-homing" segment-routing-v6 instance 1 locator "bng-1-loc"
===============================================================================
Segment Routing v6 Instance 1 Service 10
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
bng-1-loc
End.DT4 *524285 2001:db8:aaaa:14:7fff:d000:: ok
End.DT6 *524284 2001:db8:aaaa:14:7fff:c000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 route-table
===============================================================================
Route Table (Service: 10)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.10.0.0/24 Local Local 01d23h11m 0
sub-int-1 0
10.10.0.2/32 Remote Sub Mgmt 01d23h12m 0
[red-int-bng-1-bng-2] 0
10.10.0.10/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.11/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.12/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.13/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.14/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.15/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.16/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.17/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.18/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.0.19/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.0/24 Local Local 01d23h11m 0
sub-int-1 0
10.10.1.2/32 Remote Sub Mgmt 01d23h12m 0
[red-int-bng-1-bng-2] 0
10.10.1.10/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.11/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.12/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.13/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.14/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.15/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.16/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.17/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.18/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
10.10.1.19/32 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
172.16.102.0/24 Remote BGP VPN 01d23h12m 170
2001:db8:aaaa:6:8000:: (tunneled:SRV6) 20
192.168.0.1/32 Local Local 01d23h13m 0
loopback-1 0
192.168.11.0/24 Local Local 01d23h13m 0
red-int-bng-1-bng-2 0
-------------------------------------------------------------------------------
No. of Routes: 27
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 route-table ipv6
===============================================================================
IPv6 Route Table (Service: 10)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::1/128 Local Local 01d23h13m 0
loopback-1 0
2001:db8::6600/120 Remote BGP VPN 01d23h12m 170
2001:db8:aaaa:6:7fff:f000:: (tunneled:SRV6) 20
2001:db8:bbbb::/56 Local Local 01d23h11m 0
sub-int-1 0
2001:db8:bbbb::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb::1 0
2001:db8:bbbb:2::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:3::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:2::1 0
2001:db8:bbbb:4::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:5::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:4::1 0
2001:db8:bbbb:6::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:7::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:6::1 0
2001:db8:bbbb:8::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:9::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:8::1 0
2001:db8:bbbb:a::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:b::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:a::1 0
2001:db8:bbbb:c::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:d::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:c::1 0
2001:db8:bbbb:e::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:f::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:e::1 0
2001:db8:bbbb:10::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:11::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:10::1 0
2001:db8:bbbb:12::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:13::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:12::1 0
2001:db8:bbbb:14::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:15::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:14::1 0
2001:db8:bbbb:16::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:17::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:16::1 0
2001:db8:bbbb:18::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:19::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:18::1 0
2001:db8:bbbb:1a::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1b::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:1a::1 0
2001:db8:bbbb:1c::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1d::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:1c::1 0
2001:db8:bbbb:1e::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:1f::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:1e::1 0
2001:db8:bbbb:20::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:21::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:20::1 0
2001:db8:bbbb:22::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:23::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:22::1 0
2001:db8:bbbb:24::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:25::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:24::1 0
2001:db8:bbbb:26::1/128 Remote Sub Mgmt 01d23h11m 0
[group-int-1] 0
2001:db8:bbbb:27::/64 Remote Managed 01d23h11m 0
2001:db8:bbbb:26::1 0
2001:db8:bbbb:100::/56 Local Local 01d23h11m 0
sub-int-1 0
-------------------------------------------------------------------------------
No. of Routes: 44
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes vpn-ipv4 hunt
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP VPN-IPv4 Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network : 172.16.102.0/24
Nexthop : 2001:db8::6
Route Dist. : 192.0.2.6:10 VPN Label : 524288
Path Id : None
From : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 100 Interface Name : int-1-bng-1-pe-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 20
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Fwd Class : None Priority : None
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:6::
Full Sid : 2001:db8:aaaa:6:8000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
VPRN Imported : 10
-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
Network : 10.10.0.0/24
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524285
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:d000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Network : 10.10.1.0/24
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524285
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:d000::
Behavior : End.DT4 (19)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp routes vpn-ipv6 hunt
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP VPN-IPv6 Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network : 2001:db8::6600/120
Nexthop : 2001:db8::6
Route Dist. : 192.0.2.6:10 VPN Label : 524287
Path Id : None
From : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 100 Interface Name : int-1-bng-1-pe-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 20
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Fwd Class : None Priority : None
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h12m
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:6::
Full Sid : 2001:db8:aaaa:6:7fff:f000::
Behavior : End.DT6 (18)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
VPRN Imported : 10
-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
Network : 2001:db8:bbbb::/56
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524284
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:c000::
Behavior : End.DT6 (18)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Network : 2001:db8:bbbb:100::/56
Nexthop : 2001:db8::14
Route Dist. : 192.0.2.20:10 VPN Label : 524284
Path Id : None
To : 2001:db8::6
Res. Nexthop : n/a
Local Pref. : 150 Interface Name : NotAvailable
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : n/a
Connector : None
Community : target:64500:10
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.6
Origin : IGP
AS-Path : No As-Path
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
SRv6 TLV Type : SRv6 L3 Service TLV (5)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:c000::
Behavior : End.DT6 (18)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router segment-routing-v6 base-routing-instance all
===============================================================================
Segment Routing v6 Base Routing Instance
===============================================================================
Locator
Type Function SID Status/InstId
SRH-mode Protection Interface
-------------------------------------------------------------------------------
bng-1-loc
End 1 2001:db8:aaaa:14:0:1000:: ok
USP
-------------------------------------------------------------------------------
Auto-allocated End.X: USP Protected,
-------------------------------------------------------------------------------
End.X *524287 2001:db8:aaaa:14:7fff:f000:: 1
USP Protected int-1-bng-1-bng-2
ISIS Level: L2 Mac Address: b4:98:01:01:00:06 Nbr Sys Id: 1920.0000.2021
End.X *524288 2001:db8:aaaa:14:8000:: 0
USP Protected int-1-bng-1-p-1
ISIS Level: L2 Mac Address: b4:9e:01:01:00:0b Nbr Sys Id: 1920.0000.2004
End.X *524289 2001:db8:aaaa:14:8000:1000:: 1
USP Protected int-1-bng-1-pe-2
ISIS Level: L2 Mac Address: b4:a0:01:01:00:07 Nbr Sys Id: 1920.0000.2006
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
===============================================================================
Micro Segment Routing v6 Base Routing Instance
===============================================================================
Micro Segment Locator
Type Function SID Status/InstId
SRH-mode Oper Func Interface Protection
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router segment-routing-v6 local-sid context "Base"
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:14:0:1000:: End 1
bng-1-loc
Base
-------------------------------------------------------------------------------
SIDs : 1
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router segment-routing-v6 local-sid context "10"
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:14:7fff:c000:: End.DT6 524284
bng-1-loc
SvcId: 10 Name: dual-homing
2001:db8:aaaa:14:7fff:d000:: End.DT4 524285
bng-1-loc
SvcId: 10 Name: dual-homing
-------------------------------------------------------------------------------
SIDs : 2
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router route-table ipv6
===============================================================================
IPv6 Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::4/128 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 10
2001:db8::5/128 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::6/128 [L] Remote ISIS(1) 01d23h12m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 10
2001:db8::a/128 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::14/128 Local Local 01d23h13m 0
system 0
2001:db8::15/128 [L] Remote ISIS(1) 01d23h12m 18
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 10
2001:db8::100/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::200/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::500/120 Local Local 01d23h13m 0
int-1-bng-1-p-1 0
2001:db8::600/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::700/120 Local Local 01d23h13m 0
int-1-bng-1-bng-2 0
2001:db8::800/120 Local Local 01d23h13m 0
int-1-bng-1-pe-2 0
2001:db8::900/120 [L] Remote ISIS(1) 01d23h12m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8::a00/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8::6400/120 Remote ISIS 01d23h12m 18
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8::6500/120 [L] Remote ISIS(1) 01d23h12m 18
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8:aaaa:4::/64 Remote ISIS 01d23h12m 18
2001:db8:aaaa:4::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:5::/64 Remote ISIS 01d23h12m 18
2001:db8:aaaa:5::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:6::/64 Remote ISIS(1) 01d23h12m 18
2001:db8:aaaa:6::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:a::/64 Remote ISIS 01d23h12m 18
2001:db8:aaaa:a::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:14::/64 Local SRV6 01d23h13m 3
fe80::201-"_tmnx_fpe_2.a" 0
2001:db8:aaaa:14:0:1000::/128 Local SRV6 01d23h13m 3
Black Hole 0
2001:db8:aaaa:14:0:2000::/128 Local SRV6-Pol* 01d23h13m 14
2001:db8::5 (tunneled:SRV6-Policy:917506) 1
2001:db8:aaaa:14:7fff:f000::/128 Local ISIS(1) 01d23h12m 18
2001:db8:aaaa:14:7fff:f000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:14:8000::/128 Local ISIS 01d23h12m 18
2001:db8:aaaa:14:8000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:14:8000:1000::/128 Local ISIS(1) 01d23h12m 18
2001:db8:aaaa:14:8000:1000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:15::/64 Remote ISIS(1) 01d23h12m 18
2001:db8:aaaa:15::/64 (tunneled:SRV6-ISIS) 20
-------------------------------------------------------------------------------
No. of Routes: 27
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router tunnel-table ipv6
===============================================================================
IPv6 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref
Nexthop Color Metric
-------------------------------------------------------------------------------
2001:db8::5/128 srv6-pol SRV6 917506 14
fpe_1.a 10 0
2001:db8:aaaa:4::/64 srv6-isis SRV6 524296 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 20
2001:db8:aaaa:5::/64 srv6-isis SRV6 524299 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8:aaaa:6::/64 [L] srv6-isis SRV6 524295 0
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 20
2001:db8:aaaa:a::/64 srv6-isis SRV6 524297 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 30
2001:db8:aaaa:14:7fff:f000::/128 [L] srv6-isis SRV6 524291 0
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 10
2001:db8:aaaa:14:8000::/128 srv6-isis SRV6 524292 0
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 10
2001:db8:aaaa:14:8000:1000::/128 [L] srv6-isis SRV6 524293 0
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 10
2001:db8:aaaa:15::/64 [L] srv6-isis SRV6 524294 0
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 20
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router fp-tunnel-table 1 ipv6
===============================================================================
IPv6 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
2001:db8:aaaa:4::/64 SRV6 524296
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:5::/64 SRV6 524299
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:6::/64 SRV6 524295
-
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 1/1/c1/7:1
-
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2"(B) 1/1/c1/6:1
2001:db8:aaaa:a::/64 SRV6 524297
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:15::/64 SRV6 524294
-
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 1/1/c1/6:1
-
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2"(B) 1/1/c1/7:1
2001:db8::5/128 SRV6-Policy -
2001:db8:aaaa:a:0:1000::/2001:db8:aaaa:4:0:1000::
0.140.1.1 pxc-1.b:1
2001:db8:aaaa:14:7fff:f000::/128 SRV6 524291
-
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2" 1/1/c1/6:1
2001:db8:aaaa:15:0:1000::
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2"(B) 1/1/c1/7:1
2001:db8:aaaa:14:8000::/128 SRV6 524292
-
fe80::b69e:ffff:fe00:0-"int-1-bng-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:14:8000:1000::/128 SRV6 524293
-
fe80::b6a0:ffff:fe00:0-"int-1-bng-1-pe-2" 1/1/c1/7:1
2001:db8:aaaa:6:0:1000::
fe80::b697:ffff:fe00:0-"int-1-bng-1-bng-2"(B) 1/1/c1/6:1
-------------------------------------------------------------------------------
Total Entries : 9
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router bgp summary
===============================================================================
BGP Router ID:192.0.2.20 AS:64500 Local AS:64500
===============================================================================
BGP Admin State : Up BGP Oper State : Up
Total Peer Groups : 2 Total Peers : 3
Total VPN Peer Groups : 0 Total VPN Peers : 0
Current Internal Groups : 3 Max Internal Groups : 3
Total BGP Paths : 59 Total Path Memory : 21280
Total IPv4 Remote Rts : 0 Total IPv4 Rem. Active Rts : 0
Total IPv6 Remote Rts : 0 Total IPv6 Rem. Active Rts : 0
Total IPv4 Backup Rts : 0 Total IPv6 Backup Rts : 0
Total LblIpv4 Rem Rts : 0 Total LblIpv4 Rem. Act Rts : 0
Total LblIpv6 Rem Rts : 0 Total LblIpv6 Rem. Act Rts : 0
Total LblIpv4 Bkp Rts : 0 Total LblIpv6 Bkp Rts : 0
Total Supressed Rts : 0 Total Hist. Rts : 0
Total Decay Rts : 0
Total VPN-IPv4 Rem. Rts : 1 Total VPN-IPv4 Rem. Act. Rts: 1
Total VPN-IPv6 Rem. Rts : 1 Total VPN-IPv6 Rem. Act. Rts: 1
Total VPN-IPv4 Bkup Rts : 0 Total VPN-IPv6 Bkup Rts : 0
Total VPN Local Rts : 7 Total VPN Supp. Rts : 0
Total VPN Hist. Rts : 0 Total VPN Decay Rts : 0
Total MVPN-IPv4 Rem Rts : 0 Total MVPN-IPv4 Rem Act Rts : 0
Total MVPN-IPv6 Rem Rts : 0 Total MVPN-IPv6 Rem Act Rts : 0
Total MDT-SAFI Rem Rts : 0 Total MDT-SAFI Rem Act Rts : 0
Total McIPv4 Remote Rts : 0 Total McIPv4 Rem. Active Rts: 0
Total McIPv6 Remote Rts : 0 Total McIPv6 Rem. Active Rts: 0
Total McVpnIPv4 Rem Rts : 0 Total McVpnIPv4 Rem Act Rts : 0
Total McVpnIPv6 Rem Rts : 0 Total McVpnIPv6 Rem Act Rts : 0
Total EVPN Rem Rts : 4 Total EVPN Rem Act Rts : 4
Total L2-VPN Rem. Rts : 0 Total L2VPN Rem. Act. Rts : 0
Total MSPW Rem Rts : 0 Total MSPW Rem Act Rts : 0
Total RouteTgt Rem Rts : 0 Total RouteTgt Rem Act Rts : 0
Total FlowIpv4 Rem Rts : 0 Total FlowIpv4 Rem Act Rts : 0
Total FlowIpv6 Rem Rts : 0 Total FlowIpv6 Rem Act Rts : 0
Total FlowVpnv4 Rem Rts : 0 Total FlowVpnv4 Rem Act Rts : 0
Total FlowVpnv6 Rem Rts : 0 Total FlowVpnv6 Rem Act Rts : 0
Total Link State Rem Rts: 0 Total Link State Rem Act Rts: 0
Total SrPlcyIpv4 Rem Rts: 0 Total SrPlcyIpv4 Rem Act Rts: 0
Total SrPlcyIpv6 Rem Rts: 0 Total SrPlcyIpv6 Rem Act Rts: 0
===============================================================================
BGP Summary
===============================================================================
Legend : D - Dynamic Neighbor
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
2001:db8::5
64500 5669 0 01d23h12m 1/1/3 (Evpn)
5672 0
2001:db8::6
64500 5670 0 01d23h12m 1/1/2 (VpnIPv4)
5672 0 1/1/2 (VpnIPv6)
2001:db8::15
64500 5673 0 01d23h12m 3/3/3 (Evpn)
5672 0
-------------------------------------------------------------------------------
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis adjacency
===============================================================================
Rtr Base ISIS Instance 0 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
p-1 L2 Up 7 int-1-bng-1-p-1 0
-------------------------------------------------------------------------------
Adjacencies : 1
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis database
===============================================================================
Rtr Base ISIS Instance 0 Database
===============================================================================
LSP ID Sequence Checksum Lifetime Attributes
-------------------------------------------------------------------------------
Displaying Level 1 database
-------------------------------------------------------------------------------
Level (1) LSP Count : 0
Displaying Level 2 database
-------------------------------------------------------------------------------
p-1.00-00 0x13d 0x8ffb 762 L1L2
p-1.01-00 0x134 0x4d03 902 L1L2
pe-1.00-00 0x139 0x659e 863 L1L2
pe-1.01-00 0x133 0xe585 1063 L1L2
p-2.00-00 0x137 0xfd42 1085 L1L2
p-2.01-00 0x135 0x6dc8 938 L1L2
p-2.02-00 0x135 0xe56c 1042 L1L2
p-2.03-00 0x132 0xfa58 764 L1L2
bng-1.00-00 0x13d 0x160f 748 L1L2
bng-2.00-00 0x137 0x777b 675 L1L2
Level (2) LSP Count : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis 1 adjacency
===============================================================================
Rtr Base ISIS Instance 1 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
bng-2 L2 Up 27 int-1-bng-1-bng-2 0
pe-2 L2 Up 7 int-1-bng-1-pe-2 0
-------------------------------------------------------------------------------
Adjacencies : 2
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router isis 1 database
===============================================================================
Rtr Base ISIS Instance 1 Database
===============================================================================
LSP ID Sequence Checksum Lifetime Attributes
-------------------------------------------------------------------------------
Displaying Level 1 database
-------------------------------------------------------------------------------
Level (1) LSP Count : 0
Displaying Level 2 database
-------------------------------------------------------------------------------
pe-2.00-00 0x13a 0x105f 963 L1L2
pe-2.01-00 0x133 0x51fb 708 L1L2
pe-2.02-00 0x133 0x60ea 1055 L1L2
bng-1.00-00 0x13c 0x29a7 747 L1L2
bng-1.01-00 0x136 0x7b99 670 L1L2
bng-2.00-00 0x138 0x8827 1129 L1L2
Level (2) LSP Count : 6
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show redundancy multi-chassis sync peer 192.0.2.21 detail
===============================================================================
Multi-chassis Peer Table
===============================================================================
Peer
-------------------------------------------------------------------------------
Peer IP Address : 192.0.2.21
Description : (Not Specified)
Authentication : Disabled
Source IP Address : 192.0.2.20
Admin State : Enabled
Warm standby : No
Remote warm standby : No
Sub-mgmt options :
DHCP lease threshold : Inactive
Local / Remote : -- / --
-------------------------------------------------------------------------------
Sync-status
-------------------------------------------------------------------------------
Client Applications : SUBMGMT-IPOE SUBMGMT-PPPOE SRRP DHCPServer
Sync Admin State : Up
Sync Oper State : Up
Sync Oper Flags :
DB Sync State : inSync
Num Entries : 100
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
Rem Num Entries : 100
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
===============================================================================
MCS Application Stats
===============================================================================
Application : igmp
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : igmpSnooping
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : subMgmtIpoe
Num Entries : 10
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 10
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : srrp
Num Entries : 26
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 26
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : mcRing
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : mldSnooping
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : dhcpServer
Num Entries : 54
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 54
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : subHostTrk
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : subMgmtPppoe
Num Entries : 10
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 10
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : ipsec
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : mld
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : python
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : l2tp
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : diameterProxy
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : pimSnpgSap
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : pimSnpgSdp
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : diameterNode
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Application : nat
Num Entries : 0
Lcl Deleted Entries : 0
Alarm Entries : 0
OMCR Standby Entries : 0
OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
Rem Num Entries : 0
Rem Lcl Deleted Entries : 0
Rem Alarm Entries : 0
Rem OMCR Standby Entries: 0
Rem OMCR Alarm Entries : 0
-------------------------------------------------------------------------------
===============================================================================
===============================================================================
Ports synced on peer 192.0.2.21
===============================================================================
Port/Encap Tag
-------------------------------------------------------------------------------
pw-1 pw-port-1
===============================================================================
===============================================================================
SDPs synced on peer 192.0.2.21
===============================================================================
SDP/Vc-Id Tag
-------------------------------------------------------------------------------
===============================================================================
===============================================================================
DHCP Server instances synced on peer 192.0.2.21
===============================================================================
Router-Name Server-Name
Tag
-------------------------------------------------------------------------------
No instances found
===============================================================================
===============================================================================
Python cache instances synced on peer 192.0.2.21
===============================================================================
Python-Policy Tag
-------------------------------------------------------------------------------
No instances found
===============================================================================
No L2TP instances found.
===============================================================================
Track SRRP instances
===============================================================================
SRRP : 1
-------------------------------------------------------------------------------
L2TP tunnel ID start : 0
L2TP tunnel ID end : 0
===============================================================================
===============================================================================
Diameter proxy instances synced on peer 192.0.2.21
===============================================================================
Diameter-Peer-Policy Tag
-------------------------------------------------------------------------------
No instances found
===============================================================================
===============================================================================
Diameter node instances synced on peer 192.0.2.21
===============================================================================
Diameter Node Tag
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
No. of Diameter Nodes: 0
===============================================================================
===============================================================================
Nat groups synced on peer 192.0.2.21
===============================================================================
Nat group Tag
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
No. of Nat groups: 0
===============================================================================
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /tools dump redundancy multi-chassis sync-database
The following totals are for:
peer ip ALL, port/lag/sdp ALL, sync-tag ALL, application ALL
Valid Entries: 100
Locally Deleted Entries: 0
Locally Deleted Alarmed Entries: 0
Pending Global Delete Entries: 0
Omcr Alarmed Entries: 0
Omcr Standby Entries: 0
Associated Shared Records (ALL): 0
Associated Shared Records (LD): 0
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service active-subscribers summary
===============================================================================
Active Subscriber table summary
===============================================================================
Total Count : 20
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service active-subscribers hierarchy
===============================================================================
Active Subscribers Hierarchy
===============================================================================
-- ipoe-ds-1
(sub-profile-1)
|
+-- sap:[pw-1:2.11] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:01 - svc:10
|
|-- 10.10.0.12 - DHCP
|
+-- 2001:db8:bbbb::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1::/64 - DHCP6-PD-MR
-- ipoe-ds-10
(sub-profile-1)
|
+-- sap:[pw-1:2.20] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:0a - svc:10
|
|-- 10.10.0.13 - DHCP
|
+-- 2001:db8:bbbb:10::1/128 - DHCP6
|
+-- 2001:db8:bbbb:11::/64 - DHCP6-PD-MR
-- ipoe-ds-2
(sub-profile-1)
|
+-- sap:[pw-1:2.12] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:02 - svc:10
|
|-- 10.10.0.10 - DHCP
|
+-- 2001:db8:bbbb:2::1/128 - DHCP6
|
+-- 2001:db8:bbbb:3::/64 - DHCP6-PD-MR
-- ipoe-ds-3
(sub-profile-1)
|
+-- sap:[pw-1:2.13] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:03 - svc:10
|
|-- 10.10.0.14 - DHCP
|
+-- 2001:db8:bbbb:c::1/128 - DHCP6
|
+-- 2001:db8:bbbb:d::/64 - DHCP6-PD-MR
-- ipoe-ds-4
(sub-profile-1)
|
+-- sap:[pw-1:2.14] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:04 - svc:10
|
|-- 10.10.0.17 - DHCP
|
+-- 2001:db8:bbbb:8::1/128 - DHCP6
|
+-- 2001:db8:bbbb:9::/64 - DHCP6-PD-MR
-- ipoe-ds-5
(sub-profile-1)
|
+-- sap:[pw-1:2.15] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:05 - svc:10
|
|-- 10.10.0.11 - DHCP
|
+-- 2001:db8:bbbb:4::1/128 - DHCP6
|
+-- 2001:db8:bbbb:5::/64 - DHCP6-PD-MR
-- ipoe-ds-6
(sub-profile-1)
|
+-- sap:[pw-1:2.16] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:06 - svc:10
|
|-- 10.10.0.19 - DHCP
|
+-- 2001:db8:bbbb:e::1/128 - DHCP6
|
+-- 2001:db8:bbbb:f::/64 - DHCP6-PD-MR
-- ipoe-ds-7
(sub-profile-1)
|
+-- sap:[pw-1:2.17] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:07 - svc:10
|
|-- 10.10.0.18 - DHCP
|
+-- 2001:db8:bbbb:a::1/128 - DHCP6
|
+-- 2001:db8:bbbb:b::/64 - DHCP6-PD-MR
-- ipoe-ds-8
(sub-profile-1)
|
+-- sap:[pw-1:2.18] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:08 - svc:10
|
|-- 10.10.0.16 - DHCP
|
+-- 2001:db8:bbbb:6::1/128 - DHCP6
|
+-- 2001:db8:bbbb:7::/64 - DHCP6-PD-MR
-- ipoe-ds-9
(sub-profile-1)
|
+-- sap:[pw-1:2.19] - sla:sla-profile-1
|
+-- IPOE-session - mac:00:13:01:00:00:09 - svc:10
|
|-- 10.10.0.15 - DHCP
|
+-- 2001:db8:bbbb:12::1/128 - DHCP6
|
+-- 2001:db8:bbbb:13::/64 - DHCP6-PD-MR
-- pppoe-1
(sub-profile-1)
|
+-- sap:[pw-1:2.1] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:01 - sid:1 - svc:10
|
|-- 10.10.1.10 - IPCP
|
+-- 2001:db8:bbbb:14::1/128 - DHCP6
|
+-- 2001:db8:bbbb:15::/64 - DHCP6-PD-MR
-- pppoe-10
(sub-profile-1)
|
+-- sap:[pw-1:2.10] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:0a - sid:1 - svc:10
|
|-- 10.10.1.19 - IPCP
|
+-- 2001:db8:bbbb:26::1/128 - DHCP6
|
+-- 2001:db8:bbbb:27::/64 - DHCP6-PD-MR
-- pppoe-2
(sub-profile-1)
|
+-- sap:[pw-1:2.2] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:02 - sid:1 - svc:10
|
|-- 10.10.1.11 - IPCP
|
+-- 2001:db8:bbbb:18::1/128 - DHCP6
|
+-- 2001:db8:bbbb:19::/64 - DHCP6-PD-MR
-- pppoe-3
(sub-profile-1)
|
+-- sap:[pw-1:2.3] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:03 - sid:1 - svc:10
|
|-- 10.10.1.12 - IPCP
|
+-- 2001:db8:bbbb:16::1/128 - DHCP6
|
+-- 2001:db8:bbbb:17::/64 - DHCP6-PD-MR
-- pppoe-4
(sub-profile-1)
|
+-- sap:[pw-1:2.4] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:04 - sid:1 - svc:10
|
|-- 10.10.1.13 - IPCP
|
+-- 2001:db8:bbbb:1a::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1b::/64 - DHCP6-PD-MR
-- pppoe-5
(sub-profile-1)
|
+-- sap:[pw-1:2.5] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:05 - sid:1 - svc:10
|
|-- 10.10.1.14 - IPCP
|
+-- 2001:db8:bbbb:1c::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1d::/64 - DHCP6-PD-MR
-- pppoe-6
(sub-profile-1)
|
+-- sap:[pw-1:2.6] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:06 - sid:1 - svc:10
|
|-- 10.10.1.15 - IPCP
|
+-- 2001:db8:bbbb:1e::1/128 - DHCP6
|
+-- 2001:db8:bbbb:1f::/64 - DHCP6-PD-MR
-- pppoe-7
(sub-profile-1)
|
+-- sap:[pw-1:2.7] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:07 - sid:1 - svc:10
|
|-- 10.10.1.16 - IPCP
|
+-- 2001:db8:bbbb:20::1/128 - DHCP6
|
+-- 2001:db8:bbbb:21::/64 - DHCP6-PD-MR
-- pppoe-8
(sub-profile-1)
|
+-- sap:[pw-1:2.8] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:08 - sid:1 - svc:10
|
|-- 10.10.1.17 - IPCP
|
+-- 2001:db8:bbbb:22::1/128 - DHCP6
|
+-- 2001:db8:bbbb:23::/64 - DHCP6-PD-MR
-- pppoe-9
(sub-profile-1)
|
+-- sap:[pw-1:2.9] - sla:sla-profile-1
|
+-- PPP-session - mac:00:11:01:00:00:09 - sid:1 - svc:10
|
|-- 10.10.1.18 - IPCP
|
+-- 2001:db8:bbbb:24::1/128 - DHCP6
|
+-- 2001:db8:bbbb:25::/64 - DHCP6-PD-MR
-------------------------------------------------------------------------------
Number of active subscribers : 20
Flags: (N) = the host or the managed route is in non-forwarding state
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 subscriber-hosts detail
===============================================================================
Subscriber Host table
===============================================================================
Sap
IP Address
MAC Address PPPoE-SID Origin Fwding State
Subscriber
-------------------------------------------------------------------------------
[pw-1:2.1]
10.10.1.10
00:11:01:00:00:01 1 IPCP Fwding
pppoe-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000029636FE951
Acct-Q-Inst-Session-Id: B496FF0000002A636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.1]
2001:db8:bbbb:14::1/128
00:11:01:00:00:01 1 PPP-DHCP6 Fwding
pppoe-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000047636FE951
Acct-Q-Inst-Session-Id: B496FF0000002A636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.2]
10.10.1.11
00:11:01:00:00:02 1 IPCP Fwding
pppoe-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000002C636FE951
Acct-Q-Inst-Session-Id: B496FF0000002D636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.2]
2001:db8:bbbb:18::1/128
00:11:01:00:00:02 1 PPP-DHCP6 Fwding
pppoe-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000049636FE951
Acct-Q-Inst-Session-Id: B496FF0000002D636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.3]
10.10.1.12
00:11:01:00:00:03 1 IPCP Fwding
pppoe-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000002F636FE951
Acct-Q-Inst-Session-Id: B496FF00000030636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.3]
2001:db8:bbbb:16::1/128
00:11:01:00:00:03 1 PPP-DHCP6 Fwding
pppoe-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000046636FE951
Acct-Q-Inst-Session-Id: B496FF00000030636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.4]
10.10.1.13
00:11:01:00:00:04 1 IPCP Fwding
pppoe-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000032636FE951
Acct-Q-Inst-Session-Id: B496FF00000033636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.4]
2001:db8:bbbb:1a::1/128
00:11:01:00:00:04 1 PPP-DHCP6 Fwding
pppoe-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000048636FE951
Acct-Q-Inst-Session-Id: B496FF00000033636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.5]
10.10.1.14
00:11:01:00:00:05 1 IPCP Fwding
pppoe-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000035636FE951
Acct-Q-Inst-Session-Id: B496FF00000036636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.5]
2001:db8:bbbb:1c::1/128
00:11:01:00:00:05 1 PPP-DHCP6 Fwding
pppoe-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004A636FE951
Acct-Q-Inst-Session-Id: B496FF00000036636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.6]
10.10.1.15
00:11:01:00:00:06 1 IPCP Fwding
pppoe-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000038636FE951
Acct-Q-Inst-Session-Id: B496FF00000039636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.6]
2001:db8:bbbb:1e::1/128
00:11:01:00:00:06 1 PPP-DHCP6 Fwding
pppoe-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004B636FE951
Acct-Q-Inst-Session-Id: B496FF00000039636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.7]
10.10.1.16
00:11:01:00:00:07 1 IPCP Fwding
pppoe-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000003B636FE951
Acct-Q-Inst-Session-Id: B496FF0000003C636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.7]
2001:db8:bbbb:20::1/128
00:11:01:00:00:07 1 PPP-DHCP6 Fwding
pppoe-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004C636FE951
Acct-Q-Inst-Session-Id: B496FF0000003C636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.8]
10.10.1.17
00:11:01:00:00:08 1 IPCP Fwding
pppoe-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000003E636FE951
Acct-Q-Inst-Session-Id: B496FF0000003F636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.8]
2001:db8:bbbb:22::1/128
00:11:01:00:00:08 1 PPP-DHCP6 Fwding
pppoe-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004D636FE951
Acct-Q-Inst-Session-Id: B496FF0000003F636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.9]
10.10.1.18
00:11:01:00:00:09 1 IPCP Fwding
pppoe-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000041636FE951
Acct-Q-Inst-Session-Id: B496FF00000042636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.9]
2001:db8:bbbb:24::1/128
00:11:01:00:00:09 1 PPP-DHCP6 Fwding
pppoe-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004E636FE951
Acct-Q-Inst-Session-Id: B496FF00000042636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.10]
10.10.1.19
00:11:01:00:00:0a 1 IPCP Fwding
pppoe-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000044636FE951
Acct-Q-Inst-Session-Id: B496FF00000045636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.10]
2001:db8:bbbb:26::1/128
00:11:01:00:00:0a 1 PPP-DHCP6 Fwding
pppoe-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000004F636FE951
Acct-Q-Inst-Session-Id: B496FF00000045636FE951
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.11]
10.10.0.12
00:13:01:00:00:01 N/A DHCP Fwding
ipoe-ds-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000013636FE94C
Acct-Q-Inst-Session-Id: B496FF00000010636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.11]
2001:db8:bbbb::1/128
00:13:01:00:00:01 N/A IPoE-DHCP6 Fwding
ipoe-ds-1
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000000F636FE94C
Acct-Q-Inst-Session-Id: B496FF00000010636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.12]
10.10.0.10
00:13:01:00:00:02 N/A DHCP Fwding
ipoe-ds-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000000A636FE94C
Acct-Q-Inst-Session-Id: B496FF00000005636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.12]
2001:db8:bbbb:2::1/128
00:13:01:00:00:02 N/A IPoE-DHCP6 Fwding
ipoe-ds-2
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000004636FE94C
Acct-Q-Inst-Session-Id: B496FF00000005636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.13]
10.10.0.14
00:13:01:00:00:03 N/A DHCP Fwding
ipoe-ds-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000001B636FE94C
Acct-Q-Inst-Session-Id: B496FF0000001C636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.13]
2001:db8:bbbb:c::1/128
00:13:01:00:00:03 N/A IPoE-DHCP6 Fwding
ipoe-ds-3
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000001F636FE94C
Acct-Q-Inst-Session-Id: B496FF0000001C636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.14]
10.10.0.17
00:13:01:00:00:04 N/A DHCP Fwding
ipoe-ds-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000025636FE951
Acct-Q-Inst-Session-Id: B496FF00000012636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.14]
2001:db8:bbbb:8::1/128
00:13:01:00:00:04 N/A IPoE-DHCP6 Fwding
ipoe-ds-4
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000011636FE94C
Acct-Q-Inst-Session-Id: B496FF00000012636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.15]
10.10.0.11
00:13:01:00:00:05 N/A DHCP Fwding
ipoe-ds-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000000B636FE94C
Acct-Q-Inst-Session-Id: B496FF00000007636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.15]
2001:db8:bbbb:4::1/128
00:13:01:00:00:05 N/A IPoE-DHCP6 Fwding
ipoe-ds-5
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000006636FE94C
Acct-Q-Inst-Session-Id: B496FF00000007636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.16]
10.10.0.19
00:13:01:00:00:06 N/A DHCP Fwding
ipoe-ds-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000027636FE951
Acct-Q-Inst-Session-Id: B496FF0000001E636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.16]
2001:db8:bbbb:e::1/128
00:13:01:00:00:06 N/A IPoE-DHCP6 Fwding
ipoe-ds-6
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF0000001D636FE94C
Acct-Q-Inst-Session-Id: B496FF0000001E636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.17]
10.10.0.18
00:13:01:00:00:07 N/A DHCP Fwding
ipoe-ds-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000026636FE951
Acct-Q-Inst-Session-Id: B496FF00000015636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.17]
2001:db8:bbbb:a::1/128
00:13:01:00:00:07 N/A IPoE-DHCP6 Fwding
ipoe-ds-7
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000014636FE94C
Acct-Q-Inst-Session-Id: B496FF00000015636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.18]
10.10.0.16
00:13:01:00:00:08 N/A DHCP Fwding
ipoe-ds-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000024636FE950
Acct-Q-Inst-Session-Id: B496FF00000009636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.18]
2001:db8:bbbb:6::1/128
00:13:01:00:00:08 N/A IPoE-DHCP6 Fwding
ipoe-ds-8
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000008636FE94C
Acct-Q-Inst-Session-Id: B496FF00000009636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.19]
10.10.0.15
00:13:01:00:00:09 N/A DHCP Fwding
ipoe-ds-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000020636FE94C
Acct-Q-Inst-Session-Id: B496FF00000021636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.19]
2001:db8:bbbb:12::1/128
00:13:01:00:00:09 N/A IPoE-DHCP6 Fwding
ipoe-ds-9
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000023636FE94E
Acct-Q-Inst-Session-Id: B496FF00000021636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.20]
10.10.0.13
00:13:01:00:00:0a N/A DHCP Fwding
ipoe-ds-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000016636FE94C
Acct-Q-Inst-Session-Id: B496FF00000017636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
[pw-1:2.20]
2001:db8:bbbb:10::1/128
00:13:01:00:00:0a N/A IPoE-DHCP6 Fwding
ipoe-ds-10
-------------------------------------------------------------------------------
Subscriber-interface : sub-int-1
Group-interface : group-int-1
Sub Profile : sub-profile-1
SLA Profile : sla-profile-1
App Profile : N/A
Egress Q-Group : N/A
Egress Vport : N/A
Acct-Session-Id : B496FF00000022636FE94E
Acct-Q-Inst-Session-Id: B496FF00000017636FE94C
Address Origin : Dynamic
OT HTTP Rdr IP-FltrId : N/A
OT HTTP Rdr Status : N/A
OT HTTP Rdr Fltr Src : N/A
HTTP Rdr URL Override : N/A
GTP local break-out : No
DIAMETER session ID Gx: N/A
-------------------------------------------------------------------------------
Number of subscriber hosts : 40
===============================================================================
[/]
A:admin@bng-1# /show service id 10 ipoe session
===============================================================================
IPoE sessions for svc-id 10
===============================================================================
Sap Id Mac Address Up Time MC-Stdby
Subscriber-Id
[CircuitID] | [RemoteID]
-------------------------------------------------------------------------------
[pw-1:2.11] 00:13:01:00:00:01 2d 02:51:27
ipoe-ds-1
[pw-1:2.12] 00:13:01:00:00:02 2d 02:51:27
ipoe-ds-2
[pw-1:2.13] 00:13:01:00:00:03 2d 02:51:26
ipoe-ds-3
[pw-1:2.14] 00:13:01:00:00:04 2d 02:51:26
ipoe-ds-4
[pw-1:2.15] 00:13:01:00:00:05 2d 02:51:27
ipoe-ds-5
[pw-1:2.16] 00:13:01:00:00:06 2d 02:51:26
ipoe-ds-6
[pw-1:2.17] 00:13:01:00:00:07 2d 02:51:26
ipoe-ds-7
[pw-1:2.18] 00:13:01:00:00:08 2d 02:51:26
ipoe-ds-8
[pw-1:2.19] 00:13:01:00:00:09 2d 02:51:26
ipoe-ds-9
[pw-1:2.20] 00:13:01:00:00:0a 2d 02:51:26
ipoe-ds-10
-------------------------------------------------------------------------------
CID | RID displayed when included in session-key
Number of sessions : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 pppoe session
===============================================================================
PPPoE sessions for svc-id 10
===============================================================================
Sap Id Mac Address Sid Up Time Type
IP/L2TP-Id/Interface-Id MC-Stdby
-------------------------------------------------------------------------------
[pw-1:2.1] 00:11:01:00:00:01 1 2d 02:51:21 local
10.10.1.10
00:01:00:02:00:01:00:01
[pw-1:2.2] 00:11:01:00:00:02 1 2d 02:51:21 local
10.10.1.11
00:02:00:02:00:02:00:01
[pw-1:2.3] 00:11:01:00:00:03 1 2d 02:51:21 local
10.10.1.12
00:03:00:02:00:03:00:01
[pw-1:2.4] 00:11:01:00:00:04 1 2d 02:51:21 local
10.10.1.13
00:04:00:02:00:04:00:01
[pw-1:2.5] 00:11:01:00:00:05 1 2d 02:51:21 local
10.10.1.14
00:05:00:02:00:05:00:01
[pw-1:2.6] 00:11:01:00:00:06 1 2d 02:51:21 local
10.10.1.15
00:06:00:02:00:06:00:01
[pw-1:2.7] 00:11:01:00:00:07 1 2d 02:51:21 local
10.10.1.16
00:07:00:02:00:07:00:01
[pw-1:2.8] 00:11:01:00:00:08 1 2d 02:51:21 local
10.10.1.17
00:08:00:02:00:08:00:01
[pw-1:2.9] 00:11:01:00:00:09 1 2d 02:51:21 local
10.10.1.18
00:09:00:02:00:09:00:01
[pw-1:2.10] 00:11:01:00:00:0a 1 2d 02:51:21 local
10.10.1.19
00:0A:00:02:00:0A:00:01
-------------------------------------------------------------------------------
Number of sessions : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 dhcp lease-state
===============================================================================
DHCP lease state table, service 10
===============================================================================
IP Address Mac Address Sap/Sdp Id Remaining Lease MC
LeaseTime Origin Stdby
-------------------------------------------------------------------------------
10.10.0.10 00:13:01:00:00:02 [pw-1:2.12] 00h13m42s DHCP
10.10.0.11 00:13:01:00:00:05 [pw-1:2.15] 00h13m42s DHCP
10.10.0.12 00:13:01:00:00:01 [pw-1:2.11] 00h13m42s DHCP
10.10.0.13 00:13:01:00:00:0a [pw-1:2.20] 00h13m42s DHCP
10.10.0.14 00:13:01:00:00:03 [pw-1:2.13] 00h13m42s DHCP
10.10.0.15 00:13:01:00:00:09 [pw-1:2.19] 00h13m42s DHCP
10.10.0.16 00:13:01:00:00:08 [pw-1:2.18] 00h13m43s DHCP
10.10.0.17 00:13:01:00:00:04 [pw-1:2.14] 00h13m44s DHCP
10.10.0.18 00:13:01:00:00:07 [pw-1:2.17] 00h13m44s DHCP
10.10.0.19 00:13:01:00:00:06 [pw-1:2.16] 00h13m44s DHCP
-------------------------------------------------------------------------------
Number of lease states : 10
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show service id 10 dhcp6 lease-state
===============================================================================
DHCP lease state table, service 10
===============================================================================
IP Address Mac Address Sap/Sdp Id Remaining Lease MC
LeaseTime Origin Stdby
-------------------------------------------------------------------------------
2001:db8:bbbb::1/128
00:13:01:00:00:01 [pw-1:2.11] 23h43m37s DHCP
2001:db8:bbbb:1::/64
00:13:01:00:00:01 [pw-1:2.11] 23h43m37s DHCP
2001:db8:bbbb:2::1/128
00:13:01:00:00:02 [pw-1:2.12] 23h43m36s DHCP
2001:db8:bbbb:3::/64
00:13:01:00:00:02 [pw-1:2.12] 23h43m36s DHCP
2001:db8:bbbb:4::1/128
00:13:01:00:00:05 [pw-1:2.15] 23h43m36s DHCP
2001:db8:bbbb:5::/64
00:13:01:00:00:05 [pw-1:2.15] 23h43m36s DHCP
2001:db8:bbbb:6::1/128
00:13:01:00:00:08 [pw-1:2.18] 23h43m36s DHCP
2001:db8:bbbb:7::/64
00:13:01:00:00:08 [pw-1:2.18] 23h43m36s DHCP
2001:db8:bbbb:8::1/128
00:13:01:00:00:04 [pw-1:2.14] 23h43m37s DHCP
2001:db8:bbbb:9::/64
00:13:01:00:00:04 [pw-1:2.14] 23h43m37s DHCP
2001:db8:bbbb:a::1/128
00:13:01:00:00:07 [pw-1:2.17] 23h43m37s DHCP
2001:db8:bbbb:b::/64
00:13:01:00:00:07 [pw-1:2.17] 23h43m37s DHCP
2001:db8:bbbb:c::1/128
00:13:01:00:00:03 [pw-1:2.13] 23h43m37s DHCP
2001:db8:bbbb:d::/64
00:13:01:00:00:03 [pw-1:2.13] 23h43m37s DHCP
2001:db8:bbbb:e::1/128
00:13:01:00:00:06 [pw-1:2.16] 23h43m37s DHCP
2001:db8:bbbb:f::/64
00:13:01:00:00:06 [pw-1:2.16] 23h43m37s DHCP
2001:db8:bbbb:10::1/128
00:13:01:00:00:0a [pw-1:2.20] 23h38m40s DHCP
2001:db8:bbbb:11::/64
00:13:01:00:00:0a [pw-1:2.20] 23h38m40s DHCP
2001:db8:bbbb:12::1/128
00:13:01:00:00:09 [pw-1:2.19] 23h38m40s DHCP
2001:db8:bbbb:13::/64
00:13:01:00:00:09 [pw-1:2.19] 23h38m40s DHCP
2001:db8:bbbb:14::1/128
00:11:01:00:00:01 [pw-1:2.1] 23h43m41s DHCP
2001:db8:bbbb:15::/64
00:11:01:00:00:01 [pw-1:2.1] 23h43m41s DHCP
2001:db8:bbbb:16::1/128
00:11:01:00:00:03 [pw-1:2.3] 23h43m41s DHCP
2001:db8:bbbb:17::/64
00:11:01:00:00:03 [pw-1:2.3] 23h43m41s DHCP
2001:db8:bbbb:18::1/128
00:11:01:00:00:02 [pw-1:2.2] 23h43m41s DHCP
2001:db8:bbbb:19::/64
00:11:01:00:00:02 [pw-1:2.2] 23h43m41s DHCP
2001:db8:bbbb:1a::1/128
00:11:01:00:00:04 [pw-1:2.4] 23h43m41s DHCP
2001:db8:bbbb:1b::/64
00:11:01:00:00:04 [pw-1:2.4] 23h43m41s DHCP
2001:db8:bbbb:1c::1/128
00:11:01:00:00:05 [pw-1:2.5] 23h43m42s DHCP
2001:db8:bbbb:1d::/64
00:11:01:00:00:05 [pw-1:2.5] 23h43m42s DHCP
2001:db8:bbbb:1e::1/128
00:11:01:00:00:06 [pw-1:2.6] 23h43m41s DHCP
2001:db8:bbbb:1f::/64
00:11:01:00:00:06 [pw-1:2.6] 23h43m41s DHCP
2001:db8:bbbb:20::1/128
00:11:01:00:00:07 [pw-1:2.7] 23h43m41s DHCP
2001:db8:bbbb:21::/64
00:11:01:00:00:07 [pw-1:2.7] 23h43m41s DHCP
2001:db8:bbbb:22::1/128
00:11:01:00:00:08 [pw-1:2.8] 23h43m42s DHCP
2001:db8:bbbb:23::/64
00:11:01:00:00:08 [pw-1:2.8] 23h43m42s DHCP
2001:db8:bbbb:24::1/128
00:11:01:00:00:09 [pw-1:2.9] 23h43m41s DHCP
2001:db8:bbbb:25::/64
00:11:01:00:00:09 [pw-1:2.9] 23h43m41s DHCP
2001:db8:bbbb:26::1/128
00:11:01:00:00:0a [pw-1:2.10] 23h43m41s DHCP
2001:db8:bbbb:27::/64
00:11:01:00:00:0a [pw-1:2.10] 23h43m41s DHCP
-------------------------------------------------------------------------------
Number of lease states : 40
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show srrp 1 detail
===============================================================================
SRRP Instance 1
===============================================================================
Description : (Not Specified)
Admin State : Up Oper State : master
Preempt : yes One GARP per SAP : no
Monitor Oper Group : None
System IP : 192.0.2.20
Service ID : VPRN 10
Group If : group-int-1 MAC Address : b4:96:ff:00:00:00
Grp If Description : N/A
Grp If Admin State : Up Grp If Oper State: Up
Subscriber If : sub-int-1
Sub If Admin State : Up Sub If Oper State: Up
Address : 10.10.0.1/24 Gateway IP : 10.10.0.254
Address : 10.10.1.1/24 Gateway IP : 10.10.1.254
Redundant If : red-int-bng-1-bng*
Red If Admin State : Up Red If Oper State: Up
Address : 192.168.11.1/24
Red Spoke-sdp : 1:1
Msg Path SAP : pw-1:2.4094 Passive : no
Admin Gateway MAC : Oper Gateway MAC : 00:00:5e:00:01:01
Standby-Forwarding : Disabled
Config Priority : 100 In-use Priority : 100
Master Priority : 100
Keep-alive Interval : 2 deci-seconds Master Since : 11/12/2022 16:23:34
Fib Population Mode : all
VRRP Policy 1 : None VRRP Policy 2 : None
-------------------------------------------------------------------------------
Statistics
-------------------------------------------------------------------------------
Become Master : 1 Master Changes : 1
Become Bkup Routing : 0 Become Bkup Shunt: 1
Become Non-Master : 0
Adv Sent : 849384 Adv Received : 0
Pri 0 Pkts Sent : 0 Pri 0 Pkts Rcvd : 0
Preempt Events : 0 Preempted Events : 0
Mesg Intvl Discards : 0 Mesg Intvl Errors: 0
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp local-dhcp-server "dhcpv4" summary
===============================================================================
DHCP server dhcpv4 router 10
===============================================================================
Admin State : inService
Operational State : inService
Persistency State : shutdown
User Data Base : N/A
Use gateway IP address : enabled (scope pool)
Use pool from client : enabled
Send force-renewals : disabled
Creation Origin : manual
Lease Hold Time : 0h0m0s
Lease Hold Time For : N/A
User-ident : mac-circuit-id
Failover Admin State : outOfService
Failover Oper State : shutdown
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Pool name : dhcpv4-1
-------------------------------------------------------------------------------
Failover Admin State : inService
Failover Oper State : normal
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Subnet Free % Stable Declined Offered Rem-pend Drain
-------------------------------------------------------------------------------
10.10.0.0/24 (A) 81 89% 10 0 0 0 N
Totals for pool 81 89% 10 0 0 0
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Pool name : pppoev4-1
-------------------------------------------------------------------------------
Failover Admin State : outOfService
Failover Oper State : shutdown
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Subnet Free % Stable Declined Offered Rem-pend Drain
-------------------------------------------------------------------------------
10.10.1.0/24 81 89% 10 0 0 0 N
Totals for pool 81 89% 10 0 0 0
-------------------------------------------------------------------------------
Totals for server 162 89% 20 0 0 0
-------------------------------------------------------------------------------
Interface associations
Interface Admin
-------------------------------------------------------------------------------
loopback-1 Up
-------------------------------------------------------------------------------
Local Address Assignment associations
Group interface Admin
-------------------------------------------------------------------------------
group-int-1 Up
No associated firewall domains found.
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp6 local-dhcp-server "dhcpv6" summary
===============================================================================
DHCP server dhcpv6 router 10
===============================================================================
Admin State : inService
Operational State : inService
Persistency State : shutdown
Use Link Address : disabled
Use pool from client : enabled
Creation Origin : manual
Lease Hold Time : 0h0m0s
Lease Hold Time For : N/A
User-ident : duid
Interface-id-mapping : disabled
Ignore-rapid-commit : disabled
Allow-lease-query : disabled
Auto-provisioned : false
Failover Admin State : outOfService
Failover Oper State : shutdown
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Pool name : dhcpv6-1
-------------------------------------------------------------------------------
Failover Admin State : inService
Failover Oper State : normal
Failover Persist Key : N/A
Administrative MCLT : 0h10m0s
Operational MCLT : 0h10m0s
Startup wait time : 0h2m0s
Partner down delay : 23h59m59s
Ignore MCLT : disabled
-------------------------------------------------------------------------------
Prefix
Stable Declined Advert Rem-pend Drain
-------------------------------------------------------------------------------
2001:db8:bbbb::/56
(A) 40 0 0 0 N
2001:db8:bbbb:100::/56
(A) 0 0 0 0 N
Totals for pool 40 0 0 0
-------------------------------------------------------------------------------
Totals for server 40 0 0 0
-------------------------------------------------------------------------------
Interface associations
Interface Admin
-------------------------------------------------------------------------------
loopback-1 Up
-------------------------------------------------------------------------------
Local Address Assignment associations
Group interface Admin
-------------------------------------------------------------------------------
No associated firewall domains found.
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp local-dhcp-server "dhcpv4" leases
===============================================================================
Leases for DHCP server dhcpv4 router 10
===============================================================================
IP Address Lease State Mac Address Remaining Clnt Fail
PPP user name/Opt82 Circuit Id LifeTime Type Ctrl
User-db/Sticky-lease Hostname
-------------------------------------------------------------------------------
10.10.0.10 stable 00:13:01:00:00:02 0h23m42s dhcp local
cid-2
10.10.0.11 stable 00:13:01:00:00:05 0h23m42s dhcp local
cid-5
10.10.0.12 stable 00:13:01:00:00:01 0h23m42s dhcp local
cid-1
10.10.0.13 stable 00:13:01:00:00:0a 0h23m42s dhcp local
cid-10
10.10.0.14 stable 00:13:01:00:00:03 0h23m42s dhcp local
cid-3
10.10.0.15 stable 00:13:01:00:00:09 0h23m42s dhcp local
cid-9
10.10.0.16 stable 00:13:01:00:00:08 0h23m43s dhcp local
cid-8
10.10.0.17 stable 00:13:01:00:00:04 0h23m44s dhcp local
cid-4
10.10.0.18 stable 00:13:01:00:00:07 0h23m44s dhcp local
cid-7
10.10.0.19 stable 00:13:01:00:00:06 0h23m44s dhcp local
cid-6
10.10.1.10 internal N/A N/A ppp N/A
10.10.1.11 internal N/A N/A ppp N/A
10.10.1.12 internal N/A N/A ppp N/A
10.10.1.13 internal N/A N/A ppp N/A
10.10.1.14 internal N/A N/A ppp N/A
10.10.1.15 internal N/A N/A ppp N/A
10.10.1.16 internal N/A N/A ppp N/A
10.10.1.17 internal N/A N/A ppp N/A
10.10.1.18 internal N/A N/A ppp N/A
10.10.1.19 internal N/A N/A ppp N/A
-------------------------------------------------------------------------------
20 leases found
===============================================================================
[/]
A:admin@bng-1#
[/]
A:admin@bng-1# /show router 10 dhcp6 local-dhcp-server "dhcpv6" leases
===============================================================================
Leases for DHCPv6 server dhcpv6
===============================================================================
IP Address/Prefix Lease State Remaining Fail
Link-local Address LifeTime Ctrl
-------------------------------------------------------------------------------
2001:db8:bbbb::1/64
fe80::213:1ff:fe00:1 stable 1d0h13m local
2001:db8:bbbb:1::/64
fe80::213:1ff:fe00:1 stable 1d0h13m local
2001:db8:bbbb:2::1/64
fe80::213:1ff:fe00:2 stable 1d0h13m local
2001:db8:bbbb:3::/64
fe80::213:1ff:fe00:2 stable 1d0h13m local
2001:db8:bbbb:4::1/64
fe80::213:1ff:fe00:5 stable 1d0h13m local
2001:db8:bbbb:5::/64
fe80::213:1ff:fe00:5 stable 1d0h13m local
2001:db8:bbbb:6::1/64
fe80::213:1ff:fe00:8 stable 1d0h13m local
2001:db8:bbbb:7::/64
fe80::213:1ff:fe00:8 stable 1d0h13m local
2001:db8:bbbb:8::1/64
fe80::213:1ff:fe00:4 stable 1d0h13m local
2001:db8:bbbb:9::/64
fe80::213:1ff:fe00:4 stable 1d0h13m local
2001:db8:bbbb:a::1/64
fe80::213:1ff:fe00:7 stable 1d0h13m local
2001:db8:bbbb:b::/64
fe80::213:1ff:fe00:7 stable 1d0h13m local
2001:db8:bbbb:c::1/64
fe80::213:1ff:fe00:3 stable 1d0h13m local
2001:db8:bbbb:d::/64
fe80::213:1ff:fe00:3 stable 1d0h13m local
2001:db8:bbbb:e::1/64
fe80::213:1ff:fe00:6 stable 1d0h13m local
2001:db8:bbbb:f::/64
fe80::213:1ff:fe00:6 stable 1d0h13m local
2001:db8:bbbb:10::1/64
fe80::213:1ff:fe00:a stable 1d0h8m local
2001:db8:bbbb:11::/64
fe80::213:1ff:fe00:a stable 1d0h8m local
2001:db8:bbbb:12::1/64
fe80::213:1ff:fe00:9 stable 1d0h8m local
2001:db8:bbbb:13::/64
fe80::213:1ff:fe00:9 stable 1d0h8m local
2001:db8:bbbb:14::1/64
fe80::1:2:1:1 stable 1d0h13m local
2001:db8:bbbb:15::/64
fe80::1:2:1:1 stable 1d0h13m local
2001:db8:bbbb:16::1/64
fe80::3:2:3:1 stable 1d0h13m local
2001:db8:bbbb:17::/64
fe80::3:2:3:1 stable 1d0h13m local
2001:db8:bbbb:18::1/64
fe80::2:2:2:1 stable 1d0h13m local
2001:db8:bbbb:19::/64
fe80::2:2:2:1 stable 1d0h13m local
2001:db8:bbbb:1a::1/64
fe80::4:2:4:1 stable 1d0h13m local
2001:db8:bbbb:1b::/64
fe80::4:2:4:1 stable 1d0h13m local
2001:db8:bbbb:1c::1/64
fe80::5:2:5:1 stable 1d0h13m local
2001:db8:bbbb:1d::/64
fe80::5:2:5:1 stable 1d0h13m local
2001:db8:bbbb:1e::1/64
fe80::6:2:6:1 stable 1d0h13m local
2001:db8:bbbb:1f::/64
fe80::6:2:6:1 stable 1d0h13m local
2001:db8:bbbb:20::1/64
fe80::7:2:7:1 stable 1d0h13m local
2001:db8:bbbb:21::/64
fe80::7:2:7:1 stable 1d0h13m local
2001:db8:bbbb:22::1/64
fe80::8:2:8:1 stable 1d0h13m local
2001:db8:bbbb:23::/64
fe80::8:2:8:1 stable 1d0h13m local
2001:db8:bbbb:24::1/64
fe80::9:2:9:1 stable 1d0h13m local
2001:db8:bbbb:25::/64
fe80::9:2:9:1 stable 1d0h13m local
2001:db8:bbbb:26::1/64
fe80::a:2:a:1 stable 1d0h13m local
2001:db8:bbbb:27::/64
fe80::a:2:a:1 stable 1d0h13m local
-------------------------------------------------------------------------------
40 leases found
===============================================================================
Show commands on P-1
A:admin@p-1# /show port
===============================================================================
Ports on Slot 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
1/1/c1 Up Link Up conn 100GBASE-LR4*
1/1/c1/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/2 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/3 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/4 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/6 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/7 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/9 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/10 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2 Up Link Up conn 100G CWDM4 M*
1/1/c2/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c2/2 Down No Down 8936 8936 - hybr dotq xgige
1/1/c2/3 Down No Down 8936 8936 - hybr dotq xgige
1/1/c2/4 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/6 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/7 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/10 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3 Up Link Up conn 100G CLR4 *
1/1/c3/1 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/2 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/3 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/4 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/6 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/7 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/10 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c4 Up Link Up conn 100GBASE-LR4*
1/1/c4/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c4/2 Down No Down 8936 8936 - netw null xgige
1/1/c4/3 Down No Down 8936 8936 - netw null xgige
1/1/c4/4 Down No Down 8936 8936 - netw null xgige
1/1/c5 Down Down conn 100G CWDM4 M*
1/1/c6 Down Down conn 100G CLR4 *
1/2/c1 Down Down conn 100GBASE-LR4*
1/2/c2 Down Down conn 100G CWDM4 M*
1/2/c3 Down Down conn 100G CLR4 *
1/2/c4 Down Down conn 100GBASE-LR4*
1/2/c5 Down Down conn 100G CWDM4 M*
1/2/c6 Down Down conn 100G CLR4 *
===============================================================================
Ports on Slot A
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
A/1 Up Yes Up 1514 1514 - netw null faste MDI
A/3 Down No Down 1514 1514 - netw null faste
A/4 Down No Down 1514 1514 - netw null faste
===============================================================================
Ports on Port Cross Connect 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-1.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-1.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
Ports on Port Cross Connect 2
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-2.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-2.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router interface
===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
_tmnx_fpe_1.a Up Up/Up Network pxc-1.a:1
fe80::100/64 PREFERRED
_tmnx_fpe_1.b Up Up/Up Network pxc-1.b:1
fe80::101/64 PREFERRED
_tmnx_fpe_2.a Up Up/Up Network pxc-2.a:1
fe80::200/64 PREFERRED
_tmnx_fpe_2.b Up Up/Up Network pxc-2.b:1
fe80::201/64 PREFERRED
int-1-p-1-bng-1 Up Down/Up Network 1/1/c2/1:1
2001:db8::502/120 PREFERRED
fe80::b69e:ffff:fe00:0/64 PREFERRED
int-1-p-1-p-2 Up Down/Up Network 1/1/c1/9:1
2001:db8::a01/120 PREFERRED
fe80::b69e:ffff:fe00:0/64 PREFERRED
int-1-p-1-pe-1 Up Down/Up Network 1/1/c1/1:1
2001:db8::102/120 PREFERRED
fe80::b69e:ffff:fe00:0/64 PREFERRED
system Up Up/Up Network system
192.0.2.4/32 n/a
2001:db8::4/128 PREFERRED
to-radius Up Up/Down Network 1/1/c3/10:114
192.168.114.4/24 n/a
-------------------------------------------------------------------------------
Interfaces : 9
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show fwd-path-ext fpe 1
===============================================================================
FPE Id: 1
===============================================================================
Description : (Not Specified)
Multi-Path : Disabled
Path : pxc 1
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : origination
If-A Qos Policy : default
If-B MTU : 9786 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show fwd-path-ext fpe 2
===============================================================================
FPE Id: 2
===============================================================================
Description : (Not Specified)
Multi-Path : Disabled
Path : pxc 2
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : termination
If-A Qos Policy : default
If-B MTU : 0 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router segment-routing-v6 base-routing-instance all
===============================================================================
Segment Routing v6 Base Routing Instance
===============================================================================
Locator
Type Function SID Status/InstId
SRH-mode Protection Interface
-------------------------------------------------------------------------------
p-1-loc
End 1 2001:db8:aaaa:4:0:1000:: ok
USP
-------------------------------------------------------------------------------
Auto-allocated End.X: USP Protected,
-------------------------------------------------------------------------------
End.X *2 2001:db8:aaaa:4:0:2000:: 0
USP Protected int-1-p-1-pe-1
ISIS Level: L2 Mac Address: b4:9f:01:01:00:01 Nbr Sys Id: 1920.0000.2005
End.X *4 2001:db8:aaaa:4:0:4000:: 0
USP Protected int-1-p-1-p-2
ISIS Level: L2 Mac Address: b4:a1:01:01:00:09 Nbr Sys Id: 1920.0000.2010
End.X *5 2001:db8:aaaa:4:0:5000:: 0
USP Protected int-1-p-1-bng-1
ISIS Level: L2 Mac Address: b4:99:01:01:00:01 Nbr Sys Id: 1920.0000.2020
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
===============================================================================
Micro Segment Routing v6 Base Routing Instance
===============================================================================
Micro Segment Locator
Type Function SID Status/InstId
SRH-mode Oper Func Interface Protection
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router segment-routing-v6 local-sid context "Base"
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:4:0:1000:: End 1
p-1-loc
Base
-------------------------------------------------------------------------------
SIDs : 1
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router route-table ipv6
===============================================================================
IPv6 Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::4/128 Local Local 02d03h09m 0
system 0
2001:db8::5/128 [L] Remote ISIS 02d03h08m 18
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 10
2001:db8::a/128 [L] Remote ISIS 02d03h08m 18
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 10
2001:db8::14/128 Remote ISIS 01d23h20m 18
fe80::b696:ffff:fe00:0-"int-1-p-1-bng-1" 10
2001:db8::15/128 [L] Remote ISIS 02d03h08m 18
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 20
2001:db8::100/120 Local Local 02d03h08m 0
int-1-p-1-pe-1 0
2001:db8::200/120 [L] Remote ISIS 02d03h08m 18
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 20
2001:db8::500/120 Local Local 02d03h08m 0
int-1-p-1-bng-1 0
2001:db8::600/120 [L] Remote ISIS 02d03h08m 18
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 20
2001:db8::a00/120 Local Local 02d03h08m 0
int-1-p-1-p-2 0
2001:db8::6400/120 [L] Remote ISIS 02d03h08m 18
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 20
2001:db8:aaaa:4::/64 Local SRV6 02d03h08m 3
fe80::201-"_tmnx_fpe_2.a" 0
2001:db8:aaaa:4:0:1000::/128 Local SRV6 02d03h09m 3
Black Hole 0
2001:db8:aaaa:4:0:2000::/128 Local ISIS 02d03h08m 18
2001:db8:aaaa:4:0:2000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:4:0:4000::/128 Local ISIS 02d03h08m 18
2001:db8:aaaa:4:0:4000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:4:0:5000::/128 Local ISIS 01d23h20m 18
2001:db8:aaaa:4:0:5000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:5::/64 Remote ISIS 02d03h08m 18
2001:db8:aaaa:5::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:a::/64 Remote ISIS 02d03h08m 18
2001:db8:aaaa:a::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:14::/64 Remote ISIS 01d23h20m 18
2001:db8:aaaa:14::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:15::/64 Remote ISIS 02d03h08m 18
2001:db8:aaaa:15::/64 (tunneled:SRV6-ISIS) 30
-------------------------------------------------------------------------------
No. of Routes: 20
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router tunnel-table ipv6
===============================================================================
IPv6 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref
Nexthop Color Metric
-------------------------------------------------------------------------------
2001:db8:aaaa:4:0:2000::/128 [L] srv6-isis SRV6 524289 0
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 10
2001:db8:aaaa:4:0:4000::/128 [L] srv6-isis SRV6 524293 0
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 10
2001:db8:aaaa:4:0:5000::/128 srv6-isis SRV6 524300 0
fe80::b696:ffff:fe00:0-"int-1-p-1-bng-1" 10
2001:db8:aaaa:5::/64 [L] srv6-isis SRV6 524290 0
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 20
2001:db8:aaaa:a::/64 [L] srv6-isis SRV6 524294 0
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 20
2001:db8:aaaa:14::/64 srv6-isis SRV6 524301 0
fe80::b696:ffff:fe00:0-"int-1-p-1-bng-1" 20
2001:db8:aaaa:15::/64 [L] srv6-isis SRV6 524295 0
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 30
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router fp-tunnel-table 1 ipv6
===============================================================================
IPv6 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
2001:db8:aaaa:5::/64 SRV6 524290
-
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 1/1/c1/1:1
-
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2"(B) 1/1/c1/9:1
2001:db8:aaaa:a::/64 SRV6 524294
-
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 1/1/c1/9:1
-
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1"(B) 1/1/c1/1:1
2001:db8:aaaa:14::/64 SRV6 524301
-
fe80::b696:ffff:fe00:0-"int-1-p-1-bng-1" 1/1/c2/1:1
2001:db8:aaaa:15::/64 SRV6 524295
-
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 1/1/c1/9:1
-
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1"(B) 1/1/c1/1:1
2001:db8:aaaa:4:0:2000::/128 SRV6 524289
-
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1" 1/1/c1/1:1
2001:db8:aaaa:5:0:1000::
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2"(B) 1/1/c1/9:1
2001:db8:aaaa:4:0:4000::/128 SRV6 524293
-
fe80::b6a1:ffff:fe00:0-"int-1-p-1-p-2" 1/1/c1/9:1
2001:db8:aaaa:a:0:1000::
fe80::b69f:ffff:fe00:0-"int-1-p-1-pe-1"(B) 1/1/c1/1:1
2001:db8:aaaa:4:0:5000::/128 SRV6 524300
-
fe80::b696:ffff:fe00:0-"int-1-p-1-bng-1" 1/1/c2/1:1
-------------------------------------------------------------------------------
Total Entries : 7
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router isis adjacency
===============================================================================
Rtr Base ISIS Instance 0 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
bng-1 L2 Up 22 int-1-p-1-bng-1 0
p-2 L2 Up 7 int-1-p-1-p-2 0
pe-1 L2 Up 7 int-1-p-1-pe-1 0
-------------------------------------------------------------------------------
Adjacencies : 3
===============================================================================
[/]
A:admin@p-1#
[/]
A:admin@p-1# /show router isis database
===============================================================================
Rtr Base ISIS Instance 0 Database
===============================================================================
LSP ID Sequence Checksum Lifetime Attributes
-------------------------------------------------------------------------------
Displaying Level 1 database
-------------------------------------------------------------------------------
Level (1) LSP Count : 0
Displaying Level 2 database
-------------------------------------------------------------------------------
p-1.00-00 0x13e 0x8dfc 952 L1L2
p-1.01-00 0x135 0x4b04 1027 L1L2
pe-1.00-00 0x13a 0x639f 1012 L1L2
pe-1.01-00 0x133 0xe585 626 L1L2
p-2.00-00 0x137 0xfd42 647 L1L2
p-2.01-00 0x136 0x6bc9 1146 L1L2
p-2.02-00 0x136 0xe36d 1149 L1L2
p-2.03-00 0x133 0xf859 886 L1L2
bng-1.00-00 0x13e 0x1410 947 L1L2
bng-2.00-00 0x138 0x757c 837 L1L2
Level (2) LSP Count : 10
===============================================================================
[/]
Show commands on PE-1
A:admin@pe-1# /show port
===============================================================================
Ports on Slot 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
1/1/c1 Up Link Up conn 100GBASE-LR4*
1/1/c1/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/2 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/3 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/4 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/5 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/6 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/7 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/8 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c1/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c1/10 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2 Up Link Up conn 100G CWDM4 M*
1/1/c2/1 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/2 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/3 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/4 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/6 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/7 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c2/10 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3 Up Link Up conn 100G CLR4 *
1/1/c3/1 Up Yes Up 8936 8936 - hybr qinq xgige
1/1/c3/2 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/3 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/4 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/5 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/6 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/7 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/8 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/9 Up No Down 8936 8936 - hybr dotq xgige
1/1/c3/10 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c4 Up Link Up conn 100GBASE-LR4*
1/1/c4/1 Up Yes Up 8936 8936 - hybr dotq xgige
1/1/c4/2 Down No Down 8936 8936 - netw null xgige
1/1/c4/3 Down No Down 8936 8936 - netw null xgige
1/1/c4/4 Down No Down 8936 8936 - netw null xgige
1/1/c5 Down Down conn 100G CWDM4 M*
1/1/c6 Down Down conn 100G CLR4 *
1/2/c1 Down Down conn 100GBASE-LR4*
1/2/c2 Down Down conn 100G CWDM4 M*
1/2/c3 Down Down conn 100G CLR4 *
1/2/c4 Down Down conn 100GBASE-LR4*
1/2/c5 Down Down conn 100G CWDM4 M*
1/2/c6 Down Down conn 100G CLR4 *
1/2/m1/1 Down Link Up anchor
===============================================================================
Ports on Slot A
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
A/1 Up Yes Up 1514 1514 - netw null faste MDI
A/3 Down No Down 1514 1514 - netw null faste
A/4 Down No Down 1514 1514 - netw null faste
===============================================================================
Ports on Port Cross Connect 1
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-1.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-1.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
Ports on Port Cross Connect 2
===============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port C/QS/S/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
-------------------------------------------------------------------------------
pxc-2.a Up Yes Up 8932 8932 - hybr dotq xgige
pxc-2.b Up Yes Up 8932 8932 - hybr dotq xgige
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router interface
===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
_tmnx_fpe_1.a Up Up/Up Network pxc-1.a:1
fe80::100/64 PREFERRED
_tmnx_fpe_1.b Up Up/Up Network pxc-1.b:1
fe80::101/64 PREFERRED
_tmnx_fpe_2.a Up Up/Up Network pxc-2.a:1
fe80::200/64 PREFERRED
_tmnx_fpe_2.b Up Up/Up Network pxc-2.b:1
fe80::201/64 PREFERRED
int-1-pe-1-p-1 Up Down/Up Network 1/1/c1/1:1
2001:db8::101/120 PREFERRED
fe80::b69f:ffff:fe00:0/64 PREFERRED
int-1-pe-1-p-2 Up Down/Up Network 1/1/c1/5:1
2001:db8::201/120 PREFERRED
fe80::b69f:ffff:fe00:0/64 PREFERRED
system Up Up/Up Network system
192.0.2.5/32 n/a
2001:db8::5/128 PREFERRED
to-ixia Up Up/Up Network 1/1/c3/1:1.1
172.16.100.1/24 n/a
2001:db8::6401/120 PREFERRED
fe80::b69f:ffff:fe00:0/64 PREFERRED
to-radius Up Up/Down Network 1/1/c3/10:114
192.168.114.5/24 n/a
-------------------------------------------------------------------------------
Interfaces : 9
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show fwd-path-ext fpe 1
===============================================================================
FPE Id: 1
===============================================================================
Description : (Not Specified)
Multi-Path : Disabled
Path : pxc 1
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : origination
If-A Qos Policy : default
If-B MTU : 9786 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show fwd-path-ext fpe 2
===============================================================================
FPE Id: 2
===============================================================================
Description : (Not Specified)
Multi-Path : Disabled
Path : pxc 2
Pw Port Extension : Disabled Oper : down
Sub Mgmt Extension : Disabled Oper : N/A
Vxlan : Disabled Oper : down
Segment-Routing V6 : Enabled Oper : up
SRv6 Type : termination
If-A Qos Policy : default
If-B MTU : 0 bytes Oper MTU : 8914 bytes
If-B Qos Policy : default
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show service id "dual-homing" base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 11 Vpn Id : 0
Service Type : Epipe
MACSec enabled : no
Name : dual-homing
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 11/12/2022 15:58:53
Last Mgmt Change : 11/12/2022 12:08:24
Test Service : No
Admin State : Up Oper State : Up
MTU : 1514
Vc Switching : False
SAP Count : 1 SDP Bind Count : 0
Per Svc Hashing : Disabled Lbl Eth/IP L4 TEID: Disabled
Ignore MTU Mismat*: Disabled
Vxlan Src Tep Ip : N/A
Force QTag Fwd : Disabled
Lcl Switch Svc St : sap
Oper Group : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sap:1/1/c3/1:*.* qinq 8936 8936 Up Up
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show service id "dual-homing" bgp-evpn
===============================================================================
BGP EVPN Table
===============================================================================
EVI : 11 Creation Origin : manual
-------------------------------------------------------------------------------
Local AC Name Eth Tag Endpoint Ingress Label
-------------------------------------------------------------------------------
access 1 0
-------------------------------------------------------------------------------
Number of local ACs : 1
-------------------------------------------------------------------------------
Remote AC Name Eth Tag Endpoint
-------------------------------------------------------------------------------
bng 2
-------------------------------------------------------------------------------
Number of Remote ACs : 1
===============================================================================
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Admin State : Enabled
Srv6 Instance : 1
Default Locator : pe-1-loc
Oper Group : (Not Specified)
Default Route Tag : 0xb
Source Address : 2001:db8::5
ECMP : 1
Force Vlan VC Fwd : disabled
Next Hop Type : system-ipv6
Evi 3-byte Auto-RT : disabled
Route Resolution : fallback-tunnel-to-route-table
Force QinQ VC Fwd : none
MH Mode : network
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router bgp routes evpn auto-disc tag 2 detail
===============================================================================
BGP Router ID:192.0.2.5 AS:64500 Local AS:64500
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP EVPN Auto-Disc Routes
===============================================================================
Original Attributes
Network : n/a
Nexthop : 2001:db8::14
Path Id : None
From : 2001:db8::14
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-pe-1-p-1
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:20 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 1 B: 0
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.20
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : 01:01:01:01:01:01:01:01:01:01
Tag : 2
Route Dist. : 192.0.2.20:11
MPLS Label : 524286
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h16m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:e000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Modified Attributes
Network : n/a
Nexthop : 2001:db8::14
Path Id : None
From : 2001:db8::14
Res. Nexthop : fe80::b69e:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-pe-1-p-1
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:20 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 1 B: 0
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.20
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : 01:01:01:01:01:01:01:01:01:01
Tag : 2
Route Dist. : 192.0.2.20:11
MPLS Label : 524286
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h16m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:14::
Full Sid : 2001:db8:aaaa:14:7fff:e000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
Original Attributes
Network : n/a
Nexthop : 2001:db8::15
Path Id : None
From : 2001:db8::15
Res. Nexthop : fe80::b6a1:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-pe-1-p-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:30 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 1
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : 01:01:01:01:01:01:01:01:01:01
Tag : 2
Route Dist. : 192.0.2.21:11
MPLS Label : 524286
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h16m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:15::
Full Sid : 2001:db8:aaaa:15:7fff:e000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
Modified Attributes
Network : n/a
Nexthop : 2001:db8::15
Path Id : None
From : 2001:db8::15
Res. Nexthop : fe80::b6a1:ffff:fe00:0
Local Pref. : 100 Interface Name : int-1-pe-1-p-2
Aggregator AS : None Aggregator : None
Atomic Aggr. : Not Atomic MED : None
AIGP Metric : None IGP Cost : 30
Connector : None
Community : color:00:30 target:64500:11
l2-attribute:MTU: 1514 C: 0 P: 0 B: 1
Cluster : No Cluster Members
Originator Id : None Peer Router Id : 192.0.2.21
Flags : Used Valid Best IGP
Route Source : Internal
AS-Path : No As-Path
EVPN type : AUTO-DISC
ESI : 01:01:01:01:01:01:01:01:01:01
Tag : 2
Route Dist. : 192.0.2.21:11
MPLS Label : 524286
Route Tag : 0
Neighbor-AS : n/a
Orig Validation: N/A
Source Class : 0 Dest Class : 0
Add Paths Send : Default
Last Modified : 01d23h16m
SRv6 TLV Type : SRv6 L2 Service TLV (6)
SRv6 SubTLV : SRv6 SID Information (1)
Sid : 2001:db8:aaaa:15::
Full Sid : 2001:db8:aaaa:15:7fff:e000::
Behavior : End.DX2 (21)
SRv6 SubSubTLV : SRv6 SID Structure (1)
Loc-Block-Len : 48 Loc-Node-Len : 16
Func-Len : 20 Arg-Len : 0
Tpose-Len : 20 Tpose-offset : 64
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Routes : 2
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show service id "dual-homing" segment-routing-v6 detail
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
pe-1-loc
End.DX2 *524288 2001:db8:aaaa:5:8000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show service id "dual-homing" segment-routing-v6 instance 1 destinations
===============================================================================
TEP, SID
===============================================================================
Instance TEP Address Segment Id
-------------------------------------------------------------------------------
No Matching Entries
===============================================================================
===============================================================================
Segment Routing v6 Ethernet Segment Dest
===============================================================================
Instance Eth SegId Num. Macs Last Change
-------------------------------------------------------------------------------
1 01:01:01:01:01:01:01:01:01:01 0 11/12/2022 15:58:53
-------------------------------------------------------------------------------
Number of entries: 1
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show service id "dual-homing" segment-routing-v6 instance 1 end-dx2
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
pe-1-loc
End.DX2 *524288 2001:db8:aaaa:5:8000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show service id "dual-homing" segment-routing-v6 instance 1 locator "pe-1-loc"
===============================================================================
Segment Routing v6 Instance 1 Service 11
===============================================================================
Locator
Type Function SID Status
-------------------------------------------------------------------------------
pe-1-loc
End.DX2 *524288 2001:db8:aaaa:5:8000:: ok
===============================================================================
Legend: * - System allocated
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router segment-routing-v6 base-routing-instance all
===============================================================================
Segment Routing v6 Base Routing Instance
===============================================================================
Locator
Type Function SID Status/InstId
SRH-mode Protection Interface
-------------------------------------------------------------------------------
pe-1-loc
End 1 2001:db8:aaaa:5:0:1000:: ok
USP
-------------------------------------------------------------------------------
Auto-allocated End.X: USP Protected,
-------------------------------------------------------------------------------
End.X *524289 2001:db8:aaaa:5:8000:1000:: 0
USP Protected int-1-pe-1-p-1
ISIS Level: L2 Mac Address: b4:9e:01:01:00:01 Nbr Sys Id: 1920.0000.2004
End.X *524290 2001:db8:aaaa:5:8000:2000:: 0
USP Protected int-1-pe-1-p-2
ISIS Level: L2 Mac Address: b4:a1:01:01:00:05 Nbr Sys Id: 1920.0000.2010
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
===============================================================================
Micro Segment Routing v6 Base Routing Instance
===============================================================================
Micro Segment Locator
Type Function SID Status/InstId
SRH-mode Oper Func Interface Protection
-------------------------------------------------------------------------------
===============================================================================
Legend: * - System allocated
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router segment-routing-v6 local-sid context "Base"
===============================================================================
Segment Routing v6 Local SIDs
===============================================================================
SID Type Function
Locator
Context
-------------------------------------------------------------------------------
2001:db8:aaaa:5:0:1000:: End 1
pe-1-loc
Base
-------------------------------------------------------------------------------
SIDs : 1
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router route-table ipv6
===============================================================================
IPv6 Route Table (Router: Base)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
2001:db8::4/128 [L] Remote ISIS 02d03h05m 18
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 10
2001:db8::5/128 Local Local 02d03h06m 0
system 0
2001:db8::a/128 [L] Remote ISIS 02d03h05m 18
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 10
2001:db8::14/128 [L] Remote ISIS 01d23h17m 18
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 20
2001:db8::15/128 [L] Remote ISIS 02d03h05m 18
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 20
2001:db8::100/120 Local Local 02d03h06m 0
int-1-pe-1-p-1 0
2001:db8::200/120 Local Local 02d03h06m 0
int-1-pe-1-p-2 0
2001:db8::500/120 [L] Remote ISIS 02d03h05m 18
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 20
2001:db8::600/120 [L] Remote ISIS 02d03h05m 18
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 20
2001:db8::a00/120 [L] Remote ISIS 02d03h05m 18
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 20
2001:db8::6400/120 Local Local 02d03h06m 0
to-ixia 0
2001:db8:aaaa:4::/64 Remote ISIS 02d03h05m 18
2001:db8:aaaa:4::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:5::/64 Local SRV6 02d03h06m 3
fe80::201-"_tmnx_fpe_2.a" 0
2001:db8:aaaa:5:0:1000::/128 Local SRV6 02d03h06m 3
Black Hole 0
2001:db8:aaaa:5:0:6000::/128 Local SRV6-Pol* 02d03h06m 14
2001:db8::15 (tunneled:SRV6-Policy:917507) 1
2001:db8:aaaa:5:0:7000::/128 Local SRV6-Pol* 02d03h05m 14
2001:db8::14 (tunneled:SRV6-Policy:917506) 1
2001:db8:aaaa:5:8000:1000::/128 Local ISIS 02d03h05m 18
2001:db8:aaaa:5:8000:1000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:5:8000:2000::/128 Local ISIS 02d03h05m 18
2001:db8:aaaa:5:8000:2000:: (tunneled:SRV6-ISIS) 10
2001:db8:aaaa:a::/64 Remote ISIS 02d03h05m 18
2001:db8:aaaa:a::/64 (tunneled:SRV6-ISIS) 20
2001:db8:aaaa:14::/64 Remote ISIS 01d23h17m 18
2001:db8:aaaa:14::/64 (tunneled:SRV6-ISIS) 30
2001:db8:aaaa:15::/64 Remote ISIS 02d03h05m 18
2001:db8:aaaa:15::/64 (tunneled:SRV6-ISIS) 30
-------------------------------------------------------------------------------
No. of Routes: 21
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
* indicates that the corresponding row element may have been truncated.
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router tunnel-table ipv6
===============================================================================
IPv6 Tunnel Table (Router: Base)
===============================================================================
Destination Owner Encap TunnelId Pref
Nexthop Color Metric
-------------------------------------------------------------------------------
2001:db8::14/128 srv6-pol SRV6 917506 14
fpe_1.a 20 0
2001:db8::15/128 srv6-pol SRV6 917507 14
fpe_1.a 30 0
2001:db8:aaaa:4::/64 [L] srv6-isis SRV6 524290 0
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 20
2001:db8:aaaa:5:8000:1000::/128 [L] srv6-isis SRV6 524289 0
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 10
2001:db8:aaaa:5:8000:2000::/128 [L] srv6-isis SRV6 524292 0
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 10
2001:db8:aaaa:a::/64 [L] srv6-isis SRV6 524293 0
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 20
2001:db8:aaaa:14::/64 [L] srv6-isis SRV6 524297 0
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 30
2001:db8:aaaa:15::/64 [L] srv6-isis SRV6 524294 0
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 30
-------------------------------------------------------------------------------
Flags: B = BGP or MPLS backup hop available
L = Loop-Free Alternate (LFA) hop available
E = Inactive best-external BGP route
k = RIB-API or Forwarding Policy backup hop
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router fp-tunnel-table 1 ipv6
===============================================================================
IPv6 Tunnel Table Display
Legend:
label stack is ordered from bottom-most to top-most
B - FRR Backup
===============================================================================
Destination Protocol Tunnel-ID
Lbl/SID
NextHop Intf/Tunnel
Lbl/SID (backup)
NextHop (backup)
-------------------------------------------------------------------------------
2001:db8:aaaa:4::/64 SRV6 524290
-
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 1/1/c1/1:1
-
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2"(B) 1/1/c1/5:1
2001:db8:aaaa:a::/64 SRV6 524293
-
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 1/1/c1/5:1
-
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1"(B) 1/1/c1/1:1
2001:db8:aaaa:14::/64 SRV6 524297
-
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 1/1/c1/1:1
-
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2"(B) 1/1/c1/5:1
2001:db8:aaaa:15::/64 SRV6 524294
-
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 1/1/c1/5:1
-
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1"(B) 1/1/c1/1:1
2001:db8::14/128 SRV6-Policy -
2001:db8:aaaa:4:0:1000::/2001:db8:aaaa:a:0:1000::
0.140.1.1 pxc-1.b:1
2001:db8::15/128 SRV6-Policy -
2001:db8:aaaa:a:0:1000::/2001:db8:aaaa:4:0:1000::
0.140.1.1 pxc-1.b:1
2001:db8:aaaa:5:8000:1000::/128 SRV6 524289
-
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1" 1/1/c1/1:1
2001:db8:aaaa:4:0:1000::
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2"(B) 1/1/c1/5:1
2001:db8:aaaa:5:8000:2000::/128 SRV6 524292
-
fe80::b6a1:ffff:fe00:0-"int-1-pe-1-p-2" 1/1/c1/5:1
2001:db8:aaaa:a:0:1000::
fe80::b69e:ffff:fe00:0-"int-1-pe-1-p-1"(B) 1/1/c1/1:1
-------------------------------------------------------------------------------
Total Entries : 8
-------------------------------------------------------------------------------
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router bgp summary
===============================================================================
BGP Router ID:192.0.2.5 AS:64500 Local AS:64500
===============================================================================
BGP Admin State : Up BGP Oper State : Up
Total Peer Groups : 1 Total Peers : 2
Total VPN Peer Groups : 0 Total VPN Peers : 0
Current Internal Groups : 1 Max Internal Groups : 1
Total BGP Paths : 45 Total Path Memory : 16136
Total IPv4 Remote Rts : 0 Total IPv4 Rem. Active Rts : 0
Total IPv6 Remote Rts : 0 Total IPv6 Rem. Active Rts : 0
Total IPv4 Backup Rts : 0 Total IPv6 Backup Rts : 0
Total LblIpv4 Rem Rts : 0 Total LblIpv4 Rem. Act Rts : 0
Total LblIpv6 Rem Rts : 0 Total LblIpv6 Rem. Act Rts : 0
Total LblIpv4 Bkp Rts : 0 Total LblIpv6 Bkp Rts : 0
Total Supressed Rts : 0 Total Hist. Rts : 0
Total Decay Rts : 0
Total VPN-IPv4 Rem. Rts : 0 Total VPN-IPv4 Rem. Act. Rts: 0
Total VPN-IPv6 Rem. Rts : 0 Total VPN-IPv6 Rem. Act. Rts: 0
Total VPN-IPv4 Bkup Rts : 0 Total VPN-IPv6 Bkup Rts : 0
Total VPN Local Rts : 1 Total VPN Supp. Rts : 0
Total VPN Hist. Rts : 0 Total VPN Decay Rts : 0
Total MVPN-IPv4 Rem Rts : 0 Total MVPN-IPv4 Rem Act Rts : 0
Total MVPN-IPv6 Rem Rts : 0 Total MVPN-IPv6 Rem Act Rts : 0
Total MDT-SAFI Rem Rts : 0 Total MDT-SAFI Rem Act Rts : 0
Total McIPv4 Remote Rts : 0 Total McIPv4 Rem. Active Rts: 0
Total McIPv6 Remote Rts : 0 Total McIPv6 Rem. Active Rts: 0
Total McVpnIPv4 Rem Rts : 0 Total McVpnIPv4 Rem Act Rts : 0
Total McVpnIPv6 Rem Rts : 0 Total McVpnIPv6 Rem Act Rts : 0
Total EVPN Rem Rts : 4 Total EVPN Rem Act Rts : 4
Total L2-VPN Rem. Rts : 0 Total L2VPN Rem. Act. Rts : 0
Total MSPW Rem Rts : 0 Total MSPW Rem Act Rts : 0
Total RouteTgt Rem Rts : 0 Total RouteTgt Rem Act Rts : 0
Total FlowIpv4 Rem Rts : 0 Total FlowIpv4 Rem Act Rts : 0
Total FlowIpv6 Rem Rts : 0 Total FlowIpv6 Rem Act Rts : 0
Total FlowVpnv4 Rem Rts : 0 Total FlowVpnv4 Rem Act Rts : 0
Total FlowVpnv6 Rem Rts : 0 Total FlowVpnv6 Rem Act Rts : 0
Total Link State Rem Rts: 0 Total Link State Rem Act Rts: 0
Total SrPlcyIpv4 Rem Rts: 0 Total SrPlcyIpv4 Rem Act Rts: 0
Total SrPlcyIpv6 Rem Rts: 0 Total SrPlcyIpv6 Rem Act Rts: 0
===============================================================================
BGP Summary
===============================================================================
Legend : D - Dynamic Neighbor
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
2001:db8::14
64500 5682 0 01d23h17m 2/2/1 (Evpn)
5680 0
2001:db8::15
64500 6146 0 02d03h05m 2/2/1 (Evpn)
6135 0
-------------------------------------------------------------------------------
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router isis adjacency
===============================================================================
Rtr Base ISIS Instance 0 Adjacency
===============================================================================
System ID Usage State Hold Interface MT-ID
-------------------------------------------------------------------------------
p-1 L2 Up 26 int-1-pe-1-p-1 0
p-2 L2 Up 9 int-1-pe-1-p-2 0
-------------------------------------------------------------------------------
Adjacencies : 2
===============================================================================
[/]
A:admin@pe-1#
[/]
A:admin@pe-1# /show router isis database
===============================================================================
Rtr Base ISIS Instance 0 Database
===============================================================================
LSP ID Sequence Checksum Lifetime Attributes
-------------------------------------------------------------------------------
Displaying Level 1 database
-------------------------------------------------------------------------------
Level (1) LSP Count : 0
Displaying Level 2 database
-------------------------------------------------------------------------------
p-1.00-00 0x13e 0x8dfc 1100 L1L2
p-1.01-00 0x135 0x4b04 1175 L1L2
pe-1.00-00 0x13a 0x639f 1161 L1L2
pe-1.01-00 0x133 0xe585 775 L1L2
p-2.00-00 0x137 0xfd42 796 L1L2
p-2.01-00 0x135 0x6dc8 648 L1L2
p-2.02-00 0x135 0xe56c 752 L1L2
p-2.03-00 0x133 0xf859 1034 L1L2
bng-1.00-00 0x13e 0x1410 1095 L1L2
bng-2.00-00 0x138 0x757c 985 L1L2
Level (2) LSP Count : 10
===============================================================================
