This table provides the physical specifications for the indoor UMTS Macrocell cabinet.
|
Cabinets |
Configuration |
Weight (non-MCPA) kg (lb), estimate |
Max weight (MCPA) kg (lb), estimate |
Dimensions mm (inches) |
|
Primary cabinet single band (See Note 1) |
3S/1C, 40 watts |
280 (616) |
214 (472) |
600 x600 x 1880 (23.6 x 23.6 x 74) |
|
3S/2C, 40 watts |
297 (656) | |||
|
3S/3C, 40 watts (Future) |
309 (681) |
|||
|
3S/4C, 40 watts (Future) |
324 (714) | |||
|
Primary cabinet dual band |
3S/2C 1 (PCS) 1 (850) |
322 (709) |
243 (535) |
600 x600 x 1880 (23.6 x 23.6 x 74) |
|
3S/3C, 1 or 2 (PCS) 1 or 2 (850) |
348 (766) | |||
|
3S/4C (Future) 2 (PCS) 2 (850) |
350 (772) | |||
|
3GP24i power cabinet |
Equipped with 2 rectifier shelves and 2 battery shelves. |
481 (1060) |
600 x 600 x 1880 (23.6 x 23.6 x 74) | |
|
EZBFi battery frame (used with 3GP24i power cabinet) |
Maximum system (base system + 2 double shelf upgrades) + 20x batteries |
817 (1800) |
543 x 600 x 1842 (21.4 x 23.6 x 72.5) |
| 1 | |
| 2 | |
| 3 | Only two carriers are currently supported. |
The following table provides approximate weights for batteries and other miscellaneous hardware. The weights for other cabinet configurations can be calculated by adding or subtracting the weights given in the following table.
|
Item |
Weight kg (lb) |
|
Rectifier |
9 (20) |
|
Mounting plate |
11 (24) |
|
Pallet |
30 (65) |
|
L1 (KS24597) battery (100 Ah) |
38 (83) |

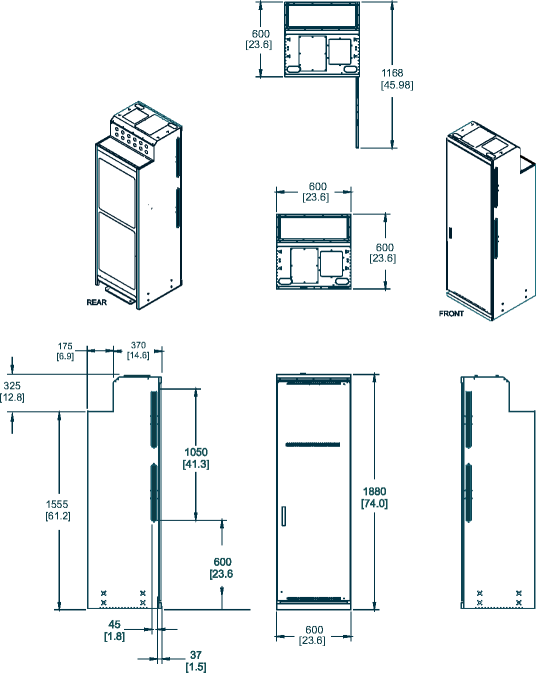

The following diagram shows the front, top, and side views of an indoor primary cabinet and its dimensions.

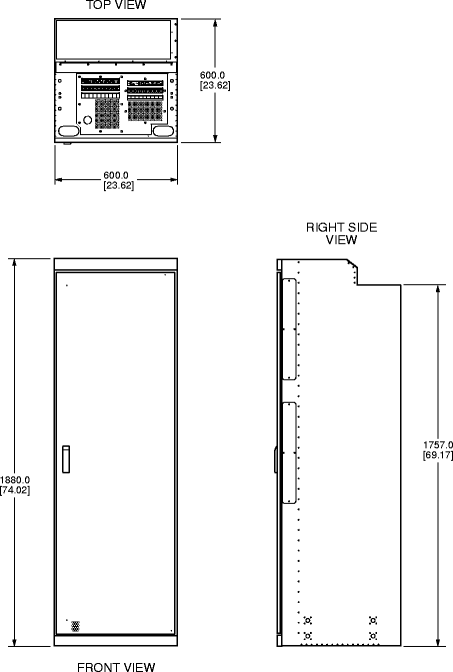

The following diagram shows the dimensions of the 3GP24i Power frame.

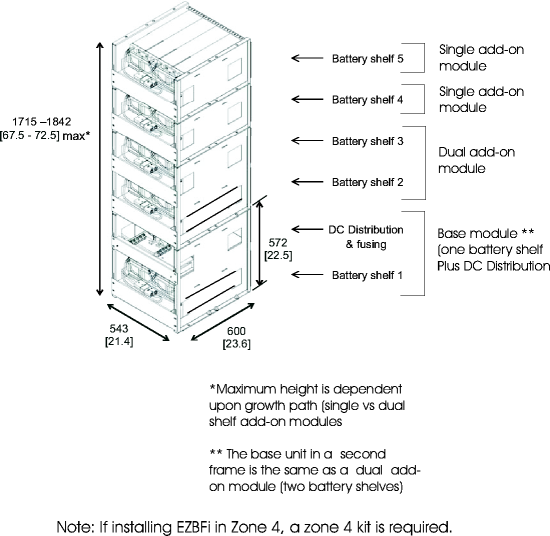

The following diagram shows the dimensions of the EZBFi.
|
|
