Procedure 3-53: Configure Upper Layers Common report

Use the following procedure to configure the OSI Network Element area:


1

Select Communication -> Network Domain -> OSI Mng -> OSI ULC Report option as shown in Figure 3-114, OSI NE area.

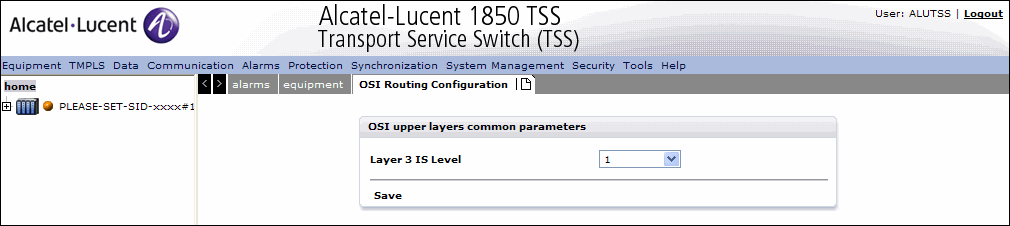

Figure 3-114: OSI NE area
OSI NE area+
2

Click to select the Layer 3 IS Level, to provision the IS level. The supported values are Level 1IS and Level 2IS.

3

Click Saveto save the OSI ULC report.

End of steps
