Select Data -> E-LAN Service Mgmt -> E-LAN Service from the menu bar as shown in Figure 3-150, ELAN service.

Figure 3-150: ELAN service

Click Search to view the E-LAN service list.

Click Create to configure a new E-LAN service as shown in Figure 3-151, Create E-LAN service.

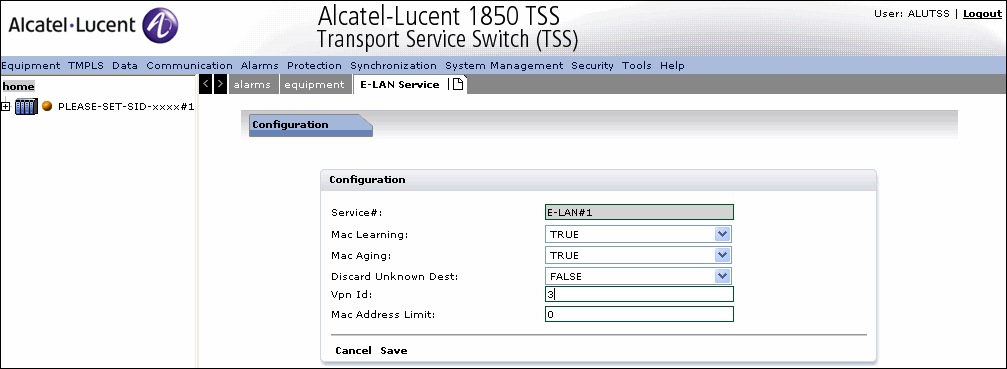

Figure 3-151: Create E-LAN service

Specify the configuration parameters as described in Table 3-69, E-LAN service parameters .

Table 3-69: E-LAN service parameters

Click Cancel to re-run to the previous window without saving the changes.

Click Save to save the changes and return to the previous window.

Click the UNI Port Binding tab to create the port binding as shown in Figure 3-152, UNI port Binding

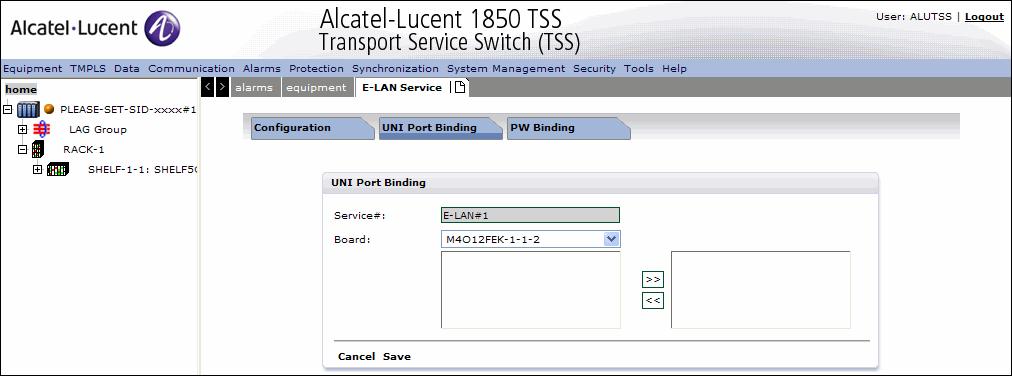

Figure 3-152: UNI port Binding

Select the Board from the drop-down, the list of associated ports are displayed. Bind the ports by selecting the port and clicking >>. To unbind a port from the binding, click to select the port from the right pane and click <<.

Click Save to save the port binding or click Cancel to cancel the binding.

Click the PW Binding tab as shown in Figure 3-153, PW binding

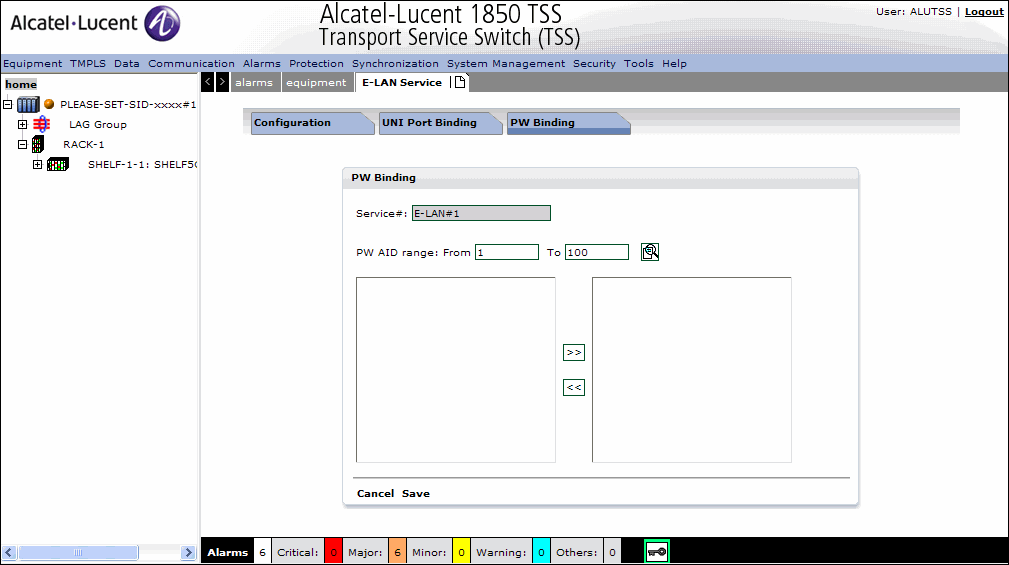

Figure 3-153: PW binding

Click the Search icon provided for the PW AID range. The list of Pseudowire in the specified AID range are displayed. Bind the PW by selecting the PW and clicking >>. To unbind a PW from the binding, click to select the PW from the right pane and click <<.

Click Save to save the PW binding or click Cancel to cancel the binding.

End of steps
