To configure Port and Connectors using intent port-connector_gsros_23-10-1_23-11
port-connector_gsros_23-10-1_23-11 intent supports configuration of Breakout Type on connector port.
1

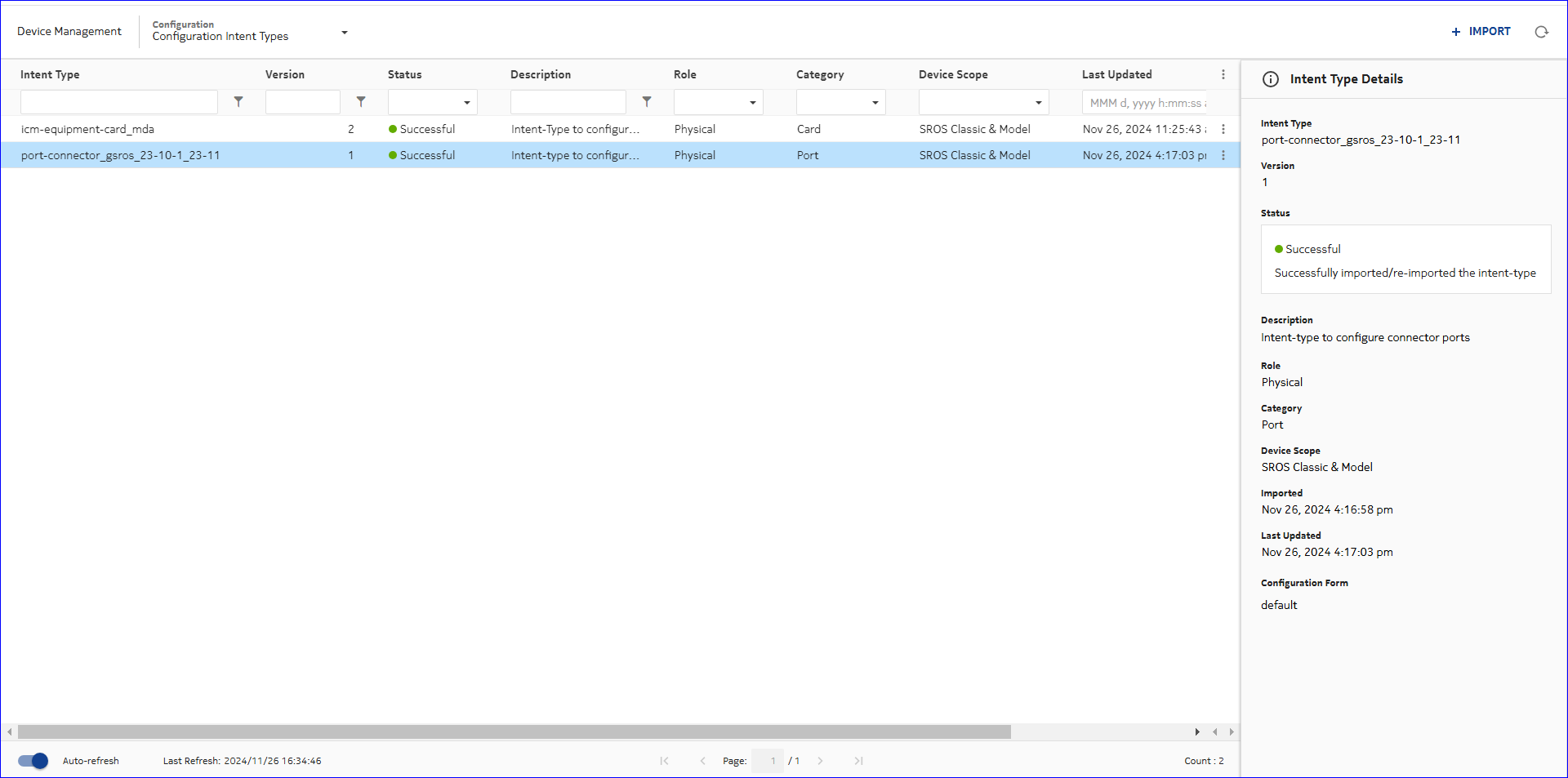

Import the intent type port-connector_gsros_23-10-1_23-11 into Device Management, Configuration Intent Types.
2

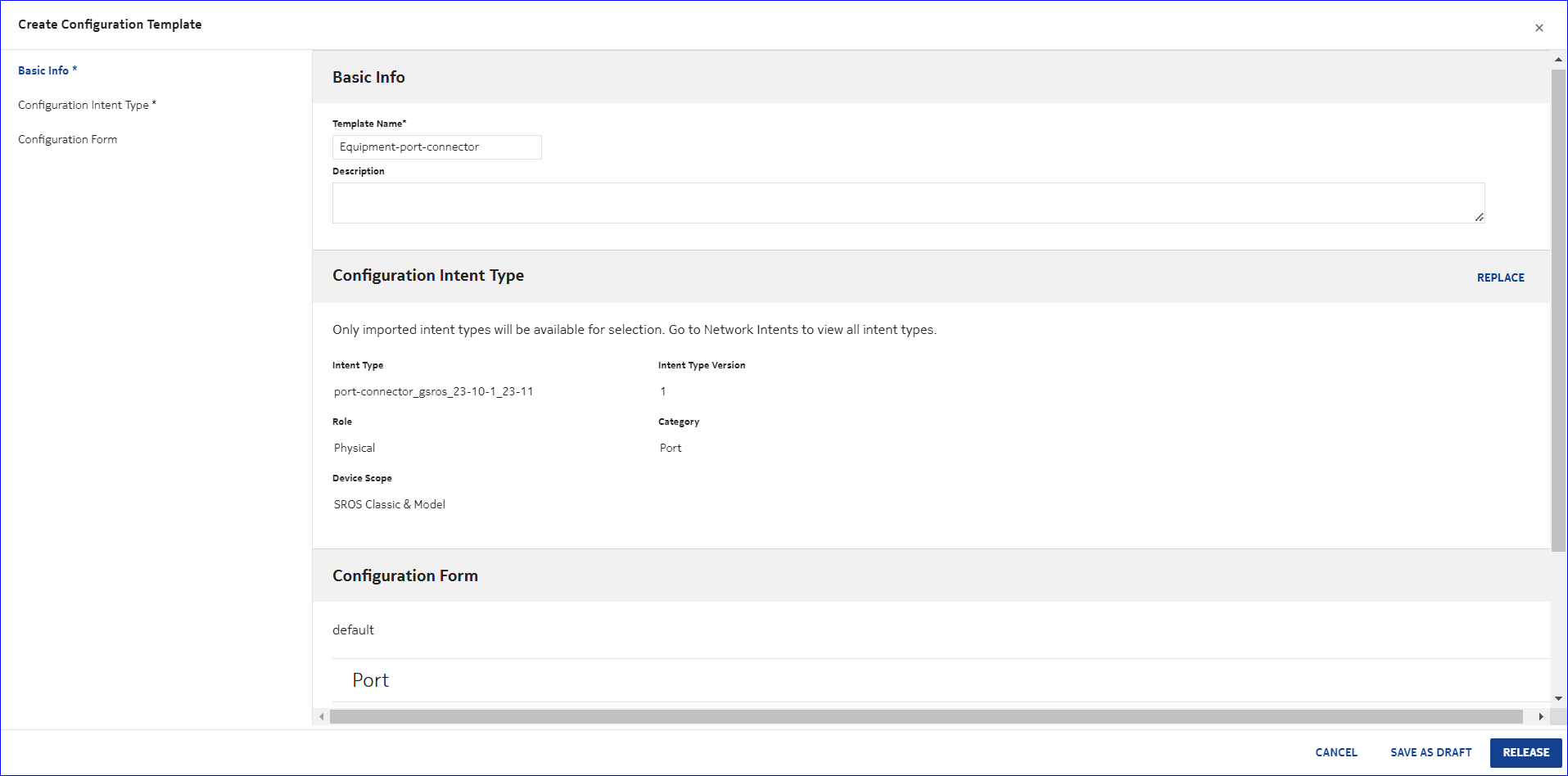

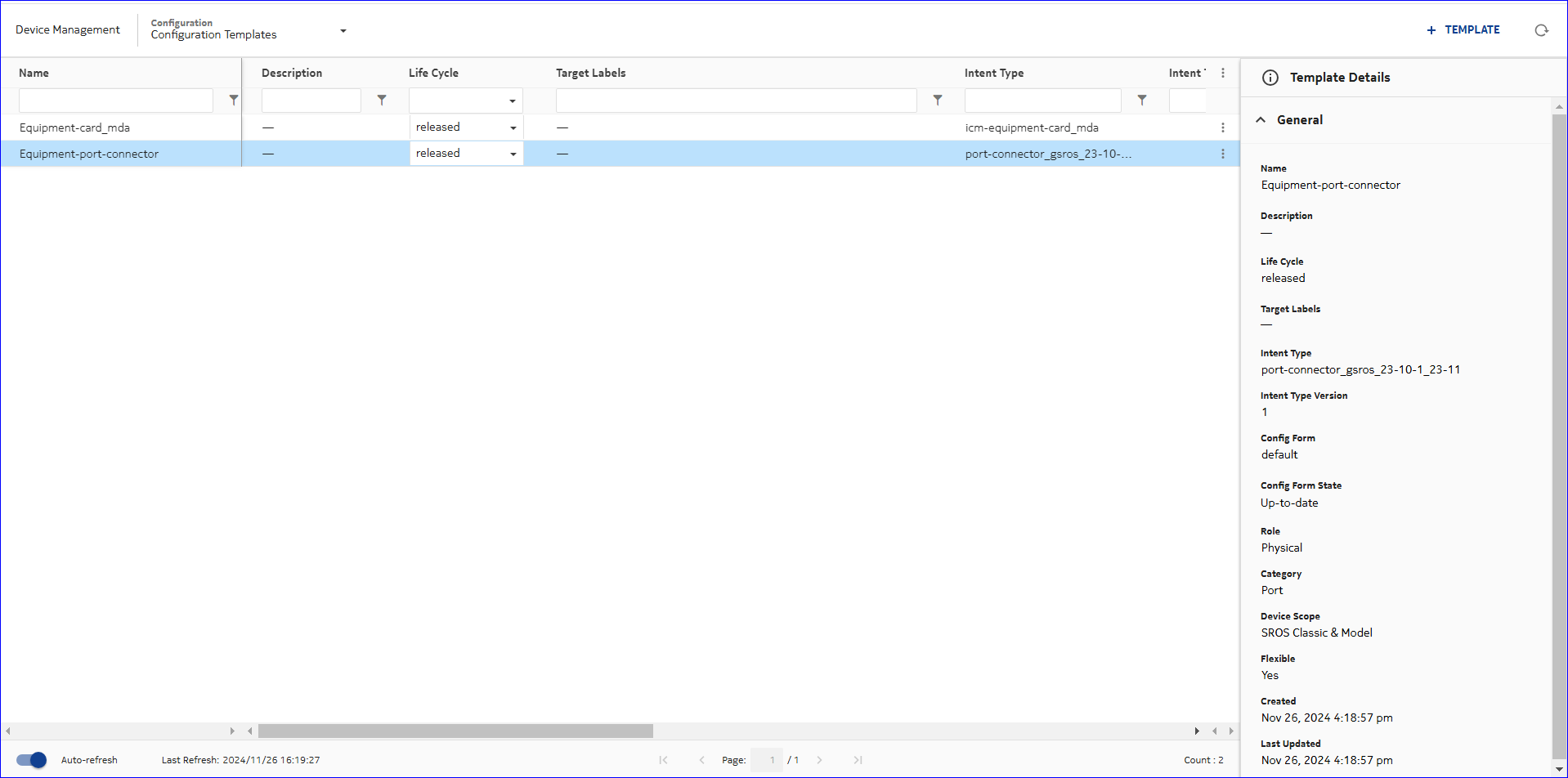

Create a configuration template in Device Management, Configuration Templates and set to released state.
For example, the configuration template created below is named as Equipment-port-connector.
3

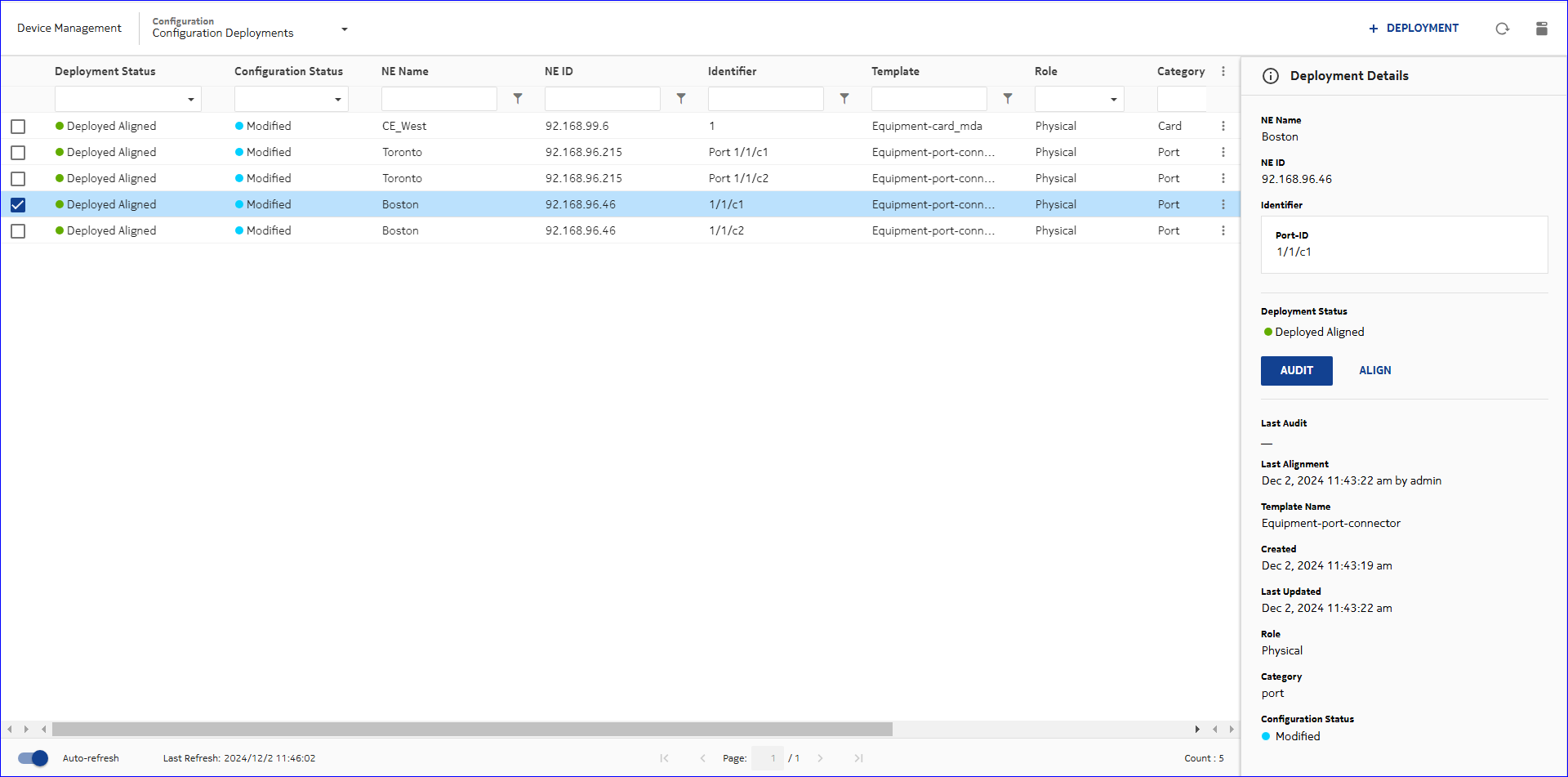

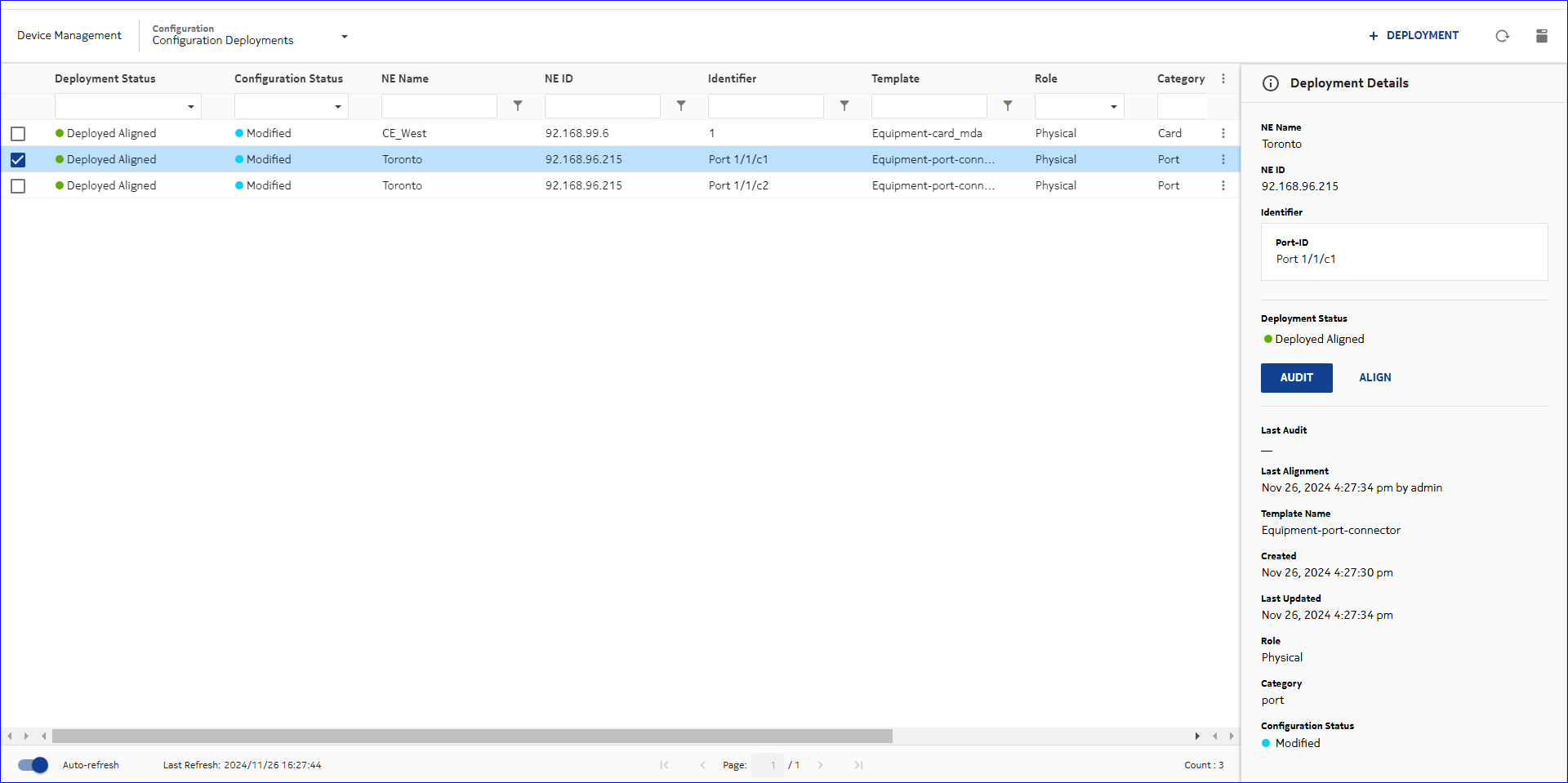

Create configuration deployments using the above configuration template.
For the following examples, targets are 1/1/c1 and 1/1/c2 for 7750 classic and MD nodes; selected c10-10g breakout on classic 7750 SR.
Ex. 7750 Classic

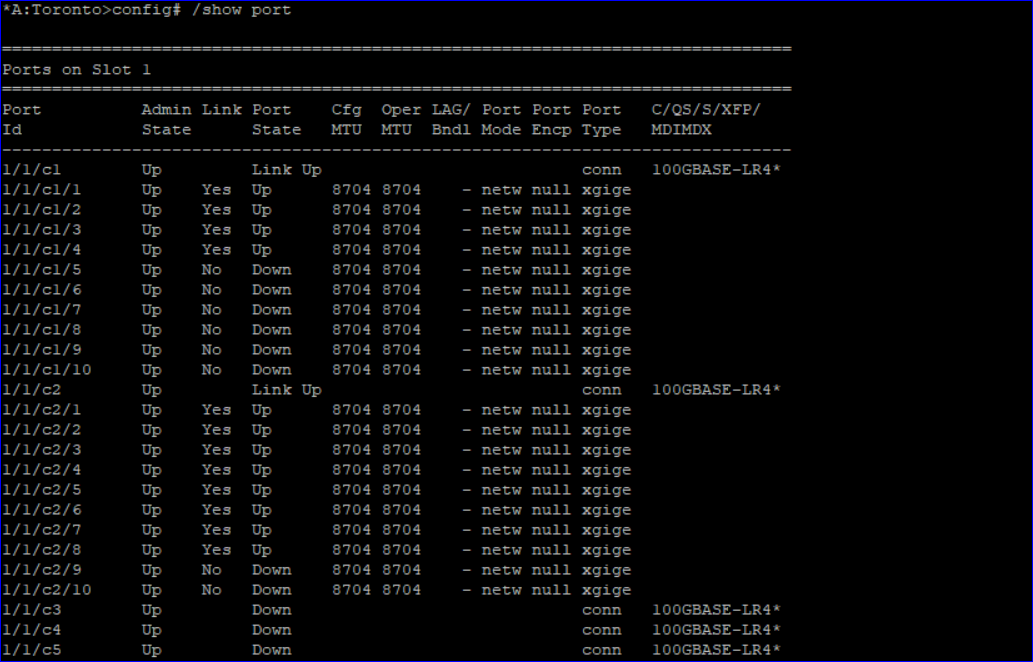

Figure 7-3: NE CLI check after deployment
Ex. 7750 MD

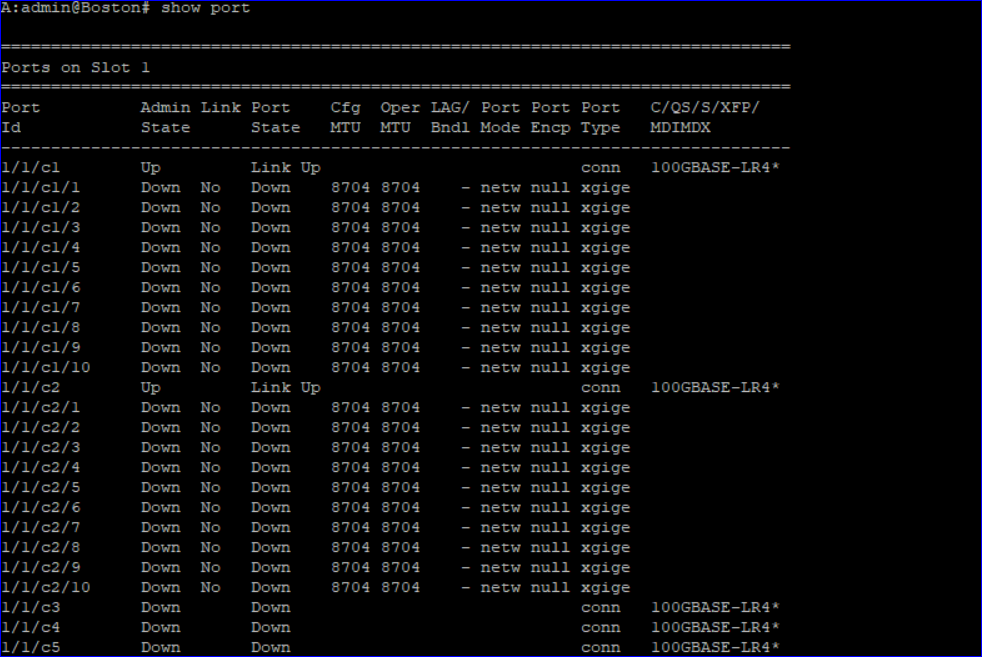

Figure 7-4: NE CLI check after deployment
End of steps
To configure Port using intent icm-equipment-port-ethernet
icm-equipment-port-ethernet intent type deployment can be created on ethernet ports. For this use case, after connector deployment, ethernet port configuration was tested on some of the newly created ports. To use the file-accounting_gsros_23-10-1_23-11 intent instead to configure Port, see
To configure file-accounting_gsros.
1
Prerequisites:
For Classic NE:
Accounting policy
/configure log accounting-policy 36 record complete-ethernet-port
/configure log accounting-policy 36 no shutdown
/admin save
For MD NE:
Accounting policy
/edit-config private
/configure log accounting-policy 36 record complete-ethernet-port
/commit
/quit-config
2

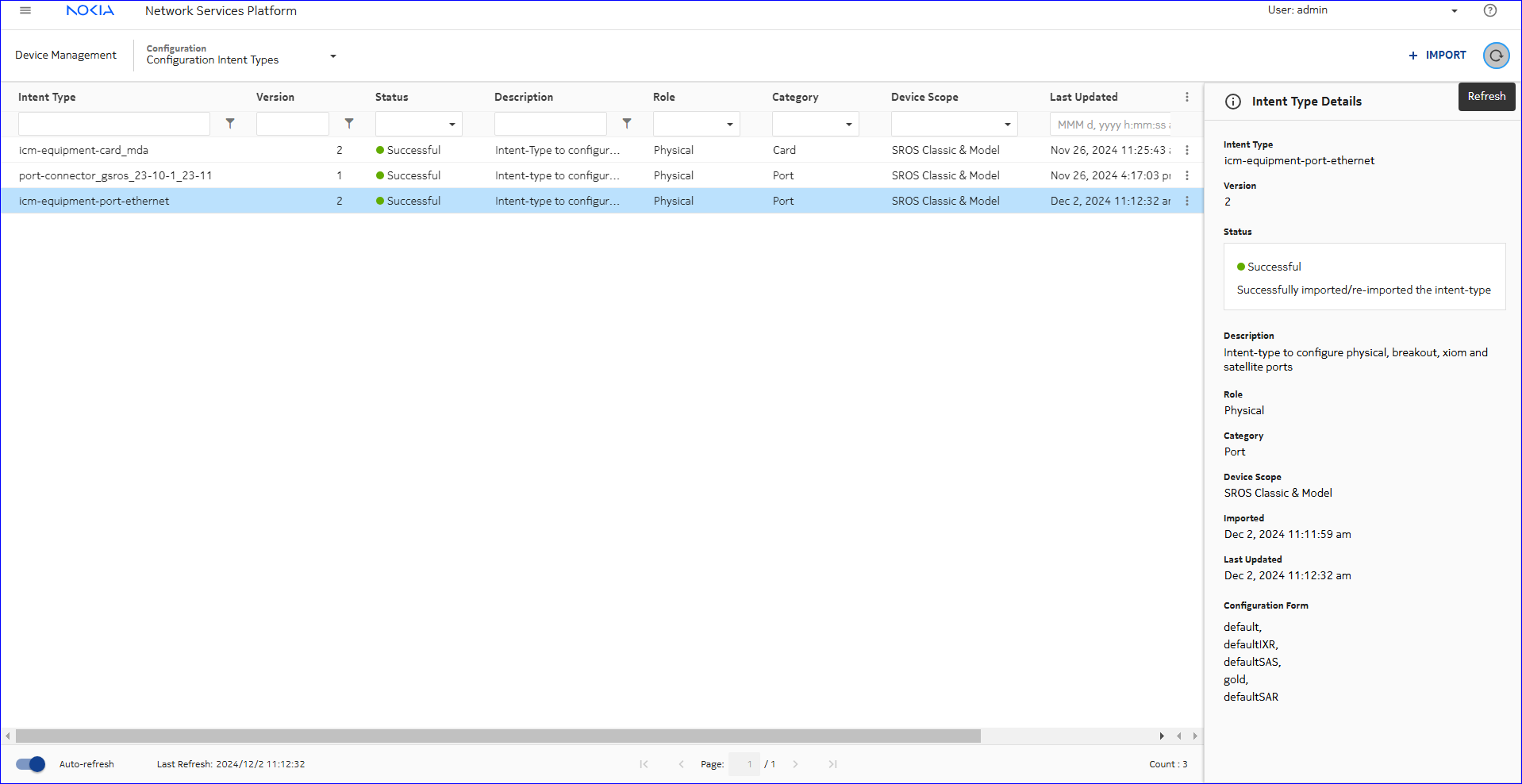

Import the intent type icm-equipment-port-ethernet into Device Management, Configuration Intent Types.
3

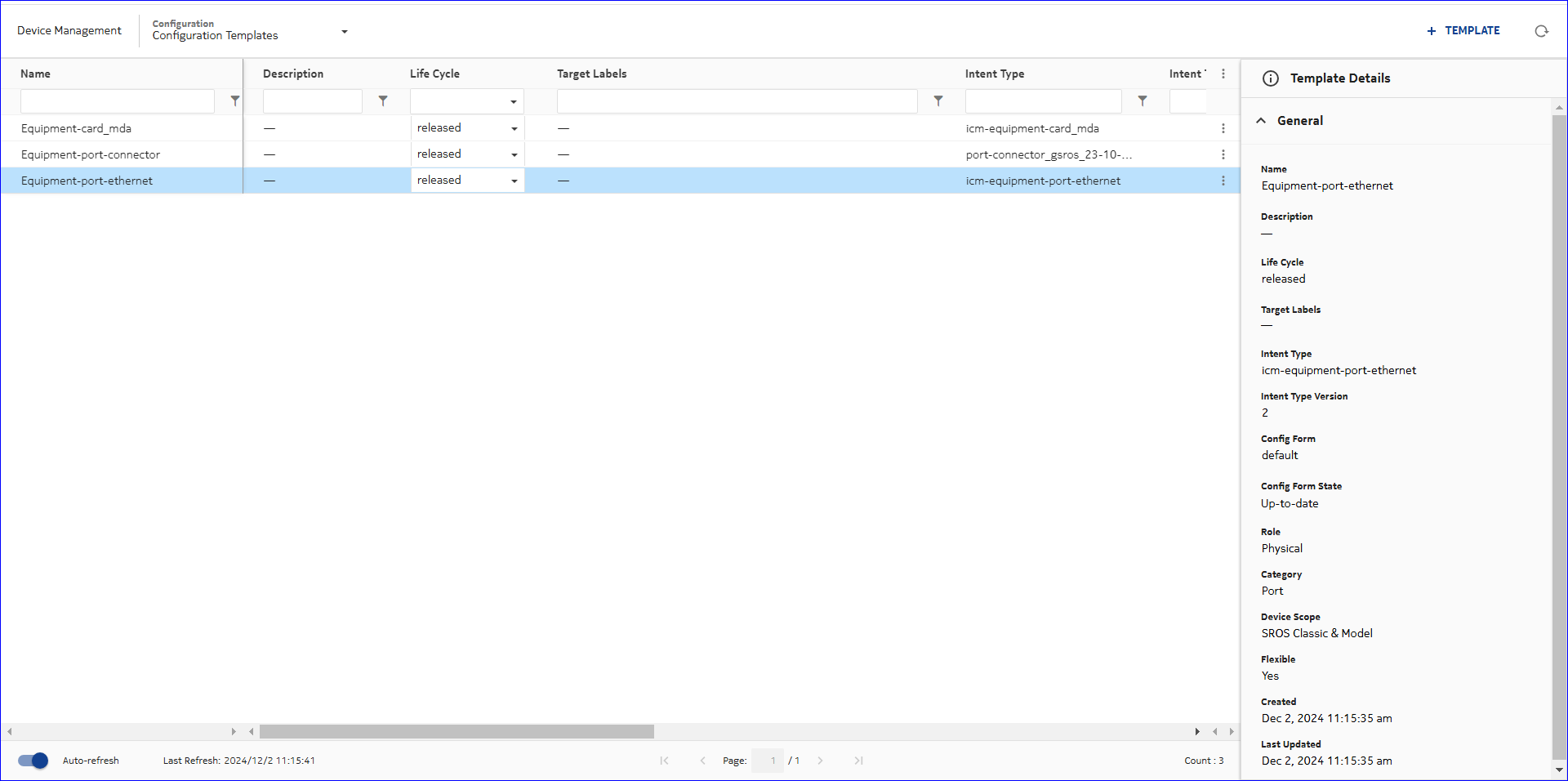

Create a configuration template in Device Management, Configuration Templates and set to released state.
For example, the configuration template created below is named as Equipment-port-ethernet.
4

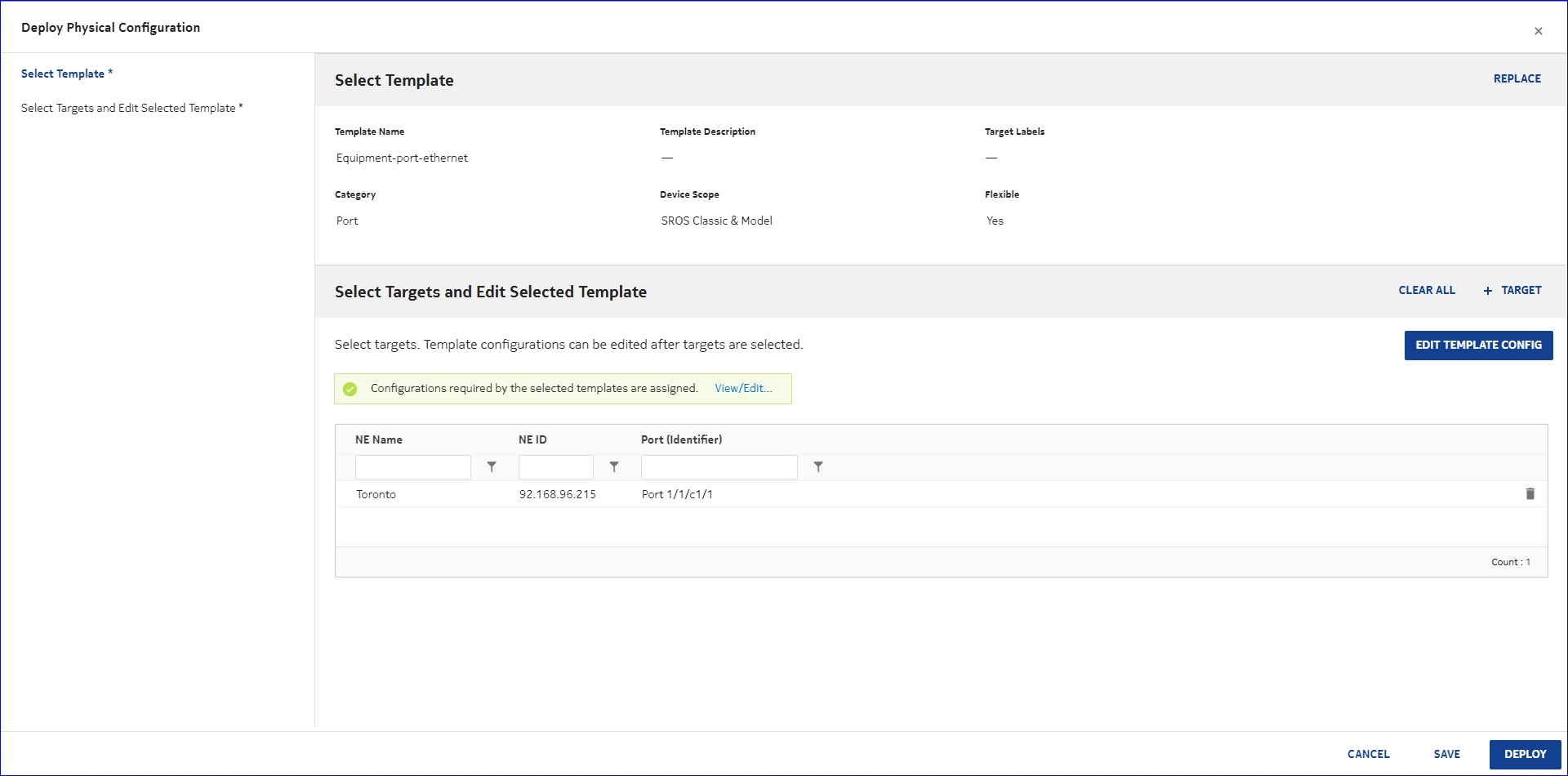

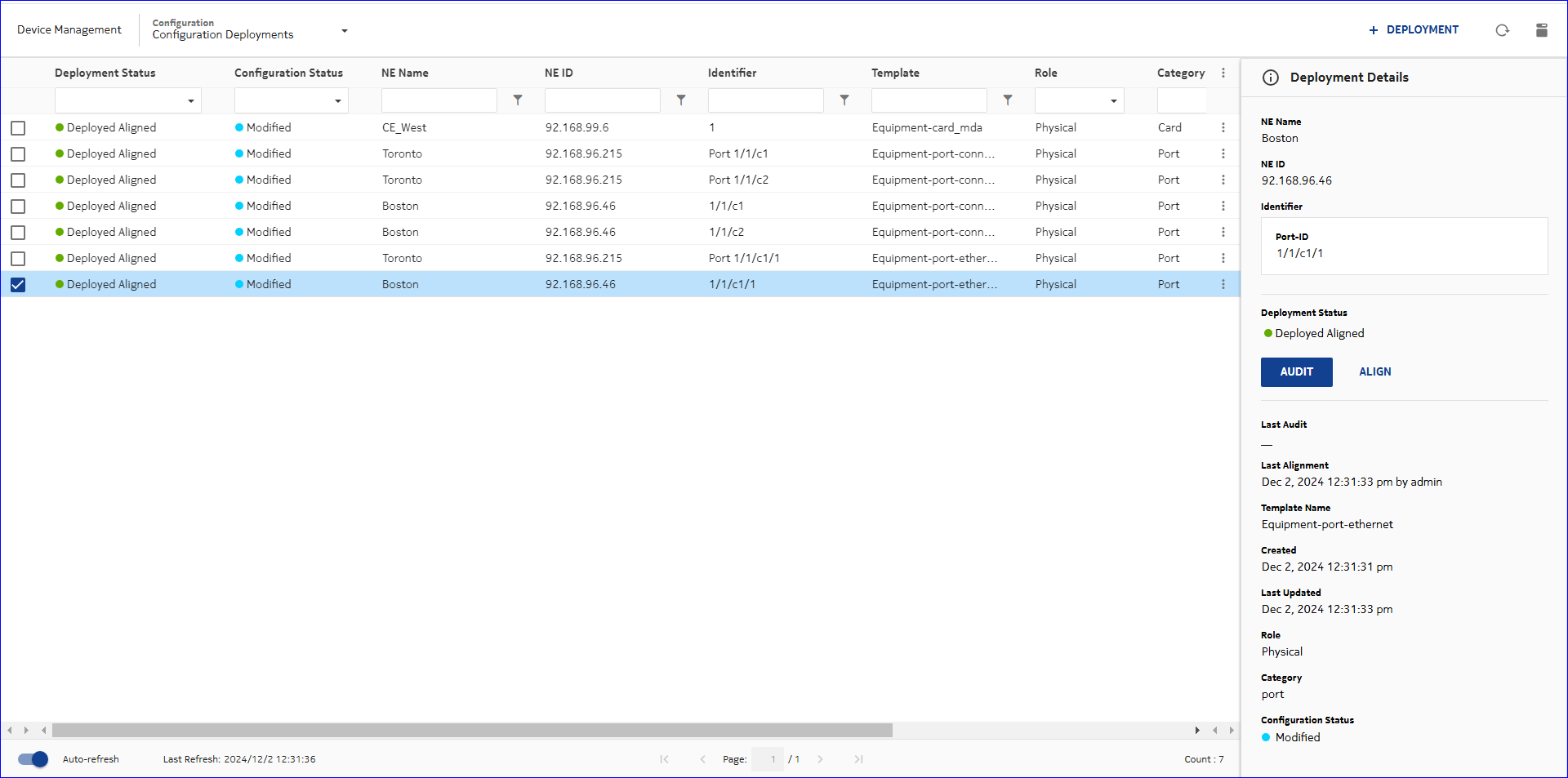

Create configuration deployments using the above configuration template.

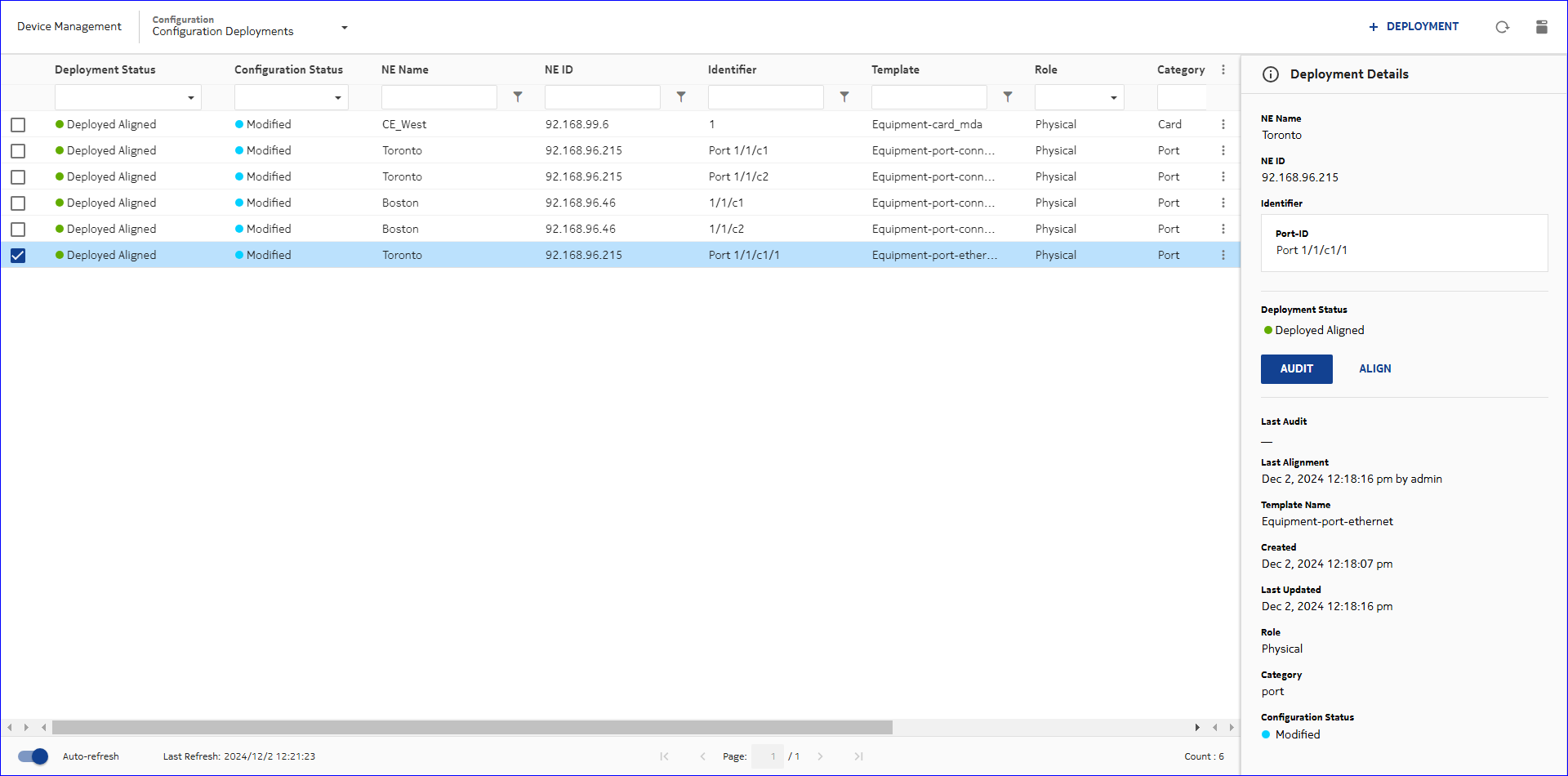

For the following examples, targets are 1/1/c1/1 for 7750 classic and MD nodes.
Ex. 7750 Classic

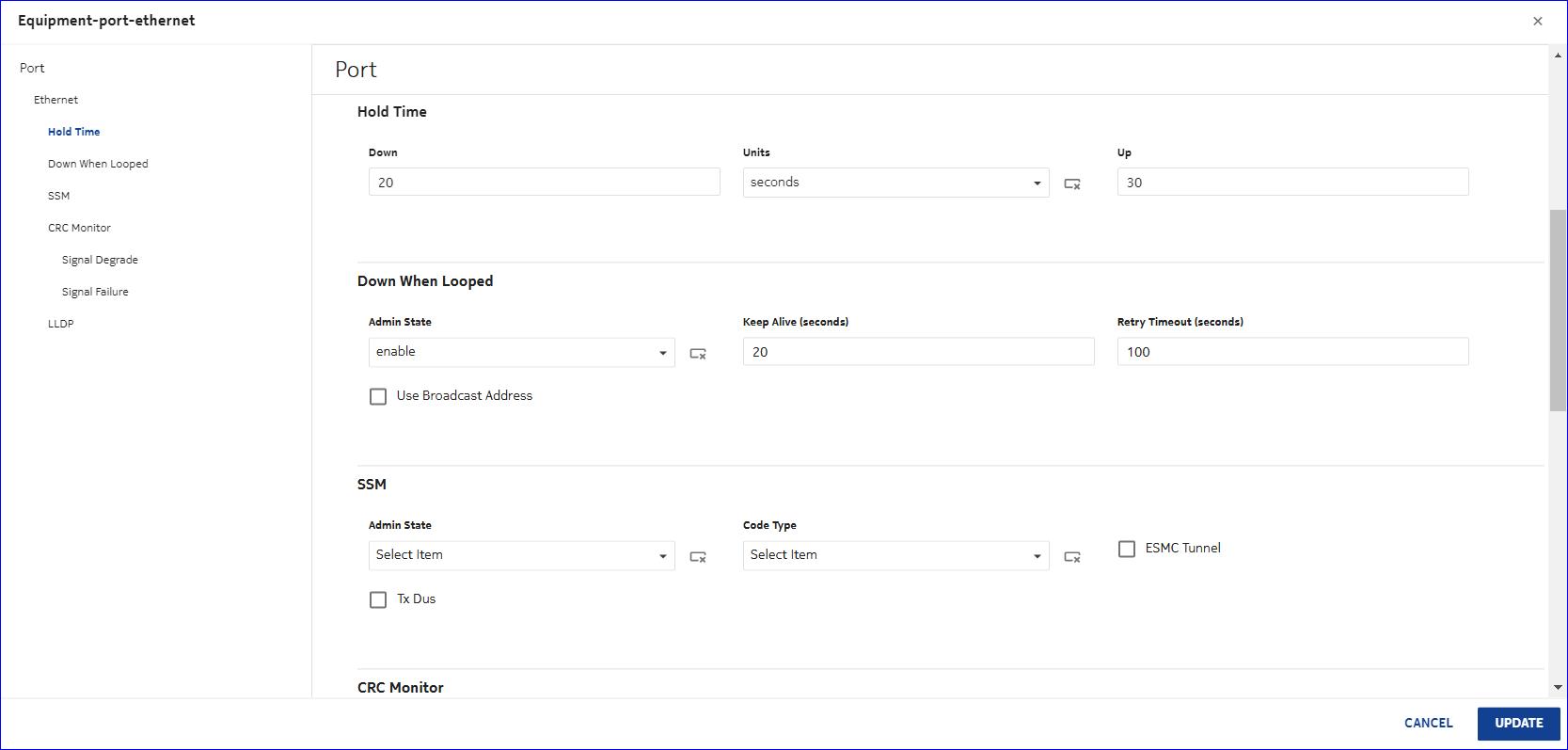

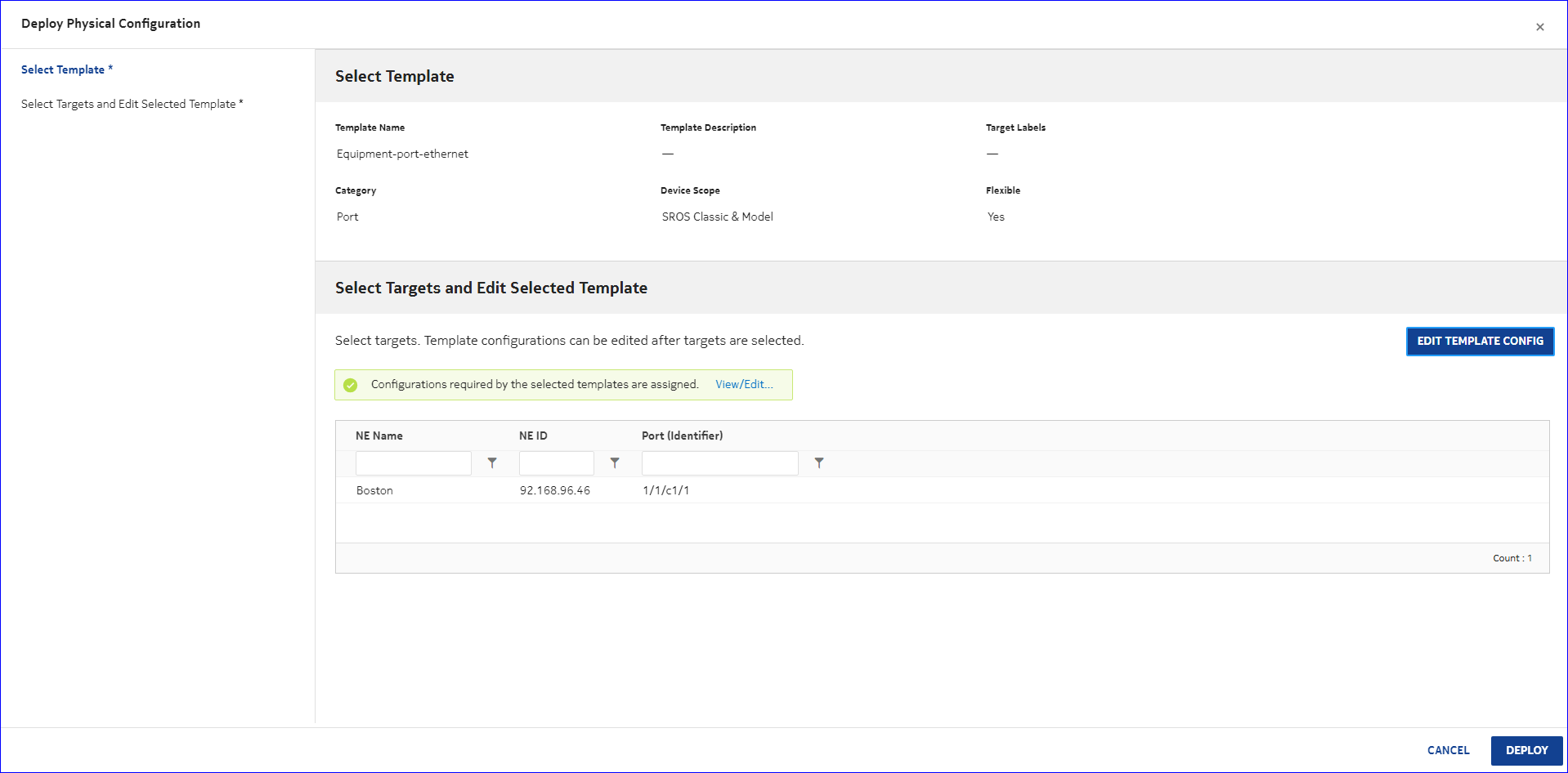

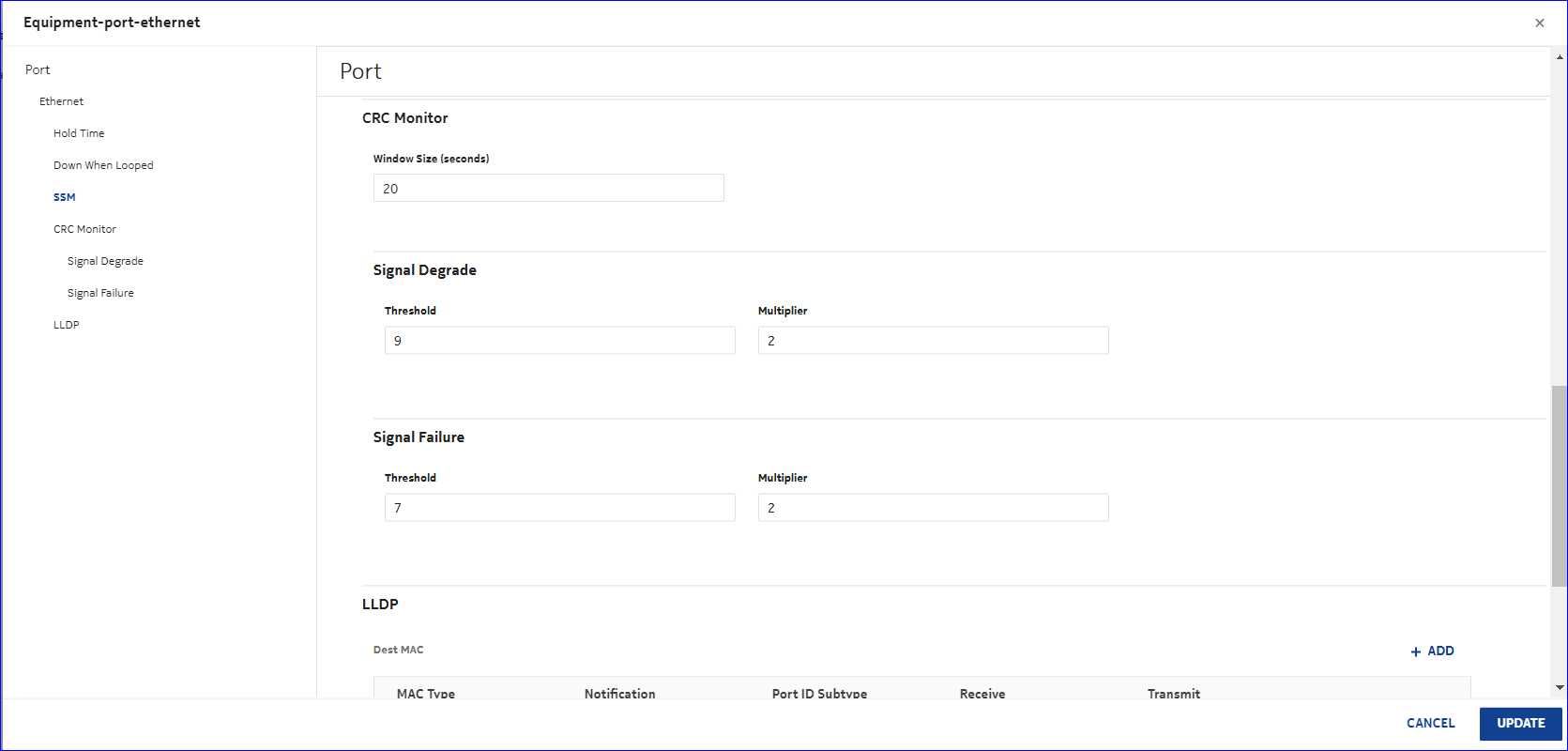

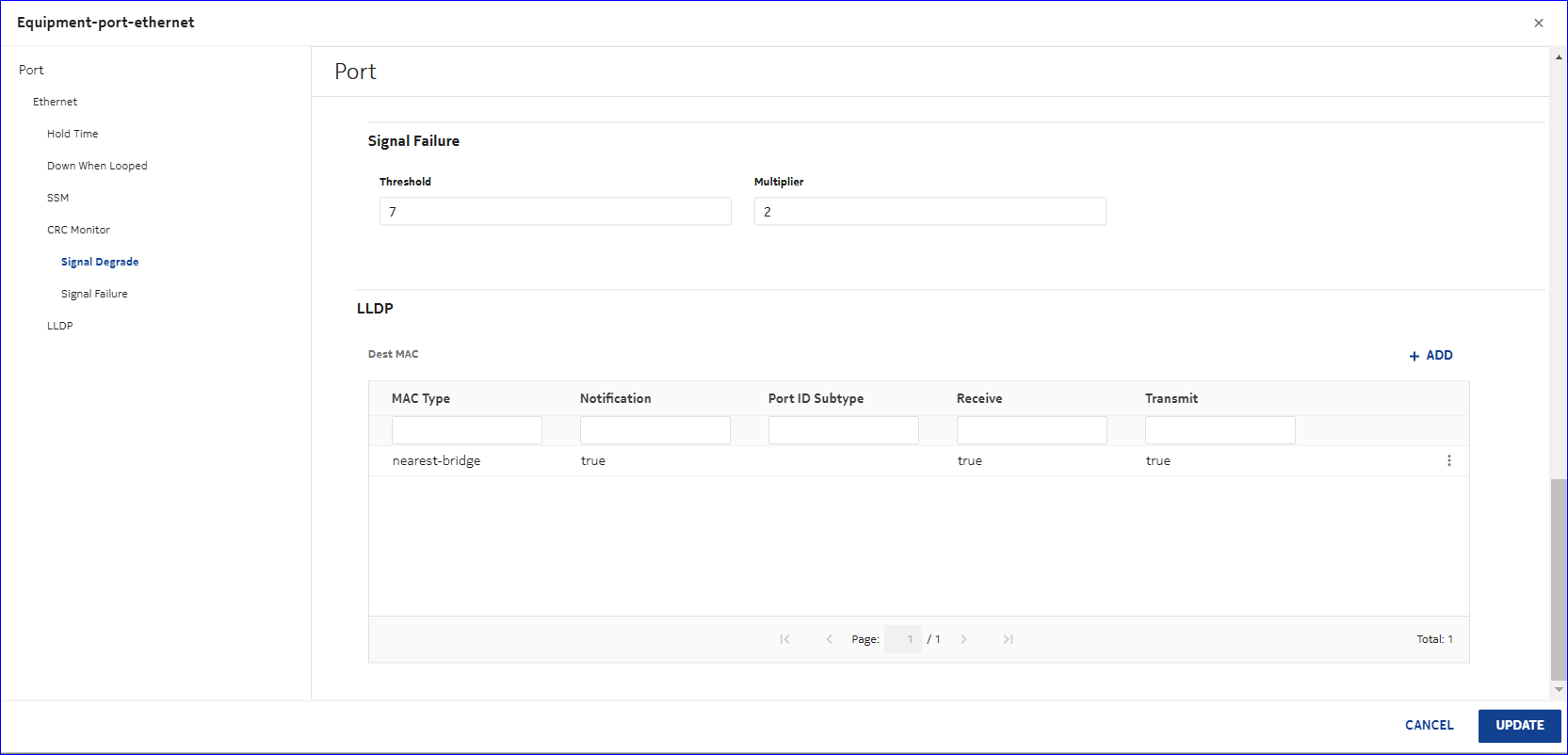

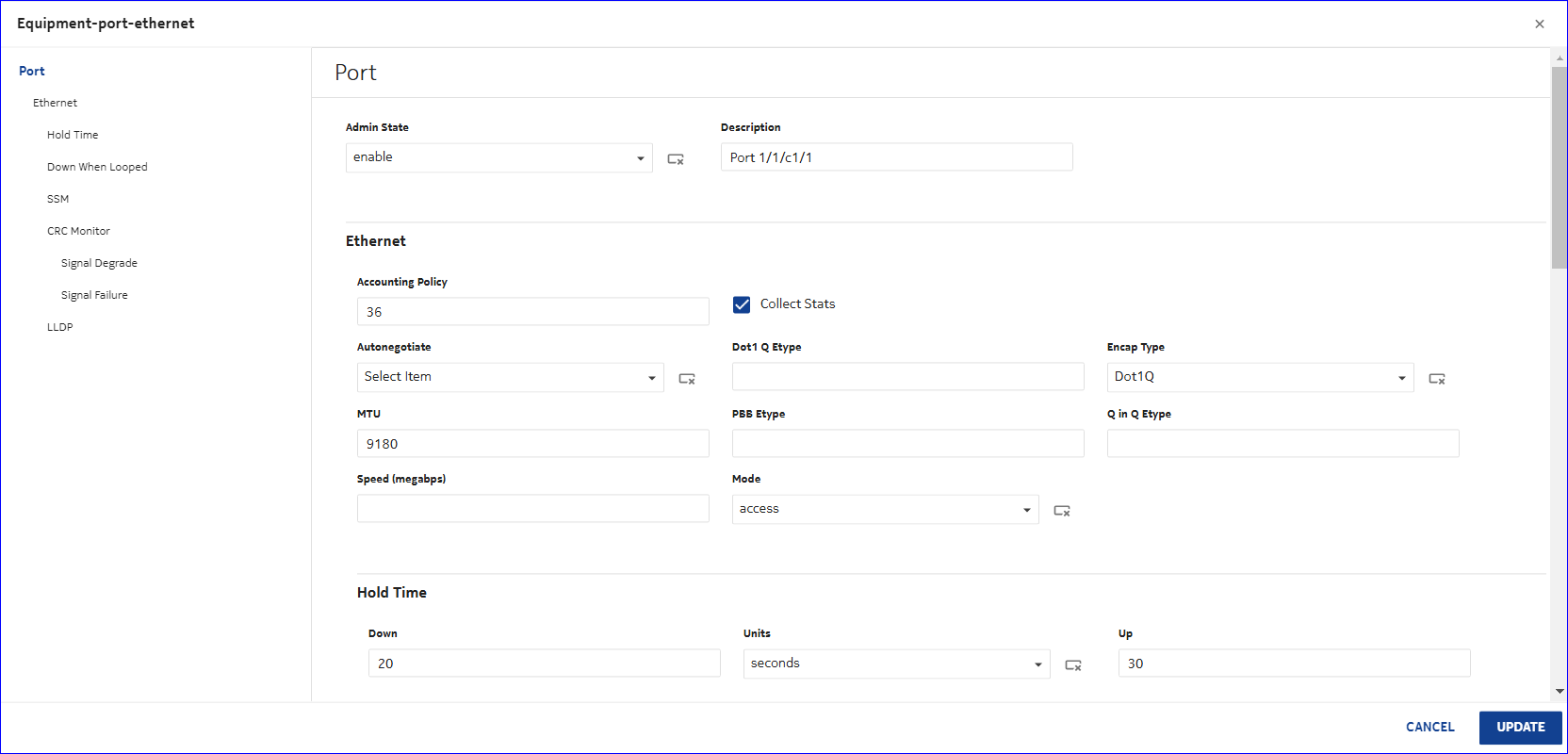

Deployment form attribute values:

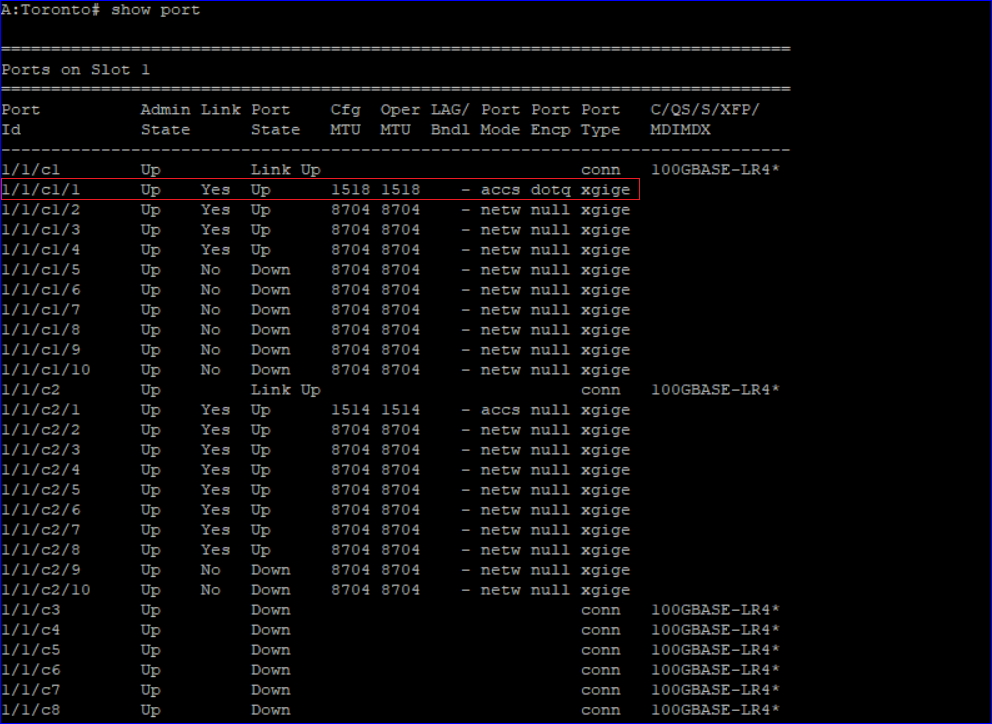

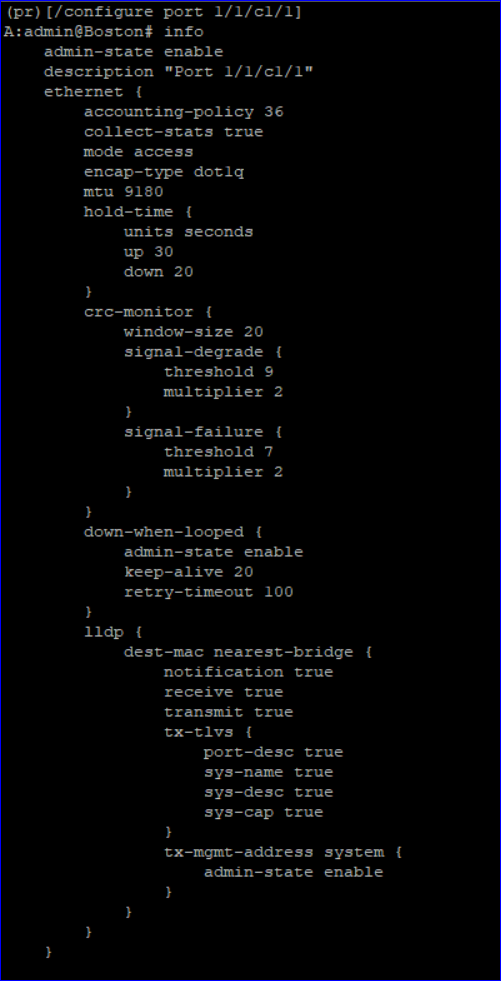

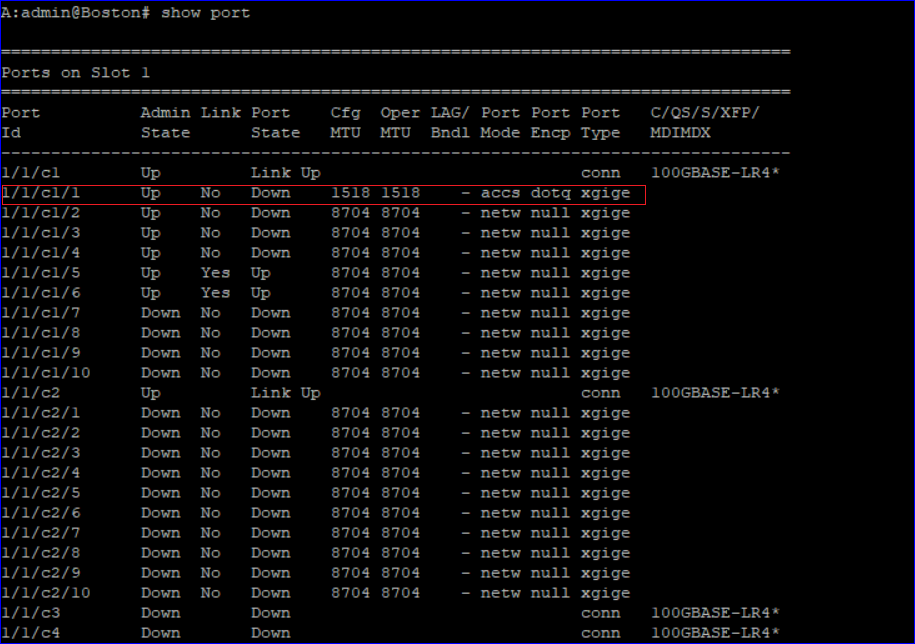

Figure 7-5: NE CLI after deployment
Figure 7-6: NE CLI after deployment
Ex. 7750 MD
Deployment form attribute values:

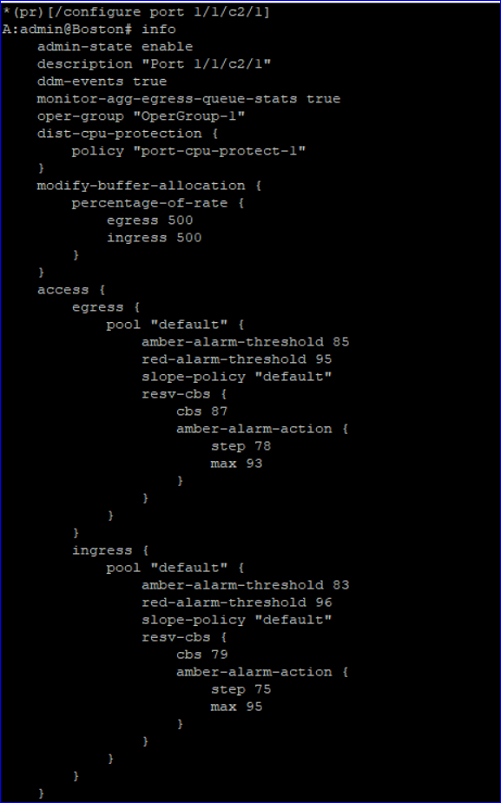

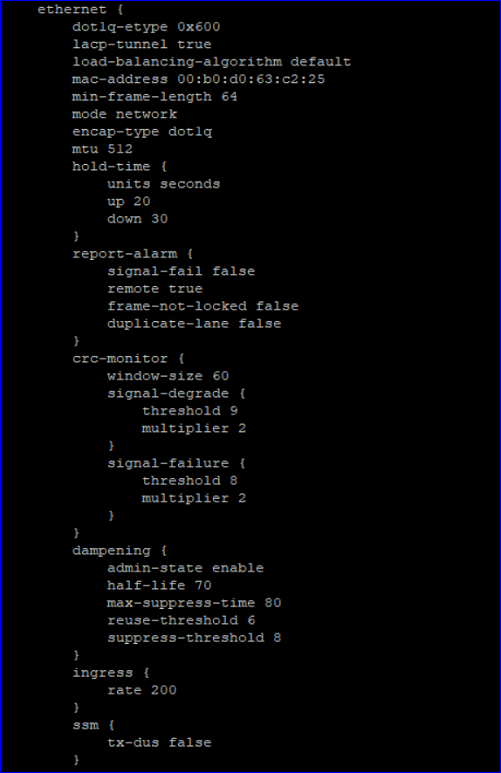

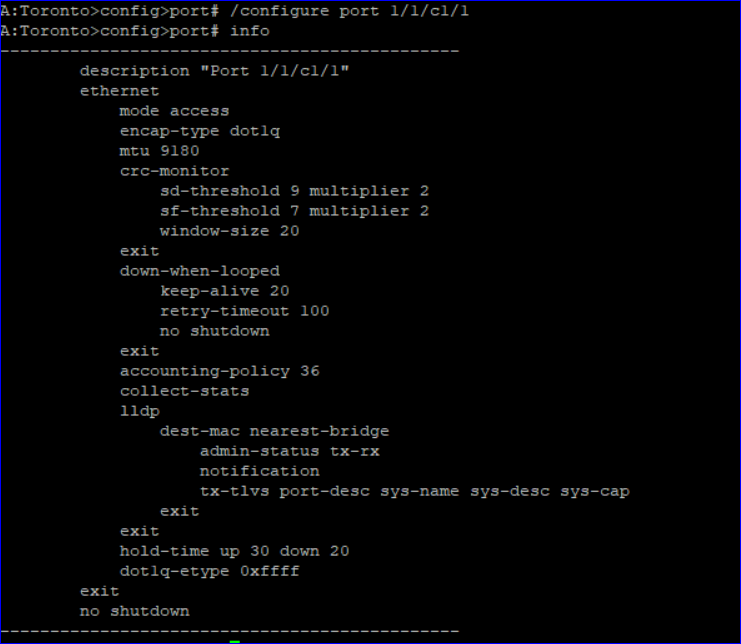

Figure 7-7: NE CLI after deployment

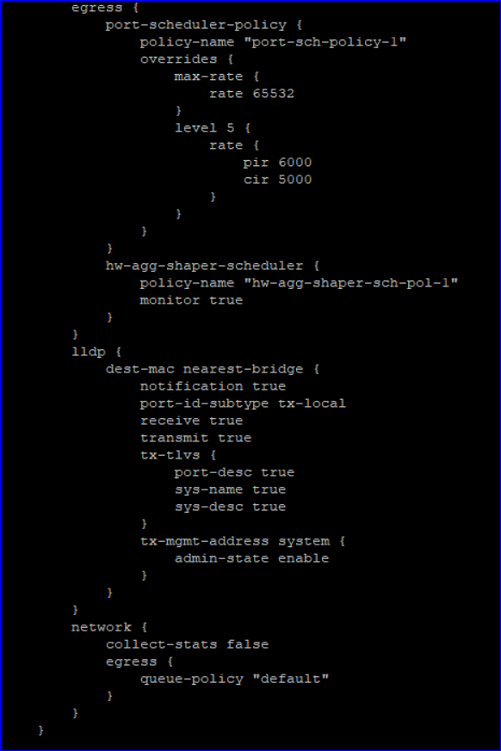

Figure 7-8: NE CLI after deployment
End of steps

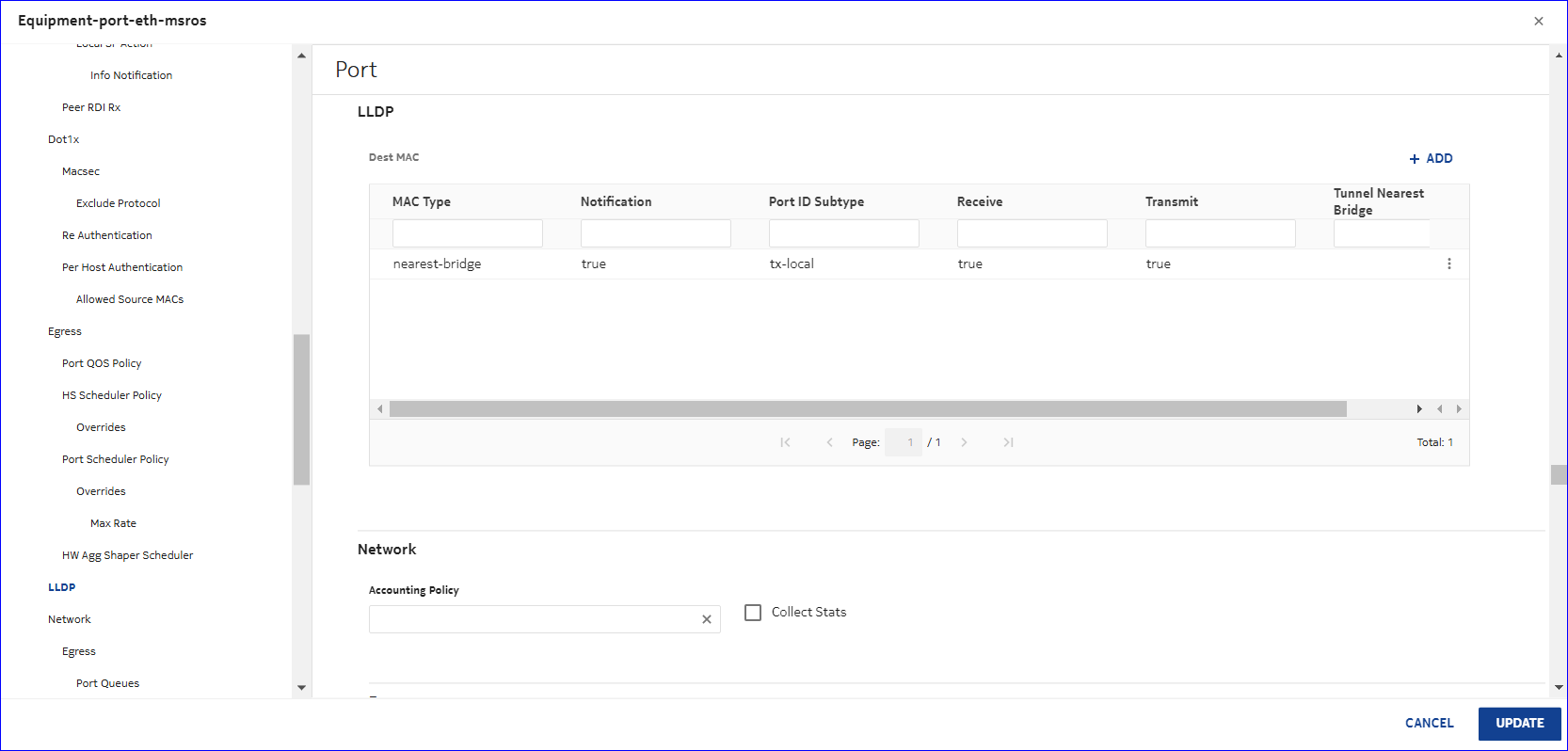

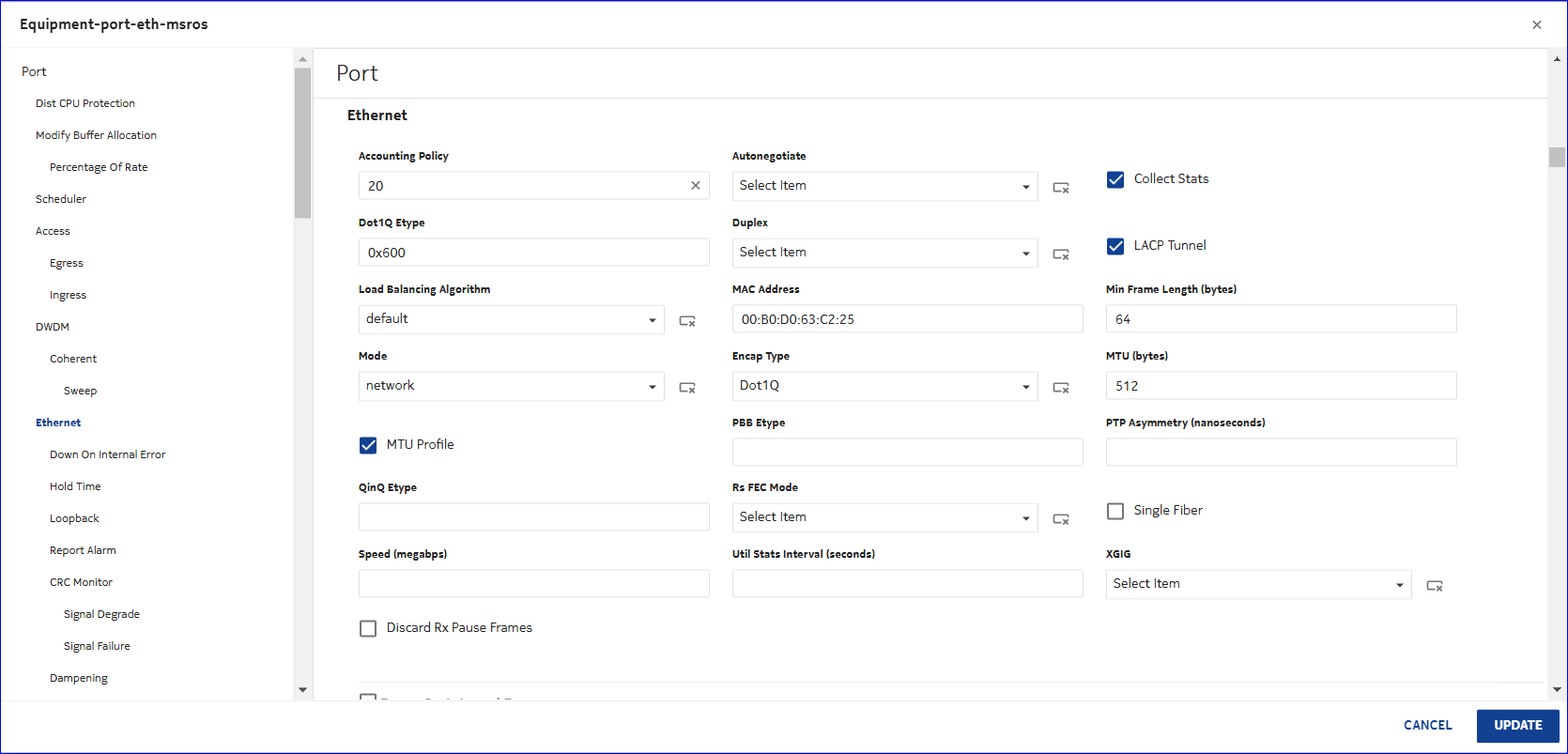

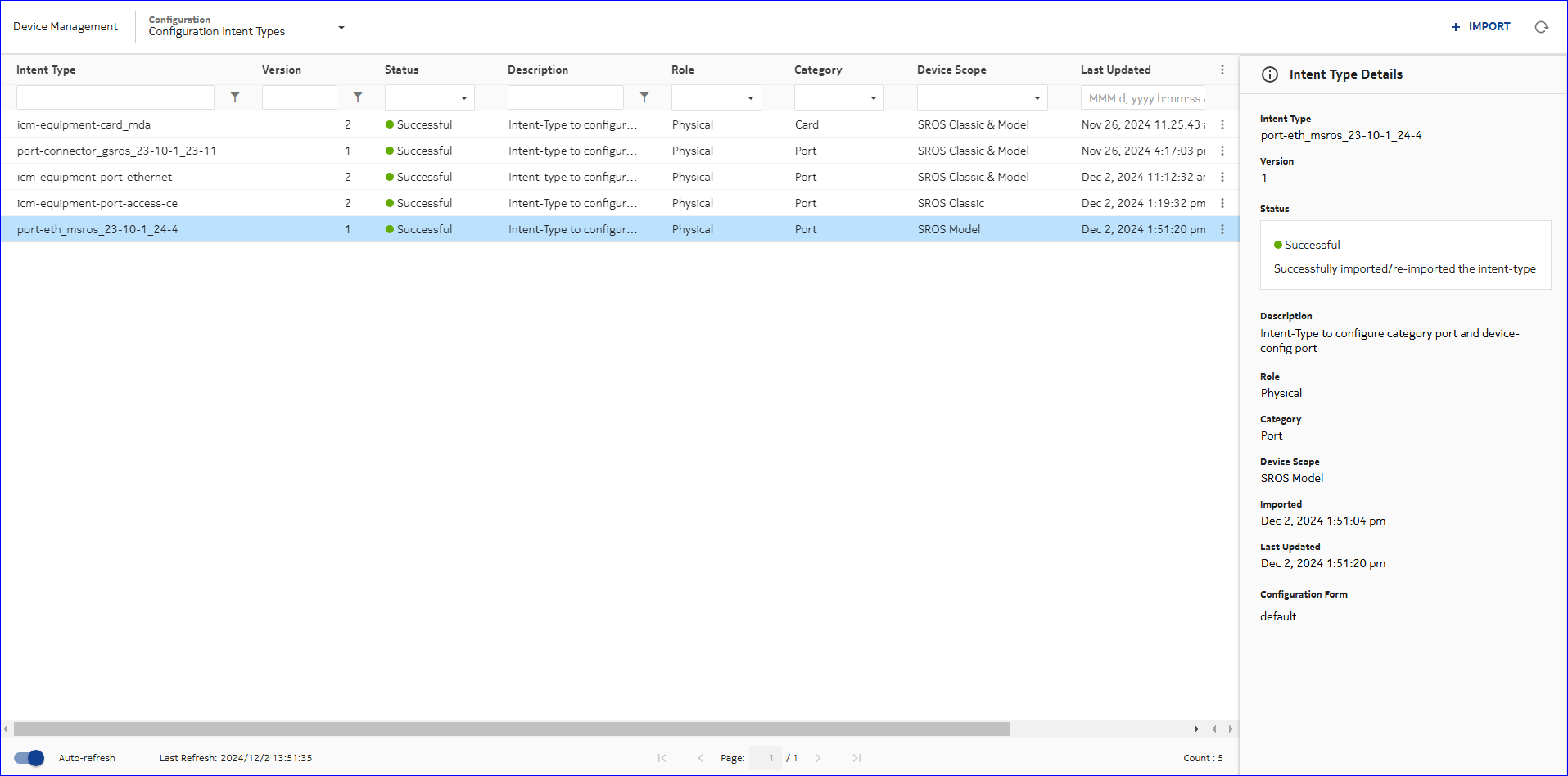

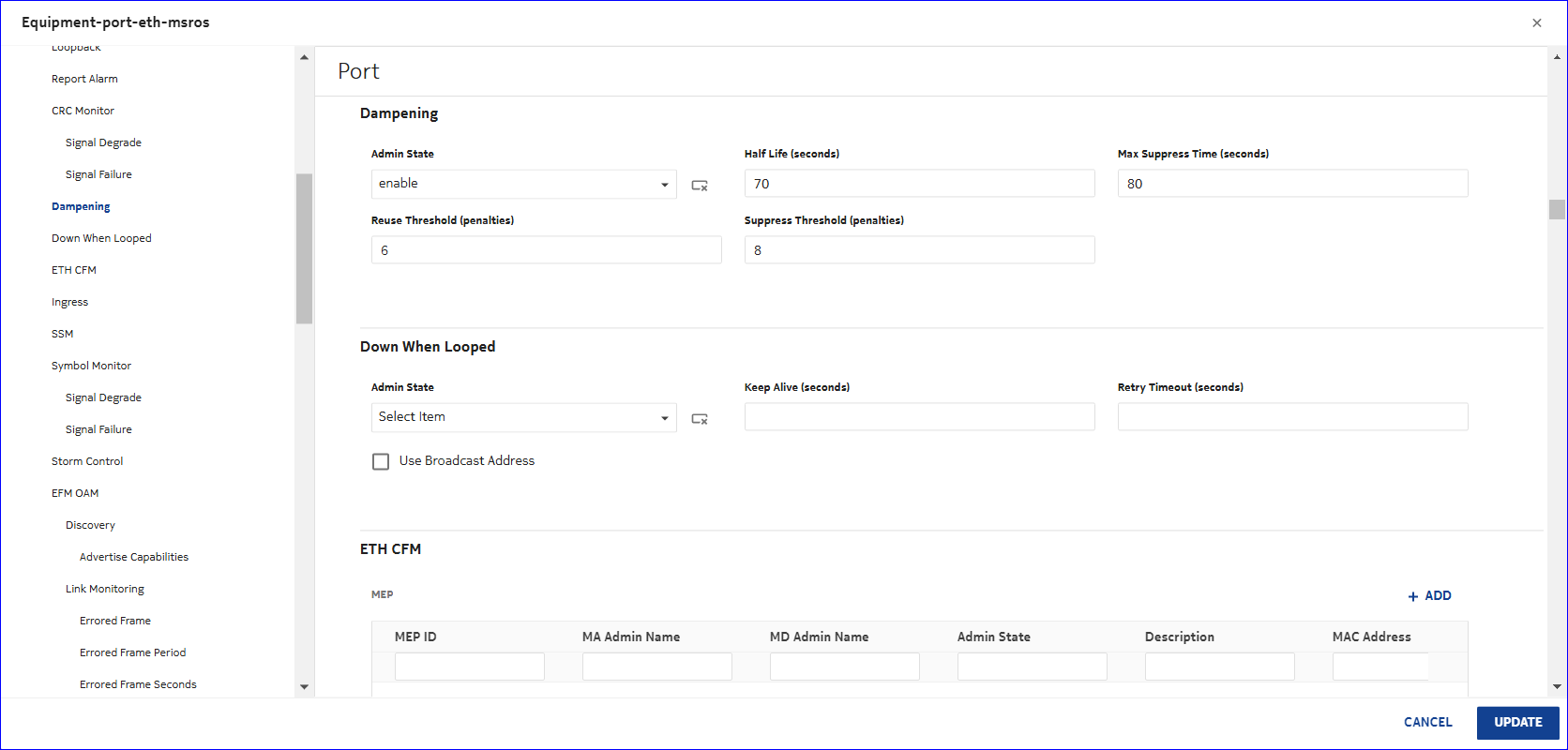

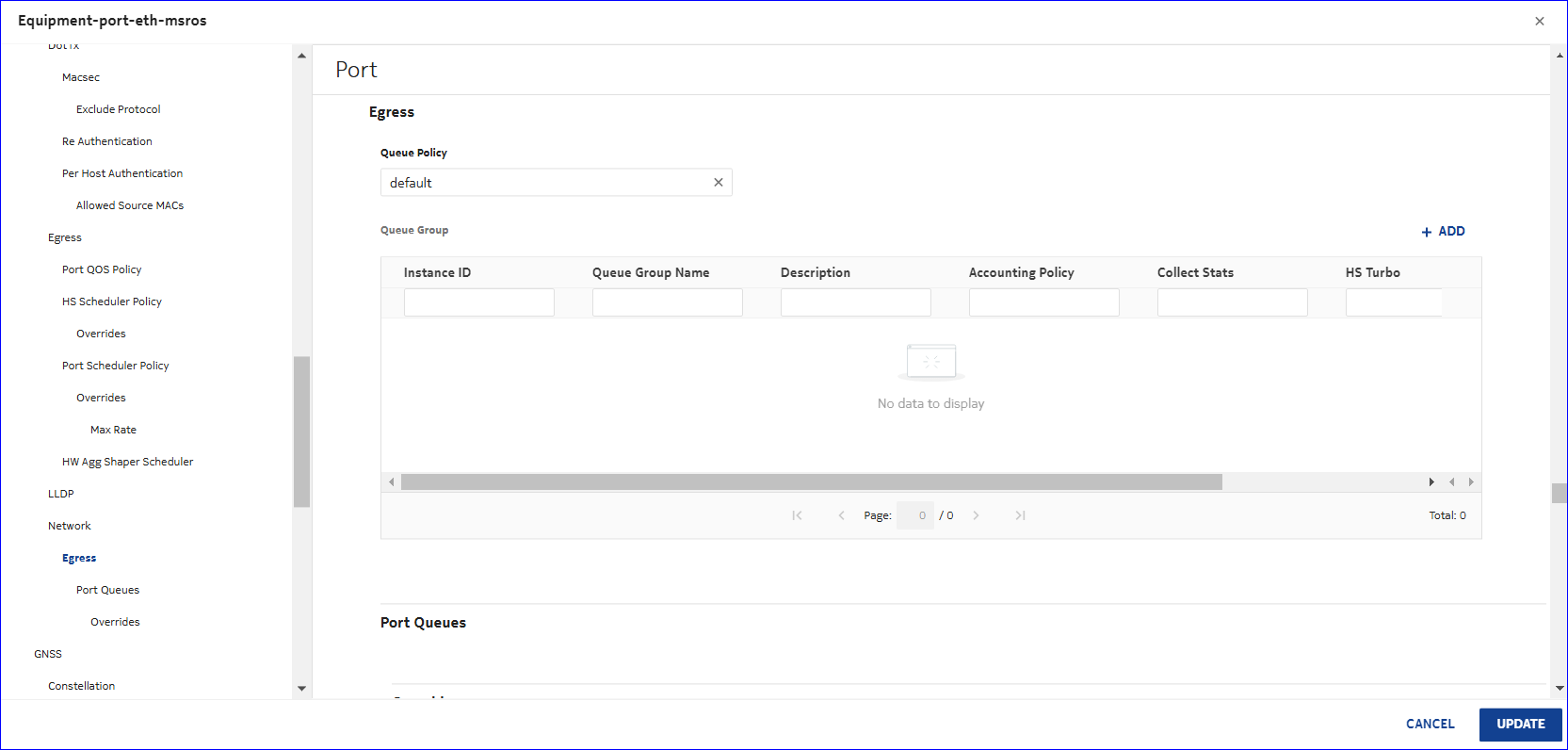

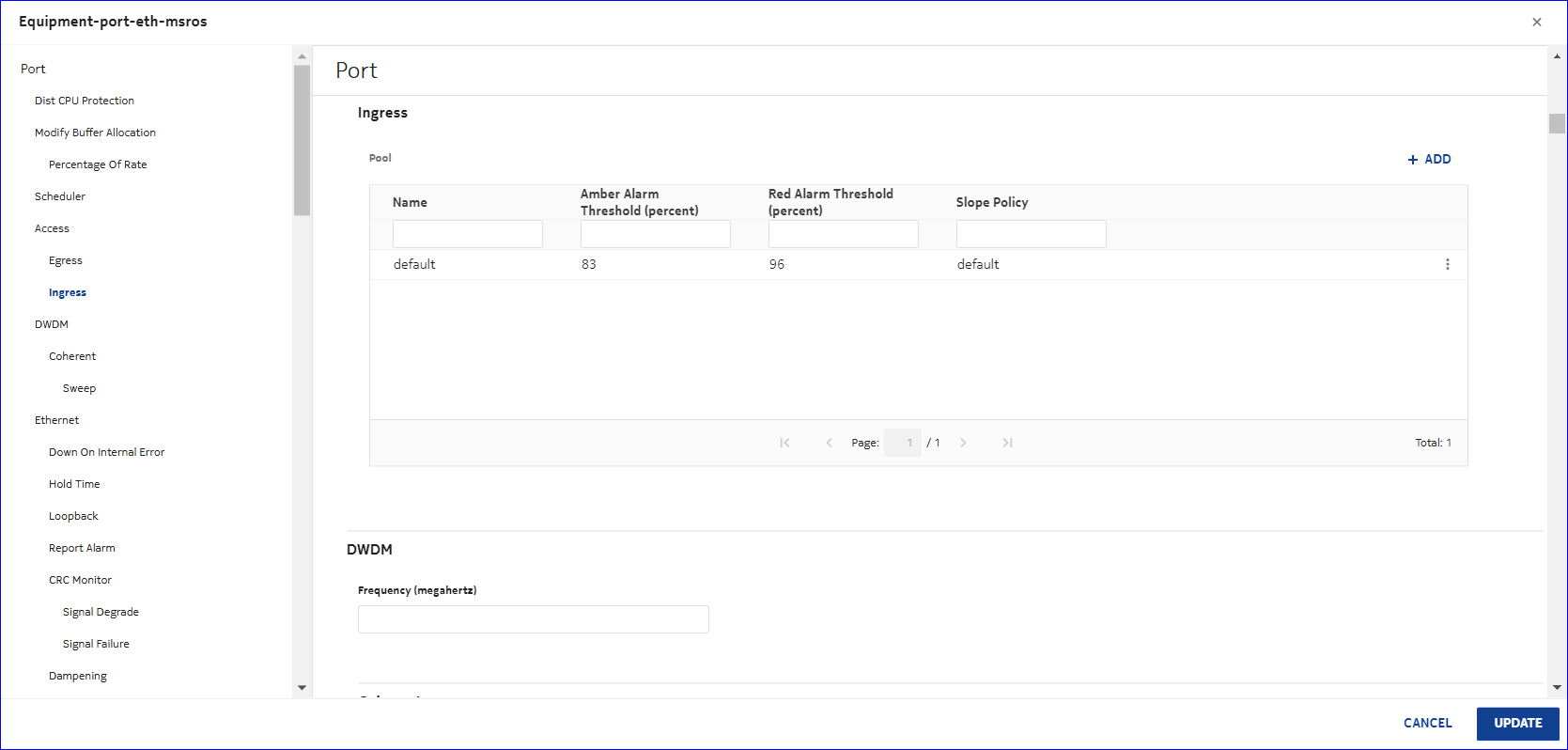

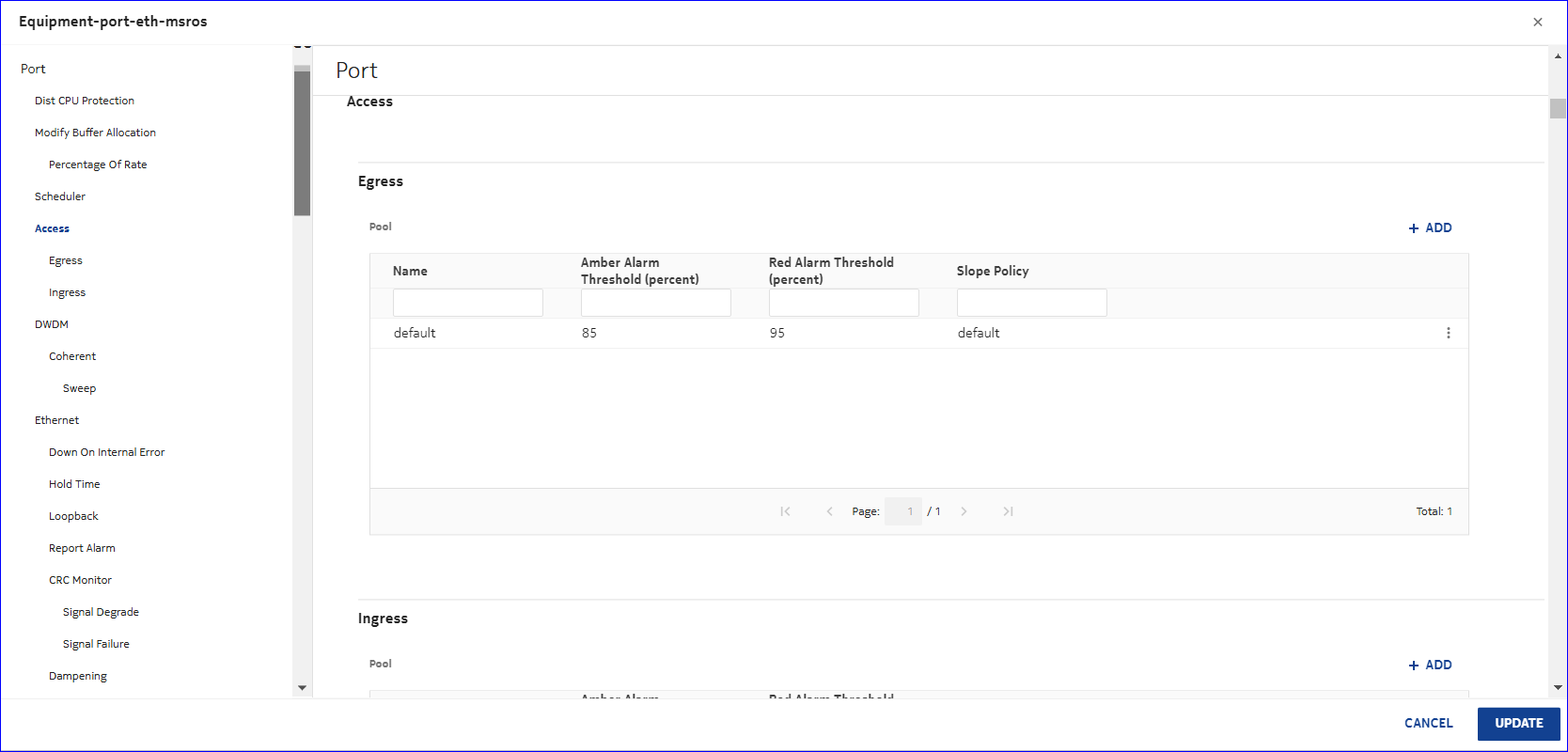

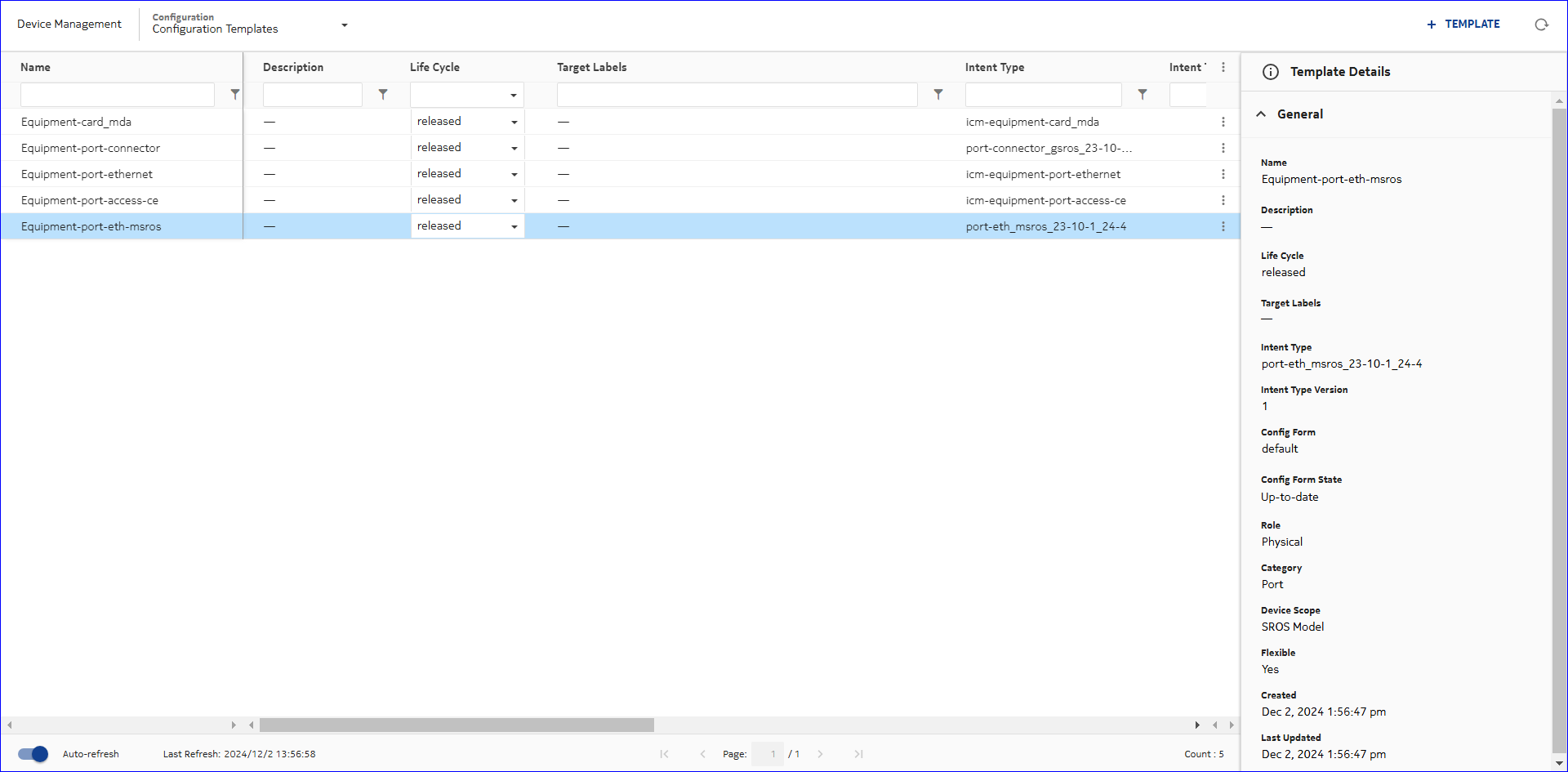

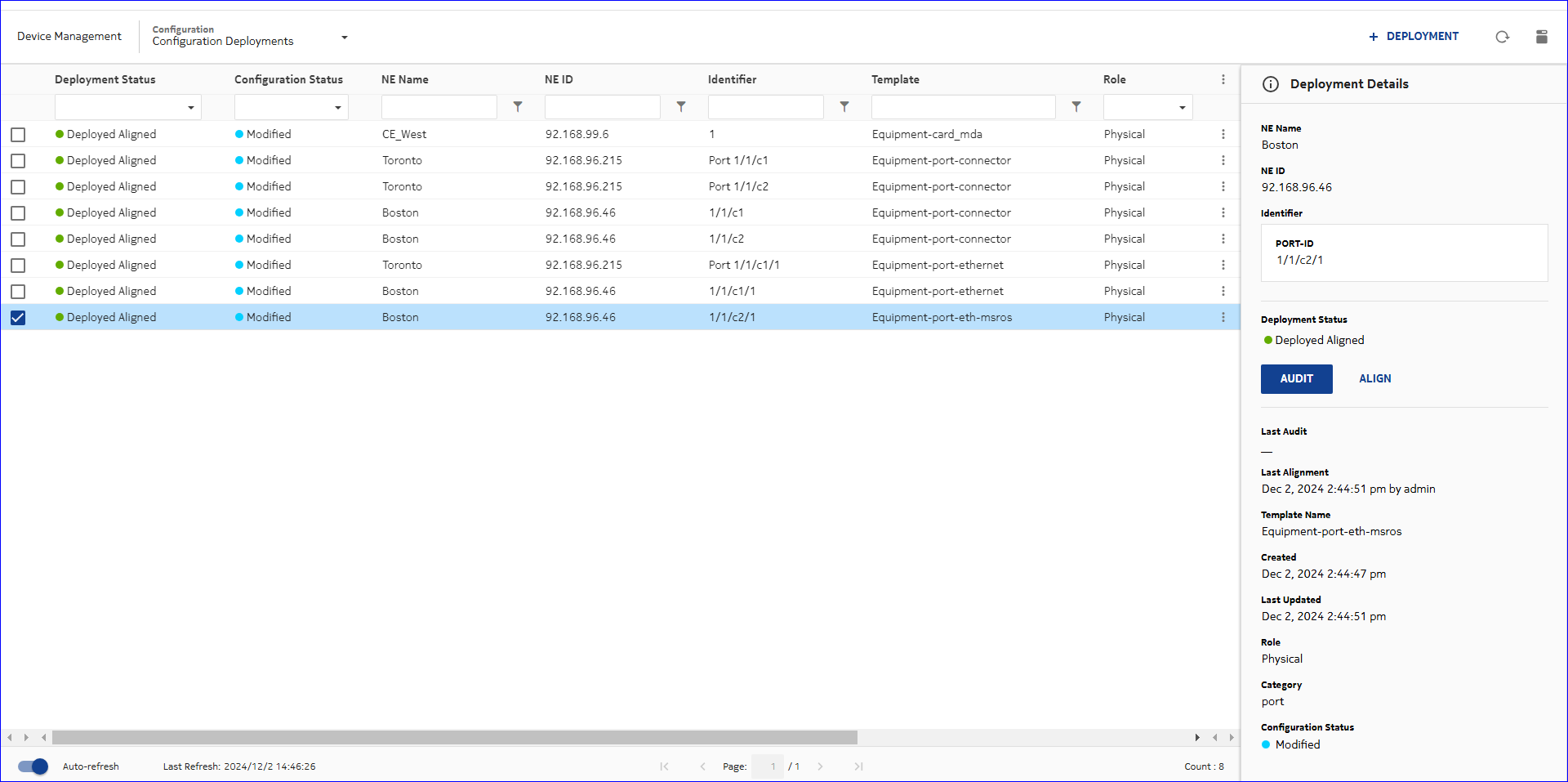

To configure Ethernet Port using intent port-eth_msros_23-10-1_24-4
port-eth_msros_23-10-1_24-4 supports configuration of ethernet port on MD NE. To use the file-accounting_gsros_23-10-1_23-11 intent instead to configure Port, see
To configure file-accounting_gsros.
1
Pre-configuration:
oper-group
/configure service oper-group "OperGroup-1"
dist-cpu-protection
/configure system security dist-cpu-protection policy "port-cpu-protect-1" type port
