About this guide

This guide provides information about the Service Router Operating System (SR OS) user guides available for the 7705 SAR Gen 2. The following figures show the 7705 SAR Gen 2 platforms described in the user guides.

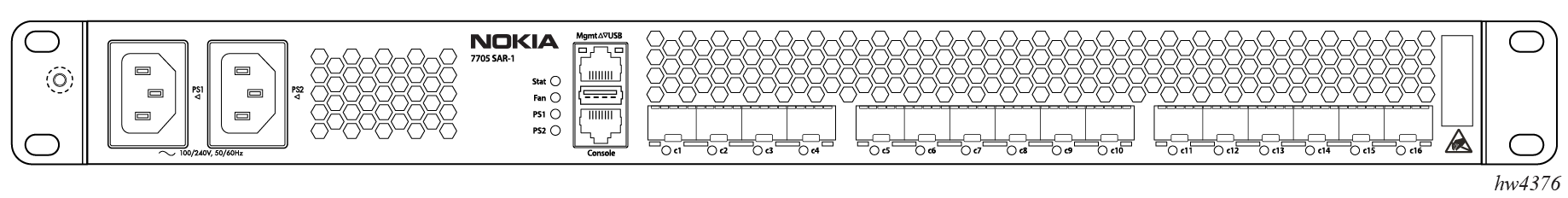

Figure 1. 7705 SAR-1 (AC powered variant)

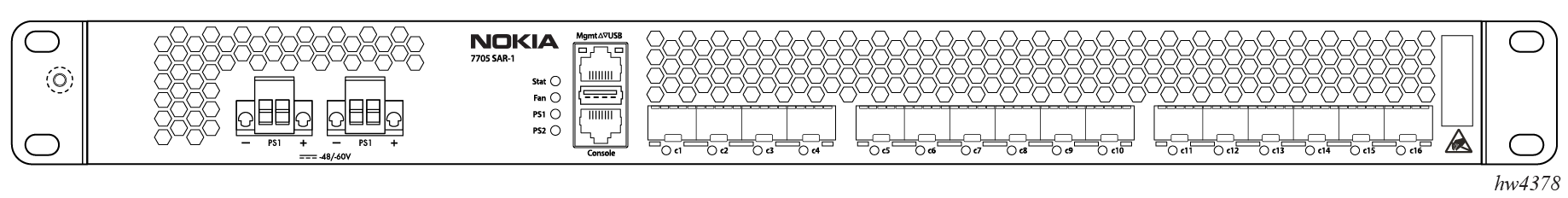

Figure 2. 7705 SAR-1 (DC powered variant)
