TLS

Note: The 7210 SAS only supports the Transport Layer Security (TLS) client. It does not support the TLS server. Any reference to the TLS server in the following sections is included for completeness.

TLS is primarily used for the following:

authentication of an end device (client or server) using a digital signature (DS)

TLS uses Public Key Infrastructure (PKI) for device authentication. DSs are used to authenticate clients or servers. The server typically sends a certificate with a DS to the client. In certain situations, the server can request a certificate from the client to authenticate it. The client has a certificate (called a trust anchor) from the certificate authority (CA), which is used to authenticate a server certificate and its DS. After the client provides a digitally signed certificate to the server and both parties are authenticated, the encryption Protocol Data Units (PDUs) are transmitted.
encryption and authentication of application PDUs

After the clients and server are successfully authenticated, the cipher suite is negotiated between the server and clients, and the PDUs are encrypted based on the agreed-upon cipher protocol.

TLS client interaction with applications

On the 7210 SAS, TLS is a standalone configuration. The user must configure TLS profiles with certificates and cryptograhic algorithms to use and then assign the TLS profiles to the appropriate applications. When a TLS profile is assigned to an application, the application does not send any clear text PDUs until the TLS handshake is successfully completed and the encryption ciphers are negotiated between the TLS server and the TLS client.

After successful negotiation and handshake, the TLS is operationally up and notifies the application, which begins transmitting PDUs. These PDUs are encrypted using TLS based on the agreed ciphers. At any point, if the TLS becomes operationally down, the application stops transmitting PDUs.

For example, the following sequence describes a TLS connection for generic TLS client application:

A TLS client profile is assigned to the application.
The application stops sending clear text PDUs because a TLS profile has been assigned and TLS is not ready to encrypt.
TLS begins the handshake.
Authentication occurs at the TLS layer.
The TLS server and TLS client negotiate ciphers.
Salts are negotiated for the symmetric key. A salt is a seed for creating Advanced Encryptions Standard (AES) encryption keys.
When negotiations are successfully completed, the handshake finishes and the application is notified.
TLS becomes operationally up, and the application can resume transmitting PDUs using the negotiated cipher. Until TLS is operationally up, application PDUs arriving from the peer (either server or client) are dropped.

TLS application support

The following table lists the applications that support TLS.

Table 1. TLS application support
Application	TLS server supported	TLS client supported
Syslog		✓
RADIUS¹		✓

¹ RADIUS over TLS is supported for user logins.

TLS handshake

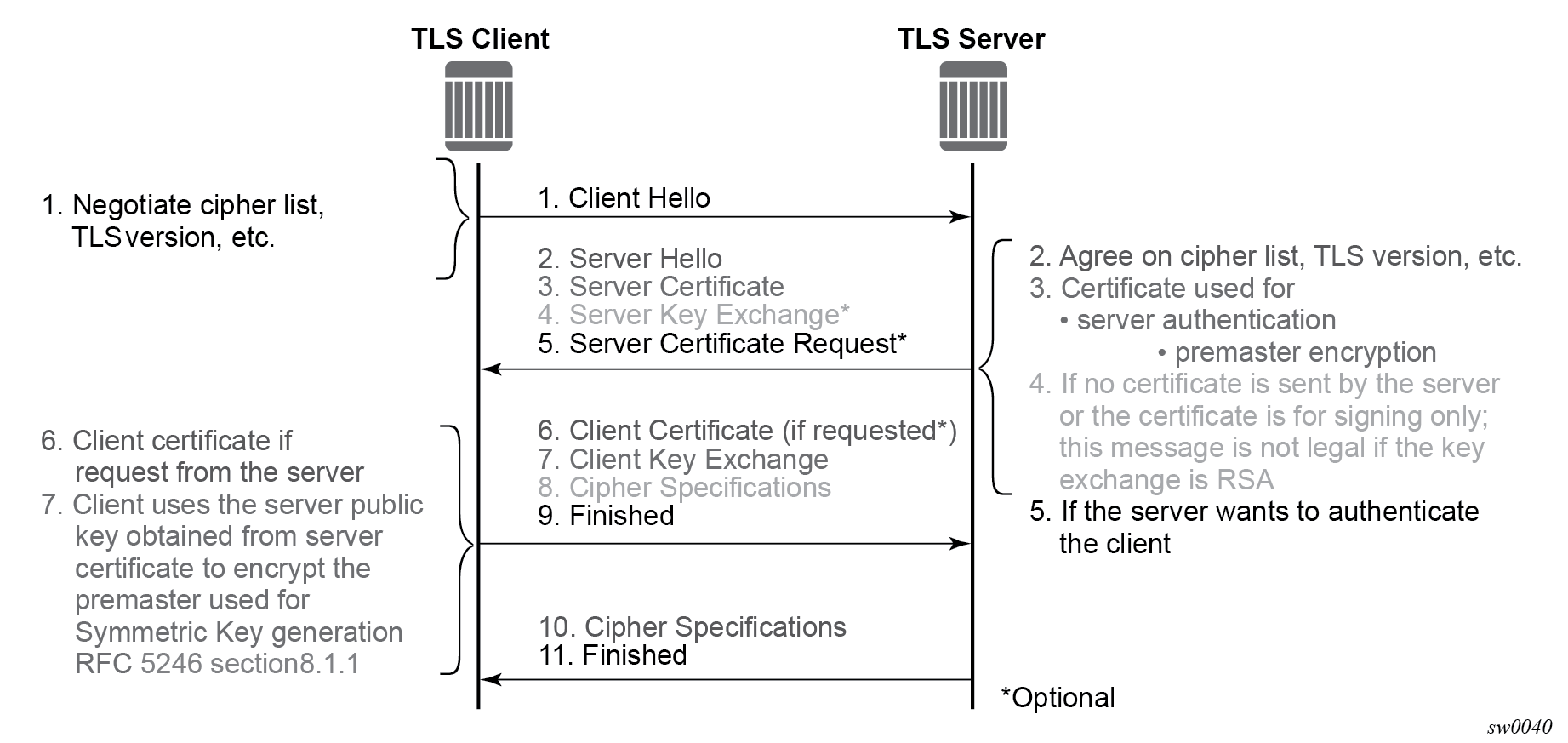

The following figure shows the TLS handshake.

The following table describes the steps in the TLS handshake.

Table 2. TLS handshake step descriptions
Step	Description
1	The TLS handshake begins with the client Hello message. This message includes the cipher list that the client wants to use and negotiate, among other information.
2	The TLS server sends back a server Hello message, along with the first common cipher found on both the client and server cipher lists. The common cipher is used for data encryption.
3	The TLS server sends a server certificate message, in which the server provides a certificate that the client can use to authenticate the server identity. The public key of this certificate (RSA key) can also be used to encrypt the symmetric key seed used by the client and server to create the symmetric encryption key. This occurs only if the PKI is using RSA for asymmetric encryption.
4	7210 SAS does not support server key exchange. 7210 SAS uses only RSA keys; Diffie-Hellman key exchange is not supported.
5	The server can optionally be configured to request a certificate from the client to authenticate the client.
6	If the server requests a client certificate, the client must provide it by using a client certificate message. If the client does not respond to the certificate request, the server drops the TLS session.
7	The client uses the public server RSA key included in the server certificate to encrypt a seed. The client and server use this seed to create the identical symmetric key used for encrypting and decrypting data plane traffic.
8	The client sends a cipher spec message to switch encryption to this symmetric key.
9	The client successfully finishes the handshake.
10	The server sends a cipher spec message to switch encryption to this symmetric key.
11	The server successfully finishes the handshake.

After a successful handshake, TLS is operationally up and applications can use TLS for application encryption.

TLS 1.3

TLS 1.3 is required for faster handshakes and stronger encryption and authentication algorithms.

All 7210 SAS applications that use TLS 1.2 also support TLS 1.3, unless specifically stated otherwise.

The user can configure the node to use TLS 1.2, TLS 1.3, or both for negotiation with the peer.

When TLS 1.3 is negotiated with a peer, the node no longer negotiates the TLS version down to 1.2 as long as the session is alive.

TLS 1.3 handshake

The TLS 1.3 client handshake is very similar to TLS 1.2 because the client is able to negotiate TLS 1.2 or 1.3 when starting the TLS Hello message to the server. The client includes a "Supported Version" extension in its Hello message. The server responds with its own supported version, agreed ciphers, and so on.

In TLS 1.2 and TLS 1.3, the server can optionally request for the client certificate to authenticate the client. If requested, the client must provide its certificate to the server.

TLS 1.2 and TLS 1.3 configuration

Users must configure the following for TLS to function properly:

TLS 1.2
- cipher list
TLS 1.3
- cipher list
- signature list
- group list

During the TLS handshake, the client sends the following information in the TLS Hello message to the server:

a list of cipher suites
a list of supported signatures
a list of groups for key exchange

The client and server can each configure their own signature, group, and cipher lists. During the handshake protocol between the client and server, the server selects the first group from the group list that it supports to use for the key exchange and negotiates the cipher and signature algorithm from the lists provided by the client.

TLS 1.3 client options and TLS client profile configuration

The following examples display the configuration of the TLS 1.3 client options and the TLS client profile.

Configure TLS 1.3 client information (classic CLI)

A:node-2>config>system>security>tls# info
----------------------------------------------
                cert-profile "profile1" create
                    no shutdown
                exit
                client-cipher-list "cipherlist1" create
                    tls13-cipher 1 name tls-aes128-ccm8-sha256
                exit
                client-group-list "grouplist1" create
                    tls13-group 1 name tls-ecdhe-521
                exit
                client-signature-list "signaturelist1" create
                    tls13-signature 1 name tls-rsa-pss-pss-sha512
                exit
----------------------------------------------

Configure the TLS client profile (classic CLI)

A:node-2>config>system>security>tls# info
----------------------------------------------
                client-tls-profile "profile1" create
                    no shutdown
                    cert-profile "profile1"
                    cipher-list "cipherlist1"
                    group-list "grouplist1"
                    protocol-version tls-version13
                    signature-list "signaturelist1"
                exit
----------------------------------------------

TLS client certificate

The TLS protocol is used for authentication. It allows the server to authenticate the client via PKI. If the server requests authentication from the client, the client response must provide an X.509v3 certificate that the server can authenticate using the digital signature of its client. The 7210 SAS supports the configuration of an X.509v3 certificate for TLS clients. When the server requests a certificate using the Hello message, the client sends a client certificate message to transmit its certificate to the server.

Certificate revocation status verification for TLS

A certificate authority (CA) can revoke issued certificates by listing them in a certificate revocation list (CRL). In TLS, an optional CRL is applied for CA certificates. The CRL does not apply to the intermediate or end issuer of an end entity (EE) certificate. To extend this optional configuration to include EE certificates, use the status-verify default-result commands under the following contexts:

configure system security tls client-tls-profile
configure system security tls server-tls-profile

The command options are revoked (default value) or good.

This default result is used when the revocation status of a certificate cannot be determined because of an invalid CRL (for example, it is missing, expired, or corrupt).

The TLS default-result for EE certificates is set to revoked for safety purposes. If an expired CRL in the CA profile is matched as the issuer of the EE certificate, the EE certificate is treated as revoked. If the expired CRL is further up in the certificate chain, the optional CRL works as expected.

The status-verify default-result command allows users to override the recommended revocation check policy when there is legitimate reason to accept EE certificates without checking their revocation status (for example, to keep the automatic CRL update working during a temporary network issue).

Supported TLS ciphers

As shown in TLS handshake, TLS negotiates the supported ciphers between the client and the server.

The client sends the supported cipher suites in the client Hello message, and the server compares them with the server cipher list. The top protocol on both lists is chosen and returned from the server within the server Hello message.

7210 SAS supports the following TLS 1.2 ciphers as a TLS client:

tls-rsa-with3des-ede-cbc-sha
tls-rsa-with-aes128-cbc-sha
tls-rsa-with-aes256-cbc-sha
tls-rsa-with-aes128-cbc-sha256
tls-rsa-with-aes256-cbc-sha256
tls-rsa-with-aes128-gcm-sha256
tls-rsa-with-aes256-gcm-sha384

The 7210 SAS supports the following TLS 1.3 ciphers, groups, and signature algorithms as a TLS client:

tls-aes128-gcm-sha256
tls-aes256-gcm-sha384
tls-chacha20-poly1305-sha256
tls-aes128-ccm-sha256
tls-aes128-ccm8-sha256
Groups:
- tls-ecdhe-256
- tls-ecdhe-384
- tls-ecdhe-521
- tls-x25519
- tls-x448
Signature algorithms:
- tls-rsa-pkcs1-sha256
- tls-rsa-pkcs1-sha384
- tls-rsa-pkcs1-sha512
- tls-ecdsa-secp256r1-sha256
- tls-ecdsa-secp384r1-sha384
- tls-ecdsa-secp521r1-sha512
- tls-rsa-pss-rsae-sha256
- tls-rsa-pss-rsae-sha384
- tls-rsa-pss-rsae-sha512
- tls-rsa-pss-pss-sha256
- tls-rsa-pss-pss-sha384
- tls-rsa-pss-pss-sha512
- tls-ed25519
- tls-ed448

7210 SAS certificate management

The 7210 SAS implements a centralized certificate management that can be used by TLS.

Use the commands in the following contexts to configure and manage certificates:

admin certificate

Certificate profile

The certificate profile is available for the TLS client. The cert-profile command is configured for the client to transmit the provider certificate and its DS to the peer so that the peer can authenticate it via the trust-anchor and CA certificate.

Multiple provider certificates can be configured on the 7210 SAS; however, the 7210 SAS currently uses the smallest index as the active provider certificate, and only sends the certificate to the peer.

Operational guidelines

This section provides operational guidelines for TLS.

TLS authentication behavior (client-side)

Following the Hello messages, if the certificate must be authenticated, the server sends its certificate in a certificate message. If required, a ServerKeyExchange message may also be sent.

Use the commands in the following context to configure client TLS security. The trust-anchor-profile command determines whether the server must be authenticated by the client.

configure system security tls client-tls-profile trust-anchor-profile

Note:

If the trust-anchor-profile command is configured and the ca-certificate or ca-profile is missing from this trust-anchor-profile, the TLS connection fails and an ‟unknown_ca” error is generated, as defined in RFC 5246 section 7.2.2.

One of the following configurations can be used to establish server connectivity:

If the trust-anchor-profile command is configured under the configure system security tls client-tls-profile context, the server must be authenticated using the trust-anchor-profile command before a trusted connection is established between the server and the client.
If there is no trust-anchor-profile command under the configure system security tls client-tls-profile context, the trusted connection can be established without server authentication. The RSA key of the certificate is used for public key encryption, requiring the following basic checks to validate the certificate:
- time validity

  The certificate is checked to ensure that it is neither expired nor not yet valid.
- certificate type

  The certificate is not a CA certificate.
- keyUsage extension

  If present, this must contain a digital signature and key encryption.
- host verification

  The IP address or DNS name of the server is looked up, if available (for LDAP, only the IP address is used), in the common name (cn) or subjectAltName extension. This is to verify that the certificate was issued to that server and not to another.

Client TLS profile and trust anchor behavior and scale

The 7210 SAS supports the creation of client TLS profiles, which can be assigned to applications such as LDAP to encrypt the application layer.

The client-tls-profile command is used for negotiating and authenticating the server. After the server is authenticated via the trust anchor profile (configured using the trust-anchor-profile command) of a client TLS profile, the server negotiates the ciphers and authentication algorithms to use for data encryption.

The client TLS profile must be assigned to an application for it to start encrypting. Up to 16 client TLS profiles can be configured. Because each of these client TLS profiles needs a trust anchor profile to authenticate the server, up to 16 trust anchor profiles can be configured. A trust anchor profile holds up to 8 trust anchors (configured using the trust-anchor command), each of which holds a CA profile (ca-profile).

A CA profile is a container for installing CA certificates (ca-certificates). The CA certificates are used to authenticate the server certificate. When the client receives the server certificate, the client reads through the trust anchor profile CA certificates and tries to authenticate the server certificate against each CA certificate. The first CA certificate that authenticates the server is used.

Basic TLS configuration

Basic TLS client configuration requires the following:

Use the following command to create a cipher list.
```
configure system security tls client-cipher-list
```
Use the following command to assign a TLS cipher list to the TLS client profile.
```
configure system security tls client-tls-profile cipher-list
```

Common configuration tasks

This section provides information about common configuration tasks.

Configuring a client TLS profile

Use the following command to configure a client TLS profile.

configure system security tls client-tls-profile

Configuring a TLS client certificate

Use the following commands to configure TLS certificate management.

configure system security tls cert-profile
configure system security tls client-tls-profile cert-profile

Configuring a TLS trust anchor

Use the commands in the following contexts to configure a TLS trust anchor.

configure system security pki ca-profile
configure system security pki certificate-display-format
configure system security tls trust-anchor-profile
configure system security tls client-tls-profile

TLS trust anchor

A:node-2>config>system>security>pki# info
----------------------------------------------
        ca-profile ‟tls-server-1-ca" create
            cert-file ‟tls-1-Root-CERT"
            crl-file ‟tls-1-CRL-CERT‟
            no shutdown
        exit
----------------------------------------------
A:node-2>config>system>security>tls# info
----------------------------------------------
        trust-anchor-profile "server-1-ca" create
            trust-anchor "tls-server-1-ca"
        exit
        client-tls-profile "server-1-profile" create
            cipher-list "to-active-server"
            trust-anchor-profile ‟server-1-ca‟
            no shutdown
        exit

TLS command reference

Command hierarchies

Configuration commands

TLS commands

config
    - system
        - security
            - tls
                - cert-profile profile-name [create]
                - no cert-profile profile-name
                    - entry  entry-id [create]
                    - no entry  entry-id
                        - cert cert-filename
                        - no cert
                        - key key-filename
                        - no key
                    - [no] shutdown
                - client-cipher-list name [create]
                - no client-cipher-list name
                    - cipher index name cipher-suite-code
                    - no cipher index
                    - tls13-cipher index name cipher-suite-code
                    - no tls13-cipher index
                - client-group-list name [create]
                - no client-group-list name
                    - tls13-group index name group-suite-code
                    - no tls13-group index
                - client-signature-list name [create]
                - no client-signature-list name
                    - tls13-signature index name signature-suite-code
                    - no tls13-signature index
                - client-tls-profile name [create]
                - no client-tls-profile name
                    - cert-profile name
                    - no cert-profile
                    - cipher-list name
                    - no cipher-list
                    - group-list name
                    - no group-list
                    - protocol-version TLS version
                    - no protocol-version
                    - [no] shutdown
                    - signature-list name
                    - no signature-list
                    - status-verify default-result {revoked | good}
                    - no status-verify
                    - trust-anchor-profile name
                    - no trust-anchor-profile

Certificate management commands

admin
    - certificate
        - convert-file filename to output-file-name format {secure | legacy} [force]
        - crl-update ca ca-profile-name
        - display type {cert | key} url-string format {pkcs10 | pkcs12 | pkcs7-der | pkcs7-pem | pem | der} [password password]
        - export type {cert | key | crl} input input-filename output url-string format output-format [password [password]] [pkey pkey-filename]
        - gen-keypair url-string [size {512 | 1024 | 2048}] [type {rsa | dsa}]
        - gen-local-cert-req keypair url-string subject-dn subject-dn [domain-name domain-names] [ip-addr ip-address | ipv6-address] file url-string [use-printable]
        - import type {cert | key} input url-string output filename format input-format [password password]

PKI commands

config
    - system
        - security
            - tls
                - cert-profile name [create]
                - no cert-profile name
                    - cert-file filename
                    - no cert-file
                    - crl-file filename
                    - no crl-file
                    - description description-string
                    - no description
                    - revocation-check {crl | crl-optional}
                    - [no] shutdown
                - certificate-display-format {ascii | utf8}
                - certificate-expiration-warning hours [repeat repeat-hours]
                - no certificate-expiration-warning
                - crl-expiration-warning hours [repeat repeat-hours]
                - no crl-expiration-warning
                - imported-format {any | secure}
                - maximum-cert-chain-depth level

Show commands

show
    - system
        - security
            - tls
                - cert-profile name association
                - cert-profile [name]
                - cert-profile  [name] entry entry
                - client-tls-profile  [client-tls-profile]
                - client-tls-profile client-tls-profile connections
                - trust-anchor-profile trust-anchor-profile association
                - trust-anchor-profile [trust-anchor-profile]

show
    - certificate
        - ca-profile
        - ca-profile auto-crl-update
        - ca-profile name [association]

Command descriptions

Configuration commands

TLS commands

tls

Syntax

tls

Context

config>system>security

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure Transport Layer Security (TLS) parameters.

cert-profile

Syntax

cert-profile profile-name [create]

no cert-profile profile-name

Context

config>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure TLS certificate profile information. The certificate profile contains certificates that are sent to the TLS peer (server) to authenticate itself. It is mandatory for the TLS server to send this information. The TLS client may optionally send this information upon request from the TLS server.

The no form of this command deletes the specified TLS certificate profile.

Default

no cert-profile

Parameters

profile-name: Specifies the TLS certificate profile name, up to 32 characters in length.

create: Keyword used to create the TLS certificate profile.

entry

Syntax

entry entry-id [create]

no entry entry-id

Context

config>system>security>tls>cert-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure an entry for the TLS certificate profile. A certificate profile may have up to eight entries. Currently, TLS uses the entry with the smallest ID number when responding to server requests.

The no form of this command deletes the specified entry.

Default

no entry

Parameters

entry-id

Specifies the ID of the TLS certificate profile entry.

Values: 1 to 8

create: Keyword used to create the TLS certificate profile entry.

cert

Syntax

cert cert-filename

no cert

Context

config>system>security>tls>cert-profile>entry

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the filename of an imported certificate for the cert-profile entry.

The no form of this command removes the certificate.

Default

no cert

Parameters

cert-filename: Specifies the filename of the TLS certificate, up to 95 characters in length.

key

Syntax

key key-filename

no key

Context

config>system>security>tls>cert-profile>entry

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the filename of an imported key for the cert-profile entry.

The no form of this command removes the key.

Default

no key

Parameters

key-filename: Specifies the filename of the key, up to 95 characters in length.

client-cipher-list

Syntax

client-cipher-list name [create]

no client-cipher-list name

Context

config>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context create a cipher list that the client sends to the server in the client Hello message. It is a list of ciphers supported and preferred by the 7210 SAS TLS client for use in the TLS session. The server matches this list against the server cipher list. The most preferred cipher found in both lists is chosen.

The no form of this command removes cipher list.

Default

no client-cipher-list

Parameters

name: Specifies the name of the client cipher list, up to 32 characters in length.

create: Keyword used to create the client cipher list.

cipher

Syntax

cipher index name cipher-suite-code

no cipher index

Context

config>system>security>tls>client-cipher-list

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command configures the cipher suite to be negotiated by the server and client.

The no form of this command removes the cipher suite.

Default

no cipher

Parameters

index

Specifies the index number. The index number indicates the location of the cipher in the negotiation list, with the lower index numbers appearing higher in the list and the higher index numbers appearing at the bottom of the list.

Values: 1 to 255

cipher-suite-code

Specifies the cipher suite code.

Values

tls-rsa-with3des-ede-cbc-sha

tls-rsa-with-aes128-cbc-sha

tls-rsa-with-aes256-cbc-sha

tls-rsa-with-aes128-cbc-sha256

tls-rsa-with-aes256-cbc-sha256

tls-rsa-with-aes128-gcm-sha256

tls-rsa-with-aes256-gcm-sha384

tls13-cipher

Syntax

tls13-cipher index name cipher-suite-code

no tls13-cipher index

Context

config>system>security>tls>client-cipher-list

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command configures the TLS 1.3-supported ciphers that are used by the client and server.

The no form of this command removes the cipher suite.

Default

no tls13-cipher

Parameters

index

Values: 1 to 255

cipher-suite-code

Specifies the cipher suite code.

Values

tls-aes128-gcm-sha256

tls-aes256-gcm-sha384

tls-chacha20-poly1305-sha256

tls-aes128-ccm-sha256

tls-aes128-ccm8-sha256

client-group-list

Syntax

client-group-list name [create]

no client-group-list name

Context

config>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure a list of group suite codes that the client sends in a client Hello message.

The no form of this command removes the client group list.

Default

no client-group-list

Parameters

name: Specifies the name of the client group list, up to 32 characters.

create: Keyword used to create the client group list.

tls13-group

Syntax

tls13-group index name group-suite-code

no tls13-group index

Context

config>system>security>tls>client-group-list

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command configures the TLS 1.3-supported group suite codes sent by the client or server in their respective Hello messages.

The 7210 SAS TLS client supports the use of Elliptic-curve Diffie-Hellman Ephemeral (ECDHE) groups.

The no form of this command removes the group suite code.

Default

no tls13-group

Parameters

index

Specifies the index number, that indicates the location of the group suite code in the client or server group list. The lower index numbers are higher in the list, and the higher index numbers are at the bottom of the list.

Values: 1 to 255

group-suite-code

Specifies the group suite code.

Values

tls-ecdhe-256

tls-ecdhe-384

tls-ecdhe-521

tls-x25519

tls-x448

client-signature-list

Syntax

client-signature-list name [create]

no client-signature-list name

Context

config>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure a list of TLS 1.3-supported signature suite codes that the client sends in a client Hello message.

The no form of this command removes the client signature list.

Default

no client-signature-list

Parameters

name: Specifies the name of the client signature list, up to 32 characters.

create: Keyword used to create the client signature list.

tls13-signature

Syntax

tls13-signature index name signature-suite-code

no tls13-signature index

Context

config>system>security>tls>client-signature-list

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command configures the TLS 1.3-supported signature suite codes sent by the client or server in their respective Hello messages.

The no form of this command removes the signature suite code.

Default

no tls13-signature

Parameters

index

Specifies the index number, that indicates the location of the signature suite code in the client or server group list. The lower index numbers are higher in the list, and the higher index numbers are at the bottom of the list.

Values: 1 to 255

signature-suite-code

Specifies the signature suite code.

Values

tls-rsa-pkcs1-sha256

tls-rsa-pkcs1-sha384

tls-rsa-pkcs1-sha512

tls-ecdsa-secp256r1-sha256

tls-ecdsa-secp384r1-sha384

tls-ecdsa-secp521r1-sha512

tls-rsa-pss-rsae-sha256

tls-rsa-pss-rsae-sha384

tls-rsa-pss-rsae-sha512

tls-rsa-pss-pss-sha256

tls-rsa-pss-pss-sha384

tls-rsa-pss-pss-sha512

tls-ed25519

tls-ed448

client-tls-profile

Syntax

client-tls-profile name [create]

no client-tls-profile name

Context

config>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure the TLS client profile to be assigned to applications for encryption.

The no form of this command removes the TLS client profile.

Default

no client-tls-profile

Parameters

name: Specifies the name of the client TLS profile, up to 32 characters in length.

create: Keyword used to create the client TLS profile.

cert-profile

Syntax

cert-profile name

no cert-profile

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command assigns a TLS certificate profile to be used by the TLS client profile. This certificate is sent to the server for the authentication of the client and public key.

The no form of this command removes the TLS certificate profile assignment.

Default

no cert-profile

Parameters

name: Specifies the name of the TLS certificate profile, up to 32 characters in length.

cipher-list

Syntax

cipher-list name

no cipher-list

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command assigns the cipher list to be used by the TLS client profile for negotiation in the client Hello message.

The no form of this command removes the cipher list assignment.

Default

no cipher-list

Parameters

name: Specifies the name of the cipher list, up to 32 characters in length.

group-list

Syntax

group-list name

no group-list

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command assigns an existing TLS 1.3 group list to the TLS client profile.

The no form of this command removes the group list from the client profile.

Default

no group-list

Parameters

name: Specifies the name of the group list, up to 32 characters in length.

protocol-version

Syntax

protocol-version TLS version

no protocol-version

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command configures the TLS version to be negotiated between the client and server.

When configured, the client adds the specified version as a supported version in its Hello message to the server. If the tls-version-all parameter is specified, the client adds both TLS 1.2 and TLS 1.3 as supported versions in its Hello message.

The no form of this command reverts to the default TLS version.

Default

protocol-version tls-version12

Parameters

TLS version

Specifies the TLS version to include in the client Hello message.

Values

tls-version12

tls-version13

tls-version-all

signature-list

Syntax

signature-list name

no signature-list

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command assigns an existing TLS 1.3 signature list to the TLS client profile.

The no form of this command removes the signature list from the client profile.

Default

no signature-list

Parameters

name: Specifies the name of the signature list, up to 32 characters in length.

status-verify

Syntax

status-verify default-result {revoked | good}

no status-verify

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command configures the certificate revocation status verification parameters for end-entity (EE) certificates in the TLS client or server. This configuration overrides the existing revocation check policy.

By default the router checks the certification revocation status, but if this command is set to good, the end-entity certificate revocation status is overwritten and a good revocation status is returned for the EE certificate.

If this command is set to revoked, the router returns the actual revocation status of the end-entity certificate.

The no form of this command returns the actual revocation status to that of the end entity certificate.

Default

status-verify default-result revoked

Parameters

good: Keyword to specify that the certificate is considered acceptable.

revoked: Keyword to specify that the certificate is considered revoked.

trust-anchor-profile

Syntax

trust-anchor-profile name

no trust-anchor-profile

Context

config>system>security>tls>client-tls-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command assigns the trust anchor used by this TLS profile to authenticate the client.

The no form of this command removes the configured trust anchor profile.

Default

no trust-anchor-profile

Parameters

name: Specifies the name of the trust anchor profile, up to 32 characters in length.

Certificate management commands

certificate

Syntax

certificate

Context

admin

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure X.509 certificate-related operational parameters.

convert-file

Syntax

convert-file filename to output-file-name format {secure | legacy} [force]

Context

admin>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command converts imported certificates and keys in the cf1:/system-pki directory between secure and legacy format.

Parameters

filename: Specifies an existing filename, up to 95 characters.

output-file-name: Specifies the output file name, up to 95 characters. If the output filename already exists, and the force keyword is not selected, the system prompts to proceed or abort.

format

Specifies the target format.

Values

secure — Specifies the enhanced secure format

legacy — Specifies the legacy format

force: Keyword to force the conversion, even if there is an existing file with the same output filename.

crl-update

Syntax

crl-update ca ca-profile-name

Context

admin>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command manually triggers the Certificate Revocation List file (CRL) update for the specified CA profile.

Using this command requires shutting down the auto-crl-update command.

Parameters

ca-profile-name: Specifies the CA profile name, up to 32 characters.

display

Syntax

display type {cert | key} url-string format {pkcs10 | pkcs12 | pkcs7-der | pkcs7-pem | pem | der} [password password]

Context

admin>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command displays the content of an input file in plain text.

The following list summarizes the formats supported by this command:

System
- system format
- PKCS #12
- PKCS #7 PEM encoded
- PKCS #7 DER encoded
- RFC 4945
Key
- system format
- PKCS #12

Parameters

url-string

Specifies the local CF card URL of the input file.

Values

url-string: <local-url> [up to 99 characters]

local-url: <cflash-id | usb-flash-id>/<file-path>


cflash-id
cf1: \| uf1:	(7210 SAS-S 1/10GE (standalone and standalone-VC))
cf1: \| cf2: \| uf1:	(7210 SAS-Mxp, 7210 SAS-T, 7210 SAS-Sx 1/10GE (standalone and standalone-VC), and 7210 SAS-Sx 10/100GE)
cf1: \|cf1-A: \| cf1-B: \| cf2: \| cf2-A: \| cf2-B: \| uf1: \| uf1-A: \| uf1-B:	(7210 SAS-R6 and 7210 SAS-R12)
usb-flash-id
cf1: \| uf1:	(7210 SAS-S 1/10GE (standalone and standalone-VC))
cf1: \| cf2: \| uf1:	(7210 SAS-Mxp, 7210 SAS-T, 7210 SAS-Sx 1/10GE (standalone and standalone-VC), and 7210 SAS-Sx 10/100GE)
cf1: \| cf1-A: \| cf1-B: \| cf2: \| cf2-A: \| cf2-B: \| uf1: \| uf1-A: \| uf1-B:	(7210 SAS-R6 and 7210 SAS-R12)

type

Keyword to specify the type of input file.

Values: cert, key

format

Keyword to specify the format of input file.

Values: pkcs10, pkcs12, pkcs7-der, pkcs7-pem, pem, der

password: Specifies the password , up to 99 characters in length, to decrypt the input file, if it is an encrypted PKCS#12 file.

export

Syntax

export type {cert | key | crl} input input-filename output url-string format output-format [password [password]] [pkey pkey-filename]

Context

admin>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command performs certificate operations.

Parameters

type

Keyword to specify the type of output file.

Values: cert, key, crl

input-filename: Specifies the name of the input file, up to 95 characters in length.

url-string

Specifies the local CF card URL of the file.

Values

url-string: <local-url> [up to 99 characters]

local-url: <cflash-id>/<file-path>

cflash-id: cf1:

output-format

Keyword to specify the format of the output file.

Values: pkcs12, pkcs7-der, pkcs7-pem, pem, der

password: Specifies the password, up to 32 characters in length, to decrypt the input file if it is an encrypted PKCS#12 file.

pkey-filename: Specifies the name of the P key file, up to 95 characters in length.

gen-keypair

Syntax

gen-keypair url-string [size {512 | 1024 | 2048}] [type {rsa | dsa}]

Context

admin>certificate

Platforms

7210 SAS-Mxp, 7210 SAS-R6, 7210 SAS-R12, 7210 SAS-Sx/S 1/10GE (standalone and standalone-VC mode), 7210 SAS-Sx 10/100GE (standalone mode), 7210 SAS-T (network and access-uplink mode)

Description

This command generates RSA, DSA, or ECDSA private key or public key pairs at the specified location.

Parameters

url-string

Specifies the path of the key file.

Values

url-string: <local-url> [up to 99 characters]

local-url: <cflash-id>/<file-path>

cflash-id: cf1:

size

Keyword to specify the key size in bits.

Values: 512, 1024, 2048

type

Keyword to specify the type of key.

Values: rsa, dsa

gen-local-cert-req

Syntax

gen-local-cert-req keypair url-string subject-dn subject-dn [domain-name domain-names] [ip-addr ip-address | ipv6-address] file url-string [use-printable]

Context

admin>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command generates a PKCS#10 formatted certificate request by using a local existing key pair file.

Parameters

url-string

Specifies the name of the keyfile in cf1:\system-pki\key that is used to generate a certificate request.

Values

url-string: <local-url> [up to 99 characters]

local-url: <cflash-id>/<file-path>

cflash-id: cf1:

subject-dn

Specifies the distinguished name that is used as the subject in a certificate request, including:

C-Country
ST-State
O-Organization name
OU-Organization Unit name
CN-Common Name

This parameter is formatted as a text string including any of the above attributes. The attribute and its value is linked by using "=”, and ",” is used to separate different attributes, for example: C=US,ST=CA,O=ALU,CN=SR12.

Values: attr1=val1,attr2=val2... where: attrN={C| ST| O| OU| CN}, 256 chars max

domain-names: Specifies a domain name string can be specified and included as the dNSName in the Subject Alternative Name extension of the certificate request, up to 512 characters in length.
ip-address | ipv6-address: Specifies an IPv4 or IPv6 address string that can be included as the ipAddress in the Subject Alternative Name extension of the certificate request, up to 64 characters in length.
use-printable: Keyword to specify to encode the certificate in printable text format instead of UTF8.

import

Syntax

import type {cert | key} input url-string output filename format input-format [password password]

Context

admin>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command converts an input file (key or certificate) to a system format file. The following list summarizes the formats supported by this command:

Certificate
- PKCS #12
- PKCS #7 PEM encoded
- PKCS #7 DER encoded
- PEM
- DER
Key
- PKCS #12
- PEM
- DER

Note: If the input file contains multiple objects of the same type, only the first object is extracted and converted.

Parameters

url-string

Specifies the URL for the input file. This URL could be either a local CF card URL file or an FP URL to download the input file.

Values

url-string: <local-url> [up to 99 characters]

local-url: <cflash-id>/<file-path>

cflash-id: cf1:

filename: Specifies the name of the output file, up to 95 characters in length. The output directory is cf1:\system-pki.

type

Keyword to specify the type of input file.

Values: cert, key

input-format

Keyword to specify the format of the input file.

Values: pkcs12, pkcs7-der, pkcs7-pem, pem, der

password: Specifies the password, up to 32 characters in length, to decrypt the input file if it is an encrypted PKCS#12 file.

PKI commands

pki

Syntax

pki

Context

config>system>security

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context configure Public Key Infrastructure (PKI) parameters.

ca-profile

Syntax

ca-profile name [create]

no ca-profile name

Context

config>system>security>pki

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command creates a new CA profile or enters the context of an existing CA profile. Up to 128 CA profiles can be created in the system. A shutdown of the ca-profile command does not affect the current up and running ipsec-tunnel associated with the ca-profile; however, subsequent authentication fails.

Executing a no shutdown command in this context causes the system to reload the configured cert-file and crl-file.

A ca-profile can be applied under the ipsec-tunnel configuration.

The no form of this command removes the name parameter from the configuration. A CA profile cannot be removed until all the associations (IPSec tunnels) are removed.

Default

no ca-profile

Parameters

name: Specifies the CA profile name, up to 32 characters in length.

create: Keyword used to create the CA profile.

cert-file

Syntax

cert-file filename

no cert-file

Context

config>system>security>pki>ca-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the name of a file as the CA certificate of the CA profile and saves it in the cf1:\system-pki\cert directory.

When a no shutdown command is issued, the system checks the following against the configured cert-file:

The configured cert-file is a DER-formatted X.509v3 certificate file.
All mandatory fields defined in section 4.1 of RFC5280 exist and conform to the RFC 5280-definedformat.
The Version field has a value of 0x2.
The Validity field indicates that the certificate is still valid.
The X.509 basic constraints extension exists, and the CA Boolean is True.
If the Key Usage extension exists, at least keyCertSign and CRLSign are asserted.
If the certificate is not a self-signing certificate, the system looks for the issuer’s CA certificate to verify that this certificate is signed by issuer’s CA. If there is no such CA profile configured, the system proceeds with a warning message.
If the certificate is not a self-signing certificate, the system looks for the issuer’s CA Certificate Revocation List (CRL) to verify that it has not been revoked. If there is no CA profile configured or there is no CRL, the system proceeds with a warning message.

If any of the preceding checks fail, the no shutdown command fails.

Changing or removing the cert-file is allowed only when the ca-profile is in a shutdown state.

The no form of this command removes the filename from the configuration.

Default

no cert-file

Parameters

filename: Specifies a local compact flash file URL, up to 95 characters in length.

crl-file

Syntax

crl-file filename

no crl-file

Context

config>system>security>pki>ca-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the name of a file as the CRL file of the CA profile and saves it in the cf1:\system-pki\crl directory.

When a no shutdown command is issued, the system checks the following against the configured crl-file:

A valid cert-file of the ca-profile is already configured.
The configured crl-file is a DER-formatted CRLv2 file.
All mandatory fields defined in section 5.1 of RFC 5280 exist and conform to the RFC 5280 defined format.
The version field has a value of 0x1.
The delta CRL Indicator does not exist (delta CRL is not supported).
The CRL signature is verified by using the cert-file of the ca-profile.

If any of the preceding checks fail, the no shutdown command fails.

Changing or removing the crl-file is allowed only when the ca-profile is in a shutdown state.

The no form of this command removes the filename from the configuration.

Default

no crl-file

Parameters

filename: Specifies the name of the CRL file stored in the cf1:\system-pki\crl directory, up to 95 characters in length.

revocation-check

Syntax

revocation-check {crl | crl-optional}

Context

config>system>security>pki>ca-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the revocation method the system uses to check the revocation status of certificate issued by the CA. If the crl-optional option is configured, when the user enables the ca-profile, the system tries to load the configured CRL (specified by the crl-file command in the ca-profile). However, if the system fails to load the configured CRL for the following reasons, the system still brings the ca-profile operationally up, but leaves the CRL configured as non-existent:

CRL file does not exist
CRL is not properly encoded - maybe due to interrupted file transfer
CRL does not match cert
wrong CRL version
CRL expired

Note:

The crl-optional command option makes configuration of a valid CRL in a ca-profile optional. However, from a security point of view, it is important to always verify the revocation status of a certificate.

If the system needs to use the CRL of a specific CA profile to check the revocation status of an end-entity certificate, and the CRL is non-existent due to the preceding reasons, the system treats a case like this as being unable to get an answer from CRL and falls back to the next status verify method or default result.

If the system needs to check the revocation of a CA certificate in a certificate chain, and if the CRL is non-existent because of the preceding reasons, the system skips checking the revocation status of the CA certificate. For example, if CA1 is issued by CA2, if the revocation-check for CA2 is crl-optional and the CRL for CA2 is non-existent, the system does not check the certificate revocation status of CA1 and it is considered as "good”.

Note:

Users must shutdown the ca-profile to change the revocation-check configuration.

Default

revocation-check crl

Parameters

crl: Keyword to specify to use the configured CRL.

crl-optional: Keyword to specify that the CRL is optional..

shutdown

Syntax

[no] shutdown

Context

config>system>security>pki>ca-profile

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command disables the CA profile. The system verifies the configured cert-file and crl-file. If the verification fails, the no shutdown command fails.

A ca-profile that is in a shutdown state cannot be used in certificate authentication.

The no form of this command enables the CA profile.

Default

shutdown

certificate-display-format

Syntax

certificate-display-format {ascii | utf8}

Context

config>system>security>pki

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the display format used for the certificates and CRLs.

Default

certificate-display-format ascii

Parameters

ascii: Keyword to specify the ASCII format for the certificates and CRLs.

utf8: Keyword to specify the UTF8 format for the certificates and CRLs.

certificate-expiration-warning

Syntax

certificate-expiration-warning hours [repeat repeat-hours]

no certificate-expiration-warning

Context

config>system>security>pki

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

With this command configured, the system issues two types of warnings related to certificate expiration:

BeforeExp — A warning message issued before certificate expire
AfterExp — A warning message issued when certificate expire

This command specifies when system will issue BeforeExp message before a certificate expires. For example, with certificate-expiration-warning 5, the system will issue a BeforeExp message 5 hours before a certificate expires. An optional repeat <repeat-hour> parameter will enable the system to repeat the BeforeExp message every hour until the certificate expires.

If the user only wants AfterExp, then certificate-expiration-warning 0 can be used to achieve this.

BeforeExp and AfterExp warnings can be cleared in following cases:

The certificate is reloaded by the admin certificate reload command. In this case, if the reloaded file is not expired, then AfterExp is cleared. And, if the reloaded file is outside of configured warning window, then the BeforeExp is also cleared.
When the ca-profile/ipsec-gw/ipsec-tunnel/cert-profile is shutdown, then BeforeExp and AfterExp of corresponding certificates are cleared.
When no certificate-expiration-warning command is configured, then all existing BeforeExp and AfterExp are cleared.
Users may change the configuration of the certificate-expiration-warning so that certain certificates are no longer in the warning window. BeforeExp of corresponding certificates are cleared.
If the system time changes so that the new time causes the certificates to no longer be in the warning window, then BeforeExp is cleared. If the new time causes an expired certificate to come non-expired, then AfterExp is cleared.

The no form of this command removes the issuing of warnings from the system.

Default

no certificate-expiration-warning

Parameters

hours

Specifies the amount of time before a certificate expires when the system issues a BeforeExp message.

Values: 0 to 8760

repeat-hours

Specifies the time interval for the system to repeat the BeforeExp message.

Values: 0 to 8760

crl-expiration-warning

Syntax

crl-expiration-warning hours [repeat repeat-hours]

no crl-expiration-warning

Context

config>system>security>pki

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies when the system issues BeforeExp message before a CRL expires; for example, if certificate-expiration-warning 5 is configured, the system issues a BeforeExp message 5 hours before a CRL expires. An optional repeat repeat-hours parameter enables the system to repeat the BeforeExp message every hour until the CRL expires.

To issue only the AfterExp warning message, configure the certificate-expiration-warning command with a value of "0”.

See the certificate-expiration-warning command for information about the cases in which BeforeExp and AfterExp warnings can be cleared.

The no form of this command removes the issuing of BeforeExp messages from the system.

Default

no crl-expiration-warning

Parameters

hours

Specifies the amount of time before a CRL expires when the system issues BeforeExp messages.

Values: 0 to 8760

repeat-hours

Specifies the time interval for the system to repeat the BeforeExp message.

Values: 0 to 8760

imported-format

Syntax

imported-format {any | secure}

Context

config>system>security>pki

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command specifies the allowed format of imported certificates or keys in the cf1:/system-pki directory.

Default

imported-format any

Parameters

any: Keyword to allow any imported format.

secure: Keyword to allow only enhanced secure imported formats.

maximum-cert-chain-depth

Syntax

maximum-cert-chain-depth level

Context

config>system>security>pki

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command defines the maximum depth of certificate chain verification. This number is applied system wide.

The no form of this command reverts to the default value.

Default

maximum-cert-chain-depth 7

Parameters

level

Specifies the maximum depth of certificate chain verification. The certificate under verification is not counted in the chain; for example, if this parameter is set to 1, the certificate under verification must be directly signed by the trust anchor CA.

Values: 1 to 7

Show commands

tls

Syntax

tls

Context

show>system>security

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

Commands in this context display TLS-related information.

cert-profile

Syntax

cert-profile name association

cert-profile [name]

cert-profile [name] entry entry

Context

show>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command displays information about server and client profiles that are using this certificate profile.

Parameters

name: Specifies the name of a certificate profile, up to 32 characters in length, for which to display information.

entry

Specifies the certificate profile entry number for which to display information.

Values: 1 to 8

association: Keyword to display users of the certificate profile.

Output

The following output is an example of certificate profile information, and Output fields: certificate profile describes the output fields.

Sample output

*A:Dut-A>show>system>security>tls# cert-profile
===============================================================================
Certificate Profile
===============================================================================
Certificate Profile Name          AdminState  OperState  OperFlags
-------------------------------------------------------------------------------
cp                                up          up
===============================================================================

A:Dut-A>show>system>security# tls cert-profile "cp" association
===============================================================================
TLS Client Profiles using cert-profile "cp"
===============================================================================
TLS Client Profile Name
-------------------------------------------------------------------------------
ctp1.2
ctp1.3
-------------------------------------------------------------------------------
Number of TLS Client Profile entries: 2
===============================================================================

A:Dut-A# show system security tls cert-profile "cp" entry 1
===============================================================================
TLS Certificate Profile: "cp" Entry: 1 Detail
===============================================================================
Certificate File : client-cert.pem
Key File         : client-key.pem
Status Flags     : (Not Specified)
Comp Chain       : complete
Compute Chain CA Profiles
-------------------------------------------------------------------------------
clientCA
===============================================================================

Table 3. Output fields: certificate profile
Label	Description
Certificate Profile Name	Displays the certificate profile name
AdminState	Displays the administrative state
OperState	Displays the operational state
OperFlags	Displays the operational flags
TLS Client Profile Name	Displays the TLS client profile name
Number of TLS Client Profile entries	Displays the number of TLS client profile entries
TLS Certificate Profile	Displays the TLS certificate profile name
Entry	Displays the certificate profile entry number
Certificate File	Displays the certificate file name
Key File	Displays the key file name
Status Flags	Displays the status flags
Comp Chain	Displays the comp chain

client-tls-profile

Syntax

client-tls-profile [client-tls-profile]

client-tls-profile client-tls-profile connections

Context

show>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command displays TLS client profile information.

Parameters

client-tls-profile: Specifies the client TLS profile name, up to 32 characters.

connections: Keyword to display connections that use the TLS client profile.

Output

The following output is an example of certificate profile information, and Output fields: TLS client profile describes the output fields.

Sample output

A:Dut-A>show>system>security# tls client-tls-profile
===============================================================================
Client Profile Information
===============================================================================
Name                                           AdminState     OperState
-------------------------------------------------------------------------------
ctp1.2                                         up             up
ctp1.3                                         up             up
===============================================================================

*A:Dut-A>show>system>security# tls client-tls-profile "ctp1.3" connections
===============================================================================
Active TLS connections using client-tls-profile "ctp1.3"
===============================================================================
     Cipher                        Matched Trust Anchor
       Server IP
-------------------------------------------------------------------------------
Syslog
1    TLS_AES_128_GCM_SHA256        CA1
100.120.224.167:6514
-------------------------------------------------------------------------------
Number of TLS connections: 1
===============================================================================

Table 4. Output fields: TLS client profile
Label	Description
Name	Displays the client TLS profile name
AdminState	Displays the administrative state
OperState	Displays the operational state
Cipher	Displays the cipher
Server IP	Displays the server IP address
Matched Trust Anchor	Displays the matched trust anchor name
Syslog	Displays the syslog information
Number of TLS connections	Displays the number of TLS connections

trust-anchor-profile

Syntax

trust-anchor-profile trust-anchor-profile association

trust-anchor-profile [trust-anchor-profile]

Context

show>system>security>tls

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command displays TLS trust anchor profile information.

Parameters

trust-anchor-profile: Specifies the TLS trust anchor profile name, up to 32 characters.

association: Keyword to display trust anchor profile users.

Output

The following output is an example of certificate profile information, and Output fields: TLS trust anchor profile describes the output fields.

Sample output

*A:Dut-A# show system security tls trust-anchor-profile
===============================================================================
Trust Anchor Profile Information
===============================================================================
Name                                           CA Profiles Down
-------------------------------------------------------------------------------
TA                                             0
===============================================================================

*A:Dut-A# show system security tls trust-anchor-profile "TA"
===============================================================================
CA-profile List for Trust Anchor "TA"
===============================================================================
CA Profile Name                                AdminState     OperState
-------------------------------------------------------------------------------
CA1                                            up             up
===============================================================================

Table 5. Output fields: TLS trust anchor profile
Label	Description
Name	Displays the TLS trust anchor profile name
CA Profiles Down	Displays the number of operation down CA profiles
CA Profile Name	Displays CA profile name
AdminState	Displays the administrative state
OperState	Displays the operational state

ca-profile

Syntax

ca-profile

ca-profile auto-crl-update

ca-profile name [association]

Context

show>certificate

Platforms

Supported on all 7210 SAS platforms as described in this document, except those operating in access-uplink mode

Description

This command displays CA profile information.

Parameters

auto-crl-update: Keyword to display the CA profiles with the automated CRL update configured.

name: Specifies the CA profile name, up to 32 characters.

association: Keyword to display CA profile users.

Output

The following output is an example of certificate profile information, and Output fields: CA profile describes the output fields.

Sample output

*A:Dut-A# show certificate ca-profile
-------------------------------------------------------------------------------
Max Cert Chain Depth: 7 (default)
-------------------------------------------------------------------------------
Certificate Display Format: 1 ASCII
-------------------------------------------------------------------------------
Time Frames For Expiry Warning Generation Before:
Certificate Expiry Warning : 10 Hours       Repeat Interval : 2 Hours
CRL Expiry Warning         : 10 Hours       Repeat Interval : 4 Hours

===============================================================================
CA Profile
===============================================================================
CA Profile        Admin Oper  Cert File                CRL File
                  State State
-------------------------------------------------------------------------------
CA1               up    up    cacert.pem               cacrl.pem
clientCA          up    up    CaRsaeClientCrt.pem      CaRsaeClientCrl.pem
-------------------------------------------------------------------------------
Entries found: 2
===============================================================================

*A:Dut-A#
show certificate ca-profile "ca" association
===============================================================================
CA-Profile Associations
===============================================================================
-------------------------------------------------------------------------------
Associated TLS Trust Anchor Profiles
-------------------------------------------------------------------------------
Profile Name
-------------------------------------------------------------------------------
ta
-------------------------------------------------------------------------------
TLS Trust Anchor Profiles: 1
-------------------------------------------------------------------------------
===============================================================================

Table 6. Output fields: CA profile
Label	Description
Max Cert Chain Depth	Displays the maximum certificate chain depth
Certificate Display Format	Displays the certificate display format
Certificate Expiry Warning	Displays the time before the certificate expiration warning
CRL Expiry Warning	Displays the time before the CRL expiration warning
Repeat Interval	Displays time of the repeat interval for the warning
CA Profile	Displays the CA profile name
Admin State	Displays the administrative state
Oper State	Displays the operational state
Cert File	Displays the certificate file name
CRL File	Displays the CRL filer name
Profile Name	Displays the CA profile name
TLS Trust Anchor Profiles	Displays the number of TLS trust anchor profiles
