Application Assurance — Asymmetry Removal

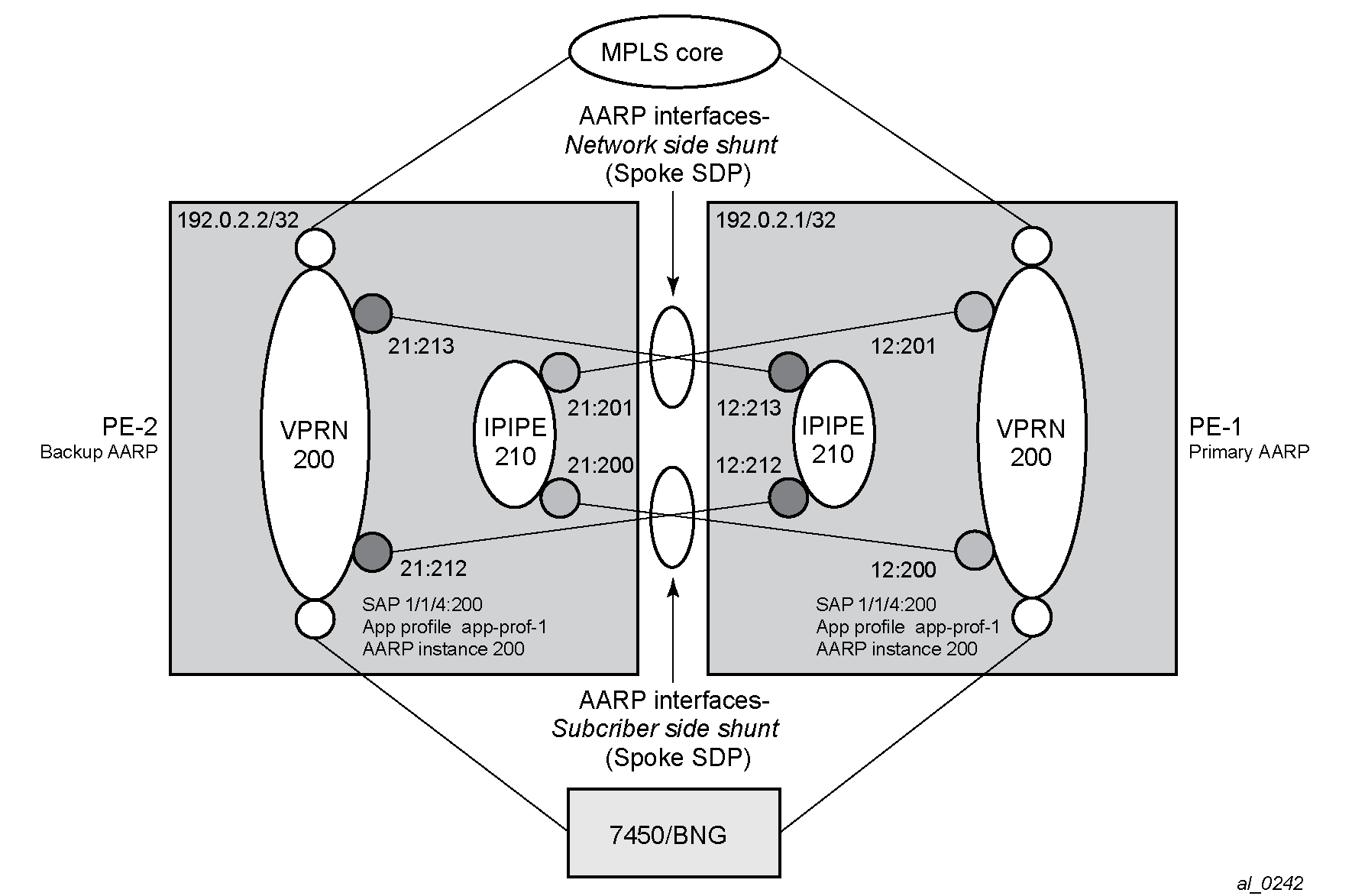

AA asymmetry removal topology shows the following services configured to establish communications between the AARP instances in each of the paired nodes. The network topology is a VPRN (or IES) service configured in each node, with a dual-homed SAP from each node to a downstream access element such as a BNG.

The initial configuration on PE-1 and PE-2 includes an ISA AA group and partition with an identical AA policy "app-prof-1" and divert enabled. Also, the system needs basic routing and LDP configuration for the SDP and the spoke SDPs to be established.

AA asymmetry removal topology shows the system IP addresses, VPRN service, SAPs, and app-profile on PE-1 and PE-2.

To enable AARP, AARP instances and AARP interfaces on both nodes must be configured. The AARP operation has the following dependencies between the nodes:

• Shunt links configured and operationally up, both subscriber side shunt and network side shunt.

• Peer communications established between nodes, AARP instance operational status is up when peers are communicating.

• Dual-homed SAPs and spoke SDPs configured with a unique AARP instance (matched by dual-homed interface).

• App-profile "app-prof-1" configured against SAP or spoke SDP with divert enabled (making the sub an aa-sub). The app-profile is the trigger to divert the traffic in the node with the active AARP instance to one of the ISAs in that node, per normal AA divert behavior.

The following AARP configuration on PE-1 and PE-2 is similar. PE-1 is the primary node because it gets the higher priority.

# on primary node PE-1:
configure {
    application-assurance {
        aarp 200 {
            admin-state enable
            description "aarp protecting a dual-homed sap"
            peer 192.0.2.2
            priority 200        # higher priority (PE-1 is primary; PE-2 is backup)
        }

# on backup node PE-2:
configure {
    application-assurance {
        aarp 200 {
            admin-state enable
            description "aarp protecting a dual-homed sap"
            peer 192.0.2.1
            # priority 100        ## default
        }

The following SDPs are configured:

# on PE-1:
configure {
    service {
        sdp 12 {
            admin-state enable
            delivery-type mpls
            ldp true
            far-end {
                ip-address 192.0.2.2
            }
        }

# on PE-2:
configure {
    service {
        sdp 21 {
            admin-state enable
            delivery-type mpls
            ldp true
            far-end {
                ip-address 192.0.2.1
            }
        }

The Ipipe shunt configuration is as follows:

# on PE-1:
configure {
    service {
        ipipe "Ipipe-210" {
            admin-state enable
            service-id 210
            customer "1"
            vc-switching true
            service-mtu 1552
            spoke-sdp 12:212 {
                aarp {
                    id 200
                    type subscriber-side-shunt
                }
            }
            spoke-sdp 12:213 {
                aarp {
                    id 200
                    type network-side-shunt
                }
            }
        }

# on PE-2:
configure {
    service {
        ipipe "Ipipe-210" {
            admin-state enable
            service-id 210
            customer "1"
            vc-switching true
            service-mtu 1552
            spoke-sdp 21:200 {
                aarp {
                    id 200
                    type subscriber-side-shunt
                }
            }
            spoke-sdp 21:201 {
                aarp {
                    id 200
                    type network-side-shunt
                }
            }
        }

The dual-homed and interface shunt configuration in VPRN 200 is as follows:

# on PE-1:
configure {
    service {
        vprn "VPRN-200" {
            admin-state enable
            service-id 200
            customer "1"
            bgp-ipvpn {
                mpls {
                    admin-state enable
                    route-distinguisher "64496:200"
                }
            }
            interface "int-BNG-1" {
                sap 1/1/4:200 {
                    description "AA enabled SAP"
                    app-profile "app-prof-1"
                    aarp {
                        id 200
                        type dual-homed
                    }
                }
            }
            aarp-interface "netside_1" {
                spoke-sdp 12:201 {
                    aarp {
                        id 200
                        type network-side-shunt
                    }
                }
            }
            aarp-interface "subside_1" {
                spoke-sdp 12:200 {
                    aarp {
                        id 200
                        type subscriber-side-shunt
                    }
                }
            }
        }

# on PE-2:
configure {
    service {
        vprn "VPRN-200" {
            admin-state enable
            description "VPRN 200 Dual Homed Routed Service"
            service-id 200
            customer "1"
            bgp-ipvpn {
                mpls {
                    admin-state enable
                    route-distinguisher "64496:200"
                }
            }
            interface "int-BNG-1" {
                sap 1/1/4:200 {
                    app-profile "app-prof-1"
                    aarp {
                        id 200
                        type dual-homed
                    }
                }
            }
            aarp-interface "netside_1" {
                spoke-sdp 21:213 {
                    aarp {
                        id 200
                        type network-side-shunt
                    }
                }
            }
            aarp-interface "subside_1" {
                spoke-sdp 21:212 {
                    aarp {
                        id 200
                        type subscriber-side-shunt
                    }
                }
            }
        }

The configuration can be verified on each node. The following output displays the example configuration for PE-1.

Starting with the AARP instance in each node, the following command verifies that the AARP instance operational state is up:

[/]
A:admin@PE-1# show application-assurance aarp 200

===============================================================================
AARP Instance 200
===============================================================================
Description    : aarp protecting a dual-homed sap
Admin State    : Up                     Oper State     : Up

Local IP       : 192.0.2.1              Peer IP        : 192.0.2.2
Local State    : master                 Peer State     : backup
Local Priority : 200                    Peer Priority  : 100

Local Flags    : none
Peer Flags     : none
Peer End-Point : none

Master Selection Mode       : minimizeSwitchovers

-------------------------------------------------------------------------------
Service References
-------------------------------------------------------------------------------
Service              Reference            Reference Type
-------------------------------------------------------------------------------
VPRN 200             1/1/4:200            Dual-Homed
Ipipe 210            12:212               Subscriber-Side Pipe Shunt
Ipipe 210            12:213               Network-Side Pipe Shunt
VPRN 200             12:200               Subscriber-Side AARP-Interface Shunt
VPRN 200             12:201               Network-Side AARP-Interface Shunt
-------------------------------------------------------------------------------
No. of service references: 5
-------------------------------------------------------------------------------
===============================================================================

Verifying that the AARP instance is up is an indication that the dual-node communications for AARP is working (instance, shunts, and so on). In addition, in the preceding output, verify on both PE nodes that the intended SAPs are dual-homed for that instance.

Now a detailed review of the configured AARP shunt infrastructure services can be shown to make sure they are all properly configured with the intended AARP parameters (such as AARP ID and Type on the network and subscriber side shunts) as displayed in the following output:

[/]
A:admin@PE-1# show service id "Ipipe-210" all

===============================================================================
Service Detailed Information
===============================================================================
Service Id        : 210                 Vpn Id            : 0
Service Type      : Ipipe
MACSec enabled    : no
Name              : Ipipe-210
Description       : (Not Specified)
Customer Id       : 1                   Creation Origin   : manual
Last Status Change: 09/16/2025 12:47:16
Last Mgmt Change  : 09/16/2025 12:47:03
Admin State       : Up                  Oper State        : Up
MTU               : 1552
Vc Switching      : True
SAP Count         : 0                   SDP Bind Count    : 2
CE IPv4 Discovery : n/a
CE IPv6 Discovery : n/a                 Stack Cap Sig     : n/a

-------------------------------------------------------------------------------
ETH-CFM service specifics
-------------------------------------------------------------------------------
Tunnel Faults     : ignore


-------------------------------------------------------------------------------
Service Destination Points(SDPs)
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
 Sdp Id 12:212  -(192.0.2.2)
-------------------------------------------------------------------------------
Description     : (Not Specified)
SDP Id             : 12:212                   Type              : Spoke
Spoke Descr     : (Not Specified)
Split Horiz Grp    : (Not Specified)
VC Type            : Ipipe                    VC Tag            : 0
Admin Path MTU     : 0                        Oper Path MTU     : 1552
Delivery           : MPLS
Far End            : 192.0.2.2                Tunnel Far End    :
Oper Tunnel Far End: 192.0.2.2
LSP Types          : LDP
Hash Label         : Disabled                 Hash Lbl Sig Cap  : Disabled
Oper Hash Label    : Disabled
Entropy Label      : Disabled

Admin State        : Up                       Oper State        : Up
MinReqd SdpOperMTU : 1552
Acct. Pol          : None                     Collect Stats     : Disabled
Ingress Label      : 524281                   Egress Label      : 524281

---snip---

Application Profile: None
Transit Policy     : None
AARP Id            : 200
AARP Type          : subscriber-side-shunt

---snip---

-------------------------------------------------------------------------------
IPIPE Service Destination Point specifics
-------------------------------------------------------------------------------
Configured CE IPv4 Addr: n/a                  Peer CE IPv4 Addr : 0.0.0.0

-------------------------------------------------------------------------------
 Sdp Id 12:213  -(192.0.2.2)
-------------------------------------------------------------------------------
Description     : (Not Specified)
SDP Id             : 12:213                   Type              : Spoke
Spoke Descr     : (Not Specified)
Split Horiz Grp    : (Not Specified)
VC Type            : Ipipe                    VC Tag            : 0
Admin Path MTU     : 0                        Oper Path MTU     : 1552
Delivery           : MPLS
Far End            : 192.0.2.2                Tunnel Far End    :
Oper Tunnel Far End: 192.0.2.2
LSP Types          : LDP
Hash Label         : Disabled                 Hash Lbl Sig Cap  : Disabled
Oper Hash Label    : Disabled
Entropy Label      : Disabled

Admin State        : Up                       Oper State        : Up
MinReqd SdpOperMTU : 1552
Acct. Pol          : None                     Collect Stats     : Disabled
Ingress Label      : 524280                   Egress Label      : 524280

---snip---

Application Profile: None
Transit Policy     : None
AARP Id            : 200
AARP Type          : network-side-shunt

---snip---

Next, the configuration of the VPRN service of the dual-homed SAP can be reviewed to ensure it reflects the attached endpoints for the shunt Ipipe spoke SDPs:

[/]
A:admin@PE-1# show service id "VPRN-200" all

===============================================================================
Service Detailed Information
===============================================================================
Service Id        : 200                 Vpn Id            : 0
Service Type      : VPRN
MACSec enabled    : no
Name              : VPRN-200
Description       : (Not Specified)
Customer Id       : 1                   Creation Origin   : manual
Last Status Change: 09/16/2025 12:47:03
Last Mgmt Change  : 09/16/2025 12:47:03
Admin State       : Up                  Oper State        : Up

Router Oper State : Up
Route Dist.       : 64496:200           VPRN Type         : regular
Oper Route Dist   : 64496:200
Oper RD Type      : configured
AS Number         : None                Router Id         : 192.0.2.1
ECMP              : Enabled             ECMP Max Routes   : 1
Max IPv4 Routes   : No Limit
Local Rt Domain-Id: None                D-Path Lng Ignore : Disabled

Auto Bind Tunnel
Allow Flex-Alg-Fb : Disabled
Resolution        : disabled
Weighted ECMP     : Disabled            ECMP Max Routes   : 1
Strict Tnl Tag    : Disabled

Max IPv6 Routes   : No Limit
Ignore NH Metric  : Disabled
Hash Label        : Disabled
Entropy Label     : Disabled
Vrf Target        : None
Vrf Import        : None
Vrf Export        : None
MVPN Vrf Target   : None
MVPN Vrf Import   : None
MVPN Vrf Export   : None
Car. Sup C-VPN    : Disabled
Label mode        : vrf
BGP VPN Backup    : Disabled
BGP Export Inactv : Disabled
LOG all events    : Disabled

SAP Count         : 1                   SDP Bind Count    : 2

-------------------------------------------------------------------------------
---snip---

-------------------------------------------------------------------------------
Service Destination Points(SDPs)
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
 Sdp Id 12:200  -(192.0.2.2)
-------------------------------------------------------------------------------
Description     : (Not Specified)
SDP Id             : 12:200                   Type              : Spoke
Spoke Descr     : (Not Specified)
VC Type            : n/a                      VC Tag            : n/a
Admin Path MTU     : 0                        Oper Path MTU     : 1552
Delivery           : MPLS
Far End            : 192.0.2.2                Tunnel Far End    :
Oper Tunnel Far End: 192.0.2.2
LSP Types          : LDP
Hash Label         : Disabled                 Hash Lbl Sig Cap  : Disabled
Oper Hash Label    : Disabled
Entropy Label      : Disabled

Admin State        : Up                       Oper State        : Up

---snip---

Application Profile: None
Transit Policy     : None
AARP Id            : 200
AARP Type          : subscriber-side-shunt

---snip---

-------------------------------------------------------------------------------
IPIPE Service Destination Point specifics
-------------------------------------------------------------------------------
Configured CE IPv4 Addr: n/a                  Peer CE IPv4 Addr : 0.0.0.0

-------------------------------------------------------------------------------
 Sdp Id 12:201  -(192.0.2.2)
-------------------------------------------------------------------------------
Description     : (Not Specified)
SDP Id             : 12:201                   Type              : Spoke
Spoke Descr     : (Not Specified)
VC Type            : n/a                      VC Tag            : n/a
Admin Path MTU     : 0                        Oper Path MTU     : 1552
Delivery           : MPLS
Far End            : 192.0.2.2                Tunnel Far End    :
Oper Tunnel Far End: 192.0.2.2
LSP Types          : LDP
Hash Label         : Disabled                 Hash Lbl Sig Cap  : Disabled
Oper Hash Label    : Disabled
Entropy Label      : Disabled

Admin State        : Up                       Oper State        : Up

---snip---

Application Profile: None
Transit Policy     : None
AARP Id            : 200
AARP Type          : network-side-shunt

---snip---


Continuing deeper into the same VPRN service show output, or using the following show command, it can be verified that the dual-homed SAP itself is properly configured and associated with that service and AARP instance:

[/]
A:admin@PE-1# show service id "VPRN-200" sap 1/1/4:200 detail

===============================================================================
Service Access Points(SAP)
===============================================================================
Service Id         : 200
SAP                : 1/1/4:200                Encap             : q-tag
Description        : AA enabled SAP
Admin State        : Up                       Oper State        : Up
Flags              : None
Multi Svc Site     : None
Last Status Change : 09/16/2025 12:35:38
Last Mgmt Change   : 09/16/2025 12:47:03
Sub Type           : regular
Dot1Q Ethertype    : 0x8100                   QinQ Ethertype    : 0x8100
Split Horizon Group: (Not Specified)

Admin MTU          : 1518                     Oper MTU          : 1518
Ingr IP Fltr-Id    : n/a                      Egr IP Fltr-Id    : n/a
Ingr Mac Fltr-Id   : n/a                      Egr Mac Fltr-Id   : n/a
Ingr IPv6 Fltr-Id  : n/a                      Egr IPv6 Fltr-Id  : n/a
qinq-pbit-marking  : both
Egr Agg Rate Limit : max
Q Frame-Based Acct : Disabled                 Limit Unused BW   : Disabled
Qinq-vlan-                                    Qinq-vlan-
translation        : None                     translation Ids   : None

Acct. Pol          : None                     Collect Stats     : Disabled

Anti Spoofing      : None                     Dynamic Hosts     : Enabled
Avl Static Hosts   : 0                        Tot Static Hosts  : 0
Calling-Station-Id : n/a

Application Profile: app-prof-1
Transit Policy     : None
AARP Id            : 200
AARP Type          : dual-homed

Oper Group         : (none)                   Monitor Oper Grp  : (none)
Host Lockout Plcy  : n/a
Lag Link Map Prof  : (none)
Bandwidth          : Not-Applicable
Oper DCpu Prot Pol : _default-access-policy
Virtual Port       : (Not Specified)

-------------------------------------------------------------------------------
---snip---

When the AARP is operationally up, AARP tracks which ISA is the primary ISA for each dual-homed AARP instance and uses the inter-chassis services (spoke SDP AARP shunts) to move all traffic for each instance traffic to the node with the primary ISA. Traffic from the backup AARP interface is sent the primary AARP node for AA divert. Afterward the traffic is sent back to the backup AARP interface.

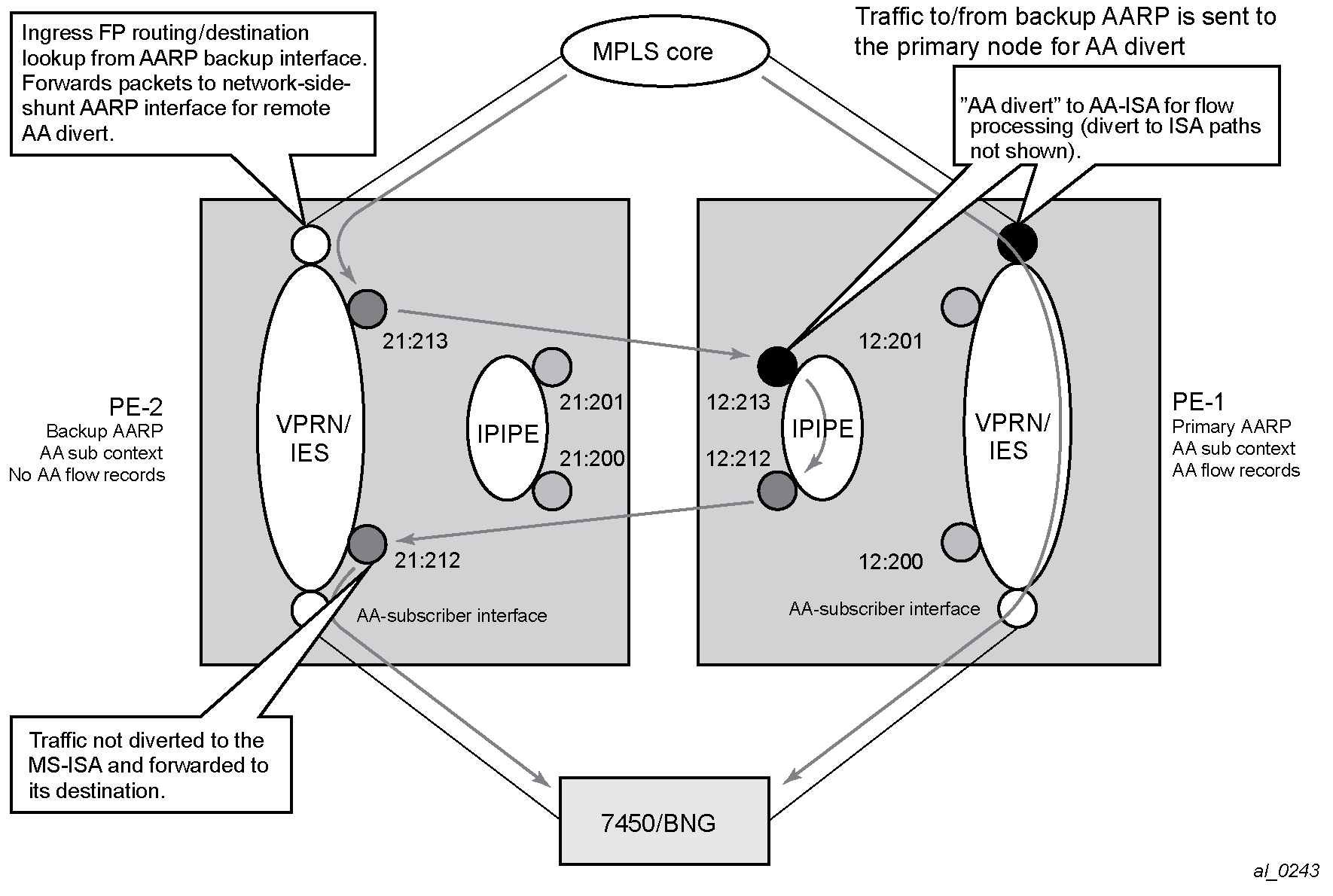

Looking at traffic in the network to subscriber direction (Network to subscriber traffic flow):

• Traffic arriving on PE-1 is diverted to the local primary ISA, processed, then proceeds to the egress SAP.

• Traffic arriving on PE-2 with the backup AARP interface is sent to the primary node for AA processing. The ingress FP forwards packets to network-side-shunt AARP interface for remote AA divert.

• Arriving on PE-1, the packets on the AARP Ipipe are diverted to the primary ISA where the packets are processed as if this traffic was traveling in the to-sub direction toward the dual-homed endpoint on PE-1, then returned to PE-2.

• Entering PE-2, the traffic from the subscriber side shunt interface is not diverted to ISAs in that node and egresses on the AARP instance SAP.

With this behavior, traffic always returns to the original ingress node before egressing toward the subscriber (network path for the flows are not modified).

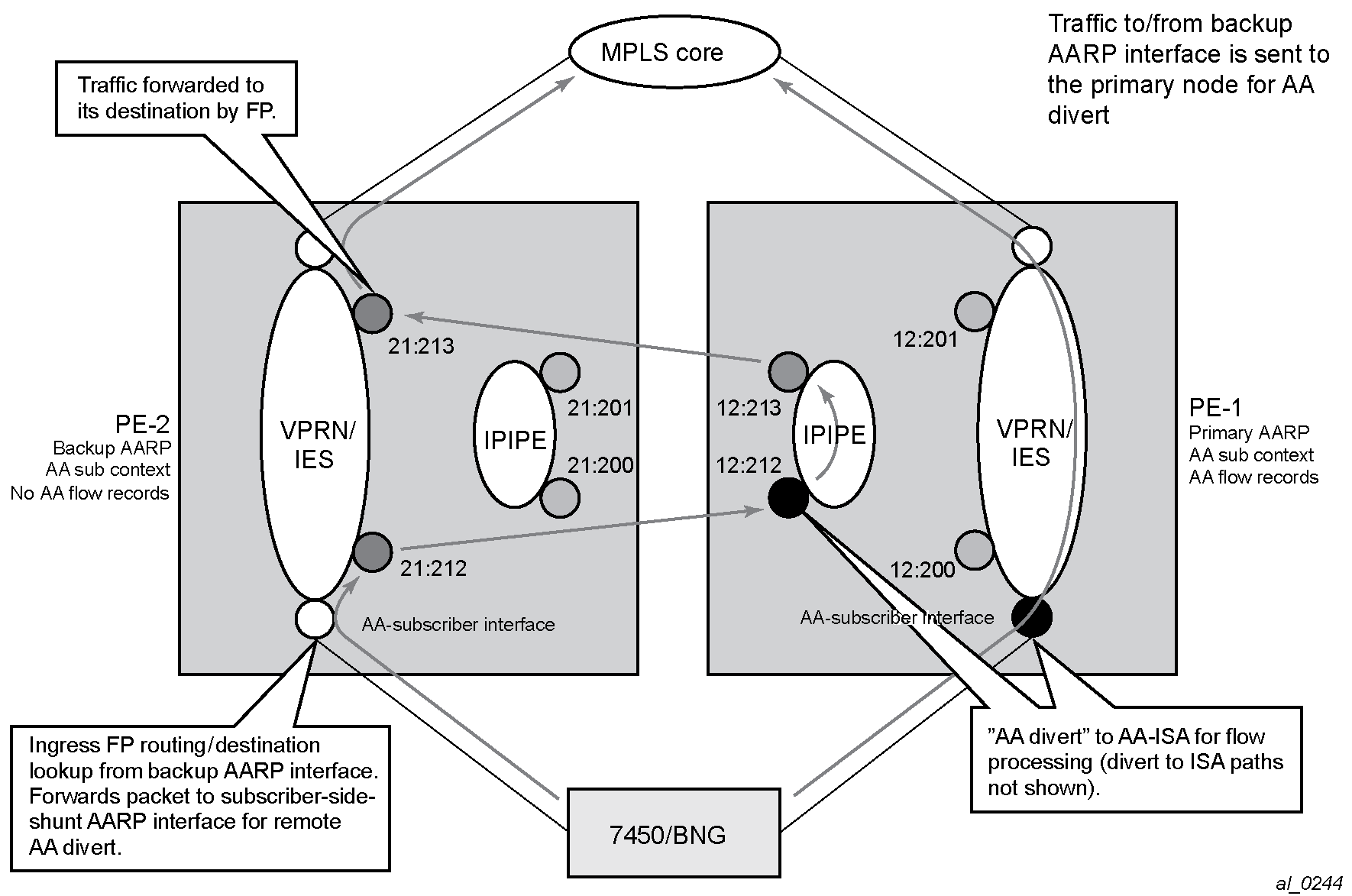

Looking at traffic in the subscriber to network direction (Subscriber to network traffic flow):

• Traffic arriving on PE-1 is diverted to the local primary ISA, processed, then proceeds to the egress SAP.

• Traffic arriving on PE-2 with the backup AARP ISA is sent to the primary node for AA processing (not diverted to an ISA in PE-2). The ingress FP forwards packets to subscriber-side-shunt AARP interface for remote AA divert.

• Arriving on PE-1, the packets on the AARP Ipipe are diverted to the primary ISA where the packets are processed as if the traffic was flowing in the from-sub direction on the dual-homed endpoint, then returned to PE-2 over the Ipipe AARP subscriber-side-shunt.

• Entering PE-2, the traffic from the network side shunt interface is forwarded by the VPRN or IES service to its destination.



Operators configuring AARP can make some typical mistakes listed below that keep the AARP instance in operational state down:

• The spoke SDP AARP shunt instances’ IDs must be aligned with the respective spoke SDP on the peer node: if not, it results in a flag indicating that the shunts are down in the show output.

• Ipipe service MTU alignment — The Ipipe service MTU values must be the same in both nodes, otherwise it results in the VPRN or IES services in operational status up, but the AARP instance remains down.
