BGP Prefix Limit per Address Family
This chapter provides information about BGP prefix limit per address family.
Topics in this chapter include:
Applicability
This chapter was initially written based on SR OS Release 15.0.R1, but the CLI in the latest update is based on SR OS Release 26.7.R1.
Overview
A BGP per address family prefix limit can be defined to control the number of prefixes learned per neighbor or per group of neighbors in the base router or in a VPRN. This feature allows ISPs to secure their network from misbehaving or misconfigured peers. This feature can also be used to enforce the terms of a service contract.
Supported address families for BGP prefix limit lists the address families for which a prefix limit can be defined in the base router and in VPRNs.
| Address family | Base router | VPRN |
|---|---|---|
| ipv4 | X | X |
| ipv6 | X | X |
| mcast-ipv4 | X | X |
| mcast-ipv6 | X | X |
| flow-ipv4 | X | X |
| flow-ipv6 | X | X |
| label-ipv4 | X | X |
| label-ipv6 | X | – |
| vpn-ipv4 | X | – |
| vpn-ipv6 | X | – |
| mvpn-ipv4 | X | – |
| mvpn-ipv6 | X | – |
| mcast-vpn-ipv4 | X | – |
| mcast-vpn-ipv6 | X | – |
| flow-vpn-ipv4 | X | – |
| flow-vpn-ipv6 | X | – |
| sr-policy-ipv4 | X | – |
| sr-policy-ipv6 | X | – |
| l2-vpn | X | – |
| mdt-safi | X | – |
| ms-pw | X | – |
| route-target | X | – |
| evpn | X | – |
| bgp-ls | X | – |
If the number of received routes from a peer exceeds a defined per address family limit, the BGP session is torn down, the state is changed to disabled, the routes learned from that peer are deleted, and the RIB and FIB are recalculated. With the log-only option enabled, the BGP session is not torn down and no routes are deleted. An SNMP trap message is issued when exceeding the per address family threshold (default: 90%), and the per address family prefix limit.
Re-establishing the BGP session with the peer requires a manual intervention, or use of the idle-timeout option. The idle-timeout option defines the time in minutes after which the system attempts to re-establish the BGP session. The idle-timeout option can be configured with the value forever or the idle-timeout option can be absent, which corresponds to the default behavior of requiring a manual intervention if the limit is exceeded.
The post-import option indicates that the limit should be applied only to the routes accepted by import policies, as shown in Post-import option. A route rejected by an import policy is not counted when checking against the prefix limit. Not specifying the post-import option results in routes being counted and verified against the prefix limit when they are received, before the import policy is executed, and may lead to BGP sessions being torn down unexpectedly.
BGP sessions are torn down as soon as one of the address family prefix limits is exceeded, even when the limit for the other address family is not yet exceeded. In cases where this is important, consider defining two BGP sessions between two peers; the first using IPv4 for its transport, and the second using IPv6. In this way, an IPv4 limit being exceeded does not lead to IPv6 prefixes being affected.
Configuration

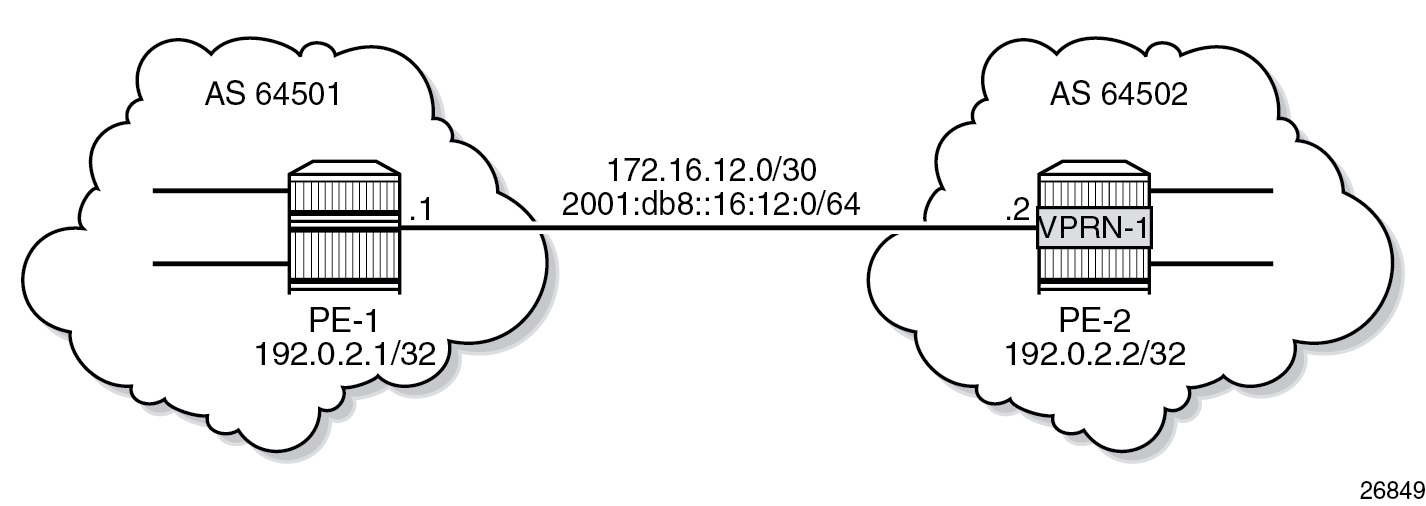

Example topology shows the example topology. PE-1 in AS 64501 peers with VPRN-1 hosted by PE-2 in AS 64502.
Two scenarios are considered:
Prefix limit without post-import option
PE-1 peers with VPRN-1 on PE-2, where IP prefix limit is configured in the BGP group toward PE-1: the IPv4 prefix limit is 10, the threshold is 50%, and the idle-timeout is 1 minute; the IPv6 prefix limit is 10, the threshold 80%, and the idle-timeout is 4 minutes, as follows:
# on PE-2:
configure
service
vprn 1 name "VPRN-1" customer 1 create
description "VPRN with BGP prefix limit"
autonomous-system 64502
interface "int-VPRN-1_PE-2.1-PE-1" create
address 172.16.12.2/30
ipv6
address 2001:db8::16:12:2/126
exit
sap 1/1/c2/1:1 create
exit
exit
bgp
split-horizon
loop-detect discard-route
group "grp-EBGPv4-to-AS64501"
family ipv4
prefix-limit ipv4 10 threshold 50 idle-timeout 1
peer-as 64501
neighbor 172.16.12.1
exit
exit
group "grp-EBGPv6-to-AS64501"
family ipv6
prefix-limit ipv6 10 threshold 80 idle-timeout 4
peer-as 64501
neighbor 2001:db8::16:12:1
exit
exit
no shutdown
exit
no shutdown
The debug configuration is as follows:
debug
router service-name "VPRN-1"
bgp
packets neighbor 172.16.12.1
events neighbor 172.16.12.1
exit
exit
The debug output is sent to the log with log-id 1, as follows:
configure
log
log-id 1 name "log1"
from debug-trace
to memory
no shutdown
exit
Initially, the number of IPv4 routes received from PE-1 is below the threshold, and PE-1 gradually injects more IPv4 routes into VPRN-1 on PE-2. The following is a snapshot where three IPv4 routes and four IPv6 routes are received and active in PE-2:
*A:PE-2# show router service-name "VPRN-1" bgp summary
===============================================================================
BGP Router ID:192.0.2.2 AS:64502 Local AS:64502
===============================================================================
BGP Admin State : Up BGP Oper State : Up
Total Peer Groups : 2 Total Peers : 2
Current Internal Groups : 2 Max Internal Groups : 2
Total BGP Paths : 7 Total Path Memory : 2592
Memory Failures : 0 Label Failures : 0
Next Hop Failures : 0 Backup Path Failures : 0
Tunnel Failures : 0 Tunnel Next Hop Failures : 0
Total IPv4 Remote Rts : 3 Total IPv4 Rem. Active Rts : 3
Total IPv6 Remote Rts : 4 Total IPv6 Rem. Active Rts : 4
Total IPv4 Backup Rts : 0 Total IPv6 Backup Rts : 0
Total LblIpv4 Rem Rts : 0 Total LblIpv4 Rem. Act Rts : 0
Total LblIpv6 Rem Rts : 0 Total LblIpv6 Rem. Act Rts : 0
Total LblIpv4 Bkp Rts : 0 Total LblIpv6 Bkp Rts : 0
Total Supressed Rts : 0 Total Hist. Rts : 0
Total Decay Rts : 0
Total McIPv4 Remote Rts : 0 Total McIPv4 Rem. Active Rts: 0
Total McIPv6 Remote Rts : 0 Total McIPv6 Rem. Active Rts: 0
Total FlowIpv4 Rem Rts : 0 Total FlowIpv4 Rem Act Rts : 0
Total FlowIpv6 Rem Rts : 0 Total FlowIpv6 Rem Act Rts : 0
Total FlowVpnv4 Rem Rts : 0 Total FlowVpnv4 Rem Act Rts : 0
Total FlowVpnv6 Rem Rts : 0 Total FlowVpnv6 Rem Act Rts : 0
Total Link State Rem Rts: 0 Total Link State Rem Act Rts: 0
Total SrPlcyIpv4 Rem Rts: 0 Total SrPlcyIpv4 Rem Act Rts: 0
Total SrPlcyIpv6 Rem Rts: 0 Total SrPlcyIpv6 Rem Act Rts: 0
===============================================================================
BGP Summary
===============================================================================
Legend : D - Dynamic Neighbor
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
172.16.12.1
64501 9 0 00h02m15s 3/3/0 (IPv4)
8 0
2001:db8::16:12:1
64501 8 0 00h01m53s 4/4/0 (IPv6)
7 0
The following three BGP IPv4 routes are received by VPRN-1 on PE-2 and they are all active:
*A:PE-2# show router service-name "VPRN-1" bgp routes
===============================================================================
BGP Router ID:192.0.2.2 AS:64502 Local AS:64502
===============================================================================
Legend -
Status codes : u - used, s - suppressed, h - history, d - decayed, * - valid
l - leaked, x - stale, > - best, b - backup, p - purge,
w - unused-weight-only
Origin codes : i - IGP, e - EGP, ? - incomplete
===============================================================================
BGP IPv4 Routes
===============================================================================
Flag Network LocalPref MED
Nexthop (Router) Path-Id IGP Cost
As-Path Label
-------------------------------------------------------------------------------
u*>i 10.1.0.0/24 None None
172.16.12.1 None 0
64501 -
u*>i 10.1.1.0/24 None None
172.16.12.1 None 0
64501 -
u*>i 10.1.2.0/24 None None
172.16.12.1 None 0
64501 -
-------------------------------------------------------------------------------
Routes : 3
===============================================================================
When the sixth BGP IPv4 route is received, the threshold value (50% of 10 is 5) is exceeded, and a message is generated and sent to log "99", as follows:
*A:PE-2# show log log-id "99"
===============================================================================
Event Log 99 log-name 99
===============================================================================
Description : Default System Log
Memory Log contents [size=500 next event=127 (not wrapped)]
127 2026/09/03 08:51:19.250 UTC MINOR: BGP #2035 vprn1 Peer 2: 172.16.12.1
"(ASN 64501) VR 2: Group grp-EBGPv4-to-AS64501: Peer 172.16.12.1: number of routes learned has exceeded 50 percentage of the configured maximum (10) for ipv4 family"
*A:PE-2# show log log-id "99"
===============================================================================
---snip---
128 2026/09/03 08:52:50.250 UTC MINOR: BGP #2035 vprn1 Peer 2: 2001:db8::16:12:1
"(ASN 64501) VR 2: Group grp-EBGPv6-to-AS64501: Peer 2001:db8::16:12:1: number of routes learned has exceeded 80 percentage of the configured maximum (10) for ipv6 family"
When the eleventh BGP IPv4 route is received, the configured maximum number of BGP routes for IPv4 is exceeded. The BGP session state changes from established to idle and the peer is notified, as indicated in the following debug log:
*A:PE-2# show log log-id "log1"
===============================================================================
Event Log 1 log-name log1
===============================================================================
Description : (Not Specified)
Memory Log contents [size=100 next event=49 (not wrapped)]
48 2026/09/03 08:55:43.250 UTC MINOR: DEBUG #2001 vprn1 Peer 2: 172.16.12.1
"Peer 2: 172.16.12.1: NOTIFICATION
Peer 2: 172.16.12.1 - Send BGP NOTIFICATION: Code = 6 (CEASE) Subcode = 1 (Maximum prefixed reached)
Data Length = 7 Data: 0x0 0x1 0x1 0x0 0x0 0x0 0xa
"
47 2026/09/03 08:55:43.250 UTC MINOR: DEBUG #2001 vprn1 BGP
"BGP: STATE
Peer 2: 172.16.12.1 - Change State from ESTABLISHED to IDLE due to MAXPREFIX_EXCEEDED
"
46 2026/09/03 08:55:43.250 UTC MINOR: DEBUG #2001 vprn1 Peer 2: 172.16.12.1
"Peer 2: 172.16.12.1: UPDATE
Peer 2: 172.16.12.1 - Received BGP UPDATE:
Withdrawn Length = 0
Total Path Attr Length = 20
Flag: 0x40 Type: 1 Len: 1 Origin: 0
Flag: 0x40 Type: 2 Len: 6 AS Path:
Type: 2 Len: 1 < 64501 >
Flag: 0x40 Type: 3 Len: 4 Nexthop: 172.16.12.1
NLRI: Length = 44
10.1.0.0/24
10.1.1.0/24
10.1.2.0/24
10.1.3.0/24
10.1.4.0/24
10.1.5.0/24
10.1.6.0/24
10.1.7.0/24
10.1.8.0/24
10.1.9.0/24
10.1.10.0/24
"The BGP session is torn down and the corresponding state is disabled, as follows:
*A:PE-2# show router service-name "VPRN-1" bgp summary
===============================================================================
BGP Router ID:192.0.2.2 AS:64502 Local AS:64502
===============================================================================
BGP Admin State : Up BGP Oper State : Up
Total Peer Groups : 2 Total Peers : 2
Current Internal Groups : 1 Max Internal Groups : 2
Total BGP Paths : 6 Total Path Memory : 2216
Memory Failures : 0 Label Failures : 0
Next Hop Failures : 0 Backup Path Failures : 0
Tunnel Failures : 0 Tunnel Next Hop Failures : 0
Total IPv4 Remote Rts : 0 Total IPv4 Rem. Active Rts : 0
Total IPv6 Remote Rts : 10 Total IPv6 Rem. Active Rts : 10
Total IPv4 Backup Rts : 0 Total IPv6 Backup Rts : 0
Total LblIpv4 Rem Rts : 0 Total LblIpv4 Rem. Act Rts : 0
Total LblIpv6 Rem Rts : 0 Total LblIpv6 Rem. Act Rts : 0
Total LblIpv4 Bkp Rts : 0 Total LblIpv6 Bkp Rts : 0
Total Supressed Rts : 0 Total Hist. Rts : 0
Total Decay Rts : 0
Total McIPv4 Remote Rts : 0 Total McIPv4 Rem. Active Rts: 0
Total McIPv6 Remote Rts : 0 Total McIPv6 Rem. Active Rts: 0
Total FlowIpv4 Rem Rts : 0 Total FlowIpv4 Rem Act Rts : 0
Total FlowIpv6 Rem Rts : 0 Total FlowIpv6 Rem Act Rts : 0
Total FlowVpnv4 Rem Rts : 0 Total FlowVpnv4 Rem Act Rts : 0
Total FlowVpnv6 Rem Rts : 0 Total FlowVpnv6 Rem Act Rts : 0
Total Link State Rem Rts: 0 Total Link State Rem Act Rts: 0
Total SrPlcyIpv4 Rem Rts: 0 Total SrPlcyIpv4 Rem Act Rts: 0
Total SrPlcyIpv6 Rem Rts: 0 Total SrPlcyIpv6 Rem Act Rts: 0
===============================================================================
BGP Summary
===============================================================================
Legend : D - Dynamic Neighbor
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
172.16.12.1
64501 0 0 00h01m00s Disabled
0 0
2001:db8::16:12:1
64501 23 0 00h08m27s 10/10/0 (IPv6)
20 0
Also, this event is recorded in the system logs, as follows:
*A:PE-2# show log log-id "99"
===============================================================================
Event Log 99 log-name 99
===============================================================================
Description : Default System Log
Memory Log contents [size=500 next event=132 (not wrapped)]
140 2026/09/03 08:55:43.254 UTC WARNING: BGP #2012 vprn1 Peer 2: 172.16.12.1
"(ASN 64501) Peer 2: 172.16.12.1: Closing connection: VR 2: Group grp-EBGPv4-to-AS64501: Peer 172.16.12.1 not enabled or not in configuration"
139 2026/09/03 08:55:43.250 UTC WARNING: BGP #2005 vprn1 Peer 2: 172.16.12.1
"(ASN 64501) VR 2: Group grp-EBGPv4-to-AS64501: Peer 172.16.12.1: sending notification: code CEASE subcode MAX_PFX_RCHD"
138 2026/09/03 08:55:43.250 UTC WARNING: BGP #2039 vprn1 Peer 2: 172.16.12.1
"(ASN 64501) VR 2: Group grp-EBGPv4-to-AS64501: Peer 172.16.12.1: moved from higher state ESTABLISHED to lower state IDLE due to event MAXPREFIX_EXCEEDED"
137 2026/09/03 08:55:43.250 UTC MINOR: BGP #2034 vprn1 Peer 2: 172.16.12.1
"(ASN 64501) VR 2: Group grp-EBGPv4-to-AS64501: Peer 172.16.12.1: number of routes learned has exceeded configured maximum (10) for ipv4 family"
136 2026/09/03 08:55:43.250 UTC MINOR: BGP #2035 vprn1 Peer 2: 172.16.12.1
"(ASN 64501) VR 2: Group grp-EBGPv4-to-AS64501: Peer 172.16.12.1: number of routes learned has exceeded 50 percentage of the configured maximum (10) for ipv4 family"
When the idle-timeout expires, in this case, after one minute, the system tries to re-establish the session. With the BGP session re-established, the peer starts re-advertising its routes. As long as the number of received routes in VPRN-1 on PE-2 is lower than or equal to the limit, the session is maintained. In this example, the maximum number of received IPv4 routes is 10.
In the preceding example, IPv4 was the only address family configured for the BGP group that was torn down. When there are several address families in the same BGP group, the other address families are also impacted.
Prefix limit with post-import option

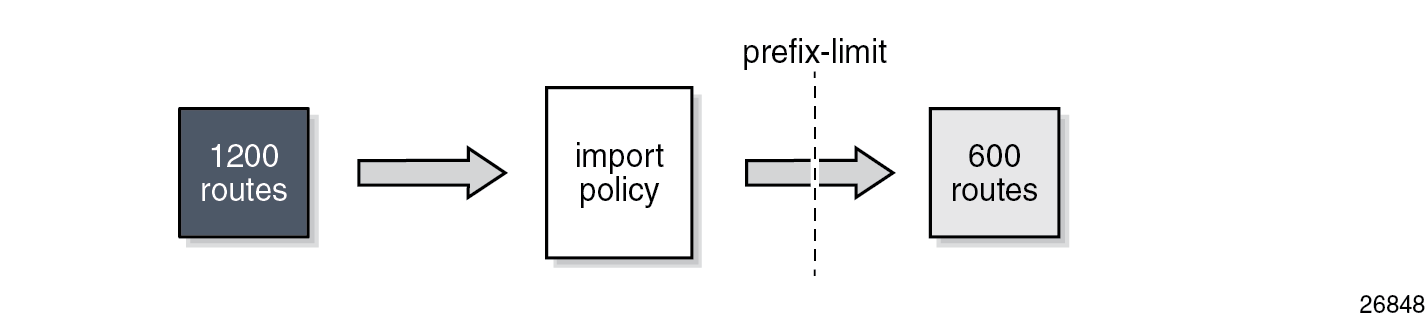

Use caution when using the prefix limit in combination with import policies. By default, the routes are counted when receiving them, that is, before the import policy is enforced. To postpone the prefix limit check, the post-import option must be used.
The BGP configuration for VPRN-1 on PE-2 is then adapted as follows:
# on PE-2:
configure
service
vprn "VPRN-1"
bgp
loop-detect discard-route
split-horizon
group "grp-EBGPv4-to-AS64501"
family ipv4
prefix-limit ipv4 10 threshold 50 idle-timeout 1 post-import
import "import-10.1-ranges"
peer-as 64501
neighbor 172.16.12.1
exit
exit
group "grp-EBGPv6-to-AS64501"
family ipv6
no prefix-limit ipv6 # no prefix limit for IPv6 anymore
peer-as 64501
neighbor 2001:db8::16:12:1
exit
exit
no shutdown
exit
The import-10.1-ranges policy is defined as follows:
# on PE-2:
configure
router Base
policy-options
begin
prefix-list "pfx-10.1-ranges"
prefix 10.1.0.0/16 longer
exit
policy-statement "import-10.1-ranges"
entry 10
from
prefix-list "pfx-10.1-ranges"
exit
action accept
exit
exit
default-action drop
exit
exit
commit
When twelve IPv4 routes are received over this BGP session, six in the 10.1.0.0/16 range and six in the 10.2.0.0/16 range, then only the six routes in the 10.1.0.0/16 range are accepted and active in the routing table, as follows:
*A:PE-2# show router service-name "VPRN-1" route-table protocol bgp
===============================================================================
Route Table (Service: 1)
===============================================================================
Dest Prefix[Flags] Type Proto Age Pref
Next Hop[Interface Name] Metric
-------------------------------------------------------------------------------
10.1.0.0/24 Remote BGP 00h03m02s 170
172.16.12.1 0
10.1.1.0/24 Remote BGP 00h03m02s 170
172.16.12.1 0
10.1.2.0/24 Remote BGP 00h03m02s 170
172.16.12.1 0
10.1.3.0/24 Remote BGP 00h03m02s 170
172.16.12.1 0
10.1.4.0/24 Remote BGP 00h03m02s 170
172.16.12.1 0
10.1.5.0/24 Remote BGP 00h03m02s 170
172.16.12.1 0
-------------------------------------------------------------------------------
No. of Routes: 6
Flags: n = Number of times nexthop is repeated
B = BGP backup route available
L = LFA nexthop available
S = Sticky ECMP requested
===============================================================================
The BGP session remains established with twelve received routes and six of these being active, as follows:
*A:PE-2# show router service-name "VPRN-1" bgp summary
===============================================================================
BGP Router ID:192.0.2.2 AS:64502 Local AS:64502
===============================================================================
BGP Admin State : Up BGP Oper State : Up
Total Peer Groups : 2 Total Peers : 2
Current Internal Groups : 2 Max Internal Groups : 2
Total BGP Paths : 6 Total Path Memory : 2216
Memory Failures : 0 Label Failures : 0
Next Hop Failures : 0 Backup Path Failures : 0
Tunnel Failures : 0 Tunnel Next Hop Failures : 0
Total IPv4 Remote Rts : 12 Total IPv4 Rem. Active Rts : 6
Total IPv6 Remote Rts : 0 Total IPv6 Rem. Active Rts : 0
Total IPv4 Backup Rts : 0 Total IPv6 Backup Rts : 0
Total LblIpv4 Rem Rts : 0 Total LblIpv4 Rem. Act Rts : 0
Total LblIpv6 Rem Rts : 0 Total LblIpv6 Rem. Act Rts : 0
Total LblIpv4 Bkp Rts : 0 Total LblIpv6 Bkp Rts : 0
Total Supressed Rts : 0 Total Hist. Rts : 0
Total Decay Rts : 0
Total McIPv4 Remote Rts : 0 Total McIPv4 Rem. Active Rts: 0
Total McIPv6 Remote Rts : 0 Total McIPv6 Rem. Active Rts: 0
Total FlowIpv4 Rem Rts : 0 Total FlowIpv4 Rem Act Rts : 0
Total FlowIpv6 Rem Rts : 0 Total FlowIpv6 Rem Act Rts : 0
Total FlowVpnv4 Rem Rts : 0 Total FlowVpnv4 Rem Act Rts : 0
Total FlowVpnv6 Rem Rts : 0 Total FlowVpnv6 Rem Act Rts : 0
Total Link State Rem Rts: 0 Total Link State Rem Act Rts: 0
Total SrPlcyIpv4 Rem Rts: 0 Total SrPlcyIpv4 Rem Act Rts: 0
Total SrPlcyIpv6 Rem Rts: 0 Total SrPlcyIpv6 Rem Act Rts: 0
===============================================================================
BGP Summary
===============================================================================
Legend : D - Dynamic Neighbor
===============================================================================
Neighbor
Description
AS PktRcvd InQ Up/Down State|Rcv/Act/Sent (Addr Family)
PktSent OutQ
-------------------------------------------------------------------------------
172.16.12.1
64501 16 0 00h04m36s 12/6/0 (IPv4)
13 0
2001:db8::16:12:1
64501 40 0 00h16m04s 0/0/0 (IPv6)
36 0
Without the post-import option, the session is torn down as soon as the number of received routes (12) exceeds the configured prefix limit of 10.
Conclusion
The BGP prefix limit per address family feature allows ISPs to protect their network from misbehaving or misconfigured peers, and can also be used to enforce the terms of a service contract.
