Fixed access sessions

The Layer 2 circuit (l2-circuit) is the combination of the Layer 2 access ID and the VLAN parameters.

Fixed access sessions have direct Ethernet connectivity from the client device to the BNG. The cMAG-c assumes that the Ethernet connectivity is configured and makes an abstraction of the underlying technology and topology. The cMAG-c only needs the opaque Layer 2 access ID (l2-access-id) that uniquely identifies the access context of a session. The access context can be a port, a LAG, a pseudowire, an EVPN service, or anything that provides Ethernet connectivity. The MAG-u defines the content of the l2-access-id. The cMAG-c does not interpret it.

The l2-access-id is called the logical port in BBF TR-459. The cMAG-c is aware of all Ethernet parameters such as MAC address, S-VLAN, and C-VLAN. Nokia uses the l2-circuit for the combination of the l2-access-id and VLAN parameters.

The cMAG-c creates IBCP tunnels per Layer 2 access ID for messages between the MAG-u and cMAG-c. Initial packets use these per-Layer 2 access ID tunnels. At session creation, the cMAG-c sets up a per-session tunnel. The MAG-u selection is based on the per-Layer 2 access ID tunnel used for the triggering packet.

Fixed access sessions send in-band cMAG-c messages over the connection to the MAG-u. As defined in BBF TR-459, the cMAG-c creates GTP-U tunnels (called IBCP tunnels) between the MAG-u and the cMAG-c to forward in-band cMAG-c messages.

The cMAG-c can instruct the MAG-u to forward only specified packet triggers over the IBCP tunnels and to ignore other triggers. For example, ignore IPoE triggers if only PPPoE is deployed or the other way around.

subscriber-management ref-points up fixed-access entry-point
subscriber-management ref-points up fixed-access ibcp-triggers

# info from running /subscriber-management ref-points up fixed-access
    subscriber-management {
        ref-points {
            up {
                fixed-access {
                    entry-point fixed-access
                    ibcp-triggers {
                        ipoe-dhcp true
                        ipoe-dhcpv6 true
                        ipoe-router-solicit true
                    }
                }
            }
        }
    }

The cMAG-c sets up a per-session tunnel at session creation.

subscriber-management ref-points up statistics ibcp

tools subscriber-management statistics clear ref-points up ibcp

Session keys identify and match data traffic to specific sessions, using different keys for IPoE and PPPoE sessions. The cMAG-c creates sessions and maps keys to ensure packets from different UPs match the same session.

The cMAG-c creates a session when receiving the initial triggering packet for a specific session type. Fixed access sessions are, by default, identified by the key <UP, Layer 2 circuit, MAC address>, for IPoE and PPPoE. In case a session is set up in the context of a resilient UP group, the UP and Layer 2 circuit keys are internally mapped to a common key based on the UP group configuration. This guarantees that packets coming from different UPs within the same UP group match the same session.

Data plane rules on the MAG-u use the following keys to match data traffic to a specific session:

• IPoE: <l2-circuit, source MAC address> or <l2-circuit, source MAC address, source IP address>

• PPPoE: <l2-circuit, source MAC address, session ID> or <l2-circuit, source MAC address, session ID, source IP address>

subscriber-management authentication-database entry ip-anti-spoof

The subscriber identification is equal to the session key..

For fixed access sessions, the BNG subscriber key is by default equal to the session key, that is, there is a single session per subscriber.

The cMAG-c enforces limits on the number of sessions. These limits can be configured within a specific scope; for example, per Layer 2 access ID.

The cMAG-c supports limits on the number of sessions within a specific scope; for example, per Layer 2 access ID. The session limits are applied when the session is created, before authentication. Changing a session limit only affects new sessions. Existing sessions are not removed to align with new session limits.

subscriber-management entry-point entry

1. per Layer 2 access ID

   Use the session-limits per-l2-access-id command to set a limit for the maximum number of sessions per Layer 2 access ID (l2-access-id). The system limits the maximum number of sessions per Layer 2 access ID (for example, port) and the associated MAG-u. By default, two sessions with the same Layer 2 access ID on two different MAG-u nodes do not count for the same session limit. However, if sessions are set up in the context of a UP group, the system maintains the limit per UP group and Layer 2 access ID combination. In this case, two sessions with the same Layer 2 access ID on different MAG-u nodes in the same UP group count for the same session limit.

2. per Layer 2 circuit

   Use the session-limits per-l2-circuit command to set a limit for the maximum number of sessions per Layer 2 circuit (l2-circuit). The system limits the maximum number of sessions per Layer 2 circuit and the associated MAG-u. By default, two sessions with the same Layer 2 circuit on two different MAG-u nodes do not count for the same session limit. However, if sessions are set up in the context of a UP group, the system maintains the limit per UP group and Layer 2 circuit ID combination. In this case, two sessions with the same Layer 2 circuit ID on different MAG-u nodes in the same UP group count for the same session limit.

3. per UP

   Use the session-limits per-up command to set a limit for the maximum number of sessions per MAG-u. When the sessions are set up in the context of a UP group, this limit applies to the UP group instead because sessions can dynamically move between MAG-u nodes in one UP group.

It is possible to configure conflicting limits for the same context. For example, two sessions with the same Layer 2 access ID can match two different BNG EP entries. Both entries can have a different session limit. The enforced limit at session creation is the limit that is configured in the matching BNG EP entry.

Limits enforced for nonresilient contexts and resilient UP group contexts are never mixed. For example, if a BNG EP is configured with a per-UP session limit of 100, the system allows up to 100 nonresilient sessions on that MAG-u, and another 100 resilient sessions on any UP group linked to that MAG-u.

IPoE does not involve a lower-layer connectivity protocol. Address assignment protocols and upstream data packets directly trigger IPoE sessions. The cMAG-c supports DHCP, DHCPv6, and ICMPv6 RS as triggering protocols.

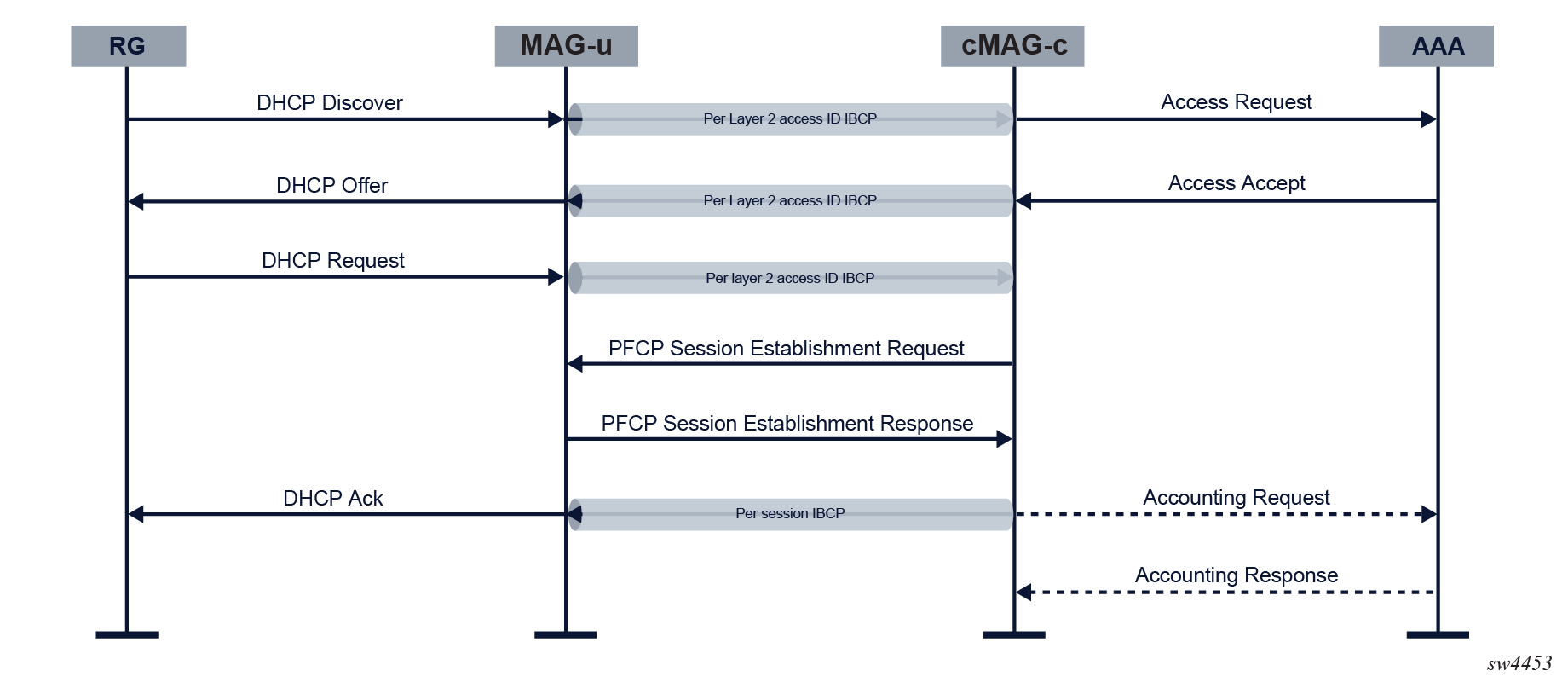

The following figure shows an example of an IPoE session setup flow with DHCP as triggering protocol.

When the cMAG-c receives the initial triggering packet over the per-Layer 2 access ID IBCP tunnel, the following actions are executed:

1. The cMAG-c matches the triggering packet with an EP, and creates an IPoE session using the configured keys. The cMAG-c assigns the EP and an IPoE profile. The IPoE profile defines the following behavior of the cMAG-c:
   • The cMAG-c sets dot1p and DSCP values in Ethernet and IP headers of CP messages to the IPoE client.
   • For packets that trigger session creation, the cMAG-c verifies the DHCP client Ethernet address (chaddr field). If the DHCP client Ethernet address does not equal the Ethernet source MAC address, the packet is dropped and no session is created.
   Use the following command to create an IPoE profile.

   subscriber-management profiles ipoe-profile

   Use the following command to assign an IPoE profile to a session matching an EP entry.

   subscriber-management entry-point entry ipoe profile

   Note: If no IPoE profile is provisioned for a session, setup continues as if an IPoE profile with default values was provisioned.
2. The cMAG-c assigns a single authentication flow to the session and starts the authentication. Subsequent triggers for the same IPoE session do not trigger re-authentication.
3. The cMAG-c allocates addresses for the session.
4. The cMAG-c creates data plane rules and per-session IBCP tunnels on the MAG-u.
5. The cMAG-c assigns addresses over the per-session IBCP tunnel.
6. If accounting is provisioned, the cMAG-c starts accounting for the session.

The events in the following non-exhaustive list cause deletion of an IPoE session:

• The AAA triggers a failure; for example, RADIUS-initiated disconnect.
• An operator gives an explicit clear command for the session.
• No more DHCP or DHCPv6 lease is running; for example, because of a lease timeout or an explicit release message. Because of the lack of client-generated messages, SLAAC-assigned addresses are not tracked independently and require an active DHCP or DHCPv6 lease in the IPoE session.
• A session timeout has occurred.
