Add IP routes through network

Procedure 9-4: Add IP routes through network

Overview

Use this procedure to add IP Routes (IP Tunnels) through the data communications channel (DCC) OSI-based network.

Privilege level

You must log in as a Privileged user to complete this procedure.

IP routing examples

The following scenarios illustrate different methods of establishing IP routes through a network.

Each example is followed by the necessary instructions to program that example. In addition, tables are provided that list the required provisioning for the WaveStar^® CIT, NEs, Optical Management System (OMS), Router, and AnyMedia OS for each scenario.

Example 1: local access over LAN

In this example ( Figure 9-3, Local Access over LAN), the PC-CIT is both the OS and FTP Server and is connected on the same subnet as GNE, that is, local access over the Local Area Network (LAN).

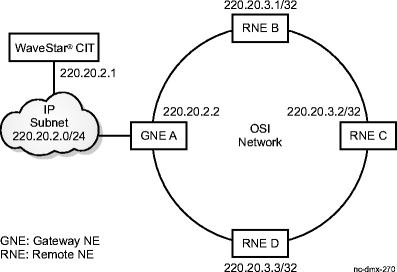

Figure 9-3: Local Access over LAN

No manual route for the OS needs to be added in GNE as it would appear in GNE's routing table as a local entry.

ALL NEs are connected over a ring (over OSI-based DCC) and communicate using OSI, identifying each other through the NSAP addresses. They all support IP stack and thus have IP addresses and subnet masks assigned. Here, they are 1665 DMX Product Family IP NEs but could also be connected to IP-only NEs (for example, a case of IP Fringe discussed later).

How to provision Example 1

Use the following information along with the Step instructions for this procedure to provision the route illustrated in Example 1:

At...	Provision...
PC-CIT	Provision its own IP address (220.20.2.1) and subnet mask (24 or 255.255.255.0) Provision GNE with IP address 220.20.2.2 as default router
GNE	Provision its own IP address (220.20.2.2) and subnet mask (24 or 255.255.255.0) for the LAN port. Enable TCP/IP Function on the LAN port. No need to provision manual route to PC-CIT since GNE would advertise it as local entry within its own area. Ensure that TAP Advertise and TAP Learn are enabled.
RNE B	Provision its own IP address (220.20.3.1) and subnet mask (32 or 255.255.255.255) for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled.

At...

Provision...

PC-CIT

Provision its own IP address (220.20.2.1) and subnet mask (24 or 255.255.255.0)

Provision GNE with IP address 220.20.2.2 as default router

GNE

Provision its own IP address (220.20.2.2) and subnet mask (24 or 255.255.255.0) for the LAN port.

Enable TCP/IP Function on the LAN port.

No need to provision manual route to PC-CIT since GNE would advertise it as local entry within its own area.

Ensure that TAP Advertise and TAP Learn are enabled.

RNE B

Provision its own IP address (220.20.3.1) and subnet mask (32 or 255.255.255.255) for DCC port.

Enable TCP/IP Function on the DCC port.

Enable Advertising of its own local entry.

Ensure that TAP Advertise and TAP Learn are enabled.

Use the following routing information at the PC-CIT to provision the route illustrated in Example 1:

	Destination	Gateway	Interface	Comments
PC-CIT
	220.20.2.1/24	-	lan	populated by stack
	default	220.20.2.2	lan	populated by stack

Use the following routing information at the GNE/RNE to provision the route illustrated in Example 1:

	Destination	Next Hop Port	Next Hop Address	Owner	TAP Advertisement	Cost
GNE
	220.20.2.2/24	LAN	-	local	no	20
	220.20.2.1/24	LAN	220.20.2.1	local	yes	20
	220.20.3.1/32	CLNP_TUNNEL	<NSAP-B>	TAP	yes	20
	220.20.3.2/32	CLNP_TUNNEL	<NSAP-C>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20
RNE B
	220.20.3.1/32	LAN	-	local	yes	20
	220.20.2.1/24	CLNP_TUNNEL	<NSAP-A>	TAP	yes	20
	220.20.3.2/32	CLNP_TUNNEL	<NSAP-C>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20

Example 2: Access over IP WAN

In this example ( Figure 9-4, Access over IP WAN), the GNE is accessed over the Internet Protocol Wide Area Network (IP WAN). Alcatel-Lucent 1350 OMS and the GNE are connected over a private internet/intranet using routers, R1 and R2.

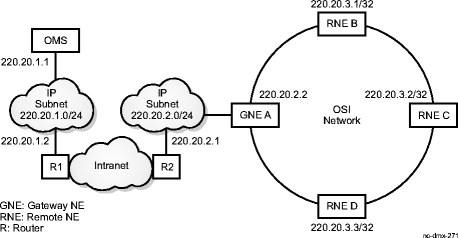

Figure 9-4: Access over IP WAN

OMS and router R1 are on the same subnet 220.20.1.0/24 and router R2 and GNE are on another subnet 220.20.2.0/24. ALL NEs are connected over a ring (over OSI-based DCC) and communicate using OSI and identify each other through the NSAP addresses. Here, they are stand-alone IP NEs but could also be connected to IP-only NEs (for example, a case of IP Fringe discussed later).

How to provision Example 2

Use the following information along with the Step instructions for this procedure to provision the route illustrated in Example 2:

At...	Provision...
OMS	Provision its own IP address (220.20.1.1) and subnet mask (24 or 255.255.255.0) Provision router, R1 with IP address 220.20.1.2 as default router
Router R1	Provision IP addresses for its all interfaces - IP address (220.20.1.2) and subnet mask (24 or 255.255.255.0) - IP address for the interface connecting to intranet and the subnet mask of the directly attached subnet - If routers don't autoshare static routes, then Provision a static route to a subnet address which can cover maximum number of RNEs e.g. 220.20.3.0/24 as destination and GNE's IP address 220.20.2.2 as next-hop-address
Router R2	Provision IP addresses for its all interfaces - IP address (220.20.2.1) and subnet mask (24 or 255.255.255.0) - IP address for the interface connecting to intranet and the subnet mask of the directly attached subnet Provision a static route to a subnet address which can cover maximum number of RNEs e.g. 220.20.3.0/24 as destination and GNE's IP address 220.20.2.2 as next-hop-address
GNE	Provision its own IP address (220.20.2.2) and subnet mask (24 or 255.255.255.0) for the LAN port. Enable TCP/IP Function on the LAN port. Provision R2 as default router with IP address 220.20.2.1 Provision manual route to OMS which it would advertise within its own OSI Level 1 area. The manual route would have OMS IP address 220.20.1.1/32 as destination and router R2's IP address 220.20.2.1 as next-hop-address. Ensure that TAP Advertise and TAP Learn are enabled.
RNE B	Provision its own IP address (220.20.3.1) and subnet mask (32 or 255.255.255.255) for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled.

Use the following routing information at the OMS and Router to provision the route illustrated in Example 2:

	Destination	Gateway	Interface	Comments
OMS
	220.20.1.1/24	-	lan	populated by stack
	default	220.20.1.2	lan	populated by stack
Router
R1	220.20.1.2/24	-	lan	populated by stack
	220.20.3.0/24	220.20.2.2	lan	1. populated by OSPF (if static routes autoshare) 2. manual (if static routes not autoshare e.g. in Cajun 550)
R2	220.20.2.1/24	-	lan	populated by stack
	220.20.3.0/24	220.20.2.2	lan	manual

Use the following routing information at the GNE/RNE to provision the route illustrated in Example 2:

	Destination	Next Hop Port	Next Hop Address	Owner	TAP Advertisement	Cost
GNE
	220.20.2.2/24	LAN	-	local	no	20
	default	LAN	220.20.2.1	local	no	20
	220.20.1.1/32	LAN	220.20.2.1	manual	yes	20
	220.20.3.1/32	CLNP_TUNNEL	<NSAP-B>	TAP	yes	20
	220.20.3.2/32	CLNP_TUNNEL	<NSAP-C>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20
RNE B
	220.20.3.1/32	LAN	-	local	yes	20
	220.20.1.1/32	CLNP_TUNNEL	<NSAP-A>	TAP	yes	20
	220.20.3.2/32	CLNP_TUNNEL	<NSAP-C>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20

Example 3: multi-area operations

In this example ( Figure 9-5, Multi-area operations), an extension to Example 2, we have added other NEs that are deployed in different areas (1, 2, and 3). RNE C, P, and X are level-2 routers which enable communications across areas. But the manual route to OMS provisioned at GNE wouldn't be advertised by RNE C to other areas. This requires establishing manual route across areas which are then advertised by Level 2 routers within their areas. Each area can be represented by a single subnet. This also requires adding static entries to each subnet in Router R2.

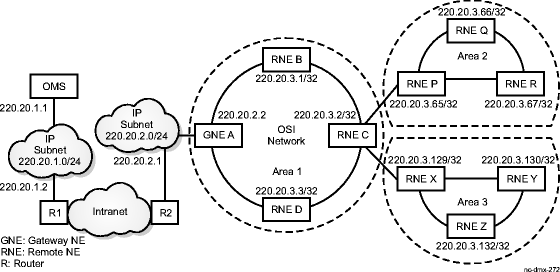

Figure 9-5: Multi-area operations

Careful planning and design of subnet addresses for these areas could reduce the number of static entries required at Router R2.

How to provision Example 3

Use the following information along with the Step instructions for this procedure to provision the route illustrated in Example 3:

At...	Provision...
OMS	Provision its own IP address (220.20.1.1) and subnet mask (24 or 255.255.255.0) Provision router, R1 with IP address 220.20.1.2 as default router
Router R1	Provision IP addresses for its all interfaces - IP address (220.20.1.2) and subnet mask (24 or 255.255.255.0) - IP address for the interface connecting to intranet and the subnet mask of the directly attached subnet - If routers don't autoshare static routes, then Provision a static route to a subnet address which can cover maximum number of RNEs e.g. 220.20.3.0/24 as destination covers subnets 220.20.3.0/26, 220.20.3.64/26 and 220.20.3.128/26. The GNE's IP address 220.20.2.2 as next-hop-address.
Router R2	Provision IP addresses for its all interfaces - IP address (220.20.2.1) and subnet mask (24 or 255.255.255.0) - IP address for the interface connecting to intranet and the subnet mask of the directly attached subnet Provision a static route to a subnet address which can cover maximum number of RNEs e.g. 220.20.3.0/24 as destination covers subnets 220.20.3.0/26, 220.20.3.64/26 and 220.20.3.128/26. The GNE's IP address 220.20.2.2 as next-hop-address.
GNE	Provision its own IP address (220.20.2.2) and subnet mask (24 or 255.255.255.0) for the LAN port. Enable TCP/IP Function on the LAN port. Provision R2 as default router with IP address 220.20.2.1 Provision manual route to OMS which it would advertise within its own area. The manual route would have OMS IP address 220.20.1.1/32 as destination and router R2's IP address 220.20.2.1 as next-hop-address. Ensure that TAP Advertise and TAP Learn are enabled. Provision manual route for two areas with RNE P's and RNE X's IP addresses (220.20.3.65/26 and 220.20.3.129/26) as destination and their respective NSAP addresses as the next hop address. No need to advertise this entry. (In case, any area can't be covered with one subnet, more than one route might have to be added)
RNE C	Provision its own IP address (220.20.3.2) and subnet mask (32 or 255.255.255.255) for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled.
RNE P	Provision its own IP address (220.20.3.65) and subnet mask (32 or 255.255.255.255) for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled. Provision manual route to GNE which it would advertise within its own area. The manual route would have OMS IP address 220.20.1.1/32 as destination and GNE's NSAP address as the next-hop address. Set advertise enable for this entry.
RNE X	Provision its own IP address (220.20.3.129) and subnet mask (32 or 255.255.255.255) for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled. Provision manual route to GNE which it would advertise within its own area. The manual route would have OMS IP address 220.20.1.1/32 as destination and GNE's NSAP address as the next-hop address. Set advertise enable for this entry.
RNE R	Provision its own IP address (220.20.3.67) and subnet mask (32 or 255.255.255.255) for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled.

Use the following routing information at the OMS and NE (GNE/RNE) to provision the route illustrated in Example 3:

	Destination	Gateway	Interface	Comments
OMS
	220.20.1.1/24	-	lan	populated by stack
	default	220.20.1.2	lan	populated by stack
Router
R1	220.20.1.2/24	-	lan	populated by stack
	220.20.3.0/24	220.20.2.2	lan	1. populated by OSPF (if static routes autoshare) 2. manual (if static routes not autoshare e.g. in Cajun 550)
R2	220.20.2.1/24	-	lan	populated by stack
	220.20.3.0/24	220.20.2.2	lan	manual

Use the following routing information at the GNE/RNE to provision the route illustrated in Example 3:

	Destination	Next Hop Port	Next Hop Address	Owner	TAP Advertisement	Cost
GNE
	220.20.2.2/24	LAN	-	local	no	20
	default	LAN	220.20.2.1	local	no	20
	220.20.1.1/32	LAN	220.20.2.1	manual	yes	20
	220.20.3.65/26	CLNP_TUNNEL	<NSAP-P>	manual	no	20
	220.20.3.129/26	CLNP_TUNNEL	<NSAP-X>	manual	no	20
	220.20.3.1/32	CLNP_TUNNEL	<NSAP-B>	TAP	yes	20
	220.20.3.2/32	CLNP_TUNNEL	<NSAP-C>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20
RNE C
	220.20.3.2/32	LAN	-	local	yes	20
	220.20.1.1/32	CLNP_TUNNEL	<NSAP-A>	TAP	yes	20
	220.20.3.1/32	CLNP_TUNNEL	<NSAP-B>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20
RNE P
	220.20.3.65/32	LAN	-	local	yes	20
	220.20.1.1/32	CLNP_TUNNEL	<NSAP-A>	manual	yes	20
	220.20.3.66/32	CLNP_TUNNEL	<NSAP-Q>	TAP	yes	20
	220.20.3.67/32	CLNP_TUNNEL	<NSAP-R>	TAP	yes	20
RNE X
	220.20.3.129/32	LAN	-	local	yes	20
	220.20.1.1/32	CLNP_TUNNEL	<NSAP-A>	manual	yes	20
	220.20.3.130/32	CLNP_TUNNEL	<NSAP-Y>	TAP	yes	20
	220.20.3.131/32	CLNP_TUNNEL	<NSAP-Z>	TAP	yes	20
RNE R
	220.20.3.67/32	LAN	-	local	yes	20
	220.20.1.1/32	CLNP_TUNNEL	<NSAP-A>	TAP	yes	20
	220.20.3.65/32	CLNP_TUNNEL	<NSAP-P>	TAP	yes	20
	220.20.3.66/32	CLNP_TUNNEL	<NSAP-Q>	TAP	yes	20

Example 4: IP NEs on the fringe

In this example ( Figure 9-6, IP NEs on the fringe), another extension of Example 2, IP routing is used to reach the IP-only NEs on the fringe of the OSI network, allowing termination of an IP connection at the IP-only host connected to RNE C on the same IP subnet. It can also be reached using additional routers).

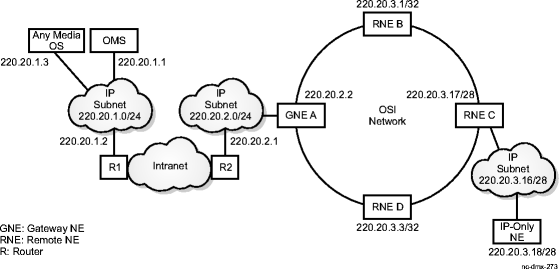

Figure 9-6: IP NEs on the fringe

The RNE C is connected using its LAN port and is given a real IP address 220.20.3.17 (rather 220.20.3.2) which belongs to the subnet 220.20.3.16/28. The RNE C is still reachable using the IP address 220.20.3.0/24 provisioned at Router R1 as destination for the entire OSI subnet.

This also requires manual provisioning of the route to AnyMedia OS at the GNE and RNE C being provisioned as default router at the IP-only NE.

How to provision Example 4

Use the following information along with the Step instructions for this procedure to provision the route illustrated in Example 4:

At...	Provision...
OMS	Provision its own IP address (220.20.1.1) and subnet mask (24 or 255.255.255.0) Provision router, R1 with IP address 220.20.1.2 as default router
AnyMedia OS	Provision its own IP address (220.20.1.3) and subnet mask (24 or 255.255.255.0) Provision router, R1 with IP address 220.20.1.2 as default router
Router R1	Provision IP addresses for its all interfaces - IP address (220.20.1.2) and subnet mask (24 or 255.255.255.0) - IP address for the interface connecting to intranet and the subnet mask of the directly attached subnet - If routers don't autoshare static routes, then Provision a static route to a subnet address which can cover maximum number of RNEs e.g. 220.20.3.0/24 as destination and GNE's IP address 220.20.2.2 as next-hop-address.
Router R2	Provision IP addresses for its all interfaces - IP address (220.20.2.1) and subnet mask (24 or 255.255.255.0) - IP address for the interface connecting to intranet and the subnet mask of the directly attached subnet Provision a static route to a subnet address which can cover maximum number of RNEs e.g. 220.20.3.0/24 as destination and GNE's IP address 220.20.2.2 as next-hop-address.
GNE	Provision its own IP address (220.20.2.2) and subnet mask (24 or 255.255.255.0) for the LAN port. Enable TCP/IP Function on the LAN port. Provision R2 as default router with IP address 220.20.2.1 Provision manual route to OMS which it would advertise within its own area. The manual route would have OMS IP address 220.20.1.1/32 as destination and router R2's IP address 220.20.2.1 as next-hop-address Ensure that TAP Advertise and TAP Learn are enabled. Provision a manual route to AnyMedia OS similar to OMS and IP address of AnyMedia OS, 220.20.1.3/24
RNE C	Provision its own IP address (220.20.3.17) and subnet mask (28 or 255.255.255.240) for the LAN port. Enable TCP/IP Function on the LAN port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled.
IP-only NE	Provision its own IP address (220.20.3.18) and subnet mask (28 or 255.255.255.240) Provision RNE C as its default router with IP address (220.20.3.17)

Use the following routing information at the OMS and Router to provision the route illustrated in Example 4:

	Destination	Gateway	Interface	Comments
OMS
	220.20.1.1/24	-	lan	populated by stack
	default	220.20.1.2	lan	populated by stack
Router
R1	220.20.1.2/24	-	lan	populated by stack
	220.20.3.0/24	220.20.2.2	lan	1. populated by OSPF (if static routes autoshare) 2. manual (if static routes not autoshare e.g. in Cajun 550)
R2	220.20.2.1/24	-	lan	populated by stack
	220.20.3.0/24	220.20.2.2	lan	manual

Use the following routing information at the AnyMedia OS to provision the route illustrated in Example 4:

	Destination	Gateway	Interface	Comments
AnyMedia OS
	220.20.1.3/24	-	lan	populated by stack
	default	220.20.1.2	lan	populated by stack

Use the following routing information at the GNE/RNE to provision the route illustrated in Example 4:

	Destination	Next Hop Port	Next Hop Address	Owner	TAP Advertisement	Cost
GNE
	220.20.2.2/24	LAN	-	local	no	20
	default	LAN	220.20.2.1	local	no	20
	220.20.1.1/32	LAN	220.20.2.1	manual	yes	20
	220.20.1.3/32	LAN	220.20.2.1	manual	yes	20
	220.20.3.1/32	CLNP_TUNNEL	<NSAP-B>	TAP	yes	20
	220.20.3.2/32	CLNP_TUNNEL	<NSAP-C>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20
RNE C
	220.20.3.17/28	LAN	-	local	yes	20
	220.20.3.18/28	LAN	-	local	no	20
	220.20.1.1/32	CLNP_TUNNEL	<NSAP-A>	TAP	yes	20
	220.20.3.1/32	CLNP_TUNNEL	<NSAP-B>	TAP	yes	20
	220.20.3.3/32	CLNP_TUNNEL	<NSAP-D>	TAP	yes	20

Use the following routing information at the IP-Only NE to provision the route illustrated in Example 4:

	Destination	Gateway	Interface	Comments
IP-Only NE
	220.20.3.18/28	-	lan	populated by stack
	default	220.20.3.17	lan	populated by stack

Example 5: multiple GNEs scenario

In this example ( Figure 9-7, Multiple GNEs scenario), a single area has many NEs and if the TCP/IP Function is provisioned, the Tunnel Auto Provisioning (TAP) advertisement that would be exchanged would be significantly high and lot of such traffic would pass through the GNE.

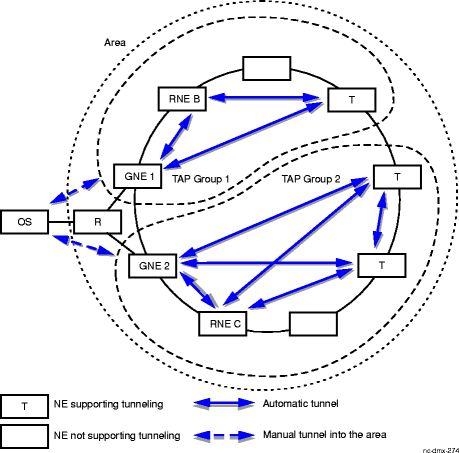

Figure 9-7: Multiple GNEs scenario

To avoid the overloading on the network and particularly on GNE, TAP Groups are defined. With this, TAP enabled NEs wouldn't listen to the advertisements from NEs outside their TAP groups and thus don't form routes with them or through them.

Setting up TAP groups necessitates two GNEs, each with one manual route entry to OS and advertise in their respective TAP groups.

How to provision Example 5

Use the following information along with the Step instructions for this procedure to provision the route illustrated in Example 5:

At...	Provision...
OS	Provision its own IP address and subnet mask. Provision router as default router.
Router	Provision IP addresses for all interfaces. Provision 2 static routes (one to GNE 1 and one to GNE 2).
GNE 1	Provision its own IP address and subnet mask for the LAN port. Enable TCP/IP Function on the LAN port. Provision default router. Provision manual route entry to OS with TAP Group 1. Ensure that TAP Advertise and TAP Learn are enabled.
GNE 2	Provision its own IP address and subnet mask for the LAN port. Enable TCP/IP Function on the LAN port. Provision default router. Provision manual route entry to OS with TAP Group 2. Ensure that TAP Advertise and TAP Learn are enabled.
RNE B	Provision its own IP address and subnet mask for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled for TAP Group 1.
RNE C	Provision its own IP address and subnet mask for DCC port. Enable TCP/IP Function on the DCC port. Enable Advertising of its own local entry. Ensure that TAP Advertise and TAP Learn are enabled for TAP Group 2.

Alcatel-Lucent 1850 TSS-5 and / IP tunneling interworking

In a typical network, the Alcatel-Lucent 1850 TSS-5 is a remote NE (RNE) interworking with an or functioning as the gateway NE (GNE). The / GNE supports T-TD (TL1 Translation Device) to translate TL1 over TCP/IP to TL1 over OSI. This allows TL1 management of a remote Alcatel-Lucent 1850 TSS-5.

However, to fully support IP tunneling interworking between a remote Alcatel-Lucent 1850 TSS-5 and the / GNE, the NSAP selector parameter must be provisioned to f0 (04 default value) at the remote Alcatel-Lucent 1850 TSS-5. This allows software operations (download/backup/restore) to a remote Alcatel-Lucent 1850 TSS-5 using FT-TD (File Transfer Translation Device) to translate FTP over TCP/IP to FTAM over OSI.

The TAP Learn and Advertise parameters remain disabled.

How to provision

Use the following information along with the Step instructions for this procedure to provision Alcatel-Lucent 1850 TSS-5 and / IP tunneling interworking. Refer to Figure 9-3, Local Access over LAN as an example.

At...	Provision...
GNE A (TSS-100/320)	Provision GNE according to the / documentation.
RNE B (TSS-5 fttd gateway)	Select Administration → Data Communications → IP Routing. Selector = f0 Manual Routes: Dest. IP = IP address of the PC-CIT Dest. Mask = 255.255.255.255 Next Hop Port = CLNP_TUNNEL Next Hop = NSAP of the GNE Click Apply. Select Administration → Data Communications → TCP/IP. Select DCC-ALL. Enable TCP/IP Function. Modify IP Address of the DCC. Modify Subnet Mask 255.255.255.255. Click Apply.
RNE C (TSS-5)	To use the tunnel, login using TCP/IP to RNE C using the IP address of the GNE and port 3082. Perform remote backup, restore, or software download using the TID of the FTTD gateway RNE B. Refer to Procedure 2-7: Software generic download and upgrade using FTTD or Procedure 2-13: Backup and restore NE database using FTTD

At...

Provision...

GNE A (TSS-100/320)

Provision GNE according to the / documentation.

RNE B (TSS-5 fttd gateway)

Select Administration → Data Communications → IP Routing.

Selector = f0
Manual Routes:
- Dest. IP = IP address of the PC-CIT
- Dest. Mask = 255.255.255.255
- Next Hop Port = CLNP_TUNNEL
- Next Hop = NSAP of the GNE
Click Apply.

Select Administration → Data Communications → TCP/IP.

Select DCC-ALL.
Enable TCP/IP Function.
Modify IP Address of the DCC.
Modify Subnet Mask 255.255.255.255.
Click Apply.

RNE C (TSS-5)

To use the tunnel, login using TCP/IP to RNE C using the IP address of the GNE and port 3082.

Perform remote backup, restore, or software download using the TID of the FTTD gateway RNE B. Refer to Procedure 2-7: Software generic download and upgrade using FTTD or Procedure 2-13: Backup and restore NE database using FTTD

Before you begin

Prior to performing this procedure,

Refer to Before you begin and Required equipment in this chapter.
Obtain the work instructions for this procedure.
Verify that the work instructions identify the OS/FTP server, gateway network element, and remote network element.
Verify that the work instructions specify the required provisioning at each network element (for example, IP addresses and subnet masks).
If the FTP server is a local PC (WaveStar^® CIT), verify that the PC's IP address and Subnet Mask parameters are provisioned and that a static route on the PC connects it to the remote NEs.
If the FTP server is a remote OS, verify that the remote OS' IP address and Subnet Mask parameters are provisioned and if the remote OS and GNE are in different subnetworks, verify that the Default Router IP address is provisioned.

Steps

Complete the following steps to add IP routes through the data communications channel (DCC) OSI-based network:


1	If the remote OS is a local PC, a static route on the PC must provide a path to the remote NEs. If packets are intended for the remote NE, then you must route to the gateway NE. If the remote OS is a remote operations system, the static route must be entered on the router. Example: If the OS is a local PC, from the MS-DOS prompt, enter `route add 120.20.20.0 MASK 255.255.255.0 120.20.30.1`. In this example 120.20.20.0 is the subnetwork address of the remote NE and 120.20.30.1 is the IP address of the gateway NE. The Subnet Mask of the OS and the Gateway is 255.255.255.0 while the Subnet Mask of the Remote NEs is 255.255.255.255.
2	If the remote OS and GNE are in different subnetworks, verify that the router in each subnetwork has IP addresses provisioned for all interfaces and that the static route, as described in Step 1, has been provisioned on the router.
3	Establish a login session to the GNE. Reference: Procedure 14-2: Connect personal computer (PC) and establish WaveStar^® CIT session
4	At the GNE: From the System View, select Administration → Data Communications. The Data Communications window opens. Click on the TCP/IP tab. In the Data Communications window, select the LAN-1 port AID. Enable the TCP/IP Function, and provision the IP Address and IP Subnet Mask parameters according to the work instructions. If the remote OS and GNE are in different subnetworks, provision the IP Default Router Address parameter according to the work instructions. Click Apply. A dialog box appears stating that executing this command resets the network element. Click on Yes and the WaveStar^® CIT disconnects from the network element. Important! If automatic synchronization is unsuccessful, the date and time must be reset manually. Reference: Procedure 7-8: Set date and time
5	Re-establish the log in session to the GNE. Reference: Procedure 14-2: Connect personal computer (PC) and establish WaveStar^® CIT session
6	At the GNE: From System View, select Administration → Data Communications. The Data Communications window opens. Click on the IP Routing tab. In the Data Communications window, enable the TAP Advertise and TAP Learn parameters. Then provision the TAP Group parameter according to the work instructions. Click Apply and Close.
7	Log out of the GNE and log in to the remote NE. Reference: Procedure 14-2: Connect personal computer (PC) and establish WaveStar^® CIT session
8	At the RNE: From the System View, select Administration → Data Communications. The Data Communications window opens. Click on the TCP/IP tab. In the Data Communications window, click on the Port AID: drop-down menu and select DCC-ALL. Enable TCP/IP Function parameter. Provision the IP Address and IP Subnet Mask parameters according to the work instructions and click Apply. A dialog box appears stating that executing this command resets the network element. Click Yes and the WaveStar^® CIT disconnects from the network element. Important! If automatic synchronization is unsuccessful, the date and time must be reset manually. Reference: Procedure 7-8: Set date and time
9	Re-establish the log in session to the RNE. Reference: Procedure 14-2: Connect personal computer (PC) and establish WaveStar^® CIT session
10	Important! If a remote Alcatel-Lucent 1850 TSS-5 is interworking with a or GNE, the Server parameter must be provisioned to f0. At the RNE: From the System View, select Administration → Data Communications The Data Communications window opens. Click on the IP Routing tab. In the Data Communications window, enable the TAP Advertise and TAP Learn parameters. Then provision the TAP Group and Server parameters according to the work instructions. Click Apply and Close. If the Server parameter is changed, the WaveStar^® CIT disconnects from the network element.
11	If required, repeat Step 7 through Step 10 at other RNEs. End of steps
