Alarms

An alarm is an unexpected condition in EDA or the EDA-managed network that can be cleared by attaining some corrective state. The primary purpose of an alarm is to bring some abnormal condition to the attention of an operator, and thereby support debugging and resolution.

Note: An alarm is distinct from an event. An alarm represents a condition that should be corrected by reaching some associated corrective state. An event is a one-time occurrence and message (typically a log entry) about something that has occurred in the system. No future state is expected to clear an event, and it does not require an action to clear. Alarms are stateful; events are not.

Alarms in EDA can arise from a variety of sources, including the EDA system itself and the wide array of supported apps. For any alarm, the source/affected object is identified as part of the alarm in the resource, group, and kind fields.

Alarms are also associated with a namespace; this could be the base EDA namespace, or some other namespace. Users can only see and interact with alarms in namespaces for which they have access permissions.

Some alarms can be generated by intent-based apps within EDA. EDA treats such alarms as having been cleared if the app stops reporting that alarm.

Alarms associated with apps are described in documentation for individual apps.

Alarms on standby clusters

Standby cluster alarms can be important in understanding the state of redundancy in an EDA cluster. It is therefore useful to be able to see alarms generated on a standby cluster member even when working with the active member.

EDA supports this using the `cluster_member` field, which is set to the name of the cluster member that raised the alarm. This allows an operator to view alarms for all clusters, but still distinguish alarms for the active cluster from those for a standby cluster. For alarms that are not cluster-specific, this field remains unset.

Alarms in the EDA GUI

The EDA GUI includes several summary views of alarms known to EDA:

An alarm summary is displayed on the EDA home page.
A more detailed summary of alarms affecting key EDA components (clusters, Git servers, App catalogs and registries) is displayed on the main Alarms Summary page
The Alarms list displays a list of all active alarms

From the Alarm list, you can do the following for individual alarms, or as a bulk operation to a number of concurrently selected alarms:

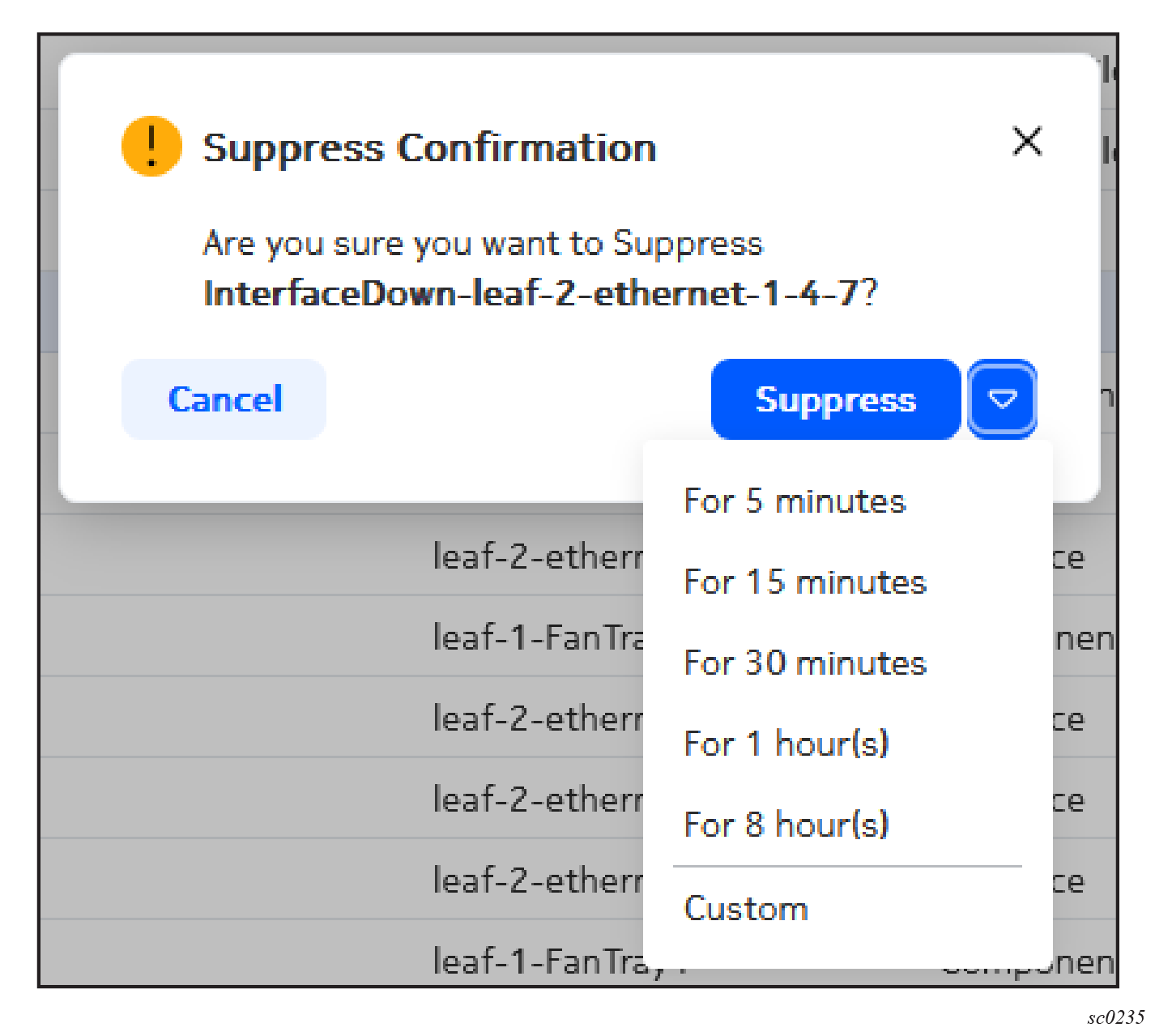

Suppress an alarm: this sets the suppressed flag for the current instance of the alarm. By default, suppressed alarms are not displayed in the EDA GUI.
Note: You can still view suppressed alarms by choosing "Show all alarms" from the Alarm List Table Settings and Actions menu.
Delete an alarm: this removes all history of the alarm. Deletion is only allowed for cleared alarms. The option is disabled for active alarms.
Acknowledge an alarm: this sets the Acknowledged flag for the current instance of the alarm.

The Alarms Summary

Table 1. Elements of the Alarms Summary page
#	Dashlet	Description
1	Active Alarms count	The Active Alarms count dashlet displays a total count of alarms affecting EDA applications and the EDA platform itself. This dashlet also displays the count of acknowledged and unacknowledged alarms.
2	Suppressed Alarms	The Suppressed Alarms dashlet displays the count of suppressed alarms.
3	Active Alarms charts	The Active Alarms charts dashlet breaks the Application Alarm and Platform Alarm counts down by severity and displays them in charts.
4	Active Application Alarms	Building on the data displayed in the Active Alarms panel, the Active Application Alarms dashlet lists the active alarms affecting EDA applications, their severity, and their type. Clicking the View link opens the Alarms List.
5	Active Platform Alarms	The Active Platform Alarms dashlet lists the active alarms affecting the EDA application, their severity, and their type. Clicking the View link opens the Alarms List.

The Alarms list

Table 2. Elements of the Alarms list
#	Name	Function
1	Alarms menu	The Alarms menu includes: common table controls multi-row actions unique to alarms special actions unique to the alarms list The Show all alarms action updates the alarms list to include suppressed alarms, which are hidden by default. Subsequently choosing Hide suppressed alarms restores the default behavior and removes suppressed alarms from the list.
2	Alarm count	Displays the number of current alarms of various severities.

Columns

The list of alarms displays the following columns by default.

Table 3. Default alarm display columns
Column	Description
Severity	The importance of the alarm, as defined by the alarm itself. Supported severities are: Critical Major Minor Warning You can click this column to sort by severity level.
Type	The alarm type, as defined by the alarm itself. For example, InterfaceDown.
Cleared	Whether the alarm has been cleared by an operator. Possible values are: True False
Occurrences	The number of occurrences for the alarm.
Resource	Indicates the name of the resource that this alarm is present on. For example, if an alarm was raised against a Fabric, the endpoint would be set to the name of the specific instance of a Fabric the alarm was raised against. A resource may also be an instance of a resource in the Kubernetes cluster where EDA is deployed. For example, the resource may be the name of a Pod.
Kind	Indicates the kind of resource the alarm is present on. For example, this is set to Fabric if an alarm is raised against a Fabric resource. The kind may also be a component with the EDA core - for example, ConfigEngine or StateEngine.
Group	Indicates the group of the resource the alarm is present on. For example, this is set to fabrics.eda.nokia.com if an alarm is raised against a Fabric.
Last Changed	Indicates the time the alarm last changed state. The timestamp is updated any time an alarm changes state between cleared and not cleared.
Acknowledged	Indicates whether the alarm has been acknowledged (True or False)

The following alarms can be optionally displayed in the list of alarms by selecting Manage columns from the Alarms menu.

Table 4. Optional alarm display columns
Column	Description
Namespace	Indicates the namespace to which the alarm belongs. Alarms that are not specific to a namespace, such as platform certificate alarms, do not have or display a namespace value.
Name	Indicates the name of the alarm.
Last Acknowledged	Indicates the date and time when the most recent acknowledgement occurred for this alarm.
Acknowledged Until	If the alarm has been temporarily acknowledged, this indicates the date and time at which the acknowledgement expires.
Parent Alarms	Indicates whether the alarm is associated with one or more parent alarms. It is common for alarms to have one or more parents. For example, an InterfaceDegraded alarm may be caused by one or more of its component members being down; that condition is itself the subject of a separate alarm.
Cluster Member	For EDA platform alarms, the EDA cluster member to which the alarm applies.
Source Resource	The EDA-managed resource from which the alarm originates.
Source Kind	The kind of resource from which the alarm originates.
Source Group	The group of the resource from which the alarm originates.
Description	The description of the alarm from the alarm's encoded Description field.
Probable Cause	The probable cause of the alarm, from the alarm's encoded Probable Cause field.
Remedial Action	The suggested remedial action to resolve the alarm, from the alarm's encoded Remedial Action field.
JS Path	The EDB entry which triggered the raising or clearing of the alarm, in JSPath notation. For example, if the alarm pertains to an interface operational state, this may be the JSPath: .node{.name=="spine-1"}.srl.interface{.name=="ethernet-1/14"}
Last Suppressed	Indicates the date and time when the most recent suppression occurred for this alarm.
Suppressed Until	If the alarm has been temporarily suppressed, this indicates the date and time at which the suppression expires. This column is available when the Show all alarms action is selected.
Suppressed	Indicates whether the alarm has been suppressed. This column is available when the Show all alarms action is selected.

The Alarms Information panel

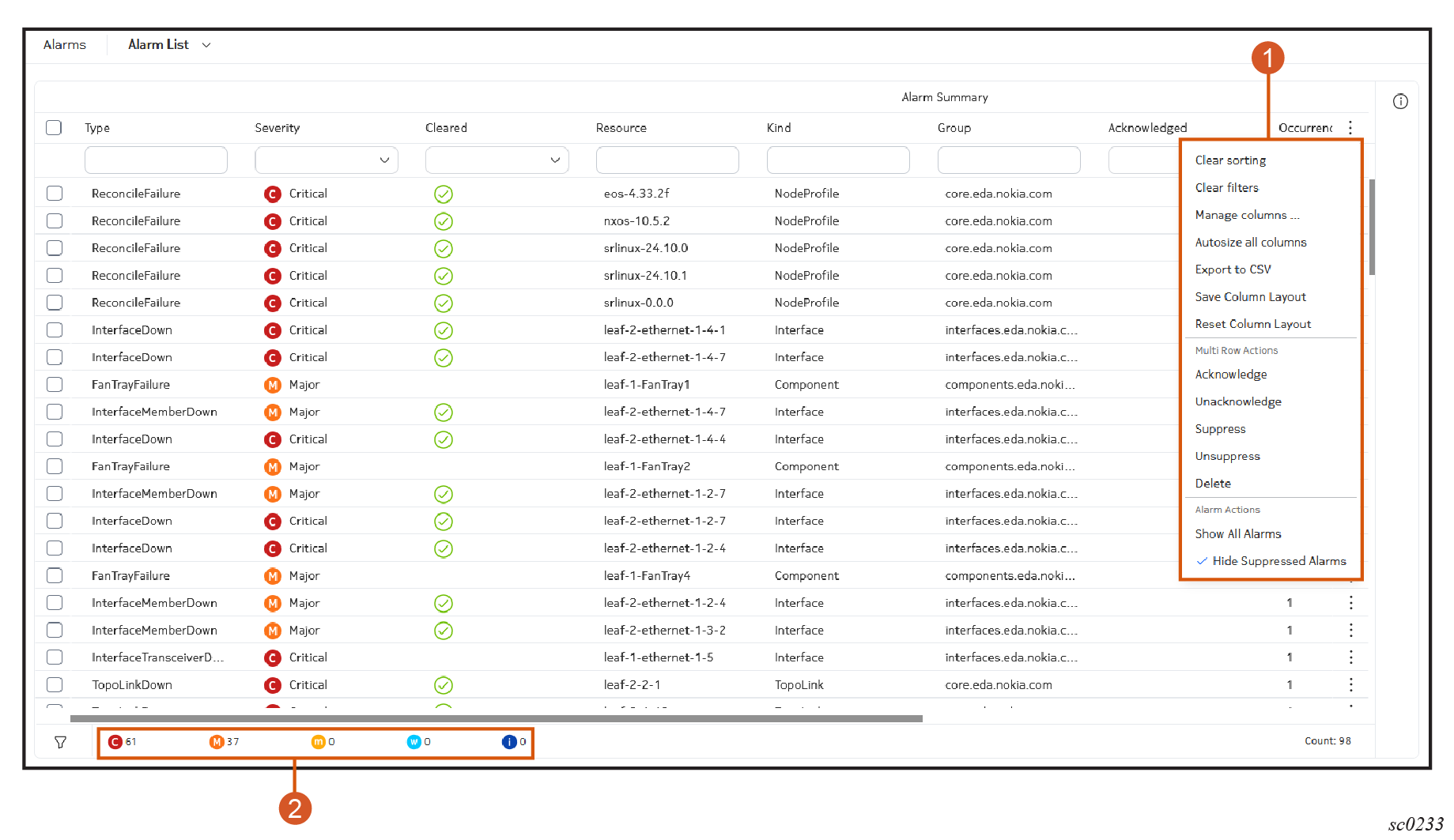

The Alarms list page contains an Information panel that you can open by clicking the Expand/Contract control at the middle right of the page. This Information panel appears throughout the EDA GUI, for details see Information panel. The following figure shows an example of an expanded Alarms Information panel for a selected alarm.

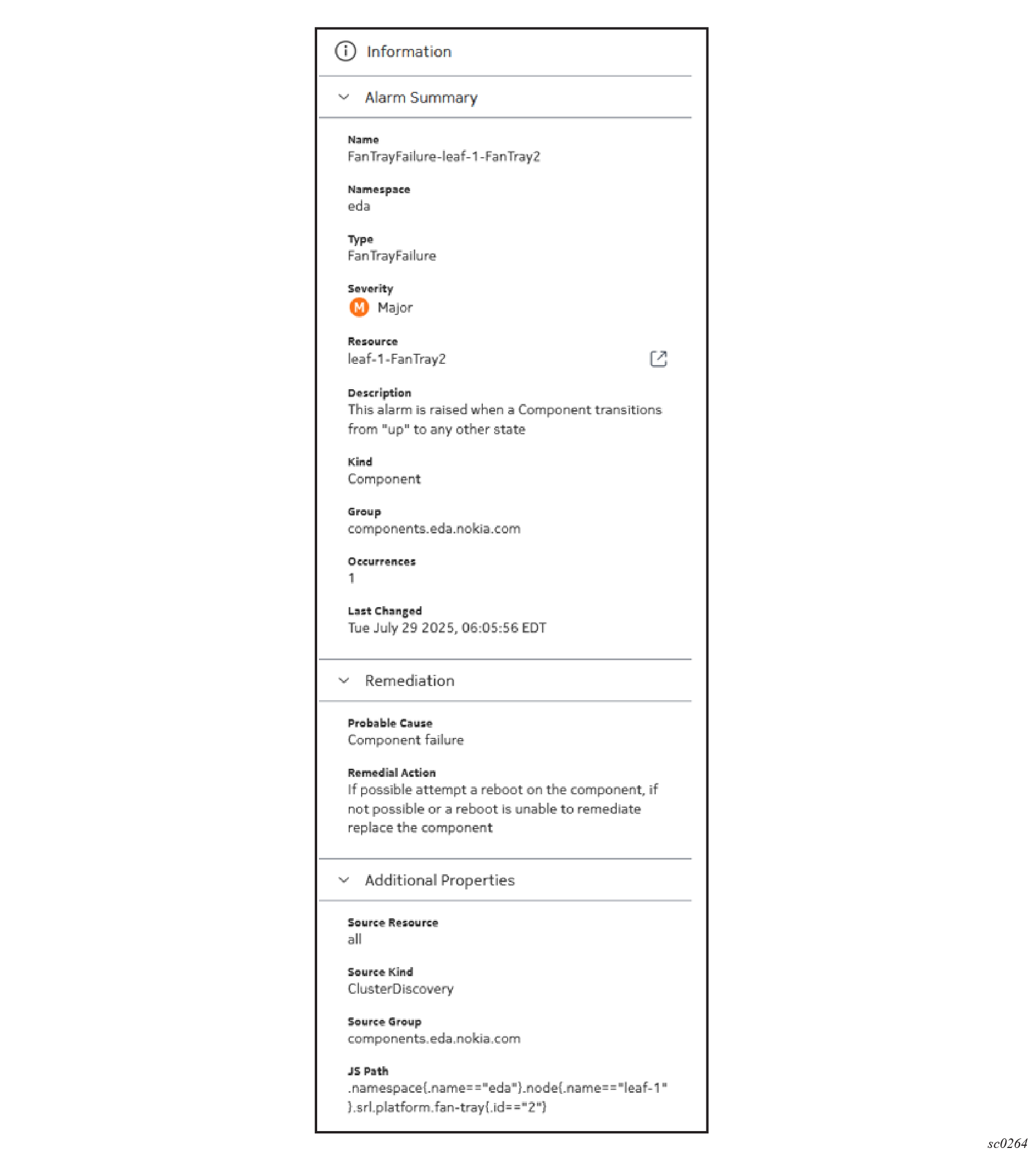

Figure 3. The expanded Alarms Information panel

The Information panel displays information about any selected alarm in the Alarms list. This information includes the following grouped and collapsible fields:

Alarm Summary – includes Name, Namespace, Type, Severity, Cleared, Resource, Description, Kind, Group, Occurrences, Acknowledged, and Last Changed fields
Remediation – includes Parent Alarms, Probable Cause, and Remedial Action fields
Additional Properties – includes Acknowledged Until, Last Acknowledged, Suppressed, Suppressed Until, Last Suppressed, Source Resource, Source Kind, Source Group, and JS Path fields

Fields that are empty or not applicable are hidden.

The following table describes the navigation from the Information panel to Parent Alarms and Resource locations.

Table 5. Information panel navigation details
Location	Description

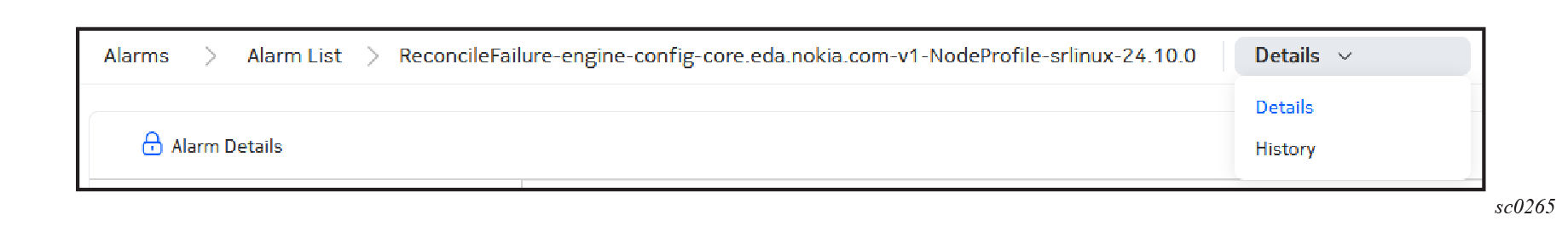

Remediation > Parent Alarms	Displays the Details page for the parent alarm of the selected alarm.
Alarm Summary > Resource	Displays the resource information for the selected alarm.

Sample core alarms

Table 6. Repository Reachability Down
Property	Description
Name	RepositoryReachabilityDown-<cluster>-<server-name>-<repo-type>-<source>
Severity	Critical
Description	Connectivity between <source-kind> "<source>" and the "<repo-type>" repository at "<server-uri/remote-path>" is down. This alarm is raised after three failures to connect to a repository, where each attempt is made at a 15s interval. After three failures the alarm is generated (so after 45s) and is cleared on a connection attempt succeeding.
Probable cause	Connectivity issues, Kubernetes CNI misconfiguration, or credential/TLS misconfiguration/expiration.
Remedial action	Restore connectivity between the corresponding <source-kind> and apps repository/Git server. Ensure credentials and proxy configuration are correct, and any offered certificates are trusted.
server-name is the name of the Git server hosting the repository, for example primary. repo-type is the type of repository, one of Apps, Backup, Identity, Security, Catalog, UserSettings. source is the name of the pod that raised the alarm, for example eda-se-1. source-kind is one of ConfigEngine, StateEngine, AppStore. cluster is the name of the cluster member that this alarm was raised in, populated via setting the clusterSpecific flag. server-uri/remote-path is the combination of the server URI and remote path as defined in the EngineConfig.

Table 7. Service Reachability Down
Property	Description
Name	ServiceReachabilityDown-<cluster>-<service>-<source>
Severity	Critical
Description	Connectivity between <source-kind> "<source>" and the <kind> on "<service>" is down.
Probable cause	Connectivity issues between worker nodes in the Kubernetes cluster, Kubernetes CNI misconfiguration, pod failure, or TLS misconfiguration/expiration.
Remedial action	Restore connectivity between the corresponding source and destination. Ensure credentials and proxy configuration are correct (typically using no proxy for inter-cluster HTTPS), and certificate validity.
service is the common name of the destination pod, for example eda-npp-leaf-1-1. source is the name of the source pod that raised the alarm, for example eda-sc-1. source-kind is one of APIServer, ConfigEngine, StateEngine, AppStore. cluster is the name of the cluster member that this alarm was raised in, populated via setting the clusterSpecific flag.

Table 8. Pod Not Running
Property	Description
Name	PodNotRunning-<cluster>-<pod>
Severity	Critical
Description	Pod "<pod>" is not in the "Running" state. Any functionality provided by this pod is not available. This alarm can be raised transiently at system startup.
Probable cause	Kubernetes controller or registry reachability issues, worker node failure, initial instantiation.
Remedial action	Validate reachability to the registry used to pull the image for the specified pod, ensure no worker node, storage, or networking issues exist that would cause the Kubernetes controller to mark the pod in any state other than "Running".
cluster is the name of the cluster member that this alarm was raised in, populated via setting the clusterSpecific flag. pod is set to the name of the pod that is not running, but should be. config-engine is set to the name of the ConfigEngine pod that raised the alarm.

Table 9. Deployment Degraded
Property	Description
Name	DeploymentDegraded-<cluster>-<deployment>
Severity	Critical
Description	Deployment "<deployment>" has at least one replica not in the "Running" state. Depending on the application this may result in loss of functionality or loss of service capacity. This alarm can be raised transiently at system startup.
Probable cause	Kubernetes infrastructure issues, worker node failure, initial instantiation.
Remedial action	Validate reachability to the registry used to pull images for any failed pods in the Deployment, ensure no worker node, storage, or networking issues exist that would cause the Kubernetes controller to mark pods in any state other than "Running".
cluster is the name of the cluster member that this alarm was raised in, populated via setting the clusterSpecific flag. pod is set to the name of the pod that is not running, but should be. config-engine is set to the name of the ConfigEngine pod that raised the alarm.

Table 10. Deployment Down
Property	Description
Name	DeploymentDown-<cluster>-<deployment>
Severity	Critical
Description	Deployment "<deployment>" is down, with no pods in the "Running" state. Any functionality provided by the Deployment is not available. This alarm can be raised transiently at system startup.
Probable cause	Kubernetes infrastructure issues, worker node failure, initial instantiation.
Remedial action	Validate reachability to the registry used to pull images for failed pods in the Deployment, ensure no worker node, storage, or networking issues exist that would cause the Kubernetes controller to mark pods in any state other than "Running".
cluster is the name of the cluster member that this alarm was raised in, populated via setting the clusterSpecific flag. pod is set to the name of the pod that is not running, but should be. config-engine is set to the name of the ConfigEngine pod that raised the alarm.

Table 11. NPP Down
Property	Description
Name	NPPDown-<cluster>-<npp>
Severity	Critical
Description	Connectivity between ConfigEngine "<config-engine>" and the NPP "<npp>" is down. This results in no new transactions succeeding to targets served by this NPP (unless operating in null mode), and no telemetry updates being received. Effectively targets served by this NPP are offline. Look for a corresponding PodNotRunning alarm.
Probable cause	Connectivity issues between worker nodes in the Kubernetes cluster, Kubernetes CNI misconfiguration, pod failure, or TLS misconfiguration/expiration.
Remedial action	Restore connectivity between the corresponding ConfigEngine and the destination NPP. Ensure credentials and proxy configuration is correct (typically using no proxy for inter-cluster HTTPS), and certificate validity.
cluster is the name of the cluster member that this alarm was raised in, populated via setting the clusterSpecific flag. npp is set to the name of the destination NPP. config-engine is set to the `Pod` name of the ConfigEngine that raised the alarm.

Table 12. Pool Threshold Exceeded
Property	Description
Name	PoolThresholdExceeded-<pool-type>-<pool-name>-<pool-instance>
Severity	Varies; see definitions
Description	The "<pool-instance>" instance of the <pool-type> "<pool-name>" has crossed the <severity> threshold of <threshold>.
Probable cause	Pool utilization.
Remedial action	Expand the pool via growing a segment or add additional segments. Additionally, you may move pool consumers to a different pool.
pool-type is the pool type, one of Subnet, IPInSubnet, Index, IP. pool-name is the name of the allocation pool, for example ipv4-pool. pool-instance is the name of the instance of the pool, for example global. severity is the severity of the alarm, which increases based on which threshold has been breached. threshold is the value of the threshold that has been breached, for example 80. config-engine is the pod name of the ConfigEngine raising the alarm.

Table 13. State Engine Reachability Down
Property	Description
Name	StateEngineReachabilityDown-<state-engine>-<state-controller>
Severity	Critical
Description	Connectivity between State Controller "<state-controller>" and the State Engine "<state-engine>" is down. This results in no new state application instances being deployed to the corresponding State Engine, and the rebalancing of already-pinned instances to other State Engines. This connectivity is also used to distribute the map of shards to State Engine, meaning the corresponding State Engine is not receiving shard updates (assuming it is still running).
Probable cause	Connectivity issues between worker nodes in the Kubernetes cluster, Kubernetes CNI misconfiguration, pod failure, or TLS misconfiguration/expiration.
Remedial action	Restore connectivity between the corresponding State Controller and the destination State Engine. Ensure credentials and proxy configuration are correct (typically using no proxy for inter-cluster HTTPS), and certificate validity.
state-engine is the name of the State Engine with connectivity issues, for example eda-se-1. state-controller is the name of the State Controller pod that raised the alarm, for example eda-sc-1.

Viewing alarms

Follow this procedure to view the set of alarms known to EDA.

Note: By default, the alarm list:

is sorted first by "Severity", and then by the "last changed" timestamp in descending order (most recent change first)
hides any suppressed alarms

In the EDA main menu, select Alarms to open the Alarms page.
To include suppressed alarms (which are hidden by default), do the following:
1. Click the More icon at the upper right of the Alarms page.
2. Select Show All Alarms from the displayed list.
To exclude suppressed alarms from the list, do the following:
1. Click the More icon at the upper right of the Alarms page.
2. Select Hide suppressed alarms from the displayed list.

Acknowledging an alarm

When you acknowledge an alarm, you can:

Acknowledge the alarm permanently
Acknowledge the alarm temporarily, after which the alarm returns to its unacknowledged state.

When you acknowledge an alarm temporarily, you can choose from a list of predefined periods, or select a specific time and date for the acknowledgement to expire.

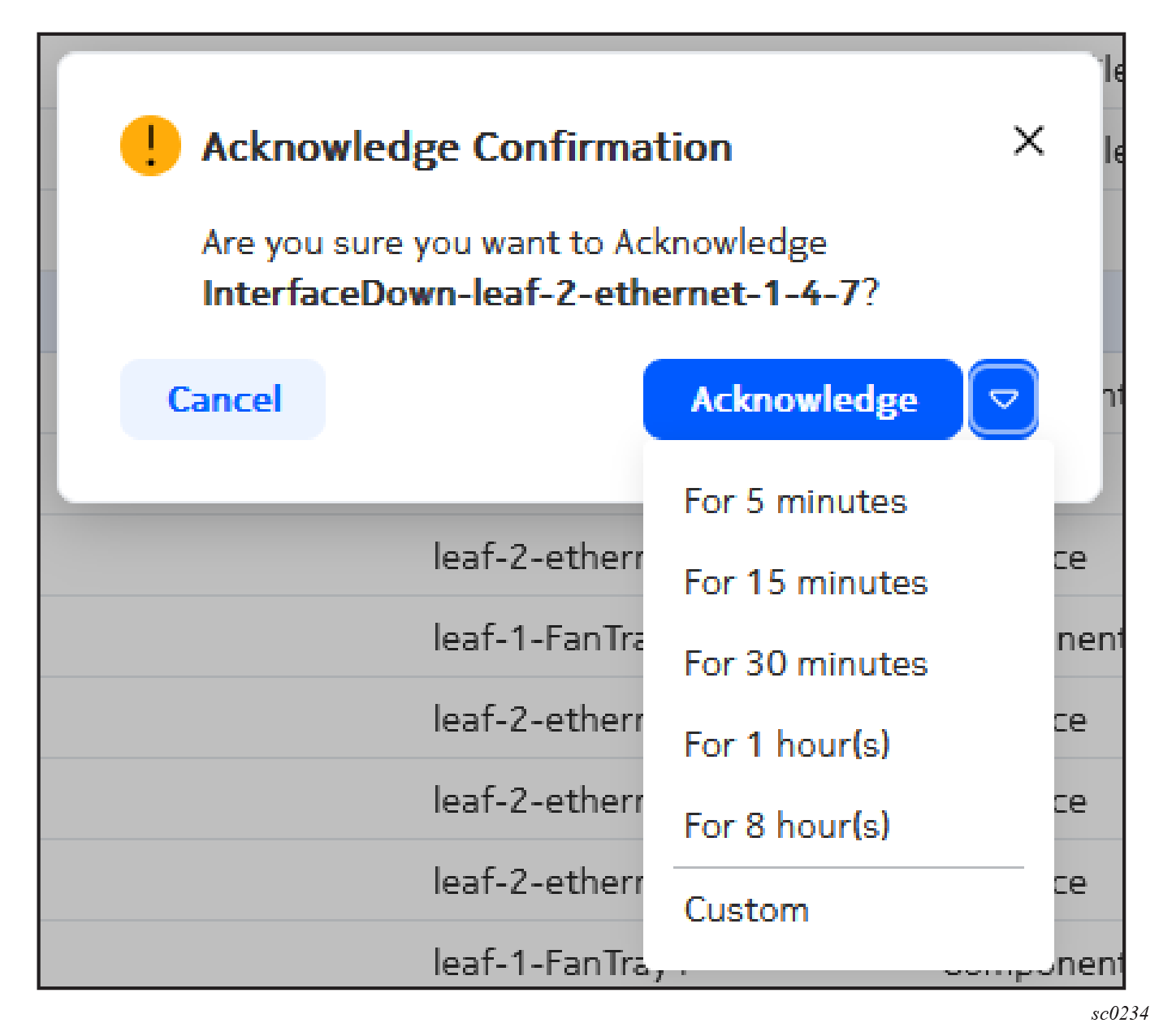

Figure 4. Temporarily acknowledging an alarm

In the EDA main menu, select Alarms to open the Alarms page.
Find the alarm in the list using the sorting and filtering controls.
At the right side of the row, click the Table row actions button.
Select Acknowledge from the list.
Optionally, you can choose to acknowledge the alarm only temporarily by doing either of the following:
- Click the drop-down control and select one of the standard periods displayed.
- Click the drop-down control, then click Custom, and in the resulting window select a date and time for the acknowledgement to expire.
Click Acknowledge to complete the acknowledgement of the alarm.

Acknowledge multiple alarms

Just as with single alarms, when you acknowledge multiple alarms, you can:

Acknowledge the alarms permanently
Acknowledge the alarms temporarily, after which all of the selected alarms return to their unacknowledged state.

When you acknowledge alarms temporarily, you can choose from a list of predefined periods, or select a specific time and date for the acknowledgement to expire.

In the EDA main menu, select Alarms to open the Alarms page.
Use the sorting and filtering controls to display the necessary set of alarms in the list.
Select all of the alarms you want to acknowledge by checking the box at the left edge of the list. Click the check box again to unselect any alarm.

Note: To select all alarms in the list, check the check box in the title row. Click the check box again to unselect all alarms in the list.

Note: The number of alarms you have selected, as well as the total number of alarms, is indicated at the lower right of the Alarms page.
At the upper right of the Alarms page, click the Table settings & actions button.
Select Acknowledge from the list.
Optionally, you can choose to acknowledge the alarm only temporarily by doing either of the following:
- Click the drop-down control and select one of the standard periods displayed.
- Click the drop-down control, then click Custom, and in the resulting window select a date and time for the acknowledgement to expire.
Click Acknowledge to complete the acknowledgement of the selected alarms.

Deleting a single alarm

An alarm cannot be deleted unless it has first been cleared.

In the EDA main menu, select Alarms to open the Alarms page.
Find the alarm in the list using the sorting and filtering controls.
At the right side of the row, click the Table row actions button.
Select Delete from the list.

Note: The Delete option is not displayed for an alarm that has not been cleared.
Click Confirm to complete the acknowledgement.

Deleting multiple alarms

An alarm cannot be deleted unless it has first been cleared.

In the EDA main menu, select Alarms to open the Alarms page.
Use the sorting and filtering controls to display the necessary set of alarms in the list.
Select all of the alarms you want to delete by checking the box at the left edge of the list. Click the check box again to unselect any alarm.

Note: To select all alarms in the list, check the check box in the title row. Click the check box again to unselect all alarms in the list.

Note: The number of alarms you have selected, as well as the total number of alarms, is indicated at the lower right of the Alarms page.
At the upper right of the Alarms page, click the Table settings & actions button.
Select Delete from the list.
Click Confirm to complete the acknowledgement for all alarms.

Note: If some of the alarms you selected were not eligible for deletion, only those that were eligible are deleted by this operation. Ineligible alarms are not deleted. No error message displays in this case.

Suppress a single alarm

When you suppress an alarm, you can:

Suppress the alarm permanently
Suppress the alarm temporarily, after which the alarm returns to its unsuppressed state.

When you suppress an alarm temporarily, you can choose from a list of predefined periods, or select a specific time and date for the suppression to expire.

Figure 5. Temporarily acknowledging an alarm

In the EDA main menu, select Alarms to open the Alarms page.
Find the alarm in the list using the sorting and filtering controls.
At the right side of the row, click the Table row actions button.
Select Suppress from the list.
Optionally, you can choose to suppress the alarm only temporarily by doing either of the following:
- Click the drop-down control and select one of the standard periods displayed.
- Click the drop-down control, then click Custom, and in the resulting window select a date and time for the suppression to expire.
Click Confirm to complete the alarm suppression.

Note: By default, suppressed alarms are not displayed in the alarms list. Unless you have selected to show all alarms, suppressing an alarm causes it to vanish from the alarms list.

Suppressing multiple alarms

Just as with single alarms, when you suppress multiple alarms, you can:

Suppress the alarms permanently
Suppress the alarms temporarily, after which all of the selected alarms return to their unsuppressed state.

When you suppress alarms temporarily, you can choose from a list of predefined periods, or select a specific time and date for the acknowledgement to expire.

In the EDA main menu, select Alarms to open the Alarms page.
Use the sorting and filtering controls to display the necessary set of alarms in the list.
Select all of the alarms you want to delete by checking the box at the left edge of the list. Click the check box again to unselect any alarm.

Note: To select all alarms in the list, check the check box in the title row. Click the check box again to unselect all alarms in the list.

Note: The number of alarms you have selected, as well as the total number of alarms, is indicated at the lower right of the Alarms page.
At the upper right of the Alarms page, click the Table settings & actions button.
Select Suppress from the list.
Optionally, you can choose to suppress the alarm only temporarily by doing either of the following:
- Click the drop-down control and select one of the standard periods displayed.
- Click the drop-down control, then click Custom, and in the resulting window select a date and time for the suppression to expire.
Click Confirm to complete the suppression for all alarms.

Note: By default, suppressed alarms are not displayed in the alarms list. Unless you have selected to show all alarms, suppressing alarms causes them to vanish from the alarms list.

Viewing alarm details

You can switch between the Alarm Details page and the Alarm History pages by selecting Details or History from the drop-down list at the upper right of the page.

The bread crumb path allows you to navigate from the Alarms Summary page to the Alarms Details or History page.

Figure 6. Bread crumb path and drop-down menu

In the EDA main menu, select Alarms to open the Alarms page.
Find the alarm in the list using the sorting and filtering controls.
Double-click the alarm.
EDA opens the Alarm Details page, which shows the Alarm Summary information including the following grouped fields:
- Alarm Summary – includes Name, Namespace, Type, Severity, Cleared, Resource, Description, Kind, Group, Occurrences, Acknowledged, and Last Changed fields
- Remediation – includes Parent Alarms, Probable Cause, and Remedial Action fields
- Additional Properties – includes Acknowledged Until, Last Acknowledged, Suppressed, Suppressed Until, Last Suppressed, Source Resource, Source Kind, Source Group, and JS Path fields
Fields that are empty or not applicable are hidden.

Viewing alarm history

You can switch between the Alarm History and the Alarm Details pages by selecting Details or History from the drop-down list at the upper right of the page.

The bread crumb path allows you to navigate from the Alarms Summary page to the Alarms Details or History page.

Figure 7. Bread crumb path and drop-down list

In the EDA main menu, select Alarms to open the Alarms page.
Find the alarm in the list using the sorting and filtering controls.
At the right side of the row, click the Table row actions button.
Select History from the list.
EDA opens the Alarm History window, which shows all events pertaining to the selected alarm including the following details:
- Cleared (true/false)
- Last change date and time
- Probable cause
- Remedial action
You can use the standard sorting and filtering controls to manage the list.
