Raw Formatting of DHCPv4/v6 Options in ESM
This chapter provides information about raw formatting of DHCPv4/v6 options in ESM.
Topics in this chapter include:
Applicability
This example is applicable to DHCPv4/v6 subscriber-hosts using the routed central office ESM model.
A local DHCPv4/v6 server is used for address/prefix assignment, which implies a DHCP relay scenario (as opposed to a DHCP proxy scenario where the IP address/prefix is assigned via a RADIUS server or an LUDB).
The information and configuration in this chapter is based on a single homed environment using SR OS Release 12.0.R4.
Overview
An SR OS node supports IP address assignment to its DHCP clients via two IP address assignment authorities:
DHCP server — In this model the SR OS node behaves as a DHCP relay between the DHCP client and the DHCP server.
RADIUS/LUDB — In this model the IP address/prefix is assigned via a RADIUS server or an LUDB and the SR OS node internal or external behaves as a proxy between the DHCP client and the non-DHCP aware RADIUS/LUDB.
Note: The term proxy can also refer to the functionality where the DHCP server is used for address assignment. In this case, the SR OS node would hide the DHCP server from the client and pretend to be the DHCP server to the client, passing the DHCP parameters between the client and the server (lease times, etc).
Within these two fundamental address assignment models, there are several mechanisms available on the SR OS node by which DHCP parameters (DHCP options and various parameters within the options) can be passed to the DHCP client during the address assignment phase.
For example, in the RADIUS/LUDB address assignment model, the DHCP parameters can be supplied via RADIUS, LUDB and Python, while in the DHCP server model, the DHCP parameters can also be also supplied via the DHCP server itself (in addition to RADIUS, LUDB and Python).
Some of the more commonly used DHCP parameters have their own RADIUS and CLI constructs. For example, a default router has its own RADIUS attributes:
Alc-Default-Router (26-6527-18)
or even its own CLI keyword:
config>router>dhcp>server>pool>subnet>options# default-router
config>service>router>dhcp>server>pool>subnet>options# default-router
config>subscr-mgmt>ludb>ipoe>host>options# default-router
Other less common DHCP options can be defined and inserted by the DHCP relay agent using the pre-formatted (IP address, domain, or string) or the non-formatted (hex) custom-option CLI command:
config>router>dhcp>server>pool>options# custom-option
config>router>dhcp>server>pool>subnet>options# custom-option
config>router>dhcp6>server>pool>options# custom-option
config>router>dhcp6>server>pool>prefix>options# custom-option
config>service>vprn>dhcp>server>pool>options# custom-option
config>service>vprn>dhcp>server>pool>subnet>options# custom-option
config>service>vprn>dhcp6>server>pool>options# custom-option
config>service>vprn>dhcp6>server>pool>prefix>options# custom-option
config>subscriber-mgmt>ludb>ipoe>host>options# custom-option
The most flexible way of configuring DHCP parameters is by means of ‛raw’ (or hexadecimal) formatting. Any DHCP option can be hexadecimally (raw) formatted via the following RADIUS attributes:
Alc-ToClient-Dhcp-Options
Alc-ToClient-Dhcp6-Options
and/or via the custom-options CLI commands as outlined above. These options are then passed on to the DHCP client via the DHCP relay agent in the SR OS node.
In addition to raw formatting via RADIUS or CLI, Python scripting can be used to intercept DHCP messages and modify their content.
The focus of this example is to demonstrate how the raw DHCP options are formatted via RADIUS. The messages can be optionally pre/post-processed by a Python script in the SR OS node before they are passed on to the DHCP client.
In this example, the following DHCP parameters are passed to the DHCP client using the Alc-ToClient-Dhcp-Options and the Alc-ToClient-Dhcp6-Options RADIUS attributes:
RADIUS |
|
---|---|
DHCPv4 ToClient-Dhcp-Options |
DHCPv6 ToClient-Dhcp6-Options |
(default-)router [3] = 10.10.10.254 |
DNS server [23] = 2001:db8:1:1:1:1:1:1 2001:db8:1:1:1:1:1:2 |
DNS server [6] = 172.22.250.250 172.22.250/251 |
Domain search list [24] = ‛Nokia.com’ ‛test.com’ |
Domain name [15] = ‛alcatel.com’ |
Vendor specific-option [17] = ‛custom-test-option’ |
Custom option [230] = ‛custom test option’ |
|
Renew time [58] = 5 min (300sec) |
|
Rebind time [59] = 6min 40sec (400sec) |
The DHCP parameters in the following DHCP messages are altered by a Python script:
Python |
|
---|---|
DHCPv4 (DHCP Request) |
DHCPv6 (LDRA DHCP Request) |
Lease-time [51] = 8min 20sec (500sec) |
IA-NA Preferred-Lifetime = 66min 40sec (4000sec) |
IA-NA Valid-Lifetime = 66min 40sec (4000sec) |
|
IA-NA Renew-Time (T1) = 33min 20sec (2000sec) |
|
IA-NA Rebind-Time (T2) = 50min (3000sec) |
|
IA-PD Preferred-Lifetime = 66min 40sec (4000sec) |
|
IA-PD Valid-Lifetime = 66min 40sec (4000sec) |
|
IA-PD Renew-Time (T1) = 33min 20sec (2000sec) |
|
IA-PD Rebind-Time (T2) = 50min (3000sec) |
The following DHCP parameters are configured via CLI in the SR OS node DHCPv4/v6 server:
CLI DHCP Server Pool/prefix Options |
|
---|---|
DHCPv4 |
DHCPv6 |
DNS server [6] = 172.22.250.253 |
DNS server [23] = 2001:db8:1:1:1:1:1:3 |
Custom option [231] = ‛dhcp injected custom option 231’ |
Custom option [232]= ‛v6 custom option 232’ |
IA-NA Preferred-Lifetime = 20min (1200sec) |
|
IA-NA Valid-Lifetime = 20min (1200sec) |
|
IA-NA Renew-Time (T1) = 10 min (600 sec) |
|
IA-NA Rebind-Time (T2) = 15min (900 sec) |
|
IA-PD Preferred-Lifetime = 20min (1200sec) |
|
IA-PD Valid-Lifetime = 20min (1200sec) |
|
IA-PD Renew-Time (T1) = 10min (600 sec) |
The RADIUS injected raw options are prepended by the DHCP relay agent in the SR OS node to any existing DHCP options already present in the DHCP message before being sent to the client. The existing options could be generated by the DHCP server (internal or external) or by the LUDB. No check is performed on the outgoing DHCP message towards the client in order to verify whether any of the RADIUS inserted options are already present in the DHCP message. This could potentially lead to duplication of DHCP options in the outgoing DHCP messages in case that the same option is inserted via the DHCP server and via RADIUS. To prove the point, this example supplies the same DHCP option (with different values) via multiple sources (RADIUS and CLI).

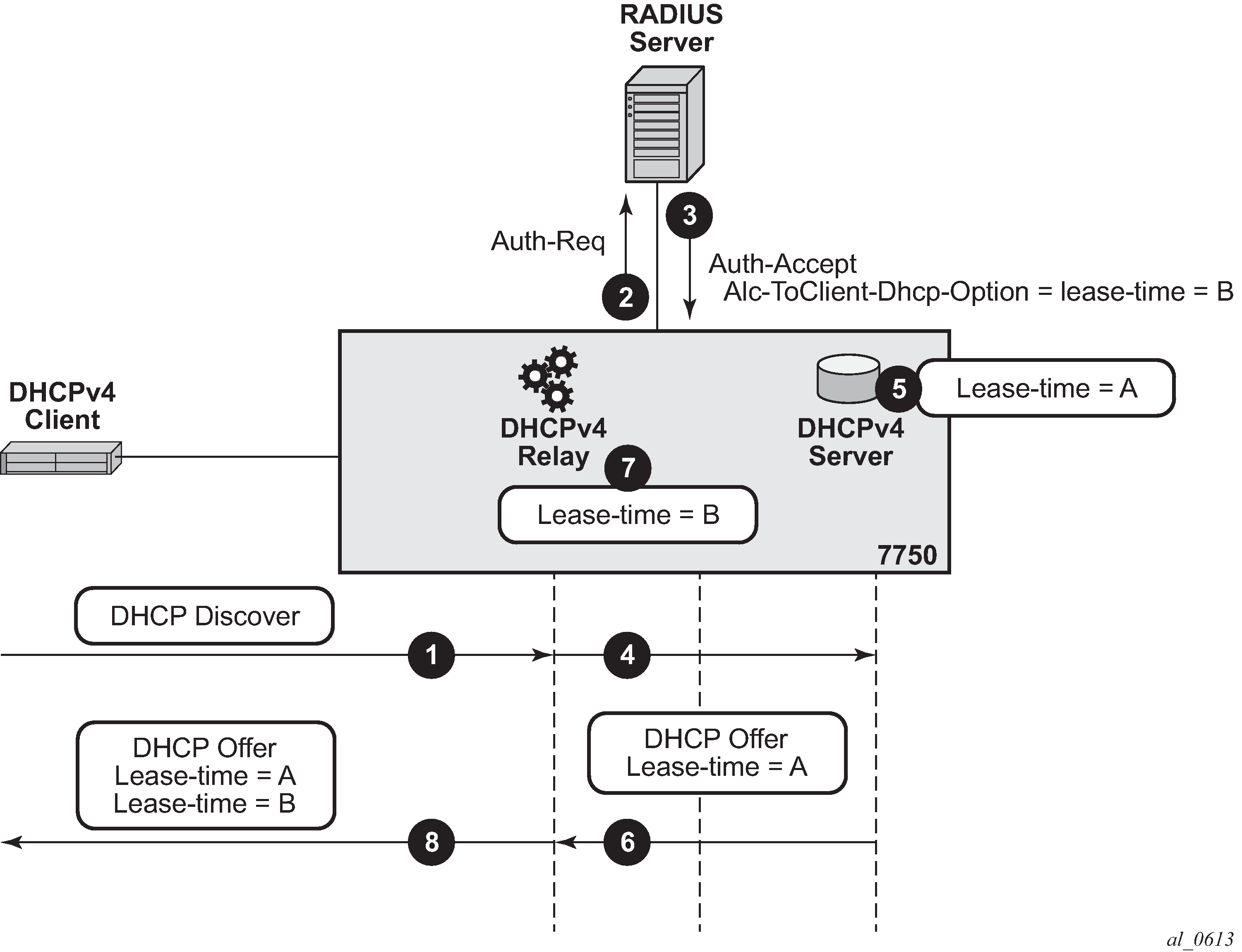

Configuration of DHCP lease related times requires closer examination. In DHCPv4, the DHCP lease-time option (51) is always supplied by the DHCPv4 server (this cannot be disabled). In case the lease-time is also supplied via RADIUS in an Alc-ToClient-Dhcp-Options VSA, the client would receive two lease-times for the same IP address. This can lead to unpredictable behavior not only on the client side but also on the SR OS node DHCPv4 server side since the DHCPv4 server (and the SR OS node DHCPv4 relay agent) creates the lease state only for the lease-time supplied by the DHCP server, and ignores the one supplied via RADIUS or LUDB. This scenario is shown in DHCPv4 Lease-Time Inserted by RADIUS and DHCPv4 Server:
DHCP Discover arrives.
Radius authentication is triggered.
RADIUS returns lease-time value ‛B’ (Alc-ToClient-DHCP-Option) in Authentication-Accept message.
DHCP Discover is forwarded by the DHCP relay agent to the DHCP server.
DHCP server offers an IP lease with the configured lease-time of ‛A’.
The DHCP offer is sent to the DHCP relay agent.
The DHCP relay agent appends the lease-time ‛B’ supplied by RADIUS to the DHCP message.
The DHCP relay forwards the message to the DHCP client with both lease-times ‛A’ and ‛B’.
Note that the example in DHCPv4 Lease-Time Inserted by RADIUS and DHCPv4 Server does not represent a typical deployment case. This example is solely chosen to clarify the behavior in SR OS nodes.
To ensure DHCPv4 lease time unambiguity, the lease-time should be supplied by a single source, in this case by the DHCPv4 server.

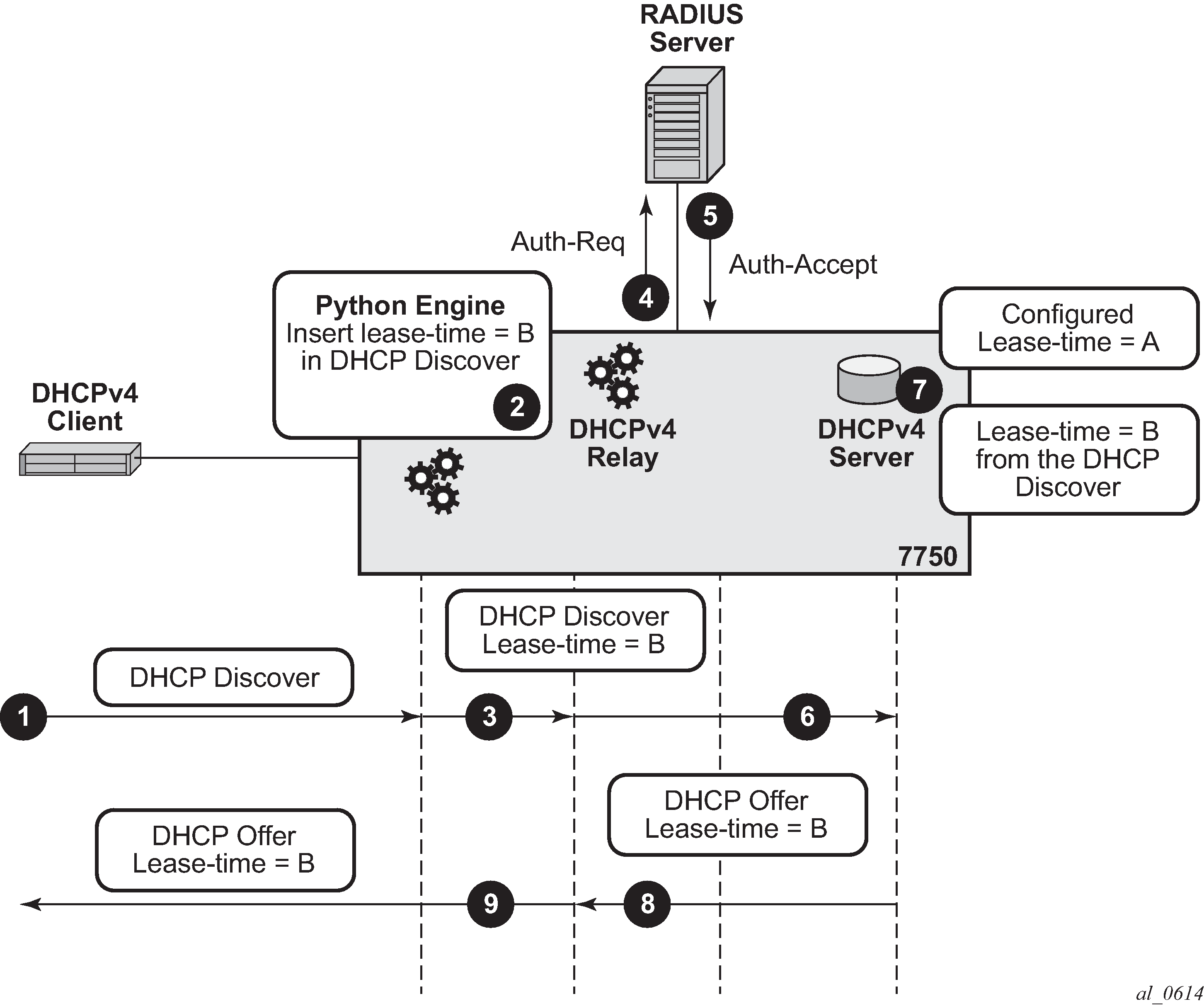

Since this eliminates RADIUS as a source of the DHCPv4 lease-time, an alternate method operating on the raw level is used to influence the automatic selection of the lease-time in the DHCPv4 server. This alternate method relies on the fact that the DHCPv4 server accepts hints received from the client as to what the desired lease-time should be. In other words, if the client sends the option 51 (lease-time) with a specific value, the SR OS node DHCPv4 server will honor this hint, as long as this value is within the configured range of values specified in the DHCP server. To demonstrate this behavior, a Python script is invoked upon receipt of a DHCPv4 Request message during the IP address assignment process (DORA – Discover-Offer-Request-Ack). The Python script inserts a new option 51 with the desired value for the lease-time. The DHCPv4 server honors this hint from the client and it returns the requested lease-time back to the client. This scenario is shown in Python Injected Hint for Lease-Time:.
DHCP Discover arrives.
DHCP Discover is intercepted by the Python processing engine and the lease-time ‛B’ is inserted in DHCP Discover message. This is then used as a hint to the DHCP server.
DHCP Discover message is sent to the DHCP relay agent.
RADIUS authentication is triggered.
User is authenticated. This time lease-time is not returned via RADIUS.
DHCP Discover is forwarded to the DHCP server.
The DHCP server honors the hint from the DHCP Discover and offers lease-time ‛B’, even though the server is configured with lease-time ‛A’.
The DHCP server replies with a DHCP Offer message.
DHCP Offer is forwarded by the DHCP relay agent to the client.
By default the local DHCP server does not inject Renew (T1) and Rebind (T2) times so these two timers can still be supplied via RADIUS without duplication by the local DHCP server.
When it comes to lease-time related parameters, the behavior of the DHCPv6 server is different from the behavior of the DHCPv4 server.
DHCPv6 lease related timers are not DHCP options. Instead, they are parameters within the IPv6 addressing option. An IPv6 address or prefix is assigned to the client via the IA-NA or IA-PD option, which contains additional parameters (which are not considered options) such as the IP address/prefix and the lease related timers. Format of the IA-NA Option shows the IA-NA option that carries the T1/T2 parameters.
The format of the IA address option is shown in Format of the IA Address Option. This option carries preferred and valid lifetimes.
In this example, the IPv6 address/prefix is provided by the local DHCPv6 server and as such, RADIUS cannot modify the parameters within the DHCPv6 options supplied by the DHCP server. Therefore, the desired IPv6 lease timers (preferred-life time, valid-lifetime, renew-time[T1], rebind-time[T2]) are part of the IPv6 pool configuration in the DHCPv6 server.
Alternatively Python can be used to intercept the outgoing DHCPv6 message and then change the timers within the IA-NA and IA-PD options. Although this would configure the lease timers for the client, the action of modifying the outgoing DHCP6 message occurs after the DHCPv6 server processing. This would result in different lease times in the client and the DHCPv6 server, without any intermediary between them (such as a DHCPv6 Proxy) to deal with the differences.
For consistency purposes with the DHCPv4 example, a Python script processes the incoming DHCPv6 message (DHCPv6 Request) altering the lease timers (preferred/valid/renew/rebind) as a hint to the DHCPv6 server to request those values. However, the SR OS node DHCPv6 server does not honor those hints and uses its own values (default or configured) instead.
Configuration
The topology is shown in Topology.
Access Ethernet Port with QinQ Encapsulation
configure port 1/1/5
ethernet
mode access
encap-type qinq
exit
no shutdown
Capture SAP
A capture SAP is used to dynamically detect VLAN ID(s) in incoming DHCP (trigger) packets. This example uses RADIUS authentication along with Python scripting for DHCP message processing and therefore the authentication and Python policies must be configured under the capture SAP.
configure service vpls 10
sap 1/1/5:1.* capture-sap create
description "circuit-id authentication"
trigger-packet dhcp dhcp6
dhcp-python-policy "acg"
dhcp6-python-policy "acg"
authentication-policy "rad"
MSAP-Policy Configuration
The MSAP-policy defines the anti-spoofing mode which is set to next-hop MAC (nh-mac) in this example. It also defines the default subscriber management parameters in case that they are not supplied via LUDB or RADIUS.
MSAP-policy configuration is mandatory when a capture-SAP is deployed. In this example, the MSAP-policy name is supplied via RADIUS:
Alc-MSAP-Policy = "msaps"
configure subscriber-mgmt msap-policy ‟msaps”
sub-sla-mgmt
sub-ident-policy ‟sub_ident_pol”
multi-sub-sap limit 500
exit
ies-vprn-only-sap-parameters
anti-spoof nh-mac
exit
Subscriber-Interface and Group-Interface Configuration
In this example the subscriber-interface is a ‛numbered interface’ in which the interface IPv4 address and the interface IPv6 prefixes are explicitly configured. The IPv4 address is used as the default-gateway by the IPoE attached clients. The IPv4 subnet to which this address belongs and the configured IPv6 prefixes are used for routing aggregation and are treated as local subnets/prefixes in the SR OS node routing table.
The managed (dynamic) SAPs are created under the group-interface which contains the reference to the authentication-policy name, the Python script, the v4/6 policy names and the DHCPv4/v6 relay related configuration settings (for example, a reference to DHCP servers). Both the authentication-policy name and the Python policy name referenced under the group-interface must match those configured under the capture-SAP.
configure service vprn 1
subscriber-interface "int1-1" create
address 10.10.10.254/24 # Numbered IPv4 subscriber interface.
ipv6
delegated-prefix-len 54
subscriber-prefixes
prefix 2001:db8:3::/48 pd # Numbered IPv6 subscriber interface.
prefix 2001:db8:4::/48 wan-host # Numbered IPv6 subscriber interface.
exit
exit
group-interface "g1-1" create
ipv6
router-advertisements
no shutdown
exit
dhcp6
python-policy "acg" # Python script for DHCPv6 messages.
relay
server 2001:db8::1001 # IPv6 address of the DHCPv6 server.
client-applications dhcp
no shutdown
exit
exit
exit
dhcp
python-policy "acg” # Python script for DHCPv4 messages.
option
action keep # Keep option82 in the received DHCP packet.
vendor-specific-option
pool-name # Pool-name obtained via RADIUS (or LUDB) will be passed
# via DHCP relay to the local DHCP server. This name
# will be used for pool selection in DHCPv4 server.
exit
exit
server 192.168.100.1 # IPv4 address of the DHCPv4 server.
lease-populate 100 # Maximum number of DHCPv4 lease under each
# SAP of the group-interface.
client-applications dhcp
no shutdown
exit
authentication-policy "rad" # RADIUS authentication policy.
exit
exit
Loopback (DHCP) Interface Configuration
The loopback interface is used for the DHCPv4/v6 server binding. It is configured with the IPv4/IPv6 addresses which are referenced from the DHCP relay configuration under the group-interface.
configure service vprn 1
interface "loopback1-1" create
address 192.168.100.1/32 # IPv4 address of the DHCPv4 server.
ipv6
address 2001:db8::1001/128 # IPv6 address of the DHCPv6 server.
local-dhcp-server "v6" # Binding of the DHCPv6 server
# to this interface.
exit
local-dhcp-server "v4" # Binding of the DHCPv4 server
# to this interface.
loopback
exit
DHCPv4/6 Server Configuration
The local DHCP server configuration contains the pool selection method, pool information and DHCP options which are passed to the DHCP client at IP address/prefix assignment time.
configure service vprn 1
dhcp
local-dhcp-server "v4"
use-pool-from-client # Pool-name received in the DHCP messages
# sent by the DHCP relay. The pool-name
# is used in pool selection.
pool "non-shared-left"
options
dns-server 172.22.250.253 # DHCPv4 option passed on to the client.
custom-option 231 string "dhcp server injected custom option 231"
exit # DHCPv4 option passed on to the client.
subnet 10.10.10.0/24 create
address-range 10.10.10.5 10.10.10.100 # IPv4 address range available
# for address allocation.
exit
exit
exit
exit
dhcp6
local-dhcp-server "v6"
use-pool-from-client
pool "pd-left" create
options
dns-server 2001:db8:1:1:1:1:1:3
custom-option 232 string "v6 custom option 232"
exit
prefix 2001:db8:4::/48 pd # IPv6 prefix range available for delegated
# prefix allocation by this DHCPv6 server.
preferred-lifetime min 20 # Preferred lifetime of the allocated
# delegated prefix.
rebind-timer min 15 # Rebind (T2) time of the allocated
# delegated prefix.
renew-timer min 10 # Renew (T1) time of the allocated
# delegated prefix.
valid-lifetime min 20 # Valid lifetime of the allocated
# delegated prefix.
exit
exit
pool "wan-left" create
options
dns-server 2001:db8:1:1:1:1:1:3
custom-option 232 string "v6 custom option 232"
exit
prefix 2001:db8:3::/56 wan-host
preferred-lifetime min 20 # Preferred lifetime of the
# allocated IPv6 address.
rebind-timer min 15 # Rebind (T2) time of the
# allocated IPv6 address.
renew-timer min 10 # Renew (T1) time of the
# allocated IPv6 address.
valid-lifetime min 20 # Valid lifetime of the
# allocated IPv6 address.
exit
exit
no shutdown
exit
exit
RADIUS Authentication-Policy Configuration
The RADIUS authentication-policy is referenced under the capture-sap and under the group-interface configuration.
authentication-policy "rad" create
password "ALU" hash2
radius-authentication-server
router "Base"
server 1 address 192.168.114.1 secret "ALU" hash2
exit
user-name-format circuit-id
include-radius-attribute
circuit-id
remote-id
nas-port-id
nas-identifier
exit
exit
Subscriber-Identification Policy
The subscriber-identification policy in this example defines a mapping method between the subscriber strings and the predefined subscriber profiles (sub and sla) locally configured on the SR OS node. In our example the subscriber strings (sub and sla) are provided via RADIUS and are directly mapped to the preconfigured sub-profiles and sla-profiles with the matching names.
The subscriber-identification policy can be configured with default subscriber profiles in case the strings are not explicitly obtained via other means (RADIUS, LUSB, Python or statically provisioned). Subscriber-identification policy configuration is mandatory.
sub-ident-policy "sub_ident_pol" create
sub-profile-map
use-direct-map-as-default
exit
sla-profile-map
use-direct-map-as-default
exit
Sla-Profile and Sub-Profile Configuration
The following is the configuration of the sub-profile and the sla-profile which are used to setup the subscriber-host. The sla and sub profiles are mandatory when creating subscriber-hosts in SR OS node.
sla-profile "sla-profile-1" create
ingress
qos 2
exit
exit
egress
qos 2
exit
exit
exit
sub-profile "sub-profile-1" create
exit
Python-Policy Configuration
The python-policy defined below is applied under the capture-sap and under the group-interface. It references the python-script command which defines the location of the script. A python-policy specifies the DHCP messages along with the direction to which the script processing applies.
The DHCPv4 script in this example is applied to incoming DHCPv4 Request messages. The python script inserts the lease-time option in the DHCPv4 Request message as a hint to the DHCPv4 server.
Similar logic is applied to the incoming Lightweight DHCPv6 Relay Agent
(LDRA) DHCPv6 messages where IA-NA and IA-PD related lease times are altered. Note that in the DHCPv6 case the local DHCPv6 server does not honor the hint and therefore the lease related times are explicitly configured in the DHCPv6 server.
python-script "acg" create
action-on-fail passthrough #In case of python script failure, do not drop the message but instead continue with message processing in 7750.
primary-url "ftp://a.b.c.d/pub/configs/alu/SIMS/acg.py"
no shutdown
exit
python-script "acg6" create
action-on-fail passthrough
primary-url "ftp://a.b.c.d/pub/configs/alu/SIMS/acg6.py"
no shutdown
exit
python-policy "acg" create #Python policy that is applied under the capture-sap and
under the group-interface.
dhcp request direction ingress script "acg"
dhcp6 relay-forward direction ingress script "acg6"
exit
Python Script Configuration
In this example the Python script is located in an external location and downloaded to the SR OS node once the python-script CLI node is enabled (no shutdown).
The DHCPv4 Python script has exception code included (try/except statements). This makes script debugging easier in case one of the commands in the script fails.
For simplicity reasons, the exception code is removed from the DHCPv6 Python script. Note that in real deployments it is recommended for the exception code to be included in all Python scripts.
DHCPv4 Python Script:
from alc import dhcpv4
try:
myopt = dhcpv4.getOptionList()
if myopt != []:
print "option-list ", repr(myopt)
print "\n"
except Exception:
print "Can't retrieve DHCP options"
#lease 500s 8min 20sec
try:
dhcpv4.set(51,('\x00\x00\x01\xf4', #Insert the lease-time (opt51) in the incoming
DHCPv4 request as a hint to the DHCPv4 server.
except Exception:
print "Can't set time lease"
DHCPv6 Python Script:
from alc import dhcpv6
import struct
packet = dhcpv6.get_relaymsg()# Extract the original DHCPv6 packet within LDRA.
msgType = ord(packet.msg_type) # Get the message type.
ia_na = packet.get_iana() # Store the IA-NA option for further processing later on.
ia_pd = packet.get_iapd() # Store the IA-PD option for further processing later on.
if msgType == 3: # If the message in the LDRA packet is DHCPv6 Request, insert the lease related times in address/prefic options.
ia_na[0][1] = '\x00\x00\x07\xd0'# Set the renew time (T1) in IA-NA to 2000sec.
ia_na[0][2] = '\x00\x00\x0b\xb8'# Set the rebind time (T2) in IA-NA to 3000sec.
ia_na[0][3][5][0][1] = '\x00\x00\x0f\xa0’ # Set the preferred time in IA-NA to
# 4000sec.
ia_na[0][3][5][0][2] = '\x00\x00\x0f\xa0'# Set the valid time in IA-NA to 4000sec.
packet.set_iana(ia_na) # Update the stored packet with the new values for IA-NA.
ia_pd[0][1] = '\x00\x00\x07\xd0'# Set the renew time (T1) in IA-PD to 2000sec.
ia_pd[0][2] = '\x00\x00\x0b\xb8'# Set the rebind time (T2) in IA-PD to 3000sec.
ia_pd[0][3][26][0][0] = '\x00\x00\x0f\xa0’ # Set the preferred time in IA-PD to
# 4000sec.
ia_pd[0][3][26][0][1] = '\x00\x00\x0f\xa0'# Set the valid time in IA-PD to 4000sec.
packet.set_iapd(ia_pd) # Update the stored packet with the new values for IA-PD.
dhcpv6.set_relaymsg(packet) # Insert the packet in the LDRA message.
RADIUS Access-Accept
Upon authentication, RADIUS returns the Access-Accept message with the following attributes:
Sending Access-Accept of id 66 to 192.168.114.2 port 64384
Alc-Subsc-Prof-Str = "sub-profile-1"
Alc-SLA-Prof-Str = "sla-profile-2"
Alc-MSAP-Interface = "g1-1"
Alc-MSAP-Policy = "msaps"
Alc-MSAP-Serv-Id = 1
Framed-Pool = "non-shared-left"
Framed-IPv6-Pool = "wan-left"
Alc-Delegated-IPv6-Pool = "pd-left"
Alc-ToClient-Dhcp-Options += 0x03040a0a0afe
Alc-ToClient-Dhcp-Options += 0x0608ac16fafaac16fafb
Alc-ToClient-Dhcp-Options += 0x0f0b616c636174656c2e636f6d
Alc-ToClient-Dhcp-Options += 0xe612637573746f6d2074657374206f7074696f6e
Alc-ToClient-Dhcp-Options += 0x3a040000012c
Alc-ToClient-Dhcp-Options += 0x3b0400000190
Alc-ToClient-Dhcp6-Options += 0x0011001a0000197f00e60012637573746f6d2074657374206f7074696f6e
Alc-ToClient-Dhcp6-Options += 0x0017002020010db800010001000100010001000120010db8000100010001000100010002
Alc-ToClient-Dhcp6-Options += 0x0018001e0e616c636174656c2d6c7563656e7403636f6d00047465737403636f6d
It is possible to concatenate multiple DHCP options in a single RADIUS Alc-ToClient-DHCP6-Option but for clarity each option is in a separate attribute in this example.
The following table contains the explanation of the DHCP options inserted via RADIUS:
Alc-ToClient-Dhcp-Options += 0x03040a0a0afe (default) router (3) = 10.10.10.254 |
Alc-ToClient-Dhcp-Options += 0x0608ac16fafaac16fafb dns (6) = 172.16.250.250 172.16.250.251 |
Alc-ToClient-Dhcp-Options += 0x0f0b616c636174656c2e636f6d domain-name (15) = alcatel.com |
Alc-ToClient-Dhcp-Options += 0xe612637573746f6d2074657374206f7074696f6e custom -option (230) = "custom test option" |
Alc-ToClient-Dhcp-Options += 0x3a040000012c renewal time T1 (58) = 300s (5min) |
Alc-ToClient-Dhcp-Options += 0x3b0400000190 rebind time T2 (59) = 400s (6min 40sec) |
Alc-ToClient-Dhcp6-Options += 0x0011001a0000197f00e60012637573746f6d2074657374206f7074696f6e v6 vendor option (17) [opt-id(2) len(2) entp-id(4) vopt-code(2) vlen(2) vdata] = 17 26 6527 230 18 "custom test option" |
Alc-ToClient-Dhcp6-Options += 0x0017002020010db800010001000100010001000120010db8000100010001000100010002 dns servers (23) [opt-id(2) len(2) servers-v6@] = 23 32 2001:0db8:0001:0001:0001:0001:0001:0001 2001:0db8:0001:0001:0001:0001:0001:0002 |
Alc-ToClient-Dhcp6-Options += 0x0018001e0e616c636174656c2d6c7563656e7403636f6d00047465737403636f6d0 domain list (24) = Nokia.com test.com [formatting as described in section 3.1 of RFC 1035 (as referenced by RFC 4704 and RFC 3315)]. |
Results and Verification
The results are verified via debug output and show commands on the SR OS node, and also via pcap (Wireshark® packet capture) files on the DHCP client side.
Debug output on the SR OS node is enabled for DHCPv4/6 messages and for the Python script.
The DHCP debug output shows the options sent to the client in the DHCPv4/6 Ack/Reply messages.
The following commands enables debugging information to be sent to the current telnet/ssh session:
*A:BNG1# configure log
*A:BNG1>config>log# info
----------------------------------------------
log-id 50 # Capturing and displaying debug output is configured via log.
from debug-trace # Capture debug output.
to session # Output the debug to the current tcp/ssh session.
exit
----------------------------------------------
The following commands enable DHCP related debugging:
*A:BNG1>config>log# show debug
debug
router "1"
ip
dhcp
detail-level high
mode egr-ingr-and-dropped
exit
dhcp6
mode egr-ingr-and-dropped
detail-level high
exit
exit
local-dhcp-server "v4"
detail-level high
mode egr-ingr-and-dropped
exit
local-dhcp-server "v6"
detail-level high
mode egr-ingr-and-dropped
exit
exit
DHCPv4 Results
The following output displays the DHCPv4 Request message as it was received by the SR OS node DHCP server.
This message has been modified by the Python script on ingress and the lease-time option [51] has been inserted as a hint to the DHCPv4 server.
Option [82] is partially added by the access-node (relay-agent —> circuit-id and remote-id) and partially by the internal SR OS node DHCP-relay (pool name).
32830 2014/07/24 03:02:46.44 WEST MINOR: DEBUG #2001 vprn1 DHCP server
"DHCP server: v4
Rx DHCP Request
ciaddr: 0.0.0.0 yiaddr: 0.0.0.0
siaddr: 0.0.0.0 giaddr: 10.10.10.254
chaddr: 00:00:65:01:03:01 xid: 0x159dd536
DHCP options:
[82] Relay agent information: len = 42
[1] Circuit-id: ds-left
[2] Remote-id: remote0
[9] Vendor-Specific info: len = 22
Enterprise [6527] : len = 17
[13] dhcpPool: non-shared-left
[53] Message type: Request
[54] DHCP server addr: 192.168.100.1
[50] Requested IP addr: 10.10.10.34
[51] Lease time: 500
[255] End
The next output captures the DHCPv4 ACK message (within the SR OS node) that is on its way to the client.
It can be observed that the DHCPv4 server inserted options are listed first:
Opt[82] is echoed back by SR OS node DHCPv4 server
Opt[53], [54], [51] and [1] are by default inserted by the local DHCPv4 server and they cannot be disabled. The value for the lease-time [51] is set by the Python script.
The next two options ([6] and [231]) are the options configured explicitly in the DHCPv4 server (CLI Inserted DHCP Options ).
The remaining options (with the exception of the end [255] option) are provided by RADIUS and they appear in the exact same order as they appear in the RADIUS Alc-ToClient-Dhcp-Options attributes ( RADIUS inserted raw options ).
There are two options [6] since they are inserted by both DHCP and RADIUS server.
Custom options [231] and [230] are decoded in RADIUS inserted raw options and CLI Inserted DHCP Options .
32834 2014/07/24 03:02:46.44 WEST MINOR: DEBUG #2001 vprn1 PIP
"PIP: DHCP
instance 2 (1), interface index 11 (g1-1),
transmitted DHCP Boot Reply to Interface g1-1 (1/1/5:1.3) Port 68
H/W Type: Ethernet(10Mb) H/W Address Length: 6
ciaddr: 0.0.0.0 yiaddr: 10.10.10.34
siaddr: 192.168.100.1 giaddr: 10.10.10.254
chaddr: 00:00:65:01:03:01 xid: 0x159dd536
DHCP options:
[82] Relay agent information: len = 18
[1] Circuit-id: ds-left
[2] Remote-id: remote0
[53] Message type: Ack
[54] DHCP server addr: 192.168.100.1
[51] Lease time: 500
[1] Subnet mask: 255.255.255.0
[6] Domain name server: 172.22.250.253
[231] Unknown option: len = 38, value = 64 68 63 70 20 73 65 72 76 65 72
20 69 6e 6a 65 63 74 65 64 20 63 75 73 74 6f 6d 20 6f 70 74 69 6f 6e 20 32
33 31
[3] Router: 10.10.10.254
[6] Domain name server: length = 8
172.22.250.250
172.22.250.251
[15] Domain name: alcatel.com
[230] Unknown option: len = 18, value = 63 75 73 74 6f 6d 20 74 65 73 74
20 6f 70 74 69 6f 6e
[58] Renew timeout: 300
[59] Rebind timeout: 400
[255] End
The Wireshark® output shown on the next page is captured at the client side (N2X Ixia) and it effectively mirrors what is shown in the debug output.
The show command for the DHCP-relay lease state only displays the well known options inserted by the DHCPv4 server. The custom option inserted by the DHCPv4 server and any of the RADIUS supplied options are not kept as part of the DHCP-relay lease state.
*A:BNG1# show service id 1 dhcp lease-state detail
===============================================================================
DHCP lease states for service 1
===============================================================================
Service ID : 1
IP Address : 10.10.10.34
Client HW Address : 00:00:65:01:03:01
Subscriber-interface : int1-1
Group-interface : g1-1
SAP : [1/1/5:1.3]
Up Time : 0d 00:10:46
Remaining Lease Time : 0d 00:07:35
Remaining SessionTime: N/A
Persistence Key : N/A
Sub-Ident : "ds-left"
Sub-Profile-String : "sub-profile-1"
SLA-Profile-String : "sla-profile-2"
App-Profile-String : ""
Lease ANCP-String : ""
Lease Int Dest Id : ""
Category-Map-Name : ""
Lease Info origin : DHCP
Ip-Netmask : 255.255.255.0
Broadcast-Ip-Addr : N/A
Default-Router : N/A
Primary-Dns : 172.22.250.253
Secondary-Dns : N/A
Primary-Nbns : N/A
Secondary-Nbns : N/A
ServerLeaseStart : 07/24/2014 03:02:46
ServerLastRenew : 07/24/2014 03:12:46
ServerLeaseEnd : 07/24/2014 03:21:06
Session-Timeout : N/A
Lease-Time : 0d 00:08:20
DHCP Server Addr : 192.168.100.1
Relay Agent Information
Circuit Id : ds-left
Remote Id : remote0
Radius User-Name : "ds-left"
-------------------------------------------------------------------------------
Number of lease states : 1
===============================================================================
DHCPv6 Results
The DHCPv6 server receives the DHCPv6 Request message with Python modified lease times (preferred, valid, renew and rebind) for IA-NA and IA-PD.
32877 2014/07/24 03:15:28.32 WEST MINOR: DEBUG #2001 vprn1 DHCP server
"DHCP server: v6
Rx DHCPv6 RELAY_FORW
Hop Count : 1
Link Addr : 2001:db8:4::
Peer Addr : fe80::200:65ff:fe01:301
Option : RELAY_MSG (9), Length : 184
Msg Type : RELAY_FORW (12)
Hop Count : 0
Link Addr : ::
Peer Addr : fe80::200:65ff:fe01:301
Option : INTERFACE_ID (18), Length : 7
Interface Id : 64732d6c656674 (ds-left)
Option : RELAY_MSG (9), Length : 135
Msg Type : REQUEST (3)
Trans Id : 0x060000
Option : ELAPSED_TIME (8), Length : 2
Time : 0 seconds
Option : CLIENTID (1), Length : 10
LL : HwTyp=0001,LL=000065010301
00030001000065010301
Option : SERVERID (2), Length : 10
LL : HwTyp=0001,LL=d896ff000000
00030001d896ff000000
Option : ORO (6), Length : 4
Requested Option : IA_NA (3)
Requested Option : IA_PD (25)
Option : IA_NA (3), Length : 40
IAID : 0
Time1: 2000 seconds
Time2: 3000 seconds
Option : IAADDR (5), Length : 24
Address : 2001:db8:3:1::1
Preferred Lifetime : 4000 seconds
Valid Lifetime : 4000 seconds
Option : IA_PD (25), Length : 41
IAID : 0
Time1: 2000 seconds
Time2: 3000 seconds
Option : IAPREFIX (26), Length : 25
Prefix : 2001:db8:4:400::/54
Preferred Lifetime : 4000 seconds
Valid Lifetime : 4000 seconds
Option : VENDOR_OPTS (17), Length : 37
Enterprise : 0000197f
Option : WAN_POOL (1), Length : 8
wan-left
Option : PFX_POOL (2), Length : 7
pd-left
Option : PFX_LEN (3), Length : 1
The hinted DHCPv6 lease-times are not honored by the SR OS node DHCPv6 server and instead the SR OS node DHCPv6 server default values are inserted in the outgoing DHCPv6 Reply message towards the client as shown in the output below.
The explicitly configured DHCPv6 options are inserted by the DHCPv6 server first (CLI Inserted DHCP Options ) followed by the RADIUS supplied options inserted by the DHCPv6 relay ( RADIUS inserted raw options ).
There are two DNS options [23] since they are supplied via two sources (DHCPv6 server and RADIUS Alc-ToClient-DHCP-Option VSA).
32885 2014/07/24 03:15:28.32 WEST MINOR: DEBUG #2001 vprn1 TIP
"TIP: DHCP6_PKT
Outgoing DHCP6 Msg : RELAY_REPLY (13)
to itf g1-1
Hop Count : 0
Link Addr : ::
Peer Addr : fe80::200:65ff:fe01:301
Option : RELAY_MSG (9), Length : 265
Msg Type : REPLY (7)
Trans Id : 0x060000
Option : SERVERID (2), Length : 10
LL : HwTyp=0001,LL=d896ff000000
00030001d896ff000000
Option : CLIENTID (1), Length : 10
LL : HwTyp=0001,LL=000065010301
00030001000065010301
Option : IA_NA (3), Length : 40
IAID : 0
Time1: 600 seconds
Time2: 900 seconds
Option : IAADDR (5), Length : 24
Address : 2001:db8:3:1::1
Preferred Lifetime : 1200 seconds
Valid Lifetime : 1200 seconds
Option : IA_PD (25), Length : 41
IAID : 0
Time1: 600 seconds
Time2: 900 seconds
Option : IAPREFIX (26), Length : 25
Prefix : 2001:db8:4:400::/54
Preferred Lifetime : 1200 seconds
Valid Lifetime : 1200 seconds
Option : DNS_NAME_SRVR (23), Length : 16
Server : 2001:db8:1:1:1:1:1:3
Option : UNKNOWN (232), Length : 20
763620637573746f6d206f7074696f6e20323332
Option : VENDOR_OPTS (17), Length : 26
Enterprise : 0000197f
Option : UNKNOWN (230), Length : 18
637573746f6d2074657374206f7074696f6e
Option : DNS_NAME_SRVR (23), Length : 32
Server : 2001:db8:1:1:1:1:1:1
Server : 2001:db8:1:1:1:1:1:2
Option : DOM_SRCH_LIST (24), Length : 30
SearchList : .Nokia.com..test.com.
Option : INTERFACE_ID (18), Length : 7
Interface Id : 64732d6c656674 (ds-left)
The Wireshark® capture of the DHCPv6 Reply message on the client side mirrors the debug information captured by the SR OS node:
The following command captures the information kept in the SR OS node DHCPv6 relay lease state:
*A:BNG1# show service id 1 dhcp6 lease-state detail
===============================================================================
DHCP lease states for service 1
===============================================================================
Service ID : 1
IP Address : 2001:db8:3:1::1/128
Client HW Address : 00:00:65:01:03:01
Subscriber-interface : int1-1
Group-interface : g1-1
SAP : [1/1/5:1.3]
Up Time : 0d 00:02:41
Remaining Lease Time : 0d 00:17:18
Remaining SessionTime: N/A
Persistence Key : N/A
Sub-Ident : "ds-left"
Sub-Profile-String : "sub-profile-1"
SLA-Profile-String : "sla-profile-2"
App-Profile-String : ""
Lease ANCP-String : ""
Lease Int Dest Id : ""
Category-Map-Name : ""
Dhcp6 ClientId (DUID): 00030001000065010301
Dhcp6 IAID : 0
Dhcp6 IAID Type : non-temporary
Dhcp6 Client Ip : fe80::200:65ff:fe01:301
Primary-Dns : N/A
Secondary-Dns : N/A
Pool Name : "wan-left"
Dhcp6 Server Addr : 2001:db8::1001
Dhcp6 ServerId (DUID): 00030001d896ff000000
Dhcp6 InterfaceId : ds-left
Dhcp6 RemoteId : N/A
Lease Info origin : DHCP
ServerLeaseStart : 07/24/2014 03:15:28
ServerLastRenew : 07/24/2014 03:15:28
ServerLeaseEnd : 07/24/2014 03:35:27
Session-Timeout : N/A
Radius User-Name : "ds-left"
-------------------------------------------------------------------------------
Service ID : 1
IP Address : 2001:db8:4:400::/54
Client HW Address : 00:00:65:01:03:01
Subscriber-interface : int1-1
Group-interface : g1-1
SAP : [1/1/5:1.3]
Up Time : 0d 00:02:41
Remaining Lease Time : 0d 00:17:18
Remaining SessionTime: N/A
Persistence Key : N/A
Sub-Ident : "ds-left"
Sub-Profile-String : "sub-profile-1"
SLA-Profile-String : "sla-profile-2"
App-Profile-String : ""
Lease ANCP-String : ""
Lease Int Dest Id : ""
Category-Map-Name : ""
Dhcp6 ClientId (DUID): 00030001000065010301
Dhcp6 IAID : 0
Dhcp6 IAID Type : prefix
Dhcp6 Client Ip : fe80::200:65ff:fe01:301
Primary-Dns : N/A
Secondary-Dns : N/A
Pool Name : "pd-left"
Dhcp6 Server Addr : 2001:db8::1001
Dhcp6 ServerId (DUID): 00030001d896ff000000
Dhcp6 InterfaceId : ds-left
Dhcp6 RemoteId : N/A
Lease Info origin : DHCP
ServerLeaseStart : 07/24/2014 03:15:28
ServerLastRenew : 07/24/2014 03:15:28
ServerLeaseEnd : 07/24/2014 03:35:27
Session-Timeout : N/A
Radius User-Name : "ds-left"
-------------------------------------------------------------------------------
Number of lease states : 2
===============================================================================
Python Debug Output
DHCPv4
For debugging purpose a line is added to the Python script printing all DHCP option numbers present in the incoming DHCP packets.
It can also be observed that all Python induced modifications to the original DHCP message are also displayed in the debugging output (inserting option [51] in this case).
Python script:
from alc import dhcpv4
myopt = dhcpv4.getOptionList()
print "option-list =", repr(myopt)
#lease 500s 8min 20sec
dhcpv4.set(51,('\x00\x00\x01\xf4',))
Debug Output:
32826 2014/07/24 03:02:46.44 WEST MINOR: DEBUG #2001 Base Python Output
"Python Output: acg
option-list (53, 54, 50, 82, 255)
"
32827 2014/07/24 03:02:46.44 WEST MINOR: DEBUG #2001 Base Python Result
"Python Result: acg
DHCPv4 Option 51, SET
'\x00\x00\x01\xf4'
"
DHCPV6
Also the DHCPv6 Python script has some lines added to demonstate Python debugging capabilities. The new lines print assigned values to the debugging output.
DHCPv6 script
from alc import dhcpv6
import struct
packet = dhcpv6.get_relaymsg()
msgTop = ord(dhcpv6.msg_type)
msgBot = ord(packet.msg_type)
ia_na = packet.get_iana()
ia_pd = packet.get_iapd()
print 'ia-na = ', ia_na
print '\n'
print 'ia-pd = ', ia_pd
print '\n'
print 'msg type Top = ', msgTop
print 'msg type Bot = ', msgBot
msgType = struct.unpack('B',packet.msg_type)[0]
print "relay packet: ", msgType
# in relay request insert DHCPv6 lease times
if msgBot == 3:
ia_na[0][1] = '\x00\x00\x07\xd0'
ia_na[0][2] = '\x00\x00\x0b\xb8'
ia_na[0][3][5][0][1] = '\x00\x00\x0f\xa0'
ia_na[0][3][5][0][2] = '\x00\x00\x0f\xa0'
packet.set_iana(ia_na)
ia_pd[0][1] = '\x00\x00\x07\xd0'
ia_pd[0][2] = '\x00\x00\x0b\xb8'
ia_pd[0][3][26][0][0] = '\x00\x00\x0f\xa0'
ia_pd[0][3][26][0][1] = '\x00\x00\x0f\xa0'
packet.set_iapd(ia_pd)
dhcpv6.set_relaymsg(packet)
Python debugging output
32873 2014/07/24 03:15:28.32 WEST MINOR: DEBUG #2001 Base Python Output
"Python Output: acg6
ia-na = [['\x00\x00\x00\x00', '\x00\x00\x02X', '\x00\x00\x03\x84', {5: [[' \x01
\r\xb8\x00\x03\x00\x01\x00\x00\x00\x00\x00\x00\x00\x01', '\x00\x00\x04\xb0', '\x
00\x00\x04\xb0', {}]]}]]
ia-pd = [['\x00\x00\x00\x00', '\x00\x00\x02X', '\x00\x00\x03\x84', {26: [['\x00
\x00\x04\xb0', '\x00\x00\x04\xb0', '6', ' \x01\r\xb8\x00\x04\x04\x00\x00\x00\x00
\x00\x00\x00\x00\x00', {}]]}]]
msg type Top = 12
msg type Bot = 3
relay packet: 3
"
32874 2014/07/24 03:15:28.32 WEST MINOR: DEBUG #2001 Base Python Result
"Python Result: acg6
DHCPv6 Option 9, SET
'\x03\x06\x00\x00\x00\x08\x00\x02\x00\x00\x00\x01\x00\n\x00\x03\x00\x01\x00\x00
e\x01\x03\x01\x00\x02\x00\n\x00\x03\x00\x01\xd8\x96\xff\x00\x00\x00\x00\x06\x00\
x04\x00\x03\x00\x19\x00\x03\x00(\x00\x00\x00\x00\x00\x00\x07\xd0\x00\x00\x0b\xb8
\x00\x05\x00\x18 \x01\r\xb8\x00\x03\x00\x01\x00\x00\x00\x00\x00\x00\x00\x01\x00\
x00\x0f\xa0\x00\x00\x0f\xa0\x00\x19\x00)\x00\x00\x00\x00\x00\x00\x07\xd0\x00\x00
\x0b\xb8\x00\x1a\x00\x19\x00\x00\x0f\xa0\x00\x00\x0f\xa06 \x01\r\xb8\x00\x04\x04
\x00\x00\x00\x00\x00\x00\x00\x00\x00'
"
Conclusion
The most common DHCP options that need to be passed by the SR OS node to the clients can be directly configured in CLI with a DHCP option specific command (such as DNS or a router option in IPv4). The DHCP option specific commands hide the complexity of the option encoding from the operator.
Less common options can be configured via a custom-option command in CLI. This scenario requires the operator to be familiar with the encoding of the option.
Similarly, RADIUS provides the means to pass the DHCP options destined to the client in the form of option specific RADIUS attributes (lease-time, etc). For less common options, two RADIUS attributes are provided: Alc-ToClient-Dhcp-Options and Alc-ToClient-Dhcp6-Options. These two attributes allow the operator to encode client destined DHCP options using hexadecimal notation. Although this process requires manual encoding it provides a very flexible way of providing options to the client.
The custom options supplied via LUDB or RADIUS are appended by the SR OS node DHCP-relay agent to any existing options that may have been already inserted by the DHCP server in the DHCP packet.
Python processing can additionally assist in DHCP message processing where the options or the parameters within the existing options can be added, removed or modified.
